AC4C1 - Guitar amp VOX - Free user manual and instructions

Product type	Guitar tube amplifier
Brand	VOX
Model	AC4C1
Output power	4 Watts RMS into 16 Ω
Internal speaker	1 x 10" VX10 (16 Ω)
Tubes	2 x 12AX7 (preamp), 1 x EL84 (power)
Controls	Gain, Bass, Treble, Volume
Inputs	1 x INPUT (6.35 mm jack)
Outputs	1 x EXTERNAL SPEAKER (16 Ω)
Dimensions (W x D x H)	349 x 211 x 381 mm
Weight	7.9 kg
Power supply	Mains, voltage according to model (check back panel)
Power consumption	Not specified, but low (class A 4W amp)
Included accessories	Power cable, user manual
Cleaning	Soft dry cloth
Safety	Do not use near water, do not obstruct ventilation openings, disconnect during storms
Repairability	Refer to qualified after-sales service only

Frequently Asked Questions - AC4C1 VOX

How to clean my VOX AC4C1 amplifier?

Use a soft dry cloth. Never use liquid or abrasive products.

What tubes does the AC4C1 use?

It uses 2 x 12AX7 for the preamp and 1 x EL84 for the class A power stage.

Can I connect an external speaker?

Yes, via the EXTERNAL SPEAKER output. Only use a 16 Ω speaker with a power rating of at least 4 watts. The internal speaker is then disabled.

What type of cable should I use for the external speaker?

Use an unshielded speaker cable (not a shielded jack cable). Turn off the amplifier before connecting.

How to get a saturated sound?

Increase the Gain control beyond 12 o'clock and raise the Volume to saturate the power stage. The class A amp provides pleasant distortion at low volume.

What is the required mains voltage?

The voltage is indicated on the back panel of the amplifier. Check it before any connection. Use only the supplied cable.

Can I use this amplifier in a different country?

It is designed for the country of purchase. Using it elsewhere can be dangerous and void the warranty. Check compatibility.

What to do if the amplifier does not turn on?

Check the power cable, the mains socket and the fuse (located on the back panel). If the problem persists, contact after-sales service.

How to set the sound for a rock style?

Set the Gain to around 2 o'clock, Bass to halfway, Treble to 3/4, and adjust Volume to desired level. Be inspired by the Top Boost circuit.

Can I use effect pedals with the AC4C1?

Yes, connect your pedals between the guitar and the INPUT. The amp responds well to distortion and modulation pedals.

USER MANUAL AC4C1 VOX

IMPORTANT SAFETY INSTRUCTIONS

- Read these instructions.

- Keep these instructions.

- Heed all warnings.

- Follow all instructions.

- Do not use this apparatus near water.

- Mains powered apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on the apparatus.

- Clean only with dry cloth.

- Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.

- Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

- Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet. (for USA and Canada)

- Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

- Only use attachments/accessories specified by the manufacturer.

- Unplug this apparatus during lightning storms or when unused for long periods of time.

- Turning off the power switch does not completely isolate this product from the power line so remove the plug from the socket if not using it for extended periods of time.

• Install this product near the wall socket and keep the power plug easily accessible.

- WARNING—This apparatus shall be connected to a mains socket outlet with a protective earthing connection.

- Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

- Do not install this equipment on the far position from wall outlet and/or convenience receptacle.

- Do not install this equipment in a confined space such as a box for the conveyance or similar unit.

- Excessive sound pressure from earphones and headphones can cause hearing loss.

- Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

WARNING:

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE.

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

AVERTISSEMENT:

RISQUE DE CHOC ÉLECTRIQUE—NE PAS OUVRIR.

注意

感電の恐れあり、キャビネットをあけるな

The lightning flash with arrowhead symbol within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product.

THE FCC REGULATION WARNING (for USA)

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

- Consult the dealer or an experienced radio/TV technician for help.

Unauthorized changes or modification to this system can void the user's authority to operate this equipment.

Notice regarding disposal (EU only)

When this "crossed-out wheeled bin" symbol is displayed on the product, owner's manual, battery, or battery package, it signifies that when you wish to dispose of this product, manual, package or battery you must do so in an approved manner. Do not discard this product, manual, package or battery along with ordinary household waste. Disposing in the correct manner will prevent harm to human

and potential damage to the environment. Since the method of disposal will depend on the applicable regulations in your locality, please contact your administrative body for details. If the battery contains metals in excess of the regulated amount, a chemi-bol is displayed below the "crossed-out wheeled" symbol on the battery or battery package.

* All product names and company names are the trademarks or registered trademarks of their respective owners.

INTRODUCTION

Congratulations on your purchase of the VOX AC4C1!

Based on the legendary VOX Top Boost circuit, this is the perfect balance between compact size and killer sound. Designed to give you rocking tone without waking the neighbours, the AC4C1's class A power stage can be cranked to stadium tour saturation levels without leaving your sitting room or home studio! A luxury which is hard to find in an all-tube amp.

Using the same tube compliment and circuit topology as the original “Top Boost” preamp circuit design, the AC4C1 will give you the unmistakable VOX tone that is loved and desired by VOX fans and tone-chasers the world over!

ENJOY!

VOX

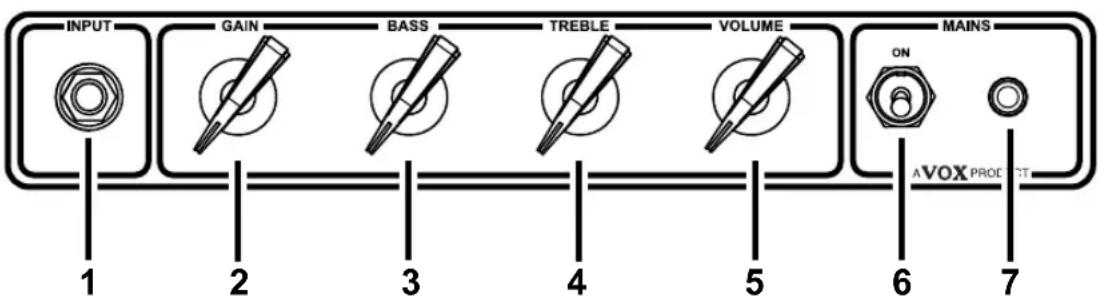

FRONT PANEL LAYOUT

1. INPUT JACK Insert your guitar here!
2. GAIN This controls the preamp volume and will determine the amount of preamp distortion. For a clean sound, the knob should be set somewhere before 12 o'clock and for more distortion... crank it!
3. BASS This controls the low frequencies in your sound—from thin and light when turned down (counter clockwise) to warm and fat when turned up full (clockwise) and all points in-between.
4. TREBLE This controls the high frequencies in your sound—from soft and smooth when turned down (counter clockwise) to bright and cutting when cranked (clockwise) and all points in-between.
5. VOLUME This controls the overall volume of your amplifier and because this is a single ended, class A design it will also have an effect on the amount of distortion in the power amp.
6. POWER SWITCH This turns the amp on and off!
7. INDICATOR This will tell you if your amp is on or off!

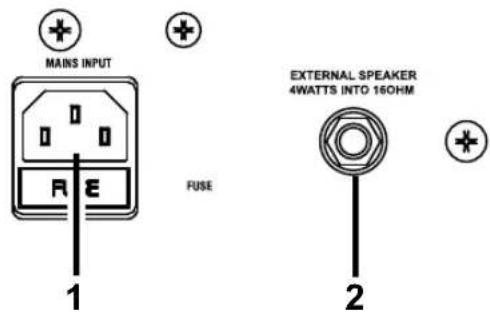

REAR PANEL LAYOUT

1. MAINS INPUT Connect your supplied mains power lead here.

NOTE: Use only the power cable that is included with the AC4C1. Using another power cable may cause malfunctions.

The specific mains input voltage rating that your amplifier needs to run at is located on the rear panel of your amplifier. Before making any connections or powering up the amplifier, make sure the correct voltage is set. If you have any doubt, refer to your local VOX dealer.

2. EXTERNAL SPEAKER OUT

This is used to connect the AC4C1 to any 16ohm cabinet.

NOTE: When an external cabinet is connected, the internal speaker is disconnected.

WARNING: To ensure that your system works correctly, you must observe the following points.

a) Don't use an external cabinet whose impedance is other than 16 ohms.
b) Don't connect a speaker whose rated input capacity is less than 4 Watts. The speaker may be destroyed if you ignore this caution—not recommended!
c) You must use a speaker cable to connect an external speaker. Don't use a shielded cable like the one you use to connect a guitar to an amp.
d) You must turn off the power before connecting the cable. Connecting the cable while the power is turned on may damage your amp.

NOTE: It is recommended that all audio cables, with the exception of the speaker lead, used to connect to the AC4C1 of a high quality, screened type. These should not exceed 10 metres in length. Always use a non-screened VOX approved speaker lead with the AC4C1 Amplifier and external cabinets.

SPECIFICATION

- Controls: Gain, Bass, Treble, Volume

- Inputs: Guitar In

- Outputs: External speaker out

- Tube compliment 2 x 12AX7, 1 x EL84

• Output Power: 4 W RMS (16Ω)

- Speaker: 1 × 10'' VX10 (16Ω)

- Dimensions (W x D x H): 349 x 211 x 381 mm / 13.74 x 8.31 x 15 inches

• Weight: 7.9 kg / 17.42 lbs.

- Accessory: Power Cable, Manual

*Specifications and appearance are subject to change without notice for improvement.

INFORMATIONS IMPORTANTES DE SECURITE

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE.

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

AVERTISSEMENT:

RISQUE DE CHOC ÉLECTRIQUE—NE PAS OUVRIR

注意

感電の恐れあり、キャビネットをあけるな

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE.

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

AVERTISSEMENT:

RISQUE DE CHOC ÉLECTRIQUE—NE PAS OUVRIR.

注意

感電の恐れあり、キャビネットをあけるな

1. INPUT-Buchse

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE.

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

AVERTISSEMENT:

RISQUE DE CHOC ÉLECTRIQUE—NE PAS OUVRIR.

注意

感電の恐れあり、キャビネットをあけるな

1. JACK DE ENTRADA

This product has been manufactured according to strict specifications and voltage requirements that are applicable in the country in which it is intended that this product should be used. If you have purchased this product via the internet, through mail order, and/or via a telephone sale, you must verify that this product is intended to be used in the country in which you reside.

WARNING: Use of this product in any country other than that for which it is intended could be dangerous and could invalidate the manufacturer's or distributor's warranty. Please also retain your receipt as proof of purchase otherwise your product may be disqualified from the manufacturer's or distributor's warranty.
