Product Type	Ceiling fan with lighting option
Brand	Broan
Model	AE50110DCL
Usage	General ventilation, ceiling or wall installation (2.4 m from floor)
Power Supply	120 VAC, 60 Hz
Adjustable Airflow	50, 80 or 110 CFM
Duct	Round 10 cm (4 in)
Cutout Dimensions	24.8 cm × 26.7 cm
Weight	Approximately 3.5 kg (estimate)
Main Functions	Separate ventilation and lighting, two-function wall control
Lighting Type	Integrated LED module (depending on model)
Maintenance and Cleaning	Clean with brush vacuum; motor lubricated for life
Safety	Grounding mandatory; do not use to exhaust hazardous vapors
Installation	By qualified person; possible in renovation; adaptable between joists (optional suspension bars)
Spare Parts and Repairability	Replaceable fan assembly (motor + wheel); technical support and parts via Broan.com or phone
Warranty	Consult website or call: USA 800-637-1453, Canada 877-896-1119

Frequently Asked Questions - AE50110DCL BROAN

Can I install this fan above a bathtub or shower?

Yes, provided it is installed in the ceiling and connected to a circuit protected by a ground fault circuit interrupter (GFCI).

Can I use a speed control for the fan?

For Flex™ Series models with fan/light, do not use a speed control. Use a two-function wall control.

How do I clean the fan?

Lower or remove the grille, then clean the interior with a vacuum cleaner equipped with a dusting brush. The motor is lubricated and does not require oil.

What is the recommended duct size?

Use a round duct 10 cm (4 in). Seal joints with duct tape.

Can I install this fan in a wall?

Yes, if mounted at least 2.4 m (8 ft) above the floor.

How do I adjust the airflow?

On some models, you can select 50, 80 or 110 CFM depending on room size and desired airflow.

What if the motor becomes noisy?

If the motor bearings are abnormally noisy, replace the fan assembly (motor and wheel).

Can I install the fan on existing ducts?

Yes, but airflow may be reduced. For optimal performance, use the shortest and straightest ducts possible.

Do I need to disconnect power before maintenance?

Yes, turn off power at the electrical panel and lock the main switch or attach a warning tag.

Where to find spare parts?

Visit Broan.com or call 800-637-1453 (USA) or 877-896-1119 (Canada).

USER MANUAL AE50110DCL BROAN

Roomside / Flex™ Series Fan/Light READ AND SAVE THESE INSTRUCTIONS

For Warranty Statement, Service Parts, Technical Support, or to Register your product, please visit our website or call: In the United States - Broan.com 800-637-1453 or NuTone.com 888-336-6151. In Canada - Broan.ca or NuTone.ca 877-896-1119

WARNING

TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS, OBSERVE THE FOLLOWING:

1. Use this unit only in the manner intended by the manufacturer. If you have questions, contact the manufacturer at the address or telephone number listed in the warranty.
2. Before servicing or cleaning unit, switch power off at service panel and lock the service disconnecting means to prevent power from being switched on accidentally. When the service disconnecting means cannot be locked, securely fasten a prominent warning device, such as a tag, to the service panel.
3. Installation work and electrical wiring must be done by a qualified person(s) in accordance with all applicable codes and standards, including fire-rated construction codes and standards.
4. Sufficient air is needed for proper combustion and exhausting of gases through the flue (chimney) of fuel burning equipment to prevent backdrafting. Follow the heating equipment manufacturer's guideline and safety standards such as those published by the National Fire Protection Association (NFPA), and the American Society for Heating, Refrigeration and Air Conditioning Engineers (ASHRAE), and the local code authorities.
5. When cutting or drilling into wall or ceiling, do not damage electrical wiring and other hidden utilities.
6. Ducted fans must always be vented to the outdoors.
7. Acceptable for use over a tub or shower when connected to a GFCI (Ground Fault Circuit Interrupter) - protected branch circuit (ceiling installation only).
8. This unit must be grounded.

CAUTION

1. For general ventilating use only. Do not use to exhaust hazardous or explosive materials and vapors.
2. This product can be installed in a wall if mounted 8-ft. or more above the floor.
3. To avoid motor bearing damage and noisy and/or unbalanced impellers, keep drywall spray, construction dust, etc. off power unit.
4. Please read specification label on product for further information and requirements.

CLEANING & MAINTENANCE

For quiet and efficient operation, long life, and attractive appearance - lower or remove grille and vacuum interior of unit with the dusting brush attachment.

The motor is permanently lubricated and never needs oiling. If the motor bearings are making excessive or unusual noises, replace the blower assembly (includes motor and impeller).

OPERATION

The fan and light can be operated separately. Use a 2-function wall control.

Flex™ Series Fan/Light ONLY: Do not use a speed control to operate the fan.

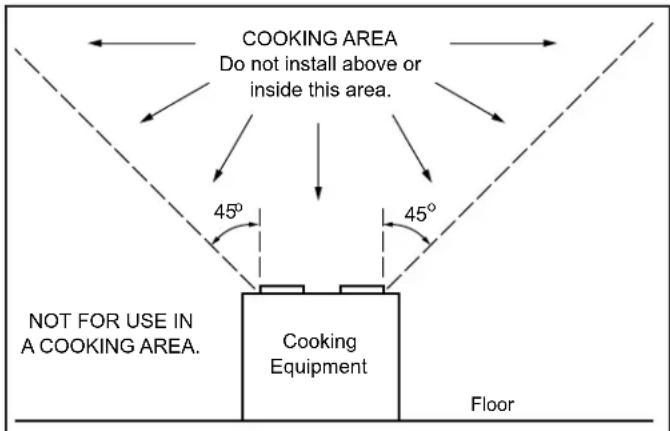

COOKING AREA Do not install above or inside this area. 45° 45° NOT FOR USE IN A COOKING AREA. Cooking Equipment Floor

- IMPORTANT -The ducting from this fan to the outside of the building has a strong effect on the air flow, noise and energy use of the fan. Use the shortest, straightest duct routing possible for best performance, and avoid installing the fan with smaller ducts than recommended. Insulation around the ducts can reduce energy loss and inhibit mold growth. Fans installed with existing ducts may not achieve their rated airflow.

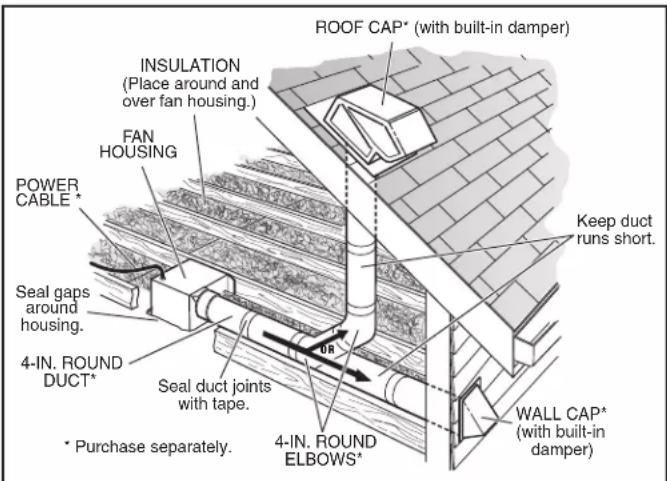

ROOF CAP* (with built-in damper) INSULATION (Place around and over fan housing.) FAN HOUSING POWER CABLE * Seal gaps around housing. 4-IN. ROUND DUCT* * Purchase separately. Seal duct joints with tape. 4-IN. ROUND ELBOWS* DR Keep duct runs short. WALL CAP* (with built-in damper)

OPTION - To mount housing anywhere between ceiling framing: Use optional Hanger Bar Kit (sold separately from local distributors or website). Follow mounting instructions included with kit.

ALL INSTALLATIONS

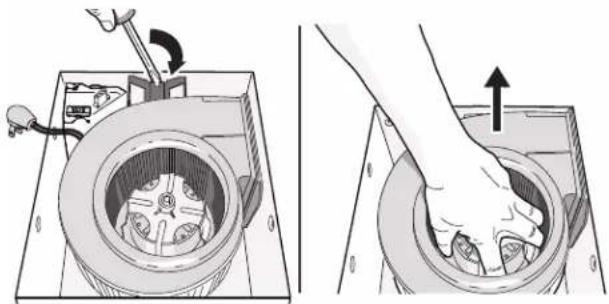

1 Remove all packing material, unplug and remove blower from fan housing.

Two-step diagram showing a hand operating a tool inside a cylindrical device, with no visible text or symbols.

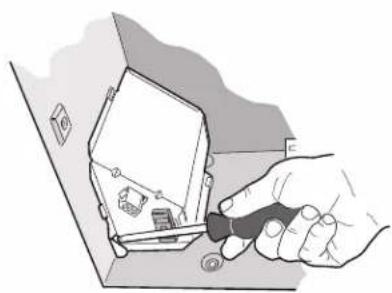

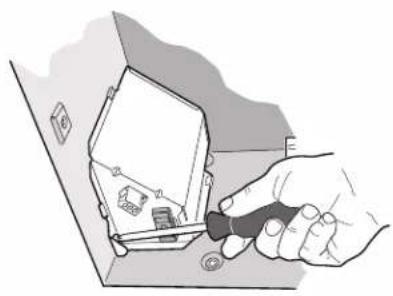

2 Remove wiring panel from fan housing. (if already installed).

Illustration of hands assembling a mechanical component with an arrow indicating assembly direction (no text or symbols present)

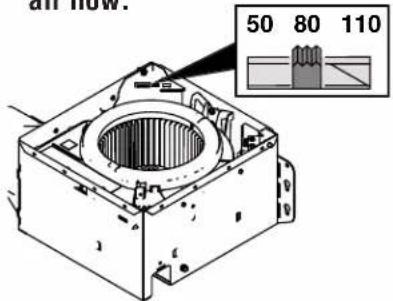

3 The models only: Select 50, 80 or 110

CFM based on your room size and desired air flow.

an now. 50 80 110

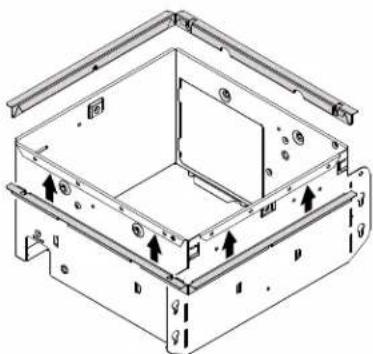

4 Some models only: A pair of flanges may be attached to housing if desired or required.

Snap both flange pieces under rolled-over edge of housing (all four sides).

Technical line drawing of a mechanical housing or enclosure with mounting holes and internal components (no text or symbols)

For Retrofit Installation - Skip to Page 3.

NEW INSTALLATION

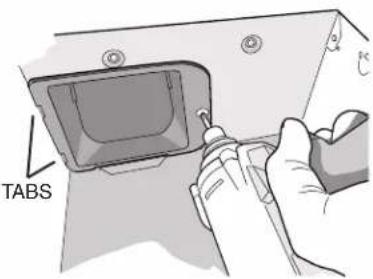

5 Attach damper/duct connector to fan housing.

Push connector through opening from inside of housing.

Engage tabs and secure with screw from parts bag.

TABS

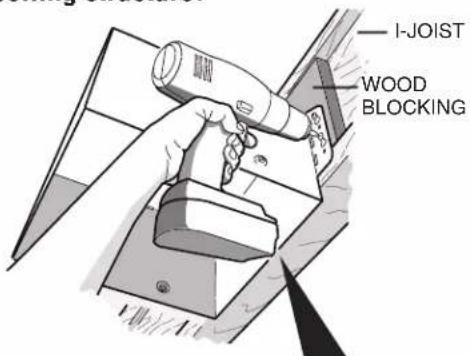

6 Mount housing to ceiling structure.

Make sure bottom of housing will be flush with finished ceiling.

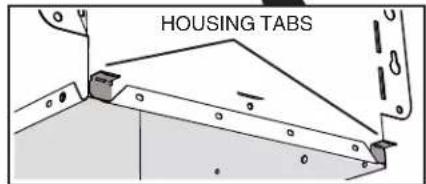

For proper location using 12 " ceiling material: Bend out housing tabs (on outside of housing) to fit against bottom of joist.

Secure housing through mounting ears with appropriate fasteners. If mounting housing to I-joist, use wood blocking as shown.

I-JOIST WOOD BLOCKING

HOUSING TABS

7
Connect 4-in. round duct.

Technical diagram of a mechanical component with numbered parts (no readable text or symbols)

8

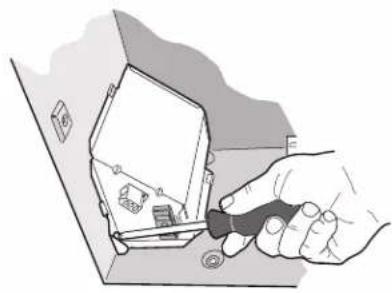

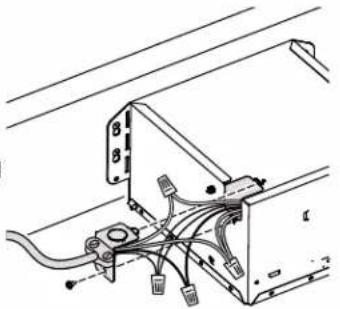

Connect wiring.

Connect power cable to wiring plate (from parts bag) using UL approved connector. Connect house wiring to fan wiring. Refer to wiring diagram for connection details. Use screw (from parts bag) to secure wiring plate to fan hou panel and secure with

Technical line drawing of a mechanical or electrical assembly with no visible text, numbers, or symbols.

Illustration of a hand using a tool to adjust or install a component on a surface (no text or symbols visible)

9

Finish ceiling.

Then continue with Step 10.

RETROFIT INSTALLATION

5

Remove old fan and prepare ceiling.

Enlarge ceiling opening (if necessary) to 9 ^3/4 " parallel to joist) by 10 ^1/2 " (perpendicular to joist). (Some models have a cut-out template on side of carton.)

Technical diagram of a mechanical assembly with a tool and component, no visible text or symbols

10½-in. 9¾-in. JOIST ②

6
Fold mounting ears flat against housing.

Hand inserting a component into a device housing (no text or symbols visible)

Existing fan housings are typically attached to the structure:

- with screws, nails, or staples, which must be removed.

- with hangers or rails which are fastened to joists and must be removed along with housing.

A pry bar may be needed to remove the old housing.

Leave ductwork and wiring in place.

7

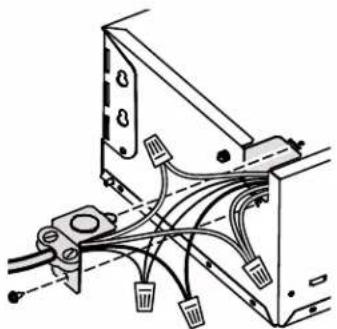

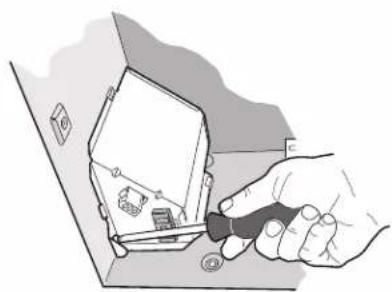

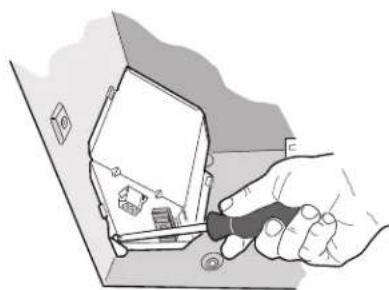

Connect wiring.

Connect power cable to wiring plate (from parts bag) using UL approved connector. Connect house wiring to fan wiring. Refer to wiring diagram for connection details. Use screw (from parts bag) to secure wiring plate to fan housing. Re-install wiring panel and secure with screw from parts bag.

Pure electrical circuit lines without any symbols

Illustration of a hand using a screwdriver to adjust or install a component on a surface (no text or symbols visible)

8

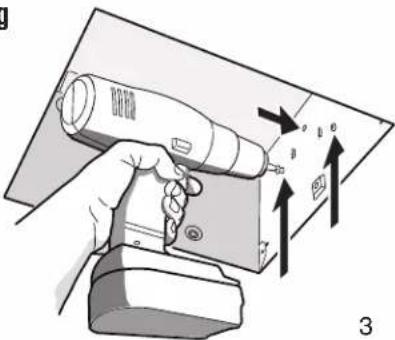

Mount fan to ceiling structure.

Mount housing to ceiling structure with appropriate fasteners in locations shown.

g 3

9

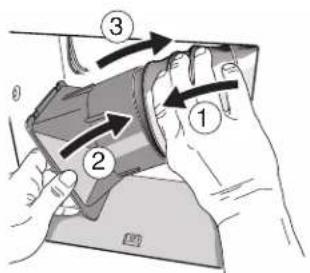

Connect 4-in. round duct.

① Pull existing ducting through housing discharge opening and ② tape ducting to duct connector. ③ Push connector/ducting back through opening. Engage tabs and ④ secure with screw from parts bag.

Diagram showing hands holding a device with numbered arrows indicating motion or sequence, labeled 1, 2, and 3.

4 TABS

Continue with Step 10.

ALL INSTALLATIONS

10

Install blower.

Re-install blower removed in Step 1. Secure blower with 2 screws from parts bag. Plug blower into black receptacle.

Flex™ Series Fan/Light ONLY: Plug 5-wire plug into controller module.

Illustration of a hand using a wrench to adjust or install a mechanical component (no text or symbols visible)

Illustration of a hand holding a small object over a curved surface (no text or symbols visible)

Flex™ Series

Flex™ Series Fan/Light ONLY

11

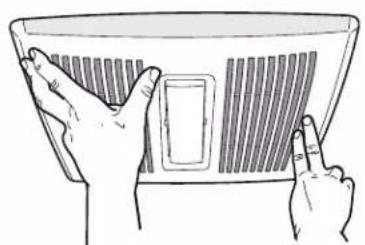

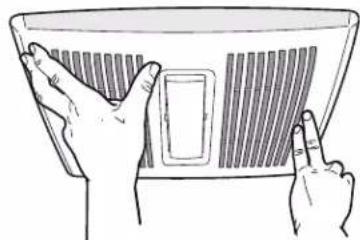

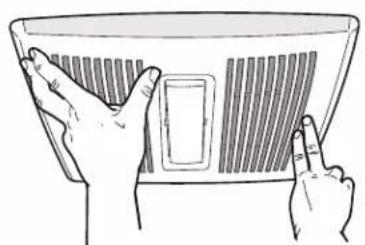

Install grille.

LED Fan/Light ONLY:

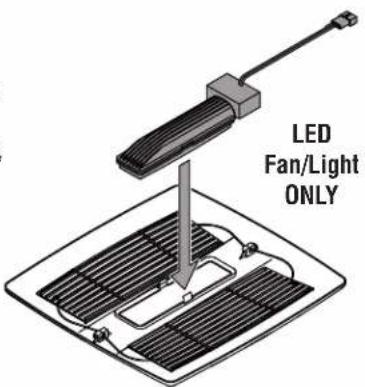

Snap LED light module into inside of grille.

Note: On some models, LED module may already be installed.

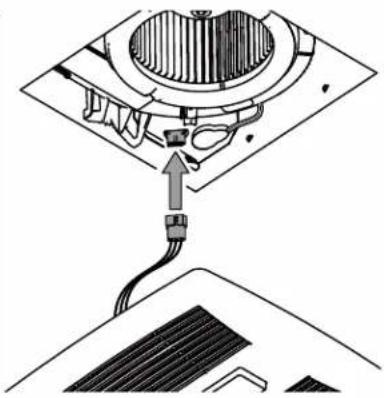

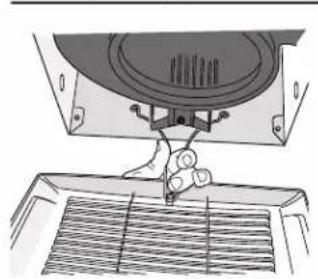

Plug in light module. Squeeze grille springs and insert into slots in blower. Push grille up against ceiling.

LED Fan/Light ONLY

Diagram of a mechanical assembly with a component inserted into a housing, showing internal wiring and a cable (no text or symbols)

For models 791LEDM and 791LEDNTM ONLY:

Plug in light ① and LED driver ②.

Diagram showing a hand using a screwdriver to adjust or install a device with labeled parts 1 and 2.

Depending upon model - your grille may look different.

Technical line drawing of a sewing machine needle stitching a grille (no text or symbols)

Illustration of two hands holding a large fan or container with a small rectangular object on the lid (no text or symbols visible)

Diagram of a roof structure with curved roof elements and a hanging component (no text or symbols)

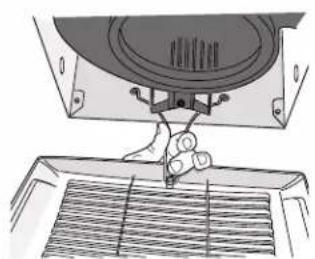

If grille spring becomes dislodged from grille - snap it back into place as shown.

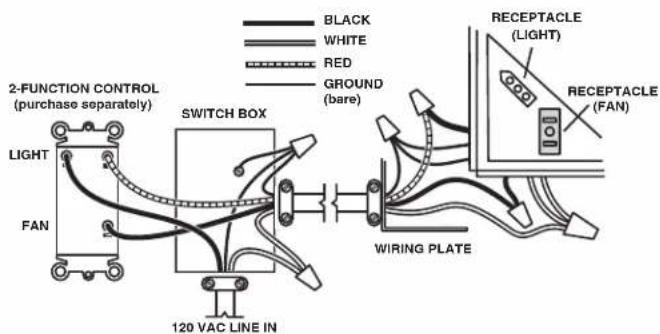

WIRING DIAGRAM

2-FUNCTION CONTROL (purchase separately) LIGHT FAN SWITCH BOX 120 VAC LINE IN BLACK WHITE RED GROUND (bare) WIRING PLATE RECEPTACLE (LIGHT) RECEPTACLE (FAN)

Ventilateur/Éclairage Série Roomside / Flex™ LISEZ CES DIRECTIVES ET CONSERVEZ-LES

AVERTISSEMENT

OBSERVEZ LES DIRECTIVES CI-DESSOUS AFIN DE RÉDUIRE LES RISQUES D'INCENDIE, DE CHOC ÉLECTRIQUE OU DE BLESSURES CORPORELLES :

Two-step diagram showing a hand operating a tool inside a cylindrical device, with no visible text or symbols.

Illustration of hands installing a device component with an upward arrow (no text or symbols)

Technical line drawing of a mechanical housing or enclosure with mounting brackets and internal components (no text or symbols)

Pure technical diagram of a mechanical component with no visible text, numbers, or symbols

Branchez les fils.

Illustration of a hand using a tool to adjust or install electronic components on a device (no text or symbols visible)

Diagram of a mechanical assembly with a tool and component, no visible text or symbols

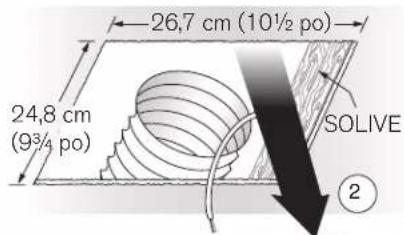

26,7 cm (10½ po) 24,8 cm (9¾ po) SOLIVE ②

Hand inserting a component into a device housing (no text or symbols visible)

Technical diagram of electrical connectors and wiring (no text or labels)

Illustration of a hand using a screwdriver to adjust or install a component on a surface (no text or symbols visible)

Diagram showing a hand holding a handheld device with directional arrows and labeled parts, likely illustrating a process or manufacturing procedure.

9

Raccordez un conduit rond de 10 cm (4 po).

Diagram showing three labeled steps of a mechanical or electrical component with directional arrows indicating motion.

ERGOTS ④

Illustration of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Illustration of a hand holding a small object over a curved surface (no text or symbols)

Diagram of a mechanical assembly with a central component and cable, no visible text or symbols

Technical diagram showing a hand operating a device with labeled parts and directional arrows indicating motion or operation.

Diagram of a sewing machine needle stitching a grille (no text or symbols)

Illustration of two hands pointing at a gridded panel or vent (no text or symbols)

Technical diagram showing a mechanical or structural assembly with labeled components and directional arrows indicating motion or force.

Two technical diagrams showing a hand operating a device inside a circular housing, with no visible text or symbols.

2

Illustration of hands installing a component with an upward arrow (no text or symbols)

5

algunos

modelos: Seleccione

Technical line drawing of a mechanical housing or enclosure with mounting holes and internal components (no text or symbols)

Pure technical diagram of a mechanical component with no visible text, numbers, or symbols

Technical line drawing of a mechanical or electrical assembly with no visible text, numbers, or symbols.

Illustration of a hand using a tool to adjust or install electronic components on a device (no text or symbols visible)

Hand inserting a component into a device housing (no text or symbols visible)

Technical diagram of electrical connectors and wiring (no text or symbols)

Illustration of a hand using a screwdriver to adjust or install an electronic device (no text or symbols visible)

Diagram showing a hand holding a handheld device with directional arrows and labeled parts, likely illustrating a process or installation.

9

Diagram showing hands holding a device with numbered arrows indicating motion or sequence, labeled 1, 2, and 3.

LENGÜETAS 4

Illustration of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Illustration of a hand holding a small object over a curved surface (no text or symbols visible)

Ventilador / Luz Serie Flex™

Ventilador / Luz Serie Flex™ SOLAMENTE

11

Instale la rejilla.

Diagram of a mechanical assembly with a central component and cable, showing no text or symbols

Diagram showing a hand operating a device with labeled parts and directional arrows indicating motion or operation.

Technical line drawing of a sewing machine needle stitching a grille (no text or symbols)

Illustration of hands holding a large fan or container with a small rectangular object inside (no text or symbols visible)

Technical diagram showing installation or repair process with labeled components and directional arrows
