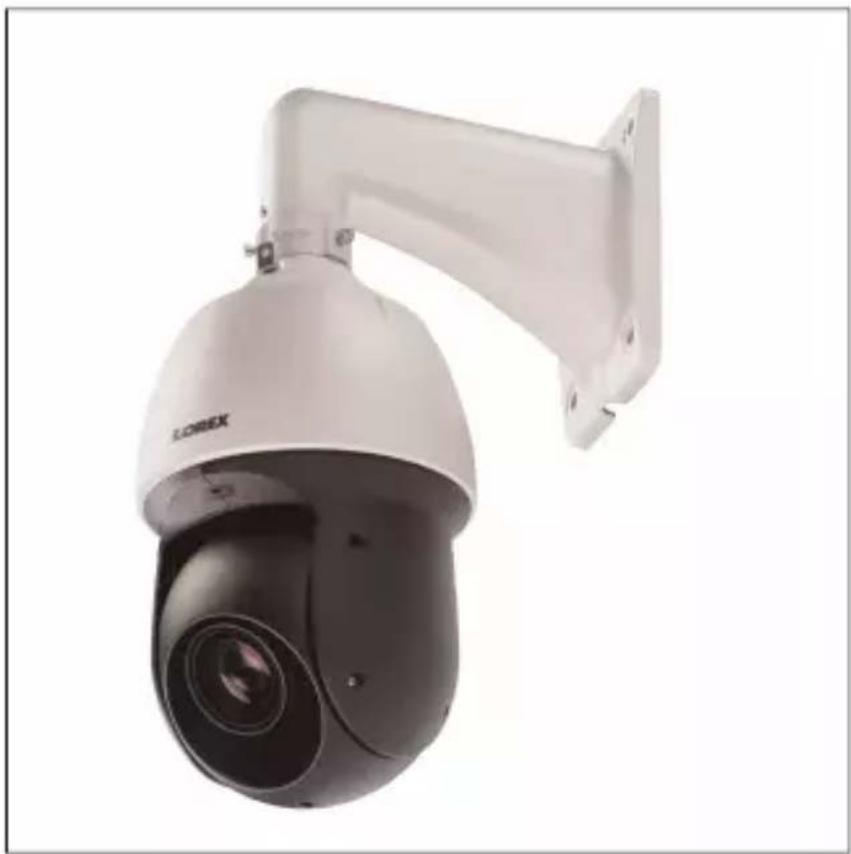

Instruction Manual PTZ Series P10 LNZ44P12 4MP IP PTZ Camera

Exterior view of a white LOREX security camera with mounted sensor (no text or symbols visible)

Thank you for purchasing this product. Lorex is committed to providing our customers with a high quality, reliable security solution.

This manual refers to the following model:

LNZ44P12

For the latest online manual, downloads and product updates, and to learn about our complete line of accessory products, please visit our website at:

lorextechnology.com

WARNING

RISK OF ELECTRIC SHOCK

DO NOT OPEN

WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER. NO USER SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE.

CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF THE PLUG TO THE WIDE SLOTAND FULLY INSERT.

Table of contents

1 Safety Instructions ..... . .... .. .... .. .... .. 1
2 Getting Started ..... 2
3 Connecting the Camera ... 4

3.1 Option 1: Connecting the Camera to an NVR..... 4

3.2 Connecting Cameras to the Local Area Network (LAN). ..... 5

3.3 Adding the PTZ Camera to the LNR / NR Series NVRs..... 9

3.4 Adding the PTZ camera to the LNK Series NVRs..... ..... 11

4 Installation ..... 13

4.1 Installation Tips & Warnings .... . ......... . .....13
4.2 Installation (Indoor / Outdoor).... . .. ....... . . ..14

5 Controlling the PTZ Camera with an NVR . ...... .. ..18
6 Controlling the PTZ camera with LNR / NR Series NVRs.... 19

6.1 Controlling the PTZ Camera .... . ..... . .....20
6.2 Advanced PTZ Controls.. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

7 Controlling the PTZ camera with LNK Series NVRs .... 28

7.1 Controlling the PTZ camera..... .29

8 Technical Specifications .... ..... 34
8.1 Dimensions ..... 36

9 Troubleshooting ....37

10 Inserting the microSD Card (Optional) and Resetting the Camera....39

1 Safety Instructions

• Read this guide carefully and keep it for future reference.
• Follow all instructions for safe use of the product and handle with care.
• Use the camera within given temperature, humidity, and voltage levels noted in the Technical Specifications.
• Camera is rated for outdoor use and is weatherproof when properly installed. Camera is not intended for submersion in water. Installation under a sheltered environment is recommended.
• Do not disassemble the camera.
• Do not point the camera directly towards the sun or a source of intense light.
• Use only the supplied regulated power supply. Use of a non-regulated, non-conforming power supply can damage this product and voids the warranty.
• Make sure to install the camera in a location that can support the camera weight.
• Make sure there are no live electrical cables in the area where you plan to mount the camera.
• Periodic cleaning may be required. Use a damp cloth only. Do not use anything other than water to clean the dome cover, as chemicals such as acetone can permanently damage the plastic.

2 Getting Started

The camera comes with the following components:

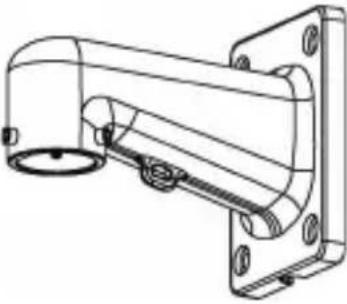

PTZ Camera	Wall Mount Power Adapter

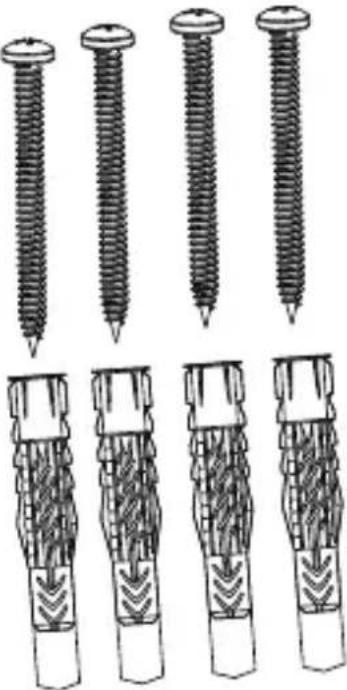

100ft (30.5m)Ethernet Extension Cable	Mounting Screws & Anchors (4x)	M6x14 Screws (3x)

2 Getting Started

Flat Washers (4x)	Rubber Ring Safety Chain
Allen Key Instruction Manual

Your accessories might appear different from the ones depicted in this guide.

3 Connecting the Camera

NOTE

It is recommended to connect the camera to your NVR and test the PTZ controls before permanent installation. For instructions on how to set up PTZ controls, see 5 Controlling the PTZ Camera with an NVR, page 18.

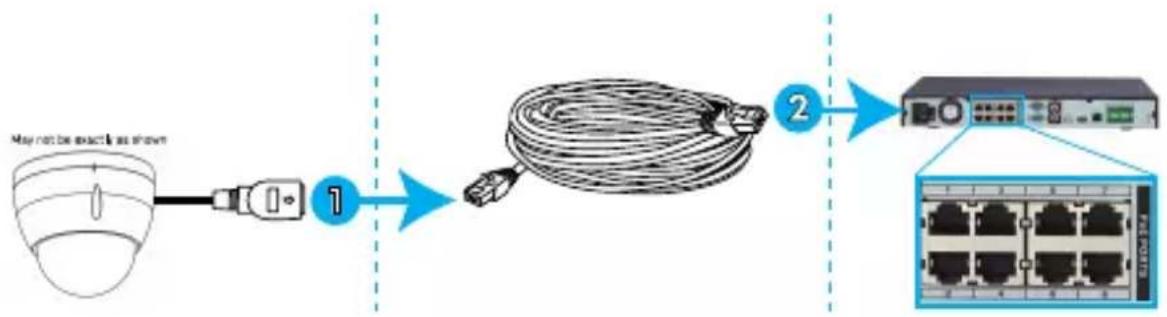

3.1 Option 1: Connecting the Camera to an NVR

1. Connect the PoE+ connector on the camera cable to the included Ethernet extension cable.
2. Connect the Ethernet extension cable to one of the PoE+ ports on the back panel of your NVR.

NOTE

• You can use up to a 300ft (91m) CAT5e Ethernet cable to connect the camera to your NVR.
• The camera is Compatible with the LNR / NR / LNK Series NVRs, excluding the LNR200 and LNR300 Series. For the most up-to-date list of compatible recorders, please visit lorextechnology.com/compatibility.

3.2 Connecting Cameras to the Local Area Network (LAN)

For flexibility, you may also connect the camera to the same Local Area Network (LAN) as the NVR. This is accomplished by connecting the camera to the same router as the NVR. For these installations, an external PoE+ switch (sold separately) or power adapter (included) must be used to provide power to the camera. You also must add the camera on the NVR before it will show a picture on the monitor or be recorded by the NVR.

What is PoE+?

PoE (Power over Ethernet) is a technology that allows Ethernet cables to carry electrical power to connected devices. High-powered devices such as PTZ cameras use PoE+ (also known as PoE class 4 or IEEE 802.3at), which provides more power to connected devices than standard PoE. Compatible NVRs use integrated PoE+ ports to provide power and PTZ commands to the camera, as well as video connection to the NVR. PoE+ ports will provide up to 30W to each connected device, whereas standard PoE (class 3) ports only provide up to 15W. In order to use this PoE+ rated camera without a power adapter, you must connect it directly to a compatible NVR (Compatible with the LNR / NR / LNK Series NVRs, excluding the LNR200 and LNR300 Series) or a PoE+ switch on the same network as the NVR. PoE+ switches are available for purchase on lorextechnology.com (model #: ACCLPS241B (4-channel model) or ACCLPS281B (8-channel model)).

Complete the following steps to connect the camera to the NVR over the LAN.

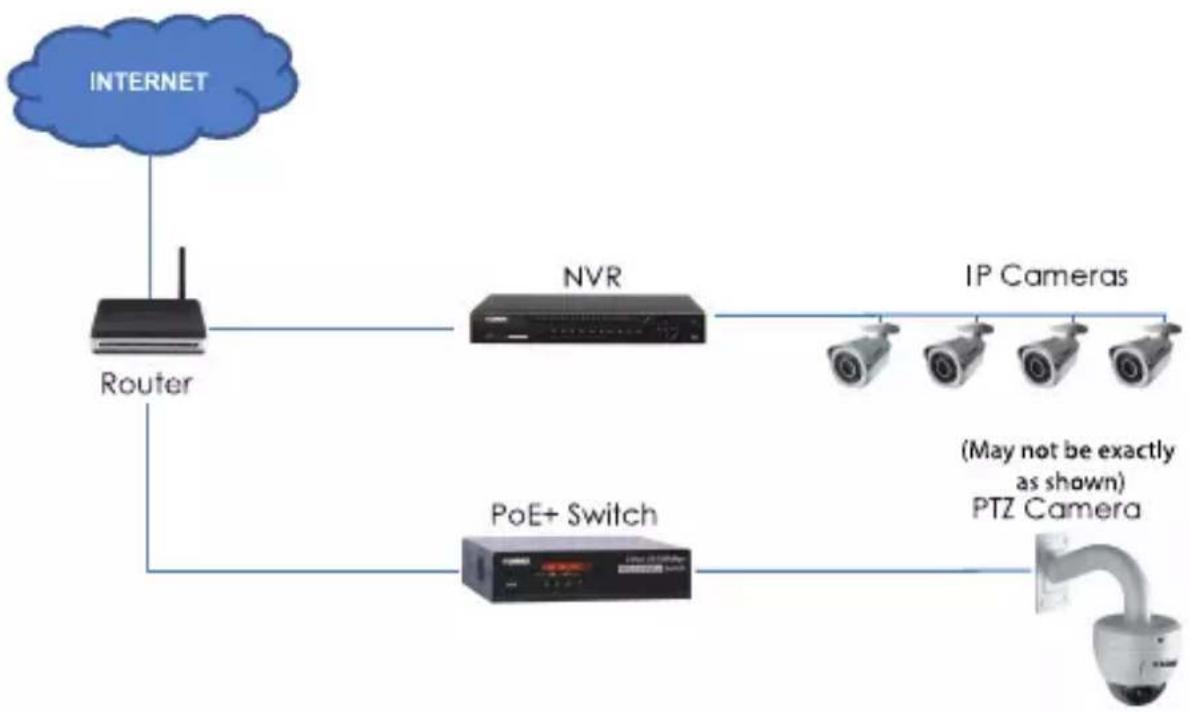

Step 1 of 2 — Option A: Connecting the camera to your local network using an optional PoE+ switch:

1. Connect an Ethernet cable of up to 300ft (91m) rated CAT5e or higher (not included) from the LAN port on an external PoE+ switch (sold separately on

lorextechnology.com) to your router. Connect the power cable to the PoE+ switch and to a power outlet or surge protector.

NOTE

Terminology may vary depending on the model of PoE+ switch you have.

1. Connect the camera to the PoE+ switch using the included Ethernet cable (or a CAT5e Ethernet cable of up to 300ft (91m)). The PoE+ switch will provide power and video transmission the same way as your NVR.

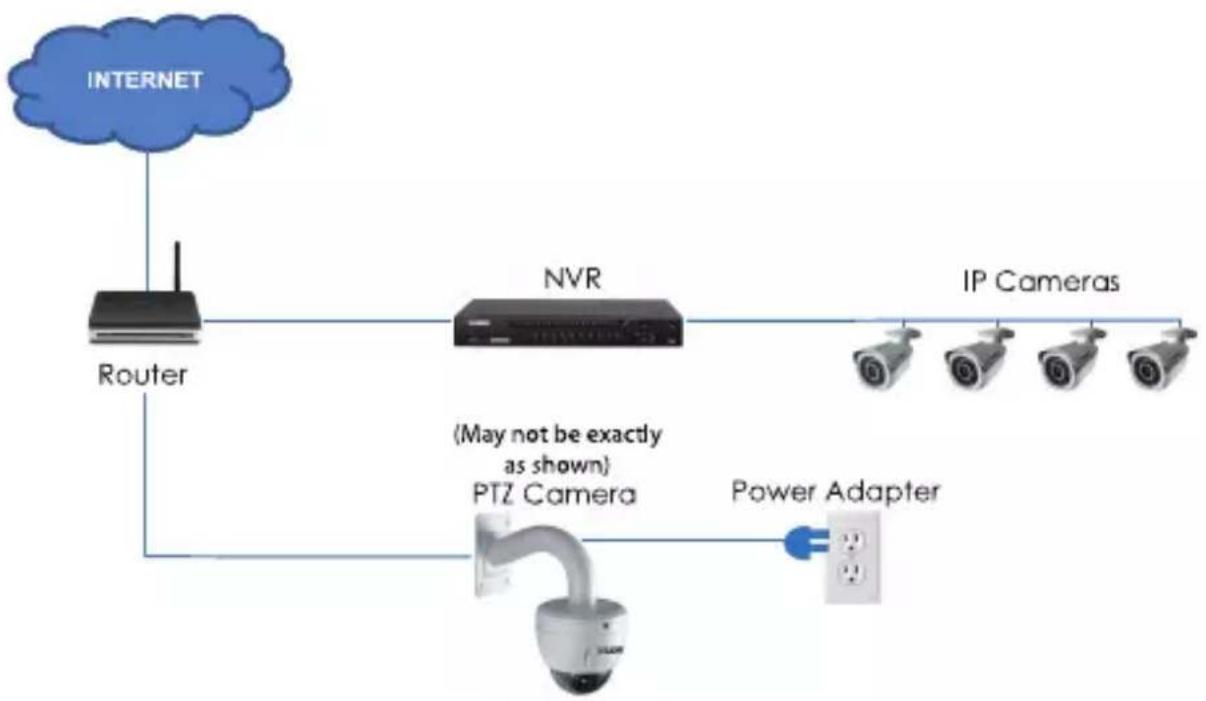

Step 1 of 2 — Option B: Connecting the camera to your local network using a power adapter:
    note1[" (May not be exactly as shown) "]

1. Connect the camera to the included power adapter.
2. Connect the camera to a router in the same network as your NVR using the included Ethernet cable (or an Ethernet cable of up to 300ft (91m) rated CAT5e or higher).

Step 2 of 2: Add the camera to your NVR:

• For instructions on adding the PTZ camera to the LNR / NR Series NVRs, see 3.3 Adding the PTZ Camera to the LNR / NR Series NVRs, page 9.
• For instructions on adding the PTZ camera to the LNK Series NVRs, see 3.4 Adding the PTZ camera to the LNK Series NVRs, page 11.

NOTE

For instructions on how to locate the serial and model number of your recorder, visit www.lorextechnology.com and search for "Where is the Serial and Model Number located".

3.3 Adding the PTZ Camera to the LNR / NR Series NVRs

To add the PTZ camera to the LNR / NR Series NVRs:

The following instructions are based on the LNR400 Series NVR. See your NVR's instruction manual for instructions on controlling the PTZ camera with your system.

NOTE

• Not compatible with LNR200 / LNR300 Series NVRs. For the latest list of compatible recorders, see lorextechnology.com/compatibility.

• You must have at least one empty channel before attempting to add the camera to the NVR.

• Right-click during live view and select Device Search.

• Log in using the admin account (default User Name: admin; default Password: 000000).

3 Connecting the Camera

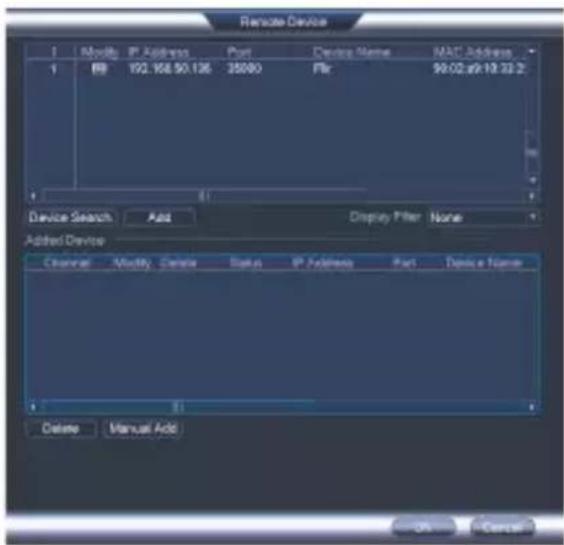

1. Click Device Search. The system searches the network for compatible cameras.

Remote Device 1 Modle IP Address Port Device Name MAC Address 1 F8 192.158.90.136 25000 F8r 98.02.srk10.33.2 Device Search Add Display Filter None Added Device Channel Modify Cancel Reset IP Address Port Device Name Delete Manual Add

1. Check the camera(s) you would like to add.

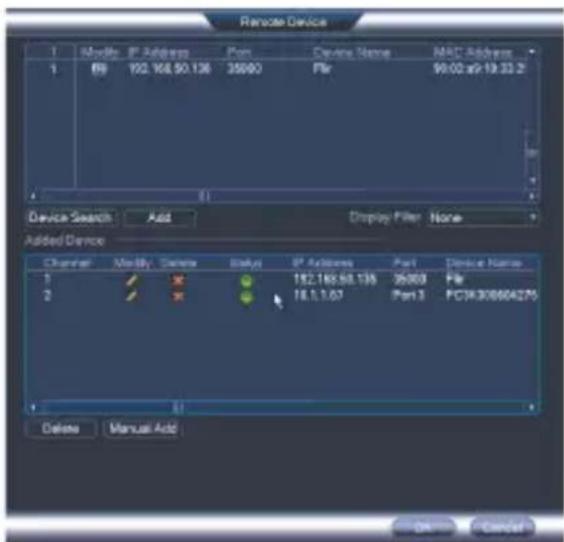

2. Click Add. The Status indicator turns green to show the camera is successfully connected.

Remote Device 1 Module IP Address Plan Device Name MAC Address 1 F9 102.168.50.136 35000 F9r 99.00 x# 19.33.2 Device Search Add Display Filter None Added Device Channel Modify Camera Status IP Address Part Device Name 1 182.168.50.136 35000 F# 2 18.1.1.07 Part3 PC3K308664275 Delete Manual Add

1. Click OK to save changes.

3 Connecting the Camera

NOTE

You can also add a camera to a specific channel by hovering the

mouse over an empty channel in split-screen view and clicking Click Device Search and double-click the camera you would like to add. Right click to exit.

3.4 Adding the PTZ camera to the LNK Series NVRs

To add the PTZ camera to the LNK Series NVRs:

The following instructions are based on the LNK7000 Series NVR. See your NVR's instruction manual for instructions on controlling the PTZ camera with your system.

1. From live view, hover over a blank channel. Click in the center of the channel to add the PTZ camera from the LAN. A Quick Add menu opens.

LOMEX LILIR

NOTE

If prompted, enter the system user name (default: admin) and your password.

3 Connecting the Camera

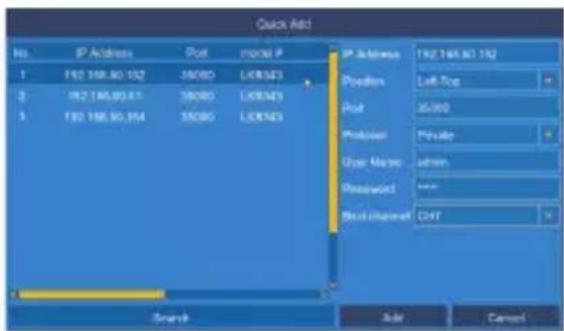

1. Click Search. The NVR scans the network for compatible cameras. A list of compatible cameras appear on the left-side of the screen

Quick Add No. IP Address Post model P 1 192 198.80.192 34080 LOCKES 2 192 196.80.81 38080 LOCKES 3 192 198.80.354 35080 LOCKES IP Address 192 198.80.192 Position Left Top Out 36080 Protocol Private User Name admin Password ..... Block intramar CHT Search Add Cancel

1. Click the camera you would like to add. The selected camera's attributes appear on the right-side of the screen.
2. Under Protocol, select ONVIF.
3. Click Add.

4.1 Installation Tips & Warnings

WARNING

Make sure to install the camera in a location that can support the camera weight.

• Camera is rated for outdoor use. It is recommended to install the camera in a sheltered area, such as under the eaves on a roof.
• It is recommended to install the camera as high up as possible to get the best possible image.
• Mount the camera where the lens is away from direct and intense sunlight.
• Plan your cable wiring so that it does not interfere with power lines or telephone lines.
• Ensure you adhere to local building codes.
• Ensure that the camera wiring is not exposed or easily cut.
• Mount the camera in an area that is visible but out of reach.

NOTE

This camera includes all components required for wall mounting.

For the most up-to-date software and complete instruction manuals:

1. Visit lorextechnology.com.
2. Search for the model number of your product.
3. Click on your product in the search results.
4. Click on the Downloads tab.

4.2 Installation (Indoor / Outdoor)

CAUTION

• Make sure to disconnect the power cable before installing the camera. Camera will begin moving immediately when power cable is connected.
  • Make sure to install the camera in a location that can support the camera weight.

To install the camera on a wall:

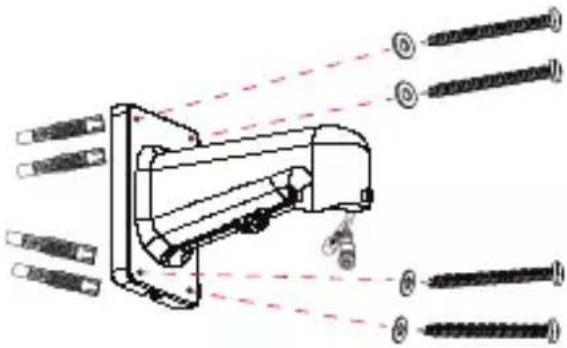

1. Attach the included rubber ring to the back of the wall mount to ensure the weatherproof rating of the camera.
2. Use the included Allen key to attach the M6x14 screws (3x) to the wall mount. Do not tighten all the way.

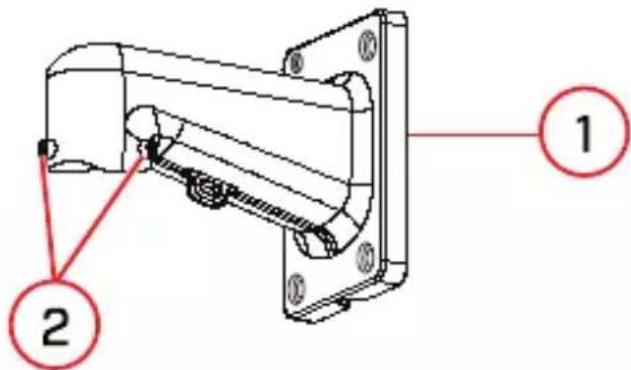

Technical diagram of a mechanical assembly with labeled parts 1 and 2

1. Wall Mount

2. M6x14 Screws (3x)

3. Use the included wall mount to mark holes for the mounting screws (4x) and cables. Drill holes (drill bit size - 3/8") to a depth of 2.8"/70mm in the mounting surface where marked.

4. Insert the included anchors (4x) into the holes and tap them into the wall with a hammer.

4 Installation

1. Pull the connection cable(s) through the mounting surface and wall mount.

2. Attach the included flat washers (4x) to the included mounting screws (4x).

3. Firmly attach the wall mount to the mounting surface using the included mounting screws (4x) and flat washers (4x).

Technical diagram of a mechanical assembly with labeled parts and directional arrows indicating motion or assembly.

NOTE

Imagery for illustration purposes only.

WARNING

Make sure to install the wall mount bracket in a location that can support the camera's weight. If mounting the camera on a drywall surface, you must drill at least 2 of the mounting screws through a wooden stud to ensure a stable mount. See the diagram below for details.

Diagram showing a mechanical setup with two blocks on a surface and a U-shaped component with dimension labels 'x2' indicating measurements.

4 Installation

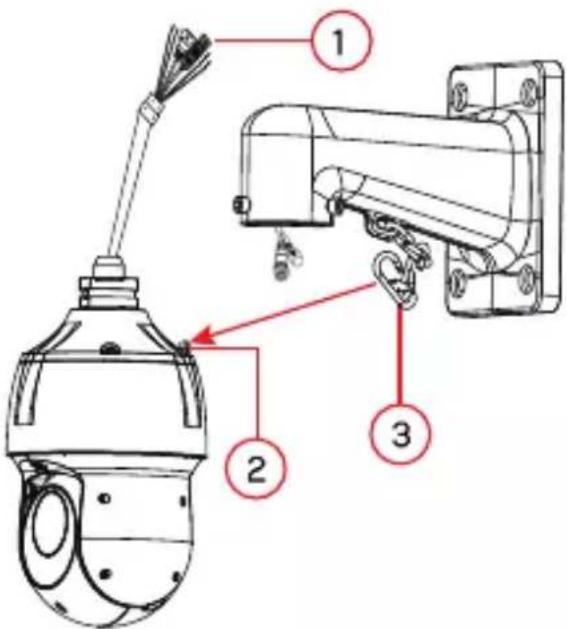

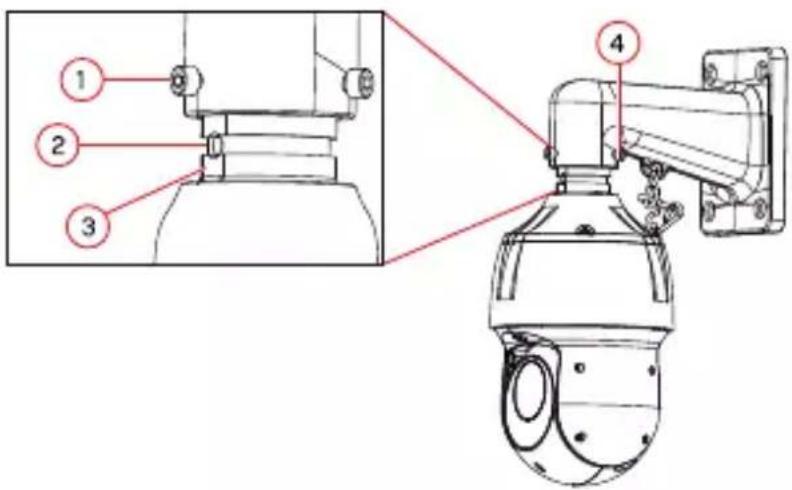

1. Connect the safety chain between the camera and the wall mount. This allows the camera to hang from the wall mount while connecting the cables.

Technical diagram of a mechanical device with numbered components and labeled parts

1. Camera Cables
2. Safety Chain Hook
3. Safety Chain

CAUTION

You must connect the safety chain between the camera and the wall mount to protect the camera from falling while connecting the cables.

1. Connect the connection cable(s) and then push the cable(s) into the wall mount. See 3 Connecting the Camera, page 4 for full details.

4 Installation

1. Push the camera into the wall mount with the flat surfaces aligned on the inside. This will allow the M6x14 screw (1) on the wall mount to align with the hole on the camera.

Technical diagram of a security camera with numbered components and an inset view showing the assembly detail.

1. M6x14 screw (1) on the flat surface (inside) of the wall mount.

2. Hole on the camera.

3. Flat surface on the camera.

4. M6x14 screw (2x).

5. Use the included Allen key to tighten the M6x14 screw (3x) to secure the camera.

6. Remove protective vinyl sheet covering the camera lens once installation is completed.

5 Controlling the PTZ Camera with an NVR

The camera can accept PTZ commands directly through the Ethernet cable. There is no need to run special wiring to control the movement of the PTZ camera.

LNZ44P12 camera is compatible with LNR / NR / LNK Series NVRs, excluding the LNR200 and LNR300 Series NVRs.

• For instructions on controlling the PTZ camera with the LNR / NR Series NVRs, see 6 Controlling the PTZ camera with LNR / NR Series NVRs, page 19
• For instructions on controlling the PTZ camera with the LNK Series NVRs, see 7 Controlling the PTZ camera with LNK Series NVRs, page 28

6 Controlling the PTZ camera with LNR / NR Series NVRs

The following instructions are based on the LNR400 Series NVR. See your NVR's instruction manual for instructions on controlling the PTZ camera with your system. For the latest list of compatible NVRs, please visit lorextechnology.com/compatibility.

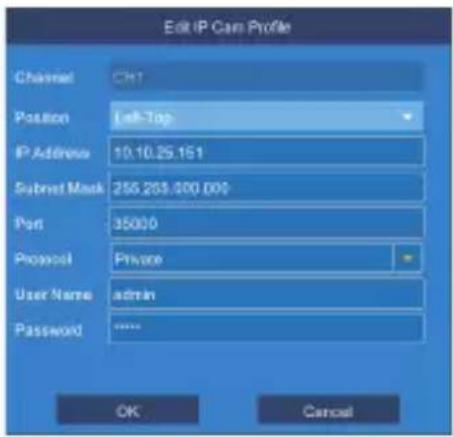

To connect the PTZ camera to the system:

1. Connect the camera to your NVR as detailed in 3 Connecting the Camera, page 4.
2. Right-click on the live view of the PTZ camera and click Main Menu. Enter the system user name (default: admin) and password (default: 000000) if prompted.

3. Click

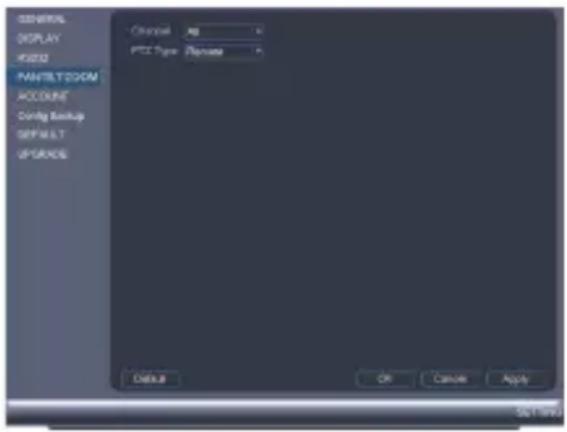

SETTING>PAN/TILT/ZOOM.

SPECIAL DISPLAY POST PANETTOCOM ACADEL Config Backup OFFSET UPDATE Channel: 42 PTC Type: Updates Default OK Cancel Apply

1. Under Channel, select the channel your PTZ camera is connected to.
2. Under PTZ Type, select Remote.
3. Click OK. You can now control your PTZ camera using the system.

6.1 Controlling the PTZ Camera

1. In Live View, double-click the channel that has the PTZ camera connected to open in full-screen.
2. Right-click and click PTZ. Enter the system user name and password if prompted. The PTZ menu opens.
3. Use the on-screen controls to control the camera.

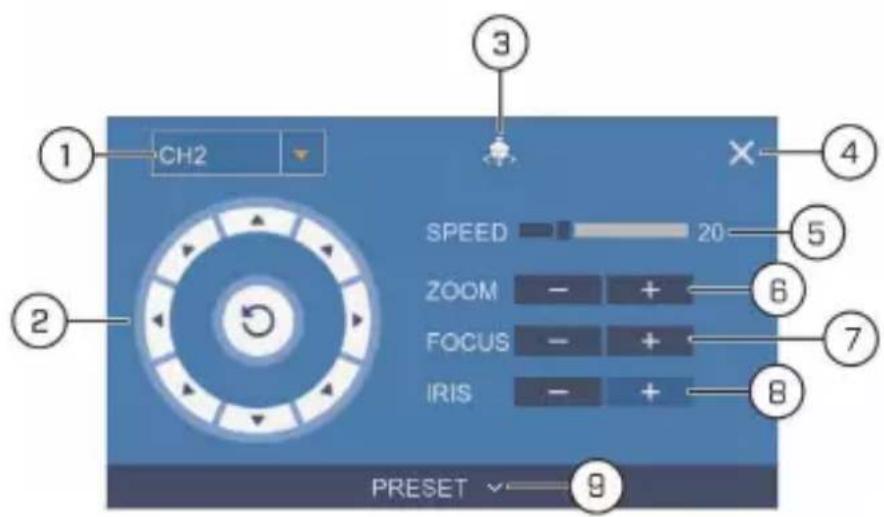

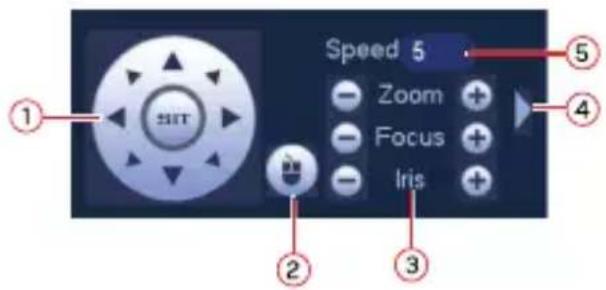

PTZ Controls

Speed 5 Zoom Focus Iris

1. Direction keys: Click to pan and tilt the camera. Click SIT to stop the current action.

2. PTZ Trace: Click to activate mouse PTZ Trace mode. You can do the following:

3. Click and drag to move the camera.

4. Use the scroll wheel to zoom in and out.

5. Right-click to exit and return to normal PTZ controls.

6. Zoom/Focus/Iris: Click +/- to adjust the zoom, focus, and iris. Adjusting the camera's iris settings allow you to control the amount of light that enters the camera's lens. The higher the iris value, the greater the amount of light that enters the camera's lens.

CAUTION

Adjust the camera's iris settings to match the environment where the camera is installed. Too much light exposure might result in a very bright camera image.

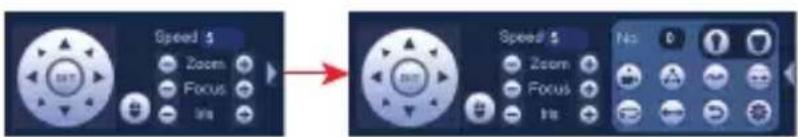

1. Advanced controls: Click to open advanced PTZ controls.

2. Speed: Enter a PTZ speed between 1 (slowest) and 8 (fastest).

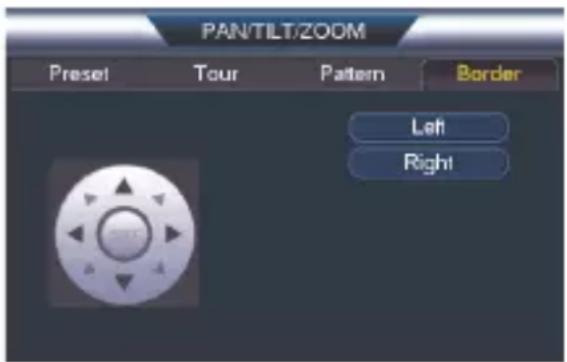

6.2 Advanced PTZ Controls

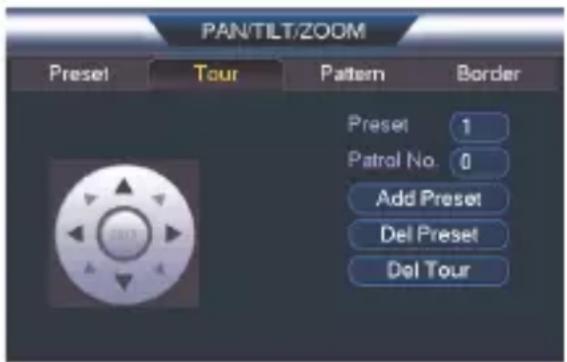

Advanced PTZ controls can be used to save camera positions and cycle through various positions, and automate camera actions.

To open advanced PTZ controls:

- Click the arrow in the PTZ control window to open advanced controls.

Speed 5 Zoom Focus 9% Speed 5 Zoom Focus 9% No 0

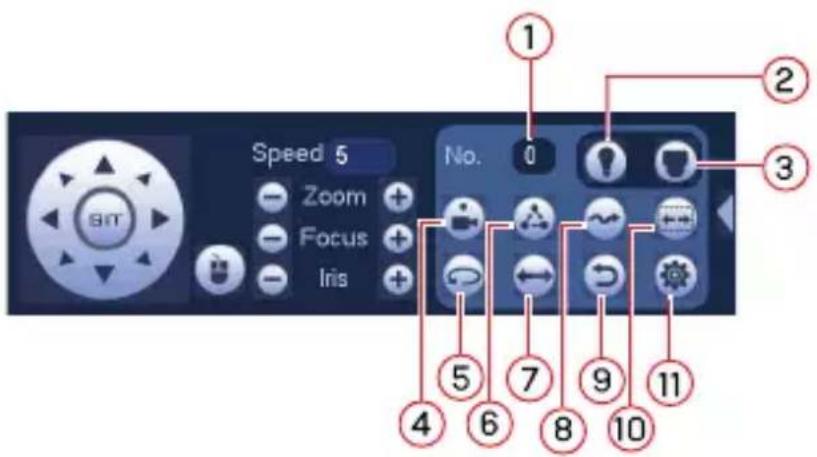

Advanced PTZ controls overview:

Speed 5 Zoom Focus Iris No. 1 2 3 4 5 6 7 8 9 10 11

1. No.: Click to select the number of the action you want to perform.
2. Not supported.
3. Not supported.
4. Preset: Click to call the selected preset.
5. Autopan: Click to start autopan. During autopan, the camera will continuously pan 360°.
6. Tour: Click to run the selected tour.
7. Not supported.
8. Pattern: Click to run the selected pattern.

9. Not supported.

1. Auto scan: Click to run the selected autoscan.

1. : Click to open the PAN/TILT/ZOOM menu, where you can set up Presets, Tours, Patterns, and Auto Scans.

6.2.1 Presets

Presets will save a camera position for quick retrieval.

To add presets:

1. Click to open the PAN/TILT/ZOOM menu.

2. Click the Preset tab.

PANTILT/ZOOM Preset Tour Pattern Border Preset 1 Set Del Preset

1. Under the Preset text box, enter the number of the preset you want to create.

2. Move the camera to the desired position and click Set.

NOTE

Click Del Preset to delete a preset.

1. Right-click to return to the advanced PTZ controls window.

To go to a preset:

- Under No., select the number of the preset you would like to go to and click.

6.2.2 Tours

Tours will cycle through a set of presets.

To create a tour:

1. Click to open the PAN/TILT/ZOOM menu.
2. Click the Tour tab.

PANTILT/ZOOM Preset Tour Pattern Border Preset 1 Patrol No. 0 Add Preset Del Preset Del Tour

1. Under Patrol No., select the tour you would like to configure.
2. Under Preset, select a preset you would like to add to the tour.
3. Click Add Preset.
4. Repeat steps 4 and 5 to add additional presets to the tour.

NOTE

Click Del Tour to clear all presets from a tour.

1. Right-click to return to the advanced PTZ controls window.

To run a tour:

- Under No., select the number of the tour you would like to go to

and click

NOTE

• There is a 5 second minimum pause between presets.
• Tour panning / tilting speed is slower than manual panning / tilting speed. The reduced speed maximizes reliability.
• We recommend you do not make the camera pan more than 270^ between any two points in a tour.

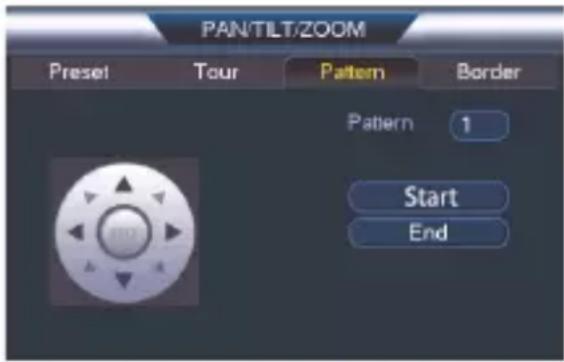

6.2.3 Pattern

Patterns automatically cycle the camera between two positions.

To create a pattern:

1. Click to open the PAN/TILT/ZOOM menu.
2. Click the Pattern tab.

PANTILT/ZOOM Preset Tour Pattern Border Pattern 1 Start End

1. Under Pattern, enter the pattern you would like to configure.
2. Move the camera into the desired start position and click Start.
3. Move the camera into the desired end position and click End.
4. Right-click to return to the advanced PTZ controls window.

To run a pattern:

- Under No., select the number of the pattern you would like to go to and click.

NOTE

• We recommend you do not make the camera pan more than 270^ between any two points in a pattern.
• For instructions on how to control the PTZ camera using the smartphone or tablet app, refer to your NVR's instructional manual.

6.2.4 Auto Scan

An auto scan automatically cycles between a left and right point.

To create a new auto scan:

1. Click to open the PAN/TILT/ZOOM menu.
2. Click the Border tab.

PANTILT/ZOOM Preset Tour Pattern Border Left Right

1. Move the camera into the desired left position and click Left.
2. Move the camera into the desired right position and click Right.

To run an auto scan:

- Click

7 Controlling the PTZ camera with LNK Series NVRs

The following instructions are based on the LNK7000 Series NVR. See your NVR's instruction manual for instructions on controlling the PTZ camera with your system. For the latest list of compatible NVRs, please visit lorextechnology.com/compatibility.

To connect the PTZ camera to the system:

1. Connect the camera to your NVR as detailed in 3 Connecting the Camera, page 4.

2. Right-click anywhere on the live viewing mode to open the Quick Menu, then select Main Menu.

NOTE

If prompted, enter the system user name (default: admin) your password.

1. Under Settings, click Display to open the IP Camera tab.

2. Click next to the connected PTZ camera you want to edit. The camera attributes appear.

Edit IP Cam Profile Channel CHT Position Left-Top IP Address 10.10.25.151 Subnet Mask 255.269.000.000 Port 35000 Protocol Private User Name admin Password OK Cancel

1. Under Protocol, select ONVIF.

2. Click OK to save changes.

7.1 Controlling the PTZ camera

To access the PTZ controls:

• Right-click on the live viewing area for the PTZ camera to open the Quick Menu, then click PTZ. OR
• Hover the mouse near the top of the live viewing area for the PTZ camera to reveal the Mini Menu, then click.

NOTE

If prompted, enter the user name (default: admin) and your secure password.

To use the PTZ controls:

1 CH2 2 3 4 SPEED 20 5 ZOOM - + 6 7 FOCUS - + 8 IRIS - + + 9 PRESET

1. Channel: Select the channel of the PTZ camera you want to control.
2. Navigation Controls: Click the directional arrows to move the
   PTZ camera. Click to begin autopan (PTZ camera pans around automatically).
3. Start Cruise: Cycles between preset viewing points automatically.
4. Close PTZ Controls
5. Speed: Set the speed of the PTZ camera's movement.
6. Zoom: Click -/+ to zoom in or out.

7. Focus: Click -/+ to adjust the focus.

8. Iris: Click - / + to set the iris. Adjusting the camera's iris settings allow you to control the amount of light that enters the camera's lens. The higher the iris value, the greater the amount of light that enters the camera's lens.

CAUTION

Adjust the camera's iris settings to match the environment where the camera is installed. Too much light exposure might result in a very bright camera image.

1. Preset: Click to access preset settings. For details on setting presets, see 7.1.1 Setting PTZ Presets, page 32

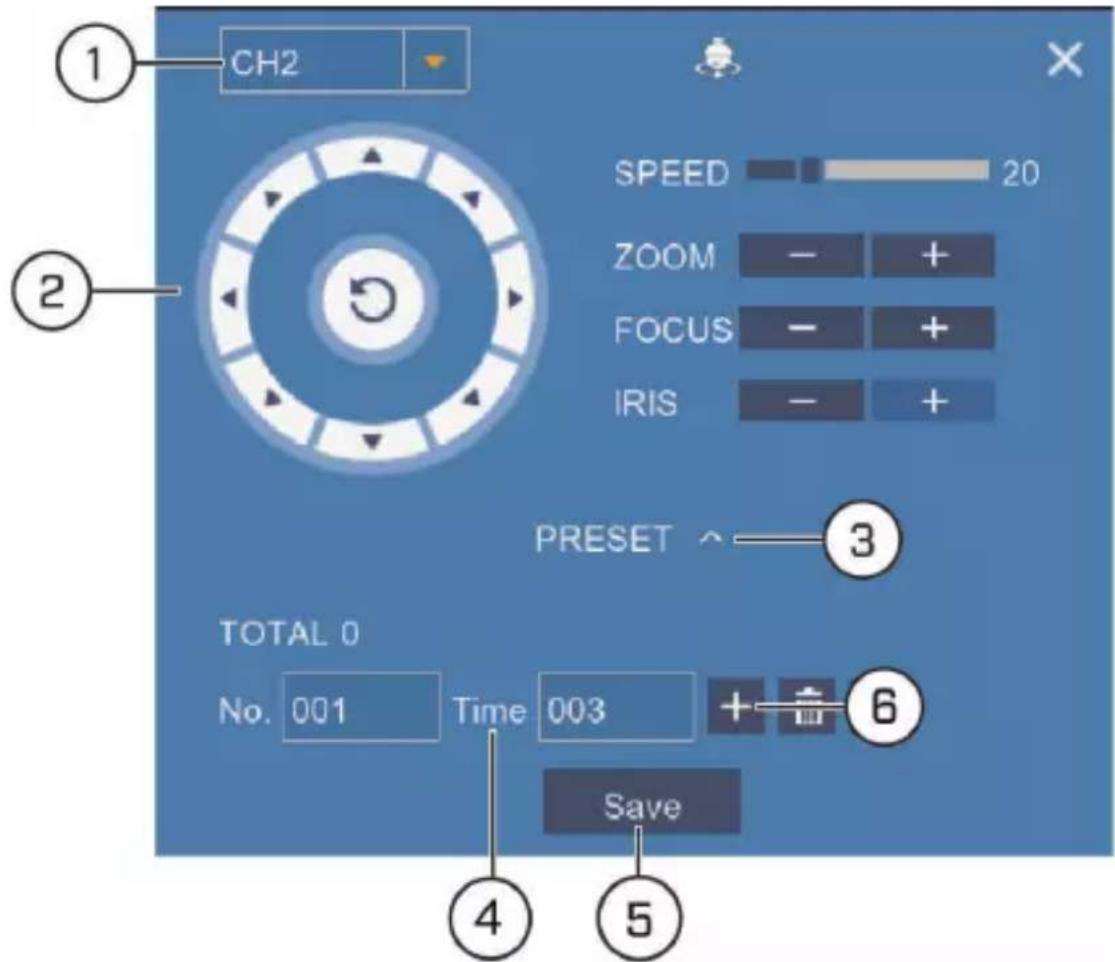

7.1.1 Setting PTZ Presets

Access the PTZ control menu to set preset viewing points for the PTZ. This is helpful for saving frequently-monitored areas for quick viewing. Once you have saved a few preset viewing points, you can start a PTZ cruise to switch between preset points automatically by clicking

To set PTZ presets:

CH2 SPEED 20 ZOOM - + FOCUS - + IRIS - + PRESET ^ 3 TOTAL 0 No. 001 Time 003 + - Save 4 5

1. Select the channel for the PTZ camera you want to set presets for.

2. Use the directional arrows to move the PTZ camera to the desired view for the preset.

3. Click the arrow next to PRESET to reveal preset controls.

4. In the field next to Time, enter an amount of time in seconds. This will determine how long the PTZ camera looks at the preset area before switching to the next preset in a cruise.
5. Click Save to confirm the current preset point.
6. Click + to move to the next preset number in the No. field. Repeat for as many preset points as you wish to add.

NOTE

• Each preset viewing area you add to the system must have a unique ID number (No.). Using the same ID number as an existing preset will result in the old preset being overwritten.
• To cycle through preset viewing points automatically, click
  to start PTZ Cruise. Ensure you have enabled cruise the selected PTZ camera (see 7.1 Controlling the PTZ camera, page 29 for details).

- Click

to delete a preset.

8 Technical Specifications

Image Sensor 1/3", CMOS 4 MP
Video Format	NTSC / PAL
Effective Pixels 2592 (H) x 1520 (V)
Resolution Up to 4MP
Range 0° ~ 360° Pan (Endless); -15° ~ 90° Tilt
Pan/Tilt Speed Manual	Speed — Max 200°/Sec Pan;Max 120°/Sec TiltPreset Speed — Max 240°/Sec Pan;Max 200°/Sec Tilt
Zoom 12x Optical Zoom	& 16x Digital Zoom
Scan System	Progressive
Synchronization	Internal
S / N Ratio	≥50dB
Iris	DC Auto Iris w/Hall-effect
Min. Illumination 0.1 Lux	in Color; 0.01 Lux in Black and White
Lens / Lens Type 5.3mm	~ 64mm, F1.6 ~ F4.4 / Zoom Module
Field of View (Horizontal)	54.7° ~ 4.54°
Day/Night	Auto (ICR) / Color / B/W
Termination	RJ45 (10Base-T/100Base-TX) / DC Jack

8 Technical Specifications

Video Output IP
Power Requirement PoE+ (802.3at); 12V DC (Optional)
Power Consumption Max. 2.2A / 26W
Operating Temperature Range	-40°F ~ 158°F / -40°C ~ 70°C
Operating Humidity Range	<90%RH
Indoor/Outdoor Both (IP66)	1
Weight (Camera Alone)	6.6lbs / 3kg
Weight (Camera & Wall Mount)	8.6lbs / 3.9kg

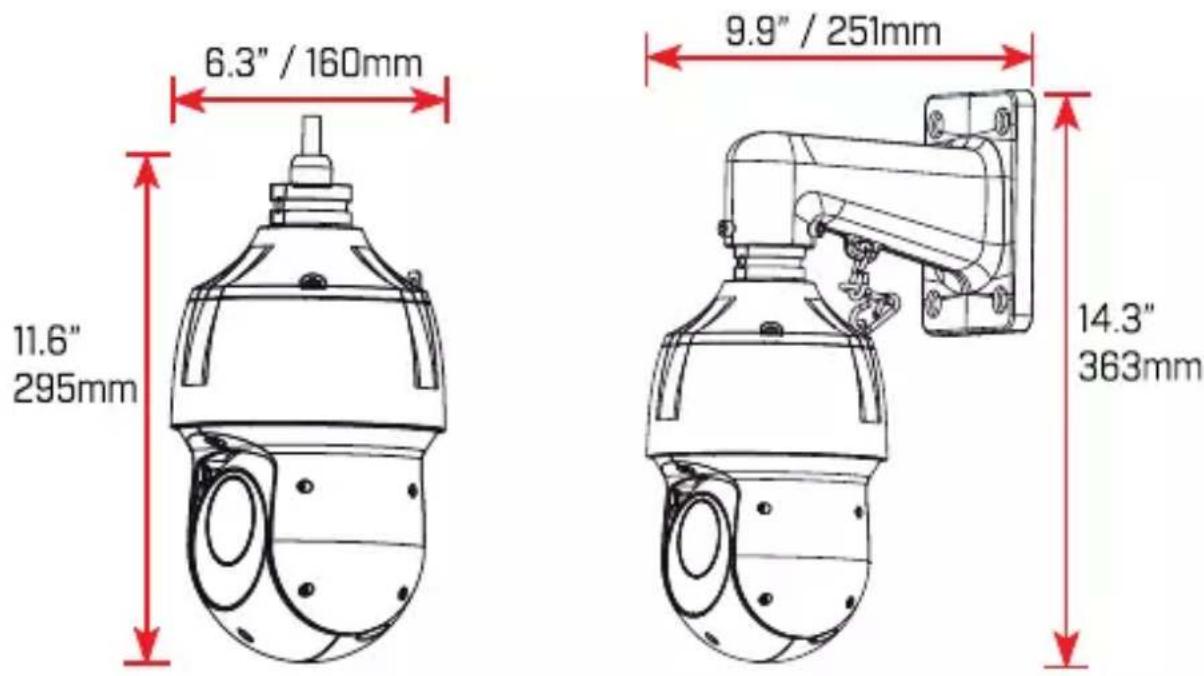

8.1 Dimensions

6.3" / 160mm 9.9" / 251mm 11.6" 295mm 14.3" 363mm

9 Troubleshooting

There is no picture at night.

- Camera is capable of seeing in extremely low light conditions (0.1 Lux), but it cannot see in total darkness. It is recommended to install the camera where there is some ambient light (e.g. street lighting, starlight, moonlight, etc.) or leave a light on in the area where the camera is installed.

No image at startup.

• The camera may take up to 1 minute to power up after being connected to the NVR. Wait 2 minutes before following steps below.
• Check to ensure your camera is properly connected (see 3 Connecting the Camera, page 4).
• If you are using a PoE switch, it must be PoE+ rated (PoE class 4). Standard PoE switches are not adequate to power the camera. PoE+ switches are available for purchase on lorextechnology.com (model #: ACCLPS241B (4-channel model) or ACCLPS281B (8-channel model)).
• Ensure the camera is connected to a router on the same network as the NVR.
• If the camera is connected to the LAN, you must search your network for cameras using the NVR. See your NVR's instruction manual for details.
• Make sure that the cable run is within the limitations specified in 3 Connecting the Camera, page 4. All Ethernet cables must be rated CAT5e or higher.
• If using the included power adapter, connect it to a different outlet.
• Ethernet cable may be damaged or not connected properly. Check your cable run or try a different cable.
• Reset the camera to factory default settings. See 10 Inserting the microSD Card (Optional) and Resetting the Camera for details.

No image or camera image is unclear.

- Dome cover is dirty. Clean the dome cover with a soft, slightly damp cloth. Do not use anything other than water to clean the dome cover, as chemicals such as acetone can permanently damage the plastic.

Image is distorted.

- Digital zoom is activated. Activating digital zoom may reduce the resolution of the camera image. Zoom out completely to return to the camera's optimal resolution. See 6.1 Controlling the PTZ Camera for instructions on using the zoom controls.

- Image may become unclear when camera is tilted too close to the camera base (e.g. pointed parallel to the ceiling). Tilt the camera using NVR PTZ controls.

Image is too bright.

- Ensure your camera isn't pointed directly at a source of light (e.g. sun or spot light).

- Check your NVR's brightness and contrast settings.

- Move your camera to a different location.

Image is too dark.

- Check your NVR's brightness and contrast settings.

- Move your camera to a different location.

NVR motion detection is constantly triggering.

- Turn off motion detection on the channel the PTZ camera is connected to. NVRs use video motion detection, which means they detect motion by looking for changes between frames (images) in the video. If the camera is moving, the NVR will detect this as motion.

10 Inserting the microSD Card (Optional) and Resetting the Camera

The camera features a hard reset button that is used to reset all camera settings back to the default values. This is useful in case you want to revert camera image settings back to the default values.

To reset the camera:

1. Connect the camera as detailed in 3 Connecting the Camera, page 4. Make sure the camera is powered on.
2. Loosen the service panel screws (4×), but do not remove them. Remove the service panel cover.


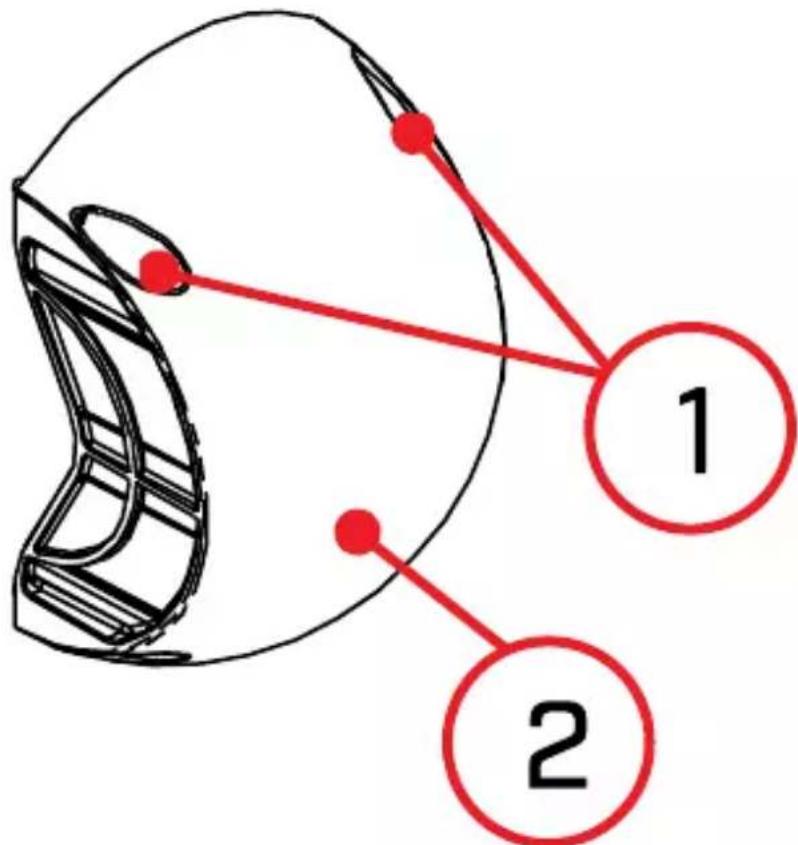

1. Service Panel Screws (4x)
2. Service Panel Cover

10 Inserting the microSD Card (Optional) and Resetting the Camera

1. The service panel allows you to perform the following:

2. Insert a microSD card into the microSD card slot. For local recording, you can install a microSD card up to 128GB. SanDisk™ or Kingston™ brand microSD cards are recommended. microSD card Class 10 or higher required.

3. Press and hold the reset button for 10 seconds to reset the camera to default settings

NOTE

It may take few minutes for the camera image to reappear on the screen.

Technical diagram of a mechanical device with labeled components and internal cross-section view

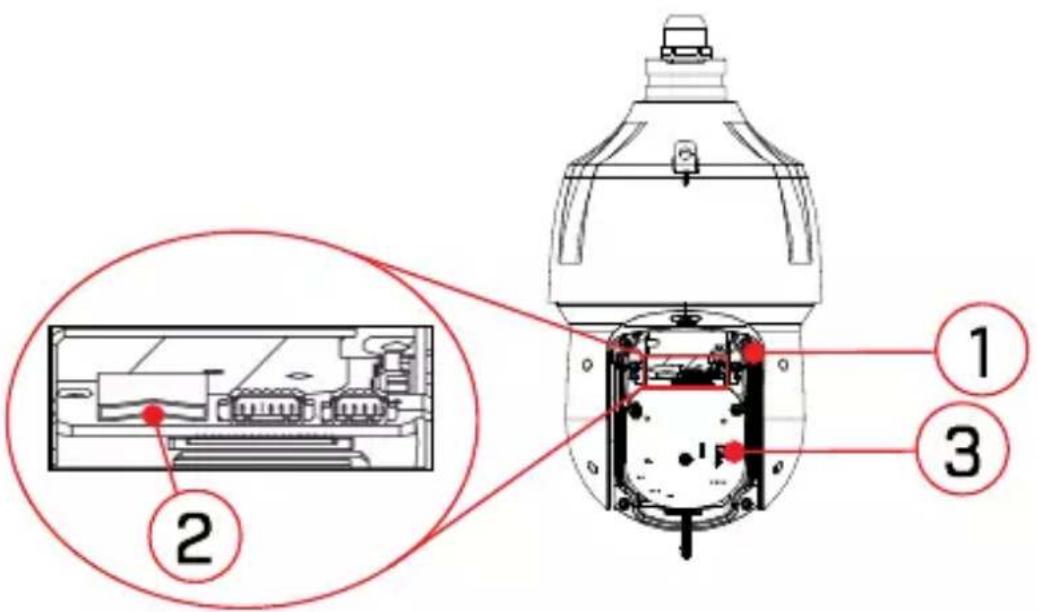

1. Service Panel
2. microSD Card Slot
3. Reset Button

Website

www.lorextechnology.com

Copyright

© 2017, Lorex Corporation

All rights reserved worldwide. Names and marks appearing herein are either registered trademarks or trademarks of Lorex Corporation and/or its subsidiaries. All other trademarks, trade names or company names referenced herein are used for identification only and are the property of their respective owners.

Legal disclaimer

As our product is subject to continuous improvement, Lorex Corporation & subsidiaries reserve the right to modify product design, specifications & prices without notice and without incurring any obligation.E&OE.

Publ. No.: LX400099

Release: 4.0

Commit: 47037

Head: 47040

Language: en-US

Modified: 2017-12-26

Formatted: 2017-12-26

Exterior view of a white LOREX security camera with mounted sensor (no text or symbols visible)

Remote Device 1 Module IP Address Port Device Name MAC Address 1 FIR 192.168.50.136 35080 FIR 59.02.s/n 19:33:2 Device Search Add Display Filter None Added Device Channel Modify Create Status IP Address Port Device Name Delete Manual Add

Technical diagram of a mechanical assembly with labeled parts 1 and 2

Technical diagram of a mechanical assembly with labeled parts and directional arrows indicating motion or assembly.

REMARQUE

Diagram showing a mechanical setup with two blocks on a platform and a U-shaped component with dimension labels 'x2'

4 Installation

Technical diagram of a mechanical device with numbered components and labeled parts

Technical diagram of a security camera with numbered components and an inset view showing the assembly detail.

CONTROL DISPLAY RACK PANTIL ZOOM ACCOUNT DASH BACKUP DEFAULT UPDATE Channel All HSS Type Pattern Default OK Cancel Apply

Technical diagram of a mechanical device with labeled components and internal cross-section view

© 2017, Lorex Corporation

Modified: 2017-12-28

Formatted: 2017-12-28

Exterior view of a white LOREX security camera with mounted sensor array (no text or symbols visible)

Remote Device 1 Model IP Address Post Device Name MAC Address 1 F8 192.158.50.136 35000 F8 59.02.s/19.33.2 Device Search Add Display Filter None Added Device Channel Modify Cancel Status IP Address Port Device Name Delete Manual Add

Technical diagram of a mechanical assembly with labeled parts 1 and 2

Technical diagram of a mechanical device with labeled components and light path indicators

NOTA

Diagram showing a mechanical setup with two blocks on a surface and a U-shaped component with dimension labels 'x2' indicating measurements.

4 Instalación

Technical diagram of a mechanical device with numbered components and labeled parts

Technical diagram of a surveillance camera with numbered components and an inset view showing the internal structure.

DISPLAY DISPLAY IMPORT PANETT ROOM ACCOUNT COMING BACKUP DEFAULT PACKAGE Channel: All Enter Type: Pattern Default OK Cancel Apply

Technical diagram of a mechanical device with labeled components and internal cross-section view

© 2017, Lorex Corporation

Modified: 2017-12-28

Formatted: 2017-12-28
