Product type	Upright freezer
Brand	Gamko
Model	GF/100
Climate class	N (from +16 °C to +32 °C)
Refrigerant	R600a (isobutane), PRP 3
Thermostat	Electronic XR70CX with digital display and setpoint adjustment
Power supply	See rating plate (separate cable recommended)
Power consumption	See rating plate
Installation	Free space of at least 5 cm around for air circulation
Cleaning	With water and a mild detergent (no abrasives)
Seal maintenance	Check and clean the magnetic strip regularly; replace if cracked
Condenser	Maintenance-free
Safety	Flammable refrigerant R600a; do not obstruct grilles; do not place electrical appliances inside
Repairs	Reserved for an authorized technician; power cord replaceable only by the manufacturer or an authorized installer
Spare parts	Door gasket, power cord, thermostat (contact maintenance service)
User manual	59 pages in French, downloadable free of charge in PDF format
Compliance	Machinery Directive 2006/42/EC, EMC 2014/30/EU, Low Voltage 2014/35/EU, RoHS 2011/65/EU
Warranty	Valid if the instructions in the manual are followed

Frequently Asked Questions - GF/100 Gamko

How to set the temperature of the GF/100 freezer?

Use the electronic thermostat XR70CX. To display the setpoint, press and release the SET button immediately. To modify the setpoint, hold the SET button for 3 seconds until the C° icon flashes, then use the arrows to adjust. Wait 10 seconds or press SET to confirm.

What to do if the freezer does not start?

First check the electrical outlet and power supply. Make sure the fuse is not defective and the switch is in the on position. If the problem persists, contact your maintenance service.

How to clean the Gamko GF/100 freezer?

Use water and a mild detergent. Never use abrasive or harsh products. Clean the magnetic seals regularly with a soft cloth. Do not disassemble fixed parts to clean the machine compartment.

What type of refrigerant does this freezer use? Is it dangerous?

The GF/100 uses R600a (isobutane), a flammable natural refrigerant. In case of leakage, ventilate the room, avoid flames, and contact a technician. Contact with the liquid can cause cold burns: rinse with water for 15 minutes and consult a doctor.

Can I use an extension cord?

It is not recommended to use an extension cord. If necessary, have the cable extended by an authorized electrician. The product requires a separate cable for its power supply.

How to replace the door gasket?

Regularly check the condition of the magnetic gasket. If it is cracked or the door no longer closes properly, replace it. To obtain a replacement gasket, contact your maintenance service.

Is it normal for the freezer to make noise?

Some noises are normal (compressor, fan). If the noise becomes excessive, check that the appliance is level and that nothing obstructs ventilation. Contact maintenance service if the noise persists.

How to defrost the GF/100 freezer?

The manual does not specify an automatic procedure. In case of frost accumulation, perform a manual defrost: unplug the appliance, remove the food, leave the door open, and collect the melting water. Never use sharp objects to remove ice.

Where is the rating plate located?

The rating plate is located inside the freezer. It indicates the type number, refrigerant, power consumption, power supply, current, climate class, year of manufacture, and unique registration code.

What to do in case of a power failure?

In case of a power failure, avoid opening the door unnecessarily to maintain the temperature. If the failure lasts, consume perishable food quickly. When power returns, wait for the temperature to stabilize before fully loading the freezer.

USER MANUAL GF/100 Gamko

Gebruiksaanwijzing

A Typenummer product

B Type koudemiddel + massa

Manager Research & Development

WEEE-bepalingen

BELANGRIJK: AANDACHTIG DE INSTRUCTIES DOORNEMEN VOORALEER OVER TE GAAN TOT DE MONTAGE. DEZE DIENEN OP EEN VEILIGE PLAATS TE WORDEN BEWAARD. DE INFORMATIE DIE DEZE BROCHURE OMVAT IS BELANGRIJK IN GEVAL VAN HET AFVOEREN OF HET HERGEBRUIKEN VAN HET TOESTEL OP HET EINDE VAN ZIJN NUTTIGE LEVENSDUUR.

Chapter 2 Installation 23

Installing the product 23

Fitting storage racks 24

Power supply 24

Chapter 3 Using the appliance .... 25

Prior to use 25

Thermostat 25

Filling the cabinet 26

Chapter 4 Maintenance 27

Cleaning the cabinet 27

Interference 28

CE declaration 29

WEEE-regulations 30

GWP-table 31

Chapter 1 General information

Thank you for purchasing a Gamko product.

This manual contains your warranty and maintenance instructions.

Always keep this document near your product, so that you can refer to it when needed. Please read this manual thoroughly prior to installation of the product. Noncompliance with the user instructions may cause serious damage to the product and will render the warranty invalid. Correct use of the product will prolong its useful life.

All installations have to conform to local governmental and municipal legislation and the machine Directive 2006/42/EC. In case of doubt please contact the Gamko service organization or your supplier. The information contained in this manual can be changed without prior notice.

CARFUL! – DANGER – Ignoring this sign and remarks may put you into personal danger.

CARFUL! – DANGER – Ignoring this sign and remarks may result in damage to your product.

HINT! – Useful hints to make the best use of your product.

Safety precautions

Technical safety

• Prior to use check the plug and lead for any damage.
• Hold the plug when removing the plug from the socket.
• Check whether the power supply is suitable for this product.

- Ensure that the product is standing firmly and level.

• Always have repairs carried out by qualified service engineers.

- To avoid damage to the product a damaged plug lead may only be replaced by the manufacturer or a qualified service engineer.

Refrigerant

This product contains a Hydro carbon refrigerant (R600a). The quantity used in this product is stated on the type plate.

• Contact with liquid may cause frostbite or cold burns.
• Exposure to low concentrations may lead to dizziness, headache, nausea and loss of coordination.
• For liquid contact, flush with water for at least 15 minutes. Obtain medical assistance
• When exposed to fire the container can burst open or explode.
• Always ensure that there is sufficient ventilation in the room where the appliance is located.
• Never open the machine unit.

During operations

• Never open the machine unit.
• Use this product only indoors.
• Only use this product for storing packed beverages.
• Never use the product as a step.
• Never store electrical appliances in the product.
• Always store beverages with a high percentage of alcohol standing upright and tightly closed.
• Ensure that ventilation grilles both in and outside the cabinet remain unobstructed.
• In case of emergency the plug should be removed from the socket.

After use

- Make sure that the product is stored and disposed of safely.

User Manual

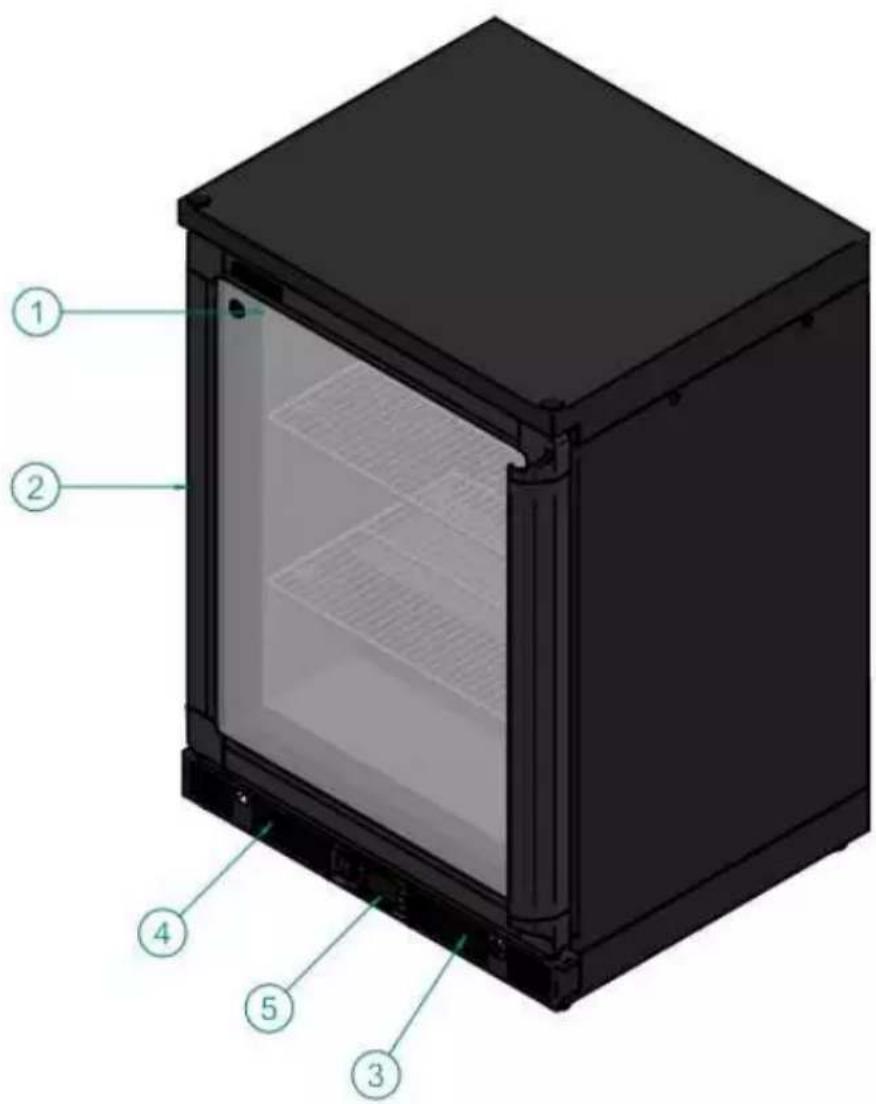

Product description

1 Type plate (inside)
2 Door
3 Air inlet
4 Air outlet (and at the right side)
5 Thermostat

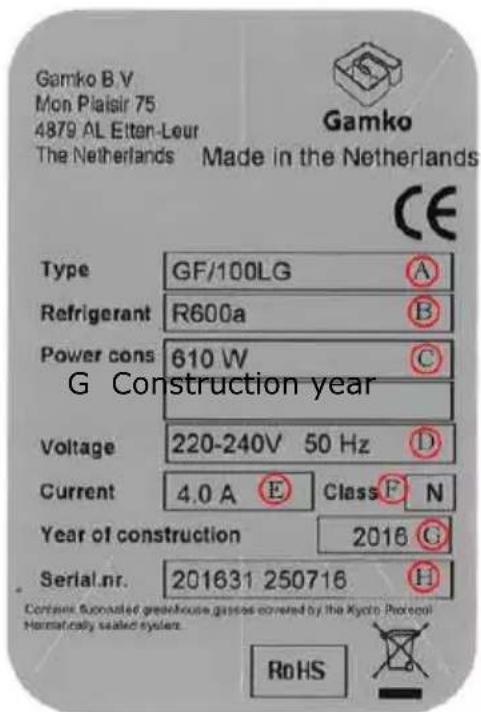

Type plate

A Type number product
B Refrigerant type + volume
C Power consumption
D Supply
E Rated current
F Climate classification
H unique registration number

Climate classification

A freezer is produced for optimal performance within certain ambient temperatures. This product is suitable for the following classification: N: from +16°C to +32°C.

Refrigerant

The refrigerant is a Hydrocarbon (R600a) and can cause frostbites and cold burns. Exposure to low concentrations may lead to dizziness, headache, nausea and loss of coordination. When exposed to fire the container can burst open or explode.

Chapter 2 Installation

Hint! Never install the freezer next to a heat source!

Operating principle

A freezer works by extracting heat from the space to be refrigerated and to release this in the surrounding area.

For maximum air circulation it is recommended to allow at least 5 cm space around the freezer. Be very careful never to obstruct the air inlets and outlets.

Installing the product

Place the product on a smooth surface.

1 Place the product at his position.
2 Make sure the product is standing level using a spirit level.
3 The legs are used for product adjustment and leveling.

User Manual

Fitting storage racks

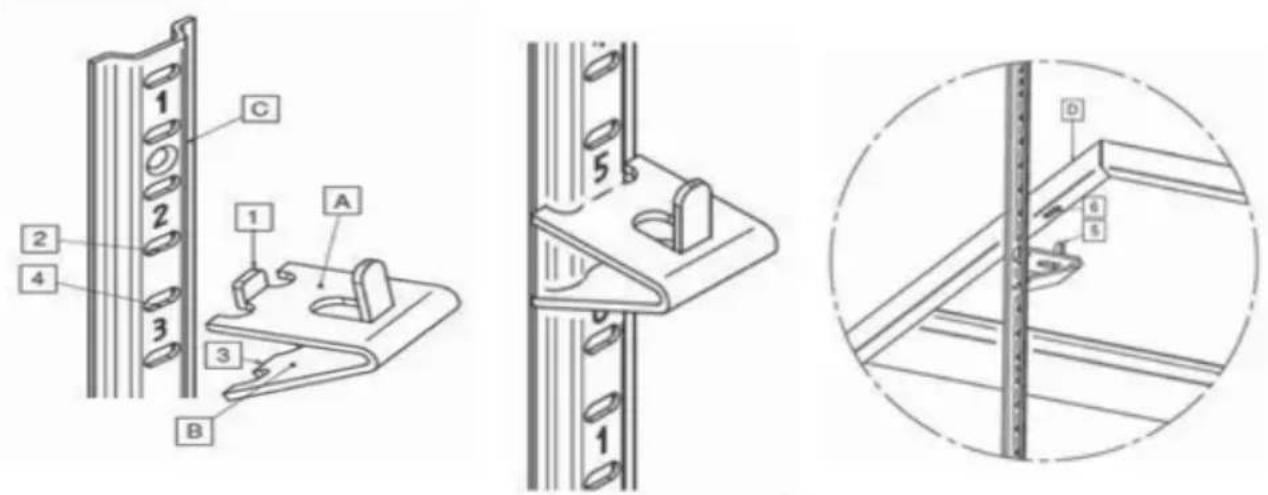

1 Hook pin (1) in openings (2) of rails (C).

2 Push bottom part (B) towards side (A).

3 This causes pin (3) to slot into the next opening (4) in the rails.

4 Fit the other pins at the same height.

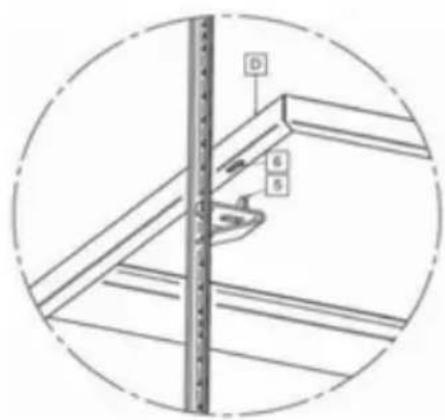

5 Place the storage rack (D) sliding the pins (5) in the openings (6)

Power supply

• If this device cable is damaged it must be replaced with an original cable supplied by the producer.
• In case of emergency: remove the plug lead from the socket.
• The socket should be within easy reach of the cabinet.
• Check for the correct power supply, referred to the information on the type plate.
• Ensure that the plug lead cannot be trapped or snagged.
• If necessary the plug lead can be extended by a qualified electrician.
• We do not recommend the use of an extension lead.

Fluctuations in the power supply can cause damage, which causes the cabinet to switch off. Gamko cannot be held responsible for any consequential damage.

Chapter 3 Using the appliance

Prior to use

• Clean the cabinet prior to use. For further details we refer to chapter maintenance.
• Leave the installation to stand for at least 2 hours before switching on the cabinet.
• Plug into a grounded power socket.

Thermostat

Using the thermostat

For use and settings of the thermostat, please refer to the manual supplied with this product.

XR70CX

To see the set point.

1. Push and immediately release the SET key, the set point will be showed;
2. Push and immediately release the SET key or wait about 5 sec to return to normal visualisation;

To change the set point.

1. Push the SET key for more than 3 sec, the value will be displayed and the °C LED starts blinking;
2. To change the set point value push the arrows and to memorise the new set point value push the SET key again or wait 10sec.

User Manual

Filling the cabinet

• This product is only to be used to freeze packed beverages.
• Fill the cabinet during a period when it is least used. Repeatedly opening of the door will slow down the freezer.
• Beverages with a high alcohol percentage should always be stored properly sealed in an upright position.

To guarantee optimal performance and air circulation the air vents of the cabinets should NEVER be obstructed.

NEVER use the cabinet to store electrical appliances!

HINT!

Apply the so called First-in First-out principle when serving beverages out of the cabinet. This to ensure that the coldest product is served.

Chapter 4 Maintenance

Cleaning the cabinet

Self-maintenance

• Before First use the cabinet should be cleaned using water and a mild detergent.
• Intensive use requires regular cleaning.
• This product has an maintenance free condenser.
• Check and clean the magnetic seals on a regular basis. If the seal is not airtight it will have a negative effect on the refrigeration performance and it needs to be replaced immediately.

Attention!

• Do not dismantle any fixed components when cleaning the machine unit!
• Do not use aggressive abrasives or detergents.

Interference

Attention!

Always remove the plug from the socket when carrying out repairs!

The cabinet does not start.

• Check the plug.
• Restore the power supply by replacing a fault fuse or by using the on/off switch.
• Contact your local service organization.

Temperature is too high, in spite of recent adjustment of thermostat.

• Check/restore power supply.
• Remove contents which may obstruct ventilation.
• Clean magnetic seal, replace if necessary. Remove contents which may obstruct ventilation
• Defrost evaporator.
• The condenser is dirty, must be cleaned
• Thermostat or compressor is defect.
• Fan (evaporator or condenser) is defect.
• Contact your local service organization.

Temperature is too low, in spite of recent adjustment of thermostat.

• Thermostat is defect.
- Contact your local service organization.

Water leak

• Defrost regularly – if necessary extra manual defrost cycle.
• Check if the product is leveled. If necessary level the product.
• Contact your local service organization.

Plug lead

- To prevent accidents the plug lead, if damaged, may only be replaced by the service/maintenance organization or qualified installer.

User Manual

CE declaration

EC DECLARATION CONFORMITY FOR MACHINERY

(Directive 2006/42/EC, Annex II, sub A.)

Manufacturer: Gamko BV

Address: Mon Plaisir 75 4879 AL Etten-Leur The Netherlands

Herewith declares that the following product

• GF/100**
• XF/100**

Is provided as defined in:

The EC machines (Directive 2006/42/EC)
◆ Electromagnetic compatibility (Directive 2014/30/EEC)
◆ Directive low-voltage (Directive 2014/35/EEC)
◆ PED pressurised equipment (Directive 2014/68/EU)
• RoHS directive (2011/65/EC)

Manager Research & Development

IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY PRIOR TO INSTALLATION. KEEP THESE INSTRUCTIONS IN A SAFE PLACE. THE INFORMATION CONTAINED IN THIS BROCHURE IS IMPORTANT FOR THE DISPOSAL OR RE-USE OF THIS PRODUCT AT THE END OF ITS USEFUL LIFE.

Gamko BV is attentive of the care of the environment and meets all requirements contained in the Directive 2002/96/EC, known as WEEE, or the Directive referring to Waste from Electrical and Electronic Equipment. This product conforms to the directive 2002/96/EC. At the end of its useful life the product, which is to be processed separate from household waste, should be transferred to a collection point of separate waste from electrical and electronic equipment. The objective of the Directive 2002/96/EC is to combat the increasing volumes of waste from electrical and electronic equipment, to increase the re-use of electrical and electronic equipment ("EEE") and finally to limit the total volume of waste EEE ("WEEE") destined to be disposed of. The symbol of the crossed out waste bin indicates that this product is subject to the application of this Directive. It is the responsibility of the user to transfer the product to specialized collection points, as indicated by local legislation or the distributor. In case of installation of a new product the old WEEE product can be collected by the distributor at the same time. The manufacturer, importer and distributor are responsible for the collection and processing of the waste which is collected directly or through a collection point. The enclosed list contains Gamko BV distributors per country. Any violation of the above mentioned Directive will result in sanction measures in all of these countries. In general Gamko BV applies the "CECED interpretation" (European Committee of Manufacturers of Electrical household appliances) according to which the WEEE legislation is applicable to portable air conditioners, dehumidifiers, window- air conditioning, split systems up to 12 kW, fridge's and plug in freezer compartments. Nevertheless it is possible that in the various member countries differences in legislation are detected. In case some products are not included on the list of WEEE products following national legislation, the national legislation should be adhered to, the WEEE directives applicable to products that are not included in the scope of these national legislations should be omitted. The directive does not apply to products sold outside the European Union. In case the product is to be sold outside the European Union, it is not necessary to adhere to the WEEE directive however; the vendor/distributor has to guarantee that local legislation is being observed. For further information please refer to the local authority for waste collection, the vendor/ distributor/ installer who supplied the product or directly to Gamko.

GWP-table

This product contains fluorinated gases covered by the Kyoto Protocol.

Chemical Name of the Gas (see type plate) R600a

Global Warming Potential (GWP) of the gas 3

Caution!

a. Hermetically sealed system

b. Emission of the contained gas shall be prevented. The gas may never be vented to the atmosphere during installation, service and disposal. When leak of the contained gas is detected, the leak shall be repaired and stopped as soon as possible.

c Only qualified service personnel are allowed to access and service this product.

Mode d'emploi

Table des matières

DECLARATION CE DE CONFORMITE POUR LES MACHINES

(Directive 2006/42/CEE, Annex II, Chapitre A)

Manager Research & Development

Dispositions de la directive WEEE

IMPORTANT : LIRE ATTENTIVEMENT LES INSTRUCTIONS AVANT DE PROCÉDER AU MONTAGE. LES PRÉSENTES INSTRUCTIONS DOIVENT ÊTRE CONSERVÉES DANS UN ENDROIT SÛR. LES INFORMATIONS CONTENUES DANS LA PRÉSENTE BROCHURE SONT IMPORTANTES EN CAS DE TRANSPORT OU DE RECYCLAGE DE L'APPAREIL À LA FIN DE LA DURÉE DE SERVICE DE L'APPAREIL.

N. Govers

Manager Research & Development

WICHTIG: DIESE ANWEISUNGEN MÜSSEN SORGFÄLTIG DURCHGELESEN WERDEN, BEVOR MIT DER MONTAGE BEGONNEN WERDEN KANN. SIE MÜSSEN AN EINEM SICHEREN ORT BEWAHRT WERDEN. DIE INFORMATION AUS DIESER BROSCHÜRE IST WICHTIG, WENN DAS GERÄT AM ENDE SEINER LEBENSDAUER ENTSORGT ODER RECYCLED WERDEN SOLL.
