Chapter 1 - General information

We thank you for purchasing a Gamko appliance. With the purchase of your new cooling you have opted for a modern and high-quality professional cooling. Your new cooling is distinguished by its economical use of energy. This manual contains your warranty conditions and maintenance instructions.

Always keep this document near your appliance, so that you can refer to it when needed. Please read this manual thoroughly prior to installation of the appliance. Noncompliance with the user instructions may cause serious damage to the appliance and will render the warranty invalid. Correct use of the appliance will prolong its useful life.

All installations must comply with local government and municipal guidelines and installations are to be in accordance with the Machinery Directive. If in doubt, contact Gamko or your local dealer. The information in this manual can be altered without prior notice.

CAREFUL - dANGER

Ignoring this sign and remarks may put you into personal danger.

CAREFUL - dANGER

Ignoring this sign and remarks may result in damage to your appliance.

INFORMATION

Useful hints to make the best use of your appliance.

Safety precautions

Technical safety

• Check the power supply to ensure it is suitability for this device.
  • Make sure the product is positioned firm and level.
  • Always engage a qualified service technician for repairs.
• If the power cord is damaged, it should only be replaced by the manufacturer or a qualified technician to avoid danger.

Refrigerant

• This unit must be connected to a refrigerant refrigeration system. The type of refrigerant for which the cooling is suitable is stated on the type plate.
• Contact with liquid may cause cold burns;
• Exposure to low concentrations may lead to dizziness, headache, nausea and loss of coordination;
  • After contact with liquid, flush with water for at least 15 minutes. Obtain medical assistance;
• Exposure to fire may cause containers to rupture or explode;
  • Make sure the area around the appliance is always well ventilated;
• Never open an area that is suspected of having a refrigerant leakage.

during operations

• Use this product only in a dry and clean environment.
- Use this product exclusively for cooling of packaged beverages.
- Never use the device as a stepping stone.
- Never place electrical appliances inside the appliance.
• Make sure the grilles are not blocked, both outside and in the cooler.
• Make sure the ambient temperature does not exceed the class climate.

After use

• Take care to provide safe storage / disposal of the waste product (see WEEE regulations).

EMERGENCY STOP

ISOLATE FROM THE POWER SUPPLY

Appliance description

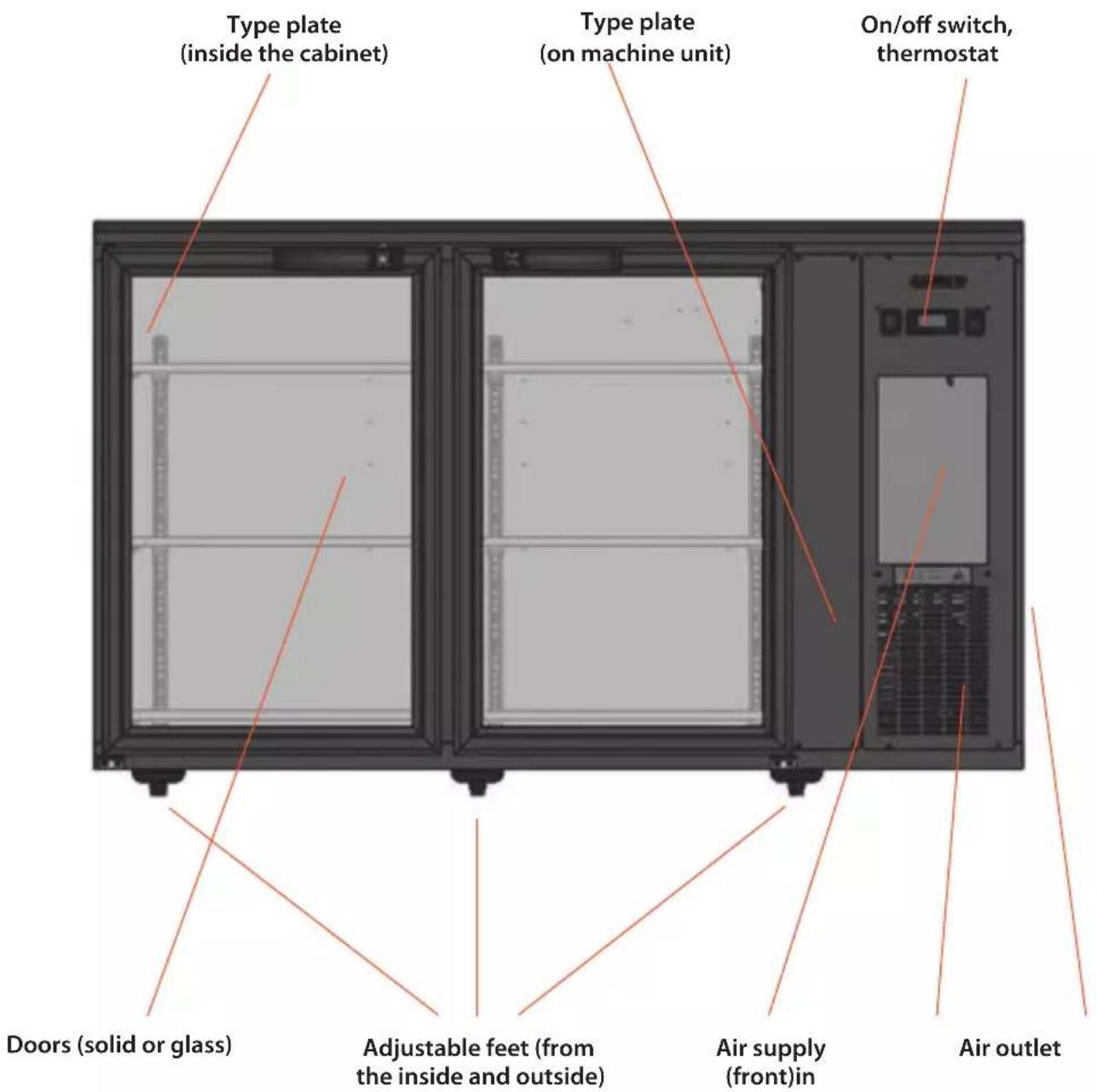

Type plate (inside the cabinet) Type plate (on machine unit) On/off switch, thermostat Doors (solid or glass) Adjustable feet (from the inside and outside) Air supply (front)in Air outlet

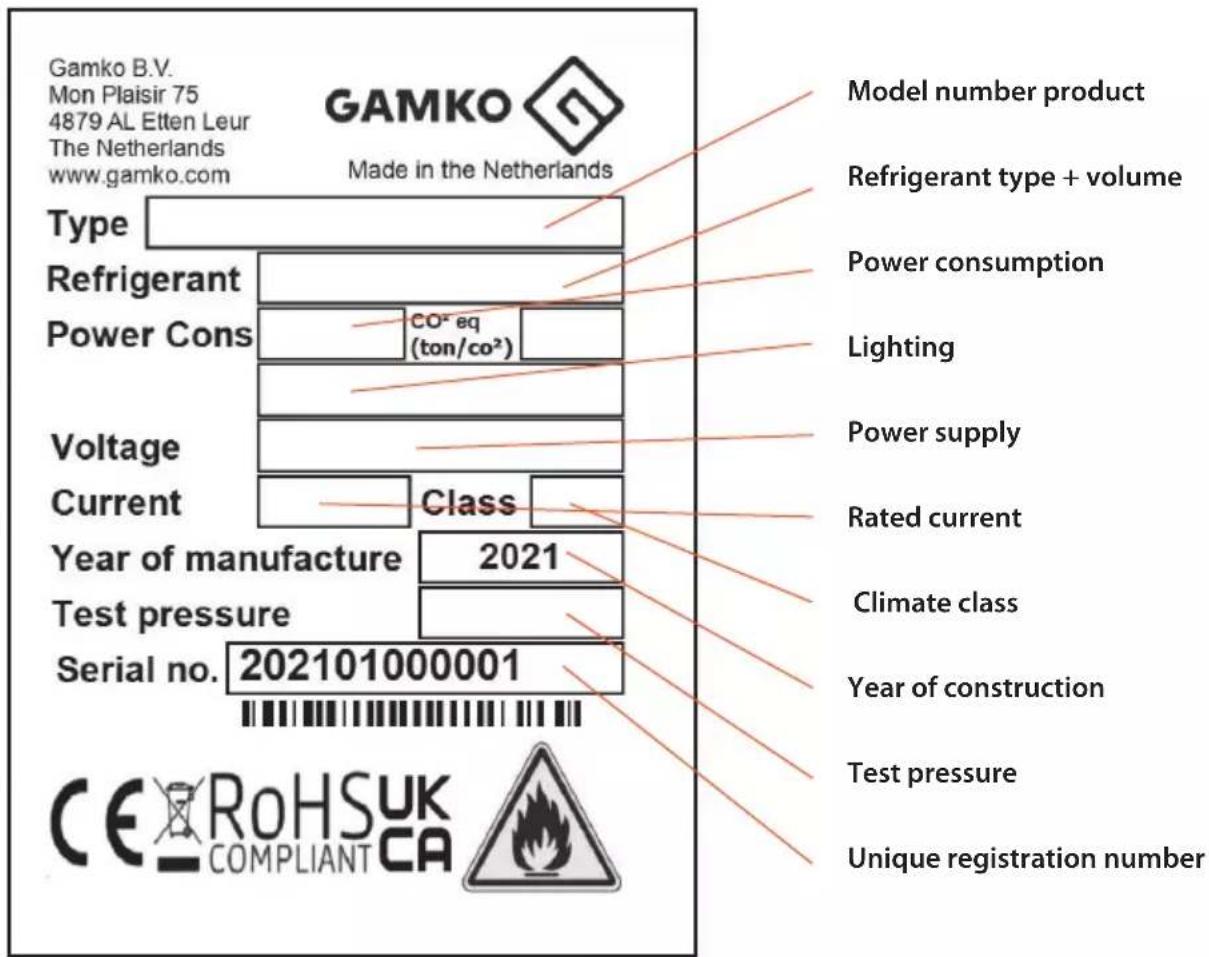

Type plate

Climate classification

A refrigerator is specified to work within certain temperatures limits. This product is suitable for the following class: N: from +16 °C to +32 °C.

Chapter 2 - Installation

Operating principle

A refrigerator works by extracting heat from the space to be refrigerated and to release this in the surrounding area. For maximum air circulation it is recommended to allow at least 10 cm space around the refrigerator. Be very careful never to obstruct the air inlets and outlets.

The advised maximal height of the load is marked with the load lines on the inside of the cabinet.

Installing the appliance

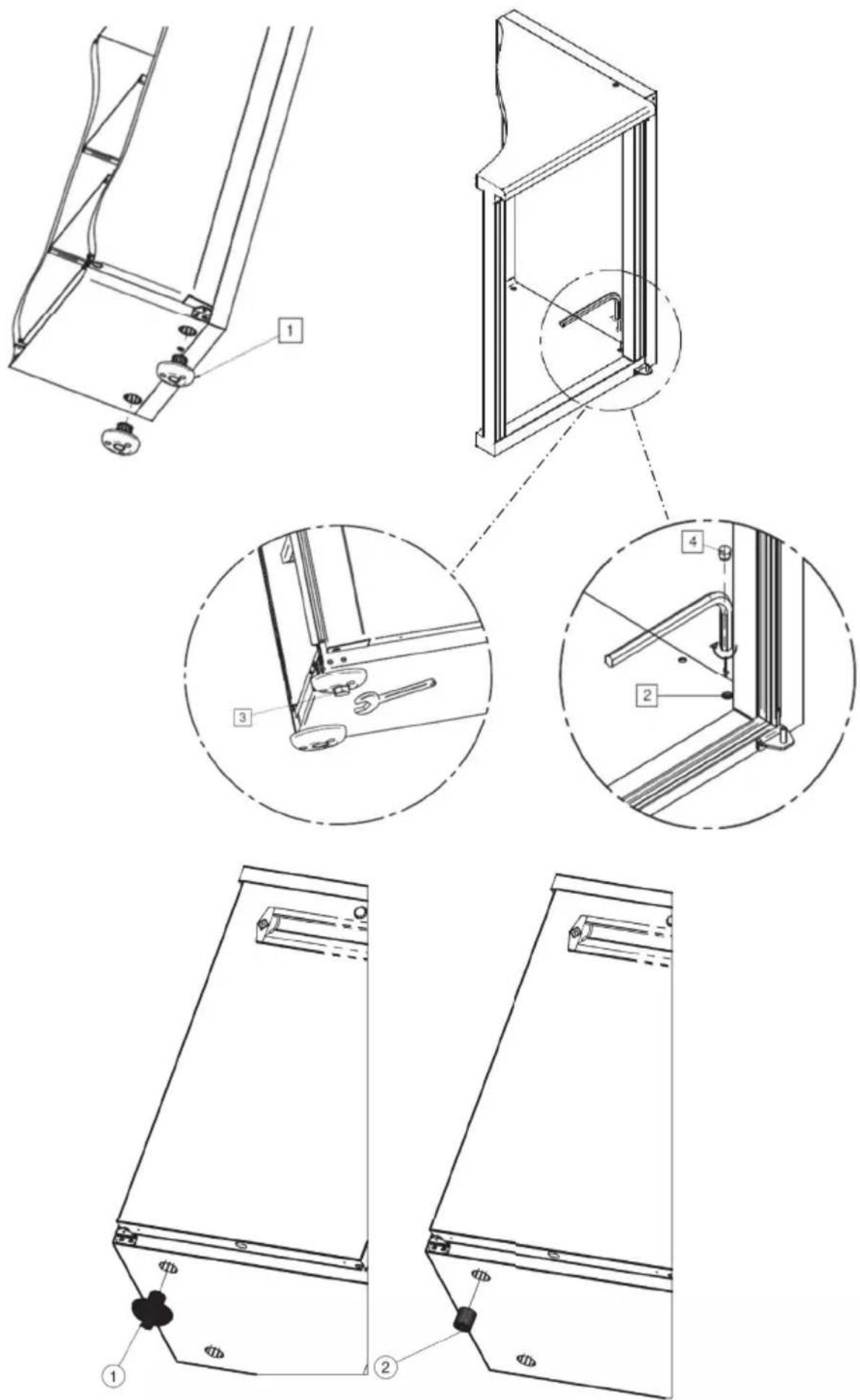

1 Place the product in the desired position on a flat surface.
2 Place a water level on the product.
3 The product is best placed with feet (1) to provide adequate air circulation around the cabinet. This guarantees optimal operation of the product as well as a reducing energy consumption. The legs can be used to level the product properly.
4 Adjust the stands (1) with 6 mm Allen wrench in the openings (2) until the product is level
5 Tighten the screws (3) of the foot pieces (1), at the bottom, with a wrench, when the adjusting device is not accessible from the inside.
6 Plug the openings (2) on the inside with the supplied caps

If the feet (1) are not mounted, then fill the holes in the bottom with the supplied insulation caps (2). This is to prevent condensation and loss of energy.

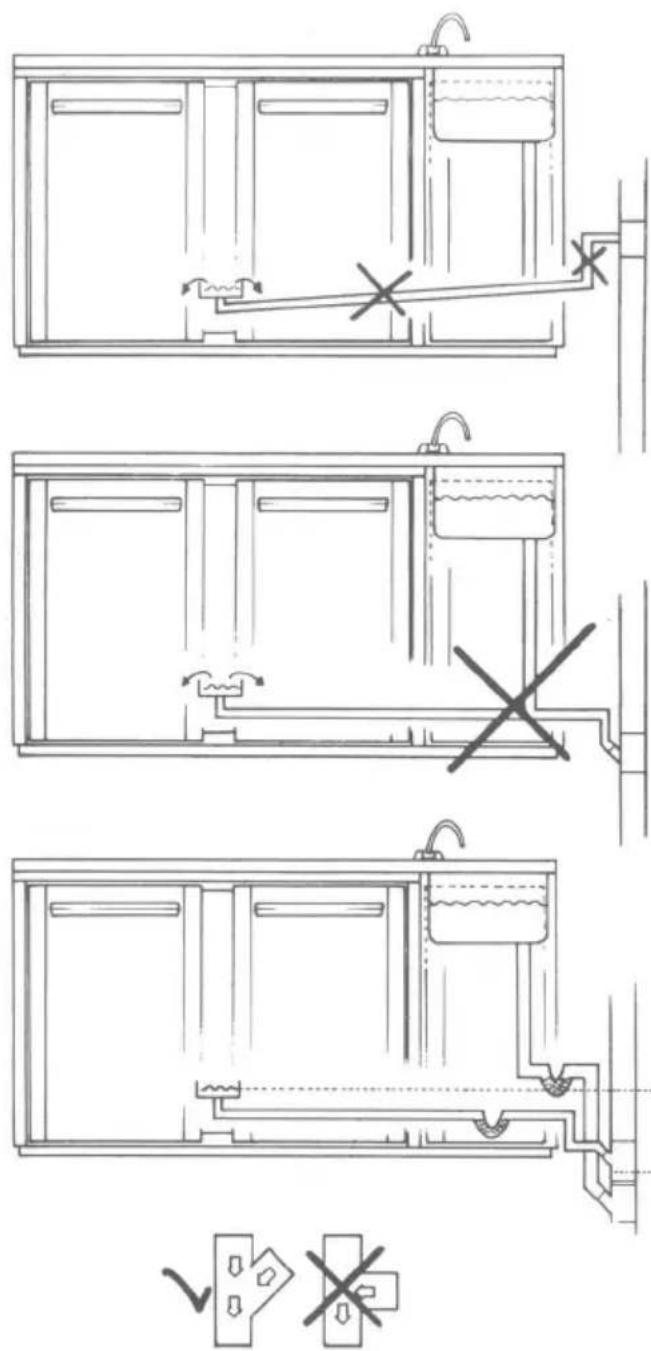

Fitting the waste pipe

• Install the cabinet following the instructions.
- Connect the waste pipe to the drains.
- Ensure that the drain pipe slopes down and is fitted lower than the evaporator drip tray in the cabinet.
• Fit a siphon to prevent bad odours coming into the cabinet.
- Pay attention that the siphon does not obstruct the flow too much.
- Fit separate waste pipes for drip tray and rinsing bowl if necessary.
• Always use T-connectors 45°.
• Always connect the overflow to the drains (in extreme circumstances it may be possible that the evaporation capacity is not sufficient).

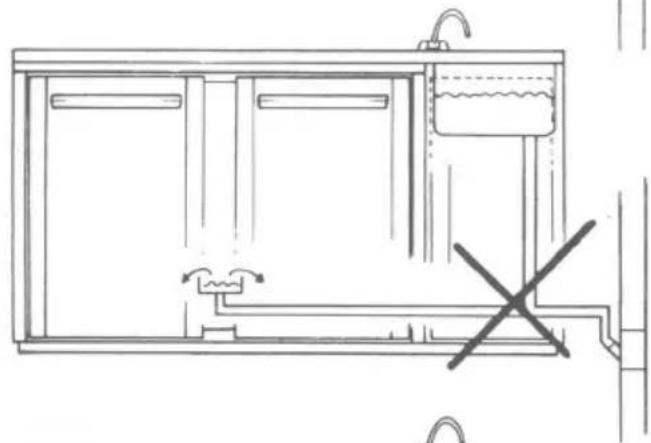

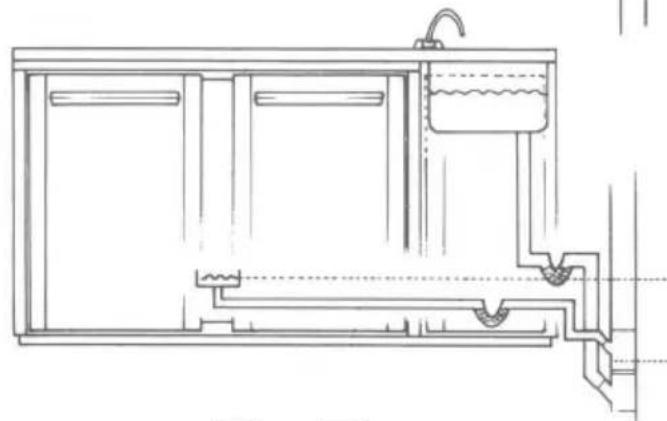

Technical diagram showing three variations of a kitchen sink with water flow control, including a cross symbol indicating no need for cleaning or repair.

Fitting storage shelves

1 Hook pin into the opening of the rail and push bottom part towards the side.

Close-up of hands holding a small metal object, possibly a tool or component (no visible text or symbols)

2 This causes the pin to slot into the next opening in the rail.

Close-up of a hand holding a small metal tool, possibly a wire or clip, with no visible text or symbols.

3 Fit the other pins at the same height.

Close-up of a hand holding a ruler measuring a metric (no visible text or symbols)

4 Place the storage shelf, sliding the pins in the openings.

Close-up of a metal ruler measuring a wall-mounted object (no visible text or symbols)

Close-up of a metallic shelf with a white strip extending from a vertical rod (no text or symbols visible)

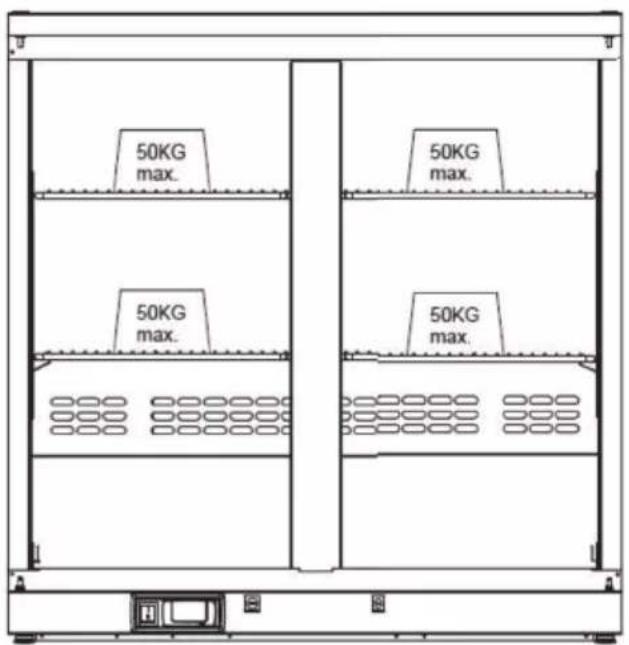

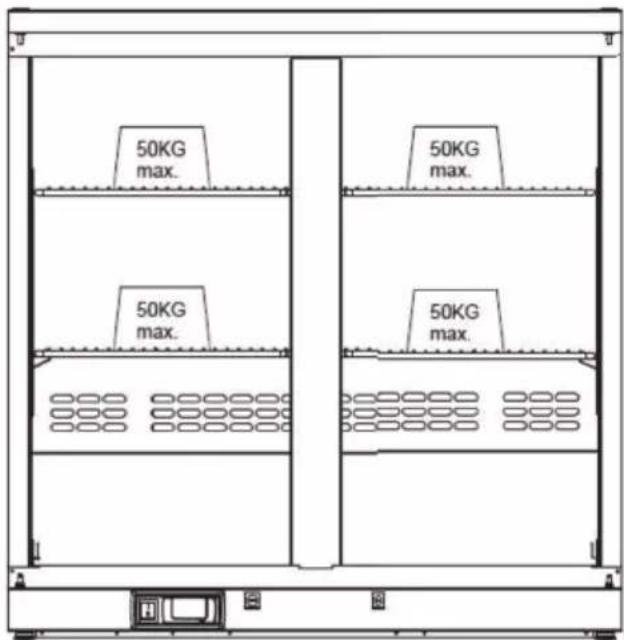

50KG max. 50KG max. 50KG max. 50KG max.

Power supply

• Check the correct voltage on the basis of nameplate.
• Check the cable cannot be clamped or get stuck.
• Use of an extension cord is not recommended.
  • If necessary, allows a cable renewal by a licensed electrician.

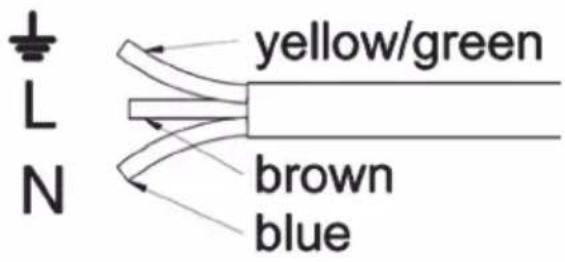

yellow/green brown blue

Due to under-or peak voltage may cause damage, so that the cabinet is turned off. Gamko is not responsible for any consequential damages.

Electrical schedule

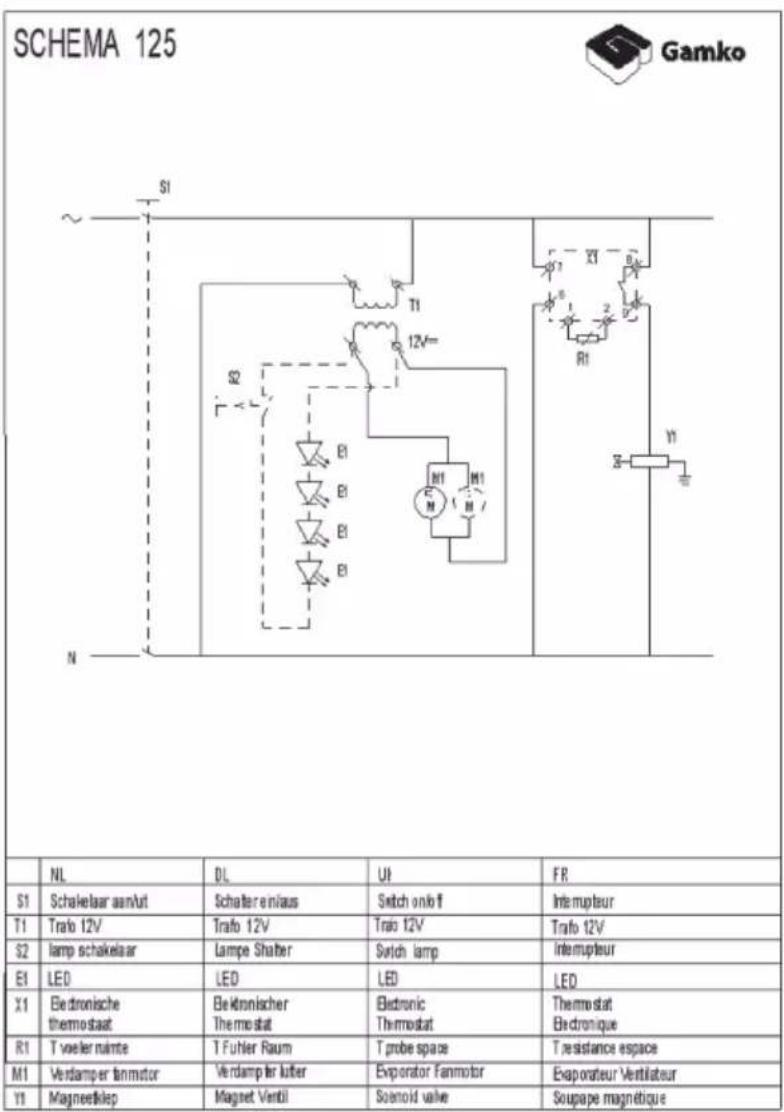

SCHEMA 125 Gamko SI S2 N XL UI FR S1 Schakelaar aan/ut Schateren/aus Switch on/off Interrupteur T1 Trafo 12V Trafo 12V Trafo 12V S2 lamp schakelaar Lampe Shalter Switch lamp Interrupteur E1 LED LED LED X1 Electronische Thermostat Bektronischer Thermostat Electronic Thermostat Thermostat R1 T voeler nulnte T Fuhler Raum T probe space Resistance espace M1 Verdamper tanmotor Verdampfer lufter Evaporator Fanmotor Evaporateur Ventilateur Y1 Magneteldep Magnet Ventil Solnoid valve Soupape magnétique

Chapter 3 - Using the appliance

Prior to use

• Clean the appliance before commissioning. For further details see maintenance.
  • After the installation, wait at least 2 hours before starting the appliance.
• Plug into a grounded outlet.

Thermostat

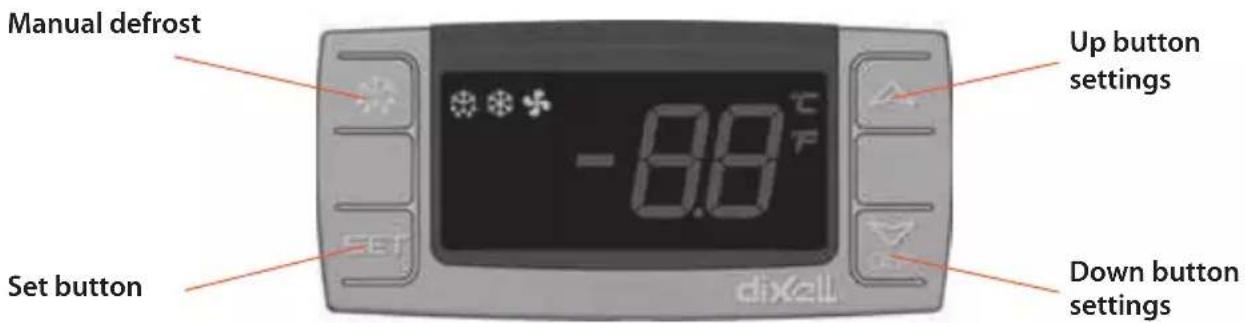

Manual defrost Set button Up button settings -8.8 °C down button settings dixell

Using the thermostat

For use and settings of the thermostat, please refer to the manual supplied with this product.

XR02CX

To see the set point.

1. Push and immediately release the SET key, the set point will be showed;
2. Push and immediately release the SET key or wait about 5 sec to return to normal visualisation;

To change the set point.

1. Push the SET key for more than 3 sec, the value will be displayed and the °C LED starts blinking;
2. To change the set point value push the arrows and to memorise the new set point value push the SET key again or wait 10sec.

(dimmable) LEd lighting

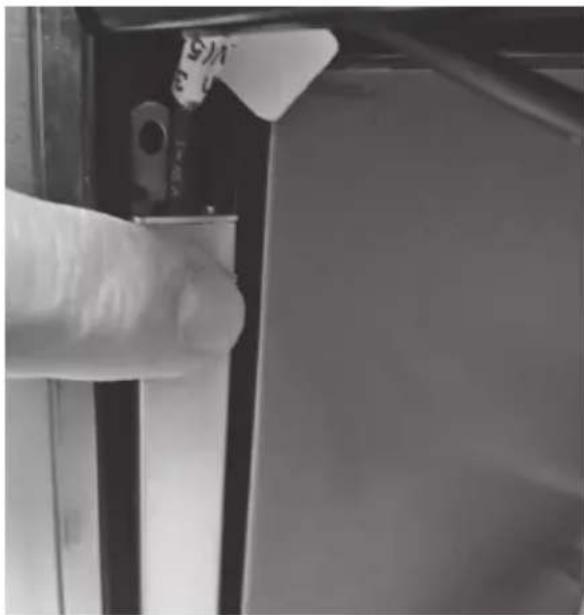

The product is equipped with white LED lighting. Depending on the type of product, the LED lighting is dimmable in three strengths. If the product is equipped with dimmable LED lighting, the dimmer is located at the end of the LED strip and has a blue light for recognition. Place a finger on the blue light to decrease the brightness.

Close-up of a gloved hand holding a white plastic sheet, with no visible text or symbols

Filling the appliance

• This product is exclusively suitable for packaged beverages
- Please do not store any uncovered food in the appliance.
- Please fill the product when it is least used. Repeatedly opening of doors slows down the cooling
- Please store beverages with high alcohol content always upright and in a closed container

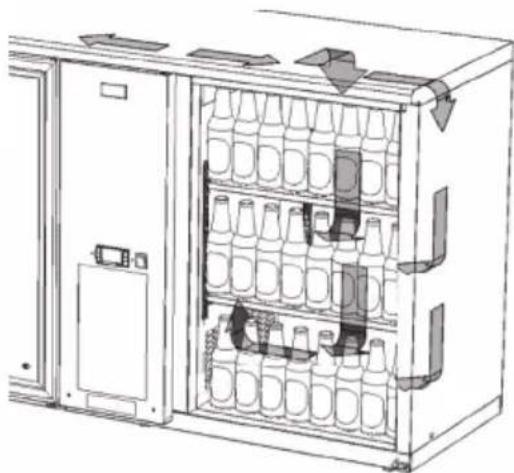

Fans and air vents in the cooling unit should NEVER be blocked. It is recommended to leave the side and rear free of the cabinet free for optimum air circulation. This improves cooling performance and reduces power consumption.

Line drawing of a laboratory refrigerator with shelves and doors, no text or symbols present

NEVER place electrical appliances in the cabinet!

TIP!

• Apply the so called First-in First-out principle when serving beverages out of the cabinet. This to ensure that the coldest beverage is served.
• Close the doors if the bottle cooler is not being used to save energy.
• If the key is placed in the lock, it protrudes. This can be prevented by removing it from the lock. This way you prevent yourself from hurting yourself with the key.

Chapter 4 - Maintenance

Cleaning the cabinet

Proper maintenance of your product guarantees a long life.

Self-maintenance

• Before first use the cabinet should be cleaned using water and a mild detergent.
• Do not use acids or aggressive cleaning agents. Use water and a mild detergent when cleaning the unit.
• Intensive use requires regular cleaning.
• Check and clean the magnetic seals (gaskets) on a regular basis. If the seal is not airtight it will have a negative effect on the refrigeration performance, and it need to be replaced immediately.

Two orange triangular warning symbols with an exclamation mark, likely indicating a hazard or alert.

Attention!

• Do not disassemble the cooling unit for cleaning!
• Do not use aggressive or abrasive cleaning agents
• Clean glass doors with a mild detergent.
• Clean stainless steel with water and mild soap.
  • After cleaning Stainless steel, rinse and dry with a soft cloth.

Troubleshooting

Attention

Always remove the plug from the socket when carrying out repairs.

The appliance does not start.

• Check the powerplug.
• Check the power switch next to the thermostat.
• Restore power by possibly replacing a faulty fuse or switch.
• Please notify your service partner.

Temperature is too high, Despite the correct thermostat set point.

• Check that the condenser is clean (see Chapter 4: Maintenance).
• Check that fan rotates
• Remove any objects that may block the air ventilation.
• Check magnetic door seal, clean or replace if necessary.
• Defrost evaporator.
  • Thermostat is defective. Please notify your service partner.

Temperature is too low, Despite the correct thermostat set point.

• Thermostat is defective. Please notify your service partner.

Water spillage

• Make sure doors / drawers close properly.
- Check that any holes made during installation are well sealed.
• Make sure the appliance is level.
- Defrost regularly - perhaps additional manual defrost (see manual thermostat).
- Please notify your service partner.

WEEE-regulations

€

IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY PRIOR TO INSTALLATION. KEEP THESE INSTRUCTIONS IN A SAFE PLACE. THE INFORMATION CONTAINED IN THIS BROCHURE IS IMPORTANT FOR THE DISPOSAL OR RE-USE OF THIS APPLIANCE AT THE END OF ITS USEFUL LIFE.

Gamko BV is attentive of the care of the environment and meets all requirements contained in the Directive 2002/96/CE, known as WEEE, or the Directive referring to Waste from Electrical and Electronic Equipment. This product conforms to the directive 2002/96/CE. At the end of its useful life the product, which is to be processed separate from household waste, should be transferred to a collection point of separate waste from electrical and electronic equipment. The objective of the Directive 2002/96/CE is to combat the increasing volumes of waste from electrical and electronic equipment, to increase the re-use of electrical and electronic equipment ("EEE") and finally to limit the total volume of waste EEE ("WEEE") destined to be disposed of. The symbol of the crossed out waste bin indicates that this product is subject to the application of this Directive. It is the responsibility of the user to transfer the product to specialized collection points, as indicated by local legislation or the distributor. In case of installation of a new product the old WEEE product can be collected by the distributor at the same time. The manufacturer, importer and distributor are responsible for the collection and processing of the waste which is collected directly or through a collection point. The enclosed list contains Gamko BV distributors per country. Any violation of the above-mentioned Directive will result in sanction measures in all of these countries. In general, Gamko BV applies the "CECED interpretation" (European Committee of Manufacturers of Electrical household appliances) according to which the WEEE legislation is applicable to portable air conditioners, dehumidifiers, window-air conditioning, split systems up to 12 kW, fridge's and plug in freezer compartments. Nevertheless, it is possible that in the various member countries differences in legislation are detected. In case some products are not included on the list of WEEE products following national legislation, the national legislation should be adhered to, the WEEE directives applicable to products that are not included in the scope of these national legislations should be omitted. The directive does not apply to products sold outside the European Union. In case the product is to be sold outside the European Union, it is not necessary to adhere to the WEEE directive however; the vendor/distributor has to guarantee that local legislation is being observed. For further information please refer to the local authority for waste collection, the vendor/distributor/installer who supplied the product or directly to Gamko.

GWP / ODP-table

This product may contain fluorinated gases as mentioned under the Kyoto treaty.

Chemical name of refrigerant (see name plate) R134a R404a R410a R744

Global Warming Potential (GWP) of refrigerant (CO2=1) 1300 3920 2090 1

Ozone Depletion Potential (ODP) of refrigerant (R12=1) 0 0 0 0

R134a - R404a - R410a - Warning!

a. Hermetically sealed system.
b. Emissions of the gas must be avoided. The fluorinated gas may never escape into the atmosphere during installation, use and disposal. If leakage of fluorinated gas is detected, the leak must be repaired as soon as possible and emission of the gas to be stopped.
c. Only qualified service personnel should work on this product for maintenance and service purposes.
d. The processing of fluorinated gas in this product, such as recharging of the refrigerant, must be in compliance with European Community regulation (EC) No 842/2006 on certain fluorinated gases and the applicable local regulations.

R744 - Warning!

a. Hermetically sealed system.
b. In case refrigerant leakage is detected, the area should be ventilated and qualified service personal should be alerted.
c. Only authorized service personnel are allowed to open the cooling system and perform maintenance work.

Table des matières

The Refrigeration Experts

Warning sign with exclamation mark in orange triangle

ATTENTION! - dANGER

Orange triangular warning sign with black border (no text or symbols)

ATTENTION! - AVERTISSEMENT

Technical line drawing of a kitchen sink with faucet and fixtures (no text or symbols)

Line drawing of a kitchen sink with a cross mark indicating a water level, no text or symbols present

Technical line drawing of a mechanical or architectural component with no visible text or symbols

Close-up of hands holding a small metal object, possibly a tool or component (no visible text or symbols)

Close-up of a hand holding a thin wire or wire with a small object inside, no visible text or symbols.

Close-up of a hand measuring a vertical measurement ruler against a metallic door (no visible text or symbols)

Close-up of a metal ruler inserted into a wall corner (no visible text or symbols)

Close-up of a metallic shelf with a white cable or wire attached to the shelf (no text or symbols visible)

50KG max. 50KG max. 50KG max. 50KG max.

yellow/green brown blue

Close-up of a hand holding a small object near a door, no visible text or symbols

Line drawing of a refrigerant cabinet with shelves filled with bottles and arrows indicating airflow or movement (no text or symbols)

CONSEIL!

Two orange triangular warning symbols with an exclamation mark, indicating caution or hazard.

Attention!

The Refrigeration Experts

Warning sign with exclamation mark in red triangle, commonly used to indicate safety or hazard.

ACHTUNG! – GEFAHR!

Orange triangular warning sign with black border (no text or symbols)

ACHTUNG! – WARNUNG!

Technical diagram showing three variations of a kitchen sink with water flow control, including a cross symbol indicating no need for cleaning or repair.

Close-up of hands holding a small object, possibly a tool or device, with no visible text or symbols.

Close-up of a hand holding a small metal tool, possibly a wire or cable, with no visible text or symbols.

Close-up of a hand measuring a wall-mounted object, no visible text or symbols

Close-up of a metal ruler inserted into a wall, showing measurement markings (no text or symbols visible)

Close-up of a metallic shelf with a horizontal bar and a small wire, no visible text or symbols

50KG max. 50KG max. 50KG max. 50KG max.

yellow/green brown blue

Close-up of a gloved hand inserting a component into a device (no visible text or symbols)

Line drawing of a refrigerated industrial cabinet with shelves and air ducts (no text or symbols)

Two orange triangular warning symbols with an exclamation mark, likely indicating a hazard or alert.

Achtung!

a. Hermetically sealed system.
b. In case refrigerant leakage is detected, the area should be ventilated and qualified service personal should be alerted.
c. Only authorized service personnel are allowed to open the cooling system and perform maintenance work.

Fabrikantenverklaring/Herstellererklärung/Manufacturer declaration/La déclaration de fabricant

(Richtlijn 2006/42/EG, Bijlage II, onder B)/(Richtlinie 2006/42/EG, Anhang II, unter B)VERBOT AUF INBETRIEBSTELLUNG/(Directive 2006/42/EG, appendix II, under B)/PROHIBITION ON COMMISSIONING/(Directive 2006/42/EG, l'annexe II, en dessous de B)L'INTERDICTION SUR COMMANDER CE PRODUIT

Fabrikant

Hersteller/Manufacturer/Fabricante: Gamko BV

Adres

Adresse/Address/Adresse: Mon Plaisir 75

4879 AL

Etten-Leur

The Netherlands

Verklaart hiermede dat

Erkärt hiermit daß/Herewith declares that the following product/Déclare ci-après que:

- Flessenkoeler type

◆ Supply of Machinery (Safety) Regulations 2008

Electromagnetic Compatibility Regulations 2016
♦ Electrical Equipment (Safety) Regulations 2016
◆ Pressure Equipment (Safety) Regulations 2016
The Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Regulations 2012

Etten-Leur, 12-07-2021

J. Nieuwleat

Manager Research & Development

J. Nieuwleet Manager Research & Development

Empty white square with a thin orange border (no text or symbols)
