CX5120 - Heating PHILIPS - Free user manual and instructions

Product type	Decentralized electric heater with fan
Brand	Philips
Model	CX5120
Nominal thermal power	2.0 kW
Minimum thermal power	1.1 kW
Power supply	220-240 V ~ 50/60 Hz
Connectivity	Wi-Fi 802.11b/g/n, 2.4 GHz
Control	Electronic with thermostat, daily timer, remote control
Smart functions	Open window detection, adaptive control, black globe sensor
Weight	Approximately 5 kg
Dimensions (W x H x D)	Approximately 60 x 40 x 20 cm
Noise level	Silent (data not provided)
Safety	Drop protection, overheat protection, thermal cut-off
Maintenance and cleaning	Clean with a dry or slightly damp cloth. Do not immerse.
Spare parts and repairability	Contact Philips or www.philips.com/support
Warranty	2 years, subject to normal use
Standby consumption	0.001 kW
Recommended use	Well-insulated rooms or occasional use

Frequently Asked Questions - CX5120 PHILIPS

How do I clean my Philips CX5120 heater?

Unplug the device and let it cool down. Use a dry or slightly damp cloth to wipe the surface. Never use flammable detergents and do not immerse the device in water.

Can I use the heater in a bathroom?

No, the device is not designed for use in very humid environments such as bathrooms, kitchens, or pools. Use it only in dry rooms.

What should I do if the heater does not turn on?

Check that the socket works and the cord is not damaged. Make sure the thermostat is set above room temperature. If the problem persists, contact Philips service.

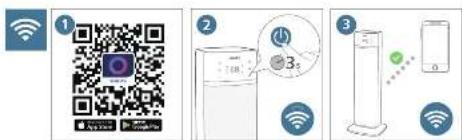

How do I program the heater timer?

Use the adjustment buttons or the Philips mobile app to set the on and off schedules. The daily timer allows you to define customized time slots.

Can the heater be controlled remotely?

Yes, the Philips CX5120 is equipped with Wi-Fi. Install the Philips HomeControl app to control the heater remotely, adjust the temperature, and set schedules.

The heater makes an abnormal noise: what should I do?

A slight clicking while heating is normal (expansion). If the noise is loud or persistent, check that the device is on a flat and stable surface. If the problem continues, consult after-sales service.

What is the power consumption of the CX5120?

The rated power is 2.0 kW, i.e., up to 2 kWh per hour in continuous operation. In standby mode, consumption is only 0.001 kW.

How do I activate the open window detection?

This function is automatic. If the heater detects a rapid drop in temperature (open window), it turns off to save energy. You can disable it in the app settings.

Where can I buy spare parts?

Go to www.philips.com/support or contact your Philips reseller. The 2-year warranty covers manufacturing defects; parts are available via authorized service.

Can children use the heater safely?

Children aged 8 and older can use the device under supervision. Children aged 3 to 8 can only turn it on/off if it is installed correctly. Children under 3 must be kept away.

USER MANUAL CX5120 PHILIPS

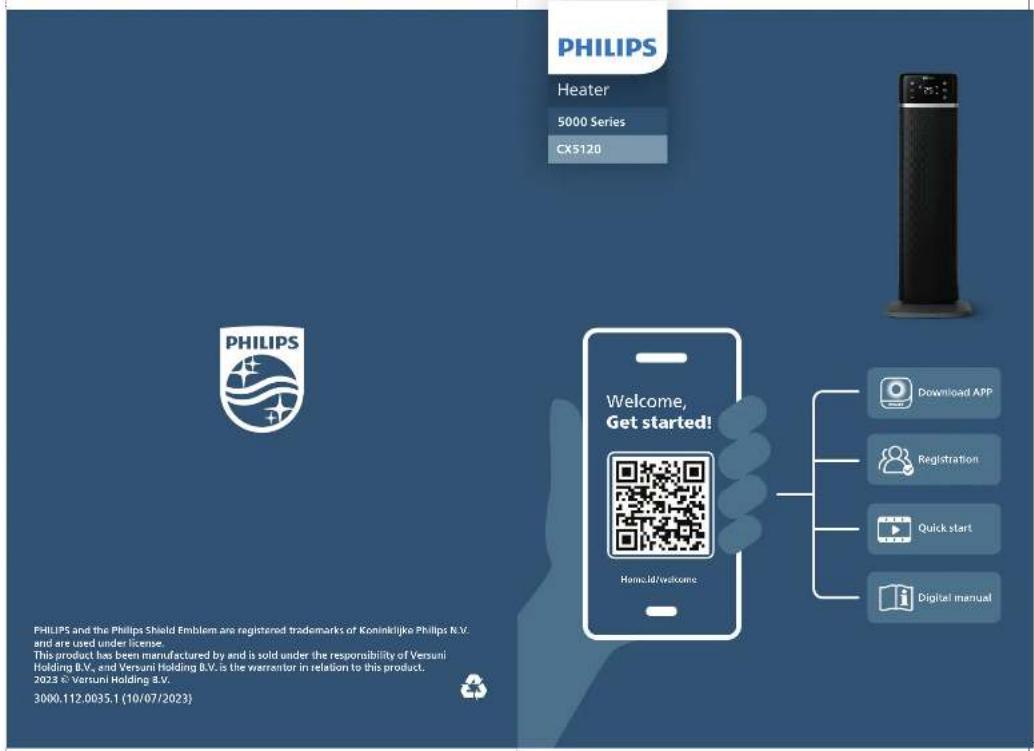

[1] Welcome. Get Started! Download App Registration Quick start! Digital manual
Добре дошля, да запо-ване! Итестане на АРР/регистрация «краткого ръководство/цирового ръководство
2021 > /Stahnerat splitaci / Regisnata / Kyschý start / Digitalní příručke
16. Velkomme, kum godt r gangt / Covrinald AIV / Reapstrum / Quick Start / Digital manual
01 Willkommen Legen Sie lost / Apo hienunteraden / Regisierung / Schnelstart / Digitalics Handlow
Καλυστρίωνη Ας δεσιγέσεμη / Ιλήν καπραμης / γγροφη / ιρίνερη εκαρή / Μεχιστο μχειρίδο
Elmeridio/a ympecemos / Descargar APLICACIÓN / Registro / Iniderrápico / Manual digital
13.1 Terebement, al. atagel (1 and 5) riserulus / Registreestimare / Kirkostus / Dinnalne a band
Tervetuloa, aloltetaan! /Latas sevelius /Reidsterömti /Pikaopas /Digitalinen käyttöpas
10. Immécrise, débutez / Téléchange l'application / Irégistrement / Démarage-rapules / Manual numériques
103 Debro dell. započitel / Preazmite aplikacije / Registracija / Kratke upute / Digitalni prinčnih.
III. Udavzelyjati Kardjunk a hozzik /Alkormazia steltéve /Regaztrásió /Itnatal Cinnatostó /Cupitáls Cinnatostó
TI clano il benecuto, Iniziamo /Download dell'app/Registrazione/Guida rapida/Manuale digitale
[36] 관람합니다. 지국 시작과서요! (의 다운로드) / 중 / 최은 시작 / 디지를 신뢰서
17. Szuk, pradokme naudotil / Atsiasi programie / Regstracije / Transportas veduava / Skalimarini instruktija
IV. Szuk, oacat latočina / Hietnost lejupstalde (Registrarija / Otra carba naciara - Digitala rakuogravata
132 Доброе воздушо, заполните со користовьето! / Презаменте АПЛЯКАЦИЯА / Релиспрадица / Бра почеток. / Лигиталину уплаттке за серитини.
21. Wekom en ga aan de slaal /Download ago? Registratie /Schaart /Digital handleiding
105. Vollkommen, kann gängt (1 out und APV Requisierung Haartigstret Digital Säulhank
Wital, zoczyjmól / Pobierz AFLUKACIĘ / Rejestracja / Szybki start / Elektréniczna instrukcja obsługi
21. Demo-indo, varro comagar / Transfer APP Register/Inlet rapido/Mannus digital
(24) Eine ai venti. Incepel /Descarcă aplicatja/ivregistrare/Pomire rapido/Manuzi digital
57. Výzse, zafínmel / Preszal aplikártu Regatásica / Myche spaterie: Digitára prémítá;
10. Dobrocoli, za/nibel/Download APP/Registration/Quick Start/Digital manual
10. Welcome, Get Started! Download A/P : Registration /Quick Start /Digital manual
3.1. Obro doši, započitel / Prezerné spikariju / Registracija / Vodć za brzi početek / Digitalni prinučnik
201 Vilkommern, Nc. aittar vriging! /Lodda rial app?Regatrving/Snackatan?Digital amander/nordlack
14. Mrs Goldiniz, Rayalayam, 120yamaya, indir /Kash /Hirk Raylangig /Dital kalasuz
012 Вітосто, почилю: Завки навшє додаток / Рахстраця Шаншегі по-вагос / Цефрахний тюбник.
أANO إلى يك، يمّل وَدَ الْسَنْحَدُمُ أَنْشِيلِ الْتَطِيمُ/الْتَسَبِينُ/الَيْدَّ الْسَرِجُ/الْدَيْلِ أَرْمَى

PHILIPS

Heater

5000 Series

CX5120

English1

Български 4

Čeština 7

Dansk 10

Deutsch 13

Ελληνικά 17

Español 20

Eesti 23

Suomi 26

Français 29

Hrvatski 32

Magyar 35

Italiano 38

한국어 41

Lietuviškai 44

Latviešu 47

Македонски 50

Nederlands 53

Norsk 56

Polski 59

Português 62

Română 65

Slovensky 68

Slovenščina 71

Shqip 74

Srpski 77

Svenska 80

Türkçe 83

Українська 86

91 العربية

EN This product is only suitable for well insulated spaces or occasional use.

Read this important information booklet carefully before you use the appliance, and save it for future reference.

Danger

- Do not let any liquid or flammable detergent enter the appliance, to avoid electric shock and/or a fire hazard.

• In order to avoid overheating and fire, do not cover the device.

Warning

• Some parts of this product can become very hot and cause burns. Continuously supervision has to be given where children and vulnerable people are present.
- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safeway and understand the hazards involved.
- Children aged from 3 years and less than 8 years shall only switch on/off the appliance provided that it has been placed or installed in its intended normal operating position and they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
• Children aged from 3 years and less than 8 years shall not plug in, regulate and clean the appliance or perform user maintenance.
• Children of less than 3 years should be kept away unless continuously supervised.
• Children shall not play with the appliance.
• Cleaning and maintenance shall not be made by children without supervision.
- Do not use this heater in small rooms when they are occupied by persons not capable of leaving the room on their own, unless constant supervision is provided.
- When device working in heating mode, the surface temperature will gradually increase. Do not touch the air outlet to avoid being burn.
- To reduce the risk of fire, keep textiles, curtains, beddings or any other flammable material a minimum distance of 1 m from the air outlet. Do not block the air inlet and outlet, e.g. by placing items on the air outlet or in front of the air inlet.
- Do not insert fingers, sticks or other objects into the machine, in order to avoid electric shocks, physical injury or fire.
• Device has heating component. Do not use the appliance near gas appliances, fireplaces.
- Do not spray any flammable materials such as insecticides or fragrance around the appliance.
- Do not use if there are visible signs of damage to the device, the plug, the power cord.
• Do not use this device if it has been dropped.
- If the power cord is damaged, you must have it replaced by Philips, a service center authorized by Philips, or similarly qualified persons in order to avoid a hazard.

Caution

• In order to avoid a hazard due to inadvertent resetting of the thermal cut-out, this appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by the utility.
  • The device must not be located immediately below a socket outlet.
  • Only plug in socket on the wall, do not use extension cord.
  • Always place and use the appliance on a dry, stable, and horizontal surface.
• Do not use the appliance in surroundings with high humidity such as the bathroom, toilet, kitchen, swimming pool, or any outdoor environment.
• Do not sit or stand on the appliance. Do not knock against appliance. Do not place anything on top of the appliance.
• Always unplug the appliance when you want to move, clean appliance, or carry out other maintenance.

• The appliance is only intended for household use under normal operating conditions.
- Standard WiFi interface based on 802.11b/g/n at 2.4 GHz with a maximum output power of 38.28 mW EIRP.

Electromagnetic fields (EMF)

This appliance complies with the applicable standards and regulations regarding exposure to electromagnetic fields.

Recycling

This symbol means that this product shall not be disposed of with normal household waste (2012/19/EU).

Follow your country's rules for the separate collection of electrical and electronic products. Correct disposal helps prevent negative consequences for the environment and human health.

Simplified EU declaration of conformity

Hereby, DAP B.V. declares that the radio equipment type CX5120 is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: www.philips.com.

Warranty and support

Versuni offers a two-year warranty after purchase on this product. This warranty is not valid if a defect is due to incorrect use or poor maintenance. Our warranty does not affect your rights under law as a consumer. For more information or for invoking the warranty, please visit our website www.philips.com/support.

Order parts or accessories

If you have to replace a part or want to purchase an additional part, go to your Philips dealer or visit www.philips.com/support.

If you have problems obtaining the parts, please contact the Philips Consumer Care Center in your country.

Information requirements for electric local space heaters

Model identifier(s): CX5120
Item Symbol Value	Unit Item Unit
Heat output --- Type of heat input, for electric storage
Nominal heat output Prem 2.0 kW manual heat charge control, with integrated thermostat						NA
Minimum heat output (indicative)	Pmin 1.1 kW manual heat charge control with room and/or outdoor temperature feedback					NA
Maximum continuous heat output	Pmaxc 2.0 kW electronic heat charge control with room and/or outdoor temperature feedback					NA
Auxiliary electricity consumption	-- kW fan assisted heat output NA
At nominal heat output	elmax	N/A	kW		Type of heat output/room temperature control (select one)
At minimum heat output	elmin	N/A	kW		single stage heat output and no room temperature control	[no]
In standby mode	elsB	0.001	kW		Two or more manualstages, no room temperature control	[no]
					with mechanic thermostat room temperature control	[no]
					with electronic room temperature control	[no]
					electronic room temperature control plus day timer	[yes]
					electronic room temperature control plus week timer	[no]
					Other control options (multiple selections possible)
					room temperature control, with presence detection	[no]
					room temperature control, with open window detection	[no]
					with distance control option	[yes]
					with adaptive start control	[yes]
					with working time limitation	[yes]
					with black bulb sensor	[yes]
Contact details	DAP B.V.Tussendiepen 4 a, 9206AD Drachten, The Netherlands

Безопасност

PHILIPS and the Philips Shield Emblem are registered trademarks of Koninklijke Philips N.V. and are used under license.

This product has been manufactured by and is sold under the responsibility of Versuni Holding B.V., and Versuni Holding B.V. is the warrantor in relation to this product.

2023 © Versuni Holding B.V.

3000.112.0033.1 (15/06/2023)
