Brand	Triangle
Model	Tales 340
Product type	Active subwoofer
Power	250 W
Power supply	AC 100-240 V ~ 60/50 Hz
Audio inputs	LFE input, RCA inputs (Line In)
Crossover frequency adjustment	30 Hz - 120 Hz (Crossover)
Phase adjustment	0° / 180° (switch)
Volume control	Volume knob (Min/Max)
Auto standby	Yes, after 15 minutes without signal
LED indicator	Blue (on), red (standby)
Warranty	2 years (subject to registration)
Cabinet material	Fine woodworking (precious materials)
Care and cleaning	Dry, lint-free cloth
Intended use	Domestic use, complement to a hi-fi or home theater system
Installation precautions	Avoid humidity, excessive sunlight; disconnect before moving
Recycling	Use collection points for recyclable materials

Frequently Asked Questions - Tales 340 TRIANGLE

How to connect the Tales 340 subwoofer to a home theater amplifier?

Use the SUBWOOFER output of your amplifier and connect it to the LFE input of the subwoofer. Adjust the crossover frequency via the amplifier menu and set the subwoofer's crossover to maximum (120 Hz).

Can I connect the subwoofer to a stereo amplifier?

Yes, connect the PRE-OUT (R+L) output of your preamplifier or integrated stereo amplifier to the LINE IN (RCA) inputs of the subwoofer.

How to adjust the phase of the subwoofer?

The phase switch allows you to invert the phase (0° or 180°) to improve bass coherence with the main speakers. Try both positions and choose the one that offers the best sound.

What to do if the subwoofer does not turn on?

Check that the power cord is plugged in and that the outlet works. Make sure the ON/OFF switch is in the ON position. If the LED does not light up, contact your dealer.

Why is the subwoofer not producing any sound?

Check the connections between the subwoofer and the amplifier, that the amplifier is on, and that an audio source (CD, DVD...) is playing.

How to clean my Tales 340 subwoofer?

Use a dry, lint-free cloth to dust. Do not use chemical or abrasive products.

What is the warranty of the subwoofer?

The subwoofer comes with a 2-year warranty against manufacturing defects, provided you register the product online (http://register.trianglehifi.com/) or send the warranty coupon to Triangle within the time limit.

The subwoofer goes into standby by itself, is this normal?

Yes, the subwoofer automatically goes into standby after 15 minutes without a signal. The LED turns red. It reactivates as soon as a signal is detected.

Where to place the subwoofer for best performance?

Place the subwoofer in the front listening area, ideally between the two main speakers, for harmonious bass integration.

What to do in case of persistent malfunction?

Immediately unplug the power cord and contact your dealer. Never open the subwoofer yourself.

USER MANUAL Tales 340 TRIANGLE

MANUFACTURE ELECTROACOUSTIQUE

TALES

Simple black-and-white diagram of a device with a small square button labeled '100% 25.00' and two side supports (no text or symbols beyond the label)

Mode d'emploi & Garantie Owner's manual & Warranty

www.trianglehifi.com

support.trianglehifi.com

SUPPORT & FAQ

facebook.com/triangle.electroacoustique

twitter.com/trianglehifi

SOMMAIRE / SUMMARY

Garantie / Warranty 4

User Manual - English 15

- Unpacking 16

- Installation precautions 16

- Connecting 18

- Powering ON 20

- Troubleshooting 21

Informations techniques / Technicals informations 22

GARANTIE / WARRANTY

Thanks for buying a TRIANGLE Product.

We want you to enjoy your purchase to the fullest. The first step is an easy registration of your products. By doing this, you will benefit from helpful tips, products support, special offers and 2 years warranty.

1- Online registration

Register your product easily online at the following address :

http://register.trianglehifi.com/

2- Warranty card

You can also register your product and validate your warranty by filing the warranty card and sending it to :

TRIANGLE DISTRIBUTION FRANCE

Note on the warranty

Your TRIANGLE subwoofer is warranted for 2 years. This warranty takes effect from the date of purchase and covers any manufacturing defect or damage your subwoofer could suffer as a result of these same defects. This warranty is granted solely to the first owner of the product, and is not transmittable in the case of resale. To validate your warranty, you will need to register online or mail the warranty coupon to TRIANGLE. Please note, this warranty is voided if any fault arises from ill-treatment or careless handling of the product.

The following are not guaranteed :

• A burned voice-coil caused by overloading the driver
• Any fault occurring from professional usage (public sound systems, PA systems, etc.)
• Any fault resulting from storage in areas of high humidity
• A pierced or torn membrane
• A torn suspension
• Any fault resulting from a mechanical shock (ex if dropped or handley roughly)
• Any fault arising from servicing by anyone other than an authorized TRIANGLE service technician
• Damaged cabinets due to mishandling

Open the box and remove all staples, then take out the subwoofer.

If you notice any defects on any elements when unpacking, contact your dealer.

Before disposing the packaging, check that nothing is left inside.

INSTALLATION PRECAUTIONS

Before installing

Before connecting your installation, make sure all equipment is swiched off. Make sure the switch is OFF before removing or connecting cables. Do not connect the power supply cable before completing all connections.

Moving the unit

Always disconnect the power supply cable and the cables between any other audio components when moving the unit. This is in order to prevent any short-circuiting or damage on plugs and connection cables.

Before switching the unit on

Check once again that all connections are correct and that volume buttons are at the minimum.

Places to avoid

Avoid placing your enclosure near damp aeras or areas exposed to excessive sunlight and install it in a cool place.

Recycling

Your product contains valuable materials which can be recovered or recycled.

Leave it at local point.

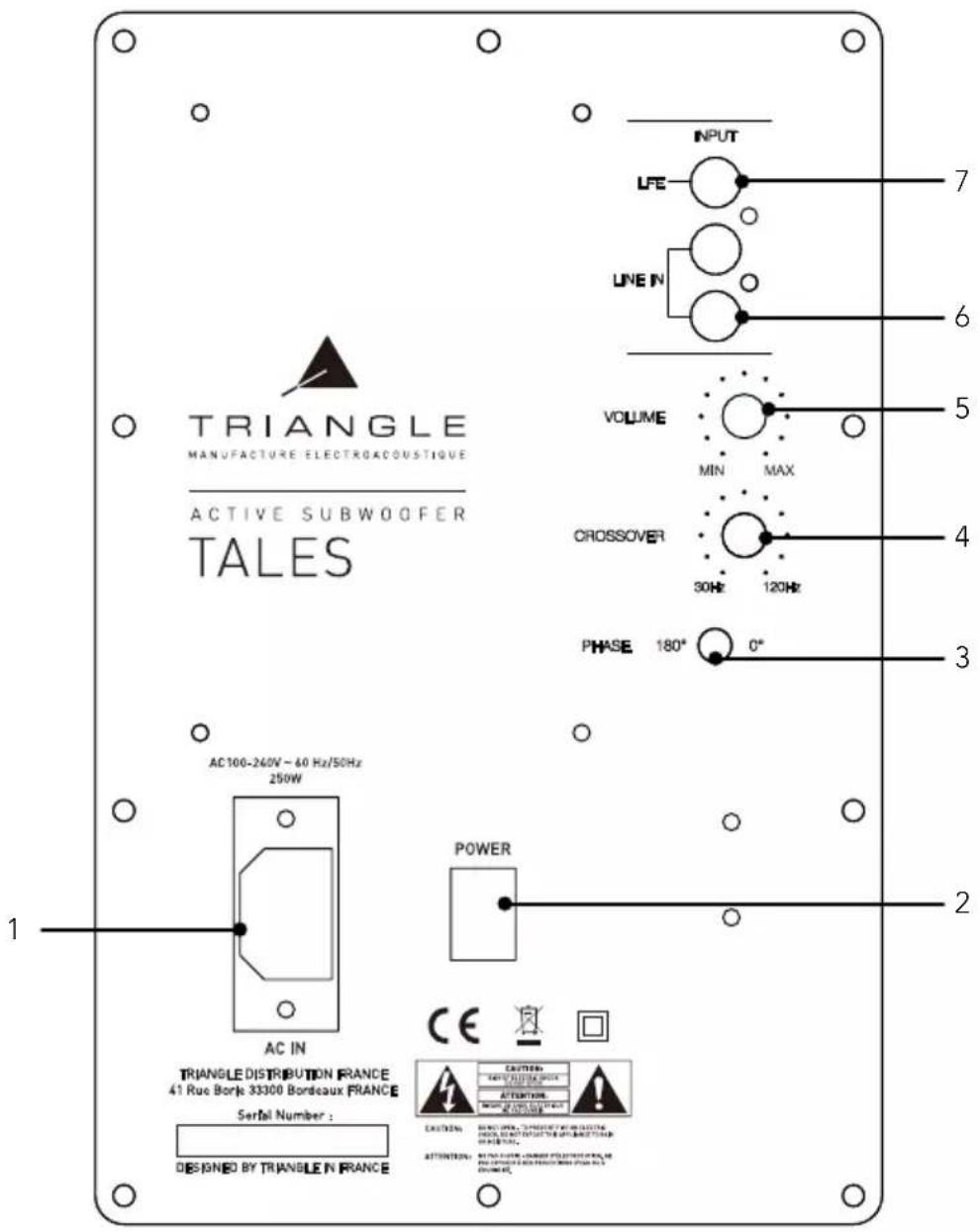

Description

1 - Power plug
2 - ON / OFF
3 - Phase inversion button 0-180°
4 - Frequency cutoff knob
5 - Volume
6 - RCA Inputs
7 - LFE Input

TRIANGLE MANUFACTURE ELECTROACOUSTIQUE ACTIVE SUBWOOFER TALES INPUT LFE LINE IN VOLUME MIN MAX CROSSOVER 30Hz 120Hz PHASE 180° 0° AC 100-240V ~ 60 Hz/50Hz 250W POWER AC IN TRIANGLE DISTRIBUTION FRANCE 41 Rue Borte 33300 Bordeaux FRANCE Serial Number : DESIGNED BY TRIANGLE IN FRANCE 1 2 7 6 5 4 3 2 CAUTIONS SERVICE CONTROL ATTENTION RETURN ON CHINESE POWER CONTENTS CONTENTS CONTENTS CONTENTS CONTENTS CONTENTS CONTENTS CONTENTS CONTENTS CONTENTS CONTENTS CONTENTS CONTENTS CONTENTS CONTENTS CONTENTS CONTENTS CONTENTS CONTENTS CONTENTS CONTENTS

Connections

Before connecting your installation, make sure all equipment is switched off. If you have any doubts about connecting your installation, we recommend you to contact your authorized dealer.

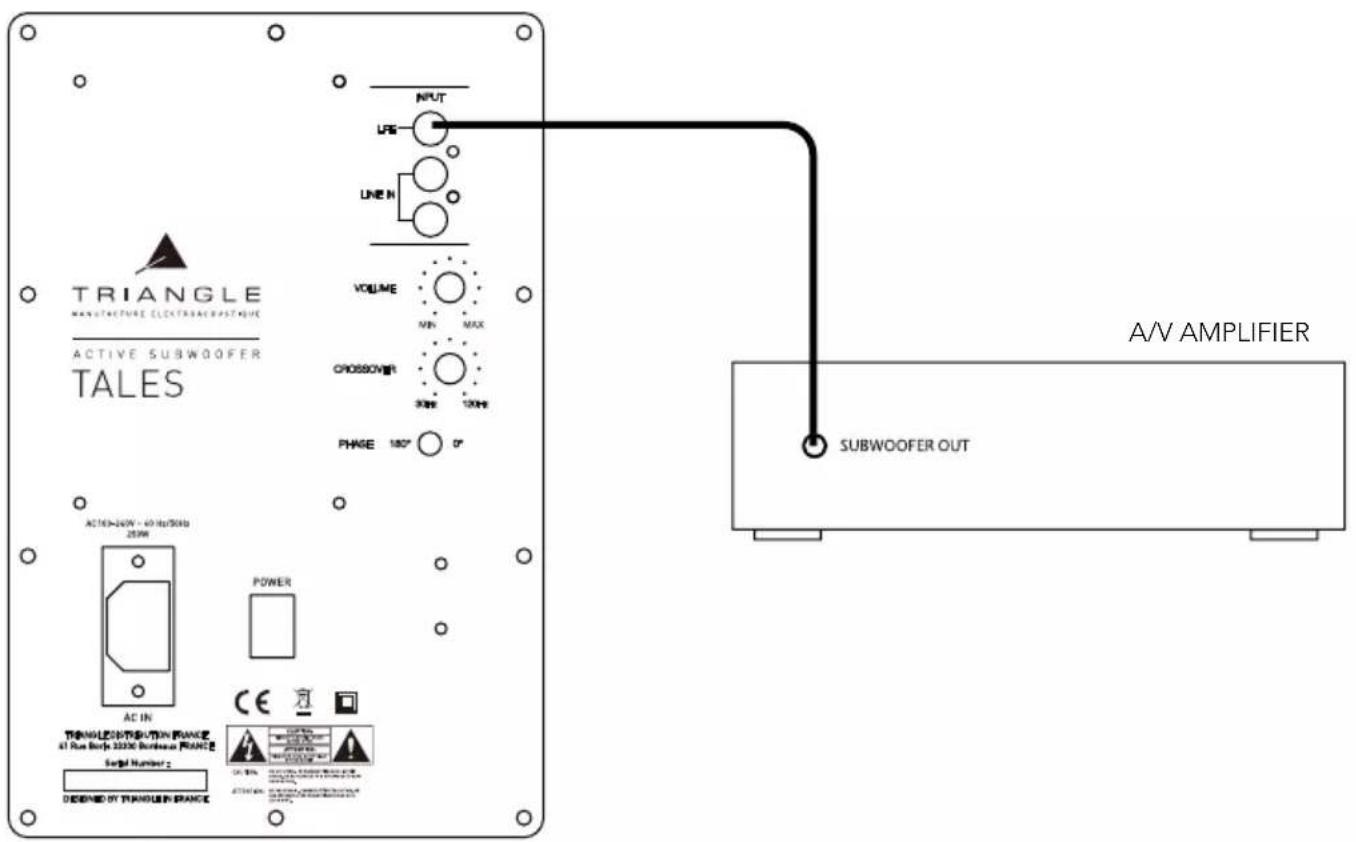

Connection to a multi-channel audio-video amplifier

Use the SUBWOOFER output of the amplifier and connect it to the LFE input of your subwoofer. This input allows to filtering by your audio-video amplifier and not by the subwoofer.

When connected to the Subwoofers LFE input, the setting of the crossover frequencies should be regulated in the dedicated menu on your AV amplifier (see the user manual of your device). When connected, please turn the Crossover to the maximum.

TRIANGLE MANUFACTURE ELECTRAPHETRY ACTIVE SUBWOOFER TALES VOLUME MIN MAX CROSSOFF 30Hz 100Hz PHASE 180° 0° ACTION-24W - 40 Hz/50Hz 25Hz POWER AC IN TECHNOLES POWER/TIN FRANCE at Run Bracket 3330K Burmbox PRANCE Signal Number 2 DECEIVED BY TRANSFER FRANCE SUBWOOFER OUT A/V AMPLIFIER

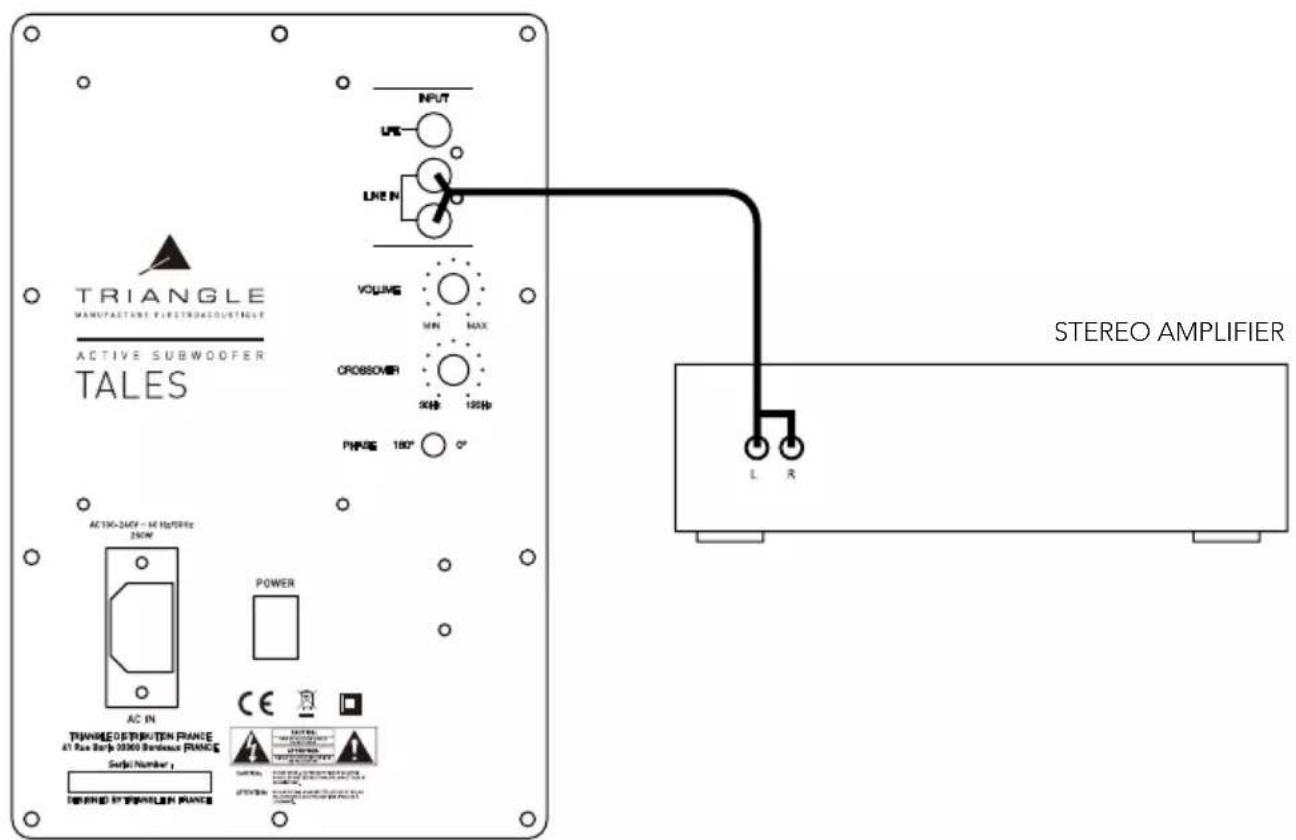

Connection with stereo amplifier

Use the PRE-OUT (R+L) output on your preamplifier or on your integrated stereo amplifier (see the owner's manual of your equipment) and connect it to the inputs on the enclosure.

TRIANGLE MANUFACTURE FIRSTROADQUETRAVE ACTIVE SUBWOOFER TALES ACT10-24CV - 14 Hz/9Hz 250W AC IN TINNREDISTRIBUTEN FRANCE 41 Pan Barb 33000 Bandpass FRANCE Serial Number: DINDED BY TRANSFER FRANCE POWER CE L R VOLUME MIN MAX CROSSOVER 3XHz 120Hz PHWE 180° 0° STEREO AMPLIFIER L R

Powering ON

Powering ON should be carried out as follows :

• Check once again that all connections are correct and that the volume button of your amplifier is at minimum.
• Connect the power plug.
• Switch the ON/OFF switch to ON, the blue LED on the front panel lights up.
• Adjust the volume, frequency and phase buttons (see Settings).
• The standby is done automatically if no signal is received for 15 minutes, the LED on the front panel becomes red.

Note : Cut off the power supply of the subwoofer by using the power switch when it is not in use for several days.

Positionning and settings

Position your subwoofer in the forward listening zone (if possible between the two main speakers) for a better sound resolution.

This subwoofer can be used with any type of loudspeakers.

The ideal setting should correspond to a realistic reproduction of the bass and be adjusted the best possible with your main loudspeakers. You should not «feel» the subwoofer, the bass should seem to come from the main speakers.

The phase inversion switch can be used to reach the best result possible. This switch is used to inverse the phase of the sound signals coming from the subwoofer. Depending on the placement of the subwoofer in the room in relation to the main speakers, inverting the subwoofer phase can lead to a better coherence of the system's global response in the bass frequencies.

We recommend you to carry out various tests until finding the setting which suits you the best. Use a recording you know well and study the result according to your taste and expectations.

Troubleshooting

If the equipment fails to operate correctly, check the points below. If the problem continues, a malfunction may be possible. Disconnect the power supply immediately and contact your dealer.

OBSERVATION CAUSE SOLUTION
The subwoofer is not working T	There is no power supply to the subwoofer	Check these points by order:- if the power supply cable is connected- if the power plug is working
No sound is coming from the subwoofer	There is no input signal to your subwoofer	Check these points by order:- if the subwoofer is correctly connected to the amplifier- if the A/V or stereo amplifier is switched on- if your A/V or stereo amplifier has a working source of music (CD,DVD,etc.)
the level of the sound is weak, although the subwoofer volume is at maximum	Incorrect adjustment of the A/V amplifier	Check the subwoofer setting at the A/V amplifier (see your owner's manual)

CAUTION

Never open the subwoofer due to risk of electrical shock.

For any further informatin concerning your system, please consult our website :

http://trianglehifi.com/

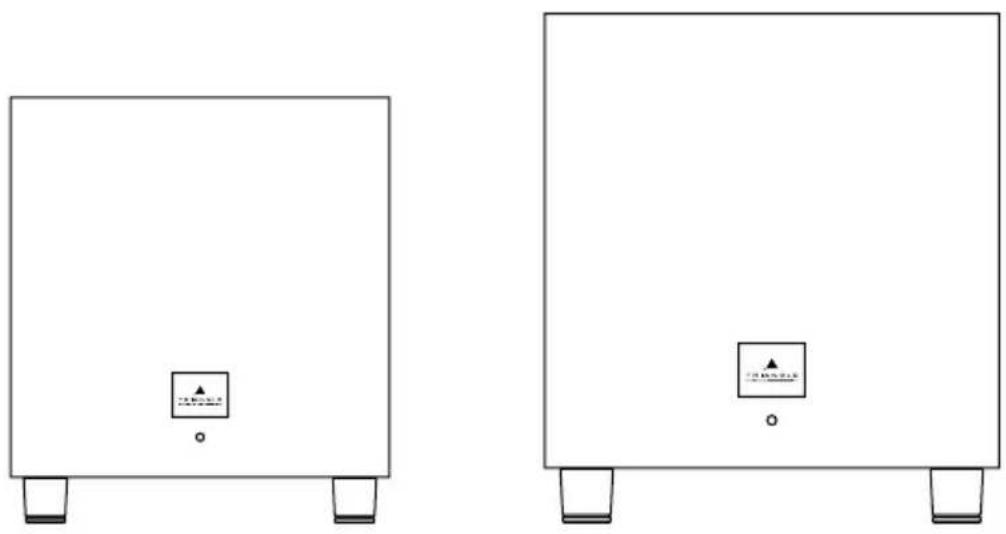

TALES RANGE

Spécifications TechniquesTechnical Specifications	TALES 340 TALES 400
Diamètre du haut-parleur (cm)Driver diameter (inch)	2510	3012
Bande passanteBandwidth	30 - 120 Hz 30 - 120 Hz
Fréquence de coupure filtreCrossover cutoff frequency	30/120 Hz 30/120 Hz
Puissance amplificateurAmplifier output (W)	200 300
Phase 0-180° 0-180°
EntréesInput	L&R low level, LFE L&R low level, LFE
Dimensions(mm; inch)	342x357x38313.46x 14.05x 15.07	393x408x43415.47x16.06x17.09
Poids de l'enceinte (Kg)Net Weight (lbs)	8.8519.51	11.5325.42
Poids avec packaging (Kg)Gross Weight (lbs)	10.322.7	13.5229.81

TALES 340 TALES 400
