Product Type	Cordless Stick Vacuum Cleaner
Brand	Grundig
Model	VCP 4330 L
Rated Input Power	125 W
Power Supply	100-240 V ~ 50/60 Hz, 0.5 A
Adapter Output Voltage	26.5 V DC, 0.5 A
Charging Time	4 to 5 hours
Runtime at Maximum Power	20 minutes
Runtime at Minimum Power	40 minutes
Filter Type	EPA E10 Filter
Dust Container Capacity	Approx. 0.6 L
Included Accessories	Electric turbo brush, crevice tool, dusting brush, charging station
Usage	Hard floors and carpets
Functions	2-speed power adjustment
Safety	Short-circuit protection, automatic shut-off on charge
Maintenance	Filter and roller cleaning without water, filter replacement
Charging Station Mounting Height	104-106 cm from floor

Frequently Asked Questions - VCP 4330 L GRUNDIG

How to charge the Grundig VCP 4330 L vacuum cleaner?

Place the appliance on the charging station and plug in the adapter. The white LED indicators flash during charging. When they are all lit continuously, charging is complete. The charging time is 4 to 5 hours. The appliance should not be used during charging.

What is the runtime of the VCP 4330 L vacuum cleaner?

The runtime depends on the selected power: 20 minutes at maximum power and 40 minutes at minimum power.

How to clean the dust container and filters?

Pull the emptying ring to empty the container. For deep cleaning, remove the container by turning clockwise. Remove the EPA E10 filter and the plastic filter. Do not wash the filters; gently tap them against a hard surface or use a brush. Reassemble in reverse order.

Can I use the vacuum cleaner on carpets?

Yes, this vacuum cleaner is suitable for carpets and hard floors. Use the electric turbo brush for best results on carpets.

How to clean the electric turbo brush?

Press the roller release button, remove it and remove any tangled hair or objects by cutting them. Gently tap the roller against a hard surface. Do not wash the brush or roller.

What to do if the LED indicator turns red?

If a single red light comes on, the battery level is low. The appliance will shut off automatically. Recharge the appliance. If the red light persists after charging, check that the on/off or power adjustment button is not stuck. Contact customer service if necessary.

Can I use the vacuum cleaner while it is on the charging station?

No, the appliance automatically stops when placed on the charging station. It should not be used during charging.

How to store the vacuum cleaner if not used for a long time?

Unplug the appliance and store it out of reach of children. For the battery, keep it at half charge in a cool, dry place. Avoid full discharge or prolonged full charge.

Where can I buy a replacement filter?

Contact Grundig customer service or an authorized dealer to purchase a replacement EPA E10 filter. Replace it if the filter is deformed to maintain performance.

Is the vacuum cleaner suitable for vacuuming water or liquids?

No, never vacuum water or liquids. The appliance is designed only for dry vacuuming.

USER MANUAL VCP 4330 L GRUNDIG

2 In 1 Cordless Stick Vacuum Cleaner

User Manual

VCP 3330 L - VCP 4330 L - VCP 3335 E

DE - EN - NL - PL - CS - IT - ES - LV - SL - RU - FR - RO - NO

CONTENTS

DEUTSCH 3-21

ENGLISH 22-35

NEDERLANDS 36-51

POLSKI 52-66

ČESKY 67-80

ITALIANO 81-97

ESPAÑOL 98-115

LATVIEŠU 116-129

SLOVENŠČINA 130-144

РУССКИЙ 145-172

FRENCH 173-187

ROMANIAN 188-203

NORWEGIAN 204-218

3-in-1 nozzle (14):

Please read this guide first!

Dear Customer,

Thank you for choosing a Grundig product. We would like you to achieve the optimal efficiency from this high quality product which has been manufactured with state of the art technology. Please make sure you read and understand this guide and supplementary documentation fully before use and keep it as a reference. Include this guide with the unit if you hand it over to someone else. Observe all warnings and information herein and follow the instructions.

Symbols and their meanings

These symbols are used throughout this guide:

Important information and useful hints about usage.

WARNING: Warnings against dangerous situations concerning the security of life and property.

Electric shock protection rating

1 Important safety and environmental instructions

This section contains safety instructions to prevent hazards that can result in injury or property damage.

Any warranty is void if these instructions are not followed.

1.1 General safety

• This appliance complies with international safety standards.
• This device can be used by children over 8 years of age, people with physical, sensory or mental challenges or people with lack of experience or knowledge; as long as control is ensured or information is provided regarding the hazards. Children must not play with the appliance. Cleaning and user maintenance shall not be carried out by unattended children.
• Do not use the appliance if the power cord or the appliance is damaged. Contact authorized service.
• Your mains power supply shall match the information shown on the rating plate label of the appliance.
• Do not use the appliance with an extension cord.
• To prevent damage to the power cord, prevent it from being pinched, crimped or rubbed against sharp edges.
• Do not touch the plug of the appliance with damp or wet hands while the appliance is plugged in.
• Do not pull on the cord while unplugging the appliance.
• Do not vacuum flammable materials and ensure that the cigarette ashes are cooled down before vacuuming them.
• Do not vacuum water and other fluids.
• Protect the appliance against precipitation, humidity and heat sources.
• Do not use the appliance in or near explosive or flammable environments and substances.
• Unplug the appliance before cleaning and maintenance.
• Do not immerse the appliance or its power cord in water for cleaning.

1 Important safety and environmental instructions

• Do not disassemble the appliance.
• Use only original parts or parts recommended by the manufacturer.
• To prevent blockage of the filter or damage to the motor, do not vacuum cement, plaster or fragments of compressed paper.
• Use the appliance with the adapter delivered with the appliance only.
• Do not use the appliance without filters, it may get damaged.
• If you keep the packaging materials, keep them out of the reach of children.
• This appliance is not intended to be used by persons, including children, with physical, sensory or mental disabilities or those who have not adequate experience and knowledge regarding its use, unless they are under the supervision of a person responsible for their safety or they are informed about the operation of the appliance.
• Children shall be supervised to prevent them from playing with the appliance.
• To avoid any risk of hazard, a damaged adaptor shall be replaced by the manufacturer, the authorized representative of the manufacturer, or a similarly qualified technician.
• Keep your fingers, hair, and loose clothes away from moving parts or clearances while vacuuming.
• Disconnect the appliance from the power supply before removing the battery.
• Please discard used batteries in accordance with local laws and regulations.
• The batteries included in this appliance may only be replaced by qualified persons.
• The appliance is not intended for commercial use. It is designed for home use and in applications such as:

- In staff kitchens of stores, offices, and other working environments

1 Important safety and environmental instructions

- In farm houses;

- By customers in hotels, motels, or other accommodation facilities - In hostels or similar environments.

• WARNING: Use the ZD012A265050EU (VCP 4330 L) or ZD012A220050EU (VCP 3330/VCP 3335 E) removable supply unit delivered with the appliance to charge the battery.
• This appliance shall not be operated by children or people with limited physical, sensory, or cognitive skills, or people with lack of experience and knowledge, unless they are under supervision or have been given relevant instructions. Children shall be supervised to prevent them from playing with the appliance.
• Remove the depleted batteries from the appliance and dispose of them safely.
• The supply terminals are not to be short-circuited.

1.2 Compliance with the WEEE Regulations and Waste Disposal

This product complies with EU WEEE Directive (2012/19/EU). This product bears a classification symbol for waste electrical and electronic equipment (WEEE). This symbol indicates that this product shall not be disposed of with other household wastes at the end of its service life. Used device must be returned to an official collection point for recycling of electrical and electronic devices. To find these collection systems, please contact your local authorities or the retailer where the product was purchased. Each household plays an important role in recovering and recycling old appliances. Appropriate disposal of used appliances helps prevent potential negative consequences for the environment and human health.

1.3 Packaging information

Packaging materials of the product are manufactured from recyclable materials in accordance with our National Environment Regulations. Do not dispose of the packaging materials together with domestic or other wastes. Take them to the packaging material collection points designated by the local authorities.

Information on Waste Batteries

This symbol on rechargeable batteries/batteries or on the packaging indicates that the rechargeable battery/battery may not be disposed of with regular household rubbish. For certain rechargeable batteries/batteries, this symbol may be supplemented by a chemical symbol.

Symbols for mercury (Hg) or lead (Pb) are provided if the rechargeable batteries/batteries contain more than 0.0005% mercury or more than 0.004% lead.

Rechargeable batteries/batteries, including those which do not contain heavy metal, may not be disposed of with household waste. Always dispose of used batteries in accordance with local environmental regulations. Make enquiries about the applicable disposal regulations where you live.

1.5 What to do for energy saving

• When using your appliance, adjust the speed settings according to the surface, in order to save energy.
• Normally, lower speeds are used when cleaning hard surfaces, curtains, and sofas, while high speeds are used for cleaning carpets.

2 Overview

2 Overview

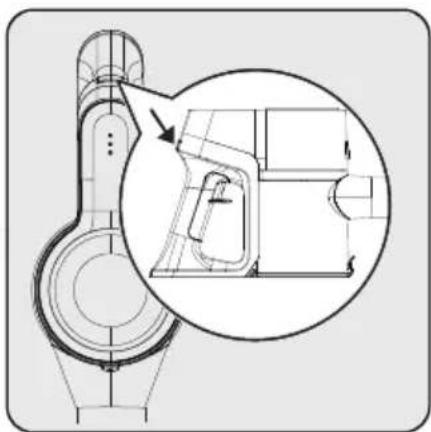

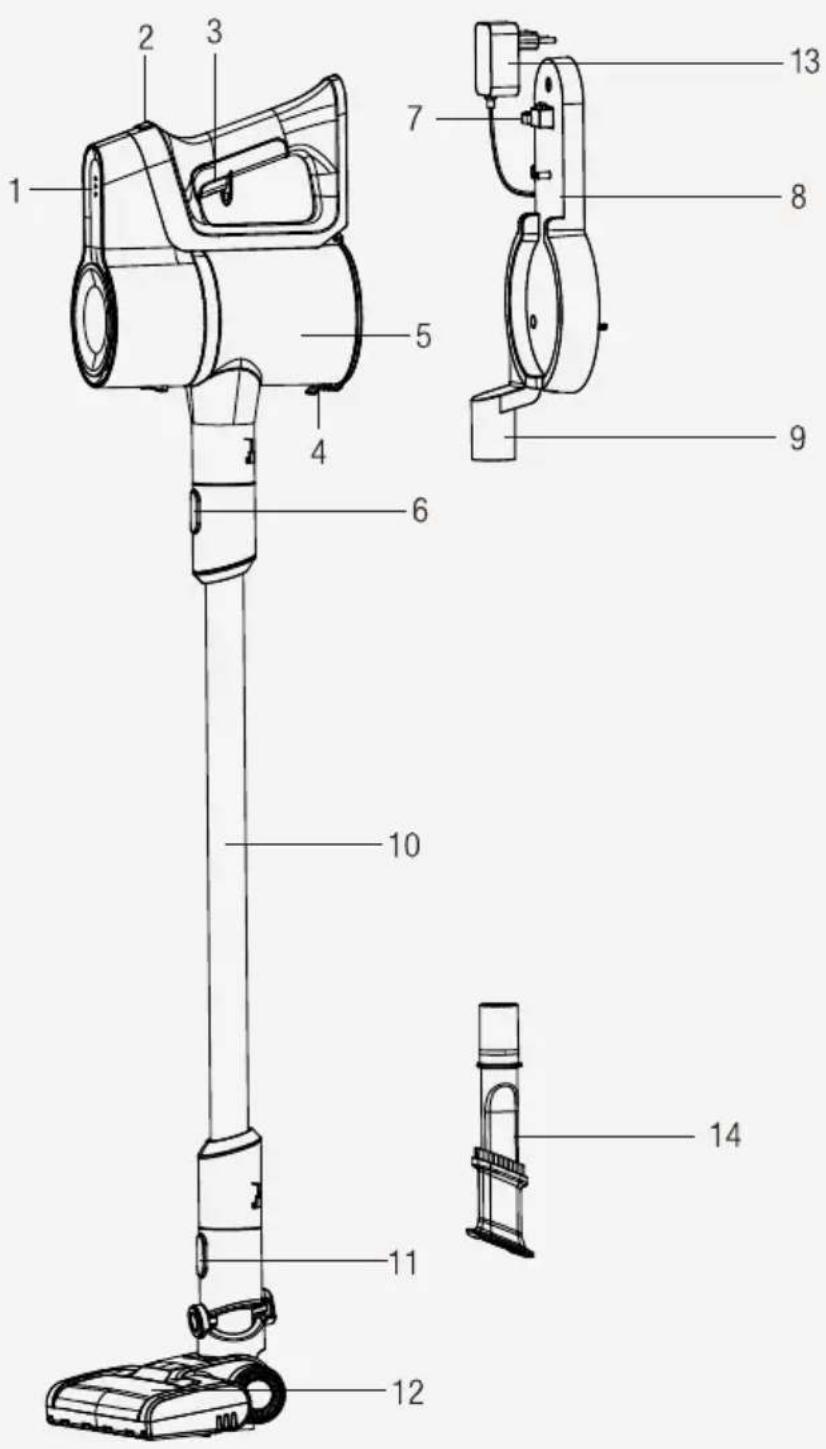

2.1 Controls and components

1. Charge indicator LED lights
2. Power Adjustment button
3. On/off button
4. Emptying dust container ring
5. Dust container
6. Tube release button
7. Appliance release button
8. Charging Dock
9. Accessory attachment parts
10. Tube
11. Brush release button
12. Electric turbo brush
13. Charging adaptor
14. Dust brush
15. Screw (4 pcs)
16. Dowel (4 pcs)

2.2 Technical data

	VCP 3330 L- VCP 3335 E VCP	4330 L
Nominal input power 110	W 125 W
Input 100 - 240 V~ 50/60	Hz 0,5 A 100 - 240 V~ 50/60 Hz 0,5 A
Output	22 V =0.5 A 26,5 V 0.5 A =
Charging time 4-5 hours 4-5 hours
Runtime at max. power 20 mins 20 mins
Runtime at min. power	42 mins 40 mins

The rights to make technical and design changes are reserved.

The values provided with the appliance or its accompanying documents are laboratory readings in accordance with the respective standards. These values may differ depending on the use and ambient conditions.

2 Overview

External Power Supply Parameter

	VCP 3330 L- VCP 3335 E VCP 4330 L
Manufacturer: E-TEK Electronics Manufactory LTD
Model ID: ZD012A220050EU ZD012A265050EU
Input Voltage: 100-240V~ 100-240V~
Input Frequency: 50/60Hz 50/60Hz
Input Current: 0.5A 0.5A
Output Voltage 22.0V 26,5Vdc
Output Current 0.5A 0.5A
Output Power:	11 W	13.25 W
Average active efficiency:	86.57%	83.49%
Efficiency at low load (10%):	85.04%	73.49%
Power consumption under no load:	0.067W	0.10W

3 Installation

3.1 Intended use

This appliance is intended for household use and it is not suitable for industrial use.

3.2 Installation of the charging dock

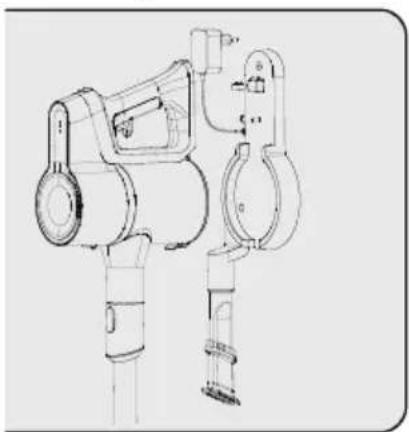

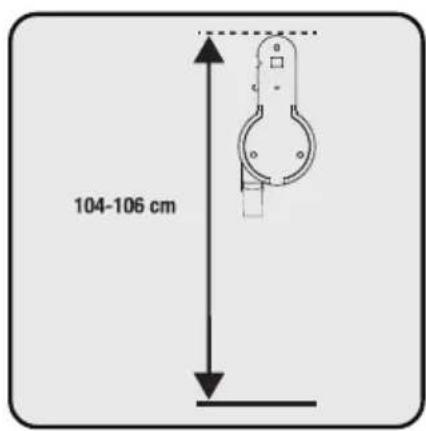

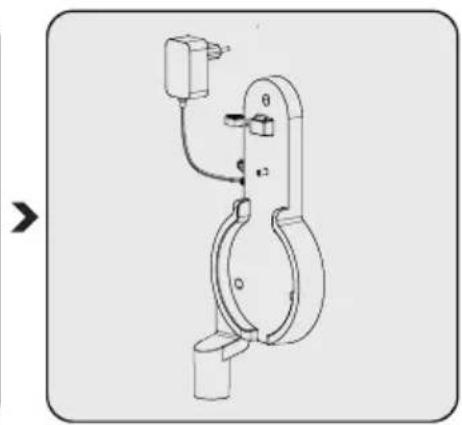

Position the charging dock (8) at a height of 104-106 cm from the ground.

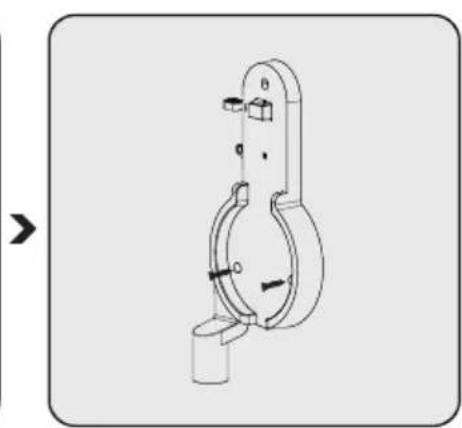

1- Fix four dowels (17) on the wall. 2- Place four screws (16) into their locations on the charging dock (8) and mount on the dowels on the wall.

Plug the charging adaptor (13) to the socket.

3.3 Installation of the body and the brush

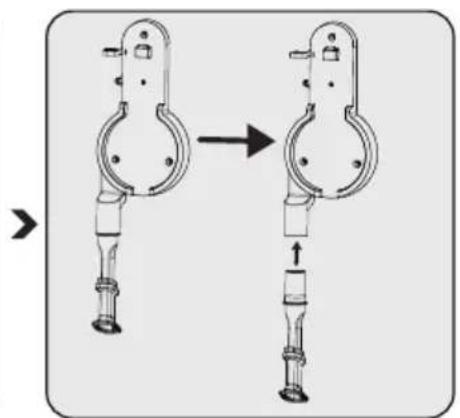

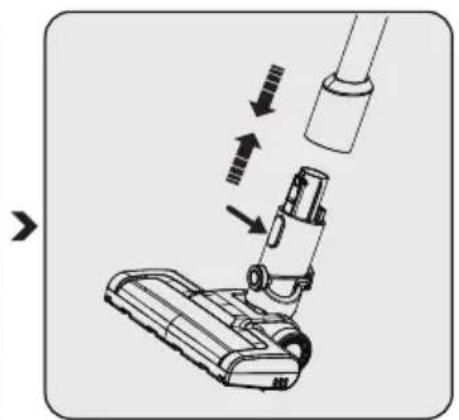

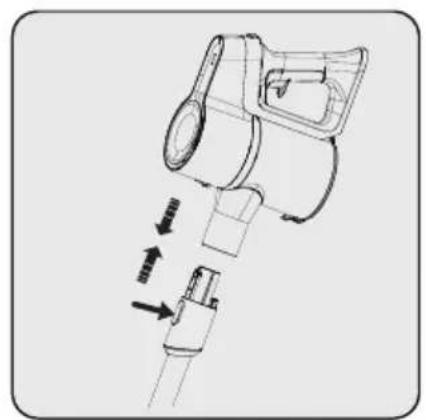

Push the tube (10) in the direction of arrow towards the body by pushing on the tube release button (6).

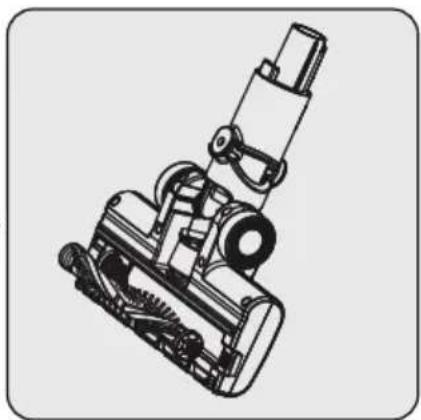

Press the electric turbo brush release button (11) on the electric turbo brush (12) and push it in the direction of arrow towards the tube.

Attach crevice attachment (15) and dust brush (15) to the charging dock (8).

4 Operation

4.1 Charging the appliance

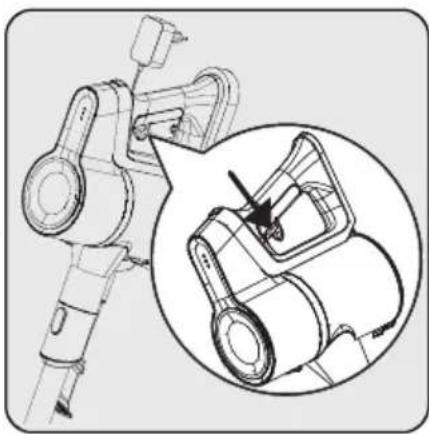

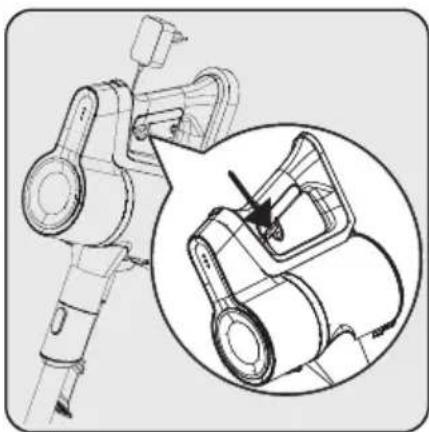

Place the appliance on the charging dock (8).

After placing the dust container (5) on the charging dock (8), push the appliance towards the charging dock.

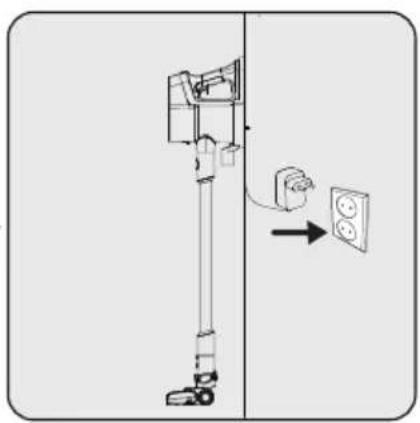

Plug the charging adaptor (13) into the socket.

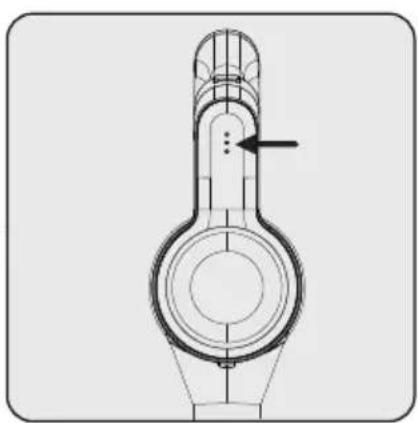

Flashing of the charge indicator LEDs (1) in white indicates that the appliance is being charged.

When all levels of the charge indicator LEDs (1) are illuminated, this indicates that charging is complete.

It takes up to 4 to 6 hours to fully charge the appliance. The appliance should not be operated while charging.

If the appliance is placed on the charging dock (8) while it is being operated, it will stop automatically.

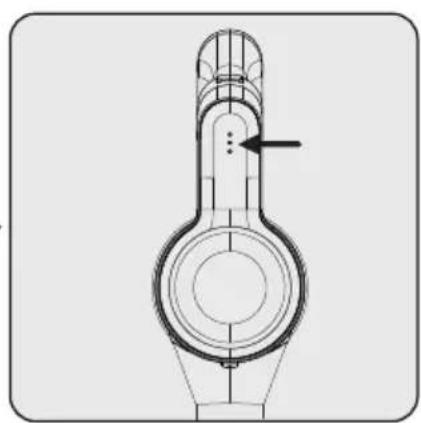

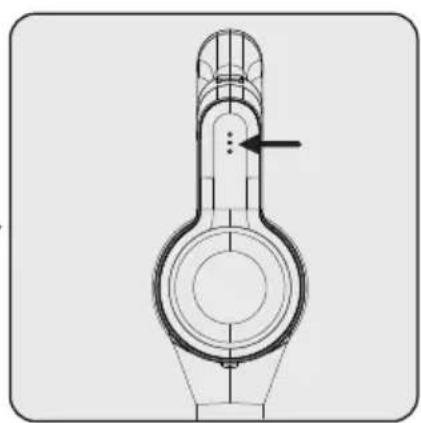

Pay attention to the power indicator LEDs (1) during charging. If only one indicator illuminates in red, please check whether the ON/OFF button or speed control button are stuck. If the red indicator cannot be eliminated by unsticking the button, please contact us for after-sales service.

4 Operation

4.2 Usage

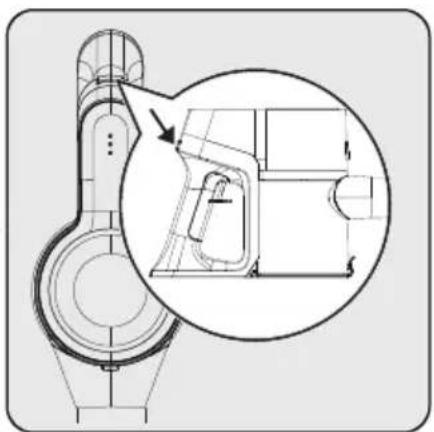

1- Push the appliance release button (7) on the charging dock (8) downward and pull the appliance towards yourself at the same time. 2- Remove the appliance from the charging dock (8).

Press the on/off button (3) to operate the appliance. The appliance starts operating at minimum power when the on/off button is pressed.

To switch to maximum power when operating at minimum power, push the power adjustment button (2). To switch back to minimum power when operating at maximum power, push the power adjustment button (2) again.

The appliance may be placed for charging before the battery is completely discharged. The appliance may be kept continuously charging on the charging dock (8) until the next operation.

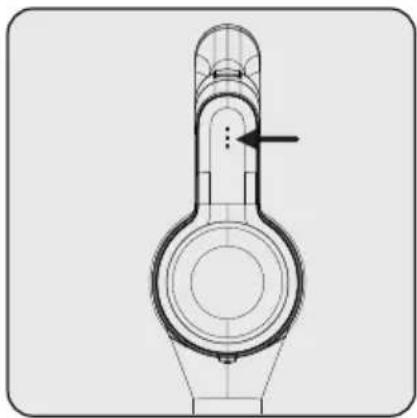

Pay attention to the power indicator LEDs (1) during operation. These indicators gradually turn off as the charge level decreases, and when all indicators are off and only one indicator lights up red, the charge is about to run out. The appliance stops operating automatically shortly after the red LED illuminates.

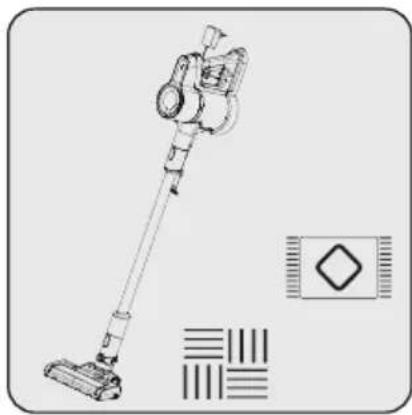

This appliance is suitable for use on carpets and hard floors.

4 Operation

4.3 Accessories

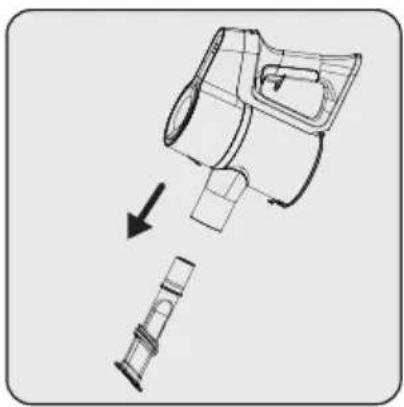

Crevice tool (14): Suitable for vacuuming behind furniture, hard-to-reach areas, and narrow spaces.

5 Cleaning and maintenance

Turn off and unplug the appliance before cleaning.

WARNING: Never use gasoline, solvents, abrasive cleaners, metal objects, or hard brushes to clean the appliance.

WARNING: Filters may deform over time due to usage. Replace them with new ones to prevent loss of performance. Contact customer service to purchase new filters.

5.1 Cleaning the dust container and filters

WARNING: Do not wash the filters.

We recommend cleaning the dustbin (5) after each use.

Wipe the surface of the body with a damp cloth.

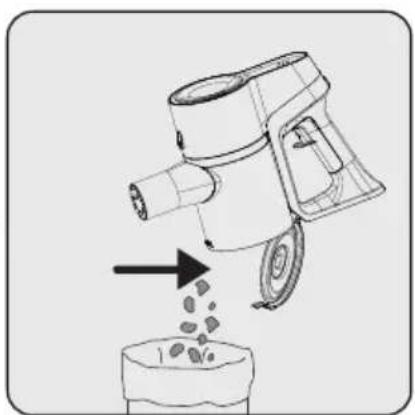

Pull the emptying ring (4) on the dust container to the last point. The dust container lid will open. Empty all the dust it contains.

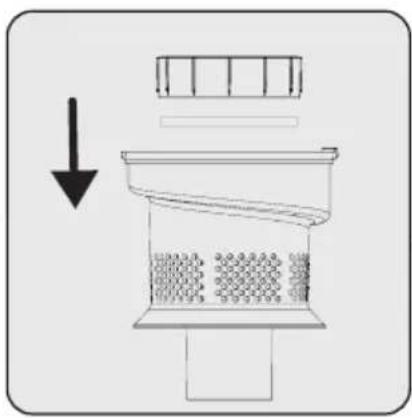

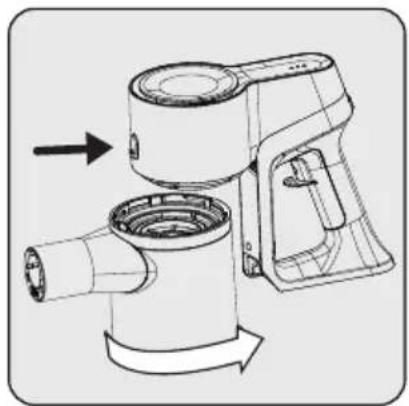

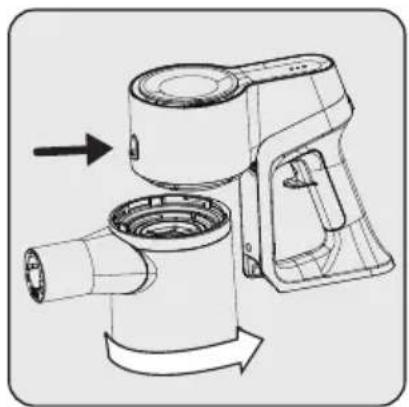

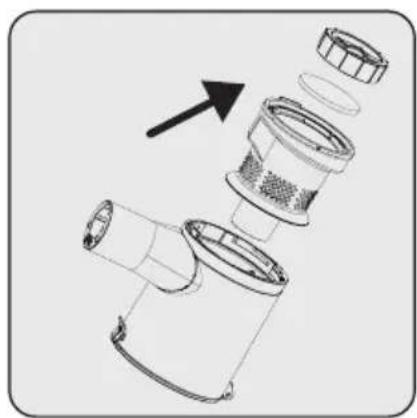

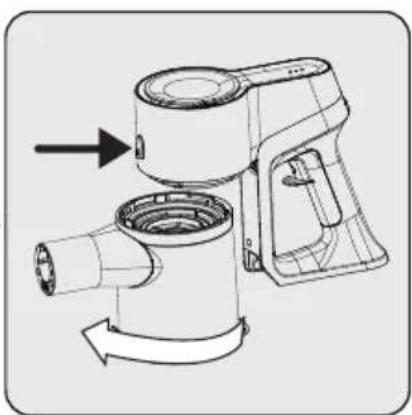

For a detailed cleaning of filters, remove the dust container by turning it clockwise while lightly pulling the dust container ring (4).

5 Cleaning and maintenance

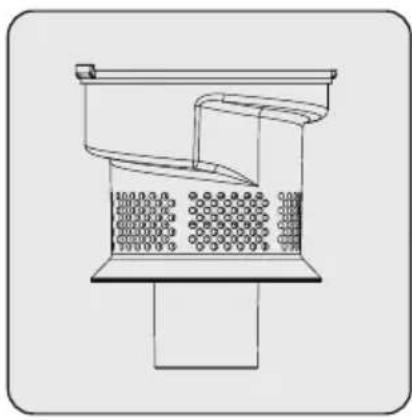

Pull the EPA E10 and plastic filter holder from the EPA E10 handle.

Separate the EPA E10 and plastic filter from each other.

Remove the dust on the EPA E10 filter by tapping it on a hard surface such as a waste bin or by using a brush.

Attach the EPA E10 filter to the plastic filter back.

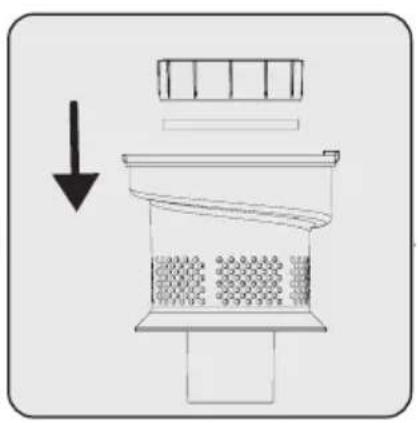

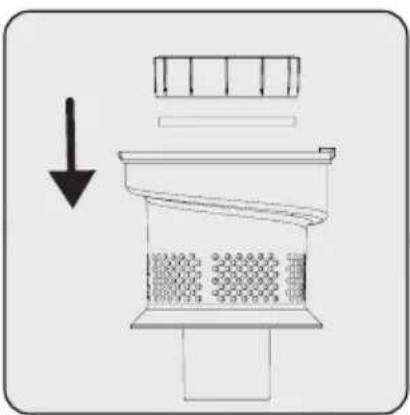

Attach the plastic filter to the dustbin ring (5).

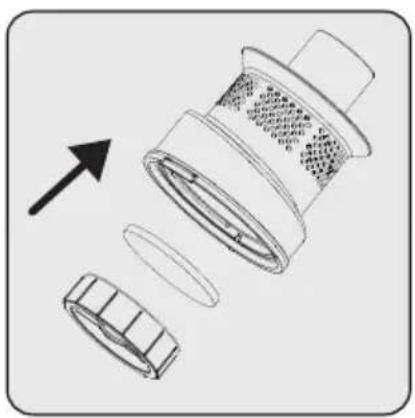

Fix the connector of the dustbin to the holes on the body, then fix the dustbin by turning it counter-clockwise until you hear a click sound.

5 Cleaning and maintenance

5.2 Cleaning of the brush

WARNING: Do not wash the turbo brush (8) and the main roller.

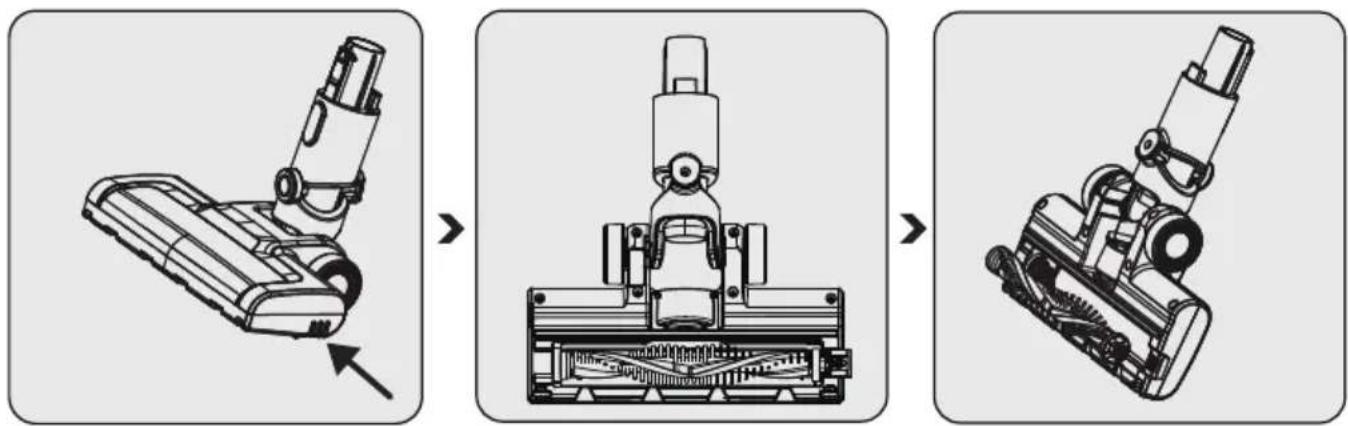

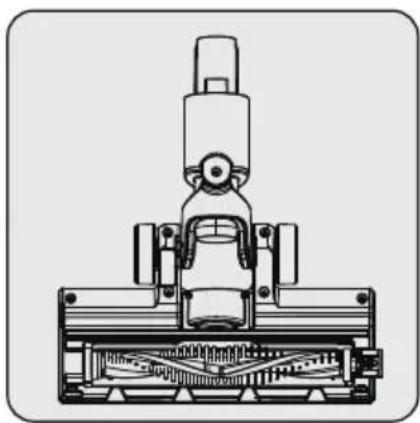

Press the roller release button. Remove the dust on it by tapping it lightly on a hard surface or remove the dust with a brush. If any hair, etc. is tangled, remove it by cutting it off.

Fix the roller back to its place by pushing.

5.3 Storage

• If you do not intend to use the appliance for a long time, store it carefully.
• Unplug the appliance.
• Ensure that the appliance is kept out of reach of children.
• If you shall not be using the battery for a long period of time, please keep it in a cool and dry place at half charged condition. Do not charge or discharge completely.
• Store the battery on a non-conducting material, and do not allow the battery to contact metal directly. This shall damage the battery.

5.3 Transport and shipping

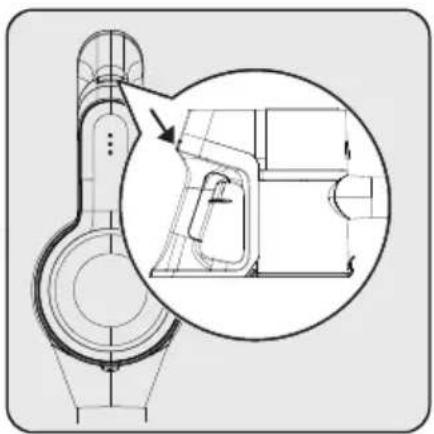

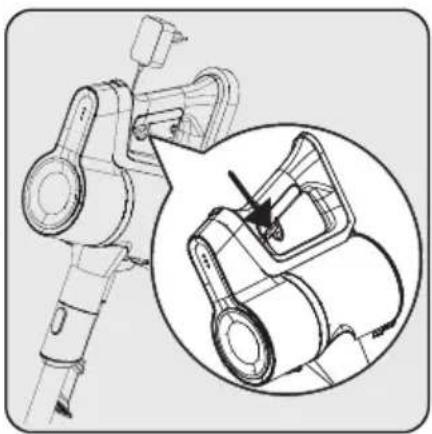

• During transport and shipping, carry the appliance with its original packaging. The packaging of the appliance will protect the appliance against physical damage.
• Do not put heavy objects on the appliance or its packaging. Otherwise the appliance may be damaged.
• If the appliance is dropped, the appliance may not operate or permanent damage may occur.

Insert the charging adapter (13) into the outlet.

Insert the charging adapter (13) into the outlet.

Clean the surface of the body with a damp cloth.

Insert the charging adapter (13) into the outlet.

Insert the charging adapter (13) into the outlet.

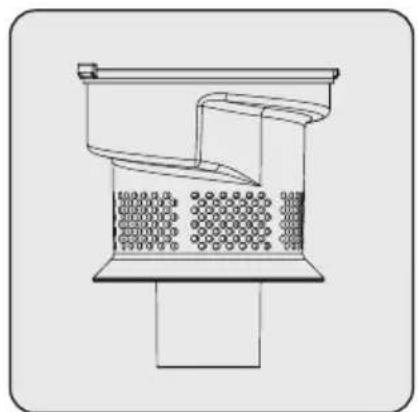

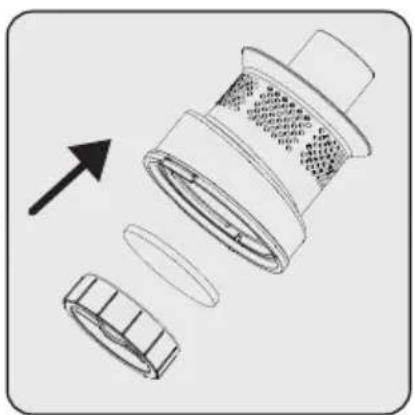

Pull the EPA E10 and plastic filter, holding the EPA E10 handle.

Separate the EPA E10 from the plastic filter.

Empty the EPA E10 filter by tapping it on a hard surface, such as a waste container, or by using a brush.

Attach the EPA E10 filter back to the plastic filter.

Attach the plastic filter to the ring of the dust container (5).

2.1 Controls and components

Wipe the surface of the housing with a damp cloth.

Pull the EPA E10 filter and the plastic filter out of the EPA E10 handle.

Separate the EPA E10 filter and the plastic filter from each other.

Attach the EPA E10 filter back to the plastic filter.

Attach the connector of the dust container to the holes on the housing, then attach the dust container by turning it counterclockwise until you hear a click.

VCP 3330 L - VCP 4330 L - VCP 3335 E

Dear customer,

2 General Overview

2 Overview

2.1 Controls and components

Blinking LED lamps (1) in white color indicate that the device is charging.

t plastic filter on the dust container ring (5).
