USER MANUAL Sani Bathroom Radiator 600 Wifi Eurom

Sani Bathroom Radiator

400-600-800-1000

User Manual

White horizontal ladder with a small attached panel (no text or symbols visible)

NL 3

EN 22

DE 40

FR 59

SV 78

DA 92

CZ 106

SK 120

RO 134

Model:	Product code:
Sani Bathroom Radiator 400 Wi-Fi White	352566
Sani Bathroom Radiator 400 Wi-Fi Black	352580
Sani Bathroom Radiator 400 Wi-Fi Black (Swiss plug)	352597
Sani Bathroom Radiator 600 Wi-Fi White	352603
Sani Bathroom Radiator 600 Wi-Fi White (Swiss plug)	352610
Sani Bathroom Radiator 600 Wi-Fi Black	352627
Sani Bathroom Radiator 600 Wi-Fi Black (Swiss plug)	352634
Sani Bathroom Radiator 800 Wi-Fi White	352641
Sani Bathroom Radiator 800 Wi-Fi White (Swiss plug)	352658
Sani Bathroom Radiator 800 Wi-Fi Black	352665
Sani Bathroom Radiator 800 Wi-Fi Black (Swiss plug)	352672
Sani Bathroom Radiator 1000 Wi-Fi White	352689
Sani Bathroom Radiator 1000 Wi-Fi White (Swiss plug)	352696
Sani Bathroom Radiator 1000 Wi-Fi Black	352702
Sani Bathroom Radiator 1000 Wi-Fi Black (Swiss plug)	352719

Sani bathroom radiator

**** Wifi

Art.nr. *****

Batch BCxxxx

220-240V \~ 50-60Hz - *** Watt

EUROM - KOKOSSTRAAT 20 - 8281 JC - GENEMUIDEN - NETHERLANDS

Afbeelding 2

EUROM®POWERFUL PRODUCTS SINCE 1974		Sani bathroom radiator ****Wifi Swiss plugArt.nr. *****Batch BCxxxx
220-240V ~ 50-60Hz - *** Watt
			IP24
EUROM - KOKOSSTRAAT 20 - 8281 JC - GENEMUIDEN - NETHERLANDS

Afbeelding 3

Specifications

Type:	400	600	800	1000
Productafmeting:	50 x 60 cm	50 x 80 cm	50 x 100 cm	50 x 120 cm
Gewicht:	6,6 kg	8,8 kg	10,7 kg	13,0 kg
Spanning:	220-240V~ /50-60Hz	220-240 V~ /50-60Hz	220-240V~ /50-60Hz	220-240V~ /50-60Hz
Vermogen:	400W	600W	800W	1000W
Beschermingsgraad:	IP24	IP24	IP24	IP24
Beschermingsklasse:	Klasse I	Klasse I	Klasse I	Klasse I

Diagram showing a ladder setup with labeled components including a power plug, switch, and control panel

Afbeelding 4

7 MOD 6 5 SET 3 1 2 4 MEEX

Afbeelding 5

LED-display

Diagram showing a screwdriver inserted into a cylindrical device with labeled parts 1, 2, and 3.

Afbeelding 9

Diagram of a ladder assembly with numbered components and a close-up view of the base structure.

Afbeelding 10

Installatie

WAARSCHUWING

Illustration of a horizontal heater connected to a wall-mounted power outlet, with a numbered callout pointing to the cable (no text or symbols present)

Afbeelding 11

Werking

WAARSCHUWING

QR code image containing encoded data, no visible human-readable text

Afbeelding 12

Slimme timer

Please read and understand these safety instructions. Incorrect use can cause injury and will void EUROM's warranty.

WARNING

• This appliance is intended only for drying textiles washed in water.
- Make sure that the control panel of the heater is never covered or gets wet when you put textiles on the heating pipes from the appliance.

CAUTION

Some parts of this product can become very hot and cause burns. Particular attention has to be given where children and vulnerable people are present.

• Children of less than 3 years should be kept away unless continuously supervised.
- Children aged from 3 years and less than 8 years shall only switch on/off the appliance provided that it has been placed or installed in its intended normal operating position and they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children aged from 3 years and less than 8 years shall not plug in, regulate and clean the appliance or perform user maintenance.
- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with appliance. Cleaning and user maintenance shall not be made by children without supervision.

- Heater must not be located immediately below a socket-outlet.

- If the supply cord is damaged, it must be replaced by manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

- This heater is filled with a precise quantity of special liquid. Repairs requiring opening of the liquid container are only to be made by the manufacturer or his service agent who should be contacted if there is a liquid leak.

- When scrapping the heater, follow the regulations concerning the disposal of liquid.

- Heater is to be installed so that switches and other controls cannot be touched by a person in the bath or shower.

The device is equipped with an overheating protection, which switches it off automatically in case of internal overheating. Switch the device off, unplug the power plug, remove the source of overheating, let the device cool down and use as normal. Do not use the device if the source of overheating cannot be traced or if the problem persists, but always contact your supplier.

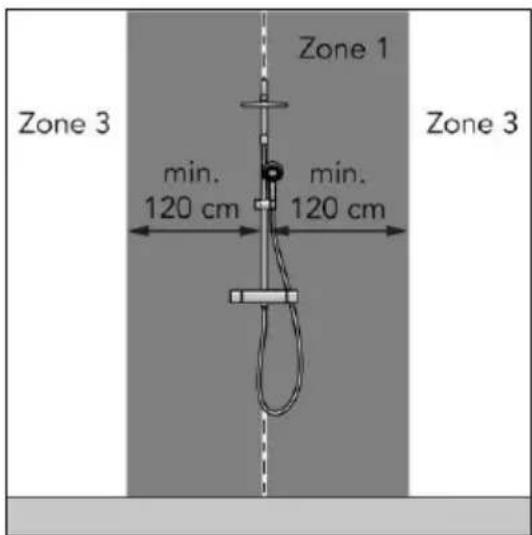

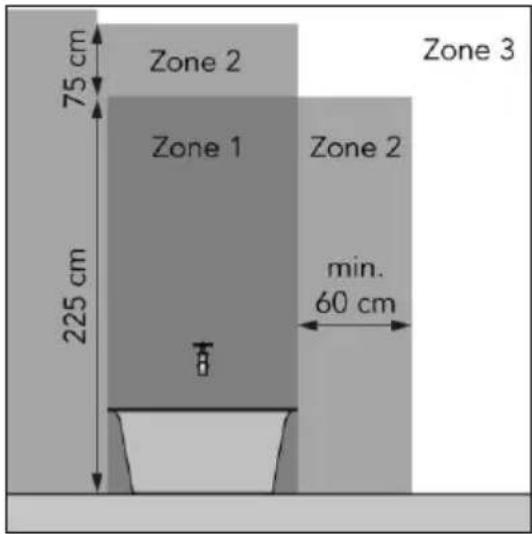

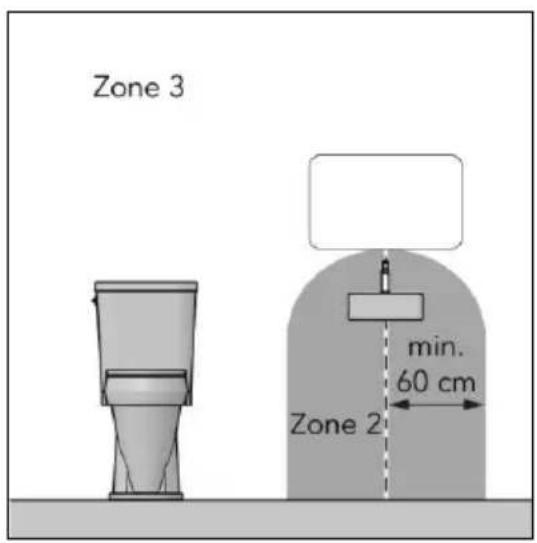

This device is save to use in the bathroom when the device is mounted:

• in zone 3 of a toilet room or bathroom with a bath, shower with screen and shower without screen (Figure 1);
• in a fixed position;
• out of reach for operation by a person in a bath or shower.

Zone 3 min. 60 cm Zone 2

Zone 2 75 cm Zone 1 225 cm Zone 3 Zone 2 min. 60 cm

Zone 2 75 cm 225 cm Zone 1 Zone 3 Zone 2 min. 60 cm

Zone 1 Zone 3 min. 120 cm min. 120 cm Zone 3

Figure 1

General safety instructions

WARNING

• Prevent splashing water on or in the device.
• Do not immerse any part of the device in water or other liquids.
• Never insert fingers or other objects into the openings of the device.
• Do not expose the device to strong vibrations or mechanical stress.
• Maintain a safe distance of at least one meter from flammable items such as (shower) curtain, furniture, paper and similar.

WARNING

The device becomes very hot during use. Do not touch the device during use or within fifteen minutes after use.

Safety during operation

WARNING

Do not use the device:

• outdoors or in a small space (400W < 4 m ^-3 , 600W < 6 m ^3 , 800W < 8 m ^3 , 1000W < 10 m ^3 );
• lying, leaning or standing;
• if any parts are dirty or the control panel is wet;
• near large objects, like behind a door, under a shelf or cupboard;
• near a water source in zone 1 and zone 2, like a bath, shower, swimming pool;
  • near or in a dusty and dirty environment, like a construction site;
• near flammable materials, liquids or fumes, like a shed, stable or green house;
• near other heat sources and open fire;
• near, under or facing a socket outlet;
• with an appliance that automatically switches the device on, such as a timer, dimmer or any other device.

If the device, the electric cable or plug shows damage or is malfunctioning, immediately take the appliance out of use and disconnect the power supply.

Warranty

EUROM offers a 60-month warranty on this device from the date of purchase. The warranty does not cover wear and tear from normal use. The warranty expires if a defect is the result of unintentional or careless use of the device. The manufacturer, importer and supplier are not liable for incorrect connections.

Introduction

Thank you for choosing this EUROM device. You have purchased a quality device that you will enjoy for many years. Using this device with respect and care will reduce the risk of personal injury or material damage.

CAUTION

It is important to read and understand this instruction manual before installing and using the device.

This manual describes the correct and safe use of this device. Keep this manual for future reference. The manual is an essential part of the device and must be given to the new owner upon resale or exchange. This manual has been compiled with the utmost care. Nevertheless, we reserve the right to improve and adjust this manual at any time. The images used may differ.

The following symbols and terms are used in this manual to alert the reader on safety issues and important information:

WARNING

Indicates a hazardous situation which, if the safety instructions are not followed, can lead to injuries to the operator or bystanders, light and/or moderate damage to the product or to the environment.

CAUTION

Indicates a hazardous situation which, if the safety instructions are not followed, can lead to light and/or moderate damage to the product or to the environment.

Identification

EUROM®

POWERFUL PRODUCTS SINCE 1974

Sani bathroom radiator

**** Wifi

Art.nr. *****

Batch BCxxxx

220-240V \~ 50-60Hz - *** Watt

EUROM - KOKOSSTRAAT 20 - 8281 JC - GENEMUIDEN - NETHERLANDS

Figure 2

EUROM®

POWERFUL PRODUCTS SINCE 1974

Sani bathroom radiator ****

Wifi Swiss plug

Art.nr. *****

Batch BCxxxx

220-240V \~ 50-60Hz - *** Watt

EUROM - KOKOSSTRAAT 20 - 8281 JC - GENEMUIDEN - NETHERLANDS

Figure 3
Specifications

Type:	400	600	800	1000
Product size:	50 x 60 cm	50 x 80 cm	50 x 100 cm	50 x 120 cm
Weight:	6,6 kg	8,8 kg	10,7 kg	13,0 kg
Voltage:	220-240V~ /50-60Hz	220-240V~ /50-60Hz	220-240V~ /50-60Hz	220-240V~ /50-60Hz
Power:	400W	600W	800W	1000W
Protection rating:	IP24	IP24	IP24	IP24
Protective class:	Class I	Class I	Class I	Class I

Hereby, Euromac b.v. declares this product is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: www.eurom.nl/declaration-of-conformity.

• Wi-Fi and Bluetooth Frequency Band: 2,400 \~ 2,483.5GHz
• Maximum radio-frequency power transmitted in this frequency band(s):
- Wi-Fi: 17,5dBm
- Bluetooth: 6,5dBm

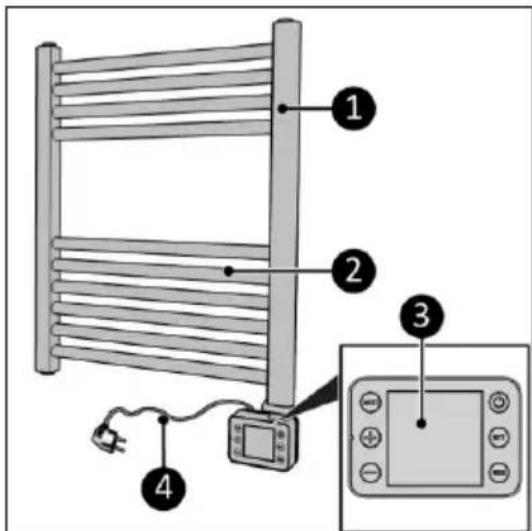

Description

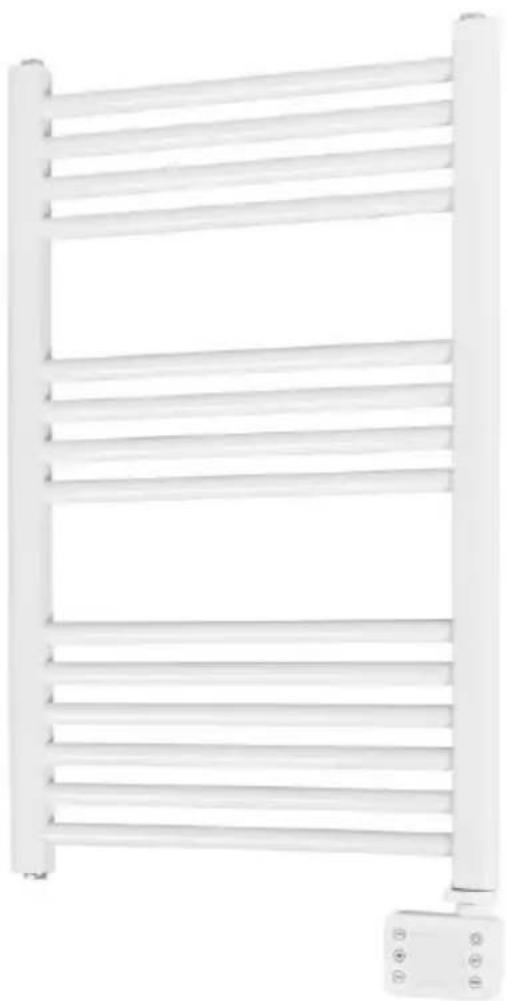

The Sani Bathroom Radiator (Figure 4) is an easy-to-use electric bathroom heater for use only in zone 3 of the bathroom (Figure 1). The device can be programmed on a day and week timer. The device can be used with the Eurom Smart App.

1. Main device
2. Heating pipes
3. Control panel and LED display
4. Power plug

Diagram showing a ladder setup with labeled components including a power plug, switch, and control panel

Figure 4

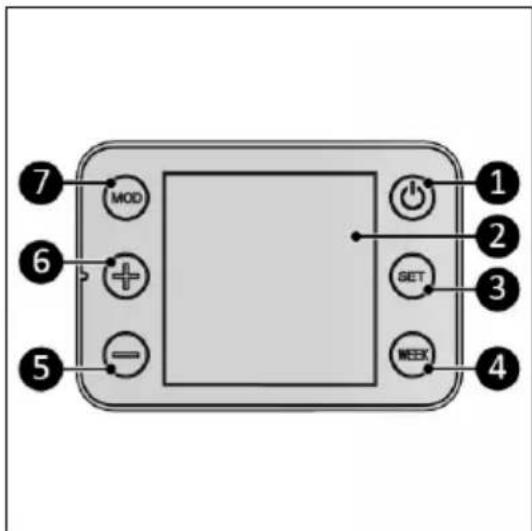

Control panel and display

1. ON/OFF button
2. LED display
3. SET button
4. WEEK button
5. Minus button
6. Plus button
7. MOD button

7 MOD 6 + - 5 1 2 3 4 SET NEEX

Figure 5

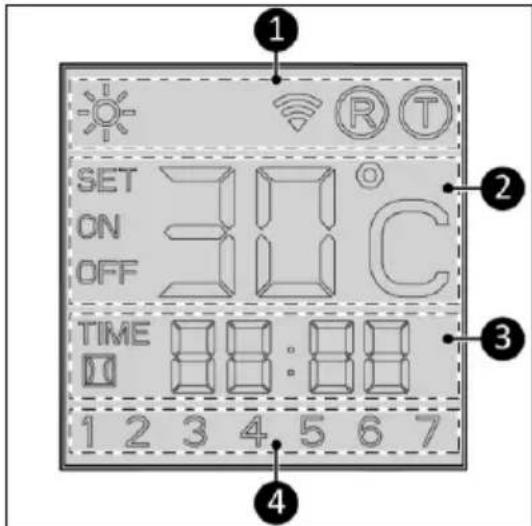

LED display

The LED display will go dark if no adjustments are made for 2 minutes. The LED display will light up again when you press a button.

Status indication (Figure 6, pos. 1):

• The sun indicate whether the heater is heating or not.
• The Wi-Fi symbol indicates if there is a Wi-Fi connection.
• The "R" indicates that the ROOM heating function is active.
• The "T" indicates that the TOWEL heating function is active.

1 SET ON OFF 2 C TIME 3 4 1 2 3 4 5 6 7

Figure 6

Temperature indication (Figure 6, pos. 2):

• SET indicates that the day or time can be set, or that the SET temperature is shown on display.
  • ON indicates that the heater is switched on.
  • OFF indicates that the heater has been switched off with the stand-by button.
  • Temperature shown in degree Celsius.

Time indication (Figure 6, pos. 3):

• Time shown in 24-hours format.
- Open window detection is active.

Day indication (Figure 6, pos. 4):

• Number corresponds with the day of the week: 1 = Monday, 2 = Tuesday, and so on.

Transport and storage

• Clean the device before storing it.
• Transport the device upright.
  • Store the device upright in its original packaging in a cool, dry and dust-free area.

Assembly

The device is packed in one box. Remove all packaging material and check that the device is not damaged. Do not use the device if it is damaged, but always contact your supplier. Keep the packaging for safe storage and transport.

WARNING

Plastic bags can be dangerous. To avoid danger of suffocation, keep this bag away from babies and children.

Wall mounting

WARNING

The wall used for mounting must be made from non-flammable material and should be able to withstand a minimum temperature of 125^ C.

CAUTION

Make sure to use suitable fastening materials, depending on the surface. Never block the space between the device and the wall.

1. Place the device on a non-flammable and solid wall.

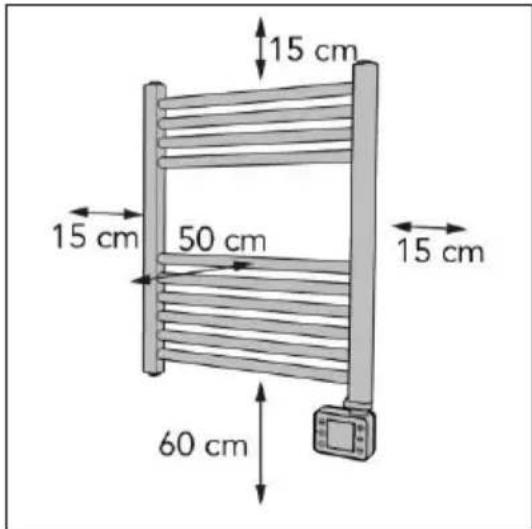

2. Place the device with a minimum distance (Figure 7) of:

• 15 cm from the ceiling;
• 15 cm from the side walls;
- 60 cm from the floor;
- 50 cm clearance on the front side.

1. Do not mount the device:

2. immediately below a socket outlet;

3. on a ceiling or roof.

4. Drill two top holes for the dowels with 392 mm horizontal distance between the holes (Figure 8, pos. C). Use the distances from the list below to ensure the distance to the floor of at least 60 cm below the unit. (Figure 8, pos. A):

• Sani Bathroom Radiator 400: 1110 mm;
• Sani Bathroom Radiator 600: 1310 mm;
• Sani Bathroom Radiator 800: 1510 mm;
• Sani Bathroom Radiator 1000: 1710 mm.

1. Drill two bottom holes for the wall plugs with 392 mm horizontal distance between the holes (Figure 8, pos. C). The vertical distance between the bottom and top holes is approximately (Figure 8, pos. B):

• Sani Bathroom Radiator 400: 440 mm;
• Sani Bathroom Radiator 600: 640 mm;
• Sani Bathroom Radiator 800: 840 mm;
• Sani Bathroom Radiator 1000: 1040 mm.

15 cm 15 cm 50 cm 15 cm 60 cm

Figure 7

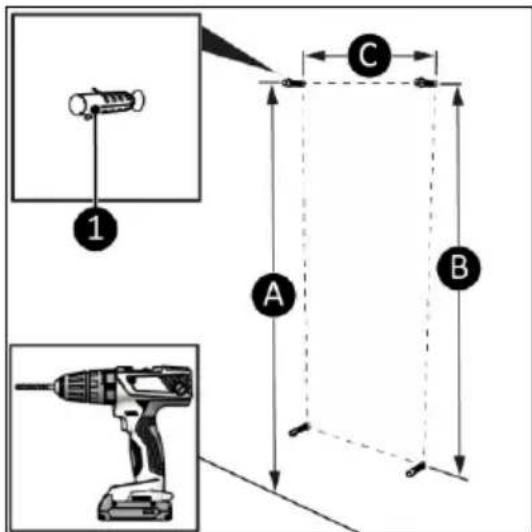

1 A B C

Figure 8

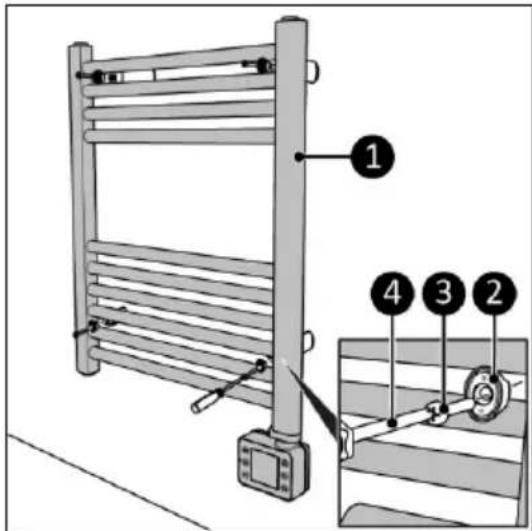

1. Place the wall plugs and provided rings (Figure 8, pos. 1).
2. Screw the four outer wall brackets with self-tapping screws (Figure 9, pos. 2) and spacer rings (Figure 9, pos. 1) in to the four plugs.

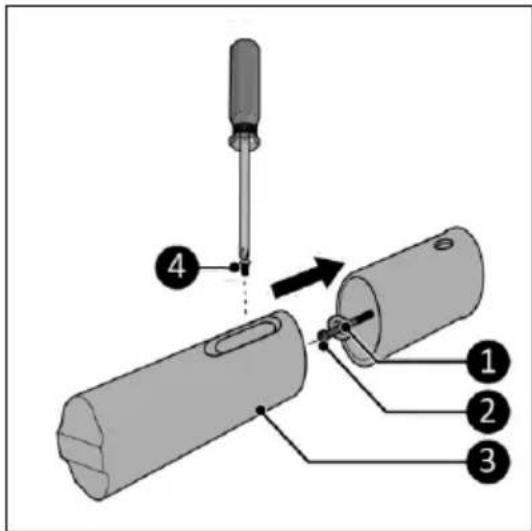

3. Slide the square nuts into the designated slots of the inner wall brackets.

4. Attach the four inner wall brackets (Figure 9, pos. 3) to the outer wall brackets with small screws (Figure 9, pos. 4) using a Phillips screwdriver.

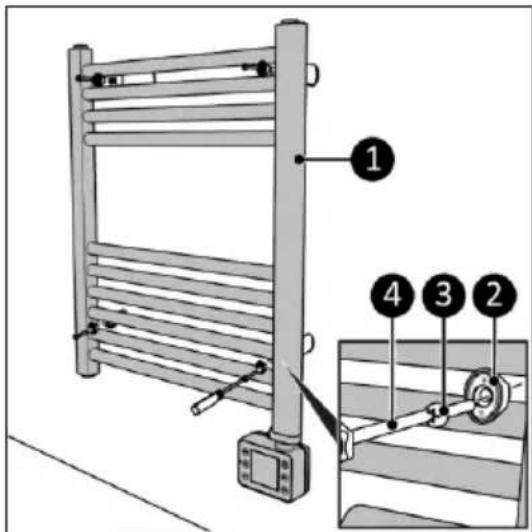

5. Place the device (Figure 10, pos. 1) over the wall brackets.

6. Screw and tighten the device with four large screws (Figure 10, pos. 3) to the wall bracket (Figure 10, pos. 2) using a Phillips screwdriver (Figure 10, pos. 4).
7. Place the four sealing caps.

Diagram showing a screwdriver inserted into a cylindrical device with labeled parts 1, 2, and 3.

Figure 9

Diagram of a ladder structure with numbered components and an inset showing a mechanical assembly with labeled parts 1, 2, 3, and 4.

Figure 10

Installation

WARNING

Never use an extension cord to provide power to the device.

CAUTION

Make sure that the main voltage is the same as indicated on the identification label of the device. All electrical connections must stay dry under all circumstances.

1. Make sure the device is correctly mounted.

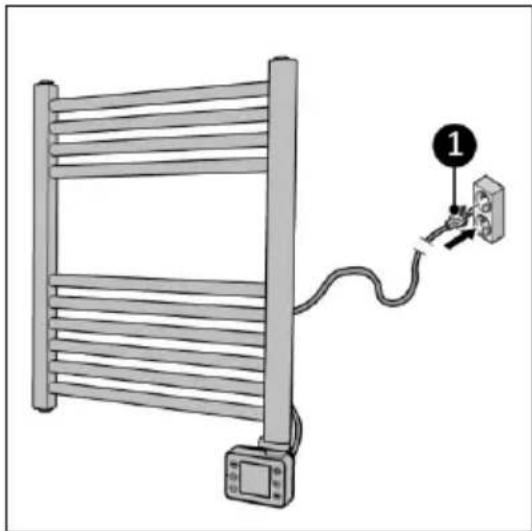

2. Place the power plug into a wall socket (Figure 11, pos. 1) that is easily accessible. Use a wall socket with a minimum power of 1000 Watt.

3. The ON/OFF indicator will light up.

Illustration of a horizontal heater connected to a wall-mounted power outlet, with a numbered callout pointing to the cable (no text or symbols present)

Figure 11

Operation

WARNING

Before every use, make sure that:

• you operate the device with dry hands;
  • the device is clean and dry;
  • the device is not damaged;
  • the device is not covered or blocked;
  • the device is securely mounted.

CAUTION

• When the device is turned on or off, it may emit a sound. This is material expanding and shrinking during heating and cool-down.

• The day and time settings will be lost if the device is switched off using the ON/OFF switch, is unplugged or is used without Wi-Fi connection.

• Press the ON/OFF button to turn on the device (Figure 5, pos. 1).

• Press and hold the SET button until SET appears on screen.
• Press the + and - button to turn Open window detection mode ON or OFF:
• When the ambient temperature decreases 8^ C or more within 15 minutes, the device will go in standby mode and the Open window indicator starts flashing on the display. Open window detection mode is only available in room mode (R).
• Press the SET button to confirm.
• Use the + and - button to select the current day, from 1 (Monday) to 7 (Sunday). Confirm with the SET button.
• Use the + and - buttons to set the correct time:
  • Hours, confirm with the SET button;
  • Minutes, confirm with the SET button.
• Press the MOD button to choose the desired function: room (R) or towel (T).

Room mode

Room mode will heat up the complete bathroom. In room mode the device will measure the temperature in the bathroom. If the set temperature is higher then the measured room temperature the device will keep on heating. If the room temperature is higher then the set temperature the device will stop heating. In Room mode the temperature can be set from 0 to 37°C.

Towel mode

Towel mode will heat up or dry your towels. In towel mode the heater will measure the temperature from the heating pipes. If the set temperature is higher then the measured temperature the device will keep on heating. If the measured temperature is higher then the set temperature the heater will stop heating. In Towel mode the temperature can be set from 40 to 70°C.

Weekly timer setting

1. Press and hold the WEEK button until '01' or '']['starts to blink on the screen.

2. Use the plus and minus buttons to choose the desired setting:

3. 01 – one-off setting (must fall in the current week).
   • ][ - every week setting.

4. Confirm with the SET button.

5. Use the plus and minus buttons to choose the desired anticipation setting:

6. ON – the heater will anticipate the temperature 20 minutes before it is set. If it needs to be heated, the heater will heat with high capacity in order to heat the room to the desired temperature by the activation time.

7. OFF – the heater will not anticipate the temperature and will turn on at the set time*.

8. Confirm with the SET button, 01 SET ON appears on the screen.

9. Use the plus and minus buttons to select:

• the desired day (from 1 (Monday) to 7 (Sunday), confirm with the SET button.

1. Use the plus and minus button to select the desired mode:

• Room mode (AA), confirm with the SET button;
- Towel mode (T), confirm with the SET button.

1. Use the plus and minus buttons to select the desired temperature:

• Room mode: 0 – 37°C, confirm with the SET button;
- Towel mode: 40 – 70°C, confirm with the SET button.

1. SET ON will appear on the screen.

2. Use the plus and minus buttons to indicate the activation time:

3. the desired hours, confirm with the SET button;

4. the desired minutes, confirm with the SET button.

5. 01 SET OFF will appear on the screen; repeat step 10 to indicate the deactivation time.

6. 02 appears on the screen, there are two options:

7. Set the next activation and deactivation times, repeat step 10 and 11 for every desired time. Make sure the timer settings do not contradict each other: maximum 28 per week, maximum 4 per day.

8. If you are done setting the activation and deactivation times, wait until the screen returns to standard settings.

View weekly timer setting

1. Press the WEEK button repeatedly. You will see the following timer settings, one after the other:

2. one-off or repeated;
   • Room or Towel mode;
   • temperature setting;

3. timer on-time;
4. timer off-time;
5. next timer setting.

All 28 timer settings are shown, including the settings that have not been configured.

Turning off weekly timer setting

1. Press and hold the WEEK button until '01' or ']'appears on the screen.

Press and hold the MOD button until TIME disappears from the screen, which indicates that the data will be retained but will not be active. By pressing the MOD button again until TIME appears, you will reactivate the timer.

Deleting weekly timer setting

Timer settings can only be deleted with the buttons on the control panel.

1. Press and hold the WEEK button until '01' or '']['appears on the screen.
2. Go past '01-]' and on/off first by pressing SET briefly.
3. When the number of the timer setting that you want to change appears, press the SET button for a little longer. You will hear a short beep and the selected setting will have been deleted.
4. If you want to delete all timer settings, press and hold the WEEK button until '01' or ''][' appears on the screen. Press and hold the MOD and SET buttons at the same time, until you hear a beep. The screen will show 88:88, indicating that all settings have been deleted.

Eurom Smart App

CAUTION

Do not use the weekly timer created with the device at the same time as the weekly timer created with the Eurom Smart App. Timer settings created by the Eurom Smart App are not visible on the device display. Timer settings created on the device are not visible in the Eurom Smart App.

The device can be operated using an app on a smartphone or tablet. The Eurom Smart App can be used:

• to switch the device on and off;
• to regulate the temperature;
• to activate the ECO mode;
• to activate the frost protection mode.

The app can also be used to set twenty on and off timer settings daily, on the weekly timer.

It is recommended to turn on your smartphone's Bluetooth when you first connect to the heater. This is faster and easier when making the first connection.

1. Open the Eurom Smart App manual with the QR code (Figure 12) or go to www.eurom.nl/nl/manuals.
2. Complete the steps in the Eurom Smart App manual.
3. When the device is connected with Wi-Fi, the Wi-Fi symbol appears on the screen.
4. If the Wi-Fi symbol is blinking there is no connection.

QR code image containing encoded data, no visible human-readable text

Figure 12

Smart Timer

1. Create a schedule with days and times in the Eurom Smart App. Timer settings set in the app:

• will be stored on the device;
- will not be visible on the device;
- will remain available if Wi-Fi disconnects;
- will remain available if the device is switched off or unplugged;
- can only be removed in the app.

1. Check the data in the app regularly.

Reset Wi-Fi connection

1. Press and hold the MOD button. Existing connections will be deleted, the Wi-Fi symbol will start blinking and a new connection will be made.

Switch off Wi-Fi connection

1. Press and hold the OFF button until a long beep sounds. The Wi-Fi is switched off and the Wi-Fi symbol will disappear from the screen.
2. Press and hold the OFF button until a short beep sounds. The Wi-Fi is switched on and the Wi-Fi symbol will appear on the screen.

ECO mode

The Eurom Smart App has an ECO button. ECO mode maintains the room temperature at 16^ C.

1. Press the ECO button to activate ECO mode, EC appears on the screen.
2. Press the ECO button to deactivate ECO mode.

If the device is working in ECO mode and a timer setting becomes active, the device will start working according to the timer setting. When the timer setting ends, the device will not return to ECO mode.

Frost protection mode

The Eurom Smart App has a frost protection button, which can be pressed to create and maintain a room temperature of 5^ C.

1. Press the frost protection button to activate; FP appears on the screen.
2. Press the frost protection button to deactivate.

If the heater is working in frost protection mode and a timer setting becomes active, the device will start to work according to the timer setting. When the timer setting ends and the device goes off, the device will not return to the frost protection mode.

After operation

CAUTION

Do not use the power cable to unplug the device. Do not wind the power cable too tightly or in sharp corners. Do not wrap the power cable around the device.

1. Press the ON/OFF button (Figure 5, pos. 1) to put the device in standby mode.
2. Disconnect the power plug from the power outlet.
3. Let the device cool down before touching it.
4. Wind the power cable.

Maintenance

WARNING

Do not perform any repairs or modifications to this device.

Maintenance and repairs must be carried out by a EUROM authorized professional. If the electric cable and/or electric plug are damaged, it should be replaced by the manufacturer or its service employee or persons with similar qualifications to prevent risks.

Cleaning

WARNING

The device becomes very hot. Make sure the device is turned off, unplugged and completely cooled down.

CAUTION

Do not use:

• scouring pads;
• hard brushes;
• flammable, aggressive or chemical cleaning products.

Prevent water from entering the device. Do not immerse any part of the device in water or other liquids.

It is recommended to clean the device after each use and prior to storage.

1. Wipe the device with a damp, clean, soft, lint-free cloth or a soft brush.
2. Let the device dry completely prior to use and storage.

Correct Disposal of this product.

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmentally safe recycling.

Information requirement for the electric local space heaters
Model identifier(s): Sani Bathroom Radiator 400
Item	Symbol	Value	Unit	Item	Unit
Heat output				Type of heat input, for electric storage local space heaters only (select one)
Nominal heat output	Pnom	0,4	kW	manual heat charge control, with integrated thermostat	NA
Minimum heat output (indicative)	Pmin	NA	kW	manual heat charge control with room and/or outdoor temperature feedback	NA
Maximum continuous heat output	Pmax,c	0,4	kW	electronic heat charge control with room and/or outdoor temperature feedback	NA
Auxiliary electricity consumption				fan assisted heat output	NA
At nominal heat output	elmax	0,000	kW	Type of heat output/room temperature control (select one)
At minimum heat output	elmin	0,000	kW	single stage heat output and no room temperature control	No
In standby mode	eISB	0,335Wi-Fi off0,822Wi-Fi on	W	Two or more manual stages, no room temperature control	No
				with mechanic thermostat room temperature control	No
				with electronic room temperature control	No
				electronic room temperature control plus day timer	No
				electronic room temperature control plus week timer	Yes
				Other control options (multiple selections possible)
				room temperature control, with presence detection	No
				room temperature control, with open window detection	No
				with distance control option	Yes
				with adaptive start control	No
				with working time limitation	No
				with black bulb sensor	No
Contact details	Eurom - Kokosstraat 20 - 8281 JC - Genemuiden - The Netherlands
Model identifier(s): Sani Bathroom Radiator 600
Item	Symbol	Value	Unit	Item	Unit
Heat output				Type of heat input, for electric storage local space heaters only (select one)
Nominal heat output	Pnom	0,6	kW	manual heat charge control, with integrated thermostat	NA
Minimum heat output (indicative)	Pmin	NA	kW	manual heat charge control with room and/or outdoor temperature feedback	NA
Maximum continuous heat output	Pmax,c	0,6	kW	electronic heat charge control with room and/or outdoor temperature feedback	NA
Auxiliary electricity consumption				fan assisted heat output	NA
At nominal heat output	elmax	0,000	kW	Type of heat output/room temperature control (select one)
At minimum heat output	elmin	0,000	kW	single stage heat output and no room temperature control	No
In standby mode	eISB	0,335Wi-Fi off0,822Wi-Fi on	W	Two or more manual stages, no room temperature control	No
				with mechanic thermostat room temperature control	No
				with electronic room temperature control	No
				electronic room temperature control plus day timer	No
				electronic room temperature control plus week timer	Yes
				Other control options (multiple selections possible)
				room temperature control, with presence detection	No
				room temperature control, with open window detection	No
				with distance control option	Yes
				with adaptive start control	No
				with working time limitation	No
				with black bulb sensor	No
Contact details	Eurom - Kokosstraat 20 - 8281 JC - Genemuiden - The Netherlands
Model identifier(s): Sani Bathroom Radiator 800
Item	Symbol	Value	Unit	Item	Unit
Heat output				Type of heat input, for electric storage local space heaters only (select one)
Nominal heat output	Pnom	0,8	kW	manual heat charge control, with integrated thermostat	NA
Minimum heat output (indicative)	Pmin	NA	kW	manual heat charge control with room and/or outdoor temperature feedback	NA
Maximum continuous heat output	Pmax,c	0,8	kW	electronic heat charge control with room and/or outdoor temperature feedback	NA
Auxiliary electricity consumption				fan assisted heat output	NA
At nominal heat output	elmax	0,000	kW	Type of heat output/room temperature control (select one)
At minimum heat output	elmin	0,000	kW	single stage heat output and no room temperature control	No
In standby mode	eISB	0,335Wi-Fi off0,822Wi-Fi on	W	Two or more manual stages, no room temperature control	No
				with mechanic thermostat room temperature control	No
				with electronic room temperature control	No
				electronic room temperature control plus day timer	No
				electronic room temperature control plus week timer	Yes
				Other control options (multiple selections possible)
				room temperature control, with presence detection	No
				room temperature control, with open window detection	No
				with distance control option	Yes
				with adaptive start control	No
				with working time limitation	No
				with black bulb sensor	No
Contact details	Eurom - Kokosstraat 20 - 8281 JC - Genemuiden - The Netherlands
Model identifier(s): Sani Bathroom Radiator 1000
Item	Symbol	Value	Unit	Item	Unit
Heat output				Type of heat input, for electric storage local space heaters only (select one)
Nominal heat output	Pnom	1,0	kW	manual heat charge control, with integrated thermostat	NA
Minimum heat output (indicative)	Pmin	NA	kW	manual heat charge control with room and/or outdoor temperature feedback	NA
Maximum continuous heat output	Pmax,c	1,0	kW	electronic heat charge control with room and/or outdoor temperature feedback	NA
Auxiliary electricity consumption				fan assisted heat output	NA
At nominal heat output	elmax	0,000	kW	Type of heat output/room temperature control (select one)
At minimum heat output	elmin	0,000	kW	single stage heat output and no room temperature control	No
In standby mode	eISB	0,335Wi-Fi off0,822Wi-Fi on	W	Two or more manual stages, no room temperature control	No
				with mechanic thermostat room temperature control	No
				with electronic room temperature control	No
				electronic room temperature control plus day timer	No
				electronic room temperature control plus week timer	Yes
				Other control options (multiple selections possible)
				room temperature control, with presence detection	No
				room temperature control, with open window detection	No
				with distance control option	Yes
				with adaptive start control	No
				with working time limitation	No
				with black bulb sensor	No
Contact details	Eurom - Kokosstraat 20 - 8281 JC - Genemuiden - The Netherlands

Diagram showing a ladder setup with labeled components including a power plug, switch, and control panel.

Abbildung 4

7 MOD 6 + - 5 1 2 SET 3 4 MEEX

Abbildung 5

LED-Anzeige

Diagram showing a screwdriver inserted into a cylindrical device with labeled parts 1, 2, and 3.

Abbildung 9

Diagram of a horizontal ladder with labeled parts and an inset showing a mechanical device with four numbered components.

Abbildung 10

Installation

WARNUNG

Illustration of a horizontal heater connected to a wall-mounted power outlet (no text or symbols)

Abbildung 11

Betrieb

WARNUNG

QR code image containing encoded data, no visible human-readable text

Abbildung 12

Intelligenter Timer

Diagram showing a ladder setup with labeled components including a power plug, switch, and control panel

Figure 4

Diagram showing a screwdriver inserted into a cylindrical device with labeled parts 1, 2, and 3.

Figure 9

Diagram of a ladder assembly with numbered components and a magnified view showing parts labeled 1, 2, 3, and 4.

Figure 10

Installation

AVERTISSEMENT

Illustration of a horizontal heater connected to a power outlet with a cable (no text or symbols)

Figure 11

Utilisation

AVERTISSEMENT

QR code image containing encoded data, no visible human-readable text

Figure 12

Minuterie intelligente

Sani bathroom radiator

**** Wifi

Art.nr. *****

Batch BCxxxx

220-240V \~ 50-60Hz - *** Watt

EUROM - KOKOSSTRAAT 20 - 8281 JC - GENEMUIDEN - NETHERLANDS

Figur 2

EUROM®

POWERFUL PRODUCTS SINCE 1974

Sani bathroom radiator ****

Wifi Swiss plug

Art.nr. *****

Batch BCxxxx

220-240V \~ 50-60Hz - *** Watt

EUROM - KOKOSSTRAAT 20 - 8281 JC - GENEMUIDEN - NETHERLANDS

Figur 3
Specifikationer

Typ:	400	600	800	1000
Produktstorlek:	50x60 cm	50x80 cm	50x100 cm	50x120 cm
Vikt:	6,6 kg	8,8 kg	10,7 kg	13,0 kg
Spänning:	220-240V~ / 50-60Hz	220-240V~ / 50-60Hz	220-240V~ / 50-60Hz	220-240V~ / 50-60Hz
Effekt:	400W	600W	800W	1 000W
Kapslingsklassning:	IP24	IP24	IP24	IP24
Skyddsklass:	Klass I	Klass I	Klass I	Klass I

Diagram showing a ladder setup with labeled components including a power plug, switch, and control panel

Figur 4

7 MOD 6 + - 5 1 2 3 4 SET NEEX

Figur 5

LED-display

Diagram showing a screwdriver inserted into a cylindrical device with labeled parts 1, 2, and 3.

Figur 9

Diagram of a ladder assembly with numbered components and a magnified view showing parts labeled 1, 2, 3, and 4.

Figur 10

Installation

WARNING

Illustration of a horizontal heater connected to a wall-mounted power outlet, with a numbered callout pointing to the cable (no text or symbols present)

Figur 11

Drift

WARNING

QR code image containing encoded data, no visible human-readable text

Figur 12

Smart timer

Sani bathroom radiator

**** Wifi

Art.nr. *****

Batch BCxxxx

220-240V \~ 50-60Hz - *** Watt

IP24

EUROM - KOKOSSTRAAT 20 - 8281 JC - GENEMUIDEN - NETHERLANDS

Figur 2

EUROM®

POWERFUL PRODUCTS SINCE 1974

Sani bathroom radiator ****

Wifi Swiss plug

Art.nr. *****

Batch BCxxxx

220-240V \~ 50-60Hz - *** Watt

EUROM • KOKOSSTRAAT 20 • 8281 JC • GENEMUIDEN • NETHERLANDS

Figur 3
Specifikationer

Type:	400	600	800	1000
Produktstørrelse:	50 x 60 cm	50 x 80 cm	50 x 100 cm	50 x 120 cm
Vægt:	6,6 kg	8,8 kg	10,7 kg	13,0 kg
Spænding:	220-240V~ /50-60Hz	220-240V~ /50-60Hz	220-240V~ /50-60Hz	220-240V~ /50-60Hz
Strøm:	400W	600W	800W	1000W
Beskyttelsesvurdering:	IP24	IP24	IP24	IP24
Beskyttelsesklasse:	Klasse I	Klasse I	Klasse I	Klasse I

Diagram showing a ladder-mounted device with labeled components including a power plug, switch, and control panel.

Figur 4

Kontrolpanel og display

1. ON/OFF-knap
2. LED-display
3. SET-knap
4. WEEK-knap
5. Minusknap
6. Plusknap
7. MODE-knap

7 MOD 6 + - 5 1 2 SET 3 4 MEEK

Figur 5

LED-display

Diagram showing a screwdriver inserted into a cylindrical device with labeled parts 1, 2, and 3.

Figur 9

Diagram of a ladder assembly with numbered components and a close-up view of the base structure.

Figur 10

Installation

ADVARSEL

Illustration of a horizontal heater connected to a power outlet with a cable (no text or symbols)

Figur 11

Betjening

ADVARSEL

QR code image containing encoded data, no visible human-readable text

Figur 12

Smart Timer

Sani bathroom radiator

**** Wifi

Art.nr. *****

Batch BCxxxx

220-240V \~ 50-60Hz - *** Watt

EUROM - KOKOSSTRAAT 20 - 8281 JC - GENEMUIDEN - NETHERLANDS

Obrázek 2

EUROM®

POWERFUL PRODUCTS SINCE 1974

Sani bathroom radiator ****

Wifi Swiss plug

Art.nr. *****

Batch BCxxxx

220-240V \~ 50-60Hz - *** Watt

EUROM - KOKOSSTRAAT 20 - 8281 JC - GENEMUIDEN - NETHERLANDS

Obrázek 3

Technické parametry

Diagram showing a ladder-mounted heater with labeled components including a power plug, switch, and control panel.

Obrázek 4

7 MOD 6 + - 5 1 2 SET 3 4 WEEK

Obrázek 5

Displej LED

Diagram showing a screwdriver inserted into a cylindrical device with labeled parts 1, 2, and 3.

Obrázek 9

Diagram of a ladder assembly with numbered components and an inset showing a mechanical setup with labeled parts 1, 2, 3, and 4.

Obrázek 10

Instalace

VAROVÁNÍ

Illustration of a horizontal heater connected to a wall-mounted power outlet, with a numbered callout pointing to the cable (no text or symbols present)

Obrázek 11

Provoz

VAROVÁNÍ

QR code image containing encoded data, no visible human-readable text

Obrázek 12

Chytrý časovač

Sani bathroom radiator

**** Wifi

Art.nr. *****

Batch BCxxxx

220-240V \~ 50-60Hz - *** Watt

EUROM - KOKOSSTRAAT 20 - 8281 JC - GENEMUIDEN - NETHERLANDS

Obrázok 2

EUROM®

POWERFUL PRODUCTS SINCE 1974

Sani bathroom radiator ****

Wifi Swiss plug

Art.nr. *****

Batch BCxxxx

220-240V \~ 50-60Hz - *** Watt

EUROM - KOKOSSTRAAT 20 - 8281 JC - GENEMUIDEN - NETHERLANDS

Obrázok 3

Špecifikácie

Typ:	400	600	800	1000
Rozmery výrobku:	50 × 60 cm	50 × 80 cm	50 × 100 cm	50 × 120 cm
Hmotnost:	6,6 kg	8,8 kg	10,7 kg	13,0 kg
Napätie:	220-240V~ /50-60Hz	220-240V~ /50-60Hz	220-240V~ /50-60Hz	220-240V~ /50-60Hz
Spotreba:	400W	600W	800W	1000W
Stupeň ochrany:	IP24	IP24	IP24	IP24
Trieda ochrany:	Trieda I	Trieda I	Trieda I	Trieda I

Diagram showing a ladder-mounted heater with labeled components including a power plug, switch, and control panel.

Obrázok 4

7 MOD 6 + - 5 1 2 SET 3 4 WEEK

Obrázok 5

Displej LED

Diagram showing a screwdriver inserted into a cylindrical device with labeled parts 1, 2, and 3.

Obrázok 9

Diagram of a ladder assembly with numbered components and an inset showing a mechanical setup with labeled parts 1, 2, 3, and 4.

Obrázok 10

Inštalácia

VÝSTRAHA

Illustration of a horizontal heater connected to a wall-mounted power outlet, with a numbered callout pointing to the cable (no text or symbols present)

Obrázok 11

Prevádzka

VÝSTRAHA

QR code image containing encoded data, no visible human-readable text

Obrázok 12

Sani bathroom radiator

**** Wifi

Art.nr. *****

Batch BCxxxx

220-240V \~ 50-60Hz - *** Watt

EUROM - KOKOSSTRAAT 20 - 8281 JC - GENEMUIDEN - NETHERLANDS

Figura 2

EUROM®

POWERFUL PRODUCTS SINCE 1974

Sani bathroom radiator ****

Wifi Swiss plug

Art.nr. *****

Batch BCxxxx

220-240V \~ 50-60Hz - *** Watt

EUROM • KOKOSSTRAAT 20 • 8281 JC • GENEMUIDEN • NETHERLANDS

Figura 3

Specificații

Tip:	400	600	800	1000
Dimensiunea produsului:	50 x 60 cm	50 x 80 cm	50 x 100 cm	50 x 120 cm
Greutate:	6,6 kg	8,8 kg	10,7 kg	13,0 kg
Tensiune:	220-240V~ / 50-60Hz	220-240V~ / 50-60Hz	220-240V~ / 50-60Hz	220-240V~ / 50-60Hz
Putere electrică:	400W	600W	800W	1000W
Grad de protecție:	IP24	IP24	IP24	IP24
Clasa de protecție:	Clasa I	Clasa I	Clasa I	Clasa I

Diagram showing a ladder setup with labeled components including a power plug, switch, and control panel

Figura 4

Diagram showing a screwdriver inserted into a cylindrical device with labeled parts 1, 2, and 3.

Figura 9

Diagram of a ladder-mounted device with labeled parts and an inset showing a component with four numbered parts.

Figura 10

Instalare

AVERTISMENT

Illustration of a horizontal heater connected to a power outlet with a cable (no text or symbols)

Figura 11

Functionare

AVERTISMENT

QR code image containing encoded data, no visible human-readable text

Figura 12

Temporizator intelligent

Sani Bathroom Radiator

Version: v3.0
