USER MANUAL 7922 Trumeter

WARNING: Read page 32 first.

6 digit programmable bi-directional counter relay, with dual preset or batch mode operation, prescaling and EEPROM data storage

English

Page 2

Black on green STN LCD, with yellow/green LED backlight.

Program Storage

Erase/write cycles:1,000,000

Life: 40 years min

Count Range

-99999 to 999999

Count Pre-scaler

Multiplier 0.00250 to 9.99999

Divider 1 to 99999

External Reset response time

Max 2ms

Count Inputs

High Speed: 10kHz max (electronic)

(Dividing prescaler: 7kHz max)

Duty cycle: 60:40 max

Low Speed: 30Hz max (contact closure)

Relay Contacts

5A resistive load 100,000 operations

2A resistive load 1,000,000 operations

Reaction time: <20ms.

P1 Relay: UL Ratings

AC 250V max, DC 125V max

250VAC 1/6 HP

30VDC 5A

P1 Relay: General ratings

AC 1250VA max 300V AC

250Vac (cosø = 1): 5A

250Vac (cosø = 0.4): 3A

DC 150W max 220V DC

30Vdc:5A

P2 Relay: UL Ratings

AC 250V max, DC125V max

250VAC 1/6 HP

30VDC 5A

P2 Relay: General ratings

AC 2000VA max 300V AC

250Vac ( = 1) ：8A

250Vac (cos = 0.4 ): 5A

DC 150W max 220V DC

30Vdc:5A

Supply (see Connections)

94 to 240V AC ± 10% 50/60Hz

VA Rating 4VA

or 12 to 24VDC ± 10%

typical current 100mA DC (max)

Installation Category (IEC 664)

Overvoltage category II

(Pollution degree 2)

Operating temperature

-10°C to +60°C

Storage temperature

-20°C to +70°C

Environmental protection

IP65 (panel mounting) using the sealing gasket supplied (without Screw-fixed bezel). If the seal is removed, it must be replaced with a new one.

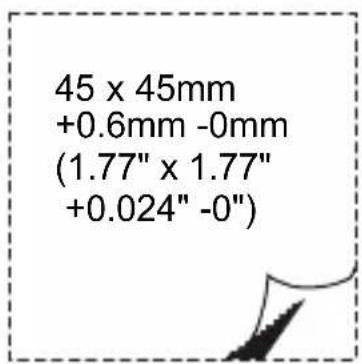

See page 39 for cut-out dimensions

Altitude

Up to 2000m

Relative Humidity

80% max up to 31^ , decreasing to 50% max at

40^

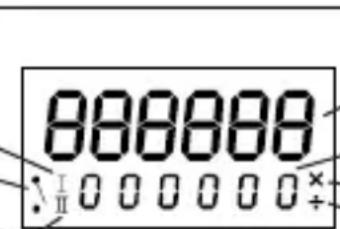

The Front Panel

P1 Relay operated

P1 Relay state

P2 Relay operated

Digit 1

Digit 6

Reset

Count

P1 or P2 or

Batch Total

Multiplying Prescaler

Dividing Prescaler

Select

Program

The front panel buttons are used to program the counter and to display and set the P1 and P2 presets. All the buttons can be disabled by the Keyboard Inhibit input. (see Programming, page 6).

Auto Reset (see and on3 page 35)

When Auto Reset is on, the counter will be automatically reset as follows:

In Reset to Zero mode, the counter will reset to zero when P1 is reached.

In Reset to P1 mode, the counter will reset to P1 when zero is reached.

Front Panel Reset and External Reset (RST / Ext. Reset)

A Reset can be caused by pressing the RST button or by applying a signal to the External Reset input. Any active relay will be returned to its normal condition.

If the operation of the External Reset is safety critical, it is recommended that the External Reset signal is derived from an independent power supply which will remain stable if the 7922's supply is interrupted.

P1 and P2 Presets

The minimum value possible for P1 and P2 is 000001, except in Dual Preset

mode, when P2 can be set to zero. P1 and P2 must be greater than any

multiplying prescaler value, or the unit may not operate correctly.

The P1 preset can be set at any time.

In Reset to Zero mode, the change will be accepted immediately.

In Reset to P1 mode, the change will not be accepted until after a Reset.

The P2 preset can be set as shown below.

The change will be accepted immediately.

Count Modes (see page 35)

The diagrams show how the P1 and P2 Relays are controlled by the Count, by Batch Total and by Reset.

The diagrams show how the Count is reset to zero or P1 by Auto Reset. In all modes, the Count can be reset at any time by a RST/Ext. Reset.

The counter can count up to 999999, and or down to -99999. Beyond these limits, the counter will continue to count internally, but the display will flash 999999 or -99999 until either the count returns to below the limit, or the counter is reset by RST/Ext. Reset.

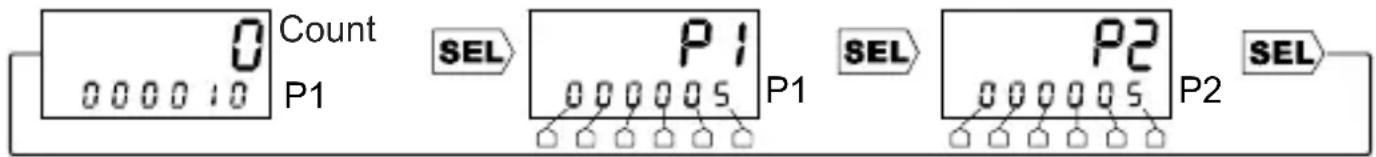

Dual Preset Mode

In Dual Preset mode, P1 and P2 are used independently to control the operation of the counter and the relays.

Press SEL, then use the Digit buttons to change P1. The display will flash. Press SEL again to accept the new P1 value, then use the Digit buttons to change P2. Press SEL again to accept the new P2 value. If SEL is not pressed within 30 seconds of the last change to either P1 and P2, they will revert to their original values.

1 Dual Preset with Auto Reset on

Note: P1 Relay cannot be set to Latched.

Note: If P2 Relay is set to Latched, it will return to normal at the same time as P1 Relay.

2 Dual Preset with Auto Reset off

Note: If P1 or P2 Relays are set to Latched, they will return to normal at RST/Ext. Reset.

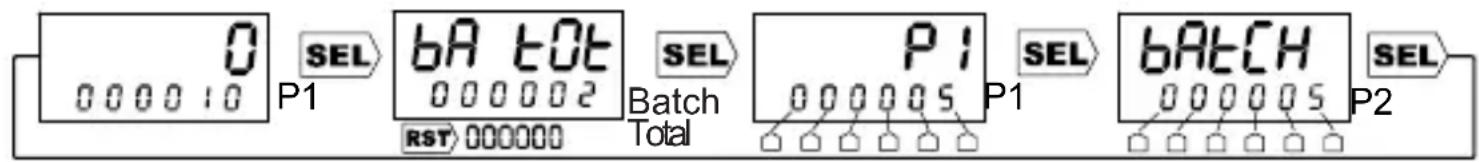

Batch Mode

In Batch mode, P1 and P2 are used in combination to control the operation of the counter and the relays.

Set P1 and P2, as shown above for Dual Preset mode.

When the Batch Total is displayed, the RST button can be used to reset it to zero.

Note: P2 relay cannot be set to Pulsed.

Note: The P2 Relay operates when the Batch Total reaches P2. It will return to normal when the Batch Total is reset to zero.

3 Batch Mode with Auto Reset on

Note: P1 relay cannot be set to Latched.

Note: The Batch Total increments at Auto Reset.

4 Batch Mode with Auto Reset off

Note: If P1 is set to Latched, it will return to normal at RST/Ext. Reset.

Note: The Batch Total increments at the first RST/Ext. Reset after P1 has been reached.

ConnectionsWARNING: This counter must not be wired the same as the 7921.

Pin Description Range
1 Aux	illary DC Supply -ve	0V - See pin 2, below
2 Aux	illary DC Supply +ve	Power Supply (see pages 37 & 38) The counter can be powered by AC mains, in which case pins 1 and 2 provide an Auxiliary supply (+12V DC +20% -10%, 75mA max recommended) which can be used to power sensors if required. Alternatively, the counter can be powered by an external DC source (12-24V DC ±10%, 100mA), connected to pins 1 and 2.
3 4/5	Common	See Input Polarity, page 5
4	External Reset Input (Input R)	Opto-isolated, 12-240 V ±10% DC or 50/60Hz AC See Specification, page 2
5	Keyboard Disable Input (Input K)	Opto-isolated, 12-240 V ±10% DC or 50/60Hz AC See Specification, page 2 This input can be used to disable the front panel buttons, but only if configured by the Inhibit option. See Programming, page 6
6 Neutral		94 to 240VAC ±10% 50/60 Hz
7	i v e
8	P2 Relay contacts	Isolated relay contacts 50/60Hz 300V AC max, 220V DC max
9		See Specification, page 2 See Relays, page 5
10 P1A contact
11 P1Common contact
12 P1B contact
13 14/15 Common		See Input Polarity, page 5
14 Input B		5-30 VDC See Specification, page 2
15 Input A

Inputs A and B in Unidirectional mode

In the two Unidirectional modes, the count is incremented or decremented by input A, whilst the direction is dependent on input B.

In Unidirectional High mode, both inputs are high speed inputs, suitable only for electronic signal sources, eg. transistors, proximity switches, encoders.
In Unidirectional Low mode, both inputs are low speed inputs (30Hz max), suitable for contact closure sources, eg. microswitches, relays, pushbuttons. Any contact noise is removed by filtering. They can also be used for electronic signal sources.

Inputs A and B in Quadrature mode

In Quadrature mode, the count is incremented or decremented depending on the phase difference between input A and input B.

In this mode, both inputs are high speed inputs, suitable only for electronic signal sources, eg. transistors, proximity switches, encoders.

Input K (Keyboard Inhibit) and Input R (Reset)

Both inputs are low speed inputs as described above.

Cables

Maximum wire size the connector can accept is:

2.5mm^2 cross sectional area; 1.8mm diameter. (equivalent 13 AWG solid wire)

Any signal cables connected to this device must not exceed 30 metres in length. If signal cables are installed that are routed outside the building, it will be necessary to install additional surge protection devices.

Input Polarity (see page 37)

Inputs A and B (pins 15 and 14) can be sink or source dc inputs, depending on the way they are wired, with respect to their Common input (pin 13), as shown in the examples below, and on pages 37 and 38. Pin 1 must always be connected as shown.

The opto-isolated inputs K and R (pins 5 and 4) can be sink or source ac or dc inputs, depending on the way they are wired, with respect to their Common input (pin 3), as shown in the examples below and on pages 37 and 38.

Only K and R are isolated from the supply pins.

Sink Inputs (NPN)

Source Inputs (PNP)

Note: Common Pins 3 and 13

These pins must always be correctly connected for their inputs to work.

For dc signals, to +V or -V , as shown in the examples above and on page 37.

For ac signals (5/4/3 only), as shown in example 4 on page 37.

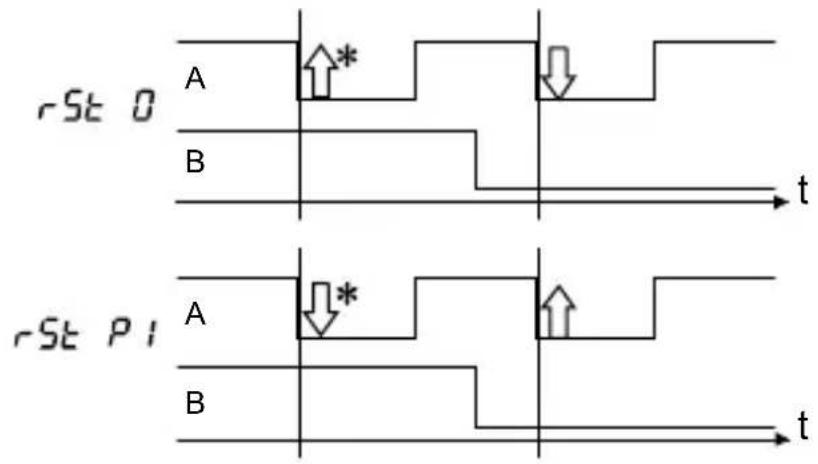

Count Direction (see page 36)

In all modes, count direction is dependent on Reset mode (see Programming) and Sink/Source wiring, as shown in the diagrams. The count direction and the edges that trigger the count are shown by the arrows.

For unidirectional mode, the count directions obtained with input B open-circuit are marked *.

Note:

The count direction must not change in less than 25~ s , or the unit may not operate correctly.

Relays (see page 38)

The P2 relay can be programmed to be normally-open or normally-closed. In the case of the P1 relay, contact P1A can be programmed to be normally-open or normally-closed. P1B will always be the opposite of P1A.

The relays can be programmed independently to operate in pulsed or latched mode. In pulsed mode (P1 relay: Auto Reset Off only) the relay will operate for a length of time set by the program. In latched mode the relay will operate, and stay in that condition until reset.

The relays can be programmed to revert to a known safe state in the event of a power failure or on entering program mode. The three alternatives are:

Current - the contacts will remain in the same state as before the event;

Reset - the contacts will revert to their normal, unoperated state;

Set - the contacts will revert to their operated state.

Programming

• Press and hold PGM for 3 seconds to enter Programming mode.
• Press Digit 1 to cycle through the menus, or PGM to exit Programming mode.
• Press SEL to select a menu, then Digit 1 to cycle through the options.
• Press SEL to select an option, or PGM to exit the menu without change.
• Press the Digit buttons to adjust a numerical setting, eg. pulse time.
• Press SEL to accept the setting, or PGM to exit the setting without change.
• Press PGM once or twice to exit Programming mode.

Main menu

dEC Pt	SEL	Decimal Point menu
PSCALE	SEL	Prescaling menu
INPUT	SEL	Input Mode menu
bBatch	SEL	Batch Mode menu
rRESET	SEL	Reset Mode menu
INH b1	SEL	Inhibit menu
AUTO	SEL	Auto Reset menu
rICOond	SEL	P1 Relay Condition menu
rType	SEL	P1 Relay Type menu
rSAFE	SEL	P1 Relay Safe State menu
rCOond	SEL	P2 Relay Condition menu
rType	SEL	P2 Relay Type menu
rSAFE	SEL	P2 Relay Safe State menu
LCDbl	SEL	LCD Backlight menu
1	PGN	Exit Programming mode

If the Prescaler or the Reset Mode or the Batch Mode are changed, the new configuration will not be fully effective until after exit from Program mode, AND THEN AFTER a Reset.

Decimal Point

The decimal point can be in one of three positions, or off.

Prescaling

A multiplying or dividing factor can be used. If a multiplying prescaler of n is used, the counter will count: 0, n, 2n, 3n etc. If a dividing prescaler of n is used, the counter will increment or decrement on every nth input pulse.

Input Mode

See Input Modes.

Batch Mode

See Count Modes.

Reset Mode

See Auto Reset and Count Modes

Inhibit

See Front Panel.

Auto Reset

See Auto Reset and Count Modes

P1 and P2 Relays

See Relays

• Auto Reset On and P1 Relay Latched cannot be set together.

** In Batch mode, P2 Relay cannot be set to Pulsed.

LCD Backlight:

can be on, off, or turn on for 30 seconds when a button is pressed.

Decimal Point

No Decimal point

1 Decimal place
2 Decimal places
3 Decimal places
Main menu

Prescaling

No prescaling
Multiply - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
Divide
Main menu

Multiply

Divide

Input Mode

Unidirectional high speed

Quadrature high speed

Unidirectional low speed

Main menu

Batch Mode

Batch Mode off

Batch Mode on **

Main menu

Reset Mode

Reset to Zero

Reset to P1

Main menu

Inhibit

Programming

Programming and Presets

All buttons

Main menu

Auto Reset

Auto Reset on *

Auto Reset off

Main menu

P1 Relay Condition

P1A Normally open

P1A Normally closed

Main menu

P1 Relay Type

Pulsed

Latched*

Main menu

Pulsed

P1 Relay Safe State

Current state

Normal state

Operated state

Main menu

P2 Relay Condition

Normally open

Normally closed

Main menu

P2 Relay Type

Pulsed **

Latched

Main menu

Pulsed

P2 Relay Safe State

Current state

Normal state

Operated state

Main menu

LCD Backlight

On

Off

Delay

Main menu

Spezifikation

Anzeige

(Pre-escala divisor: 7kHz max)

Indice de Rendimiento: max 60 : 40

250V CA (cos = 1 ): 8 A

250VCA(cos = 0,4 ）：5A

CC 150W max. 220V CC

30V CC 5A

Ingressi Source (PNP

Nota: Pin Comuni 13 e 3

This product is intended to be installed in accordance with the operating and installation requirements of Overvoltage Category II and Pollution Degree 2 (as defined by IEC 664). It must be fitted in a suitable enclosure which is accessible to qualified personnel only. See page 39 for panel cut-out dimensions.

When using an AC supply to power the unit a suitable fuse must be used. The recommended fuse is type - S504-250mA manufactured by Bussmann.

Fuse details: Antisurge 250mA, Rating 250VAC, Breaking capacity 35A @250VAC, UL recognised (file no E75865), complies with IEC127.

The relay output circuits must be fitted with fuses suitable for the voltage and current being switched.

All conductors carrying hazardous voltage should have external switching or disconnect mechanisms fitted which provide at least 3mm of contact separation in all poles.

Failure to install or operate the unit in accordance with the above requirements may result in the electrical safety of the unit being impaired.

Maintenance

Ensure that all power sources to the unit are isolated prior to maintenance, inspection or cleaning.

There are no user serviceable parts inside this unit. Under no circumstances should the case be opened.

All external wiring connections should be inspected at regular intervals. Any damaged wiring should be replaced and any loose connections should be retightened.

Cleaning should be carried out using a dry cloth to wipe the casing of the unit.

ACHTUNG

Sink, Receptor (NPN)

Source, (PNP)

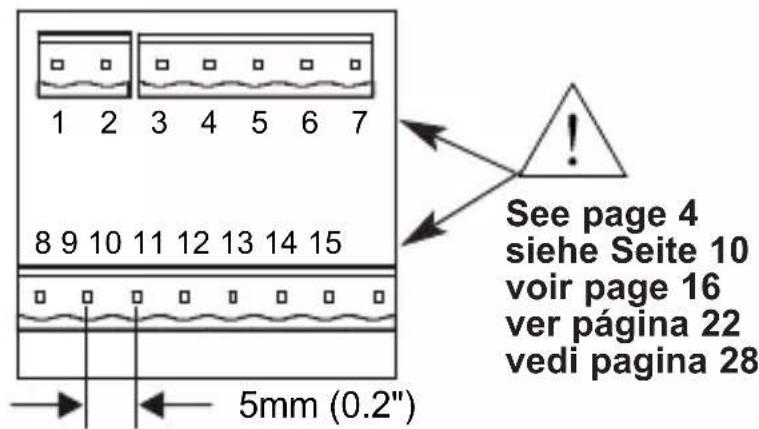

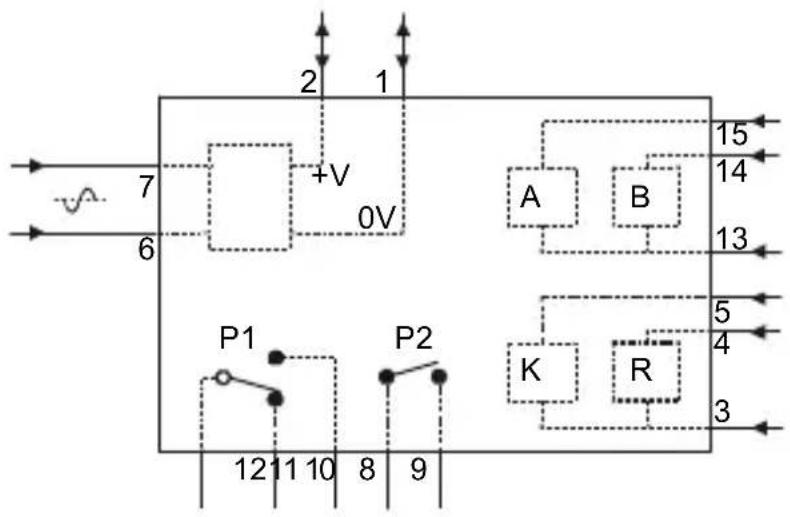

Connections, Anschlüssle, Connexions, Conexiones, Collegamenti

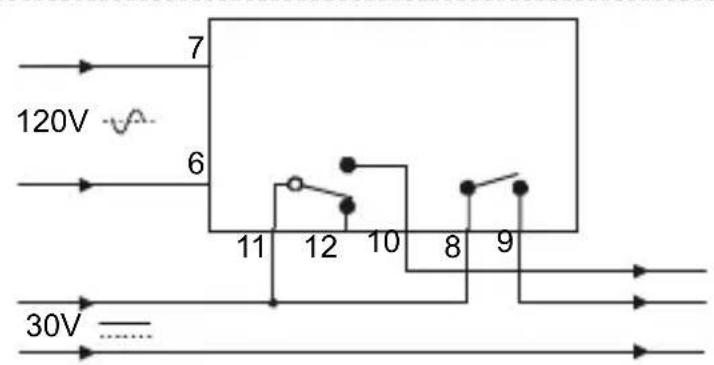

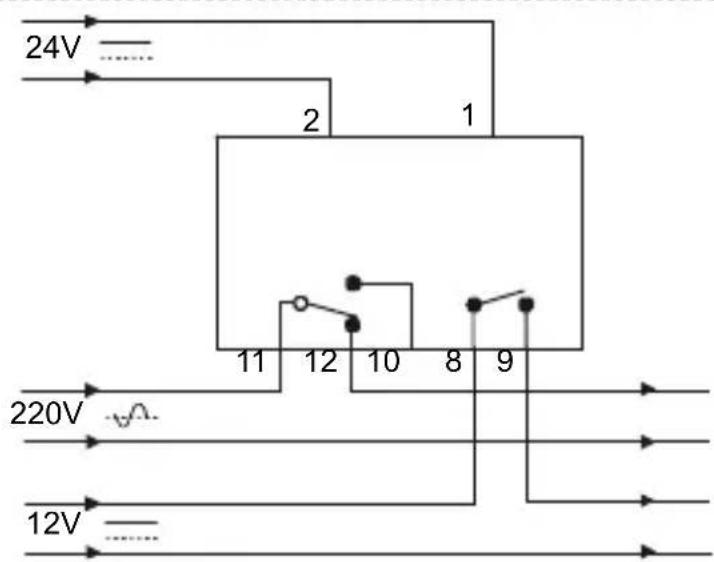

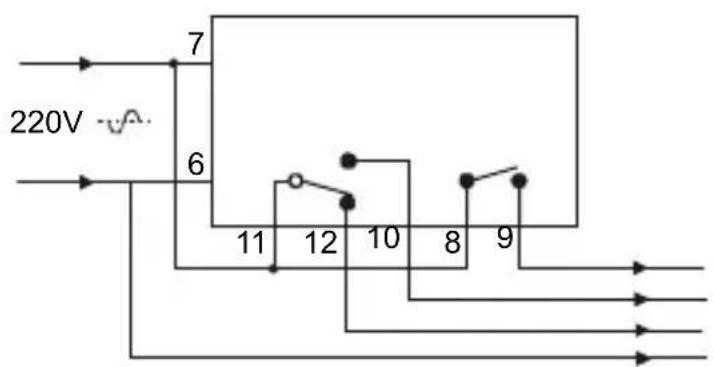

Relay examples, Beispiele Relaisanschluss, Exemples de Relais, Ejemplos de Relé, Esempi di relè

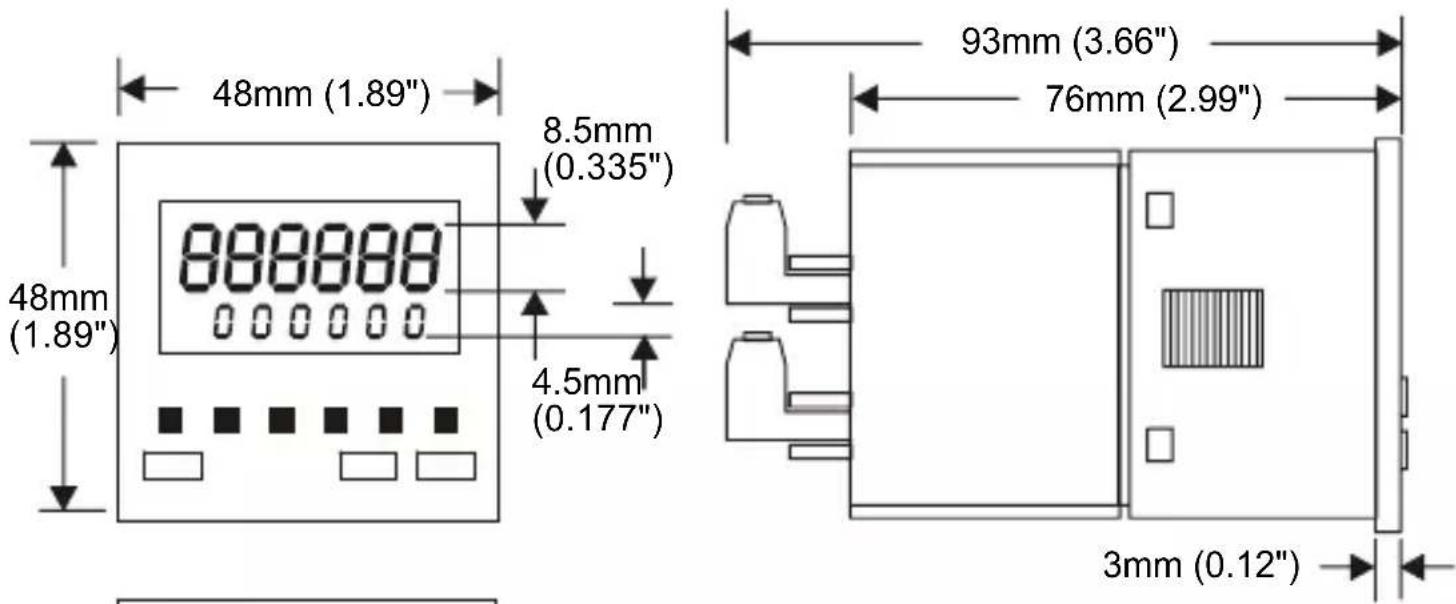

Dimensions, Abmessungen, Dimensiones, Dimensioni

Trumpeter Company Ltd, Milltown Street, Radcliffe, Manchester, M26 1NX, England

Tel: [phone] Fax: [phone]

e-mail: [e-mail]

Trumpeter Company Inc. (USA), 1020 North West 6 Street, Deerfield Beach, Florida 33442, USA

Tel: [phone] Fax: [phone]

email: [e-mail]

Trumeter (Malaysia) Sdn. Bhd., Lot 2835, Lorong Perusahaan Lapan B, Kawasan Perusahaan Perai, 13600 Perai, Pulau Pinang, Malaysia

Tel: [phone] Fax: [phone]

email: [e-mail]

Trumeter France, 99 rue Parmentier, BP 304, 59666 VILLENEUVE D'ASCQ CEDEX, France

Tel: [phone] Fax: [phone]

email: [e-mail]

Trumpeter Ireland, 9 Barrow Mews, Centaur Street, Carlow, Co. Carlow, Republic of Ireland

Tel: [phone] Fax: [phone]

e-mail:[e-mail]
