USER MANUAL CRISTAL EDILKAMIN

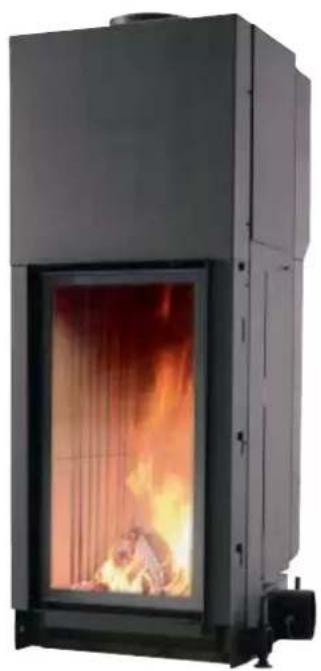

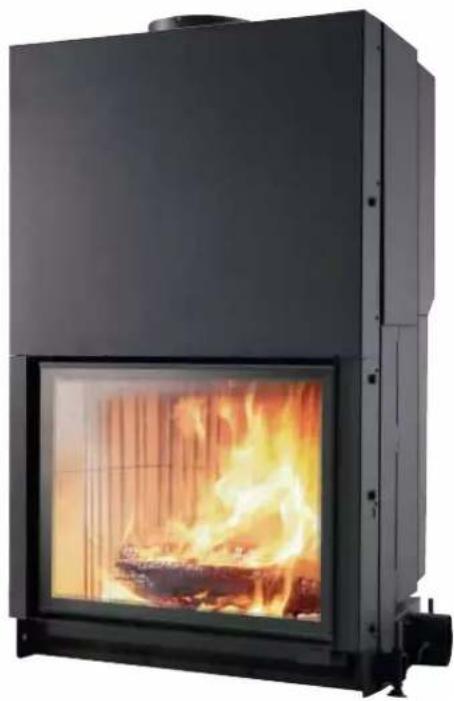

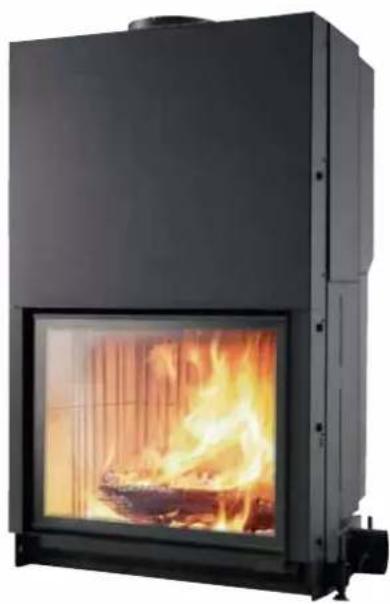

CRISTAL 45 - 76 - 90

Exterior view of a large industrial stove with visible flame inside (no text or symbols)

Exterior view of a black industrial stove with visible flames and a basket (no text or symbols)

Exterior view of a black industrial stove with visible flames and fire (no text or symbols)

UK Installation, use and maintenance pag. 12

F Installation, usage et maintenance pag. 22

Technical diagram of a furnace or reactor with numbered components and airflow indicators

fig. 1

Interior view of a room with vertical slats and a central decorative panel (no text or symbols visible)

fig. 2

Close-up of a metal shelf with two circular indentations and a numbered label (14), no readable text or symbols present.

fig. 3

Close-up of a black industrial machine component with labeled parts (10 and 11), no visible text or symbols beyond labels.

fig. 4

Metal bracket component with two U-shaped cutouts and a labeled point '8' (no text or symbols beyond the number)

fig. 5

Technical illustration of a mechanical device with labeled components (A and fig. 6), no readable text or symbols beyond labels.

Mechanical component with threaded shaft and flange, labeled as fig. 7 (no text or symbols on the object itself)

Valvola a farfalla

Mechanical component with threaded shaft and flange, labeled 'fig. 8' (no other text or symbols)

Technical line drawing of a mechanical assembly with two labeled parts (A), no text or symbols present.

Daimler 3 Buy 100 Litter Suggested, please be to buy 100 Litter of Innovator, regular and quick for sale by: 150 gm. We have sold in the last week. We will make it easy to do so that we possible to buy or sell prices when you want to get the price. See above. See below. See above. www.daimler.com Buy 100 Litter www.daimler.com http://www.daimler.com

Technical schematic diagram of a mechanical device with numbered components labeled 6 and 7

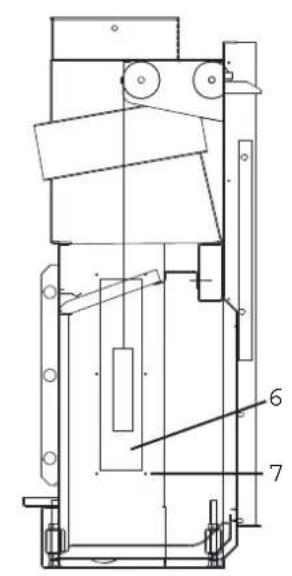

Contrappesi

12 12

fig. 11

Simple 3D diagram of a rectangular frame with a labeled section 'A' (no other text or symbols)

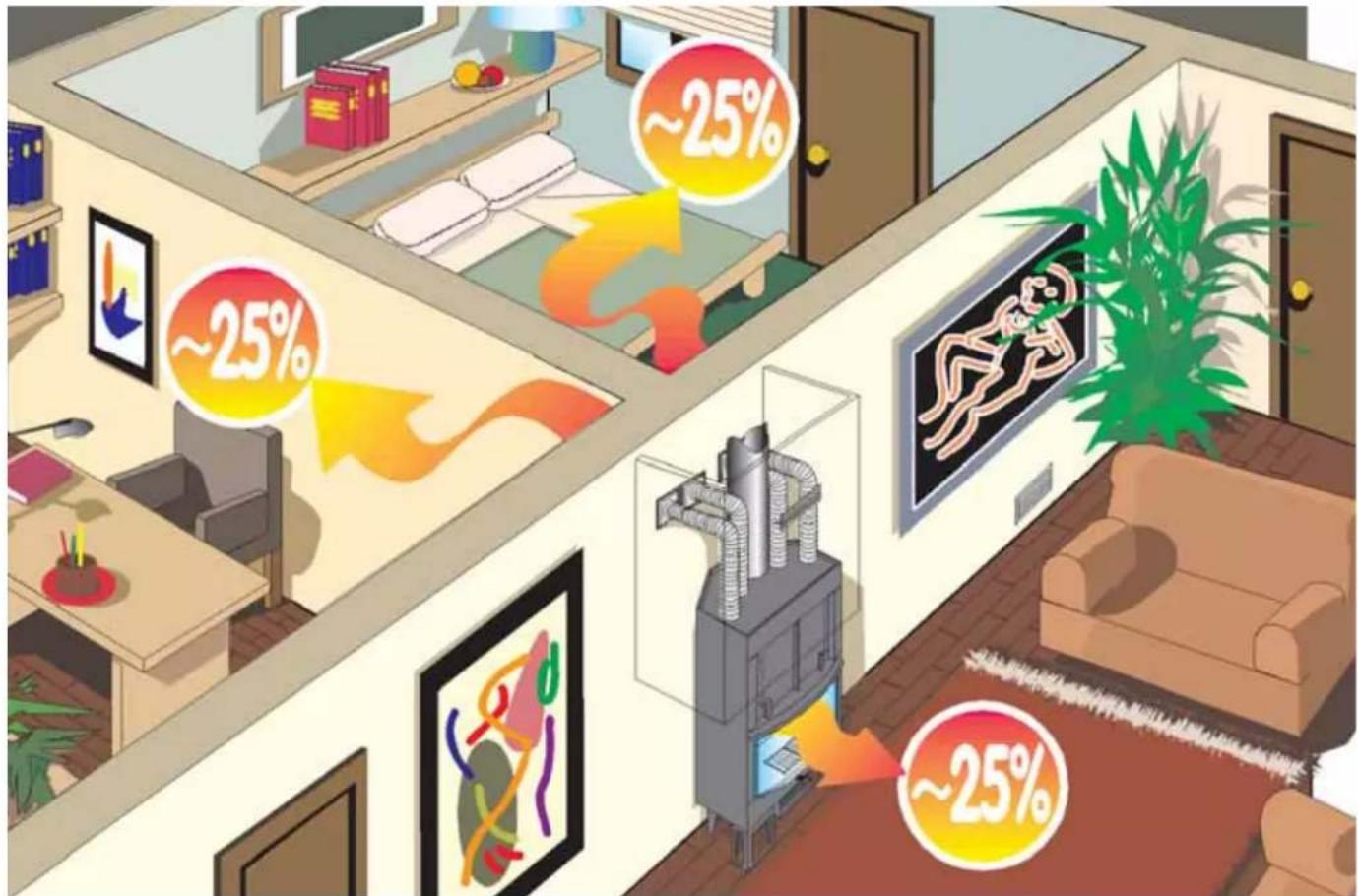

~25% ~25% ~25% ~25%

Close-up of a hand using a tool to cut metal strips, no visible text or symbols

Line drawing of a mechanical wrench (no text or symbols)

mano fredda 7a

7

Dear Madam/ Dear Sir

We thank you for having chosen CRISTAL.

Before using it, We ask you to carefully read this file, in order to be able to better, and safely, take advantage of all the features.

For any eventual doubt, requests for spare parts or claims, please refer to the retailer from whom you purchased, indicating contents slip and type of appliance.

The contents slip number, necessary for identifying the chimney, is indicated in the documentation attached to the same and on the small label applied at the front.

Said documentation must be kept for identification.

• Keep the present instructions which must be used for eventual information requests.
• The particulars represented are graphically and geometrically indicative.

Safety information

The CRISTAL are planned to heat the room in which it is in through radiation and the movement of hot air.

The only risks which could derive from the use of the chimney are linked to the non compliance with the installation instructions or contact with fire and hot parts (glass, pipes, hot air outlet) or the introduction of foreign substances.

Only use wood as fuel.

Inflammable products must not be used for cleaning the smoke channel.

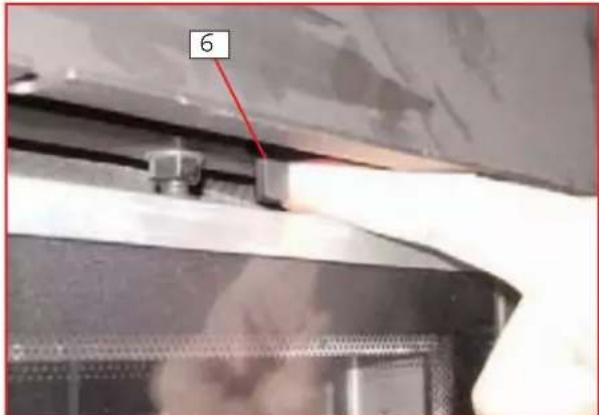

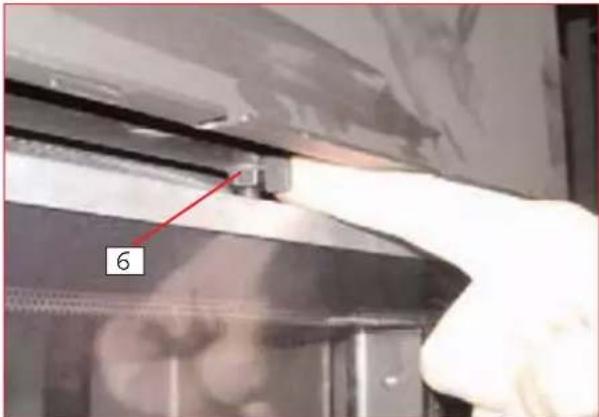

The glass can be COLD cleaned with appropriate product (ex. GlassKamin) and a cloth. Do not hot clean.

The discharge pipes and the hatch reach high temperatures whilst the chimney is functioning.

Do not place objects which do not resist to heat near the chimney.

NEVER use liquid fuels to light the chimney or to rekindle the fire.

Do not obstruct the airing openings in the installation room, nor the air inlets of the same chimney.

Do not wet the chimney.

Do not insert reductions on the smoke discharge pipes.

The chimney must be installed in rooms in conformity with the fire prevention safety and equipped with all services which the appliance requires for the correct and safe functioning.

IMPORTANT NOTE

In case of faults to the CRISTAL hearth, contact the retailer from whom you have purchased or the dealer.

Only use original spare parts from the manufacturing company, only like this it is possible to rely on the safe working of the plant.

The improper use of the appliance inevitably leads to the voiding of the warranty.

The appliance is considered to be used properly when the present use instructions, the UNI 10683 rule the rules for the correct installation and use, are observed.

For installing in Italy refer to UNI 10683 or subsequent modifications.

In any other nation, verify the relative laws and rules.

The undersigned EDILKAMIN S.p.a. with head office headquarters at Via Vincenzo Monti 47 - 20123 Milan - Italy - tax code and VAT no. 00192220192

Declares under its own responsibility as follows:

The wood-combustion fireplace listed below complies with Regulation EU 305/2011 (CPR) and the harmonised European Standard EN 13240:2001 + A2:2004 + AC:2006 + AC:2007

WOOD BURNING FIREPLACES, trademark EDILKAMIN, called CRISTAL 45 - 76 - 90

Year of manufacture: Ref. Data nameplate

Declaration of performance (DoP - EK 22-24-23): Ref. data tag plate

EDILKAMIN S.p.a. will decline all responsibility of malfunctioning or damage to the equipment in case of unauthorized substitution, assembly or modifications of any sort on the said equipment on the part of non-EDILKAMIN personnel.

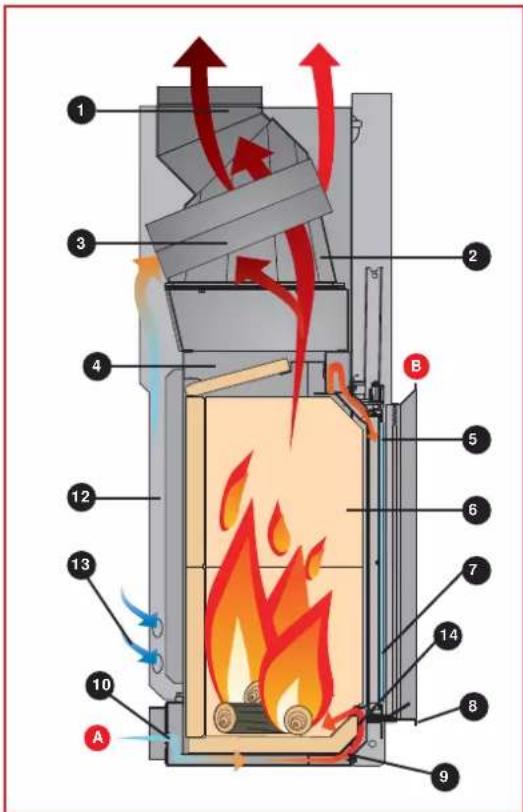

THE FEATURES

Technical diagram of a furnace or reactor with numbered components and airflow indicators

The structure is constituted by a high quality steel sheet body, hermetically welded, equipped with adjustable feet, completed with ECOKERAM hearth and basin fire surface, for a correct control of the ash.

The structure is completed by a shell which realises an air space for the circulation of the heating air.

Heating air circulates via natural convection (N version) or else via an optional forced air kit (V version), see page 15.

Particular care has been taken in the inlet of the fuel air in the hearth to guarantee optimum fuelling, a calm flame and a very clean glass.

The fuel primary air A enters at the base of the fire surface on the open coal. The amount of the primary air is adjustable depending on the draught of the flue through a mobile deflector (14) installed at the front of the hearth (fig.3).

By using the mobile deflector for a flue with a weak draught, it is possible to increase the intake section of the primary air and vice versa, decrease it in case of excessive draught.

The fuel and glass cleaning secondary air B enters from the glass peak after having been heated during its path.

The amount of the secondary and glass cleaning air is pre-calibrated and heated during the transit of the uprights at the sides of the hearths mouth.

Interior view of a room with vertical slats and a decorative wall plaque (no text or symbols visible)

fig. 1

Removable handle for opening hatch

The handle of the hatch (fig. 5) is not fixed to the same hatch but is inserted when required.

The handle is to be inserted in the lower part of the mouth outline frame, forking it in the appropriate pegs.

The handle is only needed to lift or lower the hatch.

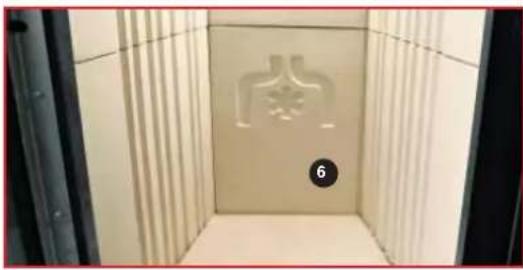

Hearths inside covering (fi g.2)

The covering is made of ECOKERAM®: a new refractory material with mullite base cooked at 1200°C.

ECOKERAM ^® has the peculiarity to accumulate heat during fuelling and to gradually release it, even during the switching off phase. ECOKERAM ^® enables to reach a very high temperature inside the hearth, optimising the fuelling and reducing the emissions.

Close-up of a metal shelf with two circular holes and a numbered label (14), against a wooden panel background (no readable text or symbols)

fig. 3

LEGEND: (figs. 1-2-3-4-5)

1. fumes outlet fitting

for connection with the flue

1. coolingfoil

to improve the heat exchange

to improve the heat exchange

1. steel structure

2. secondary air and glass cleaning power supply conduit to keep the glass clean

3. hearths inside in Ecokeram®

very thick to increase fuelling temperature

1. ceramic glass

resistant to heat shock of 800°C

1. removable handle

2. basin fire surface

to accumulate the coal and obtain optimum fuelling

1. external air inlet fitting
2. adjustable feet
3. shell for circulating heating air
4. heating air inlets (circulation)
5. mobile deflector

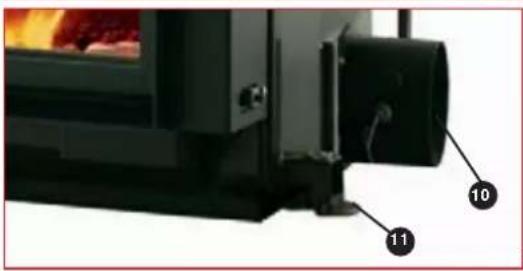

Close-up of a black industrial machine with labeled components (10 and 11), no visible text or symbols beyond labels.

fig. 4

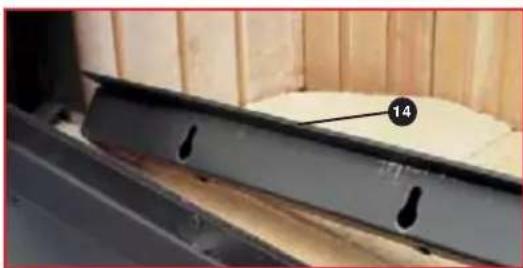

Metal bracket component with two notches and a labeled feature '8' (no text or symbols beyond the label)

fig. 5

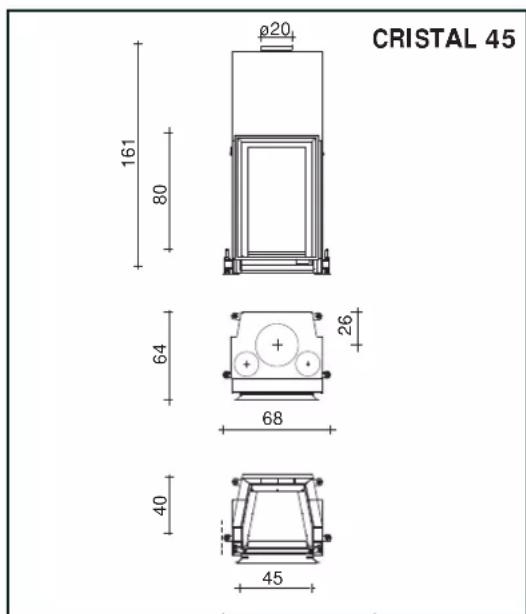

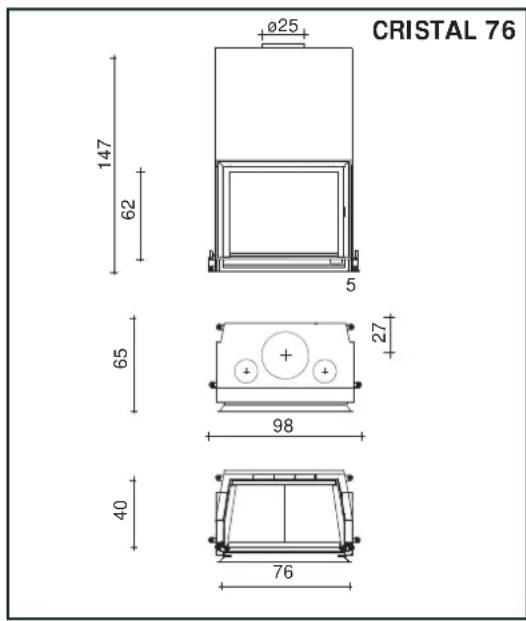

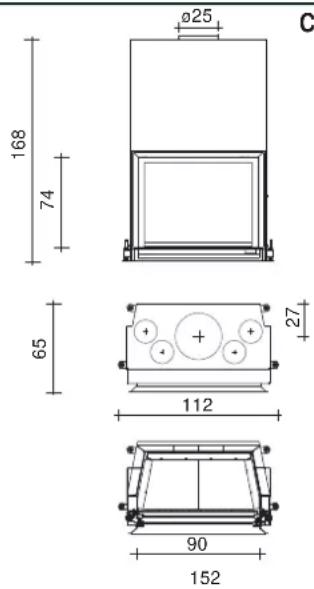

DIMENSIONS

CRISTAL 90

Technical data
		CRISTAL 45	CRISTAL 76	CRISTAL 90
useful power Kw 13 15 18
wood consumption Kg/h 3	7 4,2 4,7
Yield % 76,1	77,9	82,4
∅ fumes outlet	cm 20 25 25
∅ air inlet	cm	12,5*	12,5*	12,5*
Weight including packing	kg 260	308	368
heatable volume	m3	340	390	470

NB: the heatable volume only has indicative value as it depends on the buildings conditions.

* Should the air volume result scarce, and the type of building in which the chimney is installed particularly air sealed, it will be necessary to install a supplementary air inlet of 120 cm ^2 (ø 12.5).

THE TECHNOLOGY

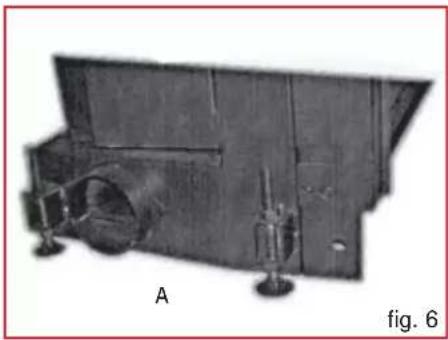

Mechanical device labeled 'A' with no visible text or symbols on the body itself

Fuelling air

CRISTAL fuelling air can only be mounted in rooms where there is sufficient air power supply for fuelling. To have the chimney function correctly, it is essential that the fuelling air reaches the hearth through a fine pipe on the appropriate inlets, provided at the sides and rear of the chimney. A 12.5 cm fitting (A) is supplied, which is to be applied to the inlet to be used (fig. 6).

The connection with the outside must have a useful passage section of at least 125 cm^2 along its whole path. The mouths not used for connecting the fuelling air passage flexible pipe, must remain closed with a lid.

Whenever the air volume results scarce and the type of building in which the chimney is installed particularly air sealed, it will be necessary to install a supplementary air inlet of 120 cm ^2 (ø 12.5 cm).

Mechanical component with flanged shaft and threaded end (no visible text or symbols)

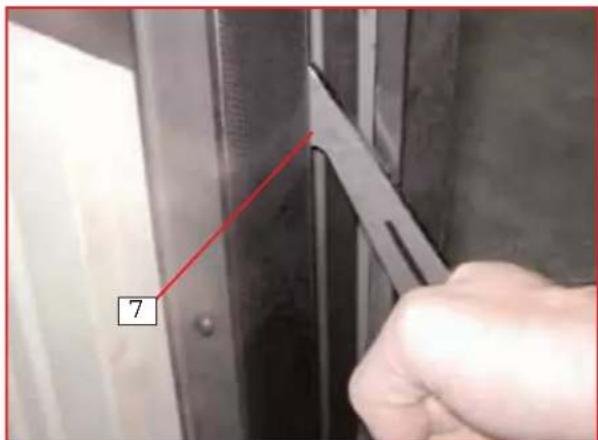

Butterfl y valve

The fuelling air must flow to the hearth regulated by a butterfly valve.

The butterfly valve is delivered as an accessory together with a flexible pipe and the fixing bands.

Unless the butterfly valve is mounted in a fixed and solid manner, the compact chimney cannot be started.

Mount the fuelling air regulating lever in the most adequate position under the threshold.

Mechanical component with threaded shaft and flange, labeled as fig. 8 (no text or symbols on the object itself)

Regulating the butterfly valve

"Starting" position / max. heating power (fi g.7):

air valve regulating lever totally extracted. Starting with cold chimney and max. hearth power.

"Maintain fire" position (fig.8):

regulating lever for the inlet valve. All air mouths are closed.

The air for heating

natural convection

Room temperature enters from the side inlets (n 13 - fig.1 on page 13) located on the base of the shell. It warms up and moves along the hollow and comes out hot from the outlets on the cover of the shell itself.

In this mode, the covers of the air inlets on the shell must be removed (n 13 - fig.1 on page 13) and equivalent air passages must be provided for on the coverings in such a way that the air to be heated have easy access to the said inlets.

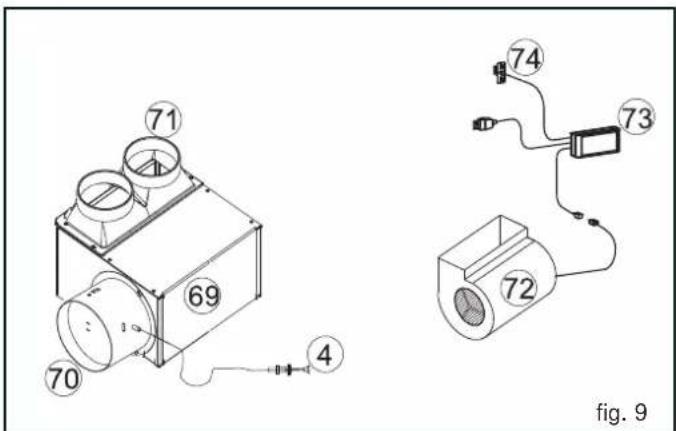

forced ventilation

forced hot air circulation is obtained by means of application of a special kit (fig.9)

this kit is composed of a metal box (69), complete with:

• 800 m³/h fan (72)
• regulator (73)
• sensor (74)
• fitting (70) connecting to the external air inlet with smoke damper and wired control (4)
• two-way fitting (71) for conveying external air to the shell

the air box is positioned next to the fireplace, either on the right or left side.

Detailed information for forced ventilation kit installation is contained in its packaging.

71 69 70 4 74 73 72 fig. 9

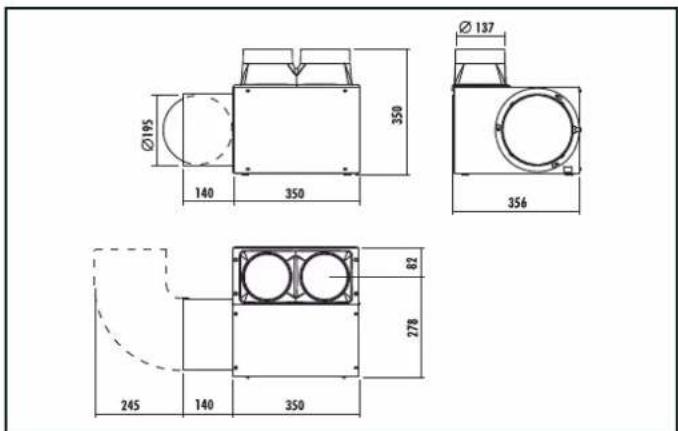

Ø195 140 350 350 Ø137 356 82 278 245 140 350

INSTALLATION INSTRUCTIONS

Important warnings

As well as that indicated in the present document, bear in mind the UNI rules:

- n. 10683 - wood heat generators: installation requirements

- n. 9615/90 - calculation of the chimney internal dimensions.

In particular:

- before starting any mounting operation, it is important to verify the compatibility of the plant as established by the UNI 10683 rule in paragraphs 4.1/ 4.1.1 / 4.1.2.

- once mounted, once mounted, the installer must "start up" the plant and issue the documentation requested in the UNI 10683 rule, respectively in paragraphs 4.6 and 5.

Before installing the cover, verify the correct functioning of the connections, the controls and all moving parts.

The verification must be carried out with the chimney having been on for a few hours, before covering the hearth, in order to eventually intervene. Therefore, the finishing operations such as for example:

• manufacture of the false hood
• mounting of covering
• carrying out stripping, painting, etc. must be carried out once tested with positive result.

Therefore, Edilkamin does not answer for burdens deriving from both demolition and reconstruction interventions, even if subsequent to replacing hearth pieces which resulted faulty.

Calibration and start up to be carried out by the dealer.

Vorwort

- The CRISTAL hearths must be installed keeping to the following instructions, as the safety and plant efficiency depend on the correct installation.

• Carefully read the present instructions before mounting.
  • EDILKAMIN declines any responsibility for eventual damages deriving from the non compliance with the present instructions and, in case, any warranty right will be void.
  • The CRISTAL hearth is supplied already assembled on non returnable pallet.
  The inside covering of the hearth is supplied already installed
• A model identification label is applied under the hearth hatch; the label can be seen until the hearth is covered.
  The model identification number is indicated in the documentation supplied with the product.

Building protection

All the building surfaces near the hearth must be protected against over-heating. The insulating measures to be adopted depend on the type of surfaces present and how they are made.

Hot air outlets / Grillsr

The hot air outlets must be placed at a minimum distance of 50 cm from the ceiling and 30 cm from the furniture.

Position the grills or the air outlets at the highest point of the covering, in order to avoid heat accumulating inside the same covering. Position the grills or the air outlets so that they can be easily accessed for cleaning.

Heating insulation

The insulating layers must not have joints and have to be overlapped. The thickness of the insulating material must be of at least 3 cm.

Ornamental beams

The realisation of eventual wood ornamental beams in front of the hearth covering is allowed only if they are outside the radiation field, at a distance of at least 1 cm from the same covering. The air space which isolates the ornamental elements and the covering must be such not to accumulate heat.

The wood ornamental beams cannot be integrating parts of the building.

Floor opposite the hearth

Floors made with fuelling materials must be protected by a sufficiently thick, non fuelling cover. The floor protection must be equal to:

frontally: - the corresponding height of the fire surface from the floor plus 30 cm and, in any case, min. 50 cm

laterally: - the corresponding height of the fire surface from the floor plus 20 cm and, in any case, min. 30 cm.

In the radiation fi eld of the hearth

The structural elements built with fuelling material or which present fuelling components and the furniture must be positioned at a minimum distance of 80 cm from the hearths mouth, in all three directions: front, upper and side.

Should such elements or furniture be screened by a ventilated anti-radiation protection, it will be sufficient to respect a distance of 40 cm.

Outside the radiation fi eld

The structural elements built with fuelling materials or which present fuelling components and furniture, must be positioned at a minimum distance of 5 cm from the hearths covering.

In such air space, the air present in the room must be able to circulate freely. No heat accumulation must be created.

Electric lines

There must be no electric lines in the walls and the ceilings, including the hearth embedding area.

Movement inlets

Two rings (A) have been prearranged to facilitate the conveying of the monobloc on the sides of the hearth. Insert the two steel pipes provided, in the rings.

The two tubulars will serve as inlets for the hand conveying of the monobloc, after having eventually lightened it by removing the entire Ecokeram earth (about 70 kg).

Technical line drawing of a mechanical assembly with two labeled components (A), no text or symbols present.

Note: The product is supplied with two anti-corrosion discs (one on the outside and one on the inside of the combustion chamber). They must be removed during unpacking and disposed of as normal waste.

Booster 5 2014 BOoster as well as the following: 19/08/2014 and the following: Booster BOoster's 3rd class of new shipping. Procter in their use and use of this paper is procter "a box being against the market" booster's 3rd class of new shipping. Procter in their use and use of this paper is procter "a box being against the market" booster's 3rd class of new shipping. Procter in their use and use of this paper is procter "a box being against the market" booster's 3rd class of new shipping. Procter in their use and use of this paper is procter "a box being against the other www.booster.com www.booster.com

INSTALLATION INSTRUCTIONS

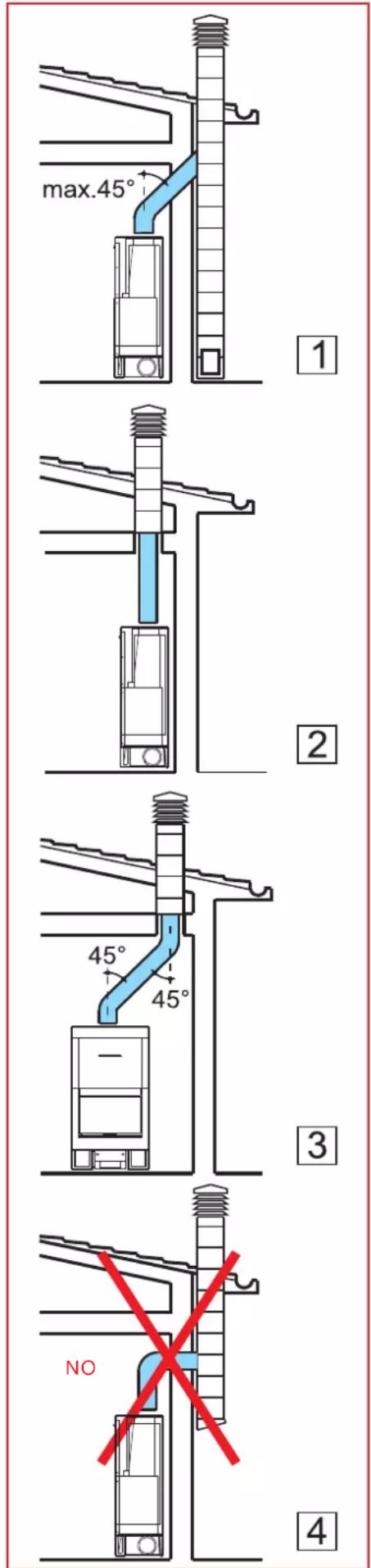

Smoke channel

The conduit which connects the hearth smoke outlet mouth with the flue inlet is called smoke channel.

The smoke channel must be made with stiff steel or ceramic pipes, flexible metal or fibre-cement pipes are not allowed.

Horizontal or counterslope tracts must be avoided.

Eventual section changes are allowed only at the chimney outlet and not, for example, at the coupling in the flue.

Slants of more than 45^ are not allowed.

A mastic sealing at high temperature must be carried out in correspondence of the inlet point of the steel flue on the chimney smoke outlet mouth.

Further to the above, bear in mind the indication of the UNI 10683 rule in paragraph 4.2 „connection to the smoke evacuation system“ and subparagraphs.

max.45° 1 2 3 NO 4

Flue and chimney pot

The conduit which, from the room with the chimney reaches the building covering, is called flue.

The fundamental features of the fl ue are:

• capability to support a smoke temperature of at least 450°C with regard to the mechanical resistance, insulation, and gas hold
• being correctly insulated to avoid the forming of condensation
• have constant section, almost vertical flow and not slant more than 45^
• have preferably circular internal sections; in case of rectangular sections, the max. ratio between the sides must not exceed 1.5
• have an internal section with a surface at least equal to the one reported on the technical board
• service only one hearth (chimney or stove).

Piping using stainless steel pipes of appropriate size and ideal insulation is suggested for flues which are old or too large.

The chimney pot fundamental features are:

• basic internal section equal to the one of the flue
• outlet section not less than double that of the flue
• position in full wind, above the roof and outside the reflux areas.

INSTALLATION INSTRUCTIONS

COUNTERWEIGHTS INSTALLATION

Technical schematic diagram of a mechanical device with numbered components labeled 6 and 7

Counterweights

fig. 11

The latch hatch is equipped with counterweights which guarantee both the closure and a soft movement. The action of the counterweights can be adjusted by adding one or more washers (additional counterweights) provided with the chimney. The additional counterweights (washers) can be mounted at any time without dismantling the chimney shell.

PROCEDURE (fi g. 11):

1. Completely open the latch hatch by pushing it upwards.
2. Unhook the support plates, left and right, of the Ecokeram hearth walls
3. remove the Ecokeram hearth walls
4. At this point, the closing lids of the counterweights inspection compartment will remain visible. Remove the lids (6) of the counterweights compartments by unscrewing the six screws (7).
5. Position the compensation washers (12) provided, necessary to balance the hatch.
6. Be careful to insert the washers well in the counterweight hook seat. The same number of additional counterweights is to be mounted on both sides.
7. Remount the sheet lids and reposition the hearths walls.
8. Re-hook the fixing plates of the hearths walls.

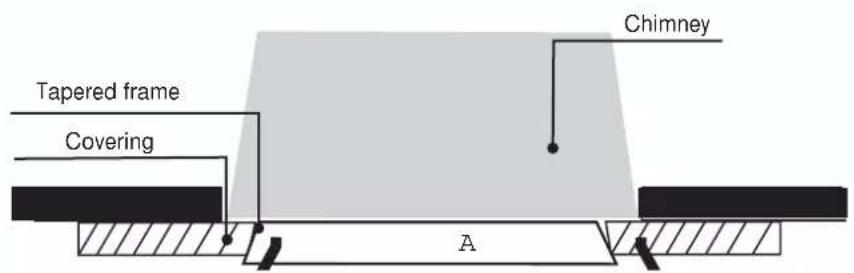

Mouth fi nishing frame

To facilitate the coupling with the covering, CRISTAL can be completed with a frame (A) to be applied in front of the mouth.

Tapered frame Covering A Chimney

Simple 3D diagram of a rectangular frame with a labeled section 'A' (no other text or symbols)

INSTALLATION INSTRUCTIONS

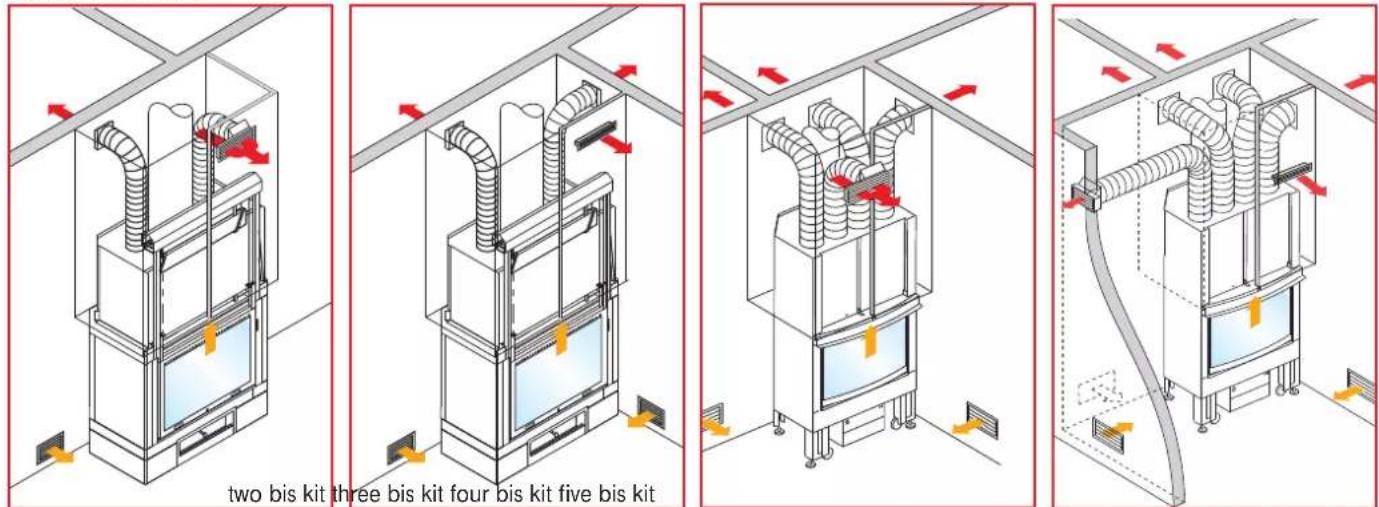

AIR DUCTING KIT

To facilitate the realisation of the hot air distribution system, Edilkamin has provided a package for each individual hearth, containing all that necessary for the different situations, from the simplest to the more articulated ones.

Hot air distribution:

1 room + chimney room 2 rooms + chimney room 3 rooms + chimney room 4 rooms + chimney room

~25% ~25% ~25%

The CRISTAL hearths, as well as heating through radiation, produce a large amount of hot air which can be duct through flexible pipes, in this way heating the whole house uniformly.

USE INSTRUCTIONS

Fuel and heating power

The fuelling has been optimised from a technical point of view, both with regard to the conception of the hearth and the respective air power supply, and with regard to the emissions.

We invite you to support our commitment in favour of a clean environment by observing the following indications with regard to the use of fuelling materials which do not contain, nor produce, noxious substances.

Only use natural and seasoned wood, or wood briquettes, as fuel. Damp wood, freshly cut or stored incorrectly has a high water content and therefore does not burn well, produces smoke but very little heat.

Only use burning wood with minimum two years seasoning in an airy and dry room. In such case, the water content will result lower than 20% of the weight. In this way you will save in fuelling material, as the seasoned wood has a higher heating power.

Never use liquid fuel such as petrol, alcohol or similar. Do not burn waste.

Radiation fi eld

Do not place any fuel object inside the radiation field of the glass hatch.

Initial start-up

The paint of the hearth is subject to the so called ageing until the working temperature is reached for the first time.

This may cause unpleasant odours. In such case, adequately air the room where the hearth is installed. The phenomenon will disappear after the first ignitions.

Danger of burns

The external surfaces of the CRISTAL hearth, in particular the glassceramic panel, heat up. Do not touch - danger of burns! Children should be particularly warned. However, children must be kept away from the switched on hearth.

Air grills

Careful not to close or obstruct the hot air outlets. This causes danger of overheating inside the covering.

Hearth functioning with hatch open

In case of functioning with hatch open, the hearth will have to be constantly kept under control. Very hot coal may be projected outside the hearth.

Addition of fuel

The use of a protective glove is suggested to "add wood", in that, in case of prolonged use, the handle may heat up.

Slowly open the hatch. In this way, the forming of a vortex of leaking smoke is avoided.

When is it time to add wood? When the fuel has almost turned to coal.

Functioning in mid-seasons

To suck the air for fuelling and to discharge smoke, the CRISTAL hearth requires draught from the chimney/flue. With the increase of the external temperatures, the draught decreases. Verify the chimney draught before lighting the fire, in case external temperatures are higher than 10^ C.

If the draught is weak, initially ignite a "starting" fire using small sized igniting material. Once the correct chimney draught is restored, you can introduce the fuel.

Air flow in the room where the hearth is installed

The CRISTAL hearth is able to work regularly only if in the room where it is installed there is sufficient air flow for the fuelling. Provide a sufficient air flow before igniting the chimney. The air power supply devices for fuelling must not be altered.

Whenever the air volume results scarce and the type of building in which the chimney is installed particularly air sealed, it will be necessary to install a supplementary air inlet of 150 cm^2 as previously said.

Igniting with cold hearth

1. Check that the ash bed is not too high. Maximum height: 5 cm underneath the hatch edge. If the ash bed becomes too high, there is a danger that when opening the hatch to add wood, fragments of coal may fall out of the hearth.

2. Pull the regulating lever of the air valve in the "switch on" position. Air for fuelling will flow intensely to the wood in the hearth, to rapidly reach good fuelling.

3. The wood must be placed in the hearth without excessively crowding it. Place an igniter between the wood logs, and ignite. The igniters are practical aids to start the fuelling. Attention: very large wood logs do not ignite properly in a cold hearth and free noxious gasses. Never use material such as petrol, alcohol and similar to ignite the hearth!

4. At this point, close the hearths hatch and supervise for a few minutes. Should the fire go out, slowly open the hatch, allocate another igniter between the wood logs and re-ignite.

5. Should the fire not require further addition of wood, the moment the same fire is exhausted, push the regulating lever of the air valve in the "maintain fire" position. Do not carry out such regulation during the fuelling phase, in that, when the lever is in the maintain fire position, the air flow for fuelling results completely blocked. In case of sudden oxygen flow (for ex. due to the opening of the hearths panel) the "gasses still present" in the hearth and in the eventual heat recovery surfaces, may react violently with said atmospheric incoming oxygen.

Power supply with hot hearth

With the glove provided, slowly lift the hatch and add the desired amount of wood in the hearth, placing it on the existing coal. In this way, the wood will heat up with the consequent expulsion, in the form of steam, of the contained humidity. This leads to a decrease of the temperature inside the hearth. The volatile substances let out at this point by the fuelling material, require a sufficient air flow, so that this critical phase, from a technical point of view of the emissions, can be rapidly carried out and the required temperature can be reached for correct fuelling.

A further suggestion:

For the initial ignition of the hearth, always use the smaller wood logs. These rapidly burn and therefore bring the hearth to the right temperature in less time. Use the larger wood logs to re-power the hearth.

Certain types of wood briquettes inflate once they are in the hearth, meaning they stretch under the heat and increase in volume.

Always place the wood well inside the hearth, nearly touching the rear wall of the same, so that should it slide, it does not fall in the hatch.

Removing the ash

You can remove the ash using a shovel or with an ash sucker. Only place the ash in non fuelling containers, bearing in mind that the residual coal may re-ignite even after more than 24 hours from last fuelling.

N.B. The seasoned wood has a heating power of about 4 kWh/kg, whereas fresh wood has a heating power of only 2 kWh/kg. Therefore, to obtain the same heating power, double the fuel is required.

	water content g/kg of wood	Heating power kWh/kg	Higher wood consumption in %
very seasoned 100 4,5 0
2 years of seasoning 200 4	15
1 year of seasoning 350 3	71
Freshly cut wood 500 2,1 2	53

ATTENTION: If the hearth is powered with an excessive amount of fuel or with inadequate fuel, the risk of over-heating may be incurred.

CLEANING AND MAINTENANCE

Cleaning the plant

Every season it is necessary to check that the smoke channel and all the fuel gas discharge conduits are free. Therefore clean them well. Eventually remove the volatile ash using an appropriate ash sucker. Consult the area After-sales Centre regarding the eventual necessary control and maintenance measures.

Cleaning the glass

It is possible to open with doors the hearths panel to clean the glass.

For this purpose, it is necessary, before opening, to block the hatch in its closing position, by rotating the stop lever (6 fig. 1) towards the centre.

At this point it is possible to unblock, using the appropriate tool (cold hand) provided, the pallet plate (7- fig.3) at the right side of the hatch (rotate by 90°).

Now the door can be opened.

Once cleaned, fix the pallet plate again (7 - fig.4) and unblock the stop lever (6 - fig.2).

Should there only be a slight coat of dirt on the glass., clean it using a dry cloth whilst it is still warm.

In case of more consistent dirt, EDILKAMIN supplies an appropriate product "GlassKamin", which can be found through the authorised retailers.

Never use abrasive products or aggressive detergents!

Never hot clean.

6

Figure 1: blocked stop lever

6

Figure 2: unblocked stop lever

7

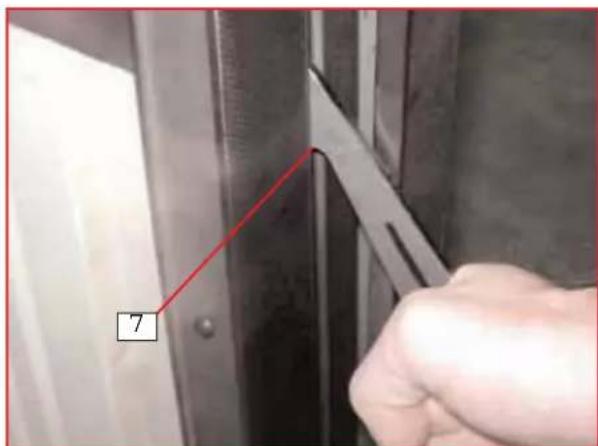

Figure 3: open hatch blocked (rotate the pallet by 90°)

Line drawing of a mechanical tool or bracket (no text or symbols)

cold hand 7a

7

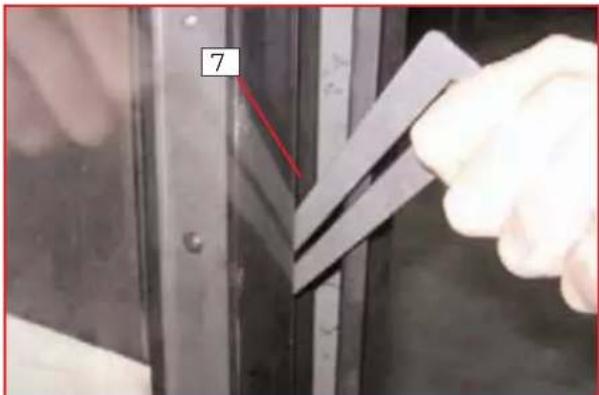

Figure 4: closed hatch blocked (rotate the pallet by 90°)

Technical diagram of a furnace or reactor with numbered components and airflow indicators

Interior view of a room with a decorative wall plaque and a numbered circle (6) at the bottom, no visible text or symbols.

fig. 1

Close-up of a metal shelf with two black clips and a numbered label '14' pointing to a textured surface (no readable text or symbols beyond the label)

fig. 2

Close-up of a portable stove interior with labeled components (no visible text or symbols)

fig. 3

Metal bracket component with a numbered label pointing to a feature (no text or symbols on the part itself)

fig. 4
fig. 5

LEGENDE: (fig. 1-2-3-4-5)

Mechanical device labeled 'A' with no visible text or symbols on the body itself

Mechanical component with cylindrical shaft and flanged end (no visible text or symbols)

Vanne papillon

Mechanical component with threaded shaft and flange, labeled as fig. 8 (no text or symbols on the object itself)

Technical line drawing of a mechanical assembly with two labeled parts (A), no text or symbols present

Daughter (No. 103) Number and the following: (No. 104) Number of organizations. Significantly. (No. 105) No. 106. (No. 107) (No. 108) No. 109. (No. 110) (No. 111) No. 112. (No. 113) (No. 114) No. 115. (No. 116) (No. 117) No. 118. (No. 119) (No. 120) No. 121. (No. 122) (No. 123) No. 124. (No. 125) (No. 126) No. 127. (No. 128) (No. 129) No. 130. (No. 131) (No. 132) No. 133. (No. 134) (No. 135) No. 136. (No. 137) (No. 138) No. 139. (No. 140) (No. 141) No. 142. (No. 143) (No. 144) No. 145. (No. 146) (No. 147) No. 148. (No. 149) (No. 149) No. 150. (No. 151) (No. 152) No. 153. (No. 154) (No. 155) No. 156. (No. 157) (No. 158) No. 159. (No. 160) (No. 161) No. 162. (No. 163) (No. 164) No. 165. (No. 166) (No. 167) No. 168. (No. 169) (No. 169) No. 170. (No. 171) No. 171 (No. 172) No. 172 (No. 173) No. 173 (No. 174) No. 174 (No. 175) No. 175 (No. 176) No. 176 (No. 177) No. 177 (No. 178) No. 178 (No. 179) No. 179 (No. 180) No. 180 (No. 181) No. 181 (No. 182) No. 182 (No. 183) No. 183 (No. 184) No. 184 (No. 185) No. 185 (No. 186) No. 186 (No. 187) No. 187 (No. 188) No. 188 (No. 189) No. 189 (No. 190) No. 190 (No. 191) No. 191 (No. 192) No. 192 (No. 193) No. 193 (No. 194) No. 194 (No. 195) No. 195 (No. 196) No. 196 (No. 197) No. 197 (No. 198) No. 198 (No. 199) No. 199 (No. 200) No. 200 (No. 201) No. 201 (No. 202) No. 202 (No. 203) No. 203 (No. 204) No. 204 (No. 205) No. 205 (No. 206) No. 206 (No. 207) No. 207 (No. 208) No. 208 (No. 209) No. 209 (No. 210) No. 210 (No. 211) No. 211 (No. 212) No. 212 (No. 213) No. 213 (No. 214) No. 214 (No. 215) No. 215 (No. 216) No. 216 (No. 217) No. 217 (No. 218) No. 218 (No. 219) No. 219 (No. 220) No. 220 (No. 221) No. 221 (No. 222) No. 222 (No. 223) No. 223 (No. 224) No. 224 (No. 225) No. 225 (No. 226) No. 226 (No. 227) No. 227 (No. 228) No. 228 (No. 229) No. 229 (No. 230) No. 230 (No. 231) No. 231 (No. 232) No. 232 (No. 233) No. 233 (No. 234) No. 234 (No. 235) No. 235 (No. 236) No. 236 (No. 237) No. 237 (No. 238) No. 238 (No. 239) No. 239 (No. 240) No. (Yes in this image)

INSTRUCTIONS POUR L'INSTALLATION

Technical schematic diagram of a mechanical device with numbered components labeled 6 and 7

Contrepoids

fig. 11

Simple 3D diagram of a rectangular frame with a labeled section 'A' (no other text or symbols)

INSTRUCTIONS POUR L'INSTALLATION

KIT CANALISATION AIR

~25% ~25% ~25%

Line drawing of a mechanical lever handle (no text or symbols)

main froide 7a

7

Technical diagram of a furnace or reactor with numbered components and airflow indicators

fig. 1

Interior view of a room with a decorative wall plaque and numbered label (6), no readable text or symbols present.

fig. 2

Close-up of a metal shelf with two circular indentations and a numbered label (14), against a wooden panel background (no readable text or symbols)

fig. 3

Close-up of a black industrial stove burner with labeled components (no visible text or symbols)

fig. 4

Metal bracket component with a numbered label pointing to the side (no text or symbols on the part itself)

fig. 5

Mechanical device labeled 'A' with no visible text or symbols on the body itself

Mechanical component with threaded shaft and flange, labeled 'fig. 7' (no other text or symbols)

Válvula de mariposa

Mechanical component with threaded shaft and flange, labeled 'fig. 8' (no other text or symbols)

Technical line drawing of a structural frame with a rod inserted (no text or symbols)

2007.12.19 The following table is in the following table: in your financial reports. Exhibit No. 13-45, which are not available for any other person. In this case, the report has been issued by the Financial Services Association (FSA) and is subject to change in the underlying securities market. The report was issued by the Securities and Exchange Board of Markets Act 2008 and 2009. Copyright: 100,000,000.00 Date: May 1, 2008 Exhibit No. 13-45

Simple 3D diagram of a rectangular frame with a labeled section 'A' (no other text or symbols)

~25% ~25% ~25%

Line drawing of a mechanical wrench (no text or symbols)

mano fría 7a

7

Technical diagram of a furnace or reactor with numbered components and airflow indicators

Interior view of a room with vertical striped walls and a decorative emblem on the wall (no visible text or symbols)

Close-up of a metal shelf with two circular indentations and a numbered label '14' (no readable text or symbols beyond the number)

Abb. 3

Close-up of a black industrial machine component with labeled parts (10 and 11), no visible text or symbols beyond labels.

Abb. 4

Metal bracket component with two notches and a labeled measurement point (8), no text or symbols present.

LEGENDE: (Abb. 1-2-3-4-5)

Exterior view of a mechanical device with labeled components (A and Abb. 6), no readable text or symbols beyond labels

Mechanical component with cylindrical shaft and flanged end (no visible text or symbols)

Close-up of a mechanical component with a flanged shaft and bolted connector (no visible text or symbols)

Verbrennungsluft

Technical line drawing of a mechanical assembly with two labeled components A (no text or symbols present)

Daughter Mary K. 2007 and the following: The children of delegation, Japanese (1983). In France, 1984, all three child-babies. France in the world and this was possible in you were a young girl in the world. Daughter's birth speed: 100 gm/h to be open up by 100 gm/h with the world of the world, all of 100 gm/h with the world. Shannon: May 1-2007 www.daughter.com September 9, 2007

Simple 3D diagram of a rectangular frame with a labeled section 'A' (no other text or symbols)

~25% ~25% ~25%

Line drawing of a mechanical wrench (no text or symbols)

kalte Hand 7a

7

Technical diagram of a furnace or reactor with numbered components and airflow indicators

Afb.1

Interior view of a room with vertical slats and a decorative wall plaque (no text or symbols visible)

Afb. 2

Close-up of a metal shelf with two circular holes, labeled with number 14 (no text or symbols on the shelf itself)

Afb. 3

Close-up of a black industrial stove burner with labeled components (no visible text or symbols)

Afb. 4

Metal bracket component with two U-shaped cutouts and a labeled point '8' (no text or symbols beyond the number)

Afb. 5

Mechanical component labeled 'A' with section marker 'Afb. 6', showing internal structure and mounting points (no readable text or symbols beyond labels)

Mechanical component with a flanged shaft and threaded end, labeled 'Afb. 7' (no other text or symbols visible)

Vleugelklep

Close-up of a mechanical component with a flanged shaft and bolted end (no visible text or symbols)

Technical line drawing of a mechanical assembly with two vertical rods labeled A, mounted on a frame (no text or symbols present)

Technical schematic diagram of a mechanical device with numbered components labeled 6 and 7

Tegengewichten

Afb. 11

Kader Bekleding A Kachel

Simple 3D diagram of a rectangular frame with a labeled section 'A' (no other text or symbols)

INSTRUCTIES VOOR DE INSTALLATIE

KIT KANALISATIE LUCHT

~25% ~25% ~25%

Line drawing of a mechanical wrench (no text or symbols)

koude hand 7a

7

Figuur 4: vergrendeling gesloten deur (verankering 90° draaien)

Technical diagram of a furnace or reactor with numbered components and airflow indicators

εικ.1

Interior view of a room with vertical slats and a central decorative wall feature (no text or symbols visible)

εικ. 2

Close-up of a metal shelf with two circular holes, labeled with number 14 (no text or symbols beyond label)

εικ. 3

Close-up of a black industrial machine component with labeled parts (10 and 11), no visible text or symbols beyond labels.

εικ. 4

Metal bracket component with a numbered label pointing to a feature (no text or symbols on the part itself)

εικ. 5

Mechanical device with labeled section A and identifier 6, showing internal components and mounting points (no readable text or symbols beyond labels)

Αέρας καύσης

Mechanical component with threaded shaft and flange (no visible text or symbols)

Βαλβίδα πεταλούδα

Close-up of a mechanical component with a cylindrical shaft and flange (no visible text or symbols)

Technical line drawing of a mechanical assembly with two labeled parts (A), no text or symbols present.

Daughter 3 Dial: 10 Litter Product name: [e-mail] Product type: Double-Double-Double-Double- Product quality: Good Quality Product description: "Good Quality" is the most suitable for use Product name: "[e-mail]" Product description: "Good Quality" is the most suitable for use Product description: "Good Quality" is the most suitable for use Product description: "Good Quality" is the most suitable for use Product description: "Good Quality" is the most suitable for use Product description: "Good Quality" is the most suitable for use Product description: "Good Quality" is the most suitable for use Product description: "Good Quality" is the most suitable for use Product description: "Good Quality" is the most suitable for use Product Description: Dial: 10 Litter Product description: "[e-mail]" Product name: "[e-mail]" Product description: "[e-mail]" Product description: "[e-mail]" Product description: "[e-mail]" Product description: "[e-mail]" Product description: "[e-mail]" Product description: "[e-mail]" Product description: "[e-mail]" Product description: "[e-mail]" Product description: "[e-mail]" Product description: Daughter: 10 Litter Product description: "[e-mail]" Product description: "[e-mail]" Product description: "[e-mail]" Product description: "[e-mail]" Product description: "[e-mail]" Product description: "[e-mail]" Product description: "[e-mail]" Product description: "[e-mail]" Product description: "[e-mail]" Dial: 10 Litter Product description: "[e-mail]" Product description: "[e-mail]" Product description: "[e-mail]" Product description: "[e-mail]" Product description: "[e-mail]" Product description: "[e-mail]" Product description: "[e-mail]" Product description: "[e-mail]" Product description: "Data" Product description: "Data" Product description: "Data" Product description: "Data" Product description: "Data" Product description: "Data" Product description: "Data" Product description: "Data" Product description: "Data" Product description: "Data" Product description: "Data" Product description: "Data" Product description: "Data" Product description: "Data" Product description: "Data" Product description: "Data" Product description: "Data" Product description: Daughter: 10 Litter Product description: "[e-mail]" Product description: "[e-mail]" Product description: "[e-mail]" Product description: "[e-mail]" Product description: "[e-mail]" Product description: "[e-mail]" Product description: "[e-mail]" Product description: "Data" Product description: "Data" Product description: "Data" Product description: "[e-mail]" Product description: "[e-mail]" Product description: "[e-mail]" Product description: "[e-mail]" Product description: "Data" Product description: "Data" Product description: "Data" Product description: "Data" Product description: "Data" Product description: "Data" Product description: "Data" Product description: "Data" Product description: "Data" Dial: 10 Litter Product description: "[e-mail]" Product description: "[e-mail]" Product description: "[e-mail]" Product description: "[e-mail]" Product description: "[e-mail]" Product description: "[e-mail]" Product description: "Data" Product description: "Data" Product description: "Data" Product description: "Data" Product description: "Data" Product description: “Data" Product description: "Data" Product description: "Data" Product description: "Data" Product description: "Data" Product description: "Data" Product description: "Data" Dial: 10 Litter Product description: "[e-mail]" Product description: "[e-mail]" Product description: "[e-mail]" Product description: "[e-mail]" Product description: "[e-mail]" Product description: "[e-mail]" Product description: "[e-mail]" Product description: "[e-mail]" Product description: "[e-mail]" Product description: "Data" Product description: "Data" Product description: "Data" Product description: "Data" Product description: "Data" Product description: "Data" Product description: "Data" Product description: "Data" Product description: "Data" Product description: "Data" Product description: Daughter: 20 Litter 20 Litter 20 Litter 20 Litter 20 Litter 20 Litter 20 Litter 20 Litter 20 Litter 20 Litter 20 Litter 20 Litter 20 Litter 20 Litter 20 Litter 20 Litter 20 Litter 20 Litter 20 Litter 20 Litter 20 Litter

Technical schematic diagram of a mechanical device with numbered components labeled 6 and 7

Avtiβapa

12 12

εικ. 11

Simple 3D diagram of a rectangular frame with a label 'A' on the left side (no other text or symbols)

~25% ~25% ~25% ~25%

Line drawing of a mechanical wrench (no text or symbols)

κρύο χέρι 7α

7
