WIDRO H28 EVO - Fireplace EDILKAMIN - Free user manual and instructions

Manufacturer	Edilkamin S.p.A.
Model	WIDRO H28 EVO
Product Type	Manually fed roomheater with boiler (wood-burning fireplace)
Fuel Type	Wood logs (moisture ≤ 25%)
Nominal Heat Output (Space)	28 kW
Rated Water Power	28 kW
Useful Efficiency (nominal)	85.6%
Energy Efficiency Class	A+
Energy Efficiency Index (EEI)	116%
CO Emissions (nominal, 13% O2)	636 mg/m³
NOx Emissions (nominal, 13% O2)	99 mg/m³
PM Emissions (nominal, 13% O2)	15 mg/m³
OGC Emissions (nominal, 13% O2)	21 mg/m³
Auxiliary Electricity Consumption	0 kW (no electrical connection required)
Notified Body	Acteco srl (NB1880)
Installation Requirement	Fireproof materials must be installed before use
Air Control	Manual (adjustable)
Hydraulic Connection	Yes (for water heating)
Maintenance	Clean glass, remove ash, use dry wood, annual professional service
Compliance Standard	EN 16510-2-2 (replaces EN 13229)

Frequently Asked Questions - WIDRO H28 EVO EDILKAMIN

What type of fuel does the WIDRO H28 EVO use?

The WIDRO H28 EVO uses wood logs with a moisture content of ≤ 25%. Do not use other fuels such as coal, pellets, or treated wood.

Does this fireplace have a boiler?

Yes, it is a fireplace with a boiler that can heat water. The rated water power is 28 kW, providing both space and water heating.

What is the energy efficiency class of the WIDRO H28 EVO?

It is rated energy efficiency class A+ with an Energy Efficiency Index (EEI) of 116% and a useful efficiency of 85.6% at nominal heat output.

How should I clean the glass of the fireplace?

Use a damp cloth or a special fireplace glass cleaner. Avoid abrasive materials that could scratch the glass. Clean when the fireplace is cold.

What safety distances are required for installation?

The manual specifies minimum safety distances to flammable materials (rear, side, upper, front, floor, and radiated distances). Ensure fireproof materials are used around the appliance as per the instructions.

Can I use the fireplace without connecting the boiler?

The fireplace is designed with an integrated boiler. While it can operate for space heating alone, the boiler system should be connected and filled with water as per the manual for proper function.

What is the recommended procedure to start a fire?

Use dry kindling and small wood logs. Open the air control fully, light the fire, and gradually add larger logs. Adjust the air control to maintain the desired burn rate. Refer to the manual for detailed steps.

What regular maintenance does this fireplace require?

Regularly remove ash from the firebox, clean the glass, check door seals for wear, and have the unit professionally inspected and cleaned at least once a year.

Does the WIDRO H28 EVO require an electrical connection?

No, the auxiliary electricity consumption is 0 kW, meaning it operates entirely without electricity. There is no fan or electrical component needed for normal operation.

What should I do if smoke enters the room during operation?

Check for adequate draft in the chimney, ensure the air control is open, and verify that the flue is not blocked. If the problem persists, stop using the fireplace and contact a professional chimney sweep or installer.

USER MANUAL WIDRO H28 EVO EDILKAMIN

Exterior view of a black industrial stove with visible flames and control panels (no text or symbols)

Technical line drawing of a mechanical device with an inset close-up showing internal components (no text or symbols)

• Pw nom = Rated water power
• Pw part = Reduced water power
- nom= Rated yield
• η part = Reduced yield
• CO nom (13%O2)= Rated CO
• CO part (13%O2) = Reduced CO
- Nox nom (13%O2) = Rated NOX
- Nox part (13%O2) = Reduced NOX
• OGC nom (13%O2) = Rated OGC
• OGC part (13%O2) = Reduced OGC
• PM nom (13%O2) = Rated dust emissions
• PM part (13%O2) = Reduced dust emissions
• p nom = Rated power
• p part = Reduced power
• T nom = Rated smoke temperature
• T part = Reduced smoke temperature
• φf,g nom = Rated mass flow rate
• φf,g part = Reduced mass flow rate
• dout = Fume outlet diameter
• Pw = Maximum pressure
• W = Rated electrical power according to EN 60335
• dR = Rear safety distance
• dS = Side safety distance
• dC = Upper safety distance
• dP = Front safety distance
• dF = Radiated floor safety distance
• dL = Radiated side safety distance
• dB = Floor safety distance

• Vh = Firebox classification according to pr EN 16510/Load loss

Fax:[phone]

www.hx123.com

onu estilkennus style

E-mail: 400-888-100

Sistav-terzulte

2012-27:00: 34.15%

Ring: http://www.001922229180

网址:www.huaan.com

Civil Private e Publica 028 05193229190

TECHNICAL DOCUMENTATION FOR LOCAL SPACE HEATERS ACCORDING TO COMMISSION REGULATION (EU) 2015/1187 AND 2015/1186

Manufacturer	Edilkamin S.p.A.
Trademark	Edilkamin
Model Identifier	WIDRO H 2B EVO CS
	WIDRO H 2B
Description	Manually fed roomheater fitted with a boiler burning wood logs
Indirect heating functionality	no
Direct heat output (space heat output)	28 kW
CPR harmonised standard	EN 16510-2-2 che sostituisce EN 13229
Notified Body	Acteco srl (Via Amman 41 ,33084 Cordenons-PN-Italy) NB1880

Fuel	Preferred fuel (only one)	Other suitable fuel(s)	Space heating emissions at nominal heat output(*)				Space heating emissions at minimum heat output(**)
			PM	OGC	CO	NOx	PM	OGC	CO	NOx
				mg/m3 at 13%O2				mg/m3 at 13%O2
Wood log, moisture content ≤ 25 %	yes	no	15	21	636	99
Compressed wood with moisture content < 12 %	no	no
Other woody biomass	no	no
Non-woody biomass	no	no
Anthracite and dry steam coal	no	no
Hard coke	no	no
Low temperature coke	no	no
Bituminous coal	no	no
Lignite briquettes	no	no
Peat briquettes	no	no
Blended fossil fuel briquettes	no	no
Other fossil fuel	no	no
Blended biomass and fossil fuel briquettes	no	no
Other blend of biomass and solid fuel	no	no

(*) PM = particulate matter, OGCs = organic gaseous compounds, CO = carbon monoxide, NOx = nitrogen oxides
(**) Only required if correction factors F(2) or F(3) are applied.

Observe the specific precautions for installation, assembly and maintenance indicated in the manual accompanying the product

n, [%]	76,6
EEI [%]	116
Energy Efficiency Class	A+

Calculations according to the council commission regulation (EU) 2015/1186 and 2015/1185
Characteristics when operating with the preferred fuel

$$ E E I = \left(\eta_ {k m} \cdot B L F\right) - 1 0 \% + F (2) + F (3) - F (4) - F (5) \quad B U F = 1. 4 5 $$

$$ \eta_ {2 m} = \eta_ {\text {thome}} $$

$$ \eta_ {s} = \eta_ {s, m} - 10 \% + F (2) + F (3) - F (4) - F (5) $$

EDILKAMIN

TECNOLOGIA DEL FUOCO

Etiomer 5.4

2018.1.19.16.16: www.mazasr.f

发(不适用银

faw-非蓝莓/62-40159

网址:www.ajmm.com

Characteristics when operating with the preferred fuel

Heat output
Item	Symbol	Value	Unit
Nominal heat output	P_max	28	kW
Minimum heat output(indicative)	P_min	na	kW

Auxiliary electricity consumption
Item	Symbol	Value	Unit
At nominal heat output	eI_max	0,000	kW
At minimum heat output	eI_min	0,000	kW
In standby mode	eI_sh	0,000	kW

$$ F (4) = C C \cdot \frac {0 . 2 \cdot e l _ {\max} + 0 . 8 \cdot e l _ {\min} + 1 . 3 \cdot e l _ {\Delta}}{P _ {\text {nom}}} \cdot 1 0 0 [ \% ] $$

F(4)

0,0%

CC=2.5

Permanent pilot flame power requirement
Item	Symbol	Value	Unit
Pilot flame power requirement (if	P_pilot	N.A.	kW

F(S)

0.0%

$$ F (5) = 0. 5 \cdot \frac {P _ {\text {pim}}}{P _ {\text {sim}}} \cdot 1 0 0 [ \% ] $$

Useful efficiency (NCV as received)
Item	Symbol	Value	Unit
Useful efficiency at nominal heat output	r_th,max	85,6	%
Useful efficiency at minimum heat output (indicative)	r_th,max	na	%

Type of heat output/room temperature control (select one)
single stage heat output, no room temperature control	NO
two or more manual stages, no room temperature control	NO
with mechanic thermostat room temperature control	NO
with electronic room temperature control	NO
with electronic room temperature control plus day timer	NO
with electronic room temperature control plus week timer	NO

F(2)

0,0%

Other control options (multiple selections possible)
room temperature control, with presence detection	NO
room temperature control, with open window	NO
with distance control option	NO

F(3)

0,0 %

Contact details

Name and address of the manufacturer

EDILKAMIN S.p.A.

Via Mascagni 7

2002D Lainate (MI) - ITALY

issue date: 21.02.2025

Tel. [phone]

www.edilkamin.com

[e-mail]

CEO

Dott. GIORGIO FORTINI

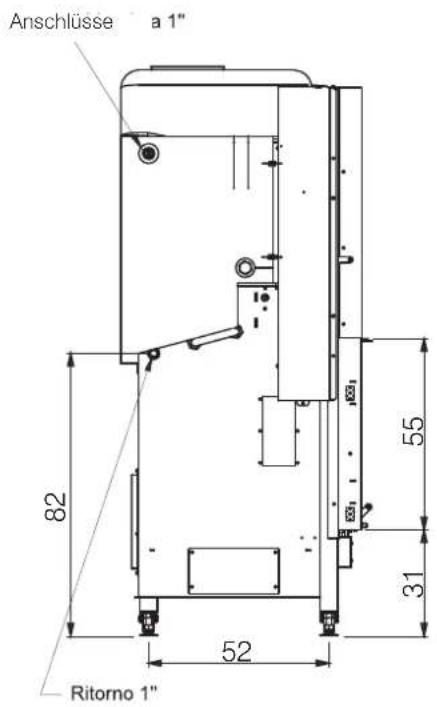

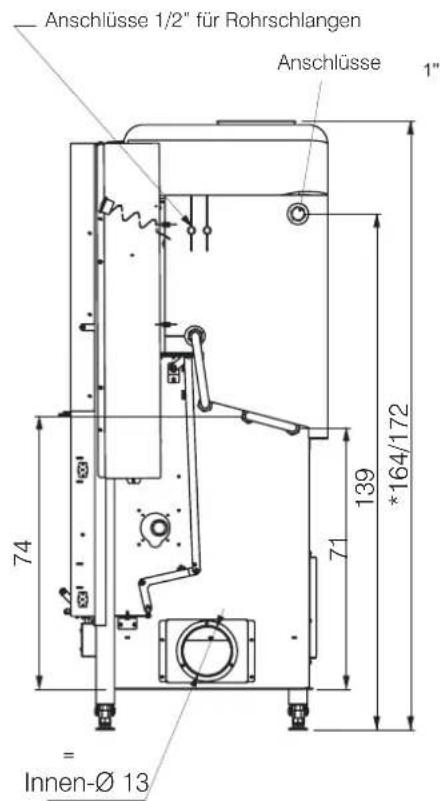

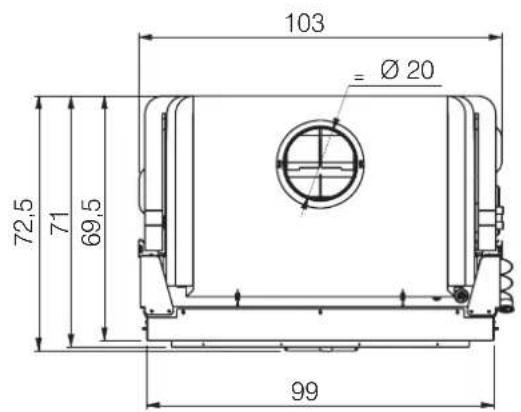

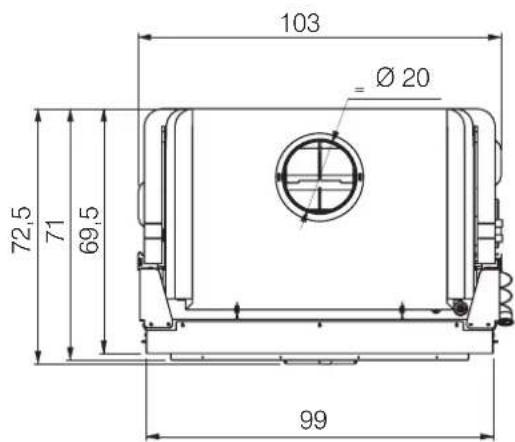

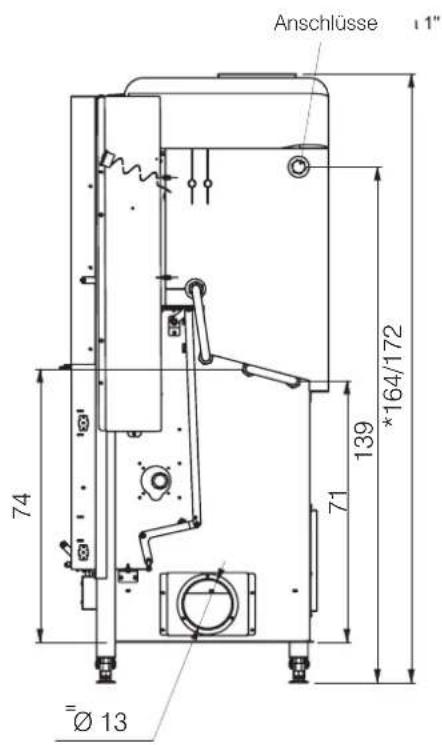

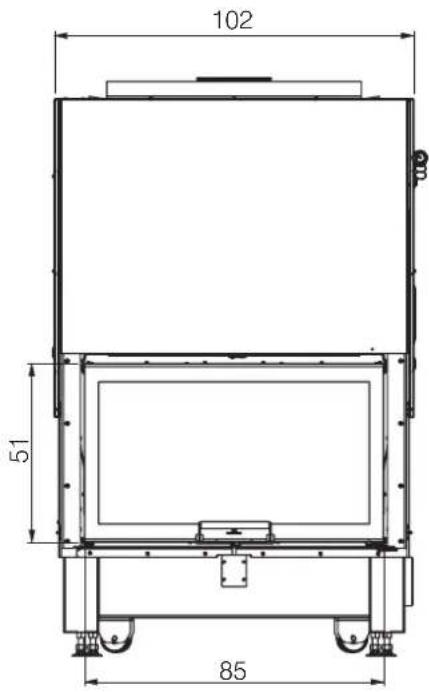

Widro H28 EVO (Abmessungen in cm)

Technical line drawing of a mechanical assembly with mounting feet and a circular component (no text or symbols)

Technical line drawing of a mechanical device with internal components and mounting holes (no text or symbols)

Exterior view of a black industrial stove with visible flames and a close-up of its internal component (no text or symbols)

DIE SCHRAUBEN NUR BEI POSITIONIERTEM GERÄT ABSCHRAUBEN

Technical line drawing of a mechanical housing or enclosure with a vertical door and rectangular base (no text or symbols)

Technical line drawing of a mechanical part with labeled sections (1), 2), and 3), showing internal structure without any text or symbols.

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical enclosure or enclosure with internal components and mounting holes (no text or symbols)

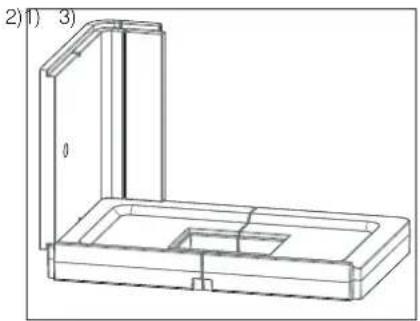

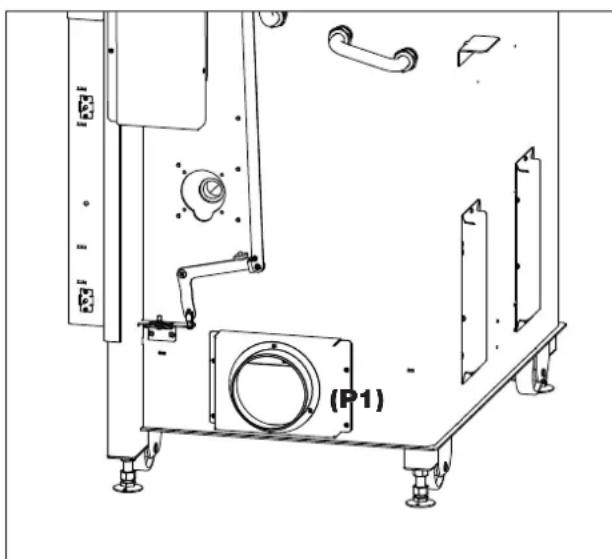

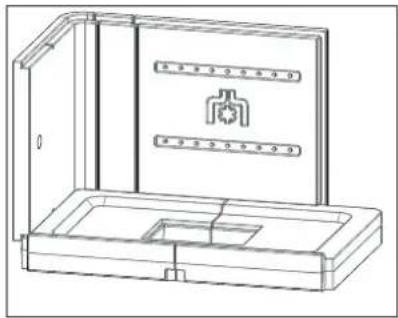

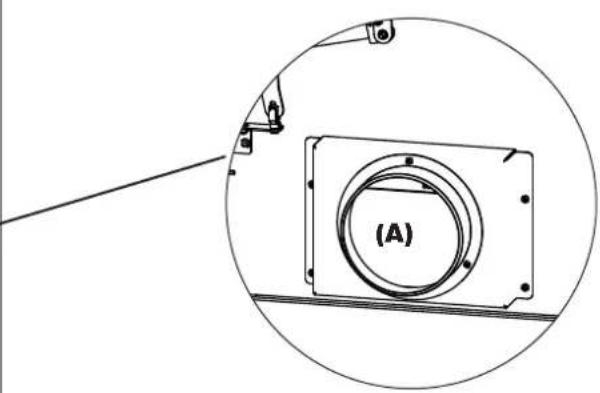

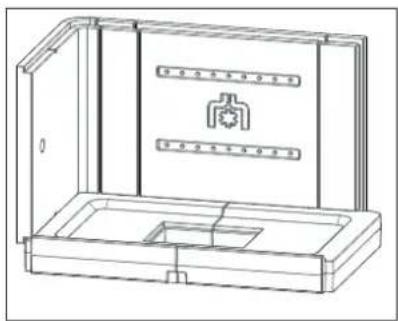

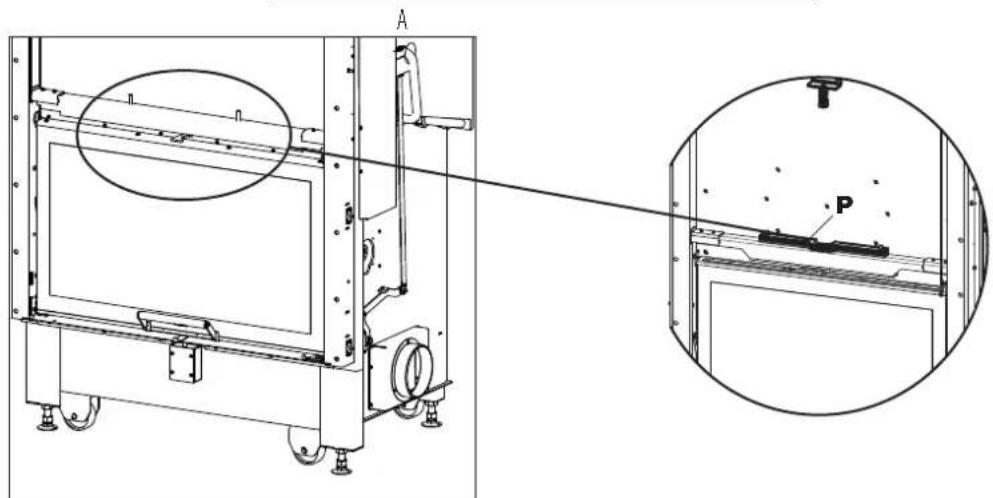

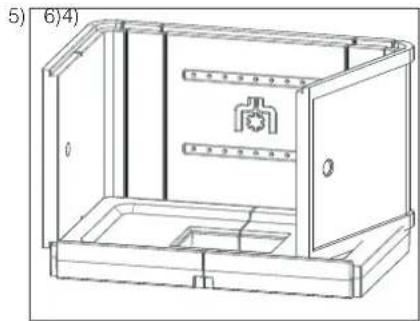

DAS PRODUKT NUR EINSCHALTEN, WNN DIE FEUERFESTEN MATERIALIEN MONTIERT SIND.

Technical line drawing of a mechanical device labeled (M), showing internal components and mounting feet (no text or symbols beyond label)

Technical line drawing of a mechanical device with an inset close-up showing a component labeled 'P' (no text or symbols present)

Technical line drawing of a mechanical device with wheels and a central panel (no text or symbols)

Technical diagram of a mechanical component with circular housing and mounting bracket, enclosed in a circular outline (no text or symbols)

Technical line drawing of a mechanical assembly with labeled components (P), no readable text or symbols beyond basic labels

Technical line drawing of a mechanical assembly with labeled components (R1), no readable text or symbols beyond basic geometry and labels

HYDRAULISCHE INSTALLATION

'LH'.DSSHQ DXI GHU OLQNHQ 6HLWH YHUZHQGHQ XP VLH DXI GHU UHFKWHQ 6HLWH]X VFKOLH HQ

Interior view of a building corner with ceiling-mounted beams and structural elements (no visible text or symbols)

Exterior view of a black-framed industrial cabinet or enclosure with a slanted door opening (no text or symbols visible)

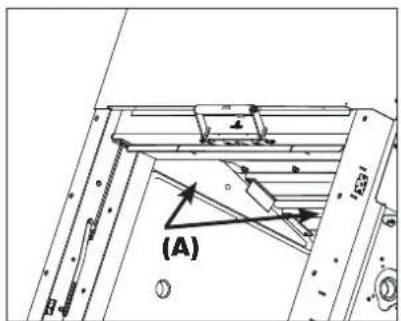

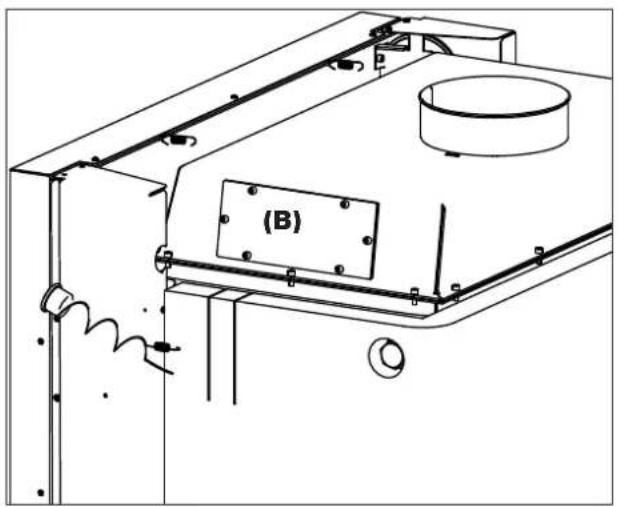

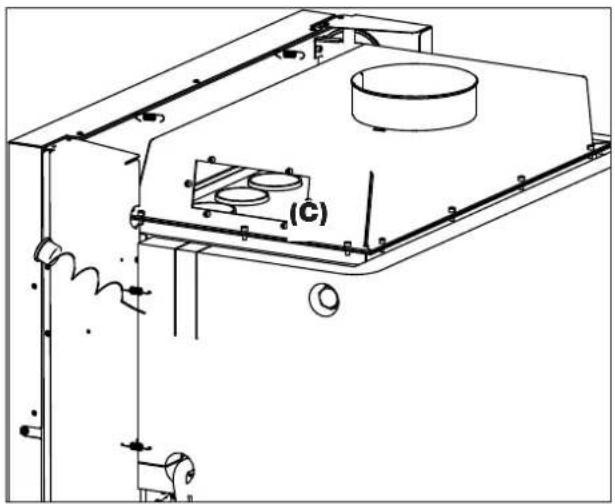

LUFTREGELUNG
