Frequently Asked Questions - TC50PE HONEYWELL

How to turn the air cooler on and off?

Press the SWITCH button to turn on the appliance. It automatically starts at medium speed then switches to low speed. To turn off, press the same button again.

How to adjust fan speed?

Press the SPEED button several times to cycle from I (low) to II (medium) to III (high). The corresponding indicator lights up on the display.

How to activate louvers oscillation?

Press the OSCILLATION button (◄► icon) until the indicator lights up. The louvers oscillate automatically left to right. You can also manually adjust the vertical direction.

How to use evaporative cooling mode?

First, ensure the water tank contains enough water (above the minimum level). Press the COOLING button (❄ icon) until the indicator lights up. The pump activates and the air becomes cooler after a few minutes once the honeycomb is soaked.

How to fill the water tank?

Open the filling door located at the rear of the appliance. Pour clean water up to the MAX level indicated on the mark. Do not exceed this level to avoid splashing. You can also use a garden hose for continuous supply (models with valve).

What to do if low water alarm goes off?

In cooling mode, if water level is too low, the appliance beeps and the WATER TANK EMPTY indicator flashes. Fill the water tank above the minimum level to deactivate the alarm. If you wish to continue in fan-only mode, turn off and on the appliance (the sensor does not activate in fan mode).

How to clean the filter and honeycomb cooling system?

Turn off and unplug the appliance. Remove the rear grille by gently pushing on the sides. Rinse the grille and filter with clean water and let dry. Slide the honeycomb out of the unit. Clean it with a damp cloth or replace if necessary. Reassemble everything before reuse.

Can I use the appliance without the rear grille?

No, it is dangerous. Never run the cooler without the rear grille properly attached, as it can cause injury or electric shock.

The remote control does not work, what should I do?

First check the battery: open the compartment at the back of the remote and replace the coin cell CR2025 respecting polarity (+/-). Ensure no obstacles block the signal between the remote and the appliance. Point the transmitter towards the appliance.

How to store the appliance at the end of season?

Turn off and unplug the appliance. Completely empty the water tank by removing the drain plug at the bottom. Clean the tank, filter, and honeycomb. Let all parts dry. Store the appliance in a dry place, away from direct sunlight.

USER MANUAL TC50PE HONEYWELL

Read and save these instructions before use

TC30/50PE Series/Serie/Serie

Customer Support:

Assistance Au Client:

*Applicable for models with Water Inlet Valve only.

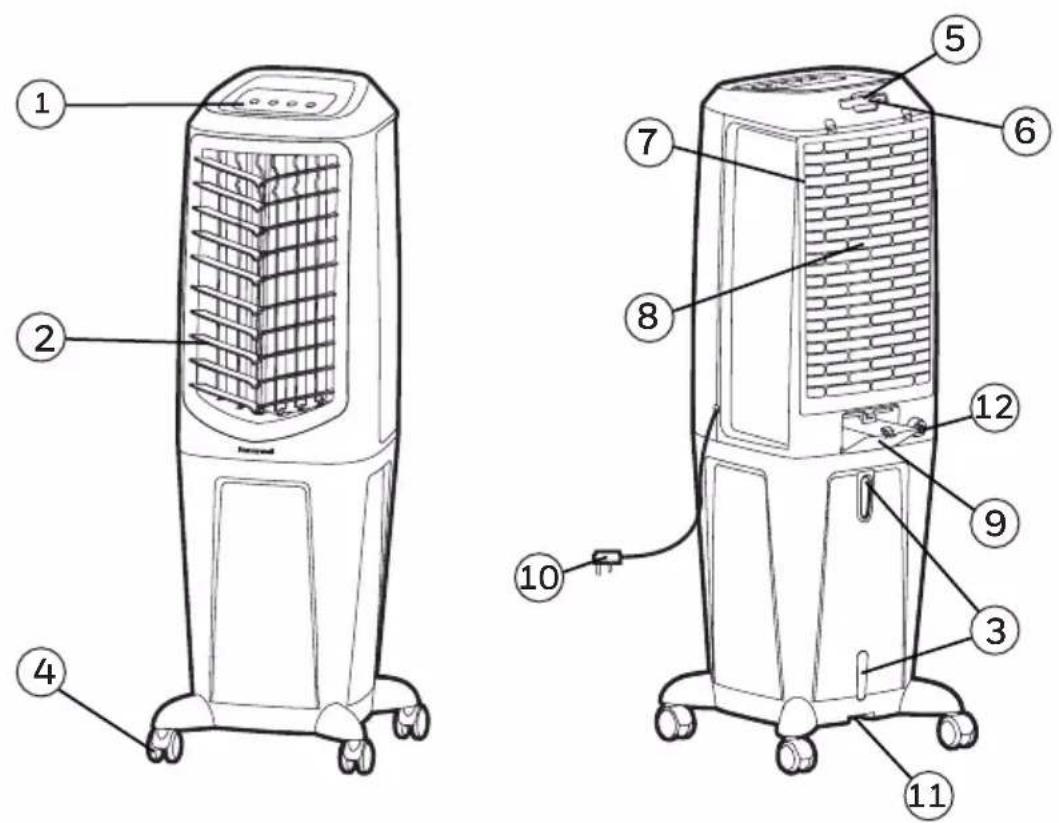

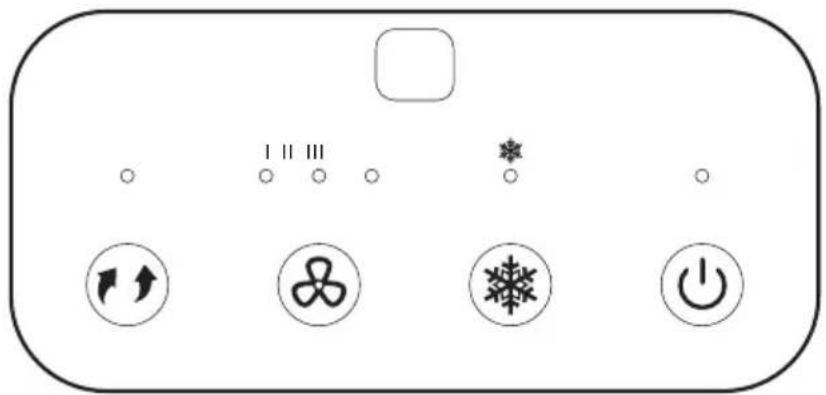

CONTROL PANEL

Icons on Display Screen

Power

Speed

Swing

= Low

Cool

=Medium

= High

FUNCTION BUTTONS

POWER

Press the button to turn the unit on. The cooler will start automatically at medium speed. After a few seconds the speed will switch to low. To turn the unit off, press the button again.

SPEED

Press the SPEED button repeatedly to change the speed between I - II - III. The indicator light will show the selected speed.

SWING

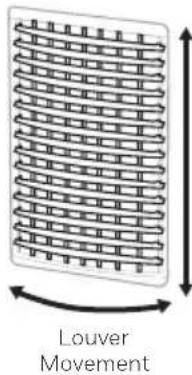

Press the SWING button until is illuminated on the display. The louvers will begin to move left to right automatically. You can manually adjust the louvers to change vertical air flow.

COOL

You must add water before operating the unit in Cool mode. Press the button until is illuminated on the display screen. The water pump will operate and you will feel the cooler air after the Honeycomb Cooling Media is completely wet.

REMOTE CONTROL

POWER : ON / OFF

SPEED : Low / Medium / High

COOL : Evaporative Cooling ON / OFF

SWING : Controls the motion of the louvers

NOTE:

• The remote control requires a CR2025 (1 x 3V) coin type or equivalent battery for replacement. Open the battery compartment at the back of the remote control and insert the battery inside. Care must be taken to insert the batteries according to the correct polarity (+/-) markings shown inside the battery compartment.
• Always point the remote control signal transmitter towards the unit when operating. Make sure that the signal path is not obstructed.
• Remove the batteries if the unit is not going to be used for an extended period of time.
• Do not drop the remote control.
• Do not mix different types of batteries such as alkaline, carbon-zinc, or rechargeable batteries.
• Do not mix old and new batteries.
• Do not recharge the battery.
• Exhausted batteries are to be removed from the product and safely disposed of as per local regulations.
• Do not dispose of batteries in fire. Batteries may explode or leak.
• This product contains a lithium button/coin cell battery. If a new or used lithium button/coin cell battery is swallowed or enters the body, it can cause severe internal burns and can lead to death in as little as 2 hours. Always completely secure the battery compartment. If the battery compartment does not close securely, stop using the product, remove the batteries, and keep it away from children. If you think batteries might have been swallowed or placed inside any part of the body, seek immediate medical attention.
  The batteries shall be disposed of properly, including keeping them away from children.
  Even used batteries may cause injury.

WARNING: Chemical Burn Hazard. Keep batteries away from children.

COOLER LOCATION

Make sure to position the air cooler correctly before you set up and start using the product. Please refer to the COOLER LOCATION section of the separate Safety & Maintenance Guide.

FILLING WITH WATER

It is ideal to use the Continuous Water Supply* Connection to run the unit for long periods of time without refilling the tank. This also helps prevent pump failure in case the cooler is running with inadequate water in the tank.

CAUTION: Unplug the unit from the electrical socket before emptying or refilling the water tank. Open the Water Fill Door located on the back of the unit.

Continuous Water Supply Connection*:

For a continuous water supply, you will need a garden hose that is connected to a mains water supply.

• Locate the male connector at one end of the garden hose. Insert the garden hose connector into the water inlet valve of the cooler. Screw and tighten the water inlet valve onto the threaded part of the garden hose connector, making sure the hose connector is secured to ensure there will be no leaks. If there is a leakage, the hose and the water inlet valve may not be connected properly. Try to disconnect, replace and tighten the water inlet valve again.
• When the connection is secured, turn ON the water supply and the water will flow into the water tank of the cooler.
• The cooler is now set so the water refills automatically.
• When the water tank is full of water, the water inlet valve will automatically stop the water supply from overflowing the water tank.
  WARNING: The maximum water inlet pressure is 0.5MPa .

*Applicable for models with Water Inlet Valve only.

FILLING WITH WATER(CONTINUED)

The Water Level Indicator is located at the back of the unit. Refill the water tank when water level is low. Do not fill water above the "Max." water level mark to avoid water droplets collecting on the louvers. Check the water level in the tank before running the COOL function. Make sure there is water in the tank by using the continuous water supply connection or by filling the tank up to the maximum indicator level. Running the unit in COOL mode with inadequate water may cause pump failure.

Note: The water capacity refers to the total volume of water that can be contained within the air cooler water tank and water distribution system. The water capacity in the tank at the "Max." indicator level may be lower than the actual water capacity of the air cooler.

WARNING: Do not fill water tank with dirty water or salt water. This can damage the unit and Honeycomb media.

LOW WATER ALARM*

The unit is equipped with a low water sensor. In Cooling Mode, when water in the tank is below the minimum level, you will hear a beeping sound and the indicator light will flash continuously. The unit will automatically pause evaporative cooling.

Refill the water tank to deactivate the alarm in cooling mode. First switch OFF the unit and unplug from the power outlet. Fill the water tank with water above the minimum water level mark. Plug in and switch ON again.

To deactivate the alarm and continue using the unit as a fan (without evaporative cooling), switch the unit OFF and then ON again. The Low Water Alarm will not activate in Fan only mode. The Low Water Alarm will sound again if the COOL function is activated while the water tank is still empty.

*Applicable for models this feature only.

CLEANING & DRAINING THE WATER TANK

Below are instructions on how to clean and maintain your air cooler. If the cooler will not be used for a long period of time, please refer to the STORAGE & MAINTENANCE GUIDELINES located in the separate Safety & Maintenance Guide.

WARNING:

Before cleaning the unit, power OFF the unit and disconnect from the electrical socket.

• Move the unit to a location where the water can be drained. Remove the cap from the drain plug located at the bottom of the unit. Allow the tank to empty.
• Refill the water tank with clean water, up to the maximum level and drain it completely.
• Use a damp cloth to remove the dirt and dust from the surface of the unit. Never use corrosive elements or chemicals to clean this product.
• When the product is not in use, store the unit in a dry place out of direct sunlight.

CLEANING THE MESH FILTER AND HONEYCOMB COOLING MEDIA

WARNING:

Before cleaning the unit, switch the unit OFF and disconnect the power adapter from the unit and electrical socket.

The appliance is supplied with a Mesh Filter and Honeycomb Cooling Media.
- The Mesh Filter and Honeycomb Cooling Media are located inside the Rear Grill. See Figure 1 for instructions on how to remove them from the unit for cleaning and maintenance.
- Do not run the unit in COOL mode with stale water in the tank. You must empty the water tank and refill with fresh water, especially if the tank has not been cleaned in a long time.
- The cleaning frequency for the Honeycomb media depends on local air and water conditions. In areas where the mineral content of water is high, mineral deposits may build up on the Honeycomb Cooling Media and restrict air flow. Draining the water tank and refilling with fresh water at least once a week will help reduce mineral deposits. If mineral deposits remain on the Honeycomb Cooling Media, the media should be removed and washed under fresh water. The media should be cleaned every two months or sooner, depending on your needs.
- For best results allow the Honeycomb Cooling Media to dry after each use by turning off the cool function 15 minutes before turning the unit off.

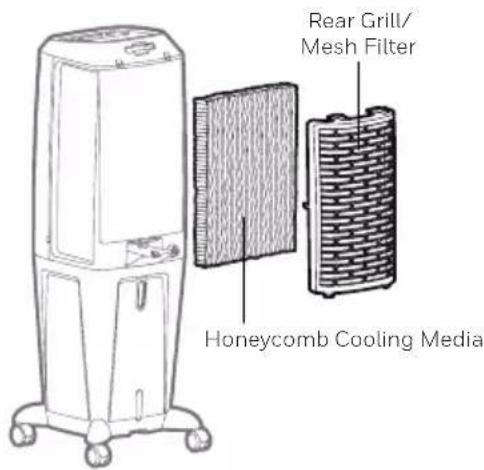

Removing the Mesh Filter and Honeycomb Cooling Media:

1. Carefully pull out the rear grill / mesh filter from the cooler.
2. Rinse the rear grill / mesh filter with clean water and let it dry before re-installing to the unit.
3. Carefully pull out the Honeycomb Media.
4. Replace or clean media with water and a damp cloth as needed.

WARNING: DO NOT operate the Air Cooler when the Rear Grill is removed from the Air Cooler, or if there is a loose-fitting Rear Grill. Doing so can cause serious injury or dangerous electrical shock.

Figure 1:
