TC09PEU - Portable air conditioner HONEYWELL - Free user manual and instructions

Product type	Portable evaporative air cooler
Brand	Honeywell
Model	TC09PEU
Power supply	Mains plug (cord with plug)
Fan type	Portable with oscillator
Speeds	3 speeds (Low, Medium, High)
Oscillation	Yes, automatic horizontal + manual vertical adjustment
Remote control	Yes, with included CR2025 battery
Water tank capacity	Max level indicator, actual capacity not specified
Cooling system	Honeycomb
Water level indicator	Front indicator light + low level sensor with beep
Cooling function	Evaporative cooling mode (water pump)
Fan-only mode	Yes, without water
Automatic low water shut-off	Yes, in cooling mode
Cleaning the honeycomb	Removable, washable with water
Drain plug	Yes, lower part
Castors	Yes
Material	Plastic, metal grille
Remote control batteries	1 flat battery CR2025 (3V)
Safety	Removable rear grille for protection, pump stops if no water
Maintenance	Regular cleaning of tank and honeycomb, draining and refilling with clean water
Warranty	Not specified, product under Honeywell license

Frequently Asked Questions - TC09PEU HONEYWELL

How to fill the water tank of the Honeywell TC09PEU cooler?

Unplug the appliance, open the filling door at the back, pour clean water up to the Max mark on the front indicator. Do not exceed the maximum level.

Can I use the appliance without water in fan mode?

Yes. Press the Cooling button to disable the function. The appliance will then operate as a simple fan.

What to do if the appliance beeps and the indicator light flashes?

This is the low water level warning in cooling mode. Add water to the tank to deactivate it. If you want to continue in fan mode, turn off and on the appliance.

How to clean the honeycomb filter?

Turn off and unplug the appliance. Remove the rear grille by pushing its sides, then slide the honeycomb out of the unit. Rinse it with clean water and let it dry before reassembling.

How to use the remote control?

Point the remote at the appliance. The buttons allow: On/Off, Speed (I-II-III), Cooling (on/off) and Oscillation. The CR2025 battery is already installed.

What to do if the remote control stops working?

Check the battery. Open the compartment at the back, replace the battery with a new CR2025 respecting polarity. Make sure no obstacle blocks the signal.

How to drain the water from the tank?

Unplug the appliance. Move it to a place where water can drain. Remove the drain plug located at the bottom of the appliance and let the water drain.

What type of water to use in the cooler?

Use clean, clear water. Never use dirty or salty water, as it could damage the honeycomb cooling system.

How often should I clean the water tank?

It is recommended to empty and refill the tank with clean water at least once a week to reduce mineral deposits. The honeycomb should be cleaned every two months or according to usage.

Where can I find the full manual?

The manual is available for free download in PDF format on notice-facile.com. You can also request a translation into another language by providing your email on the site.

USER MANUAL TC09PEU HONEYWELL

Read and save these instructions before use

Line drawing of a multi-level air conditioner unit with heat sinks and ventilation slots (no text or symbols)

Assistance Au Client:

^ Canada Customer Support service available for models sold in Canada only.

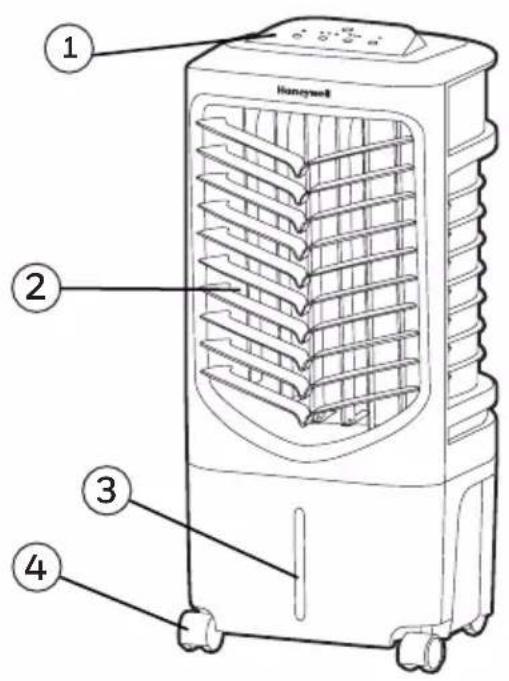

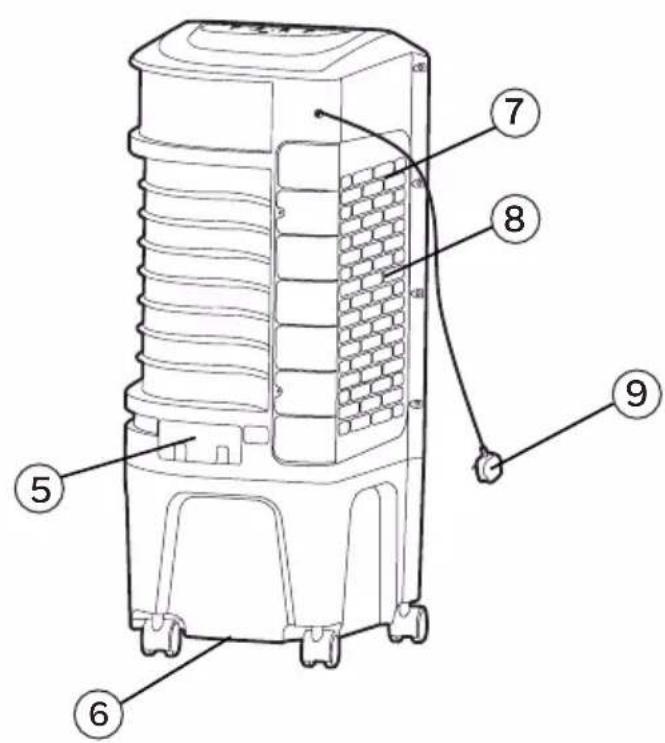

1) Control Panel 6) Drain Plug
2) Louvers 7) Side Grill
3) Water Level Indicator 8) Honeycomb Cooling Media
4) Casters 9) Power Cord & Plug
5) Water Fill Door

WARNING -- READ AND SAVE THE AIR COOLER SAFETY & MAINTENANCE GUIDE AND USER MANUAL BEFORE USING THIS PRODUCT. FAILURE TO FOLLOW THESE INSTRUCTIONS MAY DAMAGE AND/ OR IMPAIR ITS OPERATION AND VOID THE WARRANTY. IN CASE THERE IS ANY INCONSISTENCY OR CONFLICT BETWEEN THE ENGLISH VERSION AND ANY OTHER LANGUAGE VERSION OF THE CONTENT OF THIS MATERIAL, THE ENGLISH VERSION SHALL PREVAIL.

CONTROL PANEL

Icons on Control Panel

Power

Speed

Cool

| = Low

Swing

|| = Medium

||| = High

FUNCTION BUTTONS

POWER ⏻

Press the button ⏻ to turn the unit on. The cooler will start automatically at medium speed. After a few seconds the speed will switch to low. To turn the unit off, press the button again.

COOL

You must add water before operating the unit in Cool mode. Press ✪ the button until ✪ is illuminated on the display screen. The water pump will operate and you will feel the cooler air after the Honeycomb Cooling Media is completely wet.

SPEED

Press the SPEED ✕ button repeatedly to change the speed between I - II - III.

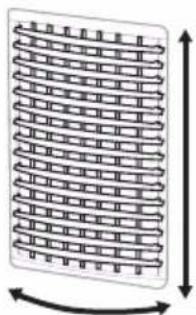

SWING

Press the SWING button until 📋 is illuminated on the display. The louvers will begin to move left to right automatically. You can manually adjust the louvers to change vertical air flow.

Diagram of a coiled spring with directional arrows indicating rotation (no text or symbols)

Louver Movement

REMOTE CONTROL

POWER : ON / OFF

SPEED : Low / Medium / High

COOL : Evaporative Cooling ON / OFF

SWING : Controls the motion of the louvers

NOTE:

• The remote control requires a CR2025 (1 x 3V) coin type or equivalent battery for replacement. Open the battery compartment at the back of the remote control and insert the battery inside. Care must be taken to insert the batteries according to the correct polarity (+ / -) markings shown inside the battery compartment.
• Always point the remote control signal transmitter towards the unit when operating. Make sure that the signal path is not obstructed.
• Remove the batteries if the unit is not going to be used for an extended period of time.
• Do not drop the remote control.
• Do not mix different types of batteries such as alkaline, carbon-zinc, or rechargeable batteries.
  • Do not mix old and new batteries.
  • Do not recharge the battery.
• Exhausted batteries are to be removed from the product and safely disposed of as per local regulations.
• Do not dispose of batteries in fire. Batteries may explode or leak.
• This product contains a lithium button/coin cell battery. If a new or used lithium button/ coin cell battery is swallowed or enters the body, it can cause severe internal burns and can lead to death in as little as 2 hours. Always completely secure the battery compartment. If the battery compartment does not close securely, stop using the product, remove the batteries, and keep it away from children. If you think batteries might have been swallowed or placed inside any part of the body, seek immediate medical attention.
  • The batteries shall be disposed of properly, including keeping them away from children.
  • Even used batteries may cause injury.

WARNING: Chemical Burn Hazard. Keep batteries away from children.

COOLER LOCATION

Make sure to position the air cooler correctly before you set up and start using the product. Please refer to the COOLER LOCATION section of the separate Safety & Maintenance Guide.

FILLING WITH WATER

CAUTION: Unplug the unit from the electrical socket before emptying or refilling the water tank.

Open the Water Fill Door located on the back of the unit.

Manual Tank Refilling:

The Water Level Indicator is located at the front of the unit. Refill the water tank when water level is low. Do not fill water above the "Max." water level mark to avoid water droplets collecting on the louvers. Check the water level in the tank before running the COOL function. Make sure that the water in the tank is above the minimum water level mark. Running the unit in COOL mode with inadequate water may cause pump failure.

Note: The water capacity refers to the total volume of water that can be contained within the air cooler water tank and water distribution system. The water capacity in the tank at the "Max." indicator level may be lower than the actual water capacity of the air cooler.

WARNING: Do not fill water tank with dirty water or salt water. This can damage the unit and Honeycomb media.

Simple line drawing of a rectangular electronic component with a vertical line pointing to it (no text or symbols)

Water Fill Door

LOW WATER ALARM

The unit is equipped with a low water sensor. In Cooling Mode, when water in the tank is below the minimum level, you will hear a beeping sound and the GREEN LED will flash continuously. The unit will automatically pause evaporative cooling.

Refill the water tank to deactivate the alarm in cooling mode. First switch OFF the unit and unplug from the power outlet. Fill the water tank with water above the minimum water level mark. Plug in and switch ON again.

To deactivate the alarm and continue using the unit as a fan (without evaporative cooling), switch the unit OFF and then ON again. The Low Water Alarm will not activate in Fan only mode. The Low Water Alarm will sound again if the COOL function is activated while the water tank is still empty.

CLEANING & DRAINING THE WATER TANK

Below are instructions on how to clean and maintain your air cooler. If the cooler will not be used for a long period of time, please refer to the STORAGE & MAINTENANCE GUIDELINES located in the separate Safety & Maintenance Guide.

WARNING:

Before cleaning the unit, power OFF the unit and disconnect from the electrical socket.

• Move the unit to a location where the water can be drained. Remove the cap from the drain plug located at the bottom of the unit. Allow the tank to empty.
• Refill the water tank with clean water, up to the maximum level and drain it completely.
• Use a damp cloth to remove the dirt and dust from the surface of the unit. Never use corrosive elements or chemicals to clean this product.
• When the product is not in use, store the unit in a dry place out of direct sunlight.

CLEANING THE HONEYCOMB COOLING MEDIA

WARNING:

Before cleaning the unit, switch the unit OFF and disconnect the power adapter from the unit and electrical socket.

• The appliance is supplied with a Honeycomb Cooling Media.
- The Honeycomb Cooling Media are located inside the Side Grill. See Figure 1 for instructions on how to remove them from the unit for cleaning and maintenance.
- Do not run the unit in COOL mode with stale water in the tank. You must empty the water tank and refill with fresh water, especially if the tank has not been cleaned in a long time.
- The cleaning frequency for the Honeycomb media depends on local air and water conditions. In areas where the mineral content of water is high, mineral deposits may build up on the Honeycomb Cooling Media and restrict air flow. Draining the water tank and refilling with fresh water at least once a week will help reduce mineral deposits. If mineral deposits remain on the Honeycomb Cooling Media, the media should be removed and washed under fresh water. The media should be cleaned every two months or sooner, depending on your needs.
- For best results allow the Honeycomb Cooling Media to dry after each use by turning off the cool function 15 minutes before turning the unit off.

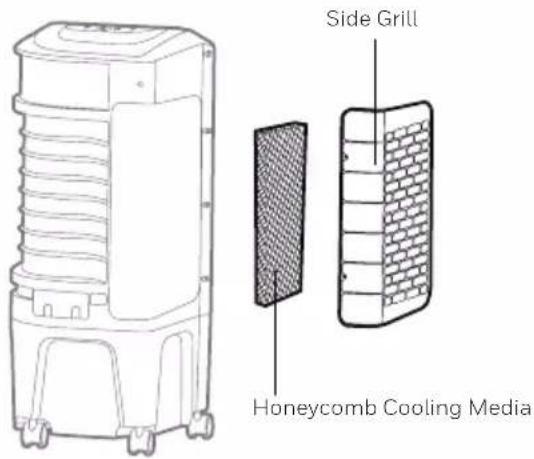

Removing the Honeycomb Cooling Media:

1. Remove all the screws from the side grill of the Air Cooler, carefully pull out the side grill from the cooler.
2. Rinse the side grill with clean water and let it dry before re-installing to the unit.
3. Carefully pull out the Honeycomb Media from the unit.
4. Replace or clean media with water and a damp cloth as needed.

WARNING: DO NOT operate the Air Cooler when the side Grill is removed from the Air Cooler, or if there is a loose-fitting side Grill. Doing so can cause serious injury or dangerous electrical shock.

Figure 1:

Diagram of a coiled spring with directional arrows indicating rotation (no text or symbols)

Simple line drawing of a rectangular component with a vertical line pointing to it, placed on a vehicle chassis (no text or symbols)

CLEANING & DRAINING THE WATER TANK

Diagram of a corrugated metal sheet with directional arrows indicating rotation (no text or symbols)

ENCENDIDO : Encendido / Apagado

VELOCIDAD : Baja / Media / Alta

Simple line drawing of a rectangular electronic component with a vertical line indicating a connection point (no text or symbols)

International Inc. Honeywell International Inc. no representa

© 2019 JMATEK Limited. All rights reserved.

The Honeywell Trademark is used under license

from Honeywell International Inc.

Honeywell International Inc. makes no

representations or warranties with respect to this product.

This product is manufactured by Airtek Int'l Corp. Ltd.
