ACQUATONDO - Fireplace EDILKAMIN - Free user manual and instructions

USER MANUAL ACQUATONDO EDILKAMIN

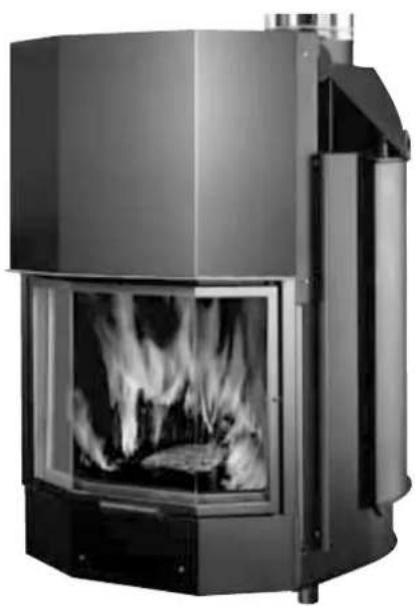

Exterior view of a modern industrial stove with visible flames and cooling unit (no text or symbols)

ACQUATONDO 22

sfera

round

sphérique

curvo

sphärisch

bol

esferas

Exterior view of a modern industrial furnace or boiler with visible flame inside (no text or symbols)

ACQUATONDO 22-29

prismatico

prismatic

prismatique

prismático

prismaförmig

primavorming

prismatico

Exterior view of a portable industrial stove with visible flames inside (no text or symbols)

ACQUATONDO 29

un lato aperto

glass on one side

un coté vitré

abierto un lado

UK ACQUATONDO 22-29, Installation, use and maintenance pag. 18

F ACQUATONDO 22-29, Installation, usage et maintenance pag. 34

Exterior view of a portable stove with visible flames and labeled components (no text or symbols on main subject)

Technical line drawing of a mechanical assembly with no visible text or symbols

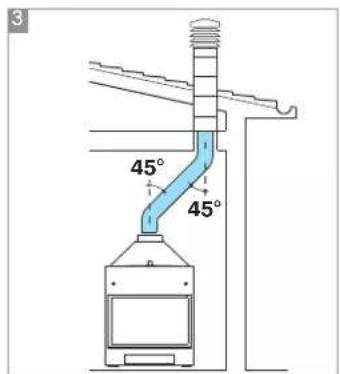

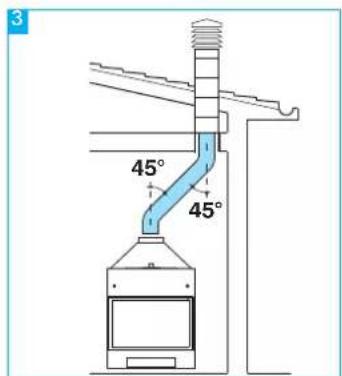

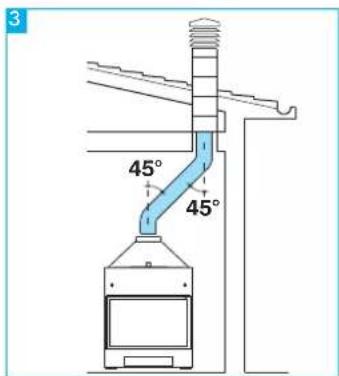

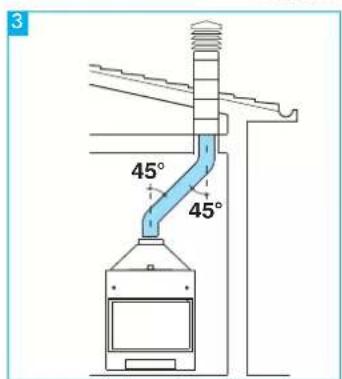

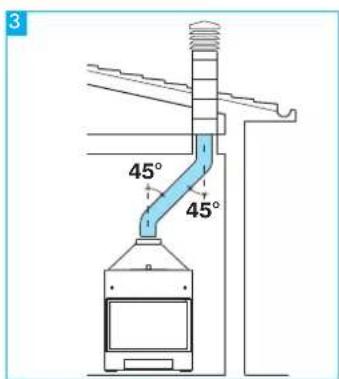

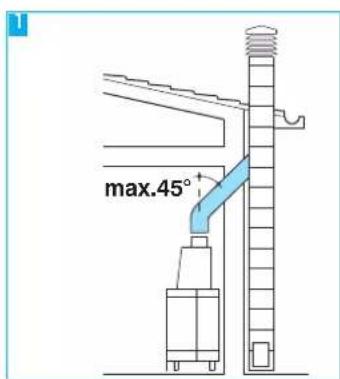

3 45° 45°

NO

Monoblocco

Close-up of a mechanical component with labeled points A and B, showing internal structure and directional arrows (no text or symbols beyond labels)

fig. 2

fig. 3

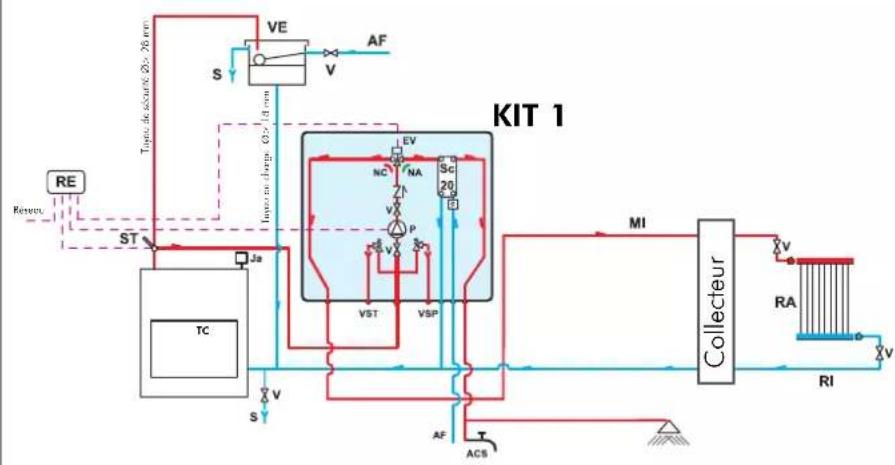

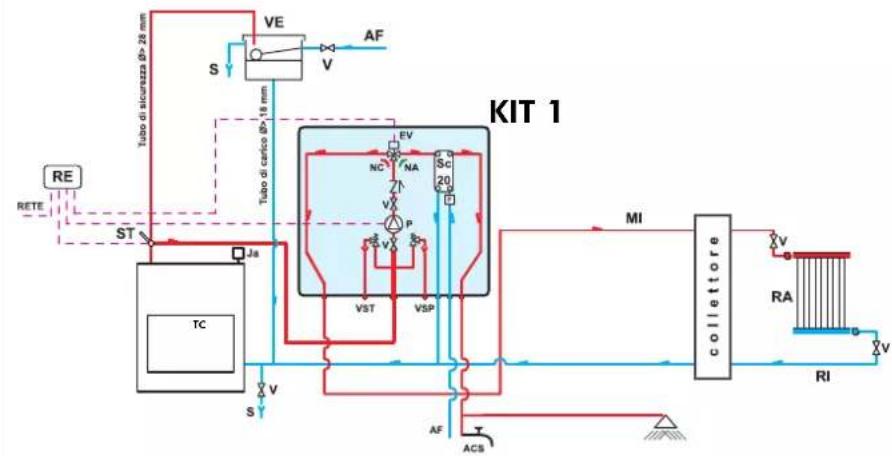

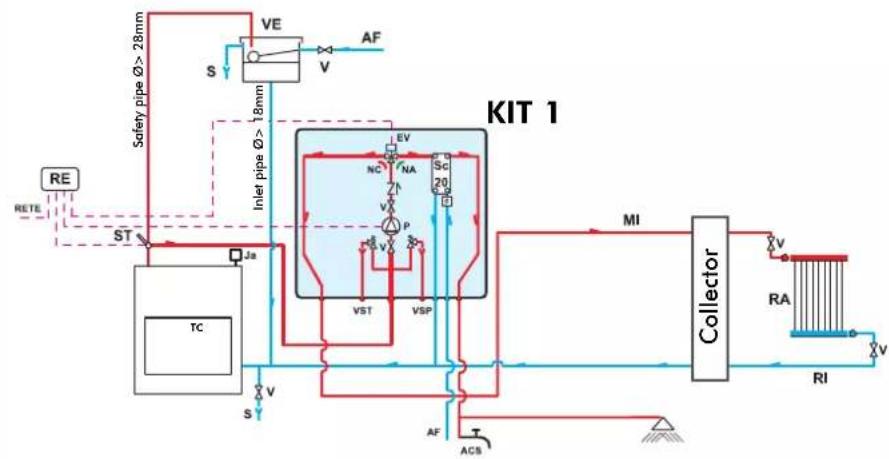

ESEMPIO DI IMPIANTO IDRAULICO PER TERMOCAMINETTO CON PRODUZIONE DI ACQUA CALDA SANITARIA CON UTILIZZO DI KITI

ACS: Acqua Calda Sanitaria

AF: Acqua Fredda

6 Raccorderia in rame

Industrial piping system with valves and valves mounted on a metal frame (no visible text or labels)

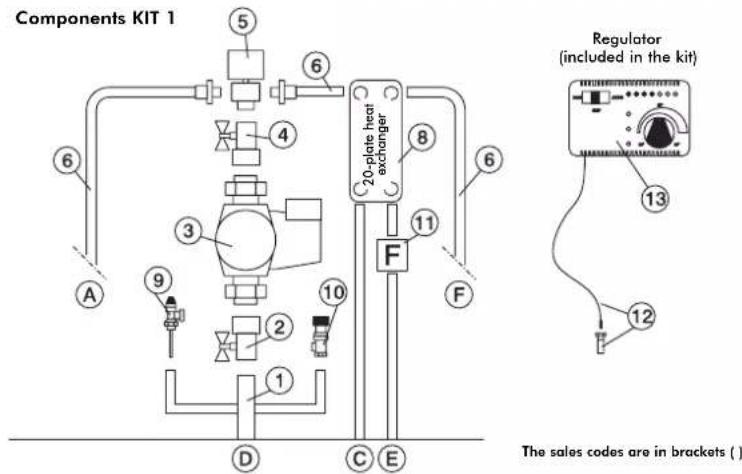

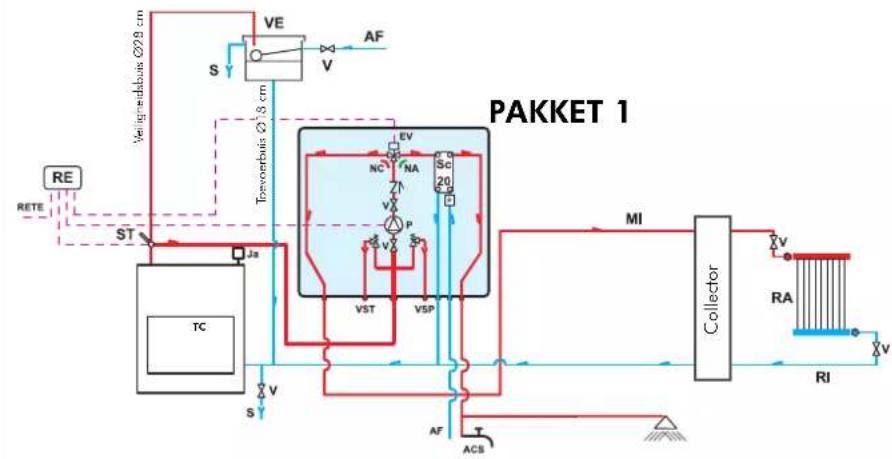

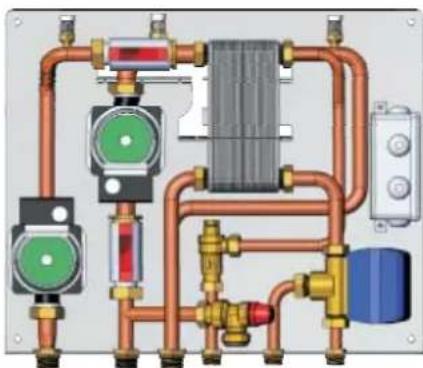

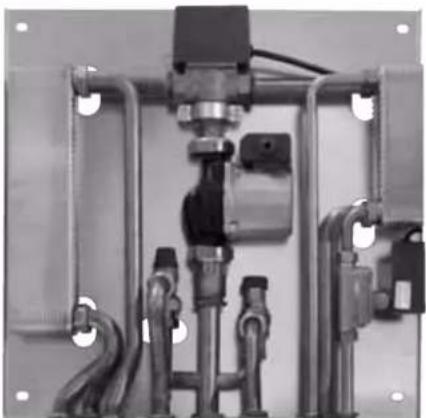

KIT 1
cod. 261880

PER IL CORRETTO FUNZIONAMENTO OCCORRE INCROCIARE I TUBI DI MANDATA E DI RITORNO

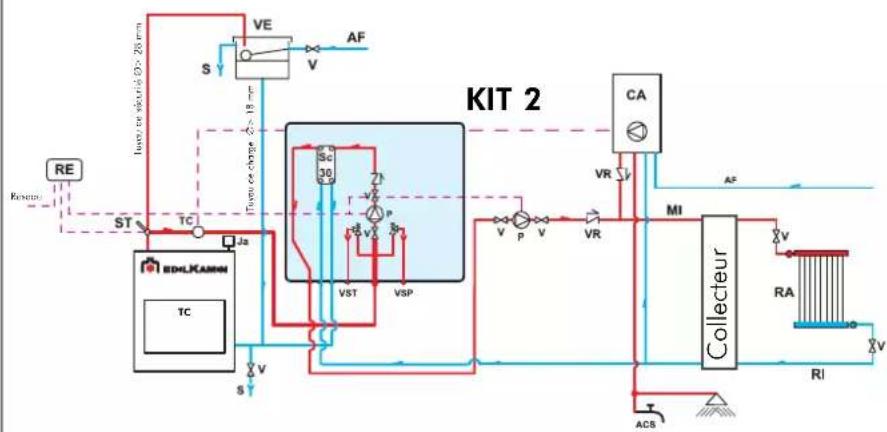

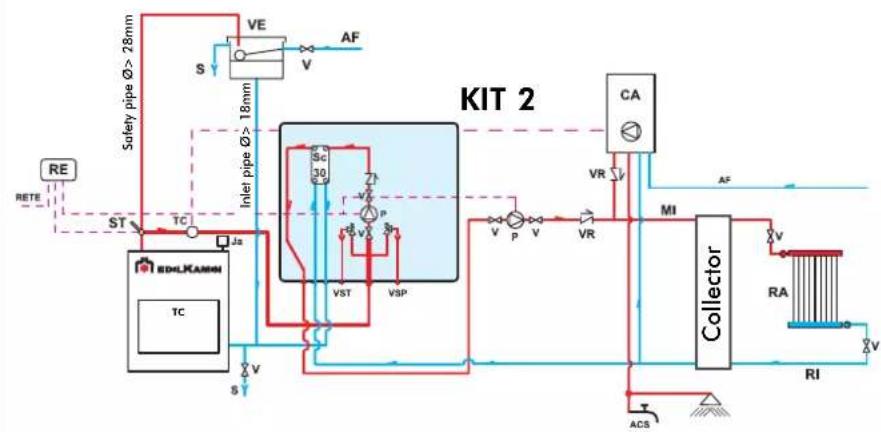

ESEMPIO DI IMPIANTO IDRAULICO PER TERMOCAMINETTO SENZA PRODUZIONE DI ACQUA CALDA SANITARIA + CALDAIA MURALE CON UTILIZZO DI

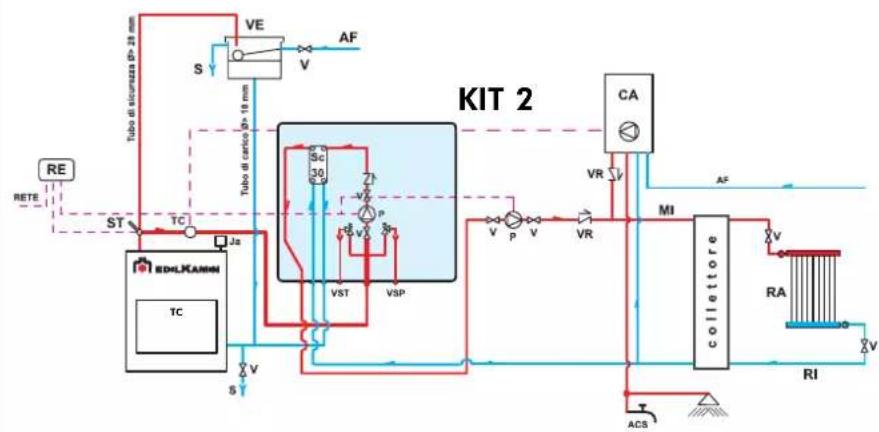

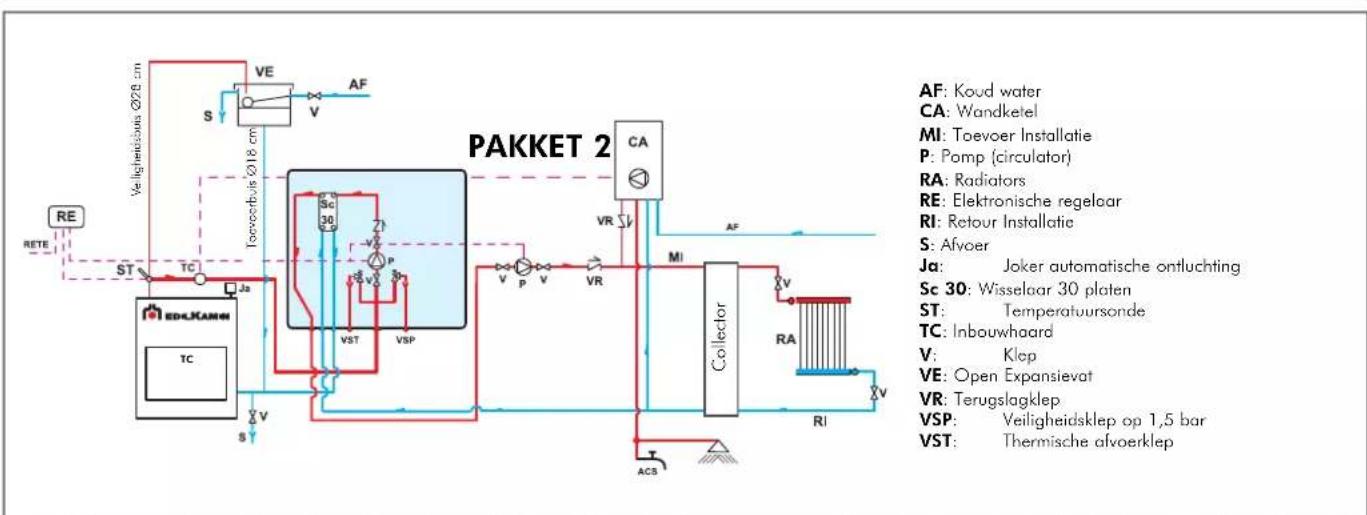

KIT 2

AF: Acqua Fredda

CA: Caldaia murale

6 Raccorderia in rame

Close-up of industrial piping and valve components mounted on a wall (no visible text or symbols)

KIT 2
cod. 261890

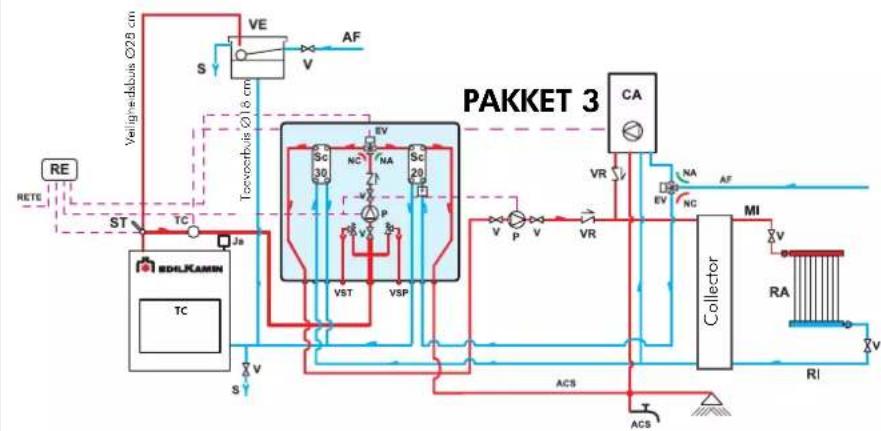

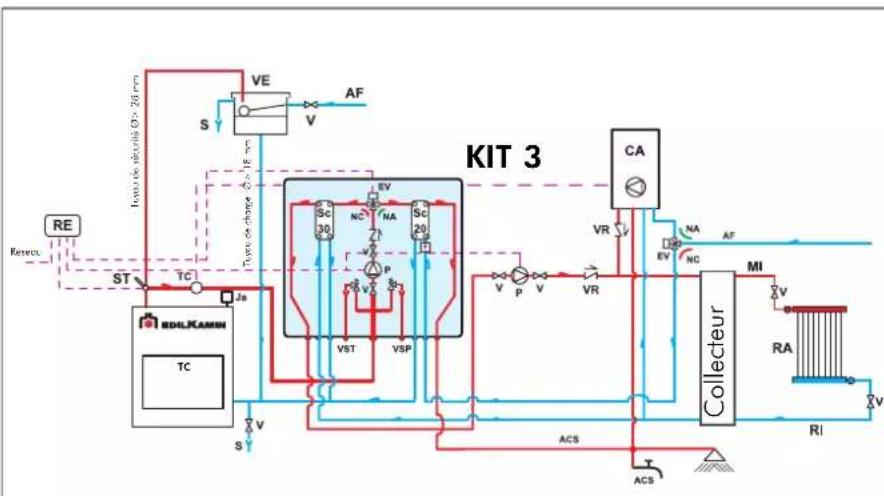

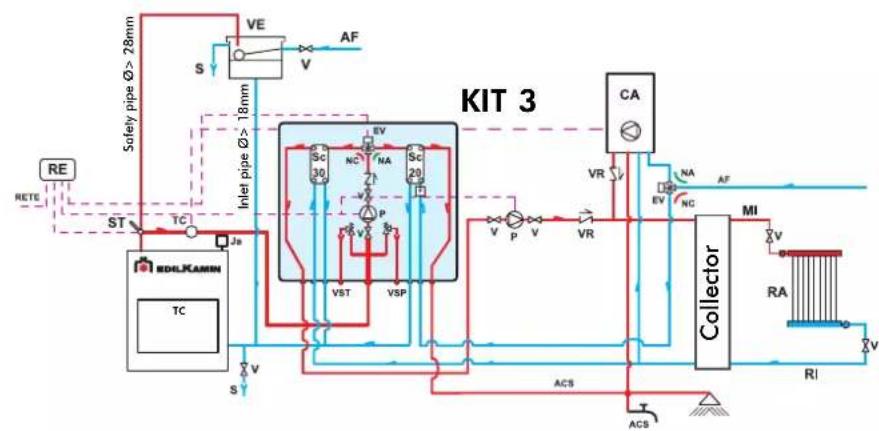

ESEMPIO DI IMPIANTO IDRAULICO PER TERMOCAMINETTO CON PRODUZIONE DI ACQUA CALDA SANITARIA + CALDAIA MURALE

CON UTILIZZO DI

KIT 3

ACS: Acqua Calda Sanitaria

AF: Acqua Fredda

CA: Caldaia murale

Diagram of an electronic device with labeled parts 12 and 13, showing connections via a cable.

6 Raccorderia in rame

Industrial piping system with valves and valves mounted on a metal frame (no visible text or labels)

KIT 3
cod. 261900

PER IL CORRETTO FUNZIONAMENTO OCCORRE INCROCIARE I TUBI DI MANDATA E DI RITORNO

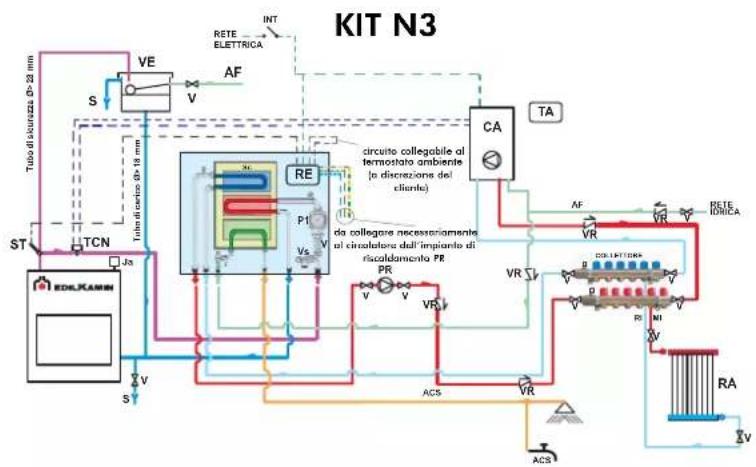

ESEMPIO DI IMPIANTO IDRAULICO PER TERMOCAMINETTO CON PRODUZIONE DI ACQUA CALDA SANITARIA + CALDAIA MURALE

CON UTILIZZO DI

KIT N3

Technical diagram of a heat exchanger system with labeled components and a schematic of the Passacavi module.

Pure technical diagram of a heat exchanger or cooling system with pipes and valves (no text or labels)

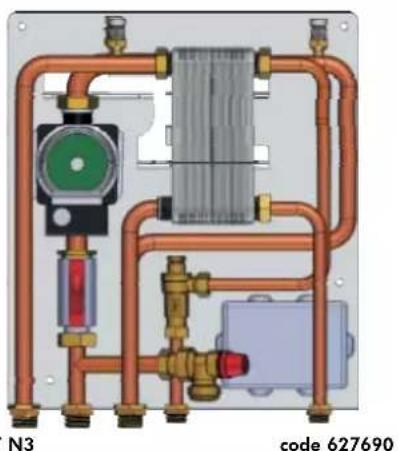

KIT N3
cod. 627690

PER IL CORRETTO FUNZIONAMENTO OCCORRE INCROCIARE I TUBI DI MANDATA E DI RITORNO

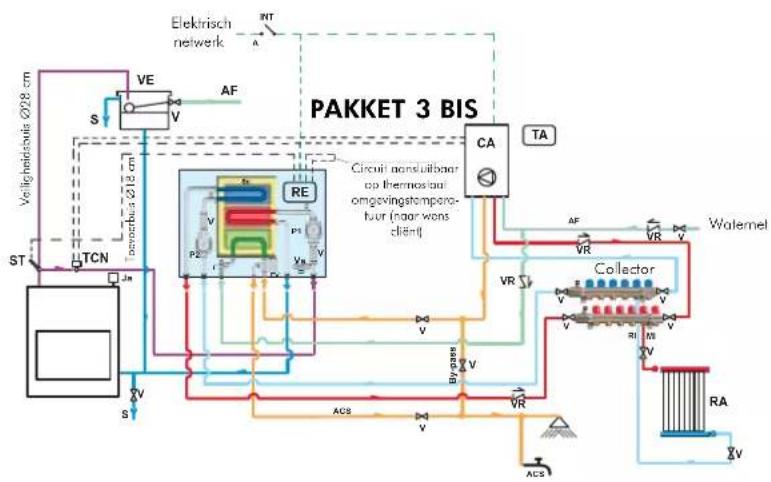

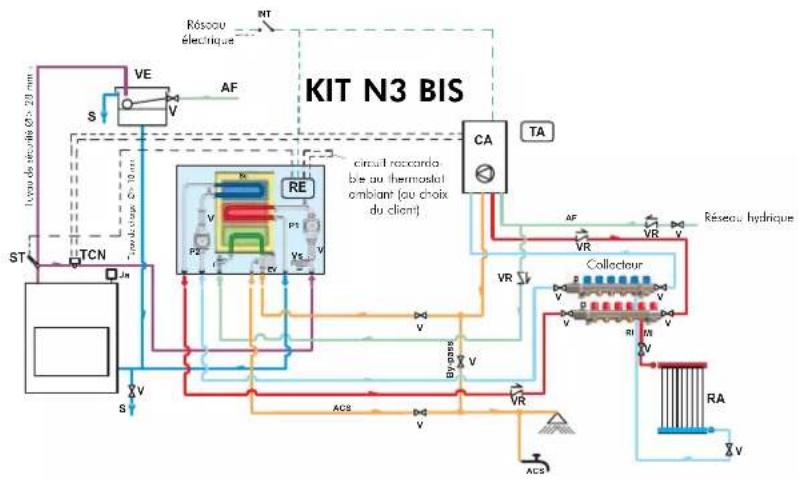

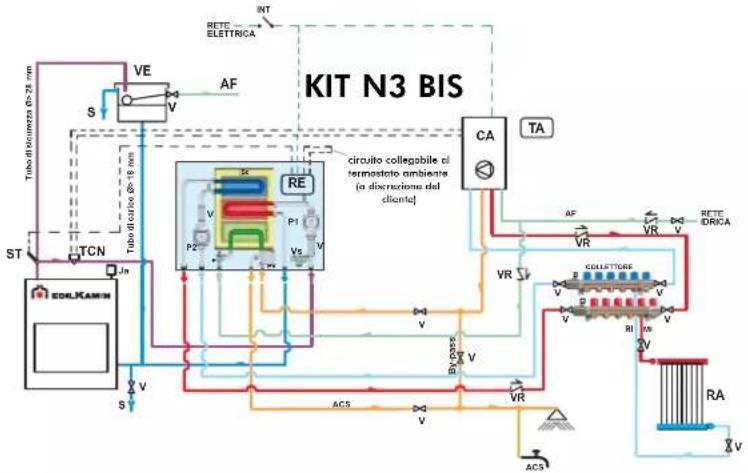

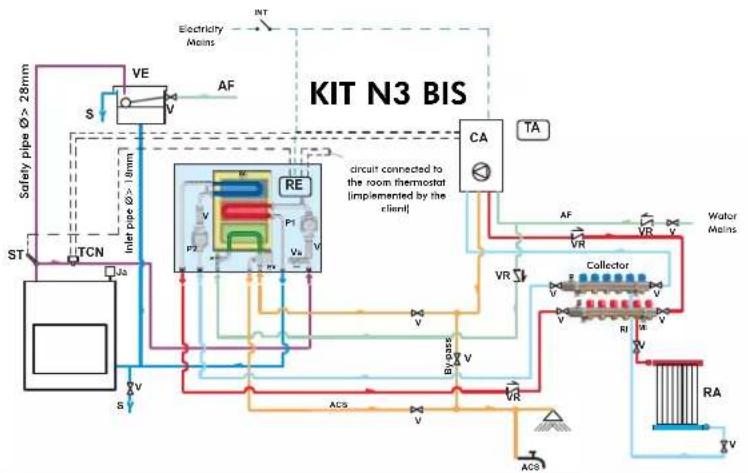

ESEMPIO DI IMPIANTO IDRAULICO PER TERMOCAMINETTO CON PRODUZIONE DI ACQUA CALDA SANITARIA + CALDAIA MURALE

CON UTILIZZO DI KIT N3 BIS

CA Caldaia murale

Technical diagram of a gas flow control system with labeled components and a schematic of the Passacavi device.

Pure electrical circuit lines without any symbols

KIT N3 BIS
cod. 627860

PER IL CORRETTO FUNZIONAMENTO OCCORRE INCROCIARE I TUBI DI MANDATA E DI RITORNO

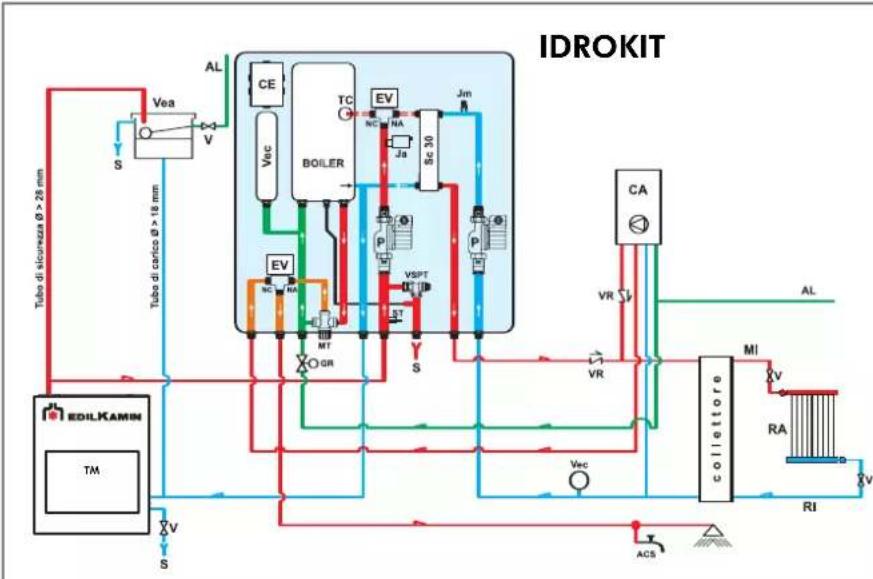

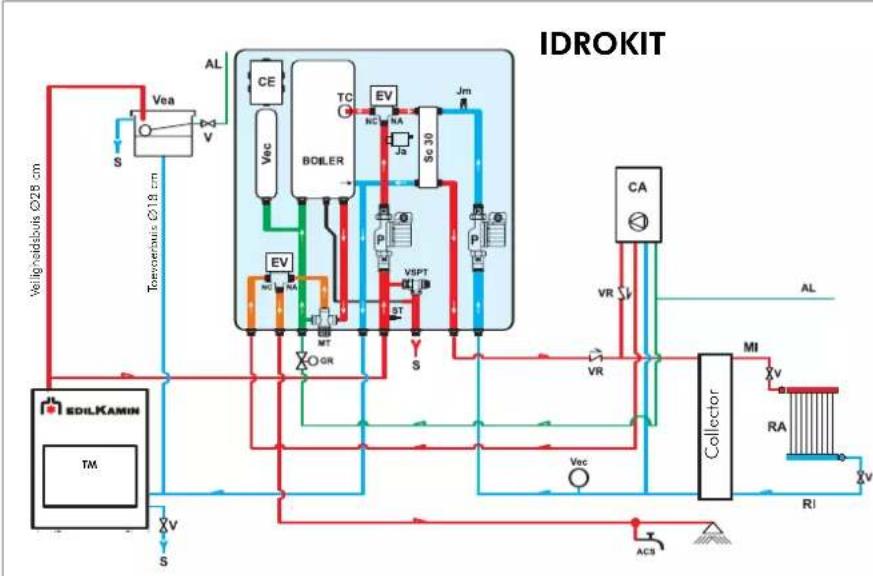

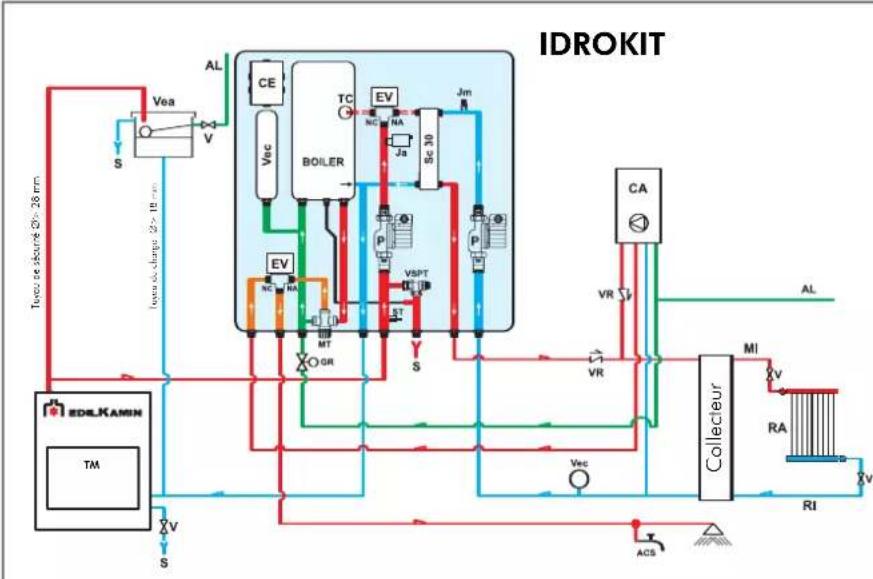

ESEMPIO DI IMPIANTO IDRAULICO PER TERMOCAMINETTO CON PRODUZIONE DI ACQUA CALDA SANITARIA IN ACCUMULO + CALDAIA MURALE CON UTILIZZO DI

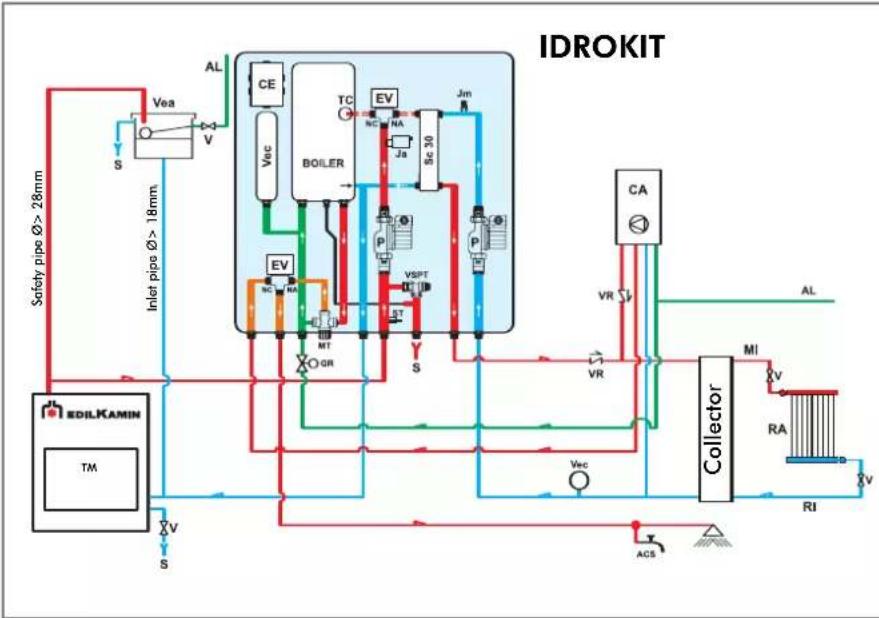

IDROKIT

ACS: Acqua Calda Sanitaria

AF: Acqua Fredda

Industrial piping and valve assembly (no visible text or symbols)

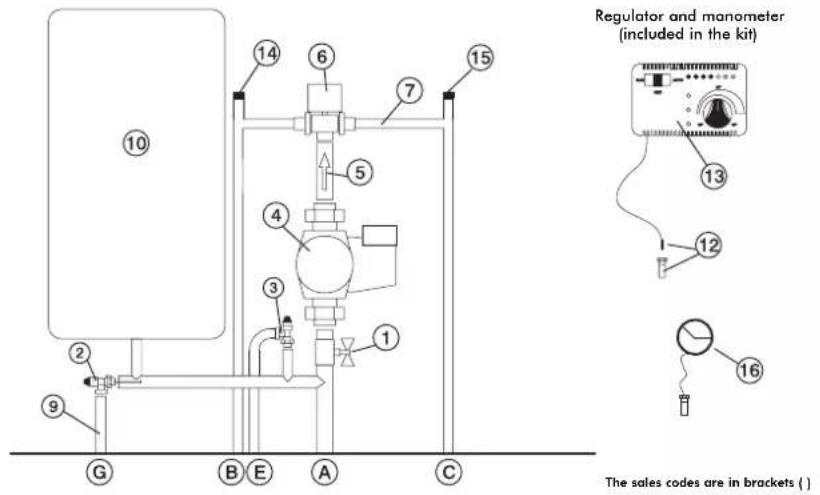

KIT 5
cod. 280590

PER IL CORRETTO FUNZIONAMENTO OCCORRE INCROCIARE I TUBI DI MANDATA E DI RITORNO

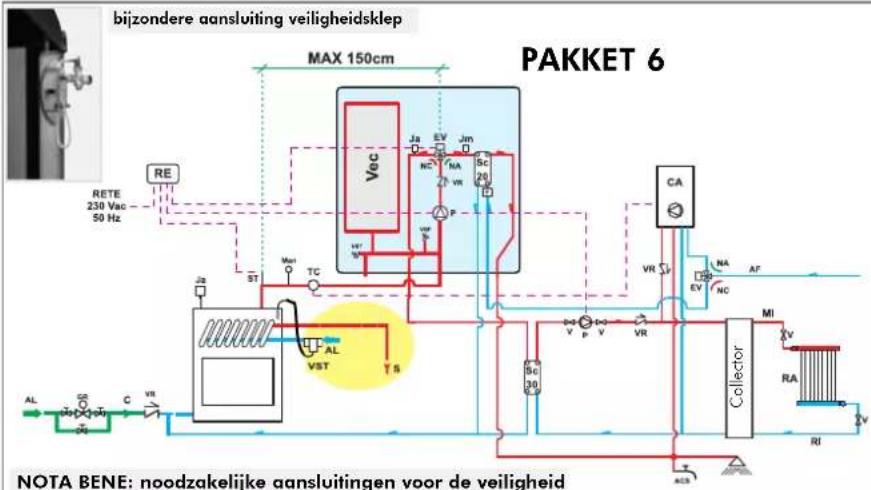

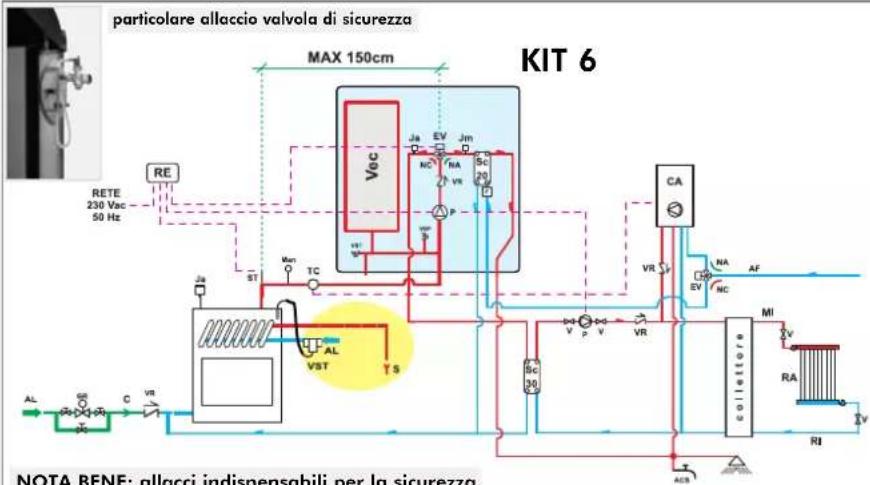

ESEMPIO DI IMPIANTO IDRAULICO PER TERMOCAMINETTO CON PRODUZIONE DI ACQUA CALDA SANITARIA CON UTILIZZO DI KIT 6

Industrial equipment setup with pressure vessel and piping (no visible text or symbols)

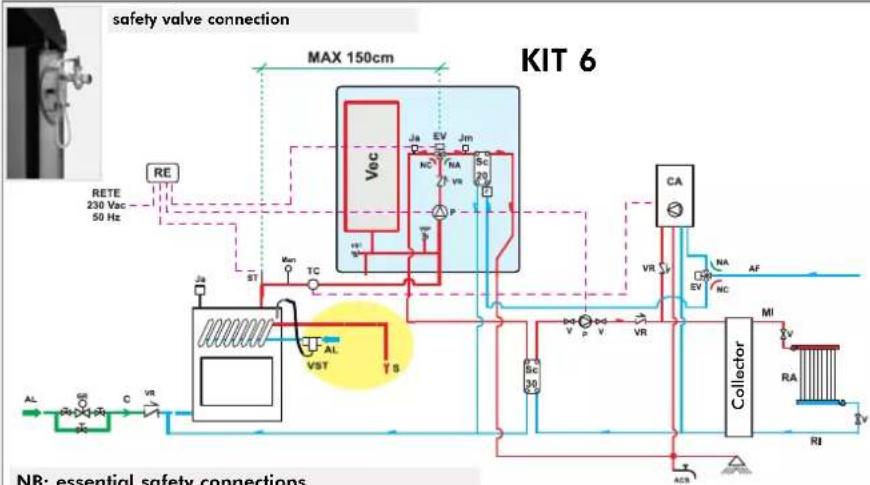

KIT 6
cod. 280600

PER IL CORRETTO FUNZIONAMENTO OCCORRE INCROCIARE I TUBI DI MANDATA E DI RITORNO

Front view of a white electronic device with control panel and indicator lights (no visible text or symbols)

Three industrial valve components shown from different angles (no text or labels visible)

Close-up of a metallic pipe fitting with coiled cable, no visible text or symbols

White electronic device with control panel and cable, no visible text or symbols

Mechanical sensor device with black housing and curved cable (no visible text or symbols)

Close-up of a mechanical pump or motor component (no visible text or symbols)

Circolatore UPS 25-50 cod. 219660 UPS 25-60 cod. 238270

Two metallic rectangular electronic components with four mounting holes (no text or symbols visible)

Black rectangular electronic device with three ports and a label on its side (no readable text or symbols)

Simple line drawing of a wire with a black plug attached, no text or symbols present

Girarrosto Acquatondo 22 cod. 234560 Acquatondo 29 cod. 236710 Acquatondo 29 prismatico cod. 241090

Dear Sir / Madam,

Thank you for having chosen ACQUATONDO.

You are kindly asked to read through this information booklet before using the fireplace in order for you to make use of all its features in total safety.

For further clarification or assistance, please contact the Dealer.

Please note that a qualified dealer MUST install the fireplace as is stipulated in the Italian Ministerial Decree No. 37 ex Italian Law No. 46/90.

For installations implemented outside Italy, please refer to the local regulations in the country of use. The manufacturer cannot be held liable for any damage caused as a result of incorrect installation, incorrect maintenance procedures and improper use.

In case of anomalies immediately contact the Dealer where you purchased it, presenting the guarantee card and receipt for purchase.

The number on the manufacturer's sticker that identifies, is indicated:

- on the upper part of the packaging

- on the guarantee booklet inside the hearth

- on the nameplate on the front of product

These documents must be kept for subsequent identification.

Keep these instructions, the guarantee booklet and receipt of purchase, as they must be used when requesting information.

Declaration of conformity

The undersigned EDILKAMÍN S.p.a. with head office headquarters at Via Vincenzo Monti 47 - 20122 Milano - Italy - VAT T00192220192

Declares under its own responsibility as follows:

The wood Thermo Fireplaces specified below is in accordance with the 89/106/EEC (Construction Products)

THE WOOD THERMO FIREPLACES, trademark EDILKAMIN, called ACQUATONDO 22-29

YEAR OF MANUFACTURE: Ref. Data nameplate

SERIAL NUMBER: Ref. Data nameplate

The compliance with the 89/106/EEC directive is besides determined by the compliance with the European standard:

UNI EN 13229:2006

Also declares as follows:

The wood Thermo Fireplaces ACQUATONDO 22-29 is in compliance with the requirements of the European directives:

2006/95/EEC - Low voltage directive

2004/108/EEC - Electromagnetic compatibility directive

EDILKAMIN will decline all responsibility of malfunctioning or damage to the equipment in case of unauthorized substitution, assembly or modifications of any sort on the said equipment on the part of non-EDILKAMIN personnel.

TECHNICAL DATA

Specifications

22 29

Thermal output (burnt) kW 27,9 34,4

Nominal power kW 23 28

Power water kW 13,3 17,5

Overall efficiency % 82,3 81,5

Efficiency to the water	%	~70	~70
Optimal wood consumption (min-max)	kg/h	2,9/6,1	3,4/7,5
Total weight including the packaging (min-max)	kg	234	302
ø female smoke outlet	cm 20 25
ø stainless steel chimney flue for a height ranging from 3 to 5 m	cm	25	25
ø stainless steel chimney flue for a height ranging from 5 to 7 m	cm	22	25
ø stainless steel chimney flue for a height exceeding 7 m	cm	20	22
ø external air inlet	cm 12,5 12,5
Water capacity	litres 70 90
Maximum operating pressure	bar	1,5	1,5
Hot sanitary water production (kit 1-3-n3-n3bis-6-ldrokit) *	l/min **	13-14	13-14
Heating capacity ***	m3	600	730
System return	inches	1"1⁄2	1"1⁄4
System flow	inches	1"1⁄2	1"1⁄4

* Boiler temperature is 70°
** (ΔT=25K)
*** Insulation in accordance with the Legislative Decree 192/2005 ex Italian Law 10/91 and subsequent changes together with an expected heat output of 33 Kcal/m³ hour.

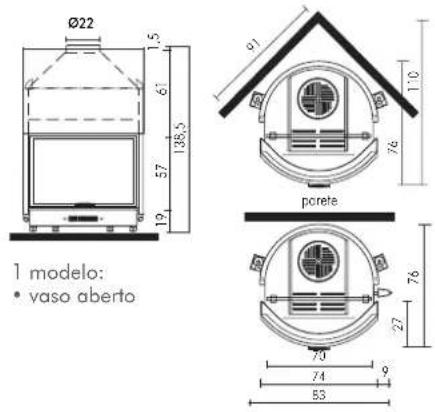

ROUND 22

∅22
	1.5	91
	61		110
	138,5
	57		76
		wall
	19
			76
			27
		70
		74	9
		83

PRISMATIC 29

∅25	1,5
	64	97
	54	138,5	112
	19		78
			wall
			78
			22
			84
			92
			99

	D	damper in the closed position
	C
	A
		B
ceramic glass resistant to 800 °C.

OPERATING DIAGRAM

The water of the radiator circuit warms up, circulates in the heat exchanger pipe (A) and the hollow space (B) and skims along the semi-circular wall. The hollow space is created by using thick steel sheet metal.

AUTOMATIC SMOKE BY-PASS

When turning on with the frame open, to facilitate combustion start-up, the smoke damper (C) remains in the opening position so that smoke can directly and easily reach the chimney flue. When combustion has been started up, the smoke damper also closes automatically when the door is closed. In this mode, before reaching the chimney flue, smoke deviates in such a way to lap and give off heat both to the hollow spaces (B) and to the heat exchanger pipe (A).

PRISMATIC 22

∅22
	1.5
	64	85
	54	92
	19	68
		wall
		68
		14
		66
		75
		12
		80

GLASS ON ONE SIDE 29

025	left
1.5
64
54	9 90 / 99
19
	78
	23
	90 9 99 7

GENERAL SAFETY REGULATIONS

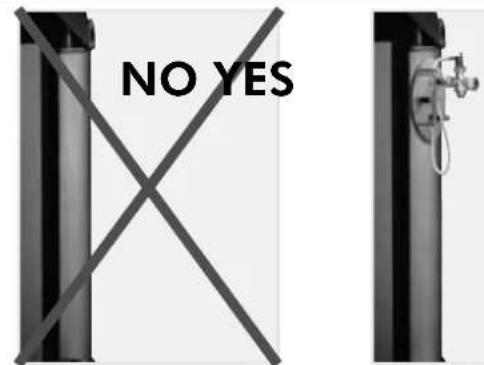

NO YES

ONLY THERMO FIREPLACES THAT HAVE A THERMAL RELIEF VALVE WHICH ACTUATES THE COIL CAN BE INSTALLED ON CLOSED TANK SYSTEMS

Installations with a closed tank:

• The installer is responsible for the correct installation of the system, which is to be compliant with UNI standards 10683/2005 - 9615/90 - 10412:2
• All must be performed by qualified personnel according to Ministerial Decree 37 ex Law 46/90

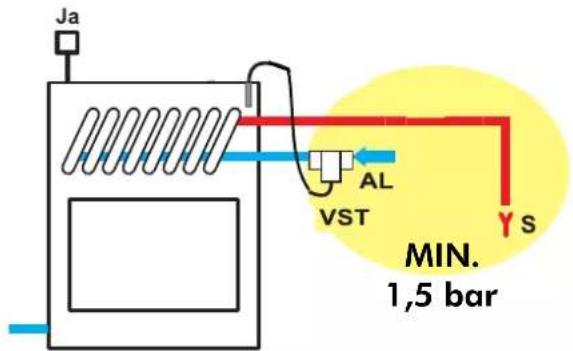

Ja AL VST Y S MIN. 1,5 bar

- The thermal relief valve (supplied by EDILKAMIN) must be connected to the cooling circuit with a minimum pressure of 1.5 bar.

AL=P= coil power supply, always with a minimum pressure of 1.5 bar

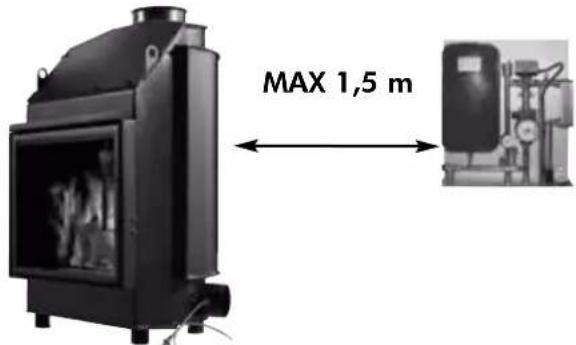

MAX 1,5 m

- KITS 5 and 6 must be installed within a MAX distance of 150 cm from the fireplace.

Litres ?

- Another expansion tank must be installed specifically for the thermo fireplace in accordance with the volume of water of the system. (an expansion tank in common with other generators is not permitted).

1 Year

• The safety and thermal relief valves must be checked at least once a year by qualified personnel according to Ministerial Decree 37 ex Law 46/90

- THE THERMO FIREPLACE MUST NEVER FUNCTION WITHOUT WATER IN THE SYSTEM.

- THE THERMO FIREPLACE CAN BE DAMAGED IF IT IS IGNITED WITH NO WATER IN THE SYSTEM.

- The thermo fireplace is designed to heat water by means of wood combustion in the hearth.

- The only hazards that can derive from using the thermo fireplace pertain to non-compliance with the installation instructions, direct contact with live electrical parts (inside), contact made with the fire and hot parts or foreign substances being put in the fireplace.

- For the thermo fireplace to function properly installation must be carried out according to the instructions given in this booklet and the door must only be opened to refill the hearth with wood.

- Never put foreign substances in the hearth or in the tank.

- No flammable products are to be used to clean the smoke outlet channel.

- The glass can be cleaned when COLD with a suitable product (e.g. GlassKamin) and a cloth. Do not clean when hot.

- The exhaust pipes and the door become very hot when the thermo fireplace is used.

- Do not place anything that is not heat resistant close to the thermo fireplace.

- NEVER use liquid fuel to ignite the thermo fireplace or to rekindle the embers.

- Do not obstruct the external air inlets in the room where the fireplace is installed or the air inlets of the thermo fireplace itself.

- Do not wet the thermo fireplace and do not go near the electrical parts of the system with wet hands.

- Do not use reducers on the smoke exhaust pipes.

- The thermo fireplace must be installed in a place that is suitable against fire hazards and equipped with all that is required (power and air inlets/outlets) for it to function properly and safely.

OPEN TANK

• The connections, commissioning and verification of proper operation of the fireplace must be carried out by qualified personnel, who can implement all connections in accordance with the laws in force, particularly with Italian D.M 37 Law No. 46/90, apart from complying with these instructions.
• The thermo fireplace and the system are filled with water that flows from the water inlet pipe (the diameter must not be less than 18 mm) to the open expansion tank.
• All the vents of the radiators must be opened during this phase so as to prevent air pockets from forming in the system, which would obstruct the circulation of water.

NB:

- The open tank should be positioned at a height greater than 3 m higher than the highest component of the primary circuit and less than 15 m from the edge of the thermo fireplace.

• In any case, the tank must be high enough to create a greater pressure than that produced by the pump (circulator).
• The system must never be filled directly from the water mains as the pressure may be greater than that stipulated on the data plate of the thermo fireplace.
• The safety pipe to the expansion tank must allow the water to flow freely, must not have taps and must be insulated properly.
• The water inlet pipe must not have taps nor curves.

• The maximum operating pressure must not exceed 1.5 bar

• The testing pressure is 3 bar.

• In places that reach very low temperatures, antifreeze liquid must be added to the water in the system.

• Never ignite the fire in the thermo fireplace (not even as a test) unless the system is filled with water as this could cause irreparable damage.

• Connect the drains of the thermal relief valve (TRV) and the safety valve (SV) (diagrams are found on the following pages).

• The flow test of the system must be carried out with the expansion tank open.
• It is recommended to install a 6 bar safety valve on the hot sanitary water circuit so as to drain any excessive increase in the volume of the water in the heat exchanger.
• Place all the components of the system (circulator, heat exchanger, valves, etc.) in easily accessible points for routine and special maintenance procedures.

WATER TREATMENT

- If need be, antifreeze, descaling and anticorrosive solutions are to be added to the water. A softener must be used if the hardness of the water used to refill and top-up the system exceeds 35^ f (French degrees).

Please refer to UNI 8065-1989 standard (water treatment in domestic heating systems).

CLOSED TANK additional regulations to those specified above

• Be careful not to exceed 1.5 bar when filling the system.
• All the vents of the radiators must be opened during this phase so as to prevent air pockets from forming in the system, which would obstruct the circulation of water.
• Only if a thermal relief valve actuates the coil can the fireplace be installed on a CLOSED TANK system.
• Consider the necessity of installing another CLOSED TANK.
• When connecting a thermo fireplace to an existing system, an assessment must be made regarding a need for another CLOSED TANK on the system.
• The upstream pressure of the cooling circuit must be at least 1.5 bar (UNI 10412/2 point 6.2).

INSTALLATION INSTRUCTIONS

Important advice regarding the installation

Other than that described in this documentation, you are also asked to note the following UNI standards:

- No. 10683 - firewood heat generators: installation requirements

- No. 9615/90 - calculating the internal dimensions of fireplaces

- No. 10412:2 - hot water heating systems. Specific safety requirements for systems provided with residential solid fuel burning appliances and combined boiler, not exceeding a total nominal heat input of 35 kW.

Particularly:

- Before carrying out any assembly it is important to verify compatibility of the appliance, as stipulated in UNI10683 standard, paragraphs 4.1 / 4.1.1 / 4.1.2.

- When assembly is completed, the installer must implement "start-up operations" and issue documentation as required by UNI 10683 standard in paragraphs 4.6 and 5, respectively.

- The connections, commissioning and verification of proper operation of the fireplace must be carried out by qualified personnel, who can implement the electrical and plumbing connections as required by UNI standards 10683, paragraph 4.5 and 10412:2, apart from complying with these assembly instructions.

- Verification must be carried out with the fireplace on and after having been on for a couple of hours, before covering the fireplace, so that you can intervene if need be. After which, the finishing operations such as:

- setting-up the fireplace mantel - mounting the fireplace covering - pilasters, painting, etc. are carried out, once the tests are completed successfully.

Consequently, EDILKAMIN does not accept responsibility for expenses deriving from demolition as well as construction even if either occurs as a result, after having replaced any damaged parts of the fireplace.

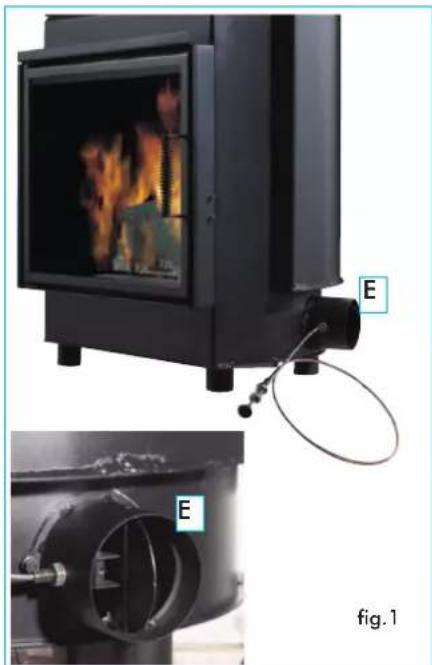

External air inlet (optional)

An external connection with a 12,5 cm diameter crosssection throughout (refer to the technical table) is absolutely necessary for the thermo fireplace to function properly and is therefore imperative for this to be implemented.

This connection must link the air adjustment mechanism (E), delivered separately.

The mechanism, delivered separately, can be assembled either right or left of the thermo fireplace.

Connection can be made with a flexible aluminium pipe.

Ensure that the points where there may be dispersion of air are sealed well.

The air adjustment mechanism (E) can be removed and mounted on the right side of the thermo fireplace.

It is recommended to place a protection grille on the outer part of the air inlet channel, however, ensure that this does not reduce the cross-section.

For distances longer than 3 m or with bends, increase the given cross-section by a minimum of 10% to a maximum of 20%.

The intake of external air must enter at floor level (it cannot enter from above).

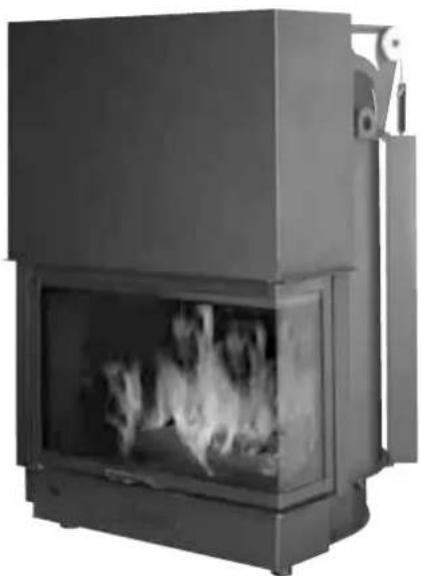

Exterior view of a black industrial stove with visible fire and flame screens, connected to a cable and labeled 'E', plus a close-up of the internal pipe (no text or symbols on main subject)

Note: The product is supplied with two anti-corrosion discs (one on the outside and one on the inside of the combustion chamber). They must be removed during unpacking and disposed of as normal waste.

Babiste 1925.03.22 Product: 100% Product name: Babiste Product type: 100% Product description: Product name: 100% Product description: Product type: 100% Product description: Product type: 100% Product description: Product type: 100% Product description: Product type: 100% Product description: Product type: 100% Product description: Product type: 100% Product description: Product type: 100% Product description: Product type: 100% Product description: Product type: 1 Product description: Product type: 100% Product description: Product type: 100% Product description: Product type: 100% Product description: Product type: 100% Product description: Product type: 100% Product description: Product type: 100% Product description: Product type: 100% Product description: Product type: 100% Product description: Babiste Tota = 100% Product description 2025.03.22

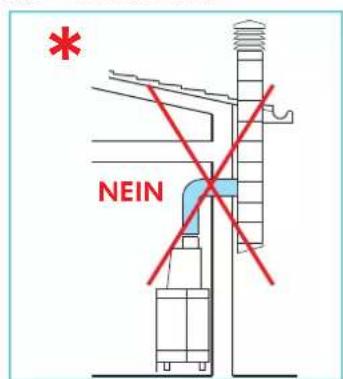

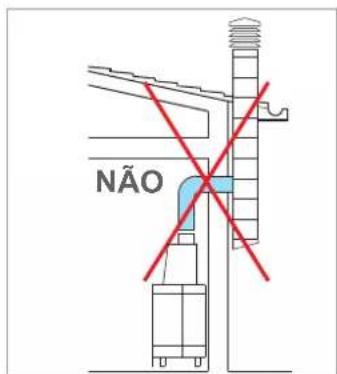

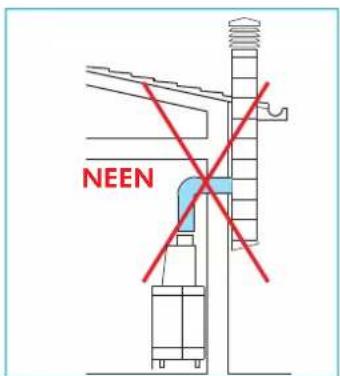

Chimney flues and chimneypot

The thermo fireplace smoke outlet has a circular crosssection so that stainless steel pipes can be used.

If the chimney flue inlet is not vertically above the thermo fireplace, the connection from the fireplace to the flue must not have a narrowing section or inclinations greater than 45° (fig. A 1-2-3).

If the chimney flue is not brand new or too big, it is recommended to fit in stainless tubes of an appropriate diameter and with suitable insulation.

If the chimney flue is installed outside, it is recommended to use an insulated, double walled, stainless steel flue.

The characteristics of the construction must be suitable to withstand a smoke temperature of at least 450^ C, with particular reference to the mechanical resistance, insulation and the gas tight sealing.

The junction of the steel flue inlet and the smoke outlet of the fireplace must be sealed with high temperature mastic.

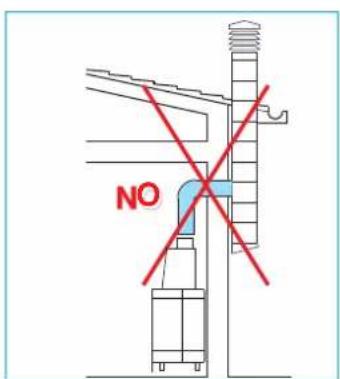

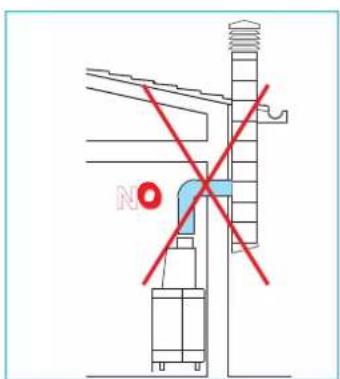

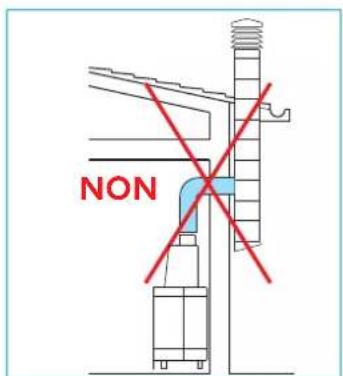

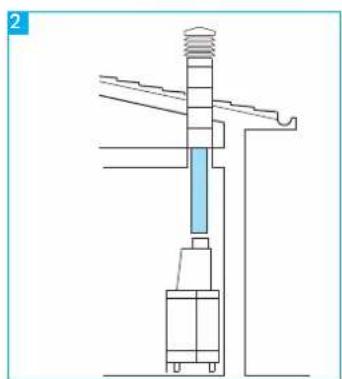

The fundamental characteristics of the chimney pot are:

- an internal cross-section at the base, which is the same as that of the chimney flue.

- an outlet cross-section which is no smaller than twice that of the chimney flue.

- its position must be high enough to catch the wind and avoid downdraft areas in turbulent wind.

In addition to that mentioned above, please consider the indications stipulated in UNI 10683 standard, paragraph 4.2: "connection to the smoke outlet system" and its subsections.

max.45°

Technical line drawing of a mechanical assembly with no visible text or symbols

3 45° 45°

NO

fig.A

Fireplace

If combining a prefabricated Edilkamin covering, to decide upon the exact positioning of the fireplace, it is important to verify which covering will be applied.

The positioning is implemented according to the model chosen (refer to the installation instructions found inside the packaging of each fireplace covering).

Always ensure the thermo fireplace is level during the installation process.

- Drill a hole into the wall or the flooring for the external air intake and connect the air adjustment mechanism to the hole as described in the chapter called "external air inlet".

- Use a stainless steel flue to connect the fireplace to the chimney flue, adhering with the diameters indicated in the specifications table and the guidelines given in the chapter called "chimney flues".

- Verify that all moving parts function properly before setting the thermo fireplace covering in place.

- This system must be tested and ignited for the first time before the covering is set in place.

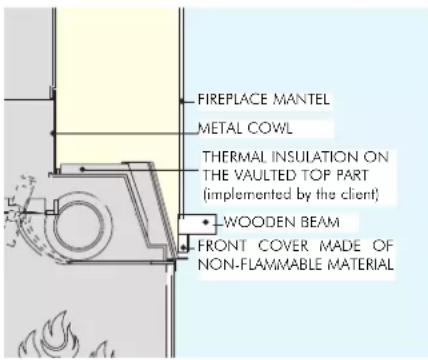

FIREPLACE MANTEL METAL COWL THERMAL INSULATION ON THE VAULTED TOP PART (implemented by the client) WOODEN BEAM FRONT COVER MADE OF NON-FLAMMABLE MATERIAL

Installation of the fireplace

covering, fireplace mantel and ventilation outlets (Fig. F)

The base of the fireplace covering must allow the internal air to be recycled. Failing to do so, the fireplace will not function properly with possible smoke backflow.

Therefore, suitable slots or apertures must be made for the air to pass through.

Parts of the fireplace covering that are made of marble, stone and bricks must be mounted with a small gap between them and the fireplace so as to prevent possible breakage due to expansion and excessive overheating.

Wooden parts must be protected by fire resistant panels and no part must touch the thermo fireplace, on the contrary, there must be an appropriate distance of at least 1 cm to allow the air to flow, preventing heat accumulation.

The fireplace mantel can be made of fireproof plasterboard panels or gypsum board and, however, of completely fireproof material.

Air should be allowed to flow inside the fireplace mantel (through the gap between the door and the beam). Through convective motion, the air will flow out from the grille installed at the top, resulting in heat recovery and preventing excessive overheating.

The fireplace mantel must have appropriate openings to carry out maintenance on the fittings.

In addition to that mentioned above, please consider the indications stipulated in the UNI 10683/2005 standard, paragraphs 4.4 and 4.7: "insulation, finishing, fireplace covering and safety recommendations".

Insulating mats must be applied when using an installation KIT so as to protect it from the heat radiation emitted by the fireplace.

Important advice when using the fireplace

• It is important to ensure that there is water in the thermo fireplace and the system before igniting the fireplace. It is recommended to connect the inlet and outlet pipes as shown in the diagrams.
• The maximum operating pressure must not exceed 1.5 bar
• The Company is responsible for the proper functioning of the product only if this is handled in accordance with the documentation supplied with the product itself.
• First ignition (or re-igniting): remove any ash residue from the hearth.

Practical advice

• It is recommended to keep the radiators closed in the room where the thermo fireplace is installed since the heat radiated from the opening of the fireplace itself is enough.
• An incomplete combustion process causes excessive fouling on the heat exchanger pipe.

To prevent this you must:

• burn dry wood.
• ensure the hearth contains a bed of embers and burning carbon before adding more wood.
• place larger logs together with smaller ones.

Igniting the fireplace

• Ensure that at least one radiator is always open.

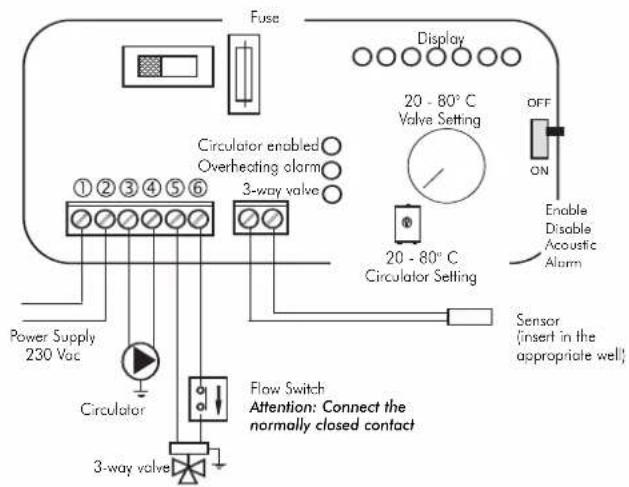

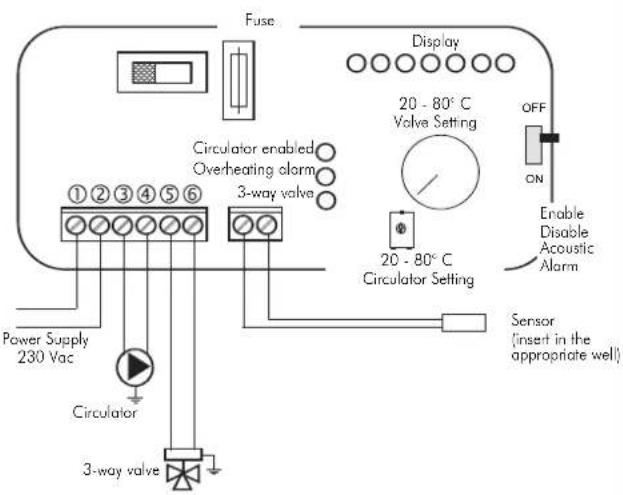

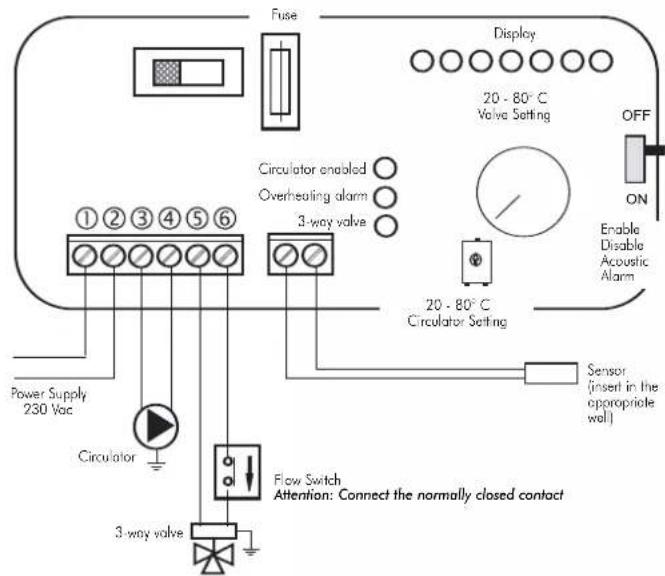

• Actuate the switches of the electronic regulator.
• Place a pile of medium-thin dry wood in the thermo fireplace and ignite the fire.
• Wait a few minutes until it reaches sufficient combustion.

- Close the door

- Adjust the combustion setting via the damper control at the front.

- Set the thermostat on the electronic regulator (*) at a temperature between 50 and 70°C.

- The 3-way valve (*) diverts the water flow directly to the thermo fireplace; when the set temperature is reached, the 3-way valve (*) diverts the flow to the system.

• When the door is opened, the damper bypass opens automatically, allowing the smoke to reach the smoke flue directly, preventing it from coming out of the inlet.
• When the door is opened, the damper bypass opens automatically, allowing the smoke to reach the smoke flue directly, preventing it from coming out of the inlet.
  (*) these components of the system are to be provided by the installer.

During the combustion process

If the water temperature exceeds 90^ C because of too much wood being placed in the hearth, the thermal relief valve will be activated and the acoustic signal heard.

In this case you must proceed as follows:

• Wait until the temperature is lower than 80°C; check the warning lights on the electronic regulator, without loading any additional fuel.
• The hot water tap can be opened to speed up the cooling process if the thermo fireplace is equipped with a hot sanitary water production KIT.

External air regulation

- The damper control found on the external air inlet (refer to Fig. 1 on pag. 22), regulates the amount of primary air that is necessary for the combustion process. Pushing the knob will close the external air inlet and pulling the knob will open it.

Primary air regulation

• Air regulation Control "A" (see fig.2) located under the door regulates the amount of air that is necessary for the combustion process.
• Control all the way to the right: fully open
• Control all the way to the left: closed.

During the thermo fireplace start-up phase, the control must be kept in the fully open position, while, when running, it must be kept in the intermediate or closed position.

Maintenance

Cleaning the hearth

• Fouling that tends to accumulate on the internal walls of the thermo fireplace decreases the efficiency of heat transfer.
• It is therefore necessary to clean the fireplace regularly, by bringing the water temperature to 80 / 85°C to soften the fouling and then remove this with a steel spatula.

Glass cleaning

• Use an appropriate spray for ceramic glass to clean the glass.
• The glass must be cleaned when cold.

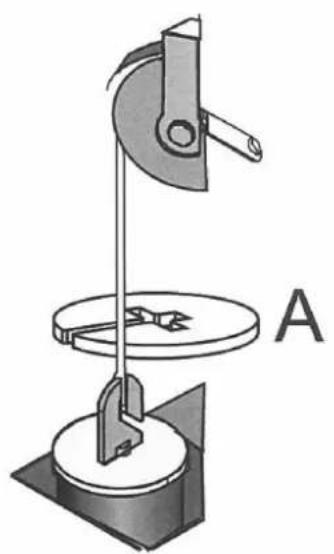

• To open the door, it must be locked in the closed position, positioning control "B" (see fig. 2) under the door all the way to the right.
• Insert the "cold handle" door handle on the latch (see fig.3) and turn to open.

Close-up of a mechanical component with labeled parts A and B, showing internal structure and directional arrows (no text or symbols beyond labels)

fig. 2

fig. 3

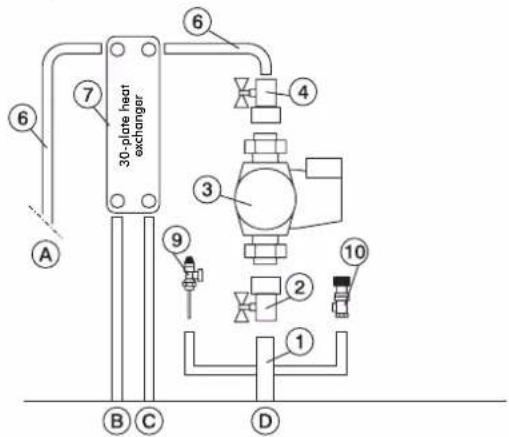

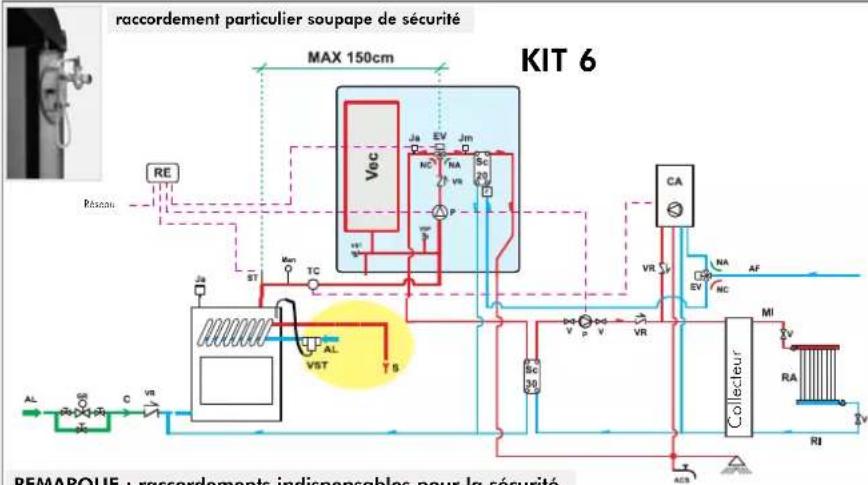

AN EXAMPLE OF A HYDRAULIC SYSTEM FOR A THERMO FIREPLACE WITH HOT SANITARY WATER PRODUCTION USING KITI

ACS: Hot Sanitary Water

AF: Cold Water

EV: 3-way Solenoid Valve

F: Flow Switch

MI: System Flow

NA: Normally Open

NC: Normally Closed

P: Pump (circulator)

RA: Radiators

RE: Electronic Regulator

RI: System Return

S: Drain

Sc 20: 20-plate Heat Exchanger

ST: Temperature Sensor

TC: Thermo Fireplace

V: Valve

VE: Open Expansion Tank

VSP: 1.5 bar Pressurized Safety Valve

VST: Thermal Relief Valve

Ja: Automatic Relief Valve

Kit 1 is designed to facilitate the work carried out by the installers. In fact, it consists of all the necessary components for the product to be properly installed.

NB: insulating mats must be applied so that the components of the kit are well-protected from the heat radiation emitted by the fireplace.

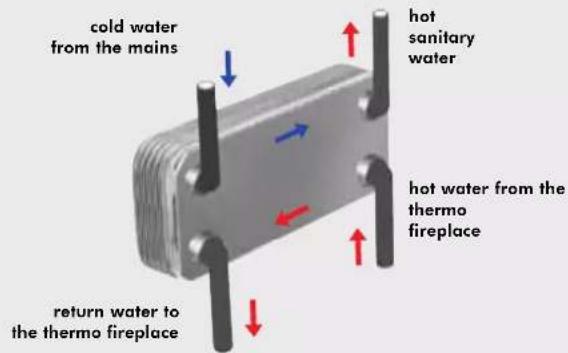

Components KIT 1 5 6 4 3 2 1 A 9 2 10 11 F 20-plate heat exchanger F D C E Regulator (included in the kit) 13 12 The sales codes are in brackets ( )

1 1" Male-Female Brass Collector

2 1" Ball Valve

3 Circulator with 1½" Fasteners (219660)

4 1" Check Valve (261910)

5 1" Male-Female 3-way Solenoid Valve (143330)

6 Copper Fittings

7 30-plate Heat Exchanger for heat transfer with the gas boiler circuit (216620)

8 20-plate Heat Exchanger for hot sanitary water production (205270)

9 3/4" Thermal Relief Valve (72940)

10 3/2" 1.5 bar Safety Valve (143260)

1 Flussostato (220830)

12 1/2" Thermometer Well + Sensor (175960)

13 Electronic Regulator (220780)

A 3/4" System Return

B 3/2" System Flow

C 3/4" Fireplace Return

D 1" Fireplace Flow

E 1/2" Cold Sanitary Water

F 1/2" Hot Sanitary Water

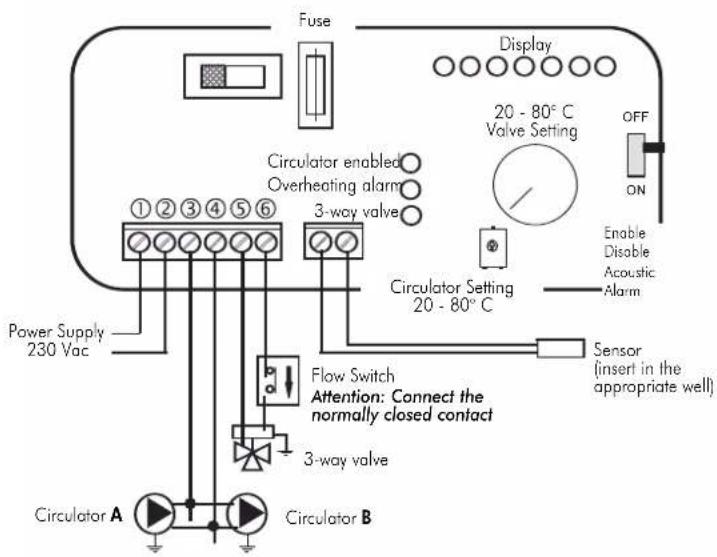

Electrical Connections

Fuse Display 20 - 80°C Valve Setting Circulator enabled Overheating alarm 3-way valve Power Supply 230 Vac Circulator Flow Switch Attention: Connect the normally closed contact 3-way valve 20 - 80°C Circulator Setting OFF ON Enable Disable Acoustic Alarm Sensor (insert in the appropriate well)

SELECTOR FUNCTIONS

Selector: OFF Everything is switched off

Selector: MAN Driven Circulator

Valve is set

Selector: AUTO Circulator is set

Valve is set

Alarm selection No acoustic signal in the

OFF position

Industrial piping system with valves and control panel (no visible text or symbols)

KIT 1 code 261880

THE INLET AND OUTLET PIPES MUST BE CROSSED FOR THIS TO FUNCTION PROPERLY

AN EXAMPLE OF A HYDRAULIC SYSTEM FOR A THERMO FIREPLACE THAT DOES NOT PRODUCE HOT SANITARY WATER BUT HAS A WALL MOUNTED BOILER USING KIT 2

KIT 2

AF: Cold Water

CA: Wall Mounted Boiler

MI: System Flow

P: Pump (circulator)

RA: Radiators

RE: Electronic Regulator

RI: System Return

S: Drain

Ja: Automatic Relief Valve

Sc 30: 30-plate Heat Exchanger

ST: Temperature Sensor

TC: Thermo Fireplace

V: Valve

VE: Open Expansion Tank

VR: Check Valve

VSP: 1.5 bar Pressurized Safety Valve

VST: Thermal Relief Valve

Kit 2 is designed to facilitate the work carried out by the installers. In fact, it consists of all the necessary components for the product to be properly installed.

NB: insulating mats must be applied so that the components of the kit are well-protected from the heat radiation emitted by the fireplace.

Components KIT 2

30-plate heat exchanger A B C D 1 2 3 4 6 7 9 10

Regulator
(included in the kit)

13 12

The sales codes are in brackets ( )

1 1" Male-Female Brass Collector

2 1" Ball Valve

3 Circulator with 1½" Fasteners (219660)

4 1" Check Valve (261910)

5 1" Male-Female 3-way Solenoid Valve (143330)

6 Copper Fittings

7 30-plate Heat Exchanger for heat transfer with the gas boiler circuit (216620)

8 20-plate Heat Exchanger for hot sanitary water production (205270)

9 3/4" Thermal Relief Valve (72940)

10 3/4" 1.5 bar Safety Valve (143260)

1 Flow Switch (220830)

12 1/2" Thermometer Well + Sensor (175960)

13 Electronic Regulator (220780)

A 34 " System Return

B 3/4" System Flow

C 3/4" Fireplace Return

D 1" Fireplace Flow

E 1/2" Cold Sanitary Water

F 1/2" Hot Sanitary Water

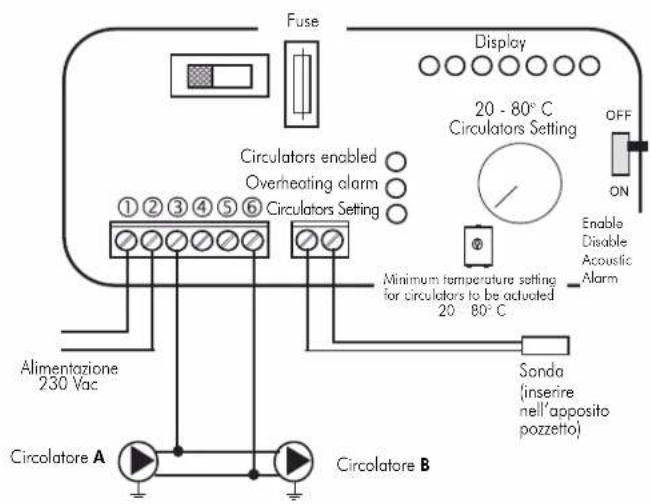

Electrical Connections

Fuse Display 20 - 80°C Circulators Setting OFF ON Enable Disable Acoustic Alarm Minimum temperature setting for circulators to be actuated 20 - 80°C Alimentazione 230 Vac Sonda (inserire nell'apposito pozzetto) Circolatore A Circolatore B

SELECTOR FUNCTIONS

Selector: OFF Everything is switched off

Selector: MAN Driven Circulator

Valve is set

Selector: AUTO Circulator is set

Valve is set

Alarm selection No acoustic signal in the

OFF position

Industrial piping system with valves and control panel (no visible text or symbols)

KIT 2
code 261890

AN EXAMPLE OF A HYDRAULIC SYSTEM FOR A THERMO FIREPLACEITH HOT SANITARY WATER PRODUCTION AND A WALL MOUNTED BOILER USING

KIT 3

ACS: Hot Sanitary Water

AF: Cold Water

CA: Wall Mounted Boiler

EV: 3-way Solenoid Valve

F: Flow Switch

MI: System Flow

NA: Normally Open

NC: Normally Closed

P: Pump (circulator)

RA: Radiators

RE: Electronic Regulator

RI: System Return

S: Drain

Sc 20: 20-plate Heat Exchanger

Sc 30: 30-plate Heat Exchanger

TC: Thermo Fireplace

V: Valve

VE: Open Expansion Tank

VR: Check Valve

VSP: 1.5 bar Pressurized Safety Valve

VST: Thermal Relief Valve

Ja: Automatic Relief Valve

Kit 3 is designed to facilitate the work carried out by the installers. In fact, it consists of all the necessary components for the product to be properly installed.

NB: insulating mats must be applied so that the components of the kit are well-protected from the heat radiation emitted by the fireplace.

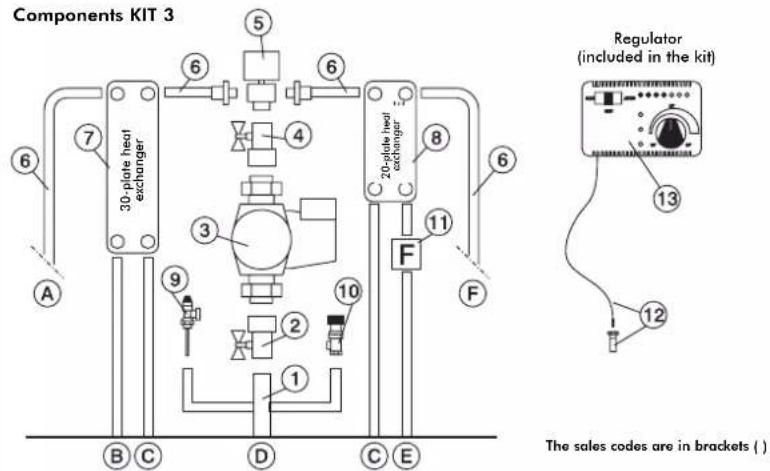

Components KIT 3 30-plate heat exchanger 20-plate heat exchanger Regulator (included in the kit) The sales codes are in brackets ( )

1" Male-Female Brass Collector

2 1" Ball Valve

2 Circulator with 1½" Fasteners (219660)

1" Check Valve (261910)

1" Male-Female 3-way Solenoid Valve (143330)

Copper Fittings

30-plate Heat Exchanger for heat transfer with

the gas boiler circuit

(216620)

8 20-plate Heat Exchanger for hot sanitary water

production (205270)

9 3/4" Thermal Relief Valve (72940)

10 3/4" 1.5 bar Safety Valve (143260)

11 Flow Switch (220830)

12 1/2" Thermometer Well + Sensor (175960)

13 Electronic Regulator (220780)

A 3/4" System Return

B 3/4" System Flow

C 3/4" Fireplace Return

D 1" Fireplace Flow

E 1/2" Cold Sanitary Water

F 1/2" Hot Sanitary Water

Electrical Connections

Fuse Display 20 - 80°C Valve Setting OFF ON Enable Disable Acoustic Alarm Circulator enabled Overheating alarm 3-way valve Circulator Setting 20 - 80°C Power Supply 230 Vac Flow Switch Attention: Connect the normally closed contact 3-way valve Sensor (insert in the appropriate well) Circulator A Circulator B

SELECTOR FUNCTIONS

Selector: OFF Everything is switched off

Selector: MAN Driven Circulator

Valve is set

Selector: AUTO Circulator is set

Valve is set

Alarm selection No acoustic signal in the

OFF position

Industrial piping system with valves and valves mounted on a metal frame (no visible text or labels)

KIT 3
code 261900

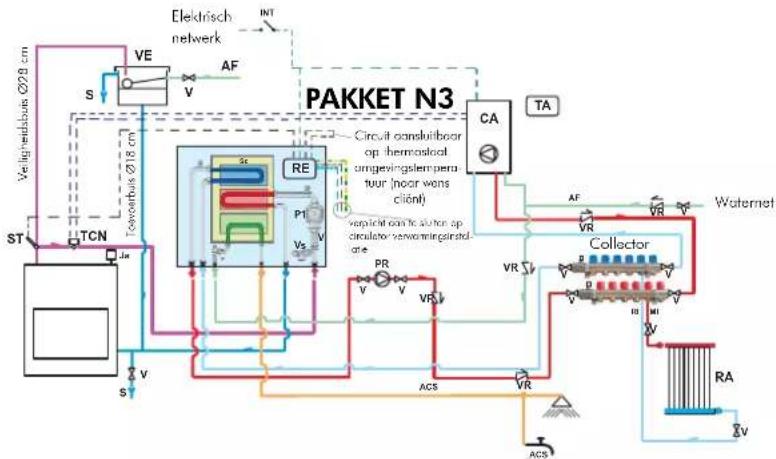

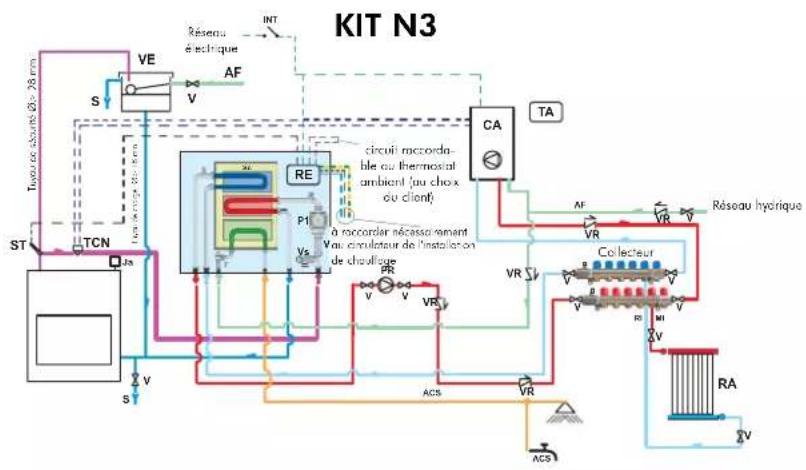

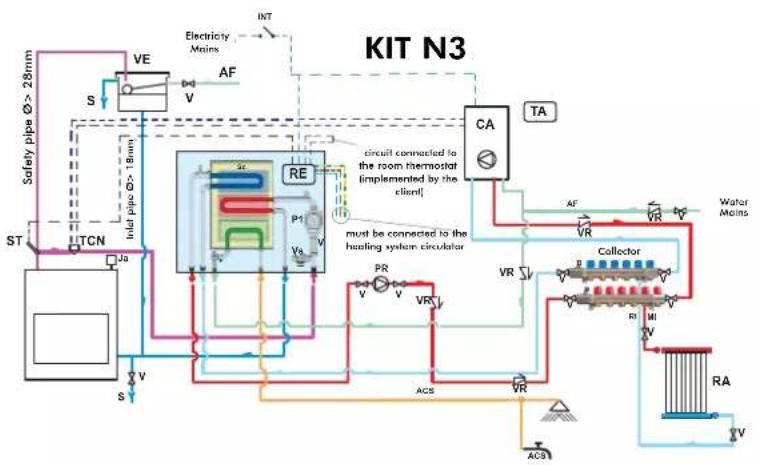

AN EXAMPLE OF A HYDRAULIC SYSTEM FOR A THERMO FIREPLACEITH HOT SANITARY WATER PRODUCTION AND A WALL MOUNTED BOILER USING

KIT N3

CA: Wall Mounted Boiler

PR: Pump (circulator)

P1: Primary circuit pump

RE: Electronic regulator

TA: Room thermostat

VE: Expansion Tank

Ja: Air refief Valve

V: Intercept valve

VR: Retaining valve

ST: Temperature Sensor

F: Flow switch

Sc: Heat plate exchanger

EV: 3-way solenoid valve

RI: Heating system return

RA: Radiators

MI: Heating system flow

AF: Cold water

ACS: Hot sanitary water

S: Drain

Kit N3 is designed to facilitate the work carried out by the installers. In fact, it consists of all the necessary components for the product to be properly installed.

NB: insulating mats must be applied so that the components of the kit are well-protected from the heat radiation emitted by the fireplace.

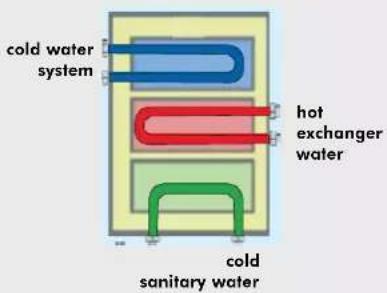

Components KIT N3

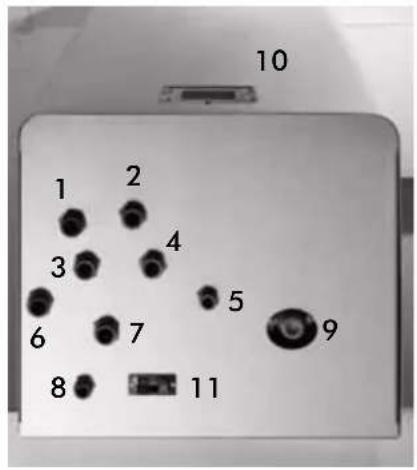

Technical diagram of a heat exchanger system with numbered components and labeled cable ducts

1 Heating system flow G 3/4"
2 EDILKAMIN generator flow G 3/4"
3 EDILKAMIN generator return G 3/4"
4 Healing system return G 3/4"
5 Cold sanitary water inlet G 1/2"
6 Hot water return to the sanitary system G 1/2"
7 Safety valve - temperature and pressure (90 °C - 3bar)
8 Flow Switch
9 Air relief valve G 3/8"
10 EDILKAMIN generator circuit circulator
11 3-way heat exchanger
12 Intercept valve G 1"
13 Electronic regulator with wiring
14 Appropriate aperture for the cable duct to pass through
15 Power cable
16 Cables for the heating system circulator (phase, neutral, earth)
17 Temperature sensor
18 Room thermostat circuit

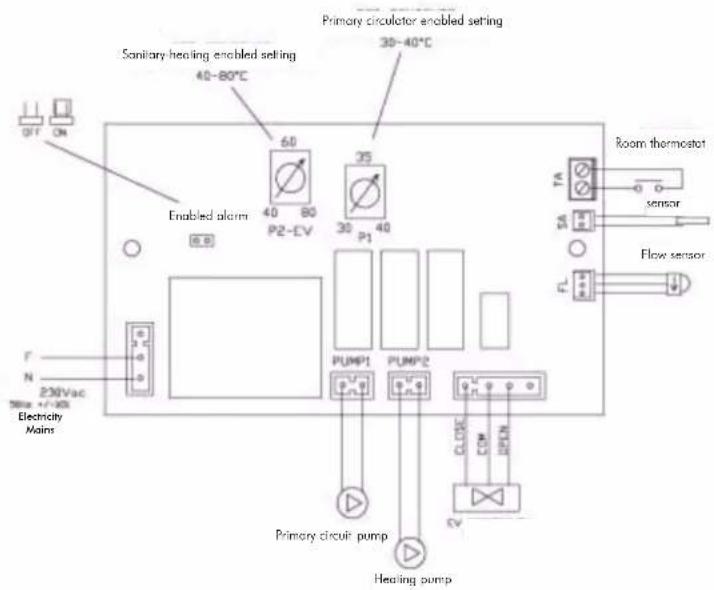

Electrical Connections

Sanitary heating enabled setting 40-80°C Primary circulator enabled setting 30-40°C Enabled alarm 60 40 80 P2-EV 35 30 P1 PUMP1 PUMP2 Floor sensor TA sensor SA FL Flow sensor Primary circuit pump Heating pump

Pure electrical circuit lines without any symbols

AN EXAMPLE OF A HYDRAULIC SYSTEM FOR A THERMO FIREPLACE WITH HOT SANITARY WATER PRODUCTION AND A WALL MOUNTED BOILER USING

KIT N3 BIS

CA Wall Mounted Boiler

P2 Pump (circulator)

P1 Primary circuit pump

RE Electronic regulator

TA Room Thermostat

VE Expansion Tank

Ja Air Relief Valve

V Intercept valve

VR Retaining valve

ST Temperature Sensor

F Flow switch

Sc Heat Plate Exchanger

EV 3-way Solenoid Valve

RI Heating system return

RA Radiators

MI Heating system flow

AF Cold Water

ACS Hot Sanitary Water

S Drain

INT Main switch

TCN Contact Thermostat

Kit N3 BIS is designed to facilitate the work carried out by the installers. In fact, it consists of all the necessary components for the product to be properly installed.

NB: insulating mats must be applied so that the components of the kit are well-protected from the heat radiation emitted by the fireplace.

Components KIT N3 BIS

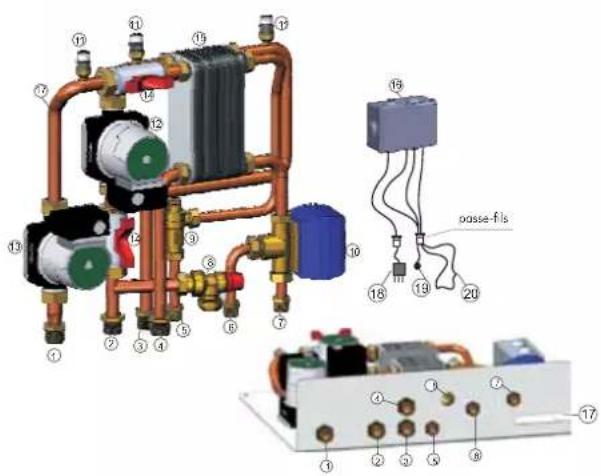

Technical diagram of a mechanical or electrical device with numbered components and labeled cable duct connection

1 Heating system flow G 3/4"
2 EDILKAMIN generator flow G 3/4"
3 EDILKAMIN generator return G 3/4"
4 Heating system return G 3/4"
5 Cold sanitary water inlet G 1/2"
6 Hot water return to the sanitary system G 1/2"
7 Sanitary hot water inlet to the gas boiler G 1/2"
8 Safety valve - temperature and pressure (90 °C - 3bar)
9 Flow Switch
10 3-way deviation solenoid valve
11 Air relief valve G 3/8"
12 EDILKAMIN generator circuit circulator
13 Heating system circuit circulator
14 Intercept valve G 1"
15 3-way heat exchanger
16 Electronic regulator with wiring
17 Appropriate aperture for the cable duct to pass through
18 Power cable
19 Temperature sensor
20 Room thermostat circuit

Electrical Connections

Sanitary-hooting enabled setting 40-60°C 30-40°C Primary circulator enabled setting 30 60 40 80 P2-EV 35 30 40 Enabled alarm PUMP1 PUMP2 F N 236Vac 50Hz +/-30 Electricity Mains Primary circuit pump HV Hooting pump Room thermostat sensor Flow sensor TA TA FL CLOSE CDM OPEN CV

Pure electrical circuit lines without any symbols

KIT N3 BIS
code 627860

AN EXAMPLE OF A HYDRAULIC SYSTEM FOR A THERMO FIREPLACE THAT PRODUCES AND STORES HOT SANITARY WATER AND HAS A WALL MOUNTED BOILER USING

IDROKIT

ACS: Hot Sanitary Water

AF: Cold Water

AL: Water Mains Supply

C: Filling/Top-Up Section

CE: Electronic Panel

EV: 3-way Solenoid Valve

NA: Normally Open

NC: Normally Closed

GR: Pressure Reducer

Ja: Automatic Relief Valve

Jm: Manual Relief Valve

MI: System Flow

MT: Thermostatic Mixer

P: Pump (circulator)

RA: Radiators

RI: System Return

S: Drain

SC30: 30-plate Heat Exchanger

ST: Temperature Sensor

TC: Contact Thermostat

TM: Thermo Fireplace

V: Ball Valve

Vea: Open Expansion Tank

Vec: Closed Expansion Tank

VR: Check Valve

VSPT: Safety Pressure and Temperature Valve

VCA: Boiler

IDROKIT is designed to facilitate the work carried out by the installers. In fact, it consists of all the necessary components for the product to be properly installed.

10 1 2 3 4 6 7 5 9 8 11

1 heating return

2 gas boiler hot sanitary water

3 thermo fireplace flow

4 drain

5 hot sanitary water

6 thermo fireplace return

7 heating flow

8 water mains

9 thermostatic mixer setting

10 synoptic panel

11 auxiliary socket for a room thermostat

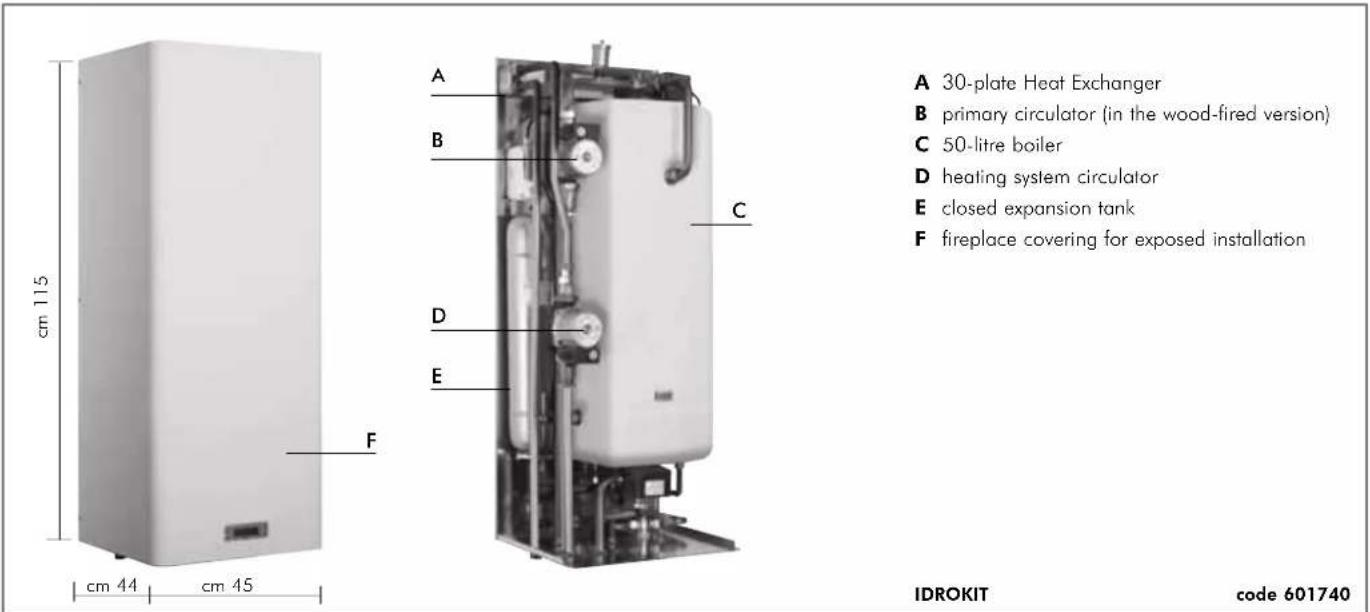

A 30-plate Heat Exchanger B primary circulator (in the wood-fired version) C 50-litre boiler D heating system circulator E closed expansion tank F fireplace covering for exposed installation cm 115 cm 44 cm 45 IDROKIT code 601740

THE INLET AND OUTLET PIPES MUST BE CROSSED FOR THIS TO FUNCTION PROPERLY

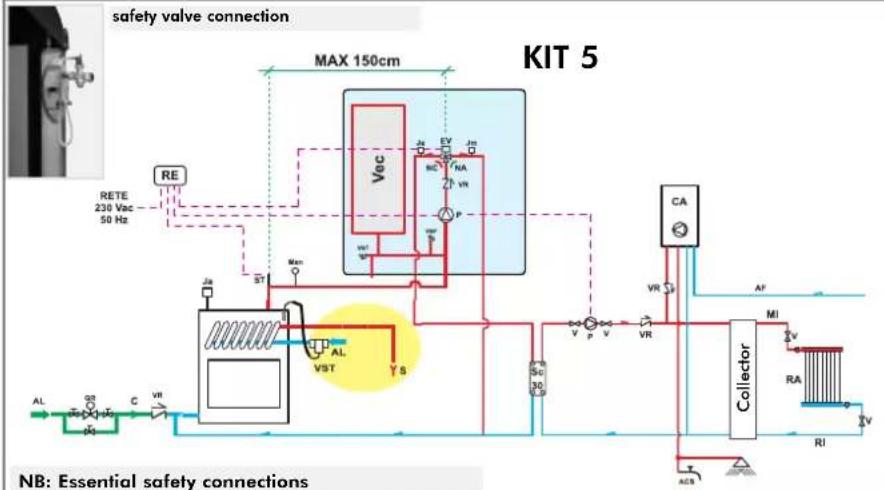

AN EXAMPLE OF A HYDRAULIC SYSTEM FOR A THERMO FIREPLACE - ONLY HEATING

USING KIT 5

AL: Water Mains Supply

C: Filling/Top-Up Section

EV: 3-way Solenoid Valve

NA: Normally Open

NC: Normally Closed

GR: Filling unit

Ja: Automatic Relief Valve

Jm: Manual Relief Valve

MAN: Manometer

MI: System Flow

P: Pump (circulator)

RA: Radiators

RE: Electronic Regulator

RI: System Return

S: Drain

ST: Temperature Sensor

V: Ball Valve

Vec: Closed Expansion Tank

VR: Check Valve

VSP: Pressurised Safety Valve

VST: Thermal Relief Valve

Kit 5 is designed to facilitate the work carried out by the installers. In fact, it consists of all the necessary components for the product to be properly installed.
NB: insulating mats must be applied so that the components of the kit are well protected from the heat radiation emitted by the fireplace.
Components KIT 5

Regulator and manometer (included in the kit) 10 14 6 7 15 4 3 1 2 9 G B E A C 13 12 16 The sales codes are in brackets ( )

1 1" Ball Valve

2 Thermal Relief Valve (72940)

3 Pressure Relief Valve (284220)

4 Circulator (219660)

5 Fittings with 1' Check Valve (284180)

6 3/4" Male 3-way Solenoid Valve (283690)

7 Fittings

9 Temperature Relief Valve Nozzle

10 Closed Expansion Tank (283680)

12 1/2" Thermometer Well + Sensor (175960)

13 Electronic Regulator (220780)

14 3/8" Automatic Relief Valve (284150)

15 1/4" Manual Relief Valve (284170)

16 Manometer (269590)

A Fireplace Flow

B System return

c Fireplace Return

E Pressure Relief Valve

G Temperature Relief Valve

Electrical Connections

Fuse Display 20 - 80°C Volve Setting OFF ON Enable Disable Acoustic Alarm Circulator enabled Overheating alarm 3-way valve 20 - 80°C Circulator Setting Sensor (insert in the appropriate well) Power Supply 230 Vac Circulator 3-way valve

SELECTOR FUNCTIONS

Selector: OFF Everything is switched off

Selector: MAN Driven Circulator

Valve is set

Selector: AUTO Circulator is set

Valve is set

Alarm selection No acoustic signal in the

OFF position

Industrial pressure pump unit with control panel and piping (no visible text or symbols)

KIT 5
code 280590

AN EXAMPLE OF A HYDRAULIC SYSTEM FOR A THERMO FIREPLACE WITH HOT SANITARY WATER PRODUCTION

USING KIT 6

ACS

Hot Sanitary Water

AF: Cold Water

AL: Water Mains Supply

C: Filling/Top-Up Section

EV: 3-way Solenoid Valve

NA: Normally Open

NC: Normally Closed

F: Flow Switch

GR: Filling unit

Ja: Automatic Relief Valve

Jm: Manual Relief Valve

MAN: Manometer

MI: System Flow

P: Pump (circulator)

RA: Radiators

RE: Electronic Regulator

RI: System Return

S: Drain

SC: Plate Exchanger

ST: Temperature Sensor

V: Ball Valve

Vec: Closed Expansion Tank

VR: Check Valve

VSP: Pressurised Safety Valve

VST: Thermal Relief Valve

Kit 6 is designed to facilitate the work carried out by the installers. In fact, it consists of all the necessary components for the product to be properly installed.
NB: insulating mats must be applied so that the components of the kit are well protected from the heat radiation emitted by the fireplace.

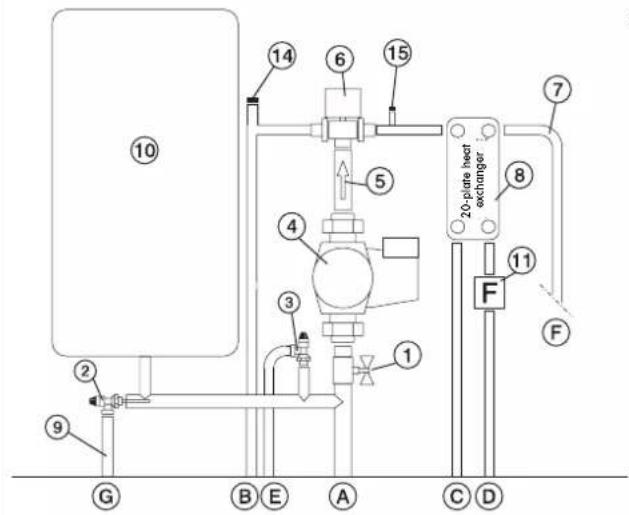

Componenti KIT 6

10 14 6 15 5 7 4 3 2 1 20-plate heat exchanger 8 11 F 9 G B E A C D F

Regulator and manometer (included in the kit)

Diagram showing three labeled electrical connections: a switch, a bulb, and a meter with a terminal.

The sales codes are in brackets ( )

1

1' Ball Valve

2 Thermal Relief Valve (72940)

3 Pressure Relief Valve (284220)

4 Circulator (219660)

5 Fittings with 1' Check Valve (284180)

6 3/4" Male 3-way Solenoid Valve (283690)

7 Fittings

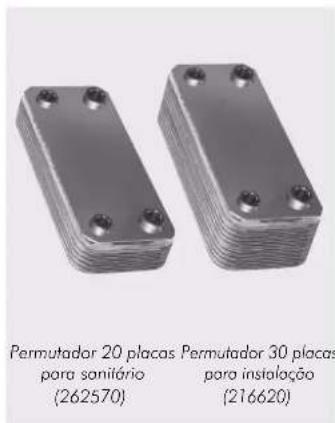

8 20-plate Heat Exchanger for hot sanitary water production (284300)

9 Temperature Relief Valve Nozzle

10 Closed Expansion Tank (283680)

11 Flow Switch (220830)

12 12 " Thermometer Well + Sensor (175960)

13 Electronic Regulator (220780)

14 3/8" Automatic Relief Valve (284150)

15 1/4" Manual Relief Valve (284170)

16 Manometer (269590)

A

Fireplace Return

B System Return

C Fireplace Return

D Cold Sanitary Water

E Pressure Relief Valve

F Hot Sanitary Water

G Temperature Relief Valve

Electrical Connections

Fuse Display 20 - 80°C Valve Setting OFF ON Enable Disable Acoustic Alarm Power Supply 230 Vac Circulator enabled Overheating alarm 3-way valve 20 - 80°C Circulator Setting Sensor (insert in the appropriate well) Flow Switch Attention: Connect the normally closed contact 3-way valve

SELECTOR FUNCTIONS

Selector: OFF Everything is switched off

Selector: MAN Driven Circulator

Valve is set

Selector: AUTO Circulator is set

Valve is set

Alarm selection No acoustic signal in the

OFF position

Industrial equipment setup with pressure vessel, pipes, and control panel (no visible text or symbols)

KIT 6
code 280600

electronic regulator

IMPORTANT ADVICE REGARDING THE INSTALLATION

The connections, commissioning and verification of proper operation of the fireplace must be carried out by qualified personnel, who can implement all connections in accordance with the laws in force, particularly with Italian Law No. 46/90, apart from complying with these instructions.

Compliance with regulations regarding the earth connection is fundamental for the safety of people.

It is obligatory to install a differential circuit breaker switch before the device and the entire electrical circuit of the thermo fireplace. It is also obligatory to connect the pump, valve and metal parts of the thermo fireplace to an earthing system.

S MAN OFF AUTO 30 40 50 60 70 80 90 50° SP SS >90°C SV 20° 80°C CE RiC R ST AA

LEGEND

AA acoustic alarm switch

R way valve opening setting (KITS 1-3-5-6)

R circulators operation setting (KIT 2)

RIC internal pump setting

S MAN-OFF-AUTO selector

SP pump light

SS overheating light

ST temperature scale

SV 3-way valves light (KITS 1-3-5-6)

SV circulators setting (KIT 2)

fig. M

Technical Data
Power Supply (+15 – 10%) Vac 230
Degree of protection IP 40
Min/Max Room Temperature °C 0 to+50
Sensor range m 1,2
Thermometer °C 30 to 90
Maximum contact rating of the circulator W 400
Maximum contact rating of the 3-way valve W	250
Fuse mA	500

The electric control regulator allows you to monitor the operating conditions and is equipped with:

- MAN-OFF-AUTO selector (S)

- temperature scale (ST)

- acoustic alarm (AA)

- 3-way valve opening setting (R) (KIT1-3)

- circulators operation setting (R) (KIT2)

- internal pump setting (RIC)

- 3-way valve light (SV) (KIT1-KIT3)

- circulators setting light (SV) (KIT2)

- overheating pump (SS)

- pump light (SP)

Operation

- Control device:

- Thermometer

- Protection device

(acoustic alarm system):

• Acoustic alarm (AA)

• Overheating alarm (SS)

This system intervenes when the water temperature exceeds 90^ C and warns the user to stop adding fuel.

The acoustic alarm can be disabled from the switch (AA).

However, the alarm remains enabled by means of the overheating light (SS).

To restore the initial settings, the switch (AA) must be enabled after the water temperature in the thermo fireplace has cooled down.

- Power supply device

(circulation system):

• MAN-OFF-AUTO selector (S)

- Pump light (SP)

The pump remains on when in manual mode and off when in

OFF mode. When in AUTO mode, the pump is activated by the system when the desired temperature is reached, by means of the internal setting (RIC), which ranges from 20 to 80^ (this is pre-set at 20^ ).

- Operation device (setting system):

• 3-way valve opening setting (R)

• 3-way valve operating light (SV)

When the fluid reaches the temperature set through the regulator, the 3-way valve diverts the fluid to the radiators and the operating light (SV) goes on.

When the temperature of the fluid drops below the set value, the system opens the electrical circuit and the 3-way valve bypasses the fluid directly to the thermo fireplace.

Attention:

During normal operation check that the warning lights (SV) and (SP) are lit.

Positioning

The electronic regulator must be installed close to the thermo fireplace. The sensor of the operation, protection and control devices must be placed directly on the thermo fireplace or at most on the flow pipe, no more than 5 cm away from the thermo fireplace and in any case before any intercepting device.

The sensor must be immersed in the well.

Installation

The power supply must be disconnected from the mains and the AUTO-OFF-MAN selector (S) must be in the OFF position when all these operations are carried out.

Follow this procedure to install the electronic regulator correctly: loosen the fastening screw, remove the cover and fasten it in place against the wall with the dowels supplied.

Then make the connections, paying utmost attention to the wiring diagram and pass the wires through ducts that are in conformity with the regulations in force. Put the cover back in place and tighten the screw.

Connect the brown wire (phase) and blue wire (neutral) of the 3-way

Valve, respectively, to terminals 5 and 6 of the regulator.

Connect the yellow/green wire to the earth.

Follow the assembly instructions contained in the package to connect the regulator to the system properly.

ELECTRONIC REGULATOR (Optional)

This lets you monitor the operating conditions and is equipped with:

• MAN-OFF-AUTO selector
• temperature scale
• acoustic alarm
• 3-way valve opening setting
• internal pump setting
• pump light
• 3-way valve light
• overheating light

Front view of a white electronic device with control panel and indicator lights (no visible text or symbols)

Electronic Regulator (220780)

HEAT EXCHANGER 20-PLATE FOR SANITARY WATER (Optional)

This is a very simple and inexpensive device with guaranteed performance that produces 13-14 litres of hot water per minute according to the power plant.

It is easily installed on the flow pipe to the radiators, in the most suitable position according to the layout of the system.

Alternatively, it can be purchased as part of installation KITS 1/3/6 offered by EDILKAMIN. This has the great advantage of being removed for maintenance or replacement without affecting the thermo fireplace.

cold water from the mains hot sanitary water hot water from the thermo fireplace return water to the thermo fireplace

The electronic regulator and the plate exchanger are included in the installation KITS (supplied as optional extras)

EXCHANGER 3-WAY (optional)

It produces hot water for a domestic circuit and a secondary circuit (radiators), excluding, with respect to KIT 3, use of 3-way valve and a plate heat exchanger.

cold water system hot exchanger water cold sanitary water

Three different types of industrial pressure relief valves (no text or labels visible)

Valves Kit (421600) consisting of: automatic air relief valve, 1.5 bar safety valve, 90 °C thermal relief valve

Close-up of a metallic T-shaped valve with coiled cable, no visible text or symbols

1 " 3-way valve (143330) to set the water flow to the system

White electronic device with control panel and wiring (no visible text or symbols)

Electronic Regulator (220780)

Mechanical sensor device with black housing and blue cable (no visible text or symbols)

Flow Switch (220830)

Close-up of a mechanical pump or motor component (no visible text or symbols)

Circulator UPS 25-50 code 219660 UPS 25-60 code 238270

Two metallic rectangular electronic components with four mounting holes (no text or symbols visible)

20-plate Heat 30-plate Heat Exchanger for sanitary water (262570) Exchanger for sanitary water (216620)

Black rectangular electronic component with three cylindrical ports and a labeled scale (no readable text or symbols)

Exchanger 3-way code 627780

Roaster Acquatondo 22 code 234560 Acquatondo 29 code 236710 Acquatondo 29 prismatic code 241090

Madame, Monsieur,

DÉCLARATION DE CONFORMITÉ

2006/95/CEE - Directive Basse Tension

Close-up of a vertical metallic object with a coiled spring and handle, possibly a valve or connector (no visible text or symbols)

OUI

SEULES LES THERMOCHEMINÉES AVEC SERPENTIN ACTIONNÉ PAR UNE SOUPAPE DE DÉCHARGE THERMIQUE PEUVENT ÊTRE INSTALLÉS SUR UN SYSTÈME À VASE FERMÉ

Exterior view of a portable stove with visible flames and labeled components (no text or symbols on main subject)

BadShir 100% 100% Goodwill Goodwill is the best and it's not goodwill. It is goodwill is the best and it's not goodwill is the best and it's not goodwill is the best and it's not goodwill is the best and it's not goodwill is the best and it's not goodwill is the best and it's not goodwill is the best and it's not goodwill is the best and it's not goodwill is the best and it's not goodwill is the best and it's not

Technical line drawing of a mechanical assembly with no visible text or symbols

3 45° 45°

NON

fig.A

INSTRUCTIONS POUR L'INSTALLATION ET L'UTILISATION

Monobloc

Close-up of a mechanical component with labeled parts A and B, showing internal structure and directional arrows (no text or symbols beyond labels)

fig. 2

fig. 3

EXEMPLE DE SYSTÈME HYDRAULIQUE POUR THERMOCHEMINÉE AVEC PRODUCTION D'EAU CHAUDE SANITAIRE AVEC UTILISATION DU

KIT 1

Diagram of an analog multimeter with labeled parts 12 and 13, showing terminal connections and a cable.

Industrial piping system with valves and control panel (no visible text or labels)

KIT 1
code 261880

EXEMPLE DE SYSTÈME HYDRAULIQUE POUR THERMOCHEMINÉE SANS PRODUCTION D'EAU CHAUDE SANITAIRE + CHAUDIÈRE MURALE AVEC UTILISATION DU

KIT 2

AF: Eau Froide

CA: Chaudière murale

Technical diagram of a mechanical or hydraulic system with labeled components and connections

Industrial piping system with valves and control panel (no visible text or symbols)

KIT 2
code 261890

EXEMPLE DE SYSTÈME HYDRAULIQUE POUR THERMOCHEMINÉE AVEC PRODUCTION D'EAU CHAUDE SANITAIRE + CHAUDIÈRE MURALE AVEC UTILISATION DU

KIT 3

    CA --> NC
    NC --> P
    P --> VST
    VST --> VSP
    VSP --> VST

    Collecteur --> MI
    Collecteur --> RA
    Collecteur --> RI

    style Collecteur fill:#f9f,stroke:#333,stroke-width:2px
    style Collecteur fill:#ccf,stroke:#333,stroke-width:2px

CA: Chaudière murale

Industrial piping system with valves and valves mounted on a metal frame (no visible text or labels)

KIT 3
code 261900

EXEMPLE DE SYSTÈME HYDRAULIQUE POUR THERMOCHEMINÉE AVEC PRODUCTION D'EAU CHAUDE SANITAIRE + CHAUDIÈRE MURALE AVEC UTILISATION DU KIT N3

CA: Chaudière murale

Technical diagram of a heat exchanger system with numbered components and labeled circuit breaker

Pure electrical circuit lines without any symbols

KIT N3
code 627690

EXEMPLE DE SYSTÈME HYDRAULIQUE POUR THERMOCHEMINÉE AVEC PRODUCTION DEAU CHAUBE SANITAIRE + CHAUDIÈRE MURALE AVEC UTILISATION DU

KIT N3 BIS

CA Chaudière murale

Composants KIT N3 BIS

Technical diagram of a gas turbine or pump system with numbered components and labeled parts

Pure electrical circuit lines without any symbols

KIT N3 BIS
code 627860

EXEMPLE DE SYSTÈME HYDRAULIQUE POUR THERMOCHEMINÉE AVEC PRODUCTION DEAU CHAUBE SANITAIRE EN ACCUMULATION + CHAUDIÈRE MURALE AVEC UTILISATION D

IDROKIT

C: Charge/ Compensation

C: Charge/ Compensation

Industrial piping and valve assembly (no visible text or symbols)

KIT 5
code 280590

EXEMPLE DE SYSTÈME HYDRAULIQUE POUR THERMOCHEMINÉE AVEC PRODUCTION D'EAU CHAUDE SANITAIRE AVEC UTILISATION DU KIT 6

C: Charge/Compensation

Diagram showing three labeled components of an electrical circuit with numbered parts and connections

Industrial equipment setup with pressure vessel, pipes, and control panel (no visible text or symbols)

KIT 6
code 280600

SS voyant surchauffe

Front view of a white electronic device with control panel and rotary dial (no visible text or symbols)

Three different industrial valve components shown in grayscale, no text or symbols visible

Close-up of a metallic T-shaped valve with coiled cable, no visible text or symbols

White portable electronic device with control panel and antenna (no visible text or symbols)

Close-up of a mechanical sensor or controller with a black top and black base, connected by a black cable (no visible text or symbols)

Fluxostat (220830)

Close-up of a mechanical pump or motor component (no visible text or symbols)

Circulateur UPS 25-50 code 219660 UPS 25-60 code 238270

Two metallic rectangular electronic components with four mounting holes (no text or symbols visible)

Black rectangular electronic device with two ports and a label showing '7' and '7', no readable text or symbols beyond the markings.

pored 75 21 70 74 9 63

PRISMÁTICO 29

Ø25 1,5 64 54 136,5 19

Exterior view of a black portable stove with visible flames and labeled components (no text or symbols on main subject)

Baobride Bakar Bakar Bakar Bakar Bakar Bakar Bakar Bakar Bakar Bakar Bakar Bakar Bakar Bakar Bakar Bakar Bakar Bakar Bakar Bakar Bakar Bakar Bakar Bakar Bakar Bakur Bakur Bakur Bakur Bakur Bakur Bakur Bakur Bakur Bakur Bakur Bakur Bakur Bakur Bakur Bakur Bakur Bakur Bakur Bakur Bakur Bakur Bakur Bakur Bakur Bakpur Bakpur Bakpur Bakpur Bakpur Bakpur Bakpur Bakpur Bakpur Bakpur Bakpur Bakpur Bakpur Bakpur Bakpur Bakpur Bakpur Bakpur Bakpur Bakpur Bakpur Bakpur Bakpur Bakpur Bakpur Bakour Bakour Bakour Bakour Bakour Bakour Bakour Bakour Bakour Bakour Bakour Bakour Bakour Bakour Bakour Bakour Bakour Bakour Bakour Bakour

Technical line drawing of a mechanical assembly with no visible text or symbols

3 45° 45°

Technical diagram showing a mechanical assembly with red prohibition signs and a circular symbol labeled 'No'.

Close-up of a mechanical component with labeled parts A and B, showing internal structure and directional arrows (no text or symbols beyond labels)

fig. 2

fig. 3

Industrial piping system with valves and control panel (no visible text or labels)

KIT 1 cod. 261880

PARA EL CORRECTO FUNCIONAMIENTO ES NECESARIO CRUZAR LOS TUBOS DE ENVÍO Y DE RETORNO

Technical diagram of a mechanical or hydraulic system with labeled components and connections

Diagram of an electronic device with labeled components and connection points

Industrial piping system with valves and a control panel (no visible text or symbols)

KIT 2
cod. 261890

Industrial piping system with valves and valves mounted on a metal frame (no visible text or labels)

KIT 3
cod. 261900

Technical diagram of a heat exchanger system with numbered components and labeled pasacables

Pure mechanical piping diagram without any text, numbers, or symbols

KIT N3
cod. 627690

INT: interruptor general

TCN: Termostato de contacto

Technical diagram of a gas processing system with numbered components and labeled parts including 'posocables'

Pure electrical circuit lines without any symbols

KIT N3 BIS
cod. 627860

Industrial pressure pump unit with control panel and piping (no visible text or symbols)

KIT 5
cod. 280590

Industrial equipment setup with pipes and tanks, no visible text or symbols

Front view of a white electronic device with control panel and indicator lights (no visible text or symbols)

Three different types of industrial valve fittings (no text or symbols visible)

Close-up of a metallic T-shaped pipe fitting with coiled cable, no visible text or symbols

White handheld electronic device with control panel and cable (no visible text or symbols)

Mechanical sensor device with black housing and curved cable (no visible text or symbols)

Fluxostato (220830)

Close-up of a mechanical pump or motor component (no visible text or symbols)

Circulador UPS 25-50 cod. 219660 UPS 25-60 cod. 238270

Two metallic rectangular electronic components with four mounting holes (no text or symbols visible)

Black rectangular electronic device with three ports and a label showing '7' (no readable text or symbols beyond basic markings)

Simple line drawing of a wire and a plug, no text or symbols present

Rustidor Acquatondo 22 cod. 234560 Acquatondo 29 cod. 236710 Acquatondo 29 prismático cod. 241090

Close-up of a vertical metallic fixture with a handle and coiled cable (no visible text or symbols)

Exterior view of a portable stove with visible flames and a coiled cable, plus a close-up of its internal structure (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

3 45° 45°

NEIN

Close-up of a mechanical component with labeled points A and B, showing internal structure and directional arrows (no text or symbols beyond labels)

Abb. 2 Abb. 3

Industrial piping system with valves and control panel (no visible text or labels)

Industrial piping system with valves and a control panel (no visible text or symbols)

Industrial piping system with valves and valves mounted on a metal frame (no visible text or labels)

Pure mechanical piping diagram without any text, numbers, or symbols

Pure electrical circuit lines without any symbols

Diagram showing three labeled components of an electronic device with numbered parts and connections

Industrial pressure vessel with control panel and piping (no visible text or symbols)

Industrial equipment setup with pressure vessel and piping (no visible text or symbols)

Front view of a control panel with buttons and dials (no visible text or symbols)

Three industrial valve components shown from different angles (no text or labels visible)

Close-up of a metallic pressure sensor component with coiled cable (no visible text or symbols)

White electronic device with control panel and antenna, no visible text or symbols

Mechanical sensor device with black housing and blue cable (no visible text or symbols)

Close-up of a mechanical pump or motor component (no visible text or symbols)

Two metallic rectangular electronic components with four mounting holes (no text or symbols visible)

Black rectangular electronic component with three cylindrical ports and a small labeled section (no readable text or symbols)

Exterior view of a black portable stove with visible flames and labeled components (no text or symbols on main subject)

Baptiste 1995-03-20 Product: BAPTISTE Product name: BAPTISTE Product type: BAPTISTE Product description: BAPTISTE Product quality: BAPTISTE Product design: BAPTISTE Product type: BAPTISTE Product description: BAPTISTE Product quality: BAPTISTE Product description: BAPTISTE Product quality: BAPTISTE Product description: BAPTISTE Product quality: BAPTISTE Product description: BAPTISTE Product quality: BAPTISTE Product description: BAPTISTE Product quality: BAPTISTE Product description: BAPTISTE Product quality: BAPTISTE Product description: BAPTISTE Product quality: BAPTISTA Product description: BAPTISTA Product quality: BAPTISTA Product description: BAPTISTA Product quality: BAPTISTA Product description: BAPTISTA Product quality: BAPTISTA Product description: BAPTISTA Product quality: BAPTISTA Product description: BAPTISTA Product quality: BAPTISTA Product description: BAPTISTA Product quality: BAPTISTA Product description: BAPTISTA Product quality: BAPTISTA Product description: BAPTISTA Production许可证 BY: 10000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000

Rookgaskanalen en schoorsteen

Technical line drawing of a mechanical assembly with no visible text or symbols

3 45° 45°

NEEN

INSTRUCTIES VOOR INSTALLATIE EN GEBRUIK

Monoblok

Close-up of a mechanical component with labeled points A and B, showing internal structure and arrows indicating direction (no text or symbols beyond labels)

Afb. 2 Afb. 3

VOORBEELD VAN EEN HYDRAULISCHE INSTALLATIE VOOR INBOUWHAARDEN MET PRODUCTIE VAN WARM TAPWATER MET GEBRUIK VAN PAKKEIT

ACS: Warm tapwater

AF: Koud water

Industrial piping system with valves and control panel (no visible text or symbols)

PAKKET 1
cod. 261880

VOOR EEN CORRECTE FUNCTIONERING MOET U DE TOEVOER- EN TERUGVOERLEIDINGEN LATEN KRUISEN

VOORBEELD VAN EEN HYDRAULISCHE INSTALLATIE VOOR INBOUWHAARD ZONDER PRODUCTIE VAN WARM TAPWATER+WANDKETEL MET GEBRUIK VAN PAKKEI 2

Industrial piping system with valves and a control panel (no visible text or symbols)

PAKKET 2 cod. 261890

VOOR EEN CORRECTE FUNCTIONERING MOET U DE TOEVOER- EN TERUGVOERLEIDINGEN LATEN KRUISEN

VOORBEELD VAN EEN HYDRAULISCHE INSTALLATIE VOOR INBOUWHAARD MET PRODUCTIE VAN WARM TAPWATER+WANDKETEL MET GEBRUIK VAN

PAKKET 3

ACS: Warm tapwater

AF: Koud water

CA: Wandketel

P: Pomp (circulator)

RA: Radiators

E Koud tapwater 1/2"

F Warm tapwater ½

Industrial piping system with valves and valves mounted on a metal frame (no visible text or symbols)

PAKKET 3 cod. 261900

VOOR EEN CORRECTE FUNCTIONERING MOET U DE TOEVOER- EN TERUGVOERLEIDINGEN LATEN KRUISEN

VOORBEELD VAN EEN HYDRAULISCHE INSTALLATIE VOOR INBOUWHAARD MET PRODUCTIE VAN WARM TAPWATER+WANDKETEL MET GEBRUIK VAN PAKKET N3

Pure electrical circuit lines without any symbols

PAKKET N3 cod. 627690

VOOR EEN CORRECTE FUNCTIONERING MOET U DE TOEVOER- EN TERUGVOERLEIDINGEN LATEN KRUISEN

VOORBEELD VAN EEN HYDRAULISCHE INSTALLATIE VOOR INBOUWHAARD MET PRODUCTIE VAN WARM TAPWATER+WANDKETEL MET GEBRUIK VAN PAKRET N3 BIS

CA Muurketel

P2 Pomp (circulator)

P1: Pomp primair circuit

Technical diagram of a gasifier system with numbered components and labeled parts including Kabelgelaider

Pure electrical circuit lines without any symbols

PAKKET N3 BIS cod. 627860

VOOR EEN CORRECTE FUNCTIONERING MOET U DE TOEVOER- EN TERUGVOERLEIDINGEN LATEN KRUISEN

VOORBEELD VAN EEN HYDRAULISCHE INSTALLATIE VOOR INBOUWHAARD MET PRODUCTIE EN OPSLAG VAN WARM TAPWATER + WANDKETEL MET GEBRUIK VAN IDROKH

ACS: Warm tapwater

AF: Koud water

P: Pomp (circulator)

RA: Radiators

RI: Retour installatie

S: Afvoer

2 warm tapwater gasketel

P: Pomp (circulator)

RA: Radiators

Industrial equipment setup with pressure pump and piping (no visible text or symbols)

PAKKET 5 cod. 280590

EVOORBEELD VAN EEN HYDRAULISCHE INSTALLATIE VOOR INBOUWHAARD MET PRODUCTIE VAN WARM TAPWATER MET GEBRUIK VAN PAKKEI 6

ACS: Warm tapwater

AF: Koud water

P: Pomp (circulator)

RA: Radiators

Industrial equipment setup with pressure vessel, tubing, and control panel (no visible text or symbols)

PAKKET 6 cod. 280600

R reg. opening driewegklep (KIT 1 - 3 - 5 - 6)

R reg. werking circulators (PAKKET 2)

RIC interne afstelling pomp

S keuzeschakelaar MAN-OFF-AUTO

SP controlelamp pomp

Front view of a white electronic device with indicator lights and a rotary dial (no visible text or symbols)

Three industrial valve components shown from different angles (no text or labels visible)

Close-up of a metallic T-shaped pipe fitting with coiled cable, no visible text or symbols

White laboratory instrument with control panel and probe tube (no visible text or labels)

Mechanical device with a black sensor and coiled cable, no visible text or symbols

Debietregelaar (220830)

Close-up of a mechanical pump or motor component (no visible text or symbols)

Circulator UPS 25-50 code 219660 UPS 25-60 code 238270

Two metallic rectangular electronic components with four mounting holes (no text or symbols visible)

Black rectangular electronic device with three cylindrical ports and a labeled scale (no visible text or symbols)

3-wegs warmteuitwisselaar code 627780

Simple line drawing of a resistor and a plug (no text or symbols)

Spit Acquatondo 22 code 234560 Acquatondo 29 code 236710 Acquatondo 29 primavorming code 241090

SFERA 22 (vidro redondo)

Ø22 1 modelo: • vaso aberto 91 61 57 138,5 19 76 110 parete 70 74 9 53 76 27

PRISMATICO 29

Ø25 1.5 64 54 19 138.5

Exterior view of a portable industrial machine with visible internal components and labeled ports (E), no text or symbols present.

CD4013 © 2013 CD4013 In the first recorded record for CD4013 (which is not known as the CD4013) and in the previous record for CD4013 (which is not known as the CD4013). The CD4013 has been designed to be a type of audio signal. The CD4013 is designed to be a type of audio signal. The CD4013 is designed to be a type of audio signal. The CD4013 is designed to be a type of audio signal. The CD4013 is designed to be a type of audio signal. The CD4013 is designed to be a type of audio signal. The CD4013 is designed to be a type of audio signal. The CD4013 is designed to be an audio signal. The CD4013 is designed to be an audio signal. The CD4013 is designed to be an audio signal. The CD4013 is designed to be an audio signal. The CD4013 is designed to be an audio signal. The CD4013 is designed to be an audio signal. The CD4013 is designed to be an audio signal. The CD4013 is designed to be an audio Signal. The CD4013 is designed to be an audio Signal. The CD4013 is designed to be an audio Signal. The CD4013 is designed to be an audio Signal. The CD4013 is designed to be an audio Signal. The CD4013 is designed to be an audio Signal. The CD4013 is designed to be an audio Signal. The CD4013 is designed to be an audio Signal. <|caption_end|> <|content_start|>CD4013 © 2013 CD4013 in the first recorded record for CD4013 (which is not known as the CD4013) and in the previous record for CD4013 (which is not known as the CD4013). The CD4013 has been designed to be a type of audio signal. The CD4013 is designed to be a type of audio signal. The CD4013 is designed to be a type of audio signal. The CD4758-2022 CD4758-2022 July 9, 2022 www.automac.com MDR 8 USA

Fumeiras e cones da estufa

Technical line drawing of a mechanical assembly with no visible text or symbols

3 45° 45°

NÃO

Monobloco

Close-up of a mechanical component with labeled parts A and B, showing internal structure and directional arrows (no text or symbols beyond labels)

fig. 2
fig. 3

Industrial piping system mounted on a metal frame, no visible text or symbols

KIT 1
cód. 261880

Industrial piping system mounted on a wall-mounted device (no visible text or symbols)

KIT 2
cód. 261890

Industrial piping system with valves and valves mounted on a metal frame (no visible text or symbols)

KIT 3
cód. 261900

INT: Interruptor geral

Technical diagram of a mechanical device with numbered components and labeled passacabes connection

Technical diagram of a mechanical or electrical device with pipes, valves, and a central component (no visible text or labels)

KIT N3
cód. 627690

INT Interruptor geral

Technical diagram of a powertrain system with labeled components and wiring connections

Technical diagram of a mechanical piping system with valves, valves, and control panel (no text or labels)

KIT N3 BIS
cód. 627860

Industrial piping and valve assembly (no visible text or symbols)

KIT 5
cód. 280590

Industrial equipment setup with pressure regulator and piping (no visible text or symbols)

KIT 6
cód. 280600

Front panel of an electronic device with labeled buttons and indicators, including CE and control symbols.

Three metallic pressure relief valve components shown from different angles (no text or labels visible)

Close-up of a metallic valve fitting with coiled cable, no visible text or symbols

Close-up of a black and white electronic device with a coiled cable, labeled 'Fluxostato (220830)' below (no other text or symbols visible)

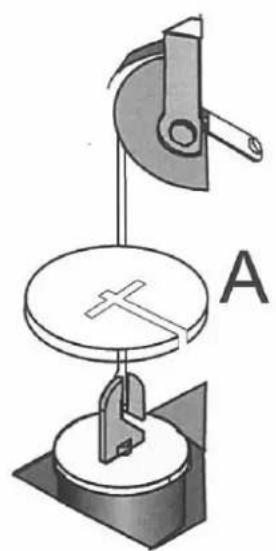

INSTRUCTIONS FOR CORRECTLY BALANCING THE DOOR (calibration of the counterweight only increasing)

• Insert the compensation washer (A) onto the cable
• Position the compensation washer (A) supplied, necessary for balancing the door
• Carefully insert the washer into the housing of the counterweight hook
  NOTE: Before installing the covering, verify that the connections, controls and all moving parts are functioning correctly. Verification must be carried out after the fireplace has been on for a couple of hours, before covering the fireplace, in case intervention is necessary.

Technical illustration of a mechanical device with cylindrical and rectangular components (no text or symbols visible)

Diagram of a mechanical device with a lever and base, labeled A (no text or symbols on the diagram itself)

Diagram of a mechanical setup with a stand and base, labeled A (no text or symbols present)
