USER MANUAL MS 4580 Orbegozo

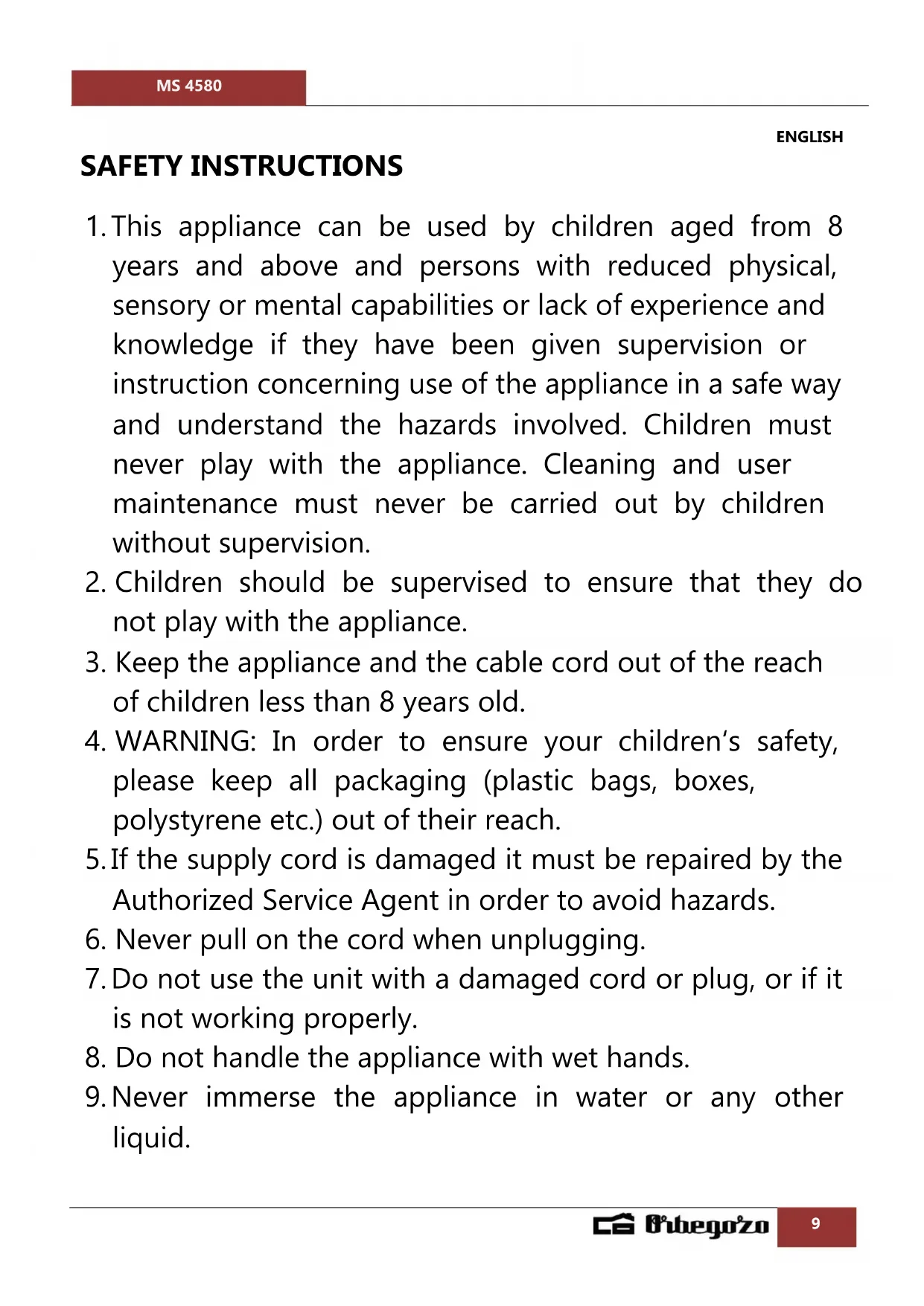

ENGLISH SAFETY INSTRUCTIONS

1. This appliance can be used by children aged from 8

years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children must never play with the appliance. Cleaning and user maintenance must never be carried out by children without supervision.

2. Children should be supervised to ensure that they do

not play with the appliance.

3. Keep the appliance and the cable cord out of the reach

of children less than 8 years old.

4. WARNING: In order to ensure your children‘s safety,

please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.

5. If the supply cord is damaged it must be repaired by the

Authorized Service Agent in order to avoid hazards.

6. Never pull on the cord when unplugging.

7. Do not use the unit with a damaged cord or plug, or if it

is not working properly.

8. Do not handle the appliance with wet hands.

9. Never immerse the appliance in water or any other

10. Make sure the appliance has been unplugged before

11. This appliance must be installed following the national

regulations for electrical installations.

12. This appliance is for household use only.

13. In case you need a copy of the instruction manual, you

can find it in www.orbegozo.com.

14. WARNING: In case of misuse, there is a risk of possible

injury. The cutting blade is extremely sharp. Please handle it with great care. CAUTION: Do not touch the blade while it is turning: it is dangerous. Disconnect this appliance before changing attachments or moving parts. Always use the food fence supplied to push the meat towards the blade, unless the meat’s size and shape prevent this. Always place the appliance on a flat surface. Do not cut very hard food such as frozen meat or meat with bones. This appliance should be used with the backing plate in position, unless the food’s shape and size should prevent this. Any other servicing should be performed by an authorized service representativeMS 4580

This appliance is not for professional use. You should follow the requested breaks. Failure to follow this instruction carefully may result in damage to the motor. Please refer to the rating label for the maximum continuous usage timer (KB/MAX. 5 minutes where 5 is maximum usage time). The breaks should last at least 10 minutes.

1. Unwrap the power cord and plug it to the mains. Place the meat slicer on a clean, dry and flat surface.

2. Move forward and back the sliding meat table to check it works correctly.

3. Place the pusher handle on slicing meat table.

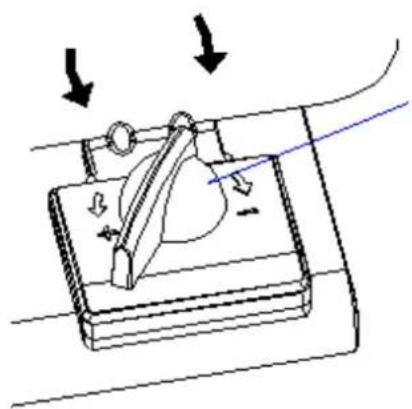

4. Set desire thickness, turning thickness selector to left for thicker and to right for less thickness. The

thickness range goes from 0mm to 15mm.

1. Plug meat slicer to the mains.

2. You can select continuous speed placing the speed switch in ON.

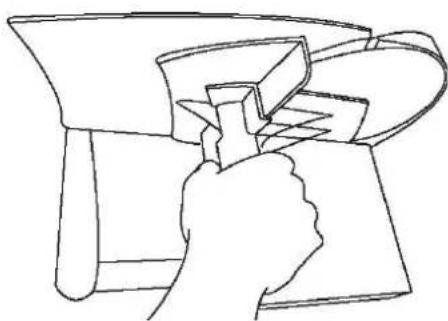

3. Place the food to be cut in slicing meat table and press it with

pusher handle until the thickness guide. The maxim size of the food should be 110x110x90mm.

4. Turn on the meat slicer.

5. When the blade is turning, push slicing meat table to the blade.

Move the table to back and forwarder constantly. Keep the food softly pressed against thickness guide in each slice that you cut.

6. It is not recommended to keep working the slicer for more than 5MS 4580

minutes, the motor could be overheat. After 5 minutes of working turn it off and let it at rest for 30 minutes at least to cool down the motor.

7. If during the cutting, speed of blade reduces, wait until the food warms a bit, it is very frozen. After

several minutes you can keep cutting.

8. When you stop cutting, unplug the slicer. For security and protection of the blade

CLEANING UNPLUG MEAT SLICER FROM MAINS. You can disassemble pusher handle and blade for cleaning. Clean them with soft cloth or sponge and soap or spray cleaner. Rinse and dry them. You can clean the other parts of slicer with damp and soft cloth. Dry it well after. - Never use a metal scouring pad in any part of slicer. Don’t clean any part of appliance in dishwasher. - Motor is inside the appliance. Never immerse in water. Motor doesn’t need oil. Pusher handle: remove it from sliding meat table. Sliding meat table: clean it when you remove pusher handle. Stainless steel blade: unplug the appliance, lift the tab, and turn it clockwise. Then remove blade carefully not to cut yourself. After cleaning, lock the blade in place and turn the tab counterclockwise. Note: always leave thickness guide aligned with blade when storing it for safety and protection. Non-slip feet: clean them with any anti-grease cleaner as alcohol o window cleaner. STORAGE - Align thickness guide with blade. - Wrap the power cord.

USE OF SLICER FOR BETTER RESULT

- To cut thin slice of meat, freeze it for 2 or 4 hours before cutting. - Meat should be boned like fruit. - Food with irregular texture as fish or thin fillet is usually difficult to cut. Freeze them for 2 or 4 hours before cutting. - For conserved food, you can cut quickly pickles, cucumbers, onions or other fruits or vegetables with slicer to make delicious scrambled, apple pies, etc.

ROASTED MEAT: BEEF, PORK, LAMB, HAM

- When you cut the roasted, warm and boned meat, remove from the oven and let cool down 15 or 20 minutes before cutting. It will release nature juices and slice will be cut uniformly without falling apart. - If it were necessary, give meat a size according sliding table. If meat blocks the appliance, disconnect and unplug it and remove the pieces of meat which block the appliance.

CHEESE Cool the cheese before cutting it. Cover it with plastic film once cut to keep it fresh. Before serve, let it at room temperature a bit to let it have his original flavor.MS 4580

COLD MEAT Cut the cold meat just when you are going to eat it, so it will be in better condition and will keep all its flavor. For better cutting, cool it before. Remove any plastic cover o hard wrapping before cutting. Use a constant and smooth pressure while cutting to get uniform slices.

VEGETABLES AND FRUITS

Your slicer is ready for cutting a lot of kind of vegetables and fruits included potatoes, tomatoes, carrots, cabbage, eggplant, pumpkin and cucumber. Potatoes can be cut in thick slices for stews or thin for chips. You also can cut pineapple cleanly, cut top side with a knife and the balance with slicer.

Fresh bread should be cool down a bit before cut it to get better slices. Use previous day’s bread to cut thin slice for toasts. Your slicer is ideal to cut every kind of bread, cake and fruit cake.

DISPOSAL OF OLD ELECTRICAL APPLIANCES

The European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimize the recovery and recycling of the materials they contain, and reduce the impact on human health and the environment. The crossed out “wheeled bin” symbol on the product reminds you of your obligation, that when you dispose of the appliance, it must be separately collected. Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance. DECLARATION OF CONFORMITY: This device complies with the requirements of the Low Voltage Directive 2014/35/EU and the requirements of the EMC directive 2014/30/EU. GUARANTEE This appliance is covered and is entitled to the legal guarantee in accordance with the legislation in force from the date of purchase. Keep the purchase receipt to be able to claim your right to the guarantee. To find the closest service to your location, contact through the following web link: https://orbegozo.com/asistencia-tecnica/ For any type of query, doubt or incident, you can contact us through our email shown on the main page of this manual or through our technical assistance service at https://orbegozo.com/contacto/ Orbegozo is not responsible for components and accessories that are subject to wear and tear due to use, as well as perishable compounds or those that have deteriorated due to improper use. Nor will it be held responsible if the owner has technically modified the device. Check the legal conditions on our website.MS 4580
