Product type	Electric slicer
Brand	Orbegozo
Model	MS 4570
Cutting thickness	1 mm to 15 mm
Blade	Removable stainless steel
Maximum continuous use time	5 minutes
Recommended break	At least 10 minutes
Power supply	Electric, mains plug
Adjustable speed	Yes
Use	Domestic
Cleaning	Removable blade, hand wash
Safety	Automatic stop, blade guard
Housing material	Resistant plastic
Non-slip feet	Yes

Frequently Asked Questions - MS 4570 Orbegozo

How to adjust the cutting thickness?

Turn the adjustment knob to + to increase thickness (max 15 mm) and to - to decrease (min 1 mm). Press lightly while turning.

Can I cut frozen meat?

Yes, but only boneless frozen meat. Do not cut excessively hard foods like bones.

How to clean the blade?

Unplug the appliance, remove the blade by unscrewing the bolts with a screwdriver. Clean it by hand with a soft cloth. Do not put it in the dishwasher.

What to do if the appliance does not turn on?

Check that the cord is plugged in and the switch is in the On position. If the problem persists, contact customer service.

What is the maximum continuous use time?

The appliance can operate continuously for 5 minutes. Then let it cool for at least 10 minutes.

Can I cut bread easily?

Yes, bread is suitable. It is recommended to slice sausages and cheese first, then bread for easier cleaning.

How to change the blade?

Unplug the appliance. Use a screwdriver to remove the three blade bolts, then replace the blade. Reassemble tightening well.

Is the appliance suitable for children?

This appliance can be used by children aged 8 years and older under supervision. Children must not play with the appliance.

How to store the appliance after use?

Unplug, clean and dry all parts. Set the thickness to 0 and store in a dry, safe place out of reach of children.

Is the appliance under warranty?

Refer to the warranty conditions provided with the appliance. If in doubt, contact the retailer or customer service.

USER MANUAL MS 4570 Orbegozo

Read this manual carefully before running this appliance and save it for reference in order to obtain the best results and ensure safe use.

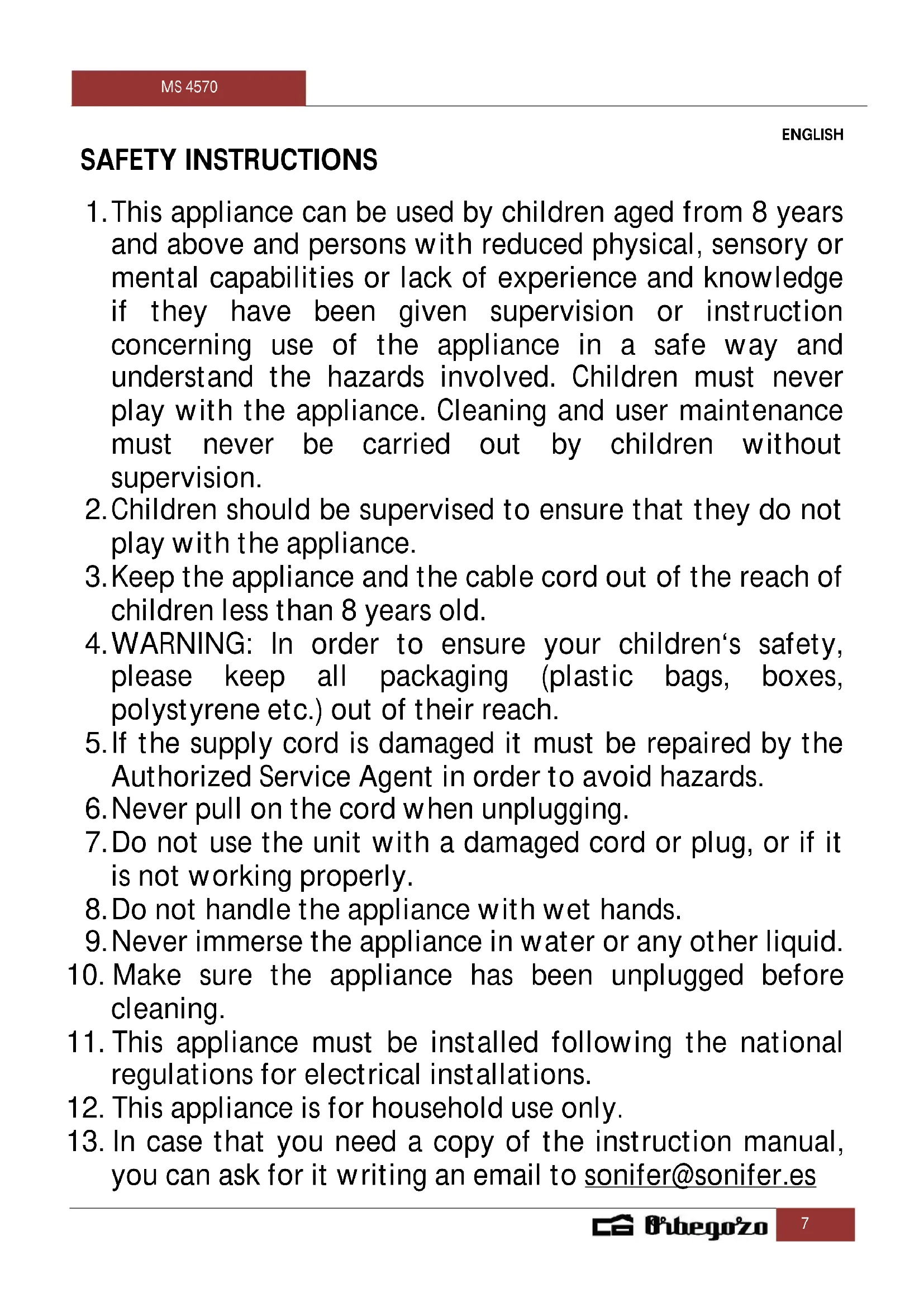

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children must never play with the appliance. Cleaning and user maintenance must never be carried out by children without supervision.
2. Children should be supervised to ensure that they do not play with the appliance.
3. Keep the appliance and the cable cord out of the reach of children less than 8 years old.
4. WARNING: In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.
5. If the supply cord is damaged it must be repaired by the Authorized Service Agent in order to avoid hazards.
6. Never pull on the cord when unplugging.
7. Do not use the unit with a damaged cord or plug, or if it is not working properly.
8. Do not handle the appliance with wet hands.
9. Never immerse the appliance in water or any other liquid.
10. Make sure the appliance has been unplugged before cleaning.
11. This appliance must be installed following the national regulations for electrical installations.
12. This appliance is for household use only.

13. In case that you need a copy of the instruction manual, you can ask for it writing an email to [e-mail]

14. WARNING: In case of misuse, there is a risk of possible injury.

15. The cutting blade is extremely sharp. Please handle it with great care.

16. CAUTION: Do not touch the blade while it is turning: it is dangerous.
17. Disconnect this appliance before changing attachments or moving parts.
18. Always use the food fence supplied to push the meat towards the blade, unless the meat's size and shape prevent this.
19. Always place the appliance on a flat surface.
20. Do not cut very hard food such as frozen meat or meat with bones.
21. This appliance should be used with the backing plate in position, unless the food's shape and size should prevent this.

1 Any other servicing should be performed by an authorized service representative

This appliance is not for professional use. You should follow the requested breaks. Failure to follow this instruction carefully may result in damage to the motor. Please refer to the rating label for the maximum continuous usage timer (KB/MAX. 5 minutes where 5 is maximum usage time). The breaks should last at least 10 minutes.

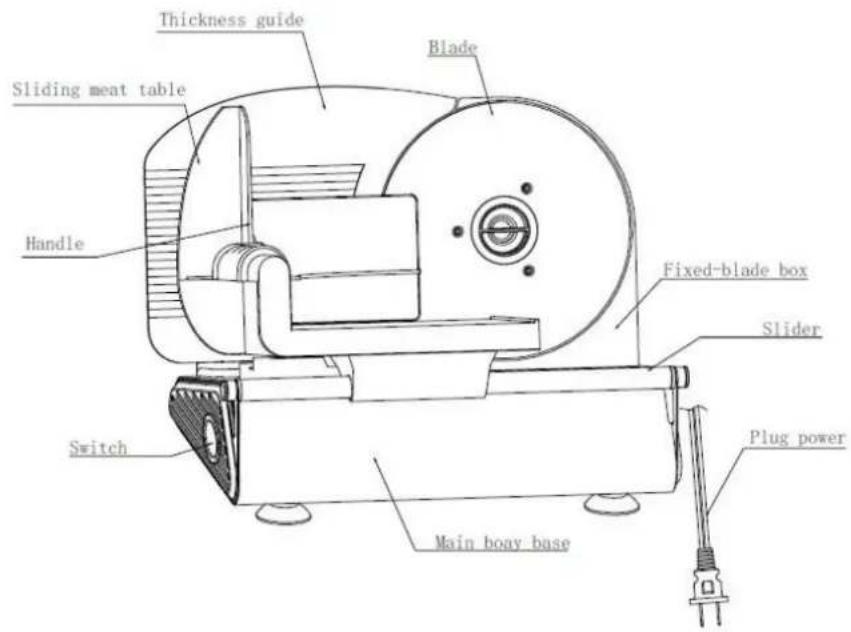

DESCRIPTION

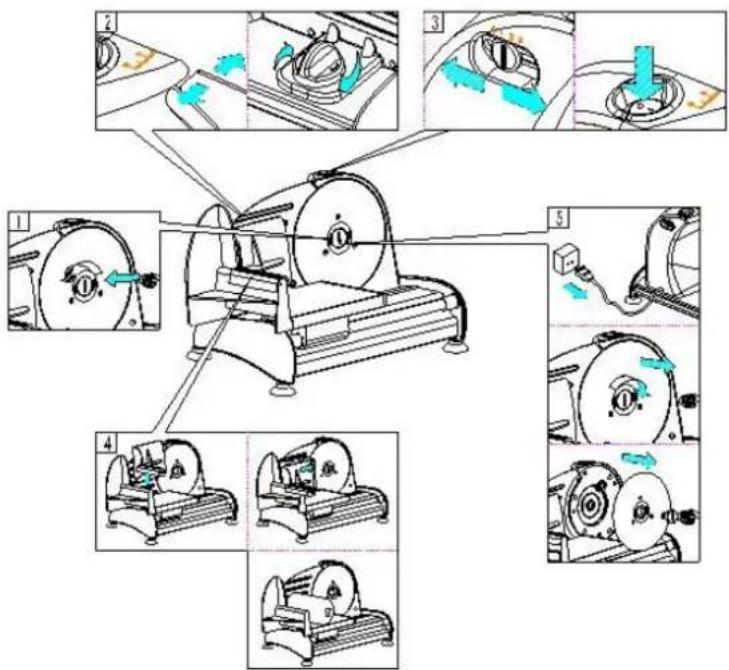

INSTRUCTIONS FOR USE ASSEMBLING

• Step 1: Assemble Blade Assembly by Blade Attachment, then anticlockwise turn Blade Assembly till it is tight. See Fig 1.

• Step 2: Turn adjusting knob to adjust the space between Slice Thickness Gauge and Blade. Press down by slight force while turning Adjusting knob. Turn Adjusting knob toward “+”, the thickness will increase. Turn Adjusting knob toward “-”, the thickness will reduce. The minimum thickness is 1 mm, the maximum thickness is 15MM. See Fig 2.

• Step 3: Put plug in outlet correctly, set gear which you want, press switch on, then the appliance start to work. See Fig 3

• Step 4: Put food on Food Tray, then push food by Food Pusher, at same time push Food Tray hardly toward arrowhead (Food Tray must back-and-forth move). Notice: Must use Food Pusher to push food, don't push food by hand, This appliance must be used with the sliding feed table and the piece holder in position unless this is not possible due to the size or shape of the food. See Fig 4.

Range of Food which can be cut: Frozen meat without bone (example beef, mutton etc.), cooked food (example bread, cheese, sausage etc.), hard vegetable without stem (example carrot, white radish, cucumber etc.).

Tip: Cut sausage and cheese first and bread last. The appliance is then easier to clean.

• Step 5: After using, turn switch off, pull plug out from outlet. Toward arrowhead remove blade by Blade Attachment (see Fig 5), and Turn knob to adjust Slice Thickness Gauge to 0. See Fig. 5

CLEANING

The switch has to be in position OFF and the appliance has to be unplugged from the power supply before cleaning the appliance.
Wipe the inside and outside of the appliance with a paper towel or a soft cloth. It should not be washed in a dishwasher.
Do not clean the inside or outside with any abrasive scouring pad or steel wool as this will damage the finish.
The blade can be removed for cleaning. To do so, use a screwdriver to loosen the three bolts on the blade and take off the blade carefully. After cleaning, install the blade with the bolts.
Do not immerse in water or any other liquid.
Dry all parts well before storage.

Disposal of old electrical appliances.

The European directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimize the recovery and recycling of the materials they contain, and reduce the impact on human health and the environment. The crossed out "wheeled bin" symbol

on the product reminds you of your obligation, that when you dispose of the appliance, it must be separately collected. Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.

DECLARATION OF CONFORMITY:

This device complies with the requirements of the Low Voltage Directive 2006/95/EC and the requirements of the EMC directive 2004/108/EC.
