HAH 65 F LB X/1 - Basket HOTPOINT - Free user manual and instructions

Product type	Extractor or recirculating hood
Brand	Hotpoint
Model	HAH 65 F LB X/1
Height (cm)	18
Width (cm)	59.8
Depth (cm)	30
Exhaust diameter (cm)	12
Power supply	220-240 V, 50 Hz
Bulb type	LED 2.5 W E14 (max.)
Number of speeds	3
Extraction capacity	Varies by model, compliant with EN/IEC 61591
Noise level	Varies with speed
Grease filter	Metallic, dishwasher safe
Charcoal filter	Replacement every 4 months (optional)
Maintenance	Monthly cleaning of grease filters and exterior with a damp cloth
Minimum cooking distance	50 cm (electric), 65 cm (gas)
Electrical protection	Main circuit breaker recommended
Safety standards	EN/IEC 60335-1, EN/IEC 60335-2-31, EN/IEC 62233
Weight (kg)	Approximately 10

Frequently Asked Questions - HAH 65 F LB X/1 HOTPOINT

What is the minimum distance between the hood and the cooking hob?

The minimum distance is 50 cm for electric hobs and 65 cm for gas or mixed hobs. Also follow the instructions of the hob manufacturer if they specify a greater distance.

How to clean the grease filters?

The metal grease filters must be cleaned once a month. Use a non-aggressive detergent, by hand or in the dishwasher at low temperature and short cycle. Washing in the dishwasher may cause discoloration but does not affect performance.

When to replace the charcoal filter?

The charcoal filter must be replaced every 4 months maximum. It cannot be cleaned or regenerated. Saturation depends on frequency of use and regularity of cleaning the grease filter.

What to do if the hood does not work?

First check that there is no power cut and that a speed has been selected. If the problem persists, unplug the hood for about 5 seconds then plug it back in. Contact customer service if the problem continues.

How to replace the LED bulb?

Unplug the appliance, make sure the bulb is cold, then remove the grid. Replace the bulb with a LED bulb of 2.5 W max, E14 base. Reassemble the grid.

Can the hood be used in recirculation (filtering) mode?

Yes, your hood is supplied ready for use in extraction mode. To use it in filtering mode, you must install an accessory kit including an active charcoal filter. Check if this kit is supplied or must be purchased.

How to adjust the extraction speed?

The hood has 3 speeds: press the OFF/speed 1 button for minimum speed, button 2 for medium speed, and button 3 for maximum speed. Use the highest speed only in case of heavy steam production.

Why is the hood noisy?

Noise can be due to an exhaust duct that is too narrow or too long, excessive bends, or dirty filters. Ensure you use the recommended duct diameter (12 cm) and clean the filters regularly.

How to electrically connect the hood?

The voltage must match that indicated on the rating plate. If a plug is present, plug it into an accessible wall socket. Otherwise, a main circuit breaker must be installed to allow complete disconnection. Call a professional.

What to do in case of malfunction or persistent odor?

First check that the filters are clean and that the charcoal filter is not saturated. If the odor persists, make sure the hood is in extraction mode or that the charcoal is recent. Contact Hotpoint customer service if necessary.

USER MANUAL HAH 65 F LB X/1 HOTPOINT

EN Instructions for use

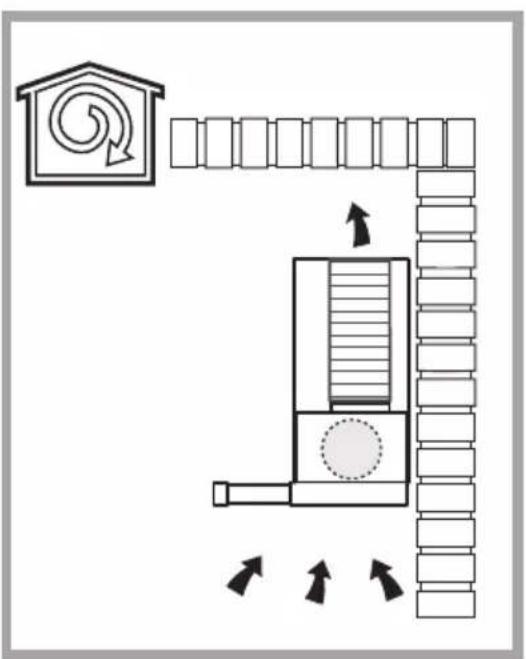

Diagram illustrating airflow or ventilation patterns in a building layout with directional arrows and structural components

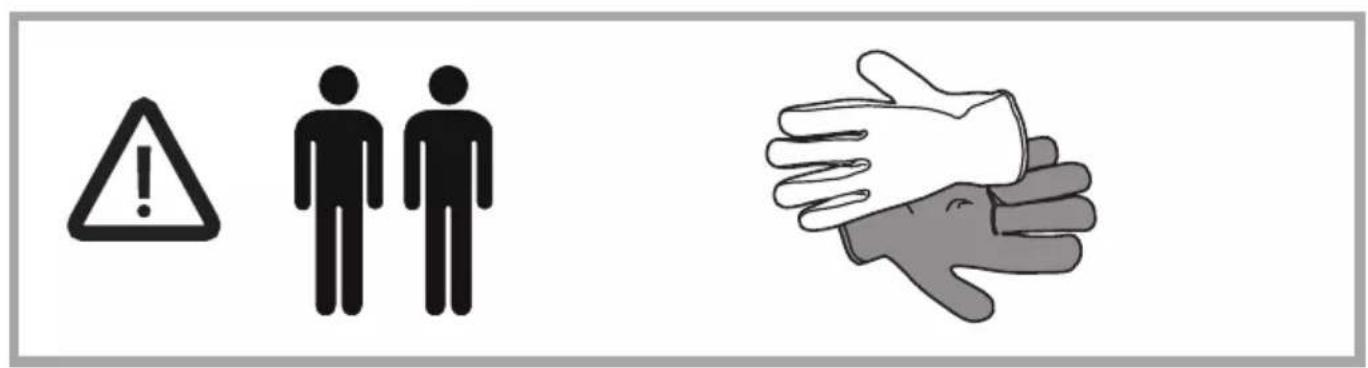

Warning symbols and hand gesture illustration, including warning triangle, human figure, and hand holding a glove

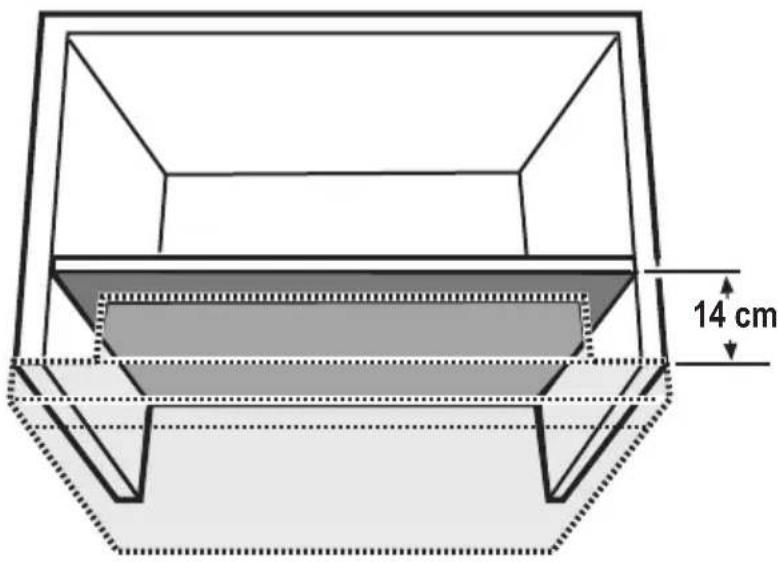

Technical diagram of a 3D object with a 14 cm height dimension标注 (no other text or symbols)

1

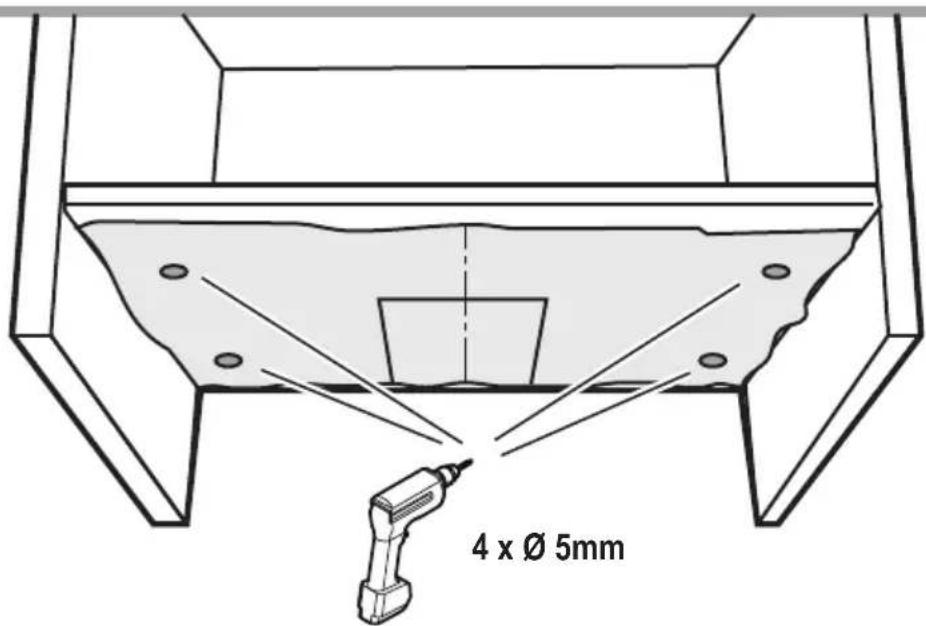

4 x Ø 5mm

2

Technical line drawing of a mechanical assembly with a central component and base (no text or symbols)

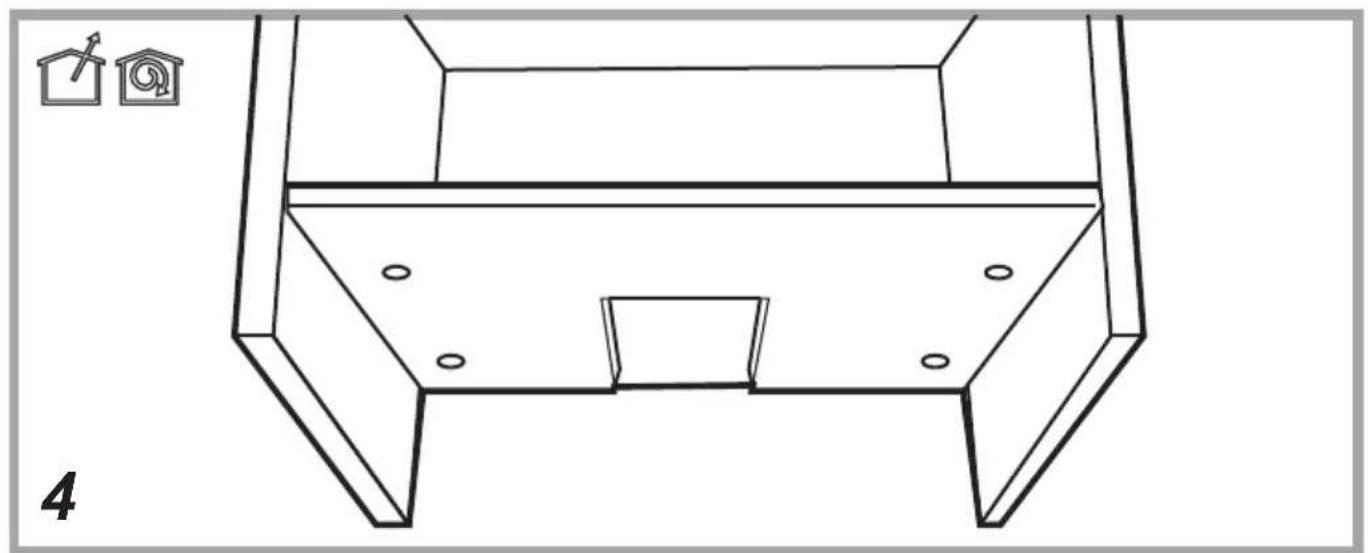

3

Technical line drawing of a mechanical component with mounting holes and a base plate (no text or symbols)

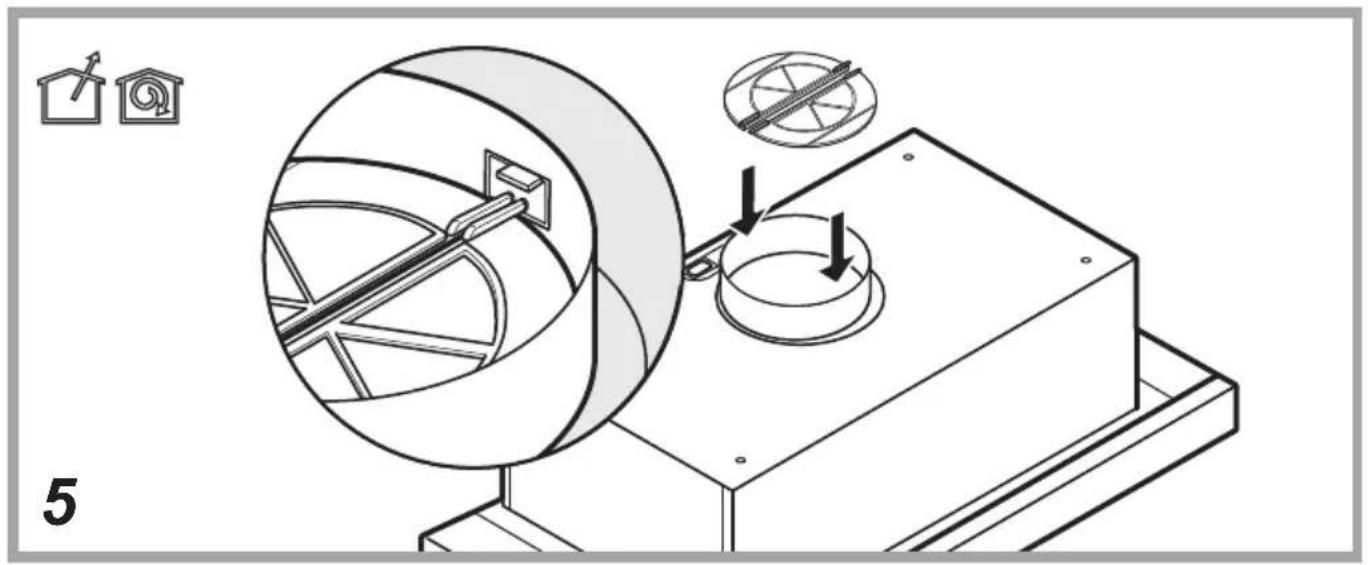

Technical line drawing of a mechanical device with circular components and directional arrows indicating motion (no text or symbols)

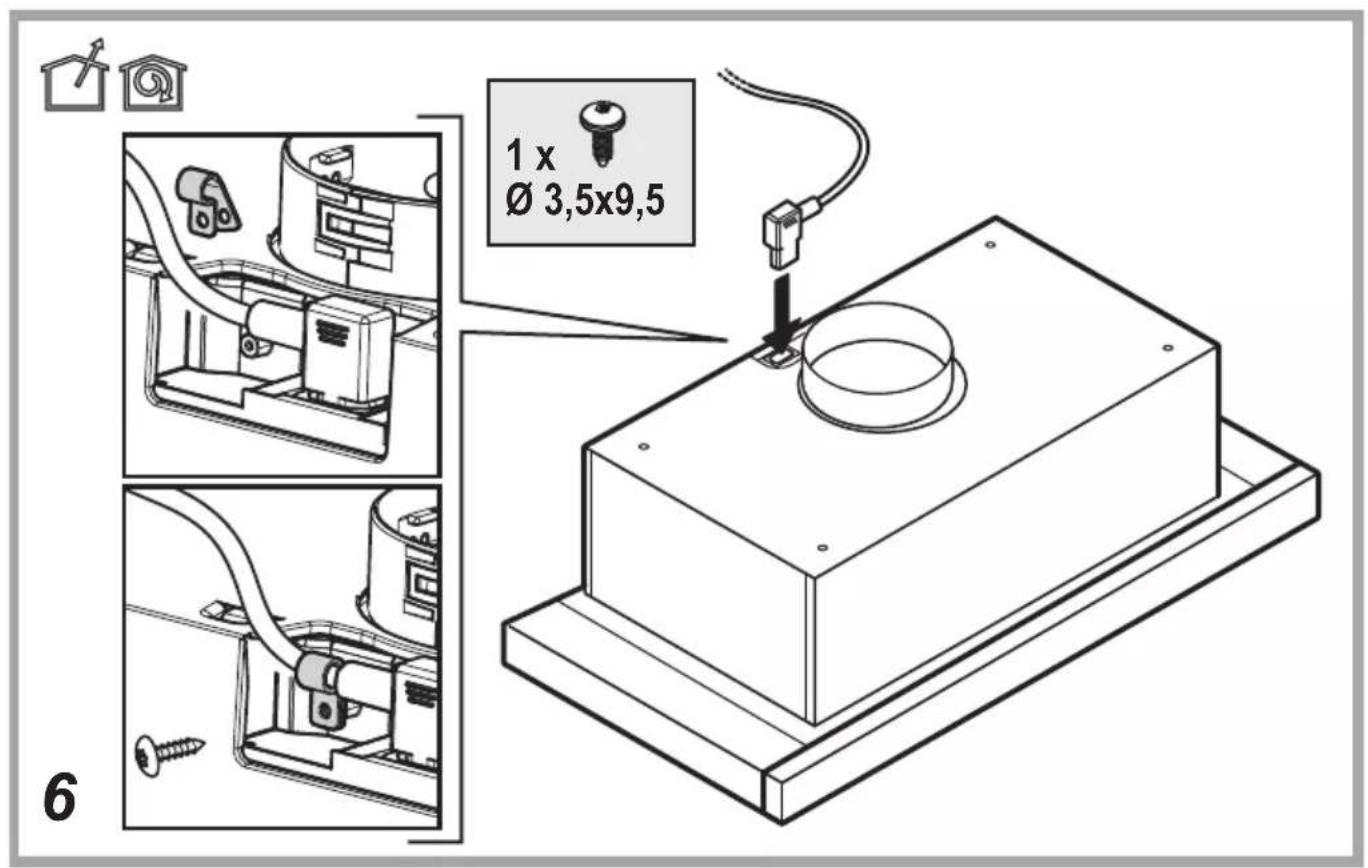

1 x Ø 3,5x9,5 6

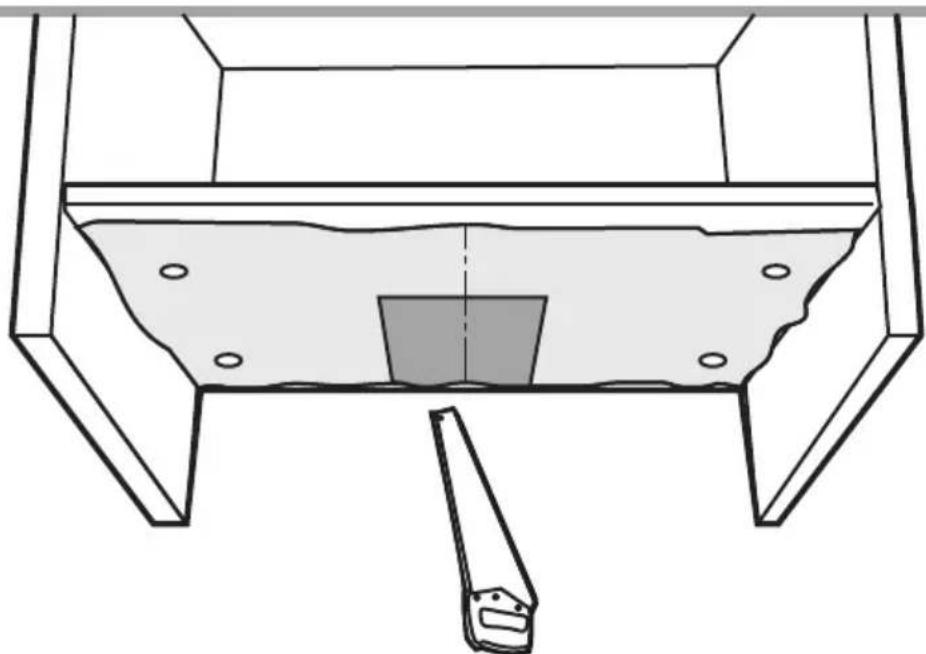

Cross-sectional diagram of a structural component with hatched areas indicating material (no text or symbols)

Line drawing of a mechanical component or bracket assembly (no text or symbols)

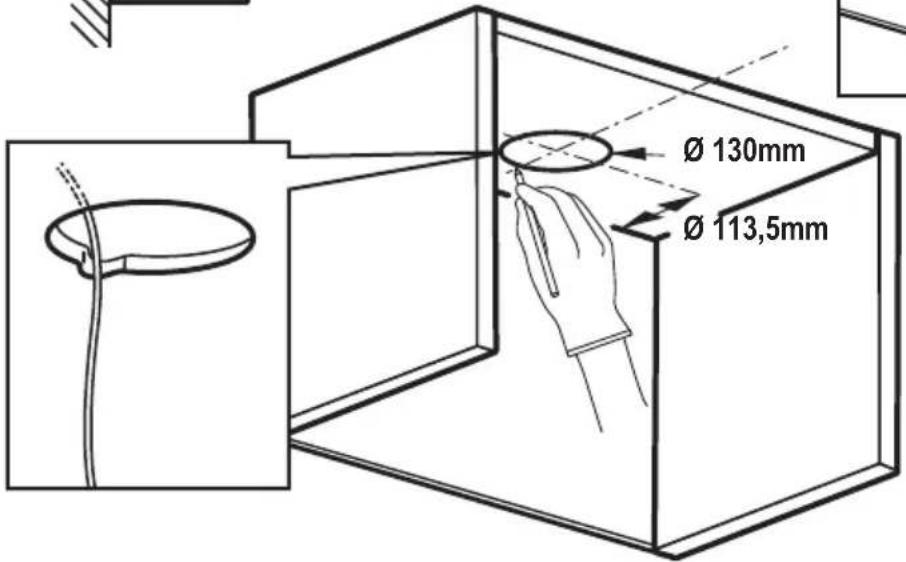

Ø 130mm Ø 113,5mm

7

Pure technical line drawing of a U-shaped pipe or channel structure without any text, numbers, or symbols

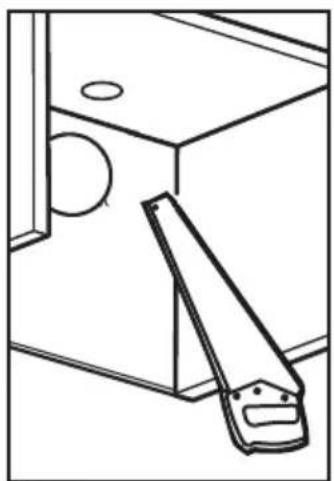

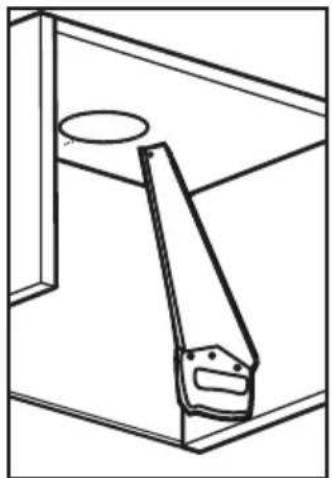

Line drawing of a cabinet with a diagonal saw and circular components (no text or symbols)

Simple line drawing of a vertical tube with a circular base and a dashed line extending upward (no text or symbols)

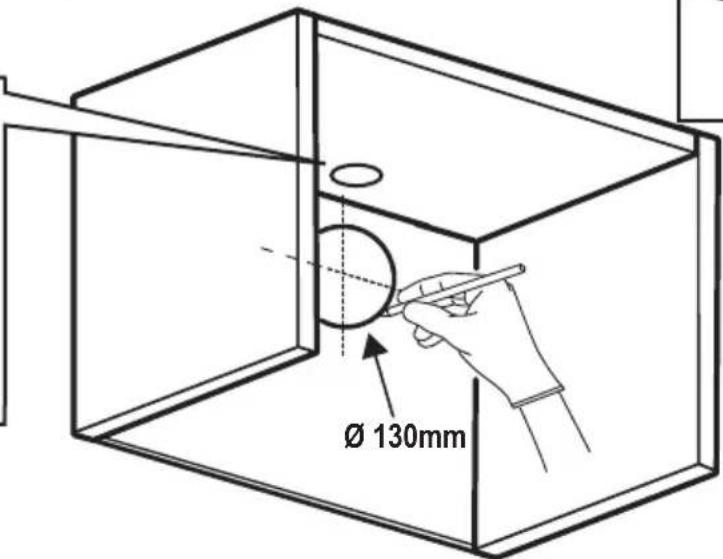

Ø 130mm

8

4x Ø 4,2x35

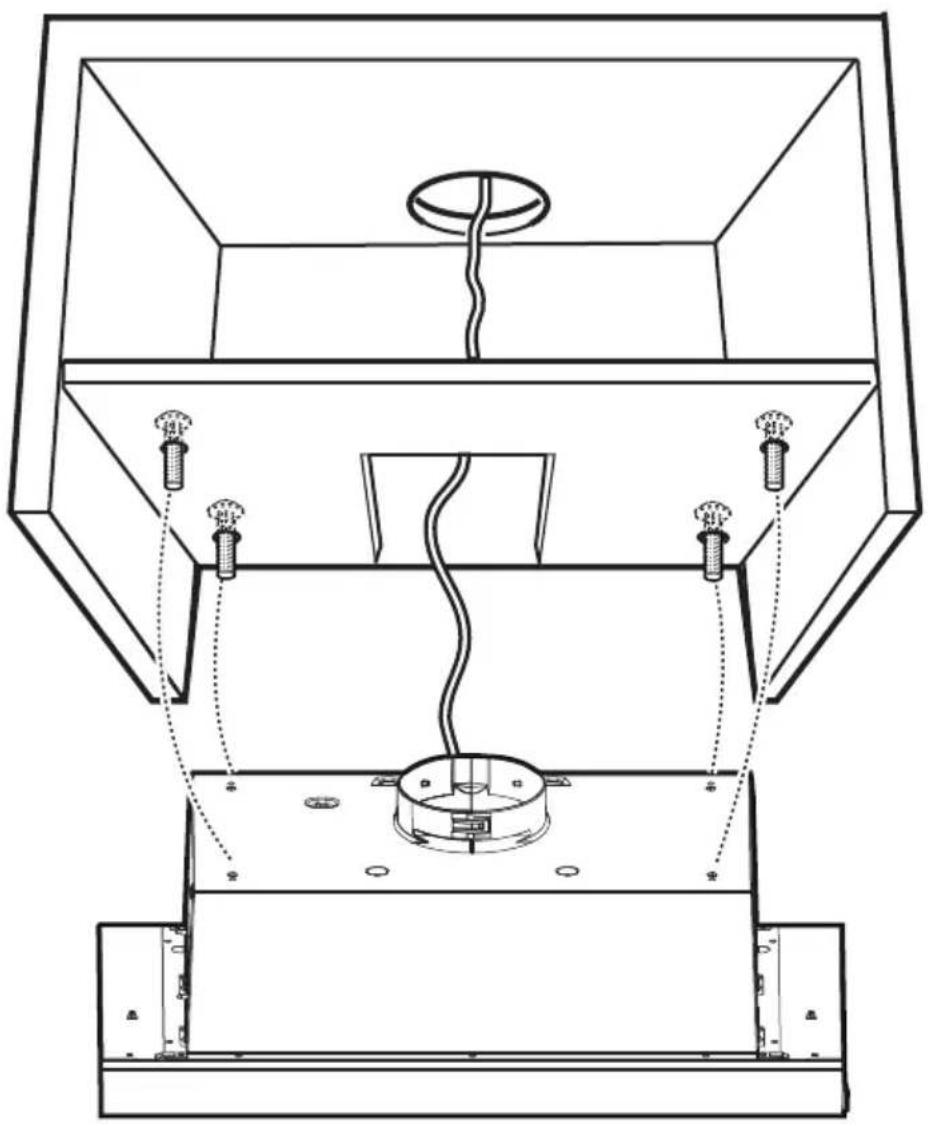

Technical line drawing of a mechanical assembly with no visible text or symbols

9

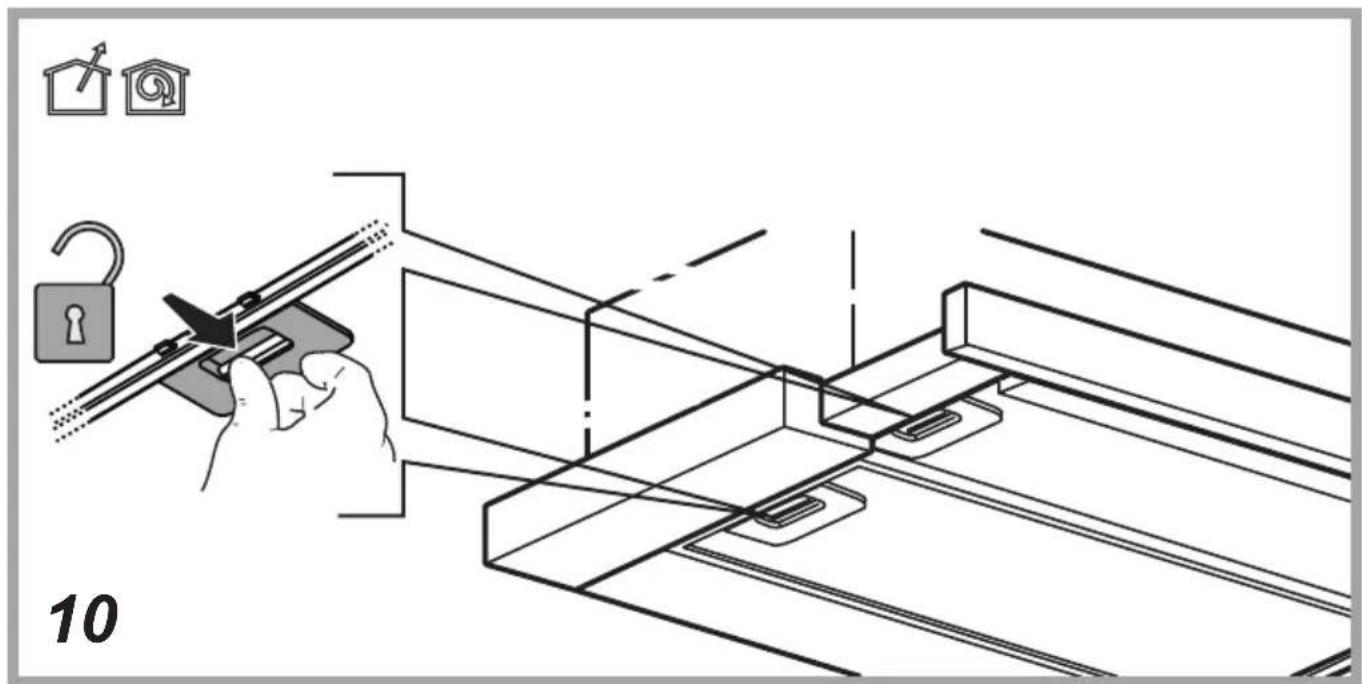

10

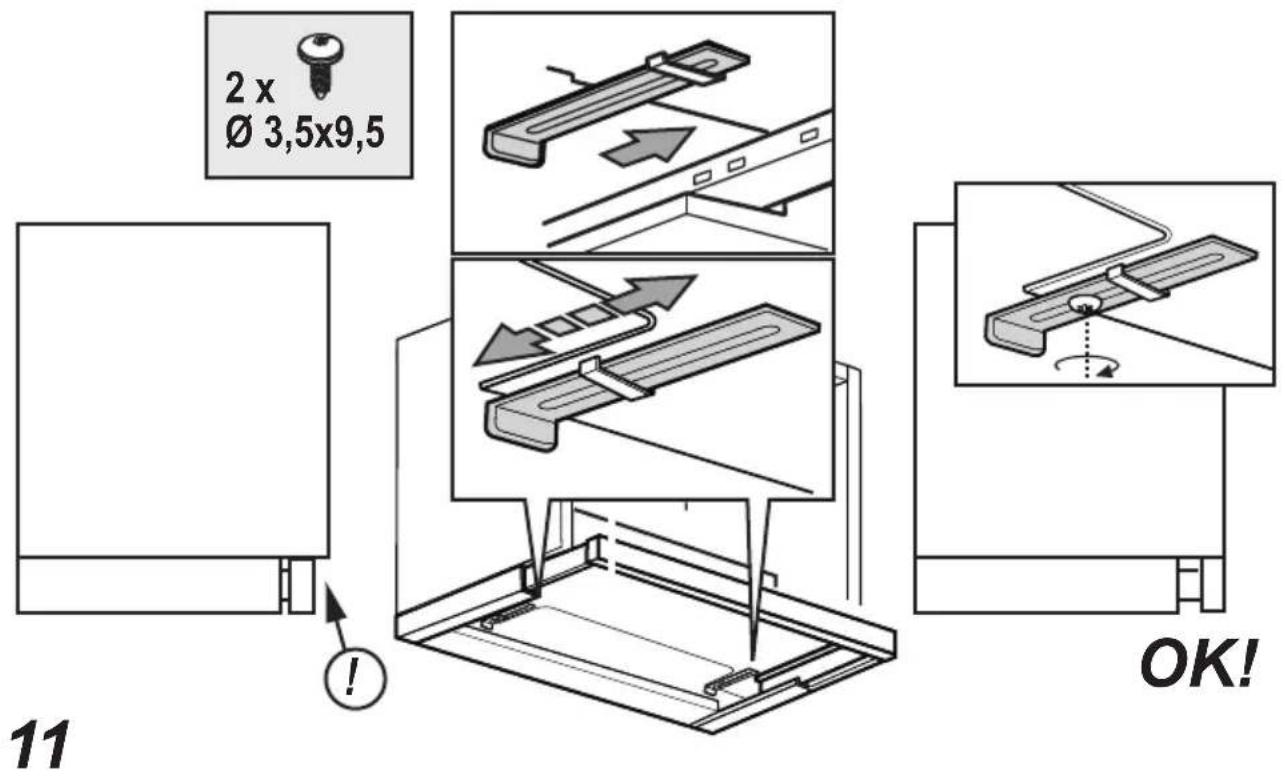

2 x Ø 3,5x9,5 11 ! OK!

Technical line drawing of a ceiling structure with a cylindrical component and wall-mounted fixtures (no text or symbols)

Three-panel line drawing showing a shell on a table, with a magnified inset of a house and a small icon below (no text or symbols)

14 CLACK! CLACK!

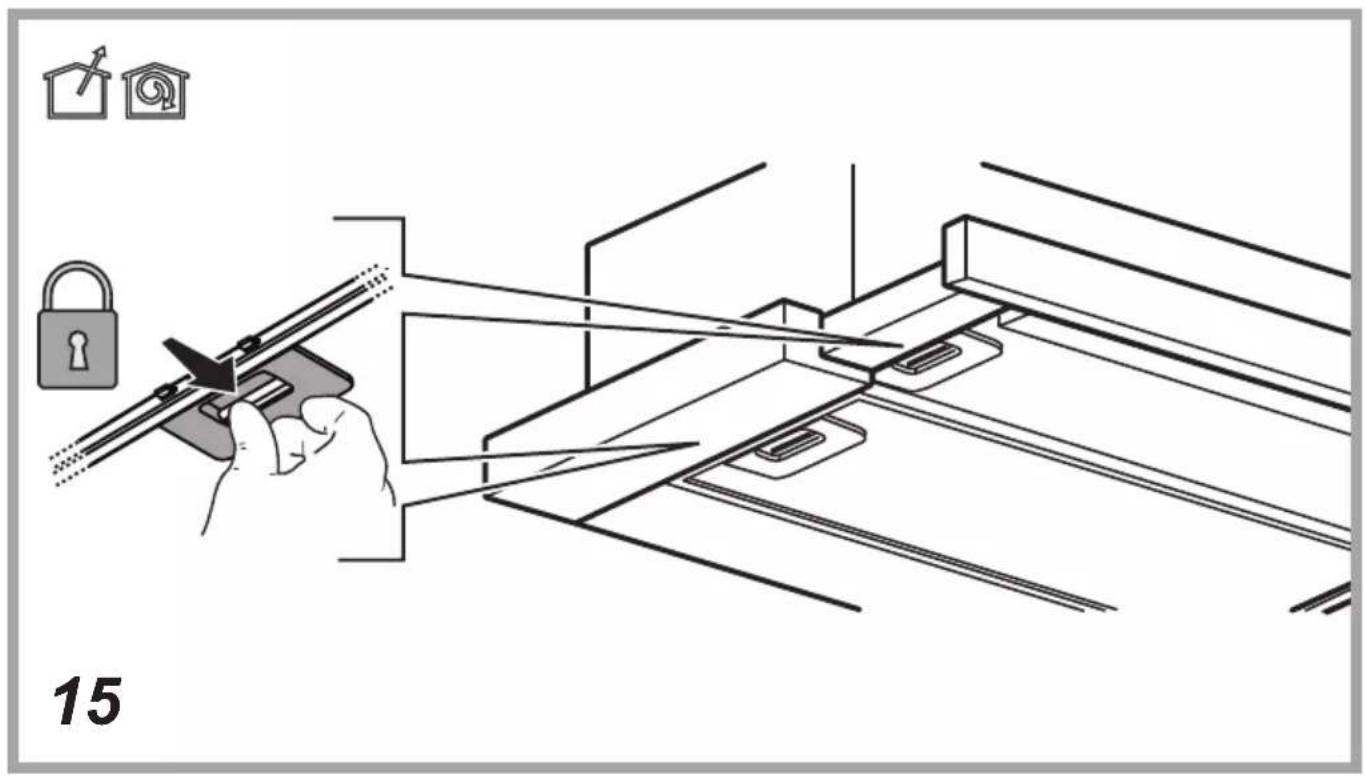

15

IT

SICUREZZA GENERALE

Hand holding a mechanical component with a black arrow indicating direction (no text or symbols)

Silhouette of a person pushing a shopping cart (no text or symbols)

QR code image containing encoded data, no visible human-readable text

Weight DEMONTECH 100% 20% 30% 7 Rounded DEMONTECH 100% 20% 30% 7

FR

SÉCURITÉ GÉNÉRALE

Hand holding a mechanical component with a black arrow indicating direction (no text or symbols)

Silhouette of a person pushing a shopping cart (no text or symbols)

QR code image containing encoded data, no visible human-readable text

Diagram illustrating barcode scanning process with labeled components and a magnified inset showing a person's face.

ES

SEGURIDAD GENERAL

Hand holding a small mechanical component with a black arrow pointing to it (no text or symbols visible)

Silhouette of a person pushing a shopping cart (no text or symbols)

QR code image containing encoded data, no visible human-readable text

Diagram illustrating barcode scanning process with labeled components and a magnified inset showing a person's face.

PT

SEGURANÇA GERAL

Hand holding a mechanical component with a black arrow indicating direction (no text or symbols visible)

Silhouette of a person pushing a shopping cart (no text or symbols)

QR code image containing encoded data, no visible human-readable text

Diagram illustrating barcode scanning process with labeled components and a magnified view of the first step.

EN

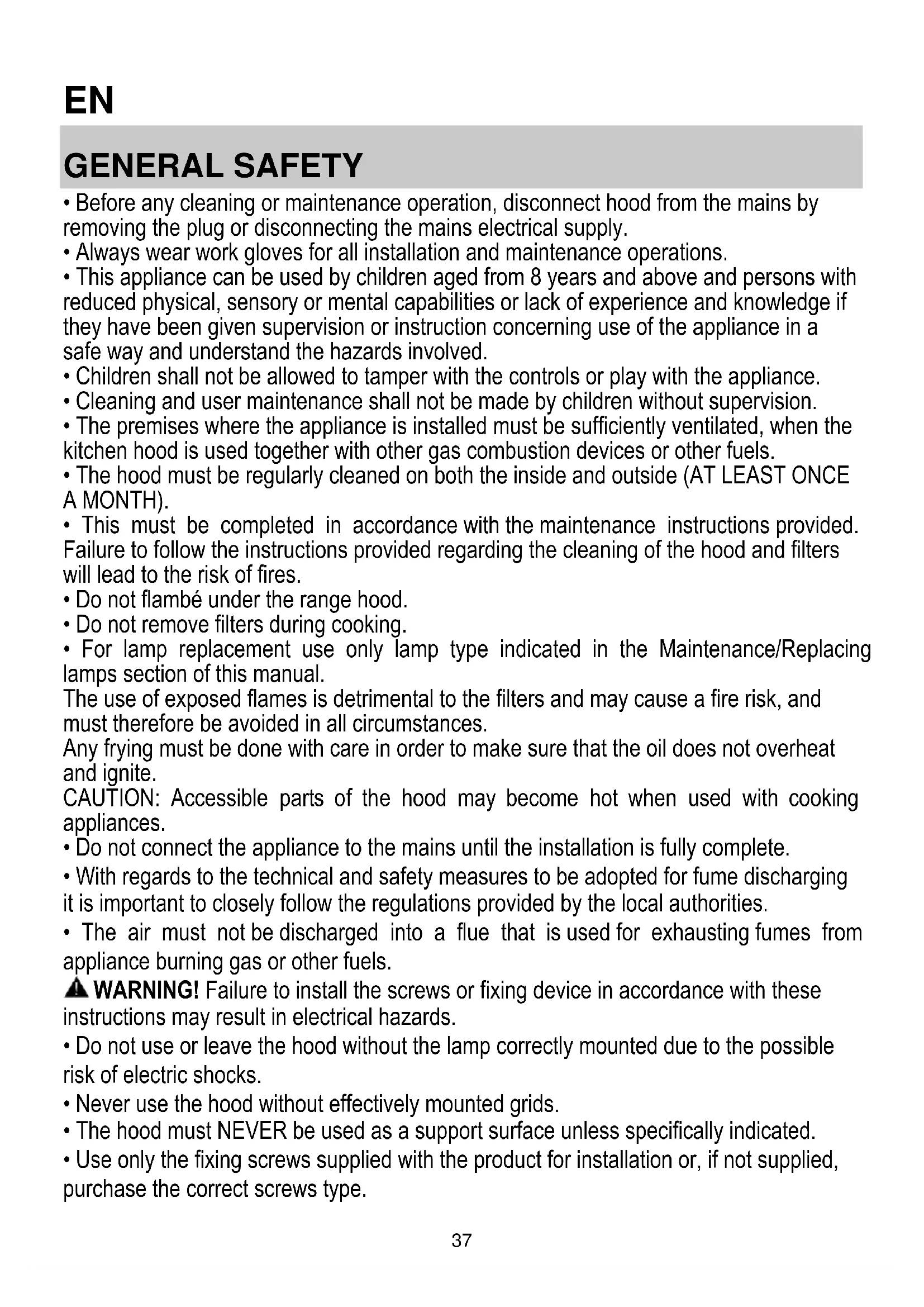

GENERAL SAFETY

• Before any cleaning or maintenance operation, disconnect hood from the mains by removing the plug or disconnecting the mains electrical supply.
  • Always wear work gloves for all installation and maintenance operations.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
• Children shall not be allowed to tamper with the controls or play with the appliance.
• Cleaning and user maintenance shall not be made by children without supervision.
• The premises where the appliance is installed must be sufficiently ventilated, when the kitchen hood is used together with other gas combustion devices or other fuels.
• The hood must be regularly cleaned on both the inside and outside (AT LEAST ONCE A MONTH).
• This must be completed in accordance with the maintenance instructions provided. Failure to follow the instructions provided regarding the cleaning of the hood and filters will lead to the risk of fires.
• Do not flambé under the range hood.
• Do not remove filters during cooking.
• For lamp replacement use only lamp type indicated in the Maintenance/Replacing lamps section of this manual.
  The use of exposed flames is detrimental to the filters and may cause a fire risk, and must therefore be avoided in all circumstances.
  Any frying must be done with care in order to make sure that the oil does not overheat and ignite.
  CAUTION: Accessible parts of the hood may become hot when used with cooking appliances.
• Do not connect the appliance to the mains until the installation is fully complete.
• With regards to the technical and safety measures to be adopted for fume discharging it is important to closely follow the regulations provided by the local authorities.
• The air must not be discharged into a flue that is used for exhausting fumes from appliance burning gas or other fuels.

⚠ WARNING! Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards.

- Do not use or leave the hood without the lamp correctly mounted due to the possible risk of electric shocks.

- Never use the hood without effectively mounted grids.

- The hood must NEVER be used as a support surface unless specifically indicated.

- Use only the fixing screws supplied with the product for installation or, if not supplied, purchase the correct screws type.

• Use the correct length for the screws which are identified in the Installation Guide.
• In case of doubt, consult an authorized service assistance center or similar qualified person.

⚠ WARNING! Do not use with a programmer, timer, separate remote control system or any other device that switches on automatically.

Very young children(0-3years) should be kept away from the appliance. Young children (3-8 years) should be kept away from the appliance unless continuously supervised.

CAUTION: The appliance is not intended to be operated by means of an external switching device, such as a timer, or separate remote controlled system.
This appliance is not for professional use. Do not use the appliance outdoors.
The appliance must be handled and installed by two or more persons-risk of injury.
Installation, including water supply (if any), electrical connections and repairs must be carried out by a qualified technician. Once installed, packaging waste (plastic, styrofoam parts etc.) must be stored out of reach of children – risk of suffocation.

Do not use the appliance when you are wet or barefoot.

Never use steam cleaning equipment – risk of electric shock.

The packaging material is 100% recyclable and is marked with the recycle symbol

The hood can look different to that illustrated in the drawings in this booklet. The instructions for use, maintenance and installation, however, remain the same.

Closely follow the instructions set out in this manual. All responsibility, for any eventual inconveniences, damages or fires caused by not complying with the instructions in this manual, is declined. This appliance is intended to be used in household and similar application such as: - staff kitchen areas in shop, offices and other working environments; - farm houses; - by clients in hotels, motels and other residential type environments; - bed and breakfast type environments.

• It is important to conserve this booklet for consultation at any moment. In the case of sale, cession or move, make sure it is together with the product.
• Read the instructions carefully: there is important information about installation, use and safety.
  • Do not carry out electrical or mechanical variations on the product or on the discharge conduits.
• Before proceeding with the installation of the appliance verify that there are no damaged all components. Otherwise contact your dealer and do not proceed with the installation.

- The minimum distance between the supporting surface for the cooking equipment on the hob and the lowest part of the range hood must be not less than 50cm from electric cookers and 65cm from gas or mixed cookers.

If the instructions for installation for the gas hob specify a greater distance, this must be adhered to.

ELECTRICAL CONNECTION

The mains power supply must correspond to the rating indicated on the plate situated inside the hood. If provided with a plug connect the hood to a socket in compliance with current regulations and positioned in an accessible area, after installation. If it not fitted with a plug (direct mains connection) or if the plug is not located in an accessible area, after installation, apply a double pole switch in accordance with standards which assures the complete disconnection of the mains under conditions relating to over-current category III, in accordance with installation instructions.

▲ WARNING! Before re-connecting the hood circuit to the mains supply and checking the efficient function, always check that the mains cable is correctly assembled.

If the cable is not fitted with a plug, connect the wires according to the following table:

Mains voltage and frequency

Refer to the rating indicated on the plate inside of the hood

Wire connection

Replacing the power cable

The hood is provided with a special power cable ; if the cable is damaged, request a new one from Technical Service.

AIR VENT

(for the suction versions)

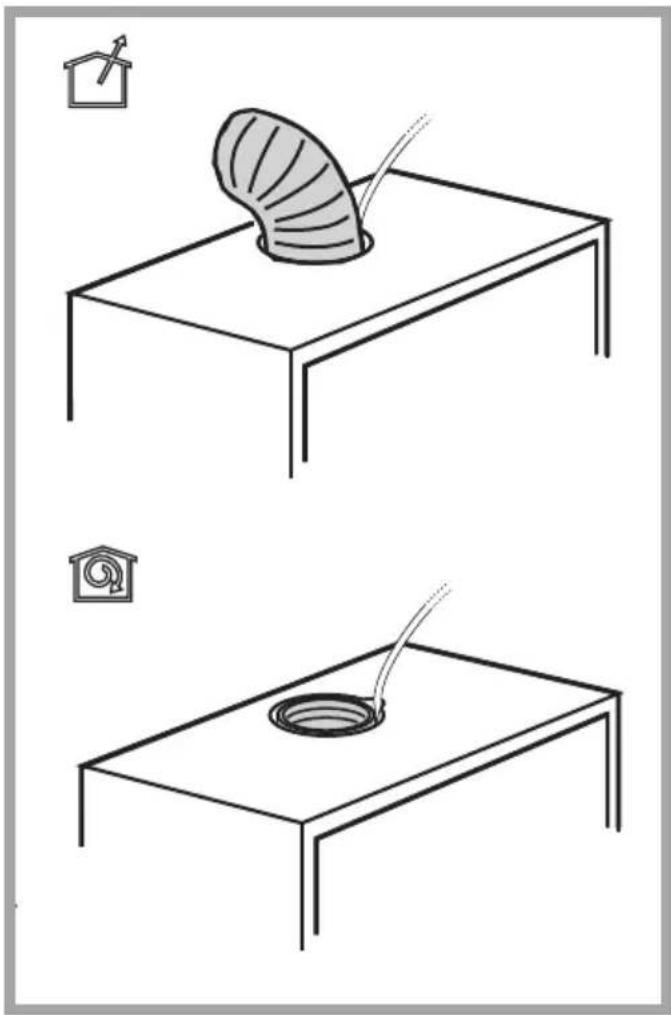

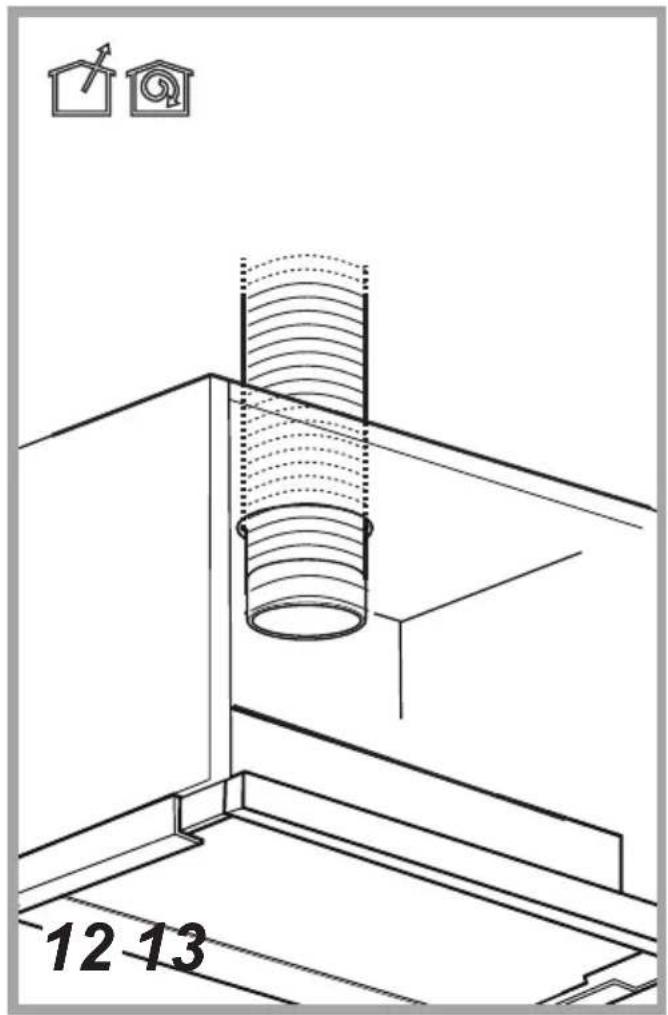

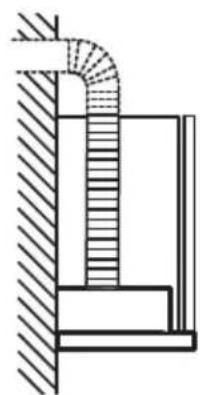

Connect the hood and discharge holes on the walls with a diameter equivalent to the air outlet (connection flange).

Using the tubes and discharge holes on walls with smaller dimensions will cause a diminution of the suction performance and a drastic increase in noise.

Any responsibility in the matter is therefore declined.

! Use a duct of the minimum indispensable length.
! Use a duct with as few elbows as possible (maximum elbow angle: 90°).
! Avoid drastic changes in the duct cross-section.
! The company declines any responsibility whenever these regulations are not respected.

FILTERING OR DUCTING ?

! Your cooker hood is ready to be used in suction version.

To use the hood in filtering version the special ACCESSORY KIT must be installed.

Check on the first pages of this manual if the ACCESSORY KIT is furnished or must be bought separately.

Note: If furnished, in certain cases, the additional activated carbon filtering system may be installed on the hood.

Information about the conversion of the hood from suction version to filtering version is present in this manual.

Ducting version

In this case the fumes are conveyed outside of the building by means of a special pipe connected with the connection ring located on top of the hood.

CAUTION!

The exhausting pipe is not supplied and must be purchased apart.

Diameter of the exhausting pipe must be equal to that of the connection ring.

CAUTION!

If the hood is supplied with active charcoal filter, then it must be removed.

Filter version

The aspirated air will be degreased and deodorised before being fed back into the room.

In order to use the hood in this version, you have to install a system of additional filtering based on activated charcoal.

CONTROLS

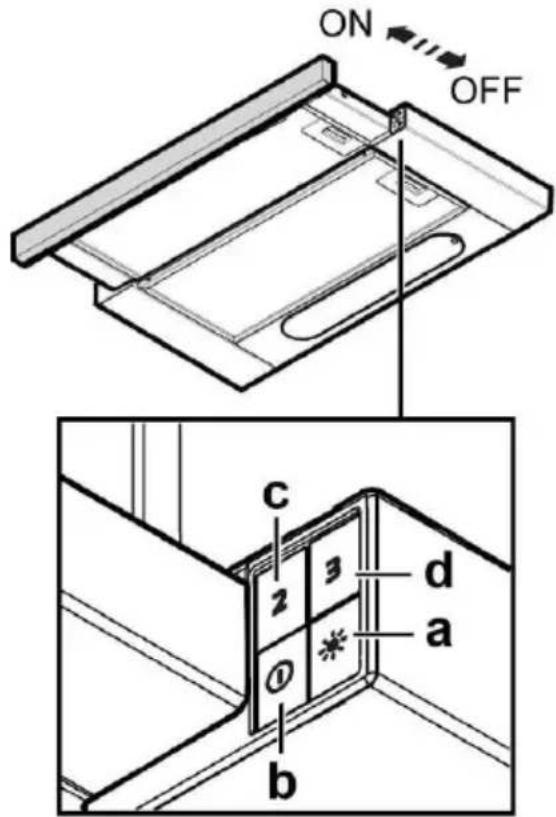

The hood is fitted with a control panel with aspiration speed selection control and a light switch to control cooking area lights.

ON OFF c 2 3 d a ① b

a. ON/OFF light switch
b. Speed 1/OFF switch
c. 2-speed selection
d. 3-speed selection

MAINTENANCE

Cleaning

Clean using ONLY a cloth dampened with neutral liquid detergent. DO NOT CLEAN WITH TOOLS OR INSTRUMENTS. Do not use abrasive products. DO NOT USE ALCOHOL!

Maintenance of the anti-grease filters Traps cooking grease particles.

The grease filter must be cleaned once a month using non aggressive detergents, either by hand or in the dishwasher, which must be set to a low temperature and a short cycle. When washed in a dishwasher, the grease filter may discolor slightly, but this does not affect its filtering capacity. To remove the grease filter, pull the spring release handle.

Hand holding a mechanical component with a black arrow indicating direction (no text or symbols)

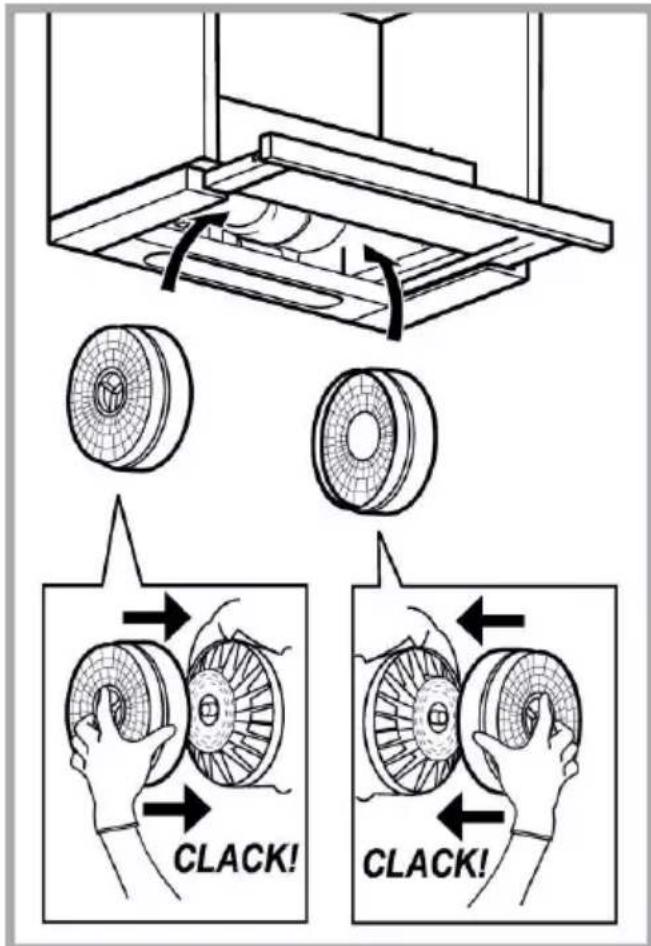

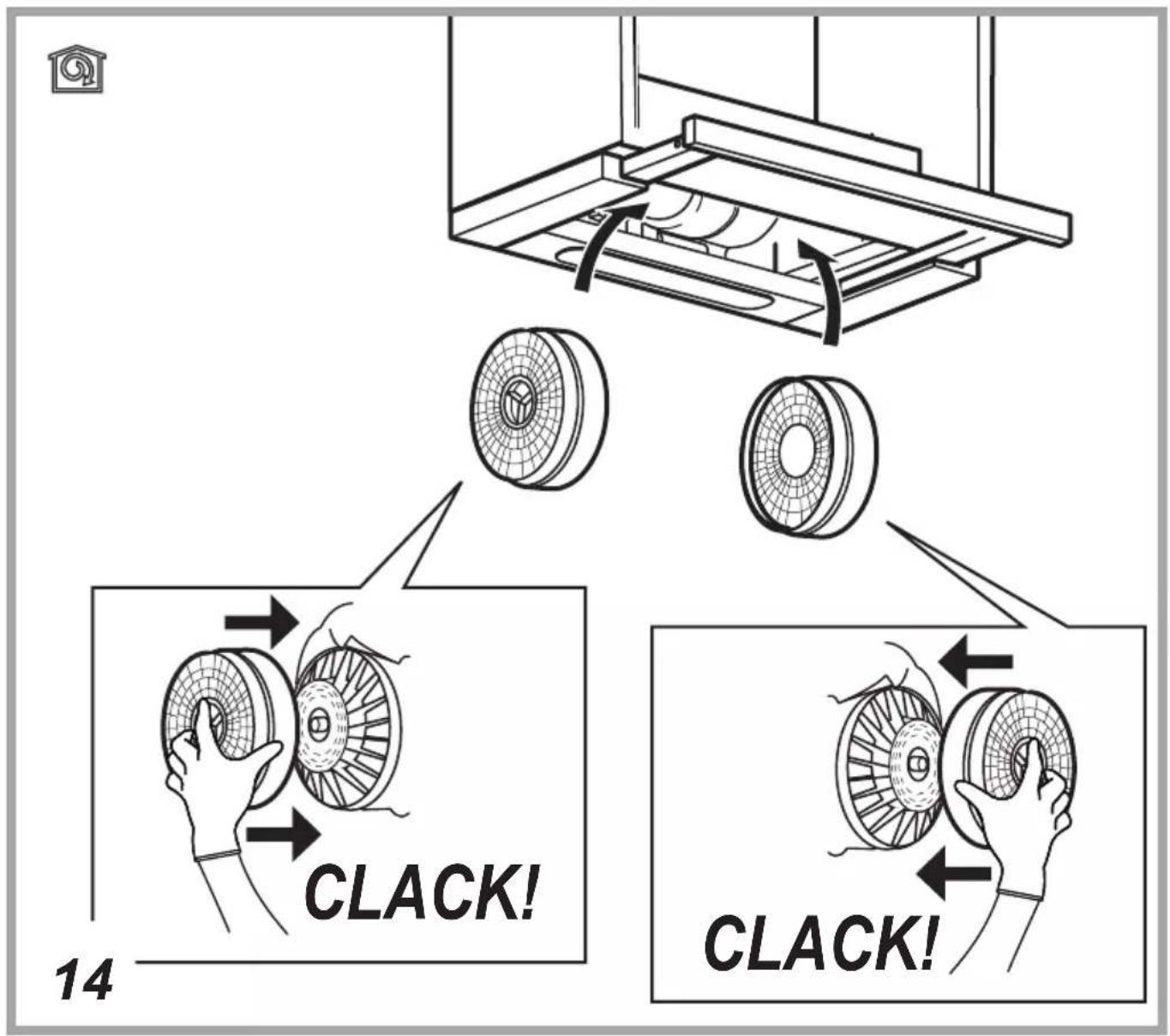

Maintenance of the charcoal filter It absorbs unpleasant odors caused by cooking.

The saturation of the charcoal filter occurs after more or less prolonged use, depending on the type of cooking and the regularity of cleaning of the grease filter. In any case it is necessary to replace the cartridge at least every four months.

The charcoal filter may NOT be washed or regenerated. Remove the grease filters.

Apply one charcoal filter each side and hook in onto the hood. Refit the grease filter.

CLACK! CLACK!

Replacing lamps

Fig. 10 Disconnect the appliance from the electricity. Warning! Prior to touching the light bulbs ensure they are cooled down. Remove the grill.

Replace the damaged lamp. Use E14 2,5W max LED lamps only. For more details, check enclosed leaflet "ILCOS D" (alfanumeric position "1e").

Put the grill back.

DISPOSAL

• This appliance is marked according to the European directive 2012/19/EC - UK SI 2013 No.3113 on Waste Electrical and Electronic Equipment (WEEE).
• By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.

- The symbol ■ on the product, or on the documents accompanying the product, indicates that this appliance may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. Disposal must be carried out in accordance with local environmental regulations for waste disposal.

- For further detailed information regarding the process, collection and recycling of this product, please contact the appropriate department of your local authorities or the local department for household waste or the shop where you purchased this product.

Appliance designed, tested and manufactured according to:

• Safety: EN/IEC 60335-1; EN/IEC 60335-2-31, EN/IEC 62233.

• Performance: EN/IEC 61591; ISO 5167-1; ISO 5167-3; ISO 5168; EN/IEC 60704-1; EN/IEC 60704-2-13; EN/IEC 60704-3; ISO 3741; EN 50564; IEC 62301.

- EMC: EN 55014-1; CISPR 14-1; EN 55014-2; CISPR 14-2; EN/IEC 61000-3-2; EN/IEC 61000-3-3. Suggestions for a correct use in order to reduce the environmental impact: Switch ON the hood at minimum speed when you start cooking and kept it running for few minutes after cooking is finished. Increase the speed only in case of large amount of smoke and vapor and use boost speed(s) only in extreme situations. Replace the charcoal filter(s) when necessary to maintain a good odor reduction efficiency. Clean the grease filter(s) when necessary to maintain a good grease filter efficiency. Use the maximum diameter of the ducting system indicated in this manual to optimize efficiency and minimize noise.

- Safety: EN/IEC 60335-1; EN/IEC 60335-2-31, EN/IEC 62233. - Performance: EN/IEC 61591; ISO 5167-1; ISO 5167-3; ISO 5168; EN/IEC 60704-1; EN/IEC 60704-2-13; EN/IEC 60704-3; ISO 3741; EN 50564; IEC 62301. - EMC: EN 55014-1; CISPR 14-1; EN 55014-2; CISPR 14-2; EN/IEC 61000-3-2; EN/IEC 61000-3-3. Suggestions for a correct use in order to reduce the environmental impact: Switch ON the hood at minimum speed when you start cooking and kept it running for few minutes after cooking is finished. Increase the speed only in case of large amount of smoke and vapor and use boost speed(s) only in extreme situations. Replace the charcoal filter(s) when necessary to maintain a good odor reduction efficiency. Clean the grease filter(s) when necessary to maintain a good grease filter efficiency. Use the maximum diameter of the ducting system indicated in this manual to optimize efficiency and minimize noise.

MALFUNCTIONS

If something appears not to be working properly, do the following simple checks before calling Technical Service:

• If the hood is not working:

Check that:

- The power has not been disconnected.

- A speed has been selected.

• If the hood performs inefficiently:

Check that:

- The motor speed selected is sufficient for the amount of smoke and vapours released.

- The kitchen is sufficiently ventilated to allow air intake.

- The charcoal filter is not worn (hood in filtering version).

- If the hood has turned off during normal functioning:

Check that:

- The power has not been disconnected.

- the omnipolar disconnection device has not tripped.

If the hood fails to operate correctly, briefly disconnect it from the mains power supply for almost 5 sec. Then connect it in again and try once more before contacting the Technical Assistance Service.

TECHNICAL DATA

Height (cm)	Width (cm)	Depth (cm)	∅ of the exhaust tube (cm)
18	59,8-89,8	30-45,5	12

Silhouette of a person pushing a shopping cart (no text or symbols)

Components not provided with the product

QR code image containing encoded data, no visible human-readable text

You can download the Safety Instructions, User Manual, Product Fiche and Energy data by:

• Visiting our website docs.hotpoint.eu
• Using QR Code
  • Alternatively, contact our After-sales Service (See phone number in the warranty booklet). When contacting our After-sales Service, please state the codes provided on your product's identification plate.

Diagram illustrating barcode scanning process with labeled components and a magnified inset showing a person's face.

NL

ALGEMENE VEILIGHEID

Hand holding a mechanical component with a black arrow indicating direction (no text or symbols visible)

Silhouette of a person pushing a shopping cart (no text or symbols)

QR code image containing encoded data, no visible human-readable text

Diagram illustrating barcode scanning process with labeled components and a magnified inset showing a person's face.

DE

Hand holding a mechanical component with a black arrow indicating direction (no text or symbols)

Silhouette of a person pushing a shopping cart (no text or symbols)

QR code image containing encoded data, no visible human-readable text

Diagram illustrating barcode scanning process with labeled components and a magnified inset showing a person's face.

PL

OGÓLNE BEZPIECZEŃSTWO

Hand holding a mechanical component with a black arrow indicating direction (no text or symbols)

Silhouette of a person pushing a shopping cart (no text or symbols)

QR code image containing encoded data, no visible human-readable text

Diagram illustrating barcode scanning process with labeled components and a magnified view of the first step.

RU

ОБЩИЕ ПРАВИЛА ТЕХНИКИ БЕЗОПАСНОСТИ

Hand holding a mechanical component with a black arrow indicating direction (no text or symbols)

Silhouette of a person pushing a shopping cart (no text or symbols)

QR code image containing encoded data, no visible human-readable text

Diagram illustrating barcode scanning process with labeled components and a magnified inset showing a person's face.

TR

GENEL GÜVENLİK

Illustration of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Silhouette of a person pushing a shopping cart (no text or symbols)

QR code image containing encoded data, no visible human-readable text

Diagram illustrating barcode scanning process with labeled components and a magnified inset showing a person's hand holding an object.

RO

SIGURANTĂ GENERALĂ

Hand holding a mechanical component with a black arrow indicating direction (no text or symbols)

Silhouette of a person pushing a shopping cart (no text or symbols)

QR code image containing encoded data, no visible human-readable text

Diagram illustrating barcode scanning process with labeled components and a magnified inset showing a person's face.

HU

ÁLTALÁNOS BIZTONSÁGI ELŐÍRÁSOK

Illustration of a hand using a tool to cut or adjust a mechanical component (no text or symbols visible)

Silhouette of a person pushing a shopping cart (no text or symbols)

QR code image containing encoded data, no visible human-readable text

Diagram illustrating barcode scanning process with labeled components and a magnified view of the first step.

CS

VŠEOBECNÁ BEZPEČNOSTNÍ OPATŘENÍ

Hand holding a small mechanical component with a black arrow indicating direction (no text or symbols visible)

Silhouette of a person pushing a shopping cart (no text or symbols)

QR code image containing encoded data, no visible human-readable text

Diagram illustrating barcode scanning process with labeled components and a magnified inset showing a person's face.

SK

VŠEOBECNÁ BEZPEČNOSŤ

Hand holding a mechanical component with a black arrow indicating direction (no text or symbols)

Silhouette of a person pushing a shopping cart (no text or symbols)

QR code image containing encoded data, no visible human-readable text

Diagram illustrating barcode scanning process with labeled components and a magnified view of the first step.

ЖАЛПЫ КАУІПСІЗДІК

Hand holding a mechanical component with a black arrow indicating direction (no text or symbols)

Silhouette of a person pushing a shopping cart (no text or symbols)

QR code image containing encoded data, no visible human-readable text

Diagram illustrating barcode scanning process with labeled boxes and a magnified inset showing a person interacting with the first panel.

UK

Hand holding a mechanical component with a black arrow indicating direction (no text or symbols)

Silhouette of a person pushing a shopping cart (no text or symbols)

QR code image containing encoded data, no visible human-readable text

Diagram illustrating barcode scanning process with labeled components and a magnified view of the top section.

Hand holding a mechanical component with a black arrow indicating direction (no text or symbols)

Silhouette of a person pushing a shopping cart (no text or symbols)

QR code image containing encoded data, no visible human-readable text

Diagram illustrating barcode scanning process with labeled components and a magnified inset showing a person's hand holding an object.

HR

UPOZORENJA

- Prije bilo koje operacije čišćenja ili održavanja, odvojite napu od električnog napajanja uklanjanjem utičnice ili odspajanjem glavnog prekidača u kući.

Hand holding a mechanical component with a black arrow indicating direction (no text or symbols)

Silhouette of a person pushing a shopping cart (no text or symbols)

QR code image containing encoded data, no visible human-readable text

Hand holding a mechanical component with a black arrow indicating direction (no text or symbols)

Održavanje karbonskog filtera

Silhouette of a person pushing a shopping cart (no text or symbols)

Komponente koje se ne prilažu sa proizvodom

QR code image containing encoded data, no visible human-readable text

Da biste preuzeli bezbednosna uputstva, uputstvo za upotrebu, tehnički list i podatke o energiji:

• Posetite sajt docs.hotpoint.eu
• Koristite QR kod
• Ili, kontaktirajte službu za servisiranje (na telefonski broj naveden u garancijskoj knjižici). Kada kontaktirate službu za servisiranje, navedite kodove na pločici sa serijskim brojem proizvoda.

Magnifying NOODENISEN ISO 10.002.47 Magnifying NOODENISEN ISO 10.002.47

SL

SPLOŠNA VARNOST

Illustration of a hand using a tool to cut or install a mechanical component (no text or symbols visible)

Silhouette of a person pushing a shopping cart (no text or symbols)

Komponente niso priložene izdelku

QR code image containing encoded data, no visible human-readable text

Diagram illustrating barcode scanning process with labeled components and a magnified view of the top section.

BG

ОБЩА БЕЗОПАСНОСТ

Hand holding a small electronic device with a black arrow pointing to its component (no text or symbols visible)

Silhouette of a person pushing a shopping cart (no text or symbols)

QR code image containing encoded data, no visible human-readable text

Diagram illustrating barcode scanning process with labeled components and a magnified inset showing a person's face.

Silhouette of a person pushing a shopping cart (no text or symbols)

Diagram illustrating a device's internal structure with labeled components and barcode indicators

QR code image containing encoded data, no visible human-readable text

ي revisر الرمز __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ ____

Hand holding a mechanical tool with a black arrow indicating direction (no text or symbols)

استبadal المصابيح
