Product type	Oil-filled radiator
Brand	Ardes
Model	Curvy 9 Retrò AR4R09VIN
Rated power	2000 W (2,0 kW)
Power supply	220-240 V ~ 50/60 Hz
Number of elements	9
Adjustable thermostat	Yes, mechanical
Function selector	Yes, multiple positions
Support casters	Yes, 4 casters included
Transport handle	Yes
Operation indicator light	Yes
Cable winding device	Yes
Overheat protection	Yes
Recommended use	Well-insulated rooms or occasional use
Maintenance	Cleaning with a damp cloth, do not immerse
Warranty	24 months

Frequently Asked Questions - Curvy 9 Retrò AR4R09VIN ARDES

How to assemble the casters on the radiator?

Insert the casters into the holes of the metal brackets and fix them with the provided nuts. Turn the appliance over, place the brackets between the elements as indicated in the manual, then tighten the wing nuts.

What is the power of the Curvy 9 Retrò radiator?

The rated power is 2000 W (2,0 kW), with a minimum power of 800 W.

Can I use this radiator in a bathroom?

No, do not use in the immediate vicinity of a bathtub, shower, or swimming pool. It is designed for domestic use in dry rooms.

Can the radiator be used by children?

Children under 3 years must be kept away. Children aged 3 to 8 can only turn the appliance on/off under supervision. Children over 8 can use it if supervised.

How to adjust the temperature?

Turn the thermostat knob (3) clockwise to increase the temperature, and counterclockwise to decrease it. The appliance automatically turns off when the set temperature is reached.

What to do if the power cord is damaged?

The cord must be replaced only by a service center approved by the manufacturer to avoid any risk.

How to clean the radiator?

Unplug the appliance and let it cool. Clean with a slightly damp cloth. Do not use abrasive products or solvents, and never immerse the appliance in water.

Why does the indicator light sometimes go out?

The light turns off when the thermostat reaches the set temperature. It turns back on when the temperature drops and the heater restarts.

Can I use an extension cord with this radiator?

It is not recommended to use non-compliant extension cords. If necessary, use an extension cord suitable for the power (2000 W) and safety standards.

How to store the radiator in summer?

Let the appliance cool, clean it, then store it in its original packaging in a dry, dust-free place.

USER MANUAL Curvy 9 Retrò AR4R09VIN ARDES

GB This product is only suitable for well insulated spaces or occasional use.

Close-up of various plastic components and connectors, labeled E and D, with no visible text or symbols.

Simple line drawing of a curved bracket with two side eye-like shapes (no text or symbols)

Pure mechanical diagram showing a lever mechanism without any text, numbers, or symbols

Simple line drawing of a mechanical or electrical component with no visible text, numbers, or symbols.

Simple line drawing of a mechanical or electrical component with no text, numbers, or symbols

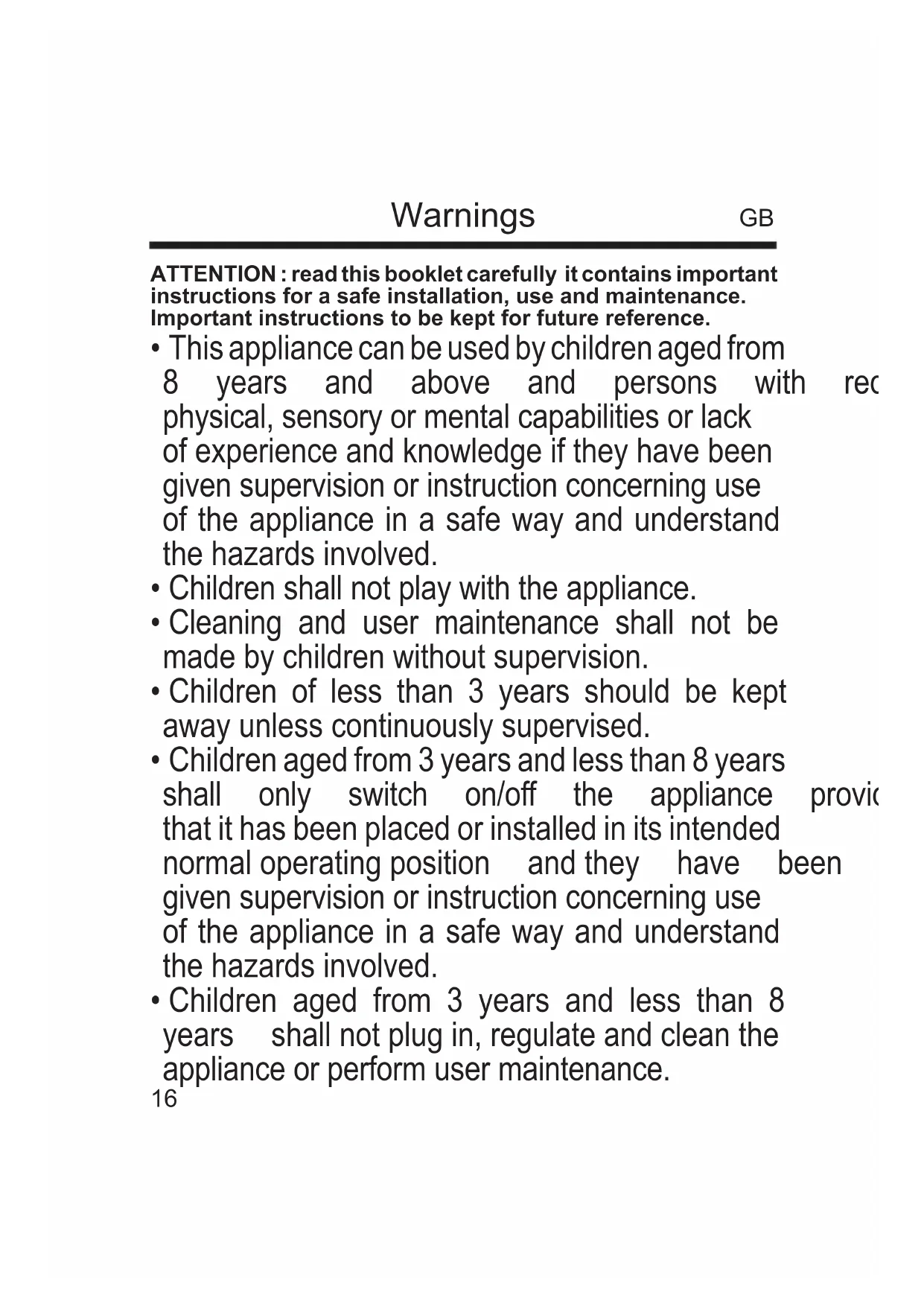

ATTENTION : read this booklet carefully it contains important instructions for a safe installation, use and maintenance. Important instructions to be kept for future reference.

• This appliance can be used by children aged from 8 years and above and persons with rec physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
  • Children shall not play with the appliance.
• Cleaning and user maintenance shall not be made by children without supervision.
  • Children of less than 3 years should be kept away unless continuously supervised.
• Children aged from 3 years and less than 8 years shall only switch on/off the appliance provide that it has been placed or installed in its intended normal operating position and they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

• Children aged from 3 years and less than 8 years shall not plug in, regulate and clean the appliance or perform user maintenance.

• CAUTION — Some parts of this product can become very hot and cause burns. Particular attention has to be given where children and vulnerable people are present.

• If the power cable gets damaged, it has to be replaced only at a service centre approved by the manufacturer in order to prevent any risks.

DO NOT COVER

• WARNING: In order to avoid overheating, do not cover the heater.
• Do not place the appliance immediately below a socketoutlet.
• Do not use this heater in the immediate surroundings of a bath, a shower or a swimming pool.
• Do not use this heater if it has been dropped.
• Do not use if there are visible signs of damage to the heater.
• Use this heater on a horizontal and stable surface.
• WARNING: Do not use this heater in small rooms when they are occupied by persons not capable of leaving the room on their own, unless

constant supervision is provided.

• WARNING: To reduce the risk of fire, d use this product near textiles, curtains or other combustible materials.
• Don’t connect the appliance to the power supply and don’t use it unless it is completely assembled (see mounting instructions).
• This heater is filled with a precise quant of special oil. Repairs requiring opening of the oil container are only to be made by the manufacturer or his service agent who should be contacted if there is an oil leak.
• When scrapping the heater, follow the regulations concerning the disposal of oil.

Keep handy the guarantee, receipt of payment and these instructions for future use and reference.

After removing the packaging, check the appliance for any signs damage.

In case of visible damage, do not use it and contact a qualified technician.

Do not leave parts of the packaging with in the reach of children. This appliance is not a children's toy: it is an electrical device and must be treated with the necessary caution.

Before connecting the appliance, make sure that the power sup voltage matches the indication on the data plate.

If the plug and socket are not compatible, the socket has to be replaced with a suitable type by skilled persons.

Do not use adapters or extension cables which do not meet current safety standards or that exceed the current carrying capacity limits.

When you don't use the appliance disconnect it from the power supply and assure that the interruptor is off.

Do not tug on the power cable or on the appliance itself to remove the plug from the socket.

The use of any electrical appliance requires that a number of basic rules are observed, namely:

- Never touch the appliance with wet or humid hands.

- Do not leave the appliance exposed to weathering (rain, sunlight).

- Do not subject it to rough handling.

In case of a breakdown or malfunctioning of the appliance, disconnect it at once.

Do not attempt to repair it, but take it to a service centre approved by the manufacturer.

If you decide you do not want to use this appliance any longer, disable it by cutting the power cable - of course, after disconnecting it from the socket.

The power cable should be extended to its full lenght to avoid heating.

For safety reasons, the appliance should never be opened.

The appliance has been designed and manufactured to operate in the home.

Any other use is considered inappropriate and dangerous.

Do not insert objects through the safety grill or the air inlets.

During use, rest the appliance on a flat surface.

Do not use this heating appliance with programmers, timers, separate remote control systems (different to the ones provided with the appliance)

or any other device that automatically turns on the appliance, as there is a risk of fire in the event the appliance is covered or positioned incorrectly.

Do not use the heater in presence of flammable substances (paints, etc.).

Do not place the cord near sources of heat.

WARNING: DO NOT COVER THIS PRODUCT NEAR CURTAINS OR OTHER COMBUSTIBLE MATERIAL.

WARNING: DO NOT COVER THE APPLIANCE OR OBSTRUCT THE AIR INLETS TO AVOID OVERHEATING.

Technical informations

GB

1 - Carry handle
2 - Indicator light
3 - Adjustable thermostat
4 - Power selector
5 - Cord winder

Technical data indicated on the appliance.

Instructions for use

GB

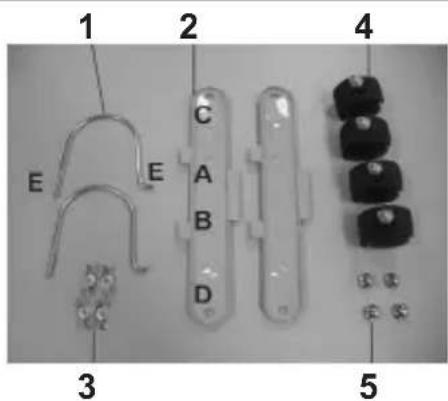

ACCESSORIES KIT

1 - 2 Brackets
2 - 2 Supports
3 - 4 Wing nuts
4 - 4 Support wheels
5 - 4 Nuts

1 2 3 4 5 E E C A B D

MOUNT THE SUPPORT WHEELS

Insert the wheels into holes "C" and "D" in the metal supports and fasten them with the nuts.

Turn the apparatus upside down, unscrew the wing nuts from the bracket (fig. 1) and insert the bracket between the first and second element (fig. 2). Insert the end of the bracket into holes "A" and "B" in the metal support (fig. 3) and fasten it by using wing nuts (fig. 4).

Mount the other bracket as described above, positioning it between the last and second-last element of the radiator.

1234

Simple line drawing of a curved bracket with two side brackets (no text or symbols)

Simple line drawing of a person standing near a railing with two circular objects above (no text or symbols)

Simple line drawing of a mechanical or electrical component with no visible text, numbers, or symbols.

Simple line drawing of a mechanical or architectural component with no text, numbers, or symbols

Before connecting or disconnecting the appliance, make sure that the power selector (4) is in the OFF position ("0").

To turn the appliance on, insert the plug in the power outlet, set the power selector (4) in the desired position and turn the adjustable thermostat (3) clockwise to the maximum position.

Once the desired room temperature is reached, turn the thermostat (3) slowly, in a counter clockwise direction, until the appliance is turned off.

At this point, the product will automatically restart when the temperature in the room goes below the set limit.

The indicator light (2) indicates that the appliance is operating and will switch off when the adjustable thermostat is activated.

Before replacing the appliance in its package, make sure it has cooled sufficiently.

Maintenance

GB

This appliance does not require any special maintenance.

Disconnect the plug from the socket and let the appliance cool down well before cleaning it.

In order to clean the appliance, use a soft or slight damp cloth.

Never use abrasives or chemical solvents.

Do not use very wet substances, liquids or cloths to prevent water from entering into the apparatus and irreparably damaging it.

NEVER IMMERSE THE APPLIANCE INTO THE WATER.

PACKAGING

In order to respect the environment, packaging material must be disposed of properly in accordance with separate collection.

Check local regulations.

USER INFORMATION

“Implementation of Directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE)”, pertaining to reduced use of hazardous substances in electrical and electronic equipment, as well as to waste disposal.

The symbol of the crossed-out wheelie bin on the equipment or on its packaging indicates that the product must be disposed of separately from other waste at the end of its service life.

The user must therefore take the dismissed equipment to suitable separate collection centres for electrical and electronic waste.

For more details, please contact the appropriate local authority.

Suitable segregated collection of the equipment for subsequent recycling, treatment or environmentally-friendly disposal helps prevent damage to the environment and to human health, and encourages the re-use and/or recycling of the materials that make up the equipment.

Abusive disposal of the product by the user shall result in the application of administrative fines in accordance with the laws in force.

Terms and Conditions

The guarantee is valid for 24 months.

This guarantee applies only if it has been duly filled in and is submitted with the receipt showing the date of purchase.

The guarantee covers the replacement or repair of parts making up the appliance which were faulty at source due to manufacturing faults.

After the guarantee has expired, the appliance will be repaired against payment.

The manufacturer declines any responsibility for damage to personal animals or property due to misuse of the appliance and failure to observe the directions contained in the instructions.

Limits

All rights under this guarantee and any responsibility on our part will be voided if the appliance has been:

- mishandled by unauthorized persons

- improperly used, stored or transported.

The guarantee does not cover damage to the outward appearance or any other that does not prevent regular operation.

If any faults should be found despite the care taken in selecting the materials and in creating the product, or if any information or advice are required, please contact your local dealer.

Information requirements for electric local space heaters

Model identifier(s): AR4R07S / AR4R07VIN
Item	Symbol	Value Unit		Item Unit
Heat output				Type of heat input, for electric storage local space heaters only (select one)
Nominal heat output	P_nom	1,5 kW		Manual heat charge control, with integrated thermostat	N.A.
Minimum heat output (indicative)	P_min	0,6 kW		Manual heat charge control with room and/or outdoor temperature feedback	N.A.
Maximum continuous heat output	P_max,c	1,5 kW		Electronic heat charge control with room and/or outdoor temperature feedback	N.A.
Auxiliary electricity consumption				Fan assisted heat output N.A.
At nominal heat output	eI_max	N.A. kW		Type of heat output/room temperature control (select one)
At minimum heat output	eI_min	N.A. kW		Single stage heat output and no room temperature control	No
In standby mode	eI_SB	N.A. kW		Two or more manual stages, no room temperature control	No
				With mechanic thermostat room temperature control	Yes
				With electronic room temperature control	No
				Electronic room temperature control plus day timer	No
				Electronic room temperature control plus week timer	No
				Other control options (multiple selections possible)
				Room temperature control, with presence detection	No
				Room temperature control, with open window detection	No
				With distance control option No
				With adaptive start control No
				With working time limitation No
				With black bulb sensor No
Contact details POLY POOL S.p.A. - via Sottocorna 21/B, 24020 Parre (BG) - Italy

Information requirements for electric local space heaters

Model identifier(s): AR4R09S / AR4R09VIN
Item	Symbol	Value Unit		Item Unit
Heat output				Type of heat input, for electric storage local space heaters only (select one)
Nominal heat output	P_nom	2,0 kW		Manual heat charge control, with integrated thermostat	N.A.
Minimum heat output (indicative)	P_min	0,8 kW		Manual heat charge control with room and/or outdoor temperature feedback	N.A.
Maximum continuous heat output	P_max,c	2,0 kW		Electronic heat charge control with room and/or outdoor temperature feedback	N.A.
Auxiliary electricity consumption				Fan assisted heat output N.A.
At nominal heat output	eI_max	N.A. kW		Type of heat output/room temperature control (select one)
At minimum heat output	eI_min	N.A. kW		Single stage heat output and no room temperature control	No
In standby mode	eI_SB	N.A. kW		Two or more manual stages, no room temperature control	No
				With mechanic thermostat room temperature control	Yes
				With electronic room temperature control	No
				Electronic room temperature control plus day timer	No
				Electronic room temperature control plus week timer	No
				Other control options (multiple selections possible)
				Room temperature control, with presence detection	No
				Room temperature control, with open window detection	No
				With distance control option No
				With adaptive start control No
				With working time limitation No
				With black bulb sensor No
Contact details POLY POOL S.p.A. - via Sottocorna 21/B, 24020 Parre (BG) - Italy

Information requirements for electric local space heaters

Model identifier(s): AR4R		11S
Item	Symbol	Value Unit	it		Item Unit
Heat output				Type of heat input, for electric storage local space heaters only (select one)
Nominal heat output	P_nom	2,5 kW			Manual heat charge control, with integrated thermostat	N.A.
Minimum heat output (indicative)	P_min	1,0 kW			Manual heat charge control with room and/or outdoor temperature feedback	N.A.
Maximum continuous heat output	P_max,c	2,5 kW			Electronic heat charge control with room and/or outdoor temperature feedback	N.A.
Auxiliary electricity consumption					Fan assisted heat output N.A.
At nominal heat output	el_max	N.A. kW			Type of heat output/room temperature control (select one)
At minimum heat output	el_min	N.A. kW			Single stage heat output and no room temperature control	No
In standby mode	el_SB	N.A. kW			Two or more manual stages, no room temperature control	No
					With mechanic thermostat room temperature control	Yes
					With electronic room temperature control	No
					Electronic room temperature control plus day timer	No
					Electronic room temperature control plus week timer	No
					Other control options (multiple selections possible)
					Room temperature control, with presence detection	No
					Room temperature control, with open window detection	No
					With distance control option No
					With adaptive start control No
					With working time limitation No
					With black bulb sensor No
Contact details POLY POOL S.p.A. - via Sottocorna 21/B, 24020 Parre (BG) - Italy

Close-up of various electronic components including wires, capacitors, and connectors (no visible text or symbols)

MONTAGE ROULETTES DE SUPPORT

Simple line drawing of a curved bracket with two side eye-like shapes (no text or symbols)

Simple line drawing of a mechanical or architectural component with no visible text, numbers, or symbols.

Simple line drawing of a mechanical or electrical component with no text, numbers, or symbols

Simple line drawing of a mechanical or architectural component with no text, numbers, or symbols

Simple line drawing of a curved bracket with two side eye-like shapes (no text or symbols)

Pure mechanical diagram showing a lever mechanism with no text or symbols

Simple line drawing of a mechanical or electrical component with no visible text, numbers, or symbols.

Simple line drawing of a mechanical or architectural component with no text, numbers, or symbols

Close-up of various plastic electrical connectors and components, labeled A-D, with no visible text or symbols.

3
5

MONTAJE RUEDAS DE APOYO

Simple line drawing of a curved bracket with two circular eyes below (no text or symbols)

Pure mechanical diagram showing a lever mechanism without any text, numbers, or symbols

Simple line drawing of a mechanical or electrical component with no text, numbers, or symbols

Simple line drawing of a mechanical or architectural component with three circular elements and curved arrows indicating motion (no text or symbols)

Simple line drawing of a curved bracket with two side eye-like shapes (no text or symbols)

Simple line drawing of a mechanical component with no text or symbols

Simple line drawing of a mechanical or electrical component with no visible text, numbers, or symbols.

Simple line drawing of a mechanical or electrical component with three circular components and directional arrows (no text or symbols)

Simple line drawing of a curved bracket with two eye-like shapes below (no text or symbols)

Pure mechanical diagram showing a lever mechanism without any text, numbers, or symbols

Simple line drawing of a mechanical or electrical component with no visible text, numbers, or symbols.

Simple line drawing of a mechanical or electrical component with no text, numbers, or symbols

ARDES, Guzzanti, Scarlett, Luxell, Graef

ČERTES spol. s r.o.

Donínská 83

463 34 Hrádek nad Nisou

Simple line drawing of a curved bracket with two side brackets (no text or symbols)

Simple line drawing of a mechanical lever or lever with two circular components, no text or symbols present.

Simple line drawing of a mechanical or electrical component with no text, numbers, or symbols

Simple line drawing of a mechanical or electrical component with two curved arrows indicating direction (no text or symbols)

Simple line drawing of a curved bracket with two side eye-like shapes below (no text or symbols)

Simple line drawing of a mechanical assembly with no text or symbols

Simple line drawing of a mechanical or electrical component with no visible text, numbers, or symbols.

Simple line drawing of a mechanical or architectural component with two curved arrows and circular features (no text or symbols)
