MOD-52 - Vacuum Cleaner MPM - Free user manual and instructions

Brand	MPM
Model	MOD-52
Vacuum type	Canister with bag
Power supply	Mains, 4.5 m cord
Operating radius	7.0 m (cord + hose + tube)
Power regulation	Yes, by dial
Bag full indicator	Yes, red light
Automatic cord rewind	Yes, by button
Bag type	Paper, disposable
Main filter	Washable HEPA filter
Additional filters	Outer sponge, inner sponge, motor filter
Number of filters	4 (HEPA, 2 sponges, motor filter)
Included accessories	Floor/carpet brush, crevice tool with brush, telescopic tube, hose
Telescopic tube	Yes
Carry handle	Yes, vertical
Storage guide	Yes, on back and under unit
Usage	Domestic, dry surfaces only
Filter cleaning	Cold water, dry completely before reassembling
Bag replacement	Opening top cover by button
Safety instructions	Do not vacuum liquids, hot or sharp objects

Frequently Asked Questions - MOD-52 MPM

How to use the MPM MOD-52 vacuum cleaner?

Unwind the cord up to the yellow mark (do not exceed the red mark), plug in, press the on/off switch. Adjust the power with the dial. Use accessories according to the floor.

How to change the dust bag?

Unplug, open the top cover by pressing the button, remove the full bag holding the collar upward, insert a new bag. Close.

How to clean the filters?

Unplug, open the exhaust filter cover, remove the filters. Wash the sponges with cold water, do not wash the HEPA filter, dry clean it. Dry completely before reassembling.

What to do if suction power decreases?

Check that the bag is not full, filters are not clogged, hose or tube is not blocked. Clean or replace if necessary.

The fill indicator turns red, what to do?

This indicates that the bag is full or the hose is blocked. Replace the bag or unblock the hose.

Can I vacuum liquids with this vacuum?

No, the vacuum is designed only for dry surfaces. Never vacuum liquids, this would damage the unit.

How to use the hard floor brush?

On the floor/carpet accessory, press the button to extend the brush. The brush allows cleaning hard floors without scratching.

The vacuum causes electrostatic discharges, is this normal?

Yes, this can happen in low humidity conditions. To minimize, touch a metal object or increase humidity.

How to store the vacuum after use?

Use the guide on the back or under the unit to place the tube and hose. Press the cord rewind button while holding the cord.

What to do in case of overheating?

Slight warming is normal. If the body becomes very hot, turn off immediately, unplug and contact after-sales service.

USER MANUAL MOD-52 MPM

EN We wish you satisfaction from using the product and invite you to check a wide range of other MPM appliances

Black and white photo of a vacuum cleaner with coiled hose and handle (no visible text or symbols)

cz NAVOD K OBSLUZE 3

Infinitely adjustable suction power

Dust bag till level dial 5-stage air filtering system

Floor and carpet brush

360° selivel hose coupling

Storage compartment for additional

Metal telescopic tube

Extendable review attachment

Black vacuum cleaner with coiled tube and attached base, placed against a plain background with a potted plant (no text or symbols visible)

Vertical and horizontal parking

Power cord winder Convenient carrying handle

BEZPEČNOSTNÍ POKYNY PŘI POUŽÍVÁNÍ

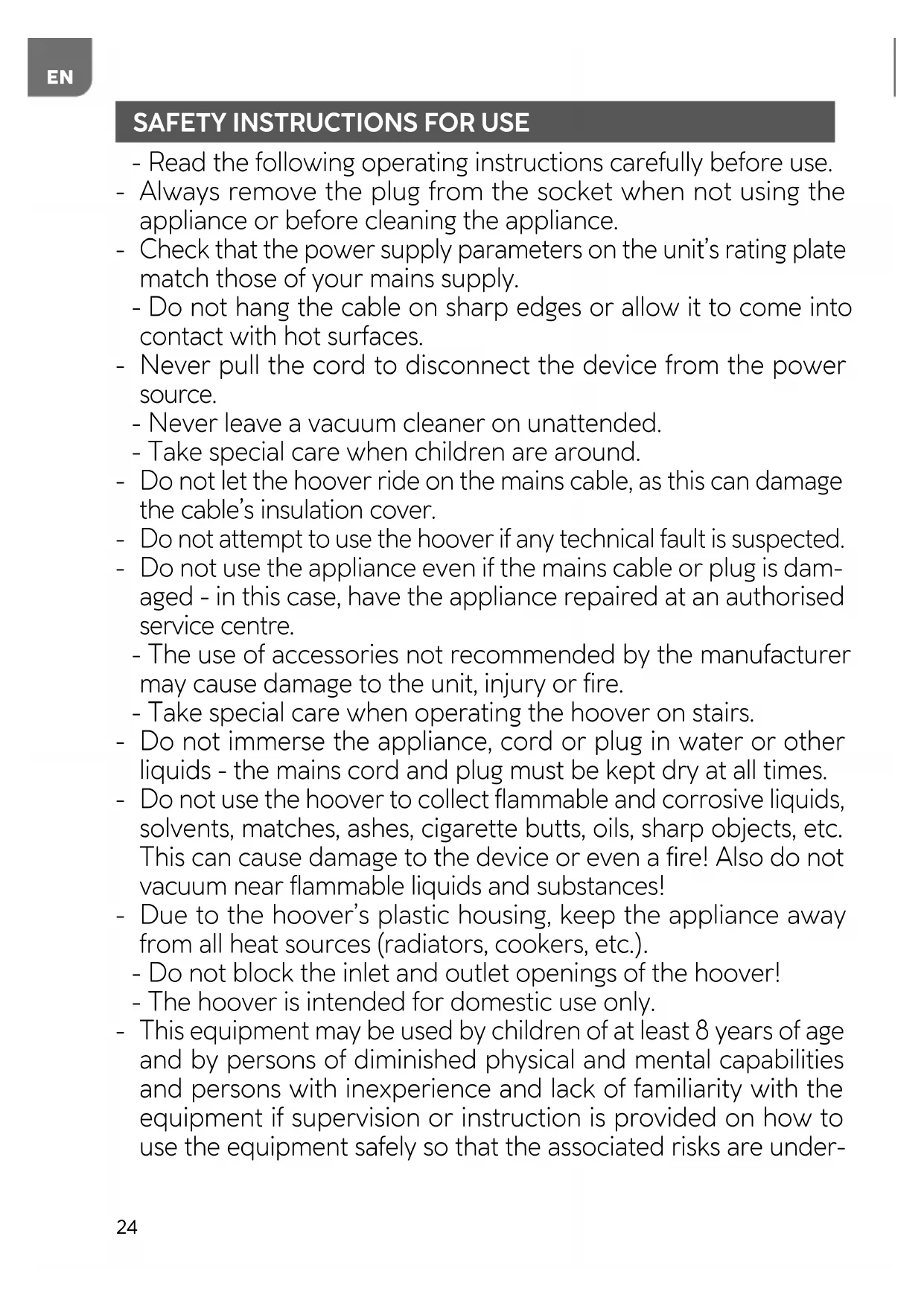

SAFETY INSTRUCTIONS FOR USE

• Read the following operating instructions carefully before use.
• Always remove the plug from the socket when not using the appliance or before cleaning the appliance.
• Check that the power supply parameters on the unit's rating plate match those of your mains supply.
• Do not hang the cable on sharp edges or allow it to come into contact with hot surfaces.
• Never pull the cord to disconnect the device from the power source.
• Never leave a vacuum cleaner on unattended.
• Take special care when children are around.

- Do not let the hoover ride on the mains cable, as this can damage the cable's insulation cover.

- Do not attempt to use the hoover if any technical fault is suspected.

- Do not use the appliance even if the mains cable or plug is damaged - in this case, have the appliance repaired at an authorised service centre.

- The use of accessories not recommended by the manufacturer may cause damage to the unit, injury or fire.

- Take special care when operating the hoover on stairs.

- Do not immerse the appliance, cord or plug in water or other liquids - the mains cord and plug must be kept dry at all times. - Do not use the hoover to collect flammable and corrosive liquids, solvents, matches, ashes, cigarette butts, oils, sharp objects, etc. This can cause damage to the device or even a fire! Also do not vacuum near flammable liquids and substances!

- Due to the hoover's plastic housing, keep the appliance away from all heat sources (radiators, cookers, etc.).

- Do not block the inlet and outlet openings of the hoover!

- The hoover is intended for domestic use only.

- This equipment may be used by children of at least 8 years of age and by persons of diminished physical and mental capabilities and persons with inexperience and lack of familiarity with the equipment if supervision or instruction is provided on how to use the equipment safely so that the associated risks are under-

stood. Unsupervised children should not carry out cleaning and maintenance of the equipment.

• Children are not allowed to play with the device.
• Keep the device and its cable out of the reach of children under 8 years of age.

• Do not vacuum people or pets, and be especially careful not to bring the suction tips close to your eyes and ears.

• Before replacing equipment, turn off the equipment and disconnect it from the power supply.

• Do not vacuum without a bag, filters or if they are damaged.
• Check the suction hose, pipes and squeegees - remove debris inside.
• Use the vacuum cleaner only indoors and only for vacuuming dry surfaces. Wet cleaned carpets dry before vacuuming.
• For the safety of children, please do not leave freely accessible parts of the packaging (plastic bags, cardboard boxes, polystyrene, etc.).

-WARNING! Do not allow children to play with the film. Danger of suffocation!

APPLIANCE OVERVIEW

1. On/off switch with suction force control
2. Carrying handle
3. Guide
4. Dust bag filling indicator
5. Upper cover
6. Upper cover opening button
7. Suction hose connection opening
8. Carrying handle in vertical position
9. Power cord
10. Air discharge filter grill

11. Air discharge filter outer sponge insert

12. HEPA filter

13. Air discharge filter inner sponge insert
14. Dust bag
15. Wheels
16. Metal telescopic wand
17. Suction hose mounting ring
18. Suction hose
19. Suction hose handle
20. Floor and carpet tool
21. Slit attachment with movable brush
22. Motor filter
23. Cord winder button)

STATIC ELECTRICITY

Vacuum cleaning certain surfaces at a low air humidity may cause slight electrification of the appliance. This is natural, does not damage the appliance and does not constitute its defect. To minimise this phenomenon, it is recommended to:

• frequently discharge the appliance by touching items in the room with the metal pipe,
  -increase air humidity in the room,
  -use generally available anti-electrostatic products.

APPLIANCE ASSEMBLY

1. Press both latches on the suction hose mounting ring (17), insert the ring into the opening (7) and release the latches. To disassemble, press the latches again and remove the ring (17) from the opening (7).
2. Connect the other side of the suction hose (18) to the handle (19) and connect the metal telescopic wand (16) to the other side of the handle (19). Install one of the tools, (20) or (21), on the end of the wand.

USING THE APPLIANCE

1. Before turning on the vacuum cleaner, unwind the power cord (9) to a suitable length and plug it into the mains socket. The yellow mark on the power cord indicates the optimum length. Do not pull out the cord beyond the red mark! While unwinding the cord, do not press the cord winder button (23).
2. Press the switch (1) to turn on the vacuum cleaner. When at work, you can regulate the suction power by moving the suction power control left or right to a suitable position.

NOTE! It is recommended to set the suction power control (1) to MIN before turning on the vacuum cleaner!

WARNING! Dust bag filling level indicator light turns red when the suction hose is clogged or the dust bag is full. You need to replace the dust bag or remove the clogging from the suction hose.

1. To wind the power cord, press the cord winder button (23) with one hand, while holding the cord with another hand to prevent a sudden movement that could damage it.
2. To ensure optimum appliance setting upon the completion of work, use the guide (3) in the rear of the vacuum cleaner. Place the rail in the rear of the floor-carpet attachment with connected suction hose and telescopic pipe on the guide. The second guide that facilitates vacuum clean -er storage in the vertical position is under the bottom of the appliance.

ACCESSORIES OVERVIEW

FLOOR-CARPET ATTACHMENT

Designed for cleaning large flat surfaces. It is equipped with castors that facilitate movement in difficult to access places and a flexible joint, connecting it with the suction hose, which allows directing at various angles. When you press the button on the upper attachment housing (switch it to the brush mode), a row of rigid bristles will appear on the bottom to facilitate cleaning hard floors.

SLIT ATTACHMENT WITH MOVABLE BRUSH

Used for cleaning difficult to access areas, such as in room corners, by and below pieces of furniture and in bends and slits. It is also perfect for cleaning computer keyboards, drawers, radiators or window frames.

REPLACING THE DUST BAG

To replace the dust bag, disconnect the appliance from the power supply, detach the suction hose (18), press the button (6) to open the upper cover (5), slide out the dust bag, while holding the flange with the inlet opening directed upwards. Install new dust bag. You can purchase spare dust bags.

AIR FILTER CLEANING AND REPLACEMENT

Normal use of the vacuum cleaner requires periodical replacement or cleaning of the air filter, which protects the motor from the side of the dust bag, and the air outlet filter. For this purpose, disconnect the appliance from the power supply and detach the suction pipe.

1. Release the latch in the cover (10), remove the cover and then remove the filters (11), (12), (13).
2. Remove the motor filter (22). You will access the filter by lifting the cover (5) and removing the dust bag (14). Remove the filter element (22).
3. Clean the HEPA filter element (12) of dust. The HEPA filter element must be perfectly dry before installing it again. Before closing the cover (10), make sure that the HEPA filter element is aligned. Do not wash the HEPA filter element.
4. Wash filter cartridges (11), (13), (22) under running and cool water. Dry the filters thoroughly after washing.
5. Cartridges should be cleaned every month or more frequently (depending on the usage). If a cartridge is too contaminated or damaged, replace it with a new one.
6. When installing the filter elements, carefully align them in the housing and the vacuum cleaner.

CAUTION: THE FILTER CARTRIDGE BEING MOUNTED MUST BE COMPLETELY DRY. MOUNTING A WET FILTER MAY CAUSE AN ELECTRIC SHOCK.

CLEANING AND MAINTENANCE

1. Periodically clean the vacuum cleaner housing and other external elements with a damp cloth. This will allow maintaining good appearance of the appliance.
2. For this purpose, do not use sharp objects or any strong detergents (e.g. solvents), as this will cause permanent damage to the vacuum cleaner housing.
3. For air filters and dust bag, follow the above instructions.

IN CASE OF FAILURE

Failure type: Possible causes: Instructions:

front cover not thoroughly closed	dust bag not attached or attached improperly	attach the dust bag properly
vacuum cleaner housing overheating	a slight housing temperature increase is normal, but if the temperature increases considerably, immediately turn off the vacuum cleaner and contact the service
	strongly contaminated filters clean or replace the filters
	full dust bag replace the dust bag or empty the textile bag
low suction power	blocked hose or extension pipe remove all items blocking the hose or pipe

TECHNICAL DATA

Technical parameters are indicated on the product nameplate.

Length of power cord: 4,5 m

Working radius: 7 m

CAUTION! MPM agd S.A. may change the technical features of the product without notice.

Proper disposal of the product (waste electrical and electronic equipment)

Marking on the product indicates that after the service-life of the product expires, it should not be disposed with other type of municipal waste. Used equipment may have a negative impact on the environment and health of people due to potentially containing hazardous substances, mixtures and components. Mixing electric waste with other types of waste or disassembling those in an unprofessional manner may cause a release of substances that are hazardous to the environment and health.

Used equipment should be handed-over to a point for collection of electric waste. In order to obtain detailed information regarding the electric waste collection points, the user should contact the municipal point of electric waste collection or used equipment processing department.
