USER MANUAL SWP-300 KOSPEL

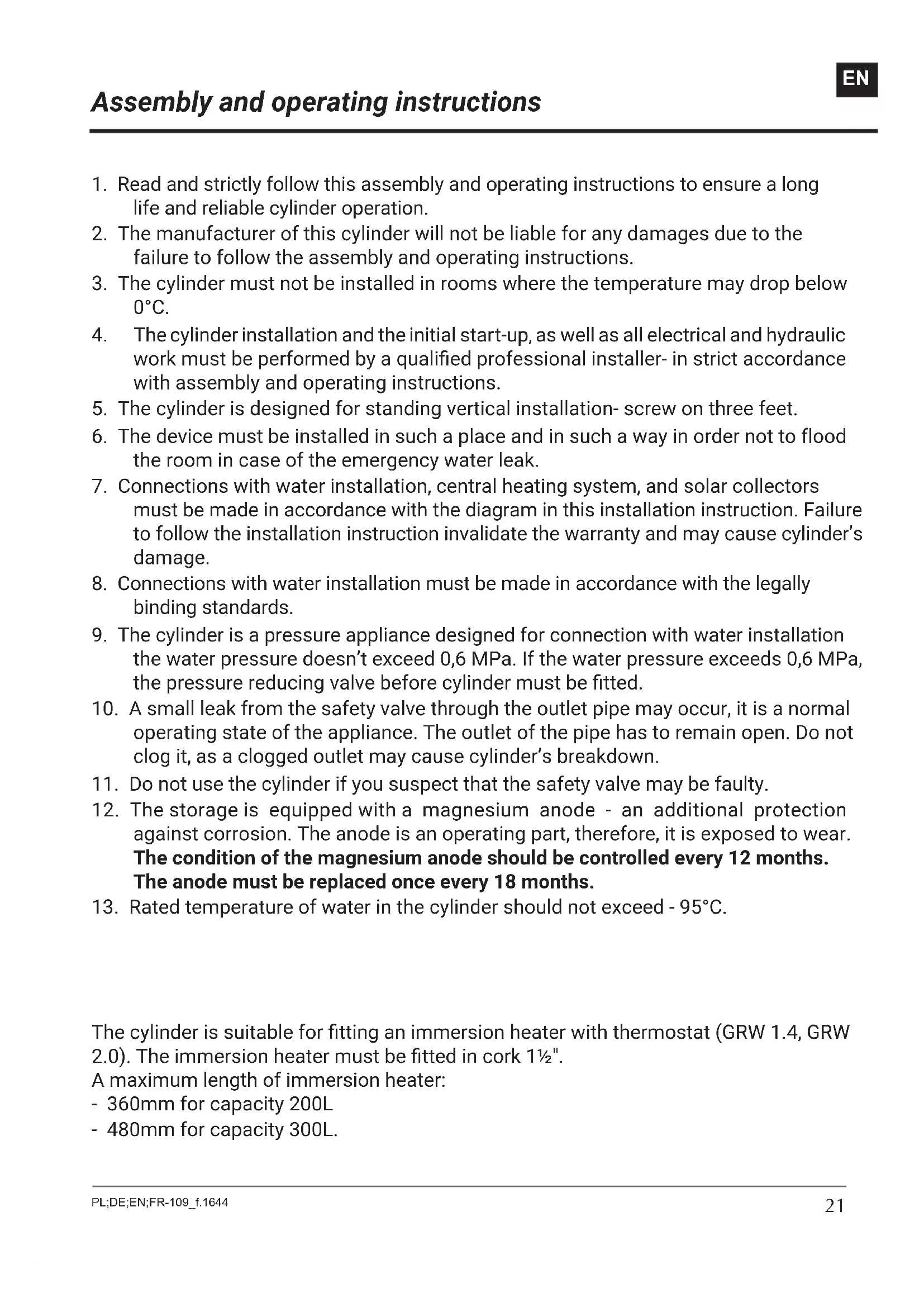

Assembly and operating instructions

1. Read and strictly follow this assembly and operating instructions to ensure a long

life and reliable cylinder operation.

2. The manufacturer of this cylinder will not be liable for any damages due to the

failure to follow the assembly and operating instructions.

3. The cylinder must not be installed in rooms where the temperature may drop below

4. The cylinder installation and the initial start-up, as well as all electrical and hydraulic

work must be performed by a qualied professional installer- in strict accordance with assembly and operating instructions.

5. The cylinder is designed for standing vertical installation- screw on three feet.

6. The device must be installed in such a place and in such a way in order not to flood

the room in case of the emergency water leak.

7. Connections with water installation, central heating system, and solar collectors

must be made in accordance with the diagram in this installation instruction. Failure to follow the installation instruction invalidate the warranty and may cause cylinder’s damage.

8. Connections with water installation must be made in accordance with the legally

9. The cylinder is a pressure appliance designed for connection with water installation

the water pressure doesn’t exceed 0,6 MPa. If the water pressure exceeds 0,6 MPa, the pressure reducing valve before cylinder must be tted.

10. A small leak from the safety valve through the outlet pipe may occur, it is a normal

operating state of the appliance. The outlet of the pipe has to remain open. Do not clog it, as a clogged outlet may cause cylinder’s breakdown.

11. Do not use the cylinder if you suspect that the safety valve may be faulty.

12. The storage is equipped with a magnesium anode - an additional protection

against corrosion. The anode is an operating part, therefore, it is exposed to wear. The condition of the magnesium anode should be controlled every 12 months. The anode must be replaced once every 18 months.

13. Rated temperature of water in the cylinder should not exceed - 95°C.

The cylinder is suitable for tting an immersion heater with thermostat (GRW 1.4, GRW 2.0). The immersion heater must be tted in cork 1½″. A maximum length of immersion heater: - 360mm for capacity 200L - 480mm for capacity 300L. EN22 Connection with central heating system Cylinder must be tted with central heating system by pipe unions 1. A cut-off valves must be installed before the pipe unions. A flow rate of heating water must be high enough to maximise cylinder’s efficiency (see technical data table). It concerns the forced circulation installation (with a central heating water pump). SWP type is equipped with a single heating coil with huge capacity.

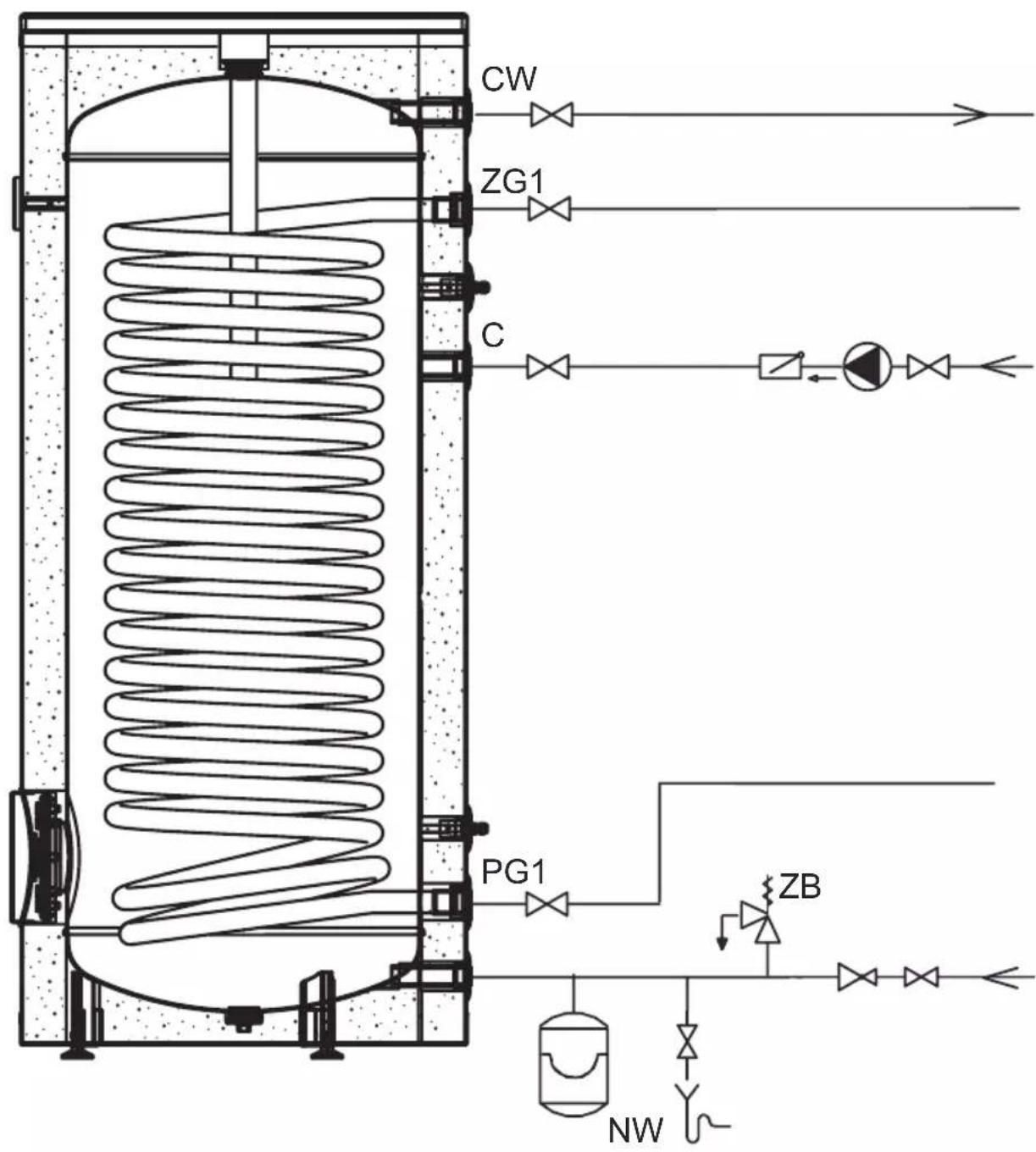

Connection with water installation Connection with water installation must be performed according to binding norms of hydraulic installation. The cylinder is a pressure appliance designed for connection with water installation where the water pressure doesn’t exceed 0,6 MPa. If the water pressure exceeds 0,6 MPa, the pressure reducing valve before cylinder must be tted. Please follow the water connection instructions below: - install the T-connection with 6 bar* safety valve to the tting of cold water inlet [ZW]. It’s forbidden to install a cut-off valve (or any ow reducer) between storage and the safety valve and on its outlet. The safety valve must be installed in such a place as to quickly let you notice the outgoing water, - install the cylinder equipped with the safety valve with water installation, - install the cut-off valve on cold water supply pipe. Hot water outlet should be led to the connection in the upper part of the cylinder. Every cylinder is equipped with connection intended for its installation to the DHW circulation. *Please note: use the safety valve matched to the heat’s source. Installing a safety valve with inadequate capacity can result for excessive pressure increase in the cylinder and as a result a leakage. In this case, warranty does not cover damage caused. EN24 Construction of SWP cylinder (200l)

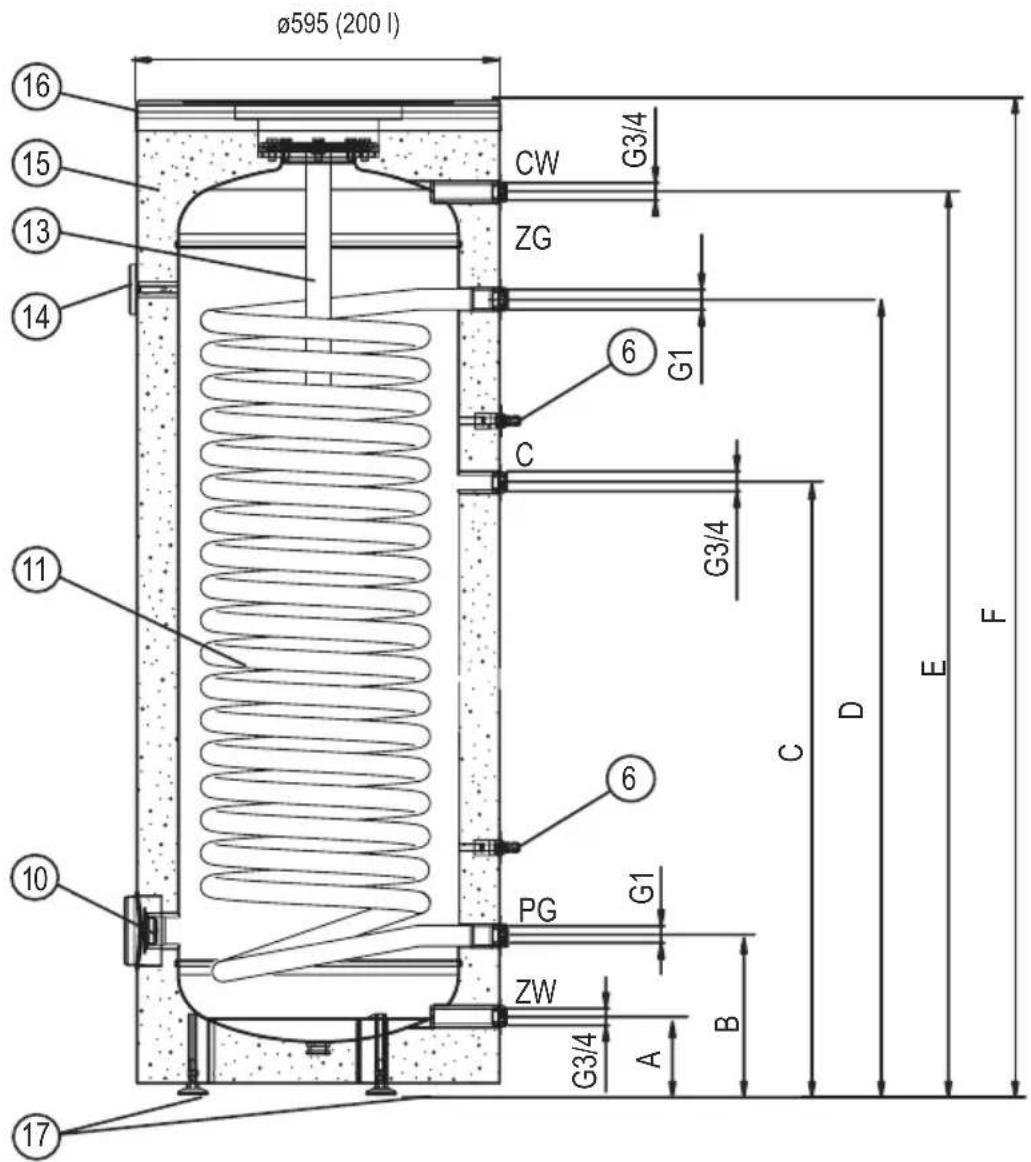

[6] - sensor pipe [10] - immersion heater connection (cork 1½″) [11] - heating coil [13] - magnesium anode [14] - thermometer [15] - thermal insulation [16] - upper lid [17] - feet ZW - cold water CW - hot water C - circulation ZG - heating medium supply of coil PG - heating medium return of coil A-F - dimensions specied in the diagramPL;DE;EN;FR-109_f.1644

[6] - sensor pipe [10] - immersion heater connection (cork 1½″) [11] - heating coil [13] - magnesium anode [14] - thermometer [15] - thermal insulation [16] - upper lid [17] - feet [18] - access hole [19] - access hole cover ZW - cold water CW - hot water C - circulation ZG - heating medium supply of coil PG - heating medium return of coil A-F - dimensions specied in the diagram Construction of SWP cylinders (300l)26 Start-up Before the start-up close the draining connection e.g. by screwing the valve in and make sure that the installation procedures have been carried out in accordance with the regulations included in this manual. All connections, including those that were factory- assembled (the sleeve of the electric water heater, the magnesium anode, the inspection opening cover), must be checked for leaks at the time of commissioning and, if leaks are detected, must be resealed. Cylinder must be lled with water: - turn on the valve on cold water supply pipe, - turn on the hot water outlet valve (water outflow without the air bubbles indicates that the storage is full), - turn off the outlet valves. Turn on the valves connecting cylinder with the central and the solar collector heating system. Check for water and heating medium leaks. Check out the safety valve performance in accordance with valve manufacturer’s instruction. Cylinder emptying In order to empty the cylinder:

• turn off the valves which connect cylinder with central heating system,

• turn off the valve on the cold water inlet,

• turn on the drain valve. Dimensions SWP

Operation Follow the guidelines below for safety and trouble-free cylinder operation:

• Check out the safety valve performance once every 14 days. Do not use the cylinder if the water does not come out (it indicates that the valve is broken).

• Clean inside of the cylinder periodically. The frequency of cleaning depends on the degree of water hardness. The cleaning should be done by a qualified person. Tightening torque value of access hole cover [19] screws must be 18-22Nm.

• The wear condition of the anode must be inspected annually.

• The anode must be replaced once every 18 months. - anode rod replacement [13] (200 litres cylinder): take off the lid [16], take out an insulation ring, turn off the cut-off valve on cold water supply pipe, turn on the hot water valve (mixer tap), turn the drain valve on, drain as much water as you can easily screw out the anode rod (avoiding room ooding), take off the access hole cover [19] and screw out the anode rod. Tightening torque value of access hole cover [19] screws must be 18-22Nm, - anode rod replacement [13] (300 litres cylinder): take off the upper lid [16], take out an insulation ring, turn off the cut-off valve on cold water supply pipe, turn on the hot water valve (mixer tap), turn the drain valve on, drain as much water as you can easily screw out the anode rod (avoiding room ooding), screw off the cork and screw out the anode rod,

• Heat up the water above 70°C periodically for hygiene reasons.

• Failures or malfunctions notify to the seller.

• Insulate the outlet pipe and heating coil connection pipes to minimise the heat loss (recommended). Above activities are beyond of the scope of warranty service (should be done by the user). EN28 Technical data Domestic Hot Water Cylinder SWP Capacity l 200 300 Rated pressure storage MPa 0,6 coil 1 Rated temperature °C 95 Performance factor NL according to DIN 4708 when supplied with heating water at 80°C)

6,0 10,6 Surface area of coil m

heating water temp./ supply water temp./ dome󰀬ic water temp./ ow rate of heating water through the coil - 2,5 m

How to deal with damage or irregularities Irregularity Instructions for conduct Water leakage from the tank turn off the cold water supply valve and the CH system cut-off valves and contact the service Excessive pressure build-up in the tank Pressure increase in the CH system Dirty water in the device The tank should be cleaned of accumulated sediments - for this purpose, contact a specialized service company Recycling and waste disposal Removal of product and equipment: Do not dispose of the product or equipment with household waste. Make sure that the product and all equipment is disposed of properly. Observe all applicable regulations. Decomissioning Used product must not be treated as a household waste. By disposing of this product correctly you will help to prevent potential negative consequences for the environment that could otherwise arise through inappropriate waste handling. For more detailed information about recycling of this product, please contact your local authority waste management service. EN30 Les conditions pour un fonctionnement sûr et able
