N3651K - Monitor OPTOMA - Free user manual and instructions

Product Type	Interactive Display (IFP)
Brand	Optoma
Model	N3651K
Screen Size	65 inches (165 cm)
Resolution	3840 x 2160 (4K UHD)
Operating System	Custom Android 11
Connectivity	HDMI (x3), USB Type-C (with DisplayPort 1.2 and Power Delivery 65W), USB 2.0/3.0, LAN, RS232, audio output, SPDIF, Wi-Fi (optional)
Built-in Speakers	Yes, 2 x ? (not specified)
Main Features	Creative Cast (wireless sharing), PIP mode, screen recording, file manager, browser, WPS Office, low blue light, anti-flicker

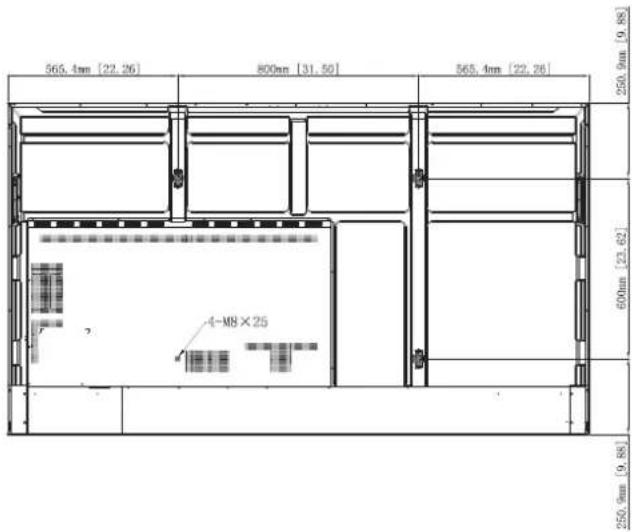

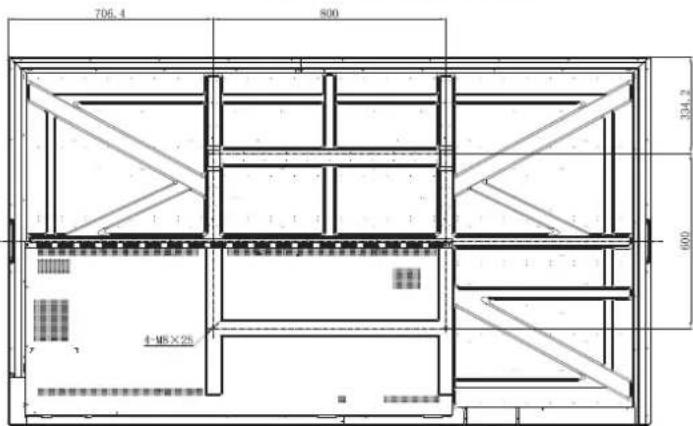

Wall Mount	VESA 600 x 400 mm, M8 x 25 mm screws
Power Supply	100-240 V AC, 50/60 Hz
Power Consumption	Standby mode: Eco (low) or Active
Security	Screen lock via password, OSD lock, auto power off, Wake on LAN
Care and Cleaning	Clean the screen with a soft, dry cloth; disconnect before cleaning
Supplied Accessories	Remote control (AAA batteries included), power cable, documentation
Optional Accessories	Wall mount kit (WIB6560A), Wi-Fi dongle, stand (ST01)
Dimensions (W x H x D)	Approximately 1500 x 900 x 80 mm (estimated for 65”)
Weight	Approximately 35 kg (estimated)
Warranty	See provided warranty card

Frequently Asked Questions - N3651K OPTOMA

How to connect a computer to the Optoma N3651K monitor?

You can connect a computer via an HDMI cable (HDMI ports 1/2/3) or via USB Type-C (supports DisplayPort and 65W power delivery). Make sure to select the corresponding input source in the shortcut menu.

Why is there no image or sound?

Check that the power and signal cables are properly connected. Make sure the correct input source is selected. Ensure the volume is not muted or set to zero.

How to use the Creative Cast function for wireless projection?

Make sure the monitor and your device (mobile/PC) are connected to the same Wi-Fi network. Launch the Creative Cast app on your mobile or via Chrome browser on PC, enter the verification code displayed on screen, then select Mirror or other option.

How to install the monitor on the wall?

Use the optional wall mount kit (WIB6560A for 55-65 inches). The VESA standard is 600x400 mm with M8x25 mm screws. Installation must be carried out by a qualified technician on a concrete wall.

How to update the firmware?

You can update via Internet (OTA) by going to Settings > System > Update > OTA software update. Or via a USB drive: download the firmware to the root of a FAT32 USB drive, plug it into the monitor and go to Settings > System > Update > USB software upgrade. Do not cut off power during the update.

How to reduce eye strain?

Enable the Low blue light function in the Display or Shortcut menu. Adjust the level between 0 and 100. Take 10-minute breaks every hour and look into the distance. Also enable the Flicker-free function for increased visual comfort.

Can third-party applications be installed?

Yes, but you must first enable the Unknown sources option in Security > Advanced settings. Note that the custom Android system does not support Google Play, and some apps may not work correctly. Optoma disclaims all liability in case of issues.

What to do if the remote control does not work?

Check that the batteries are installed correctly (two AAA batteries) and are not depleted. Point the remote at the monitor's IR sensor at an angle of ±° and within 8 meters. Ensure no obstacle blocks the beam.

How to configure the Wi-Fi network?

First connect an optional Wi-Fi dongle to the designated slot. Go to Settings > Network > Wi-Fi, enable Wi-Fi and select your network. Enter the password if required. You can also use an Ethernet network via the LAN port.

How to lock the screen to prevent unauthorized use?

Go to Settings > Security > Screen lock password. Set a 4-digit code. To remove the lock, select Clear screen lock password and enter the current code.

USER MANUAL N3651K OPTOMA

Creative Board....72

Optoma Marketplace 88

Keeper 89

MediaPlayer....90

Optoma Management Suite (OMS)....99

INFORMATIONS SUPPLÉMENTAIRES .... 102

Dimensions....102

55 pouces....102

65 pouces....103

75 pouces....104

86 pouces....105

98 pouces....106

Line drawing of a PC Enfichable OPS M router with two antennas and ports (no text or symbols on the device itself)

Line drawing of a vertical support structure with wheels and a chair (no text or symbols)

INTRODUCTION

INTRODUCTION

Technical line drawing of a dual-tiered rack structure with no visible text or symbols

75 pouces 86 pouces

98 pouces

CONFIGURATION ET INSTALLATION

Technical diagram of a mechanical component with a magnified inset showing a screw inserted into a slot (no text or symbols present)

Diagram showing a cylindrical device with a ring attached to a panel, connected to a dashed rectangular box (no text or symbols present)

Technical diagram of a wall-mounted device with a close-up inset showing a component labeled 'C' (no text or symbols present)

Remarque :

Technical line drawing of a mechanical component with a magnified inset showing a threaded fastener (no text or symbols)

Remarque :

Diagram showing a two-wheeled cart with wheels and a close-up of its mechanical component (no text or symbols)

Technical line drawing of a vertical mechanical device with wheels and a blue arrow indicating direction (no text or symbols)

CONFIGURATION ET INSTALLATION

Diagram of a smartphone rear panel with a blue arrow indicating rotation (no text or symbols)

Diagram of a remote control panel with battery and indicator lights (no text or symbols)

Diagram of a smartphone with a blue arrow indicating the direction of change or motion (no text or symbols present)

MISE EN GARDE

Diagram showing a circular screen connected to a remote control with multiple function buttons (no text or symbols present)

CONFIGURATION ET INSTALLATION

Connexions

Diagram showing connection between a device and a laptop via USB cable (no text or symbols present)

CONFIGURATION ET INSTALLATION

Simple diagram showing a blue downward arrow between two hanging objects on a horizontal line (no text or symbols)

Diagram showing a blue upward arrow pointing to a gray base with a label 'II', above parallel lines (no text or symbols on the diagram itself)

Paysage Portrait

Advanced settings
USB WIFI Enable	<=	OPEN	=>
USB Disk Enable	<=	OFF	=>
Android input Enable	<=	OPEN	=>
Back

OPÉRATIONS DE BASE
