5752RK - Monitor OPTOMA - Free user manual and instructions

Product Type	LCD Monitor
Brand	Optoma
Model	5752RK
Screen Size	27 inches (diagonal 68.6 cm)
Native Resolution	1920 x 1080 pixels (Full HD)
Refresh Rate	60 Hz
Viewing Angles	178° horizontal / 178° vertical
Connectivity	1x HDMI 1.4, 1x DisplayPort 1.2, 1x VGA, 1x headphone jack
Built-in Speakers	2 x 2W
Dimensions (with stand)	612 x 458 x 200 mm
Weight	4.8 kg
Power Supply	100-240 V, 50/60 Hz
Power Consumption	30 W (typical), <0.5 W in standby
Main Features	Tilt and height adjustment, blue light filter, game mode
Maintenance and Cleaning	Clean with a soft, dry cloth. Do not use abrasive products.
Safety	Use on a stable surface. Avoid any shock. Do not block ventilation openings.
Spare Parts and Repairability	Repairability index: 7.5/10. Parts available from after-sales service.
General Information	2-year warranty. Complies with CE, RoHS standards.

Frequently Asked Questions - 5752RK OPTOMA

How to connect my computer to the Optoma 5752RK monitor?

Use an HDMI cable (recommended) or DisplayPort. Connect one end to your computer and the other to the monitor. Select the corresponding source via the OSD menu ('Menu' button).

What to do if the screen remains black?

Check that the monitor is on (power indicator light). Make sure the video cable is properly connected and the source is selected. Test with another cable or device.

How to adjust brightness and contrast?

Press the 'Menu' button on the monitor, navigate to 'Image' or 'Display', then adjust brightness and contrast using the arrow keys.

The monitor displays a blurry resolution, what to do?

Make sure your computer is set to the monitor's native resolution (1920x1080). Go to your system's display settings and select this resolution.

Can I use the monitor with a gaming console?

Yes, connect your console via an HDMI cable. The monitor supports 1080p signals at 60 Hz. Enable 'Game' mode in the OSD to reduce response time.

How to clean the screen without damaging it?

Turn off the monitor. Use a slightly damp microfiber cloth (clean water). Wipe gently. Never use chemical cleaners or paper towels.

The sound doesn't work, what to check?

Check that the monitor volume is not muted (+) button. Make sure the audio cable is properly connected or that the HDMI signal carries audio. Test with headphones on the jack.

How to install the monitor on an articulated arm?

Remove the original stand by unscrewing the screws. The monitor is VESA 100x100 mm compatible. Attach the articulated arm to the four holes on the back of the screen.

What to do in case of dead pixels?

A dead pixel is a rare defect and not covered by the standard warranty according to Optoma's policy. You can try gently massaging the area or using repair software, but replacement is not guaranteed.

Where to download the full manual?

The manual is available for free on notice-facile.com. Go to the product page, select your language, and download the PDF. Keep it for future reference.

USER MANUAL 5752RK OPTOMA

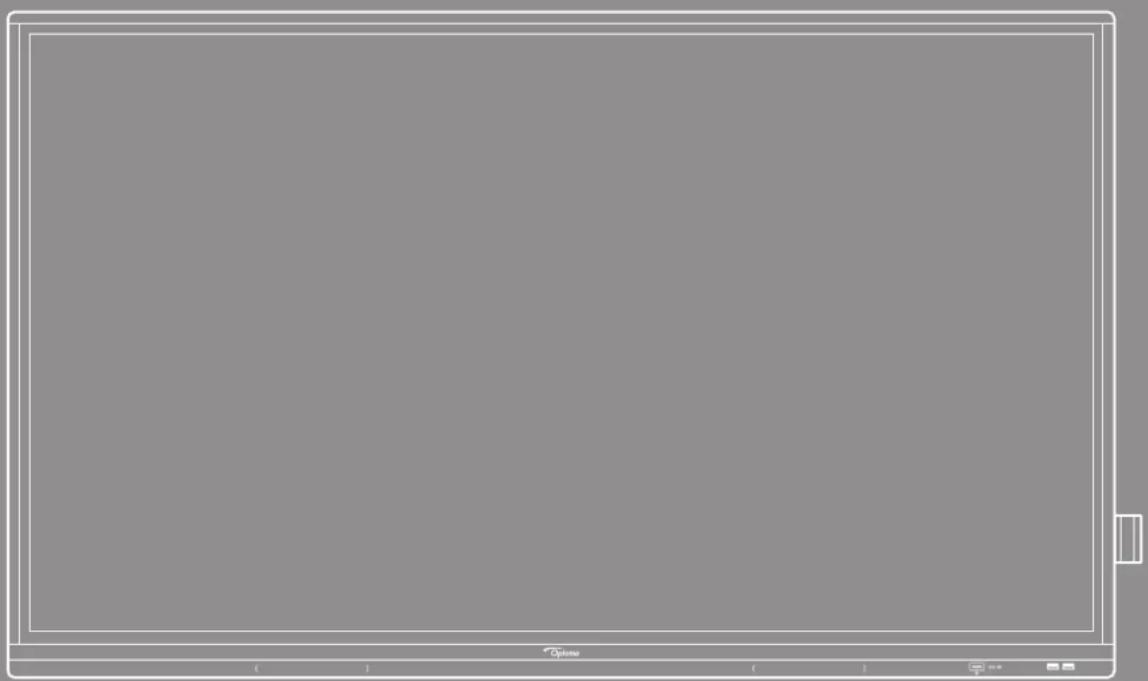

Interactive Flat Panel

Blank whiteboard with a blank gray background, no text or symbols visible.

TABLE OF CONTENTS

SAFETY 5

Safety Instructions....5

Copyright 6

Disclaimer....6

Trademark Recognition 6

FCC Statement....6

FCC Warning....6

Declaration of Conformity for EU Countries 7

WEEE 7

ENERGY STAR....7

Low Blue Light and Eye Health 7

What is Low Blue Light Technology? 7

Calculating Breaks 7

Looking at Distant Objects 7

How to Exercise Your Eyes? 7

INTRODUCTION 8

Package Contents 8

Standard Accessories....8

Optional Accessories....9

Product Overview 10

Front View 10

Rear View....11

Remote Control 12

SETUP AND INSTALLATION....14

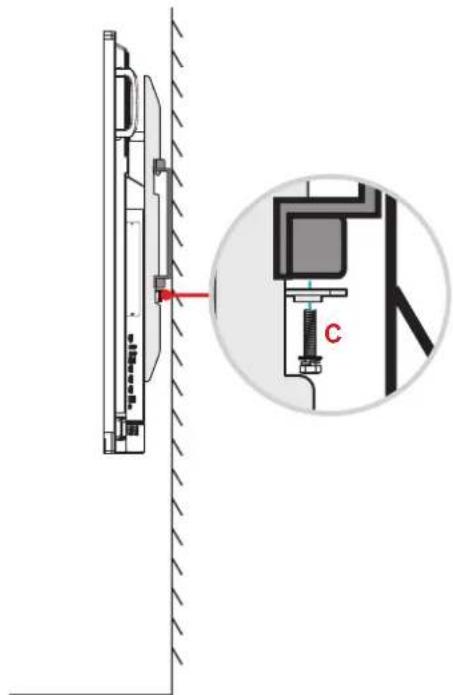

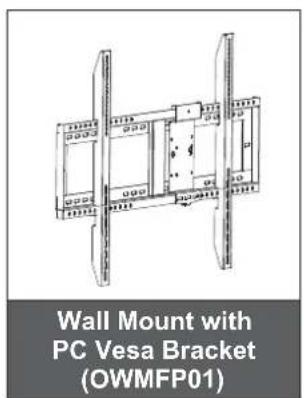

Wall Mounting Installation....14

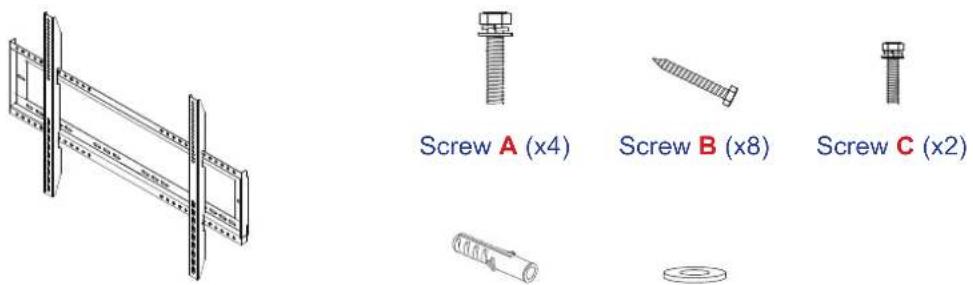

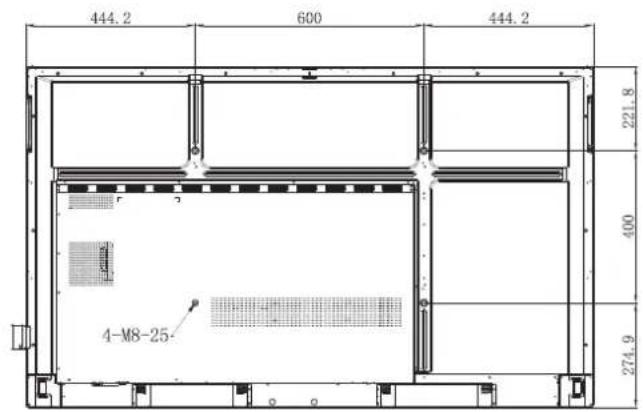

Wall Mount Specifications 14

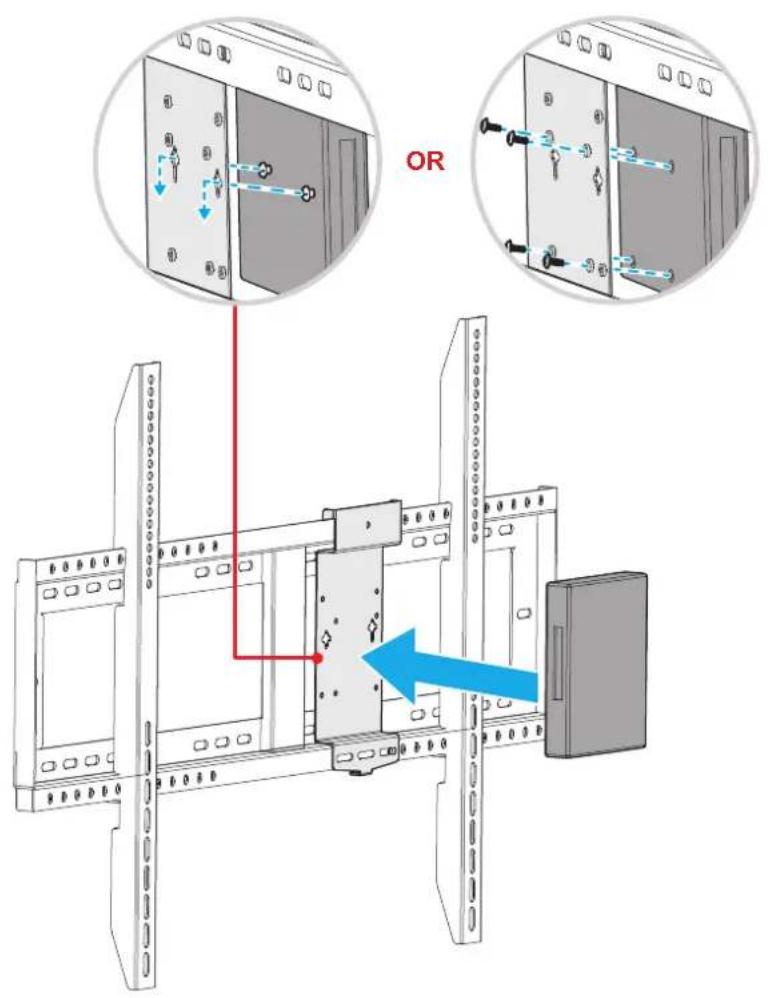

Installing an External Mini Computer.... 17

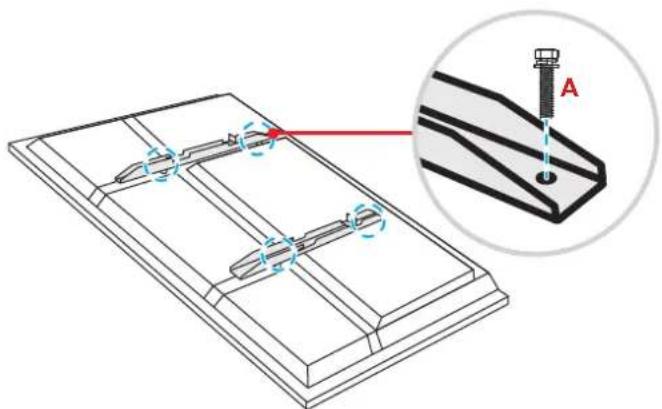

Stand Mounting Installation (Optional) 18

Using the Remote Control 21

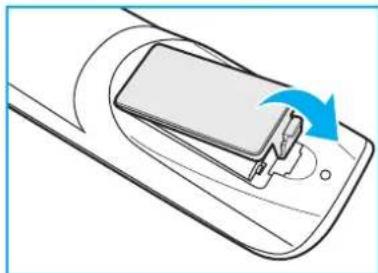

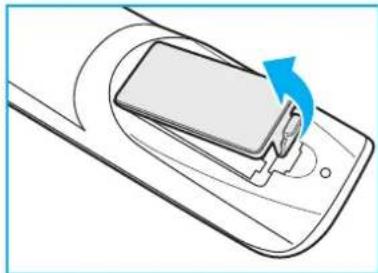

Installing/Replacing the Remote Control Batteries 21

Remote Control Operating Range 22

Connections....23

Connecting to Power 23

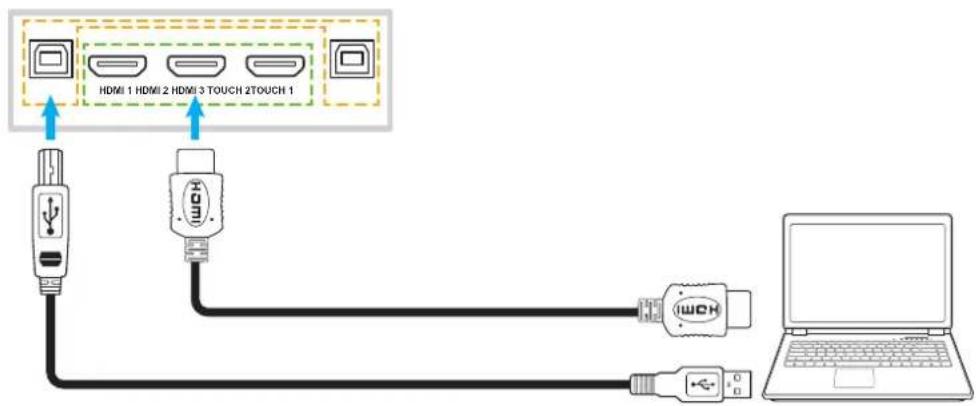

Connecting External Devices 23

USING THE DEVICE....29

Turning the Power On/Off 29

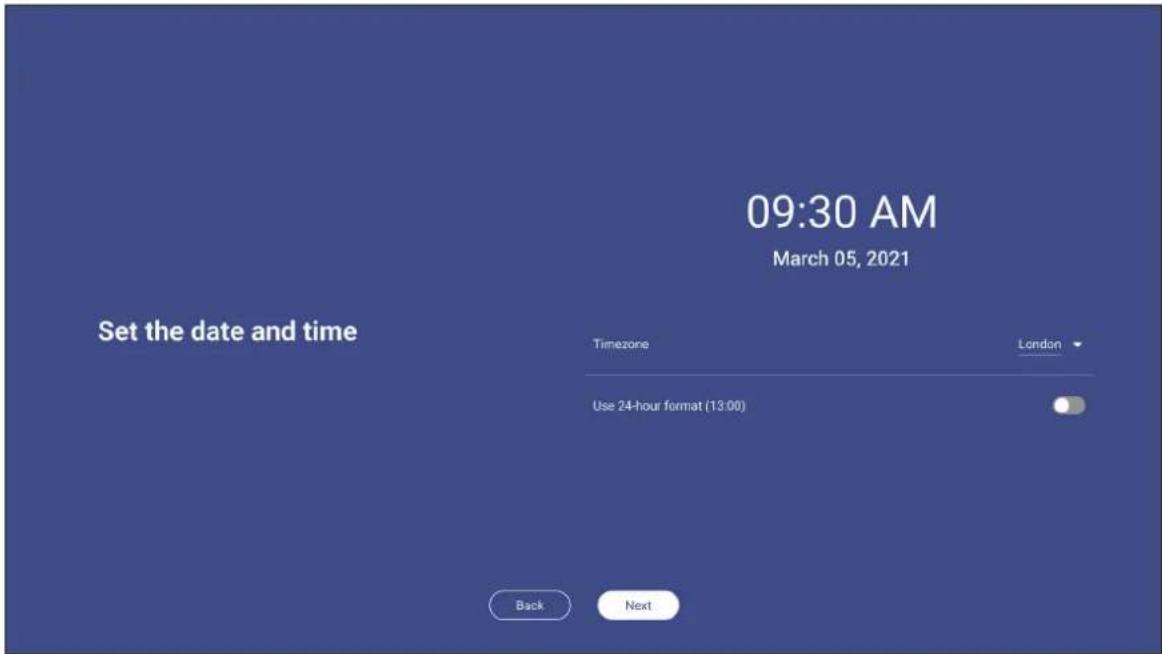

Setup Wizard 30

BASIC OPERATIONS....32

Home Screen Overview....32

OSD Menu 33

Shortcut Menu 34

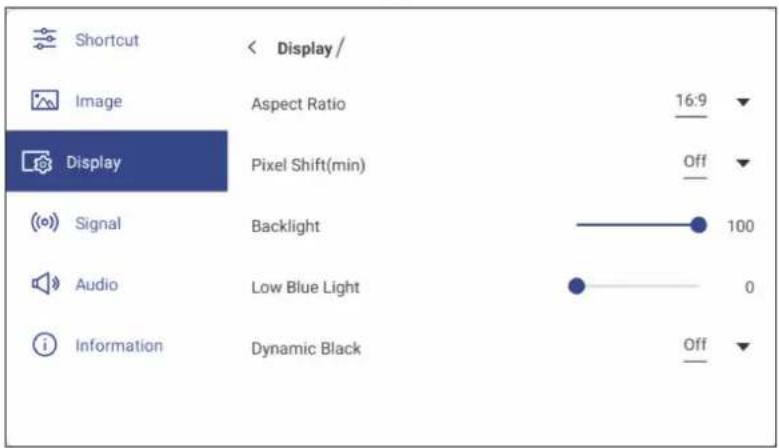

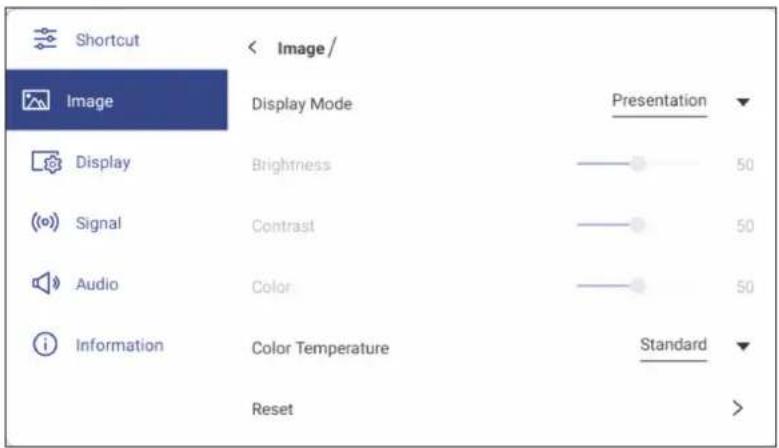

Configuring the Image Settings 35

Configuring the Display Settings 36

Configuring the Signal Settings (for VGA input only).... 36

Configuring Audio Settings 37

Viewing Device Information.... 38

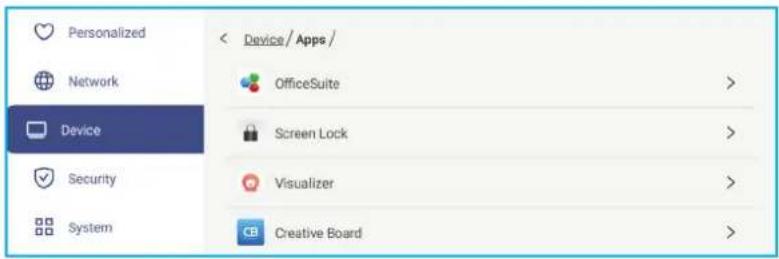

Android Settings Menu 39

Personalizing the System....39

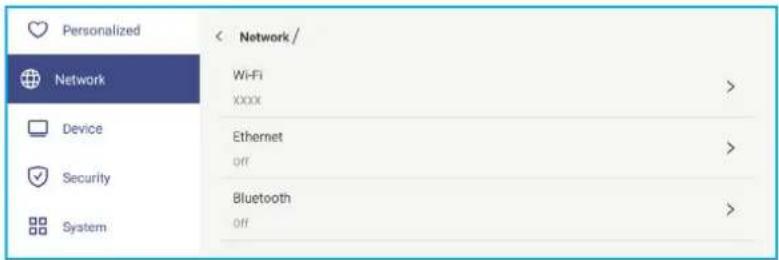

Configuring Network Settings....41

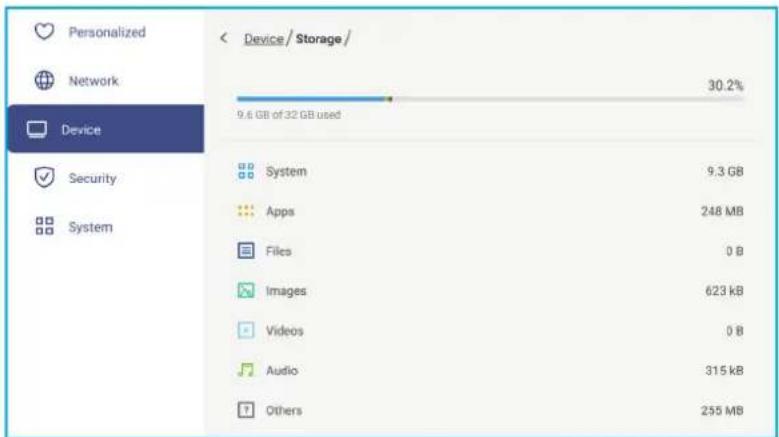

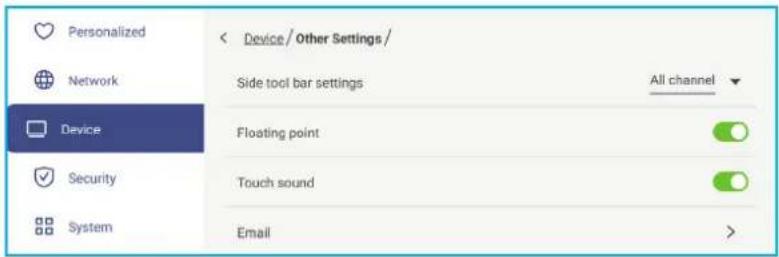

Configuring Device Settings 43

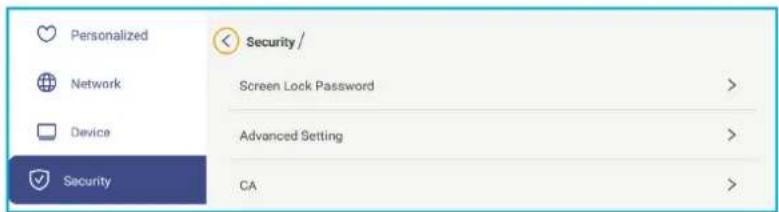

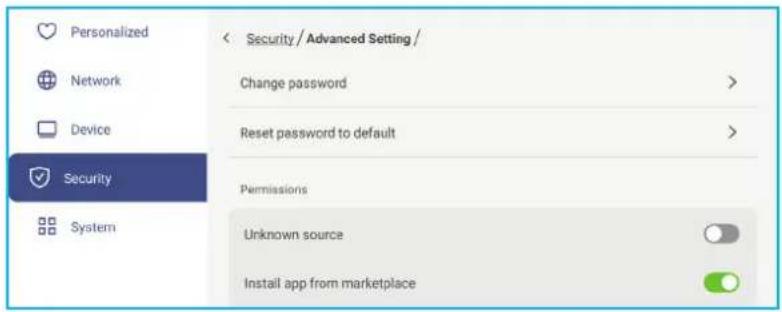

Configuring Security Settings 45

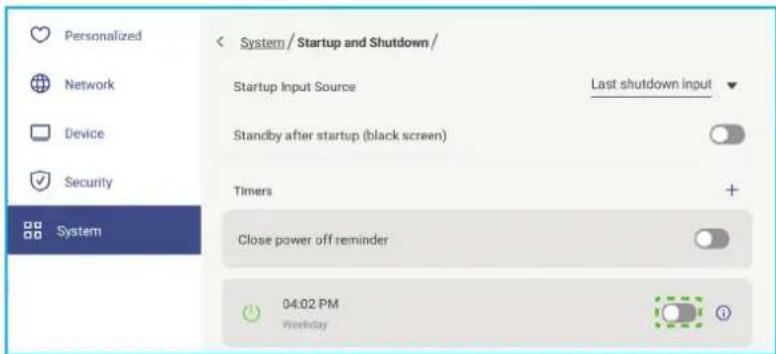

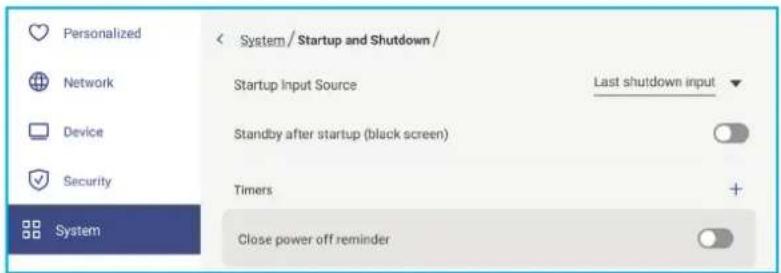

Configuring System Settings 48

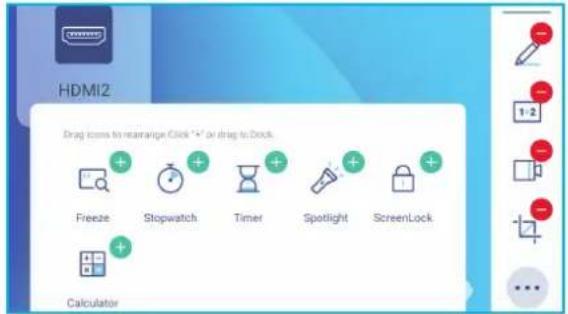

Side Toolbar....53

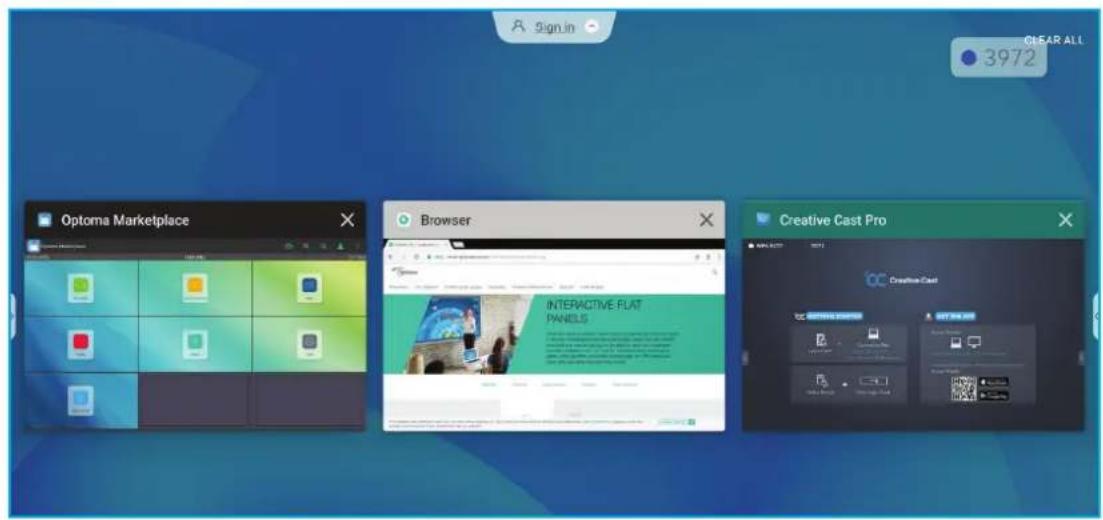

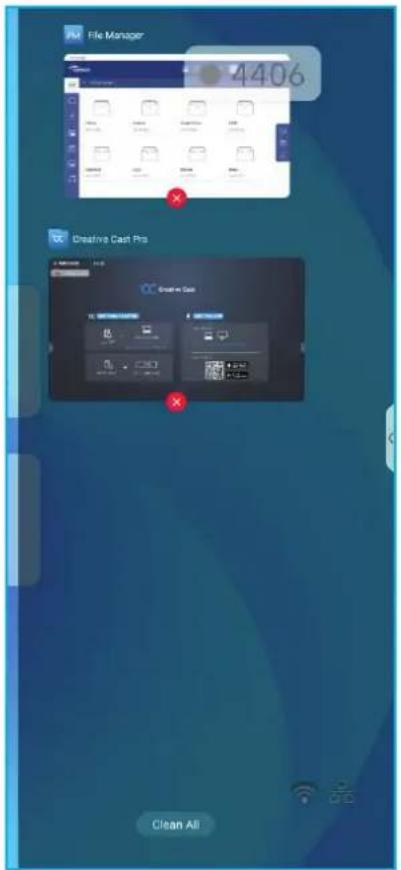

Viewing Recent Tasks 54

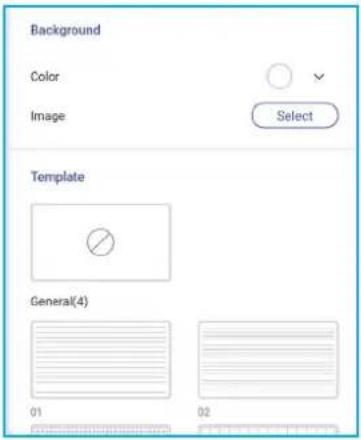

Creative Board App 55

Annotation App 62

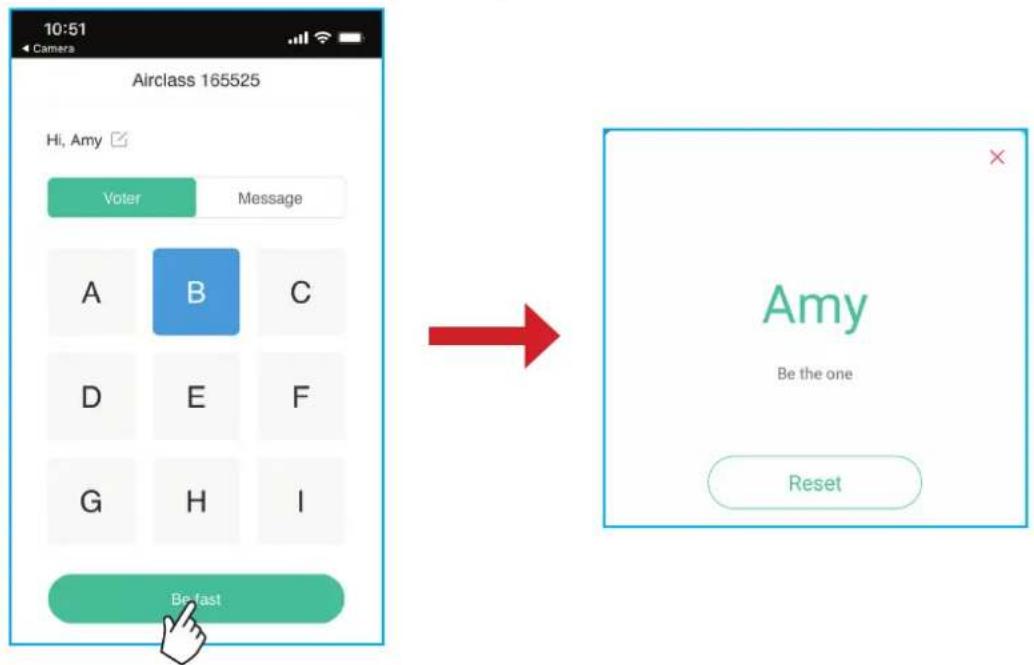

Airshare 63

Screen Recorder 68

Screen Capture Tool....68

More Tools....69

Floating Annotation Toolbar 70

USING THE APPS 71

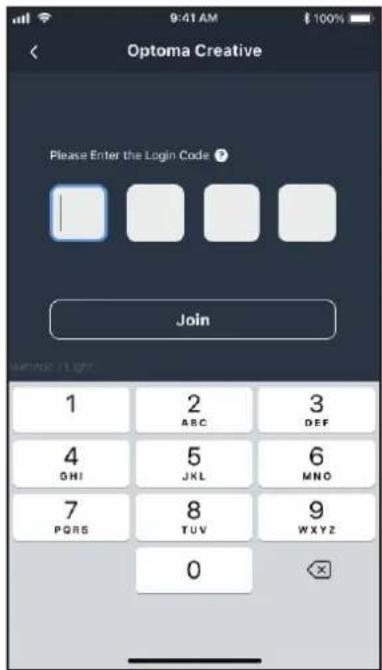

Creative Cast....72

Supported Operating Systems for Casting....72

Proprietary Sharing 72

Mobile Device 73

Computer....75

Creative Cast Settings....79

File Manager....80

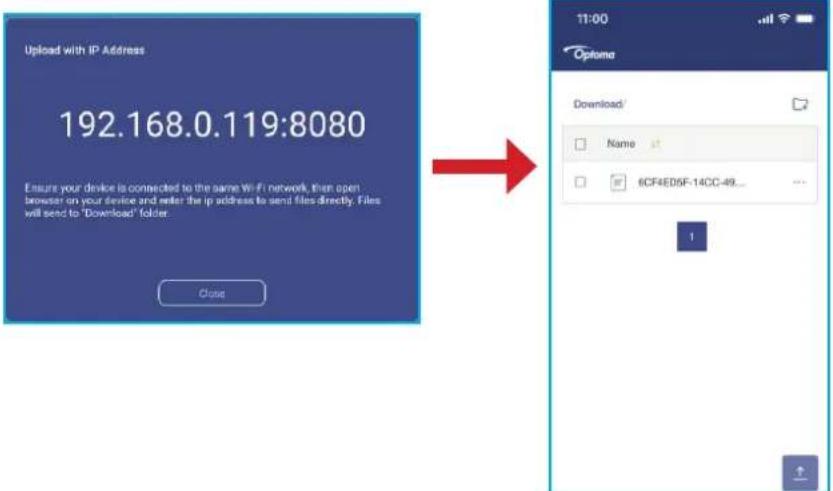

Managing Files 80

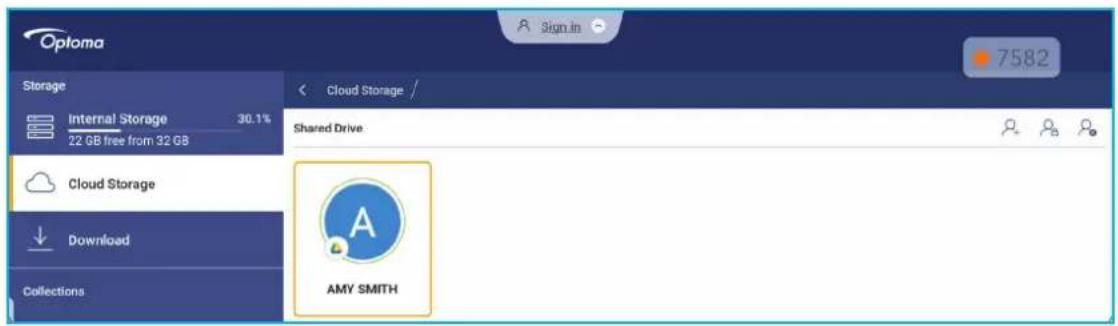

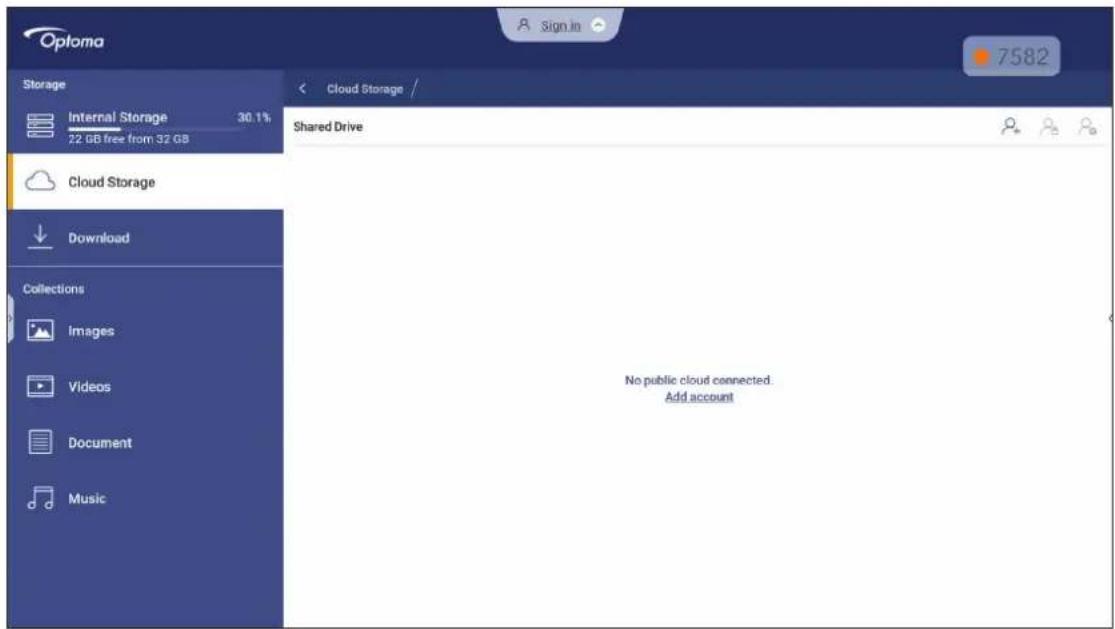

Cloud Storage 82

Playing Multimedia Files 83

Screen Lock 87

Browser 87

Optoma Marketplace 88

Keeper 89

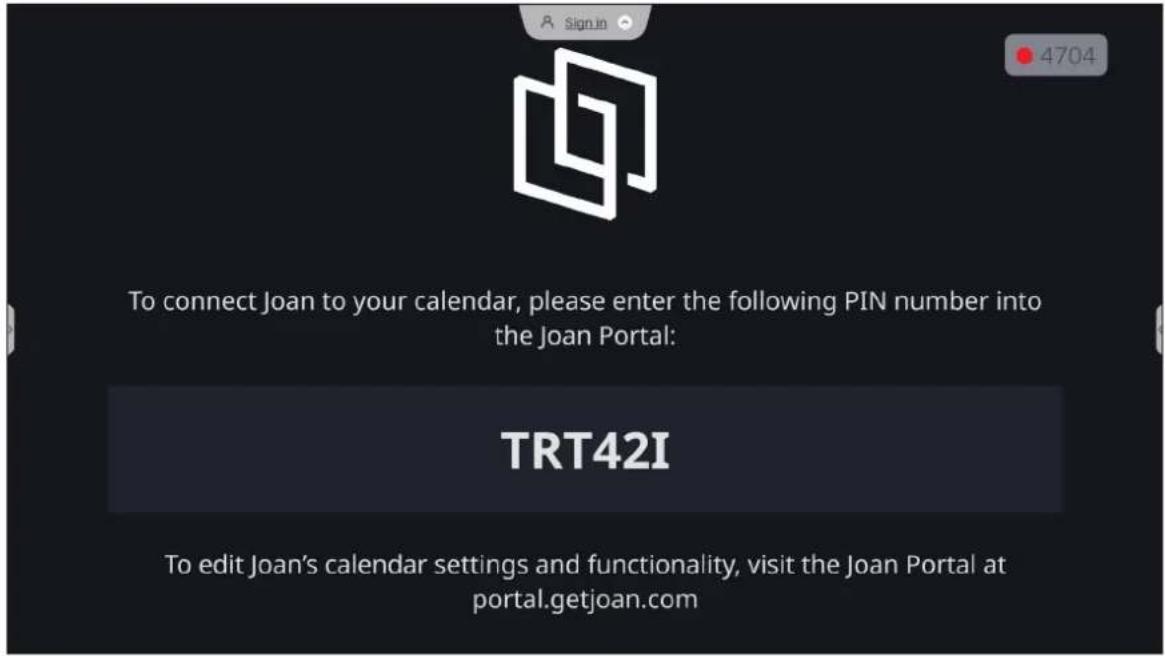

Joan on TV 90

Visualizer 93

Other Software 94

Reactiv Suite 94

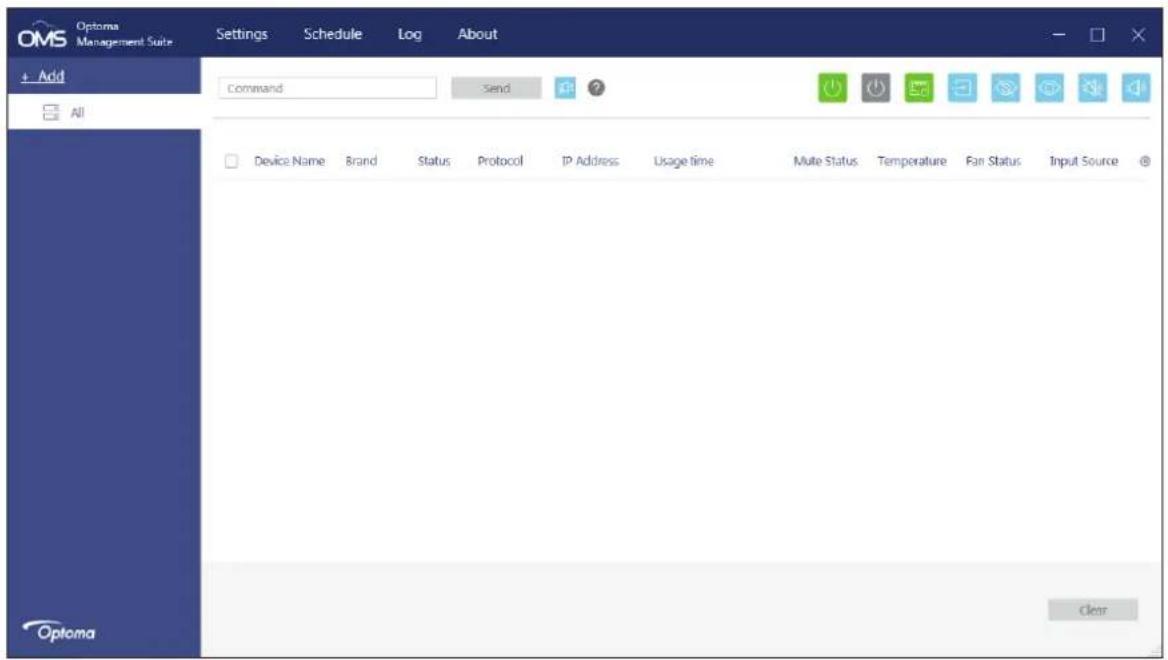

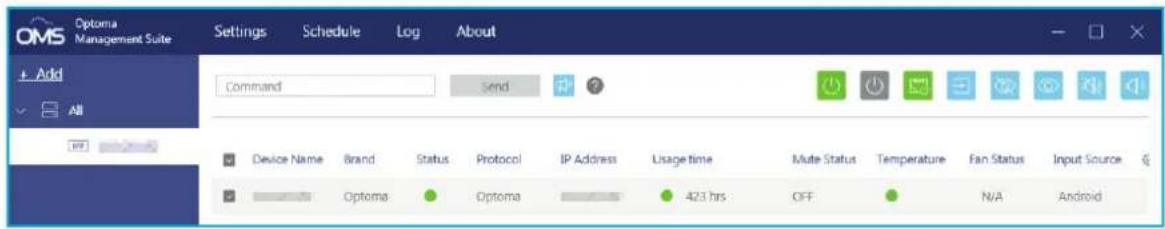

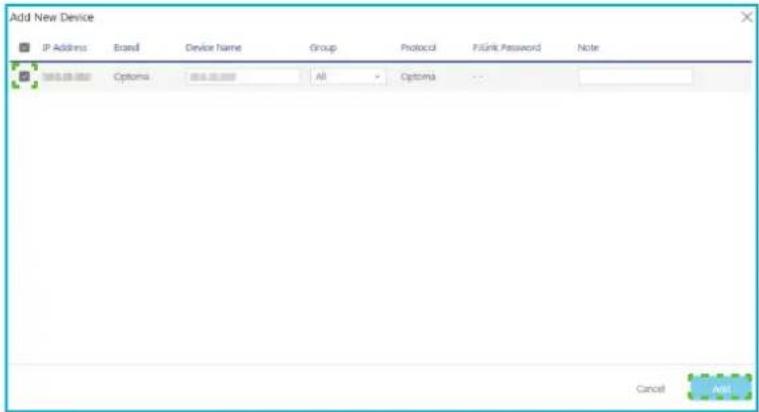

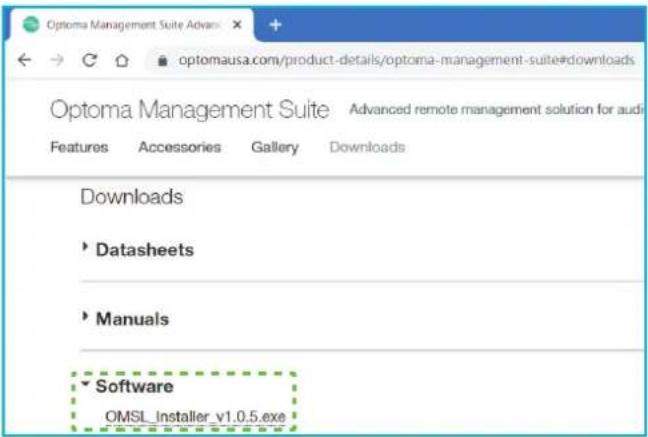

Optoma Management Suite (OMS) 95

ADDITIONAL INFORMATION 97

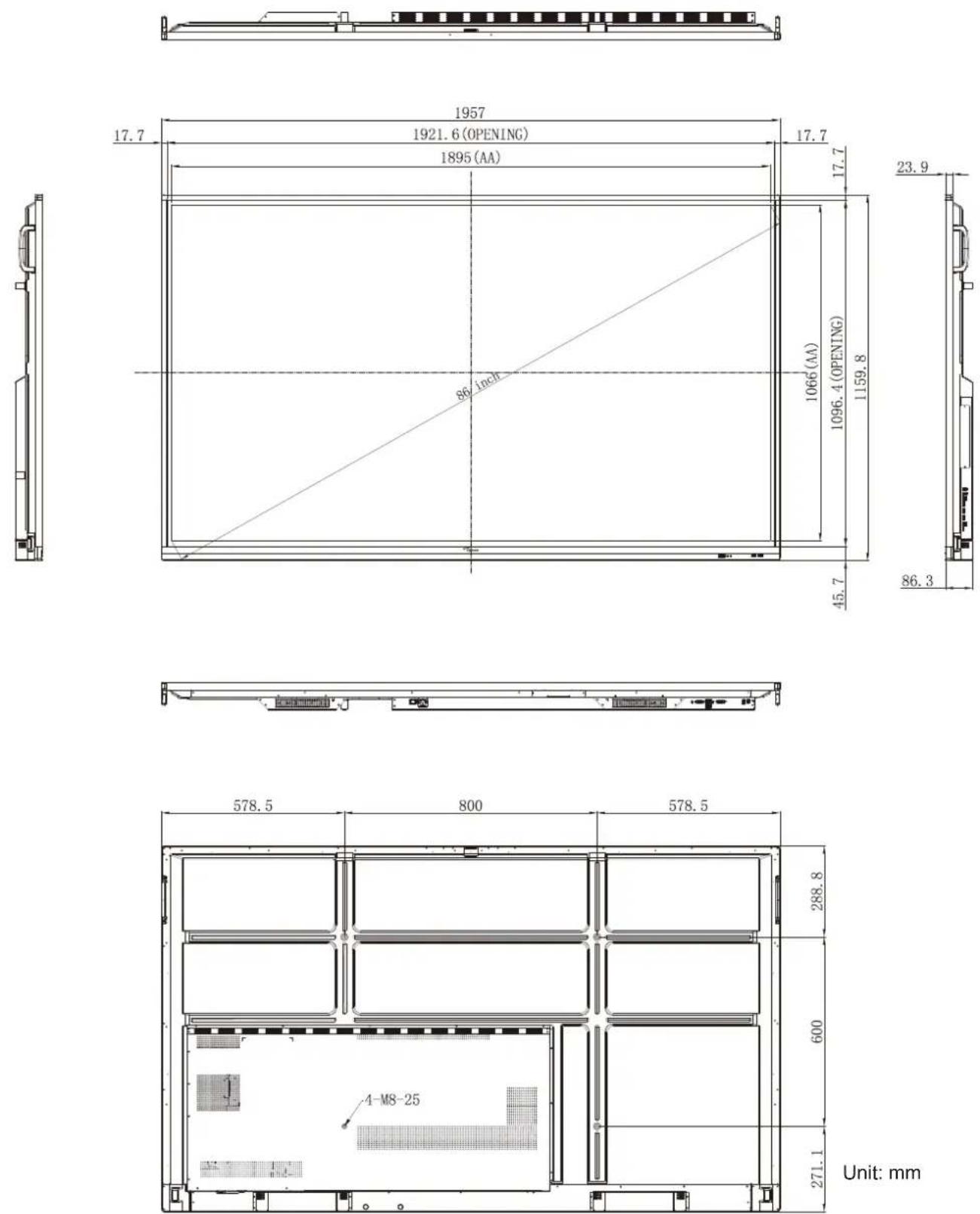

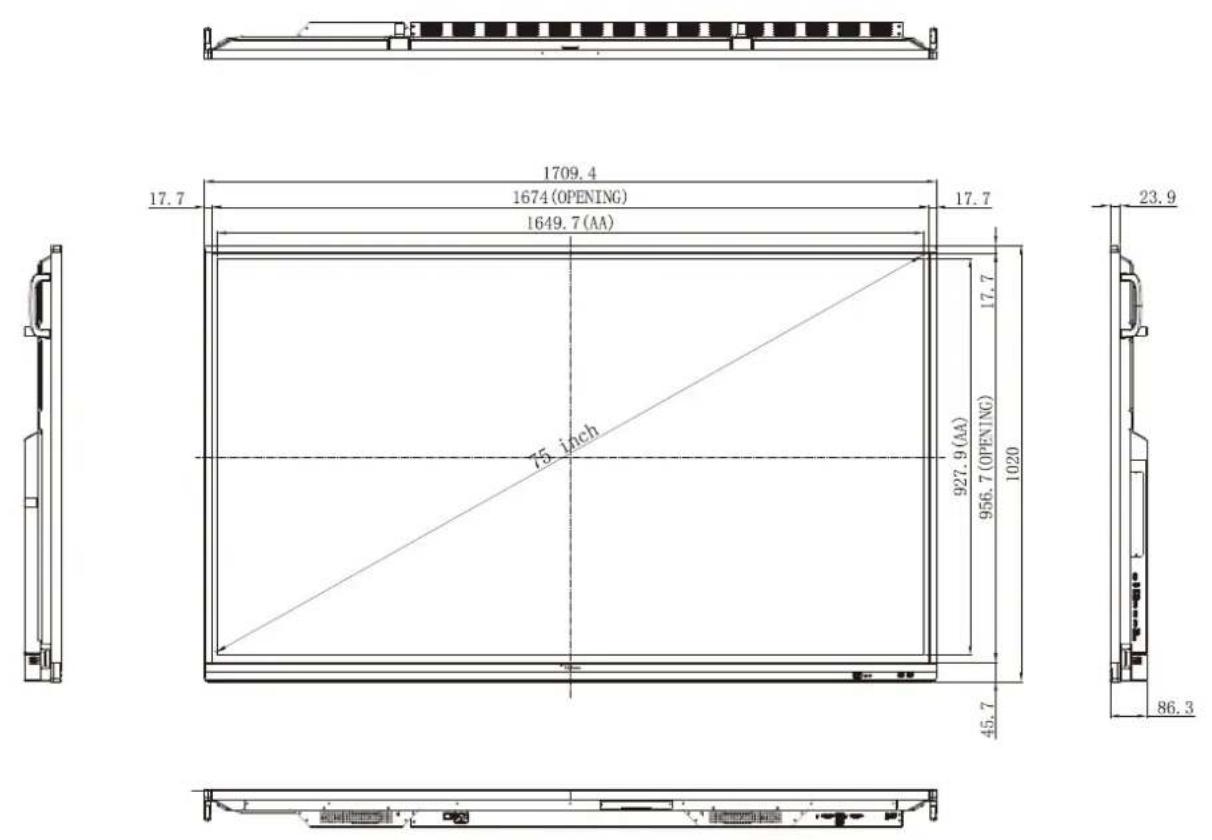

Dimensions....97

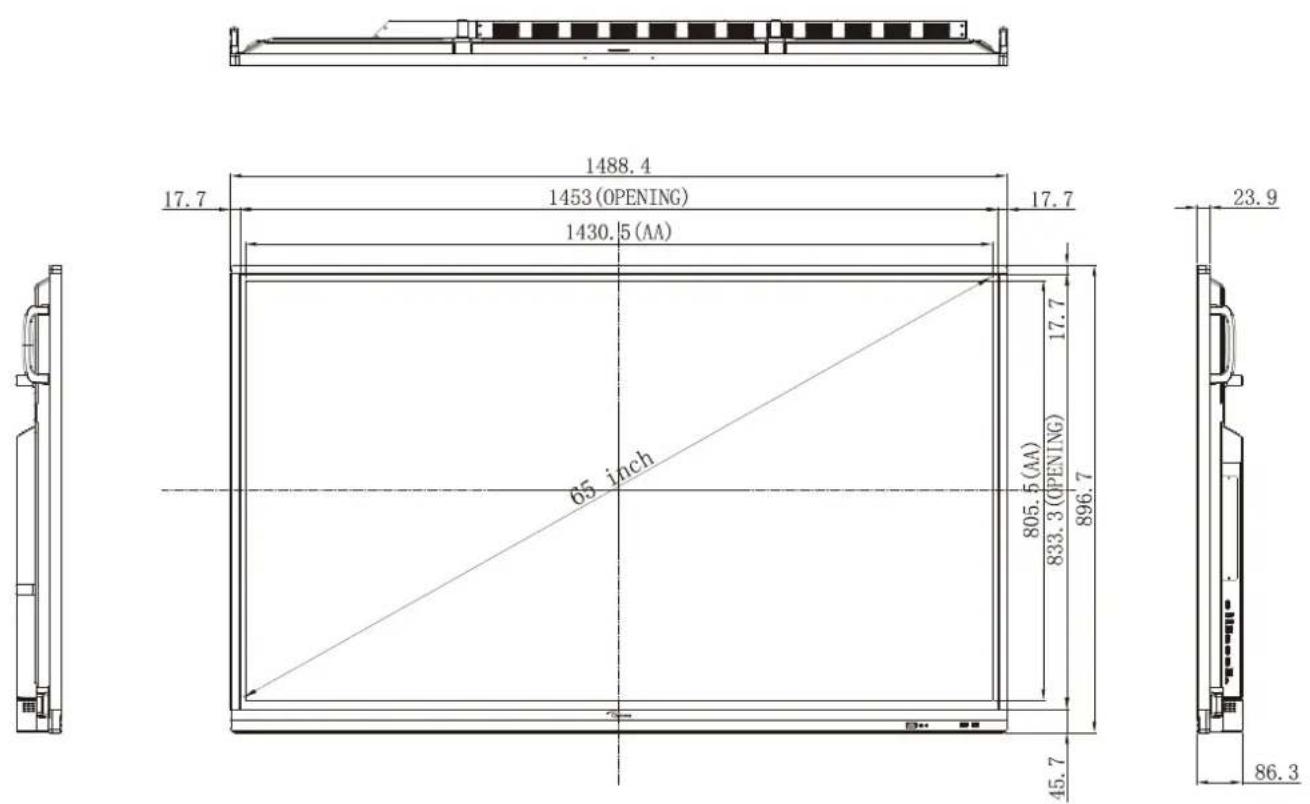

65-inch....97

75-inch....98

86-inch....99

Supported Timing List....100

RS232 Protocol Function List....102

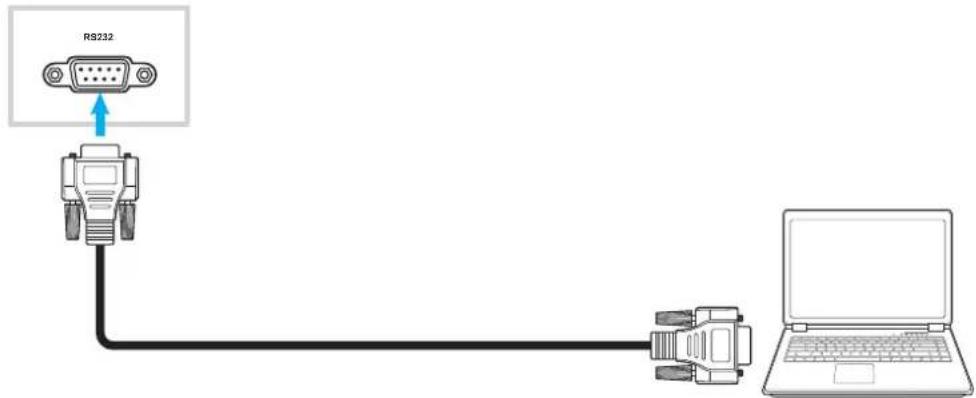

RS232 Pin Assignments....102

RS232 RJ45 Control Connection 102

SET Command....103

GET Command 105

LED Indicator....107

Troubleshooting....108

Maintenance 109

Cleaning the Screen 109

Clean the Front Frame 109

Optoma Global Offices 110

SAFETY

Please follow all warnings, precautions and maintenance as recommended in this user manual.

Safety Instructions

- Only use attachments/accessories specified by the manufacturer.

- Do not block any ventilation openings. To ensure reliable operation of the device and to protect from overheating, it is recommended to install the device in a location that does not block ventilation. Do not put the device in an enclosure such as a book case or a cabinet that restricts air flow.

- Do not use the device near water or moisture. To reduce the risk of fire and/or electric shock, do not expose the device to rain or moisture.

- Do not install near heat sources such as radiators, heaters, stoves or any other apparatus, such as amplifiers, that emits heat.

- Do not let objects or liquids enter the device. They may touch dangerous voltage ports or short out parts that could result in fire or electric shock.

- Do not place the device on an unstable surface. The device may fall over, resulting in injury or damage to the device.

- Do not setup the device in places where it might be subject to vibration or shock.

- Do not use any hard or sharp object to operate the touch screen.

- Do not use the device if it has been physically damaged or abused. Physical damage/abuse would be (but not limited to):

– The device has been dropped.

– Power supply cord or plug has been damaged.

– Liquid has been spilled on to the device.

– The device has been exposed to rain or moisture.

- Something has fallen in the device or something is loose inside.

- Do not attempt to service the device yourself. Opening or removing covers may expose you to dangerous voltages or other hazards. Please call Optoma before you send the device for repair.

- Disconnect the power plug from AC outlet if the device is not being used for a long period of time.

- Remove the batteries from the remote control before storage. If the batteries are left in the remote for long periods, they may leak.

- Turn off and unplug the power plug from the AC outlet before cleaning the device.

• Use a soft dry cloth with mild detergent to clean the display housing. Do not use abrasive cleaners, waxes or solvents to clean the device.

- See the device enclosure for safety related markings.

- The device should only be repaired by appropriate service personnel.

Copyright

This publication, including all photographs, illustrations and software, is protected under international copyright laws, with all rights reserved. Neither this manual, nor any of the material contained herein, may be reproduced without written consent of the author.

© Copyright 2022

Disclaimer

The information in this document is subject to change without notice. The manufacturer makes no representations or warranties with respect to the contents hereof and specifically disclaims any implied warranties of merchantability or fitness for any particular purpose. The manufacturer reserves the right to revise this publication and to make changes from time to time in the content hereof without obligation of the manufacturer to notify any person of such revision or changes.

Trademark Recognition

Kensington is a U.S. registered trademark of ACCO Brand Corporation with issued registrations and pending applications in other countries throughout the world.

HDMI, the HDMI Logo, and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

Google, the Google logo, and Google Drive are trademarks or registered trademarks of Google LLC.

OneDrive is a trademark and brand of Microsoft Corporation.

All other product names used in this manual are the properties of their respective owners and are Acknowledged.

FCC Statement

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

FCC Warning

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.

Notice: Canadian users

This Class B digital apparatus complies with Canadian CAN ICES-3 (B)/NMB-003 (B).

Declaration of Conformity for EU Countries

• EMC Directive 2014/30/EU (Including amendments)
• Low Voltage Directive 2014/35/EU

WEEE

Disposal instructions

Do not throw this electronic device into the trash when discarding. To minimize pollution and ensure utmost protection of the global environment, please recycle it.

ENERGY STAR

ENERGY STAR is a U.S. Environmental Protection Agency voluntary program that helps businesses and individuals save money and protect our climate through superior energy efficiency. Products that earn the ENERGY STAR prevent greenhouse gas emissions by meeting strict energy efficiency criteria or requirements set by the U.S. Environmental Protection Agency. The following logo appears on all ENERGY STAR-certified models:

This product qualifies for ENERGY STAR in the “Standard mode” setting and this is the setting in which power savings will be achieved. Changing the Standard mode picture settings or enabling other features will increase power consumption that could exceed the limits necessary to qualify for ENERGY STAR rating. Refer to EnergyStar.gov for more information on Energy Star program.

Low Blue Light and Eye Health

What is Low Blue Light Technology?

Low Blue Light Technology reduces the blue-light component emitted by your product. The harm of blue light to human eyes is mainly manifested in the pathological harm of eyes and the harm of human body rhythm, which lead to myopia, cataract and macular disease.

Low blue light certification: it is a certification project to evaluate whether the display equipment meets the requirements of photobiosafety and UV free radiation safety.

Note: To meet TUV Rheinland of low blue light certificate, the display setting should be:

• Display Mode is Presentation
• Color Temperature is Standard
• Low Blue Light is 100.

Calculating Breaks

It is recommended to take a 10-minute break every hour of continuous screen use.

Note: Remember to blink your eyes often to keep them healthy and avoid dryness.

Looking at Distant Objects

During the break look at distant objects or close your eyes. This helps to relax your ciliary (focusing) muscle and avoids eye strain.

How to Exercise Your Eyes?

1. Hold your pointer finger a few inches away from your eye.
2. Focus on your finger.
3. Slowly move your finger away from your face, holding your focus.
4. Look away for a moment, into the distance.
5. Focus on your outstretched finger and slowly bring it back toward your eye.

INTRODUCTION

Package Contents

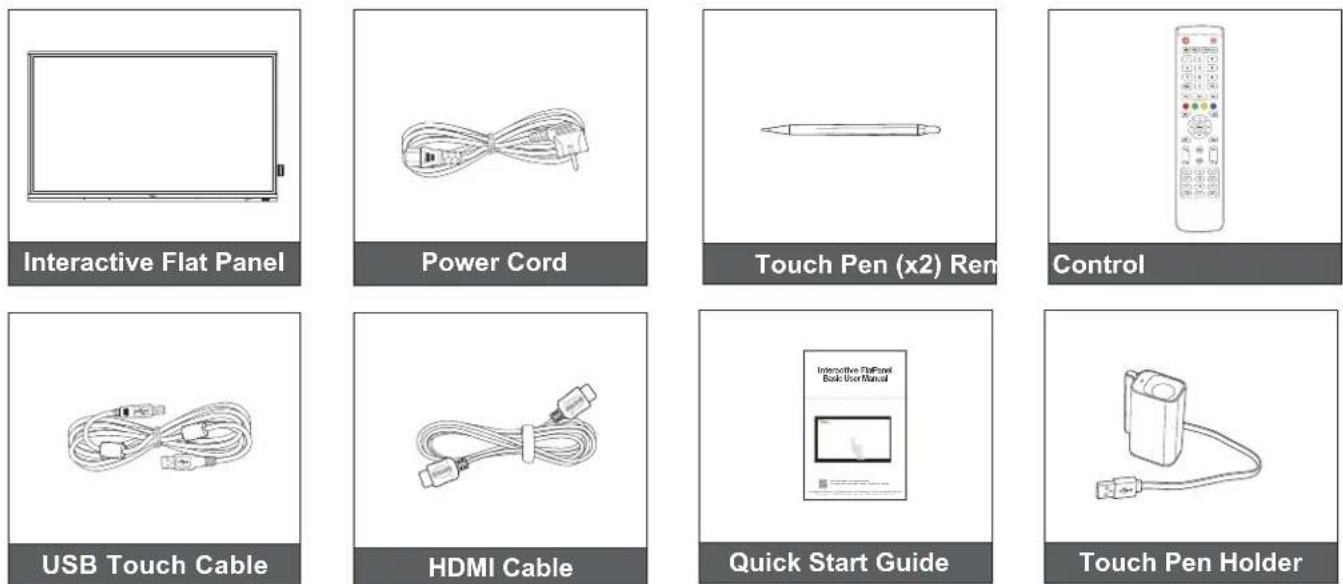

Carefully unpack and verify that you have the items listed below under standard accessories. Some of the items under optional accessories may not be available depending on the model, specification and your region of purchase. Please check with your place of purchase. Some accessories may vary from region to region.

The warranty card is only supplied in some specific regions. Please consult your dealer for detailed information.

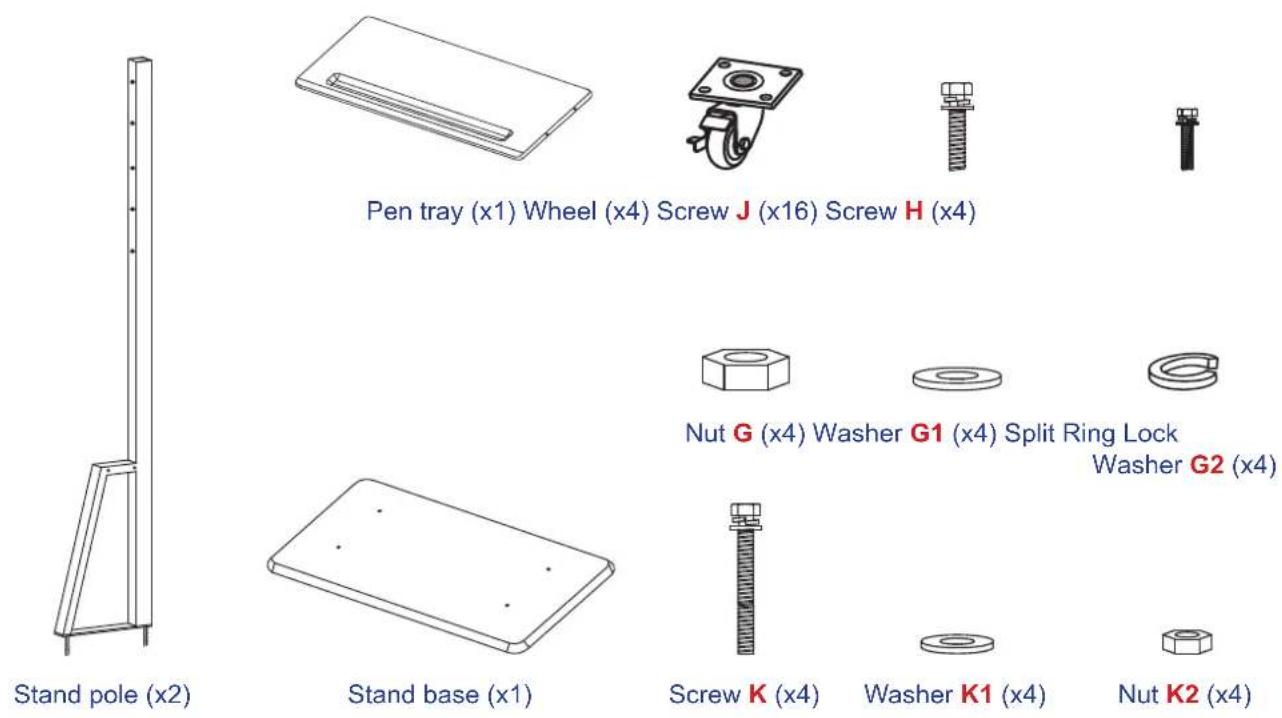

Standard Accessories

Note: For warranty information, please visit www.optoma.com.

INTRODUCTION

Optional Accessories

Line drawing of a stand mount with a vertical frame and supporting chair (no text or symbols on the device itself)

Note: For WiFi dongle, it varies different regions. This is for reference.

INTRODUCTION

Product Overview

Front View

No.	Item No. Item
1.	Touch screen 5. IR receiver
2.	Touch pen placements (x2) 6. Light senso
3.	Wi-Fi dongle slot for SI07B model only
4.	Power button with LED indicator

7. USB 3.0 ports (x2)
8. Touch pen holder

INTRODUCTION

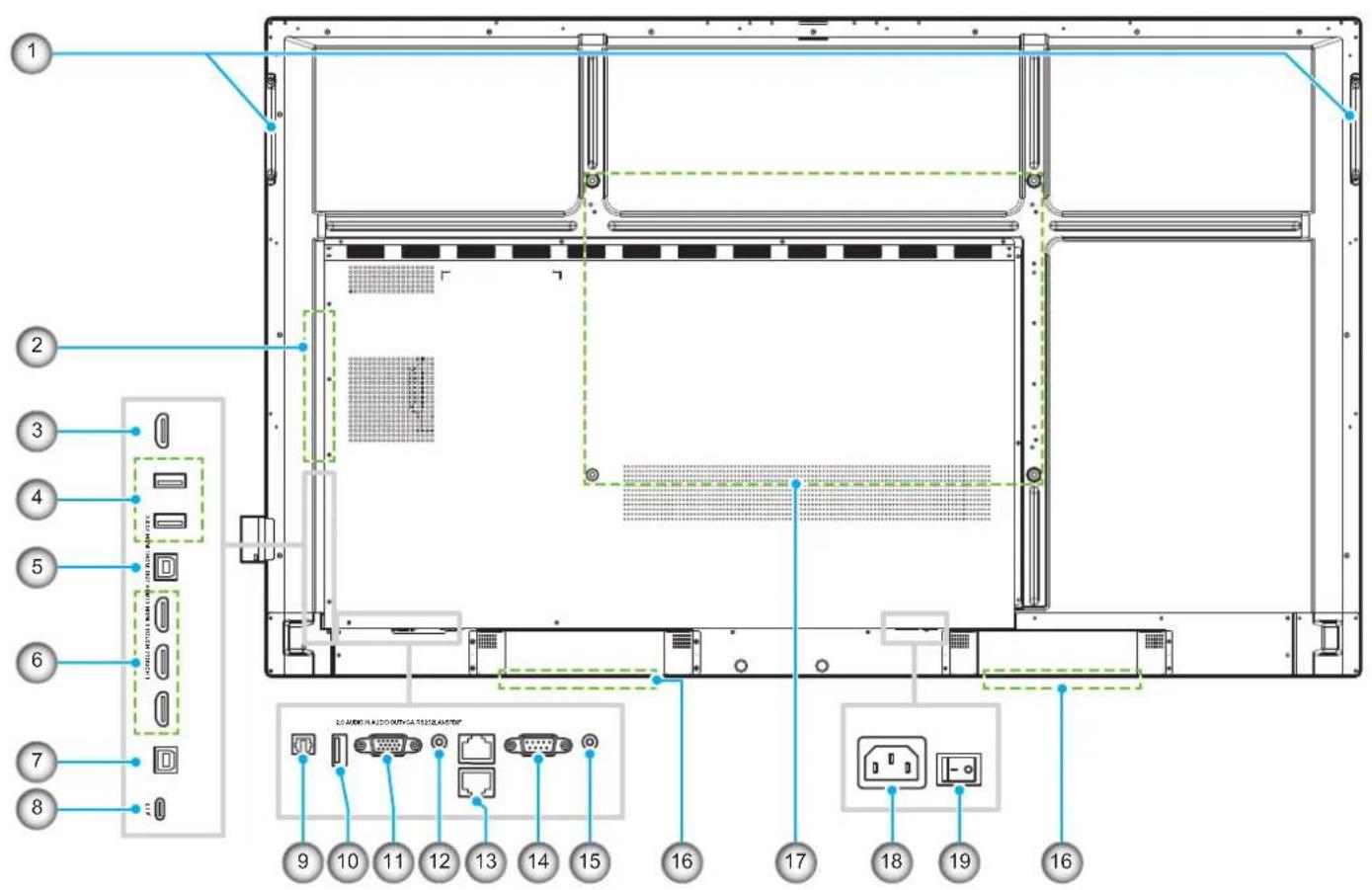

Rear View

No.	Item
1.	Handles (x2)
2.	OPS slot
3.	HDMI Out port
4.	USB 3.0 ports (x2)
5.	Touch 1 USB port
6.	HDMI 1/2/3 2.0 ports (x3)
7.	Touch 2 USB port
8.	USB Type-C port

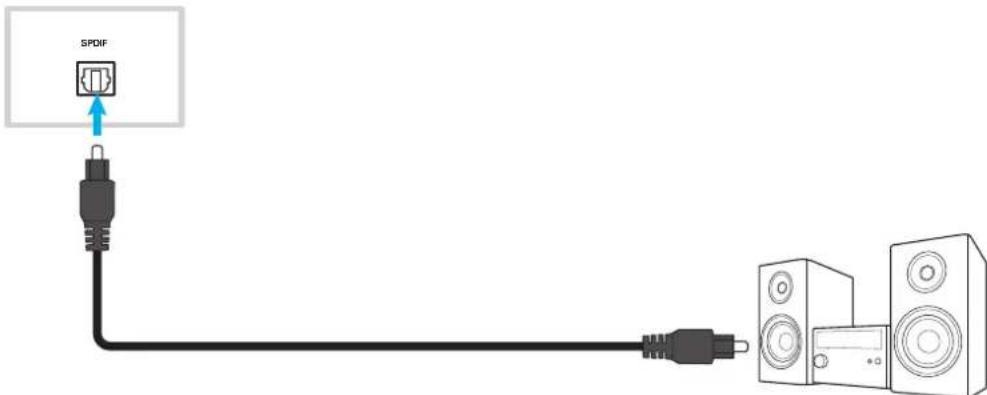

9.	SPDIF port
10.	USB 2.0 port

No.	Item
11.	VGA port
12.	Audio In port
13.	LAN port (x2)
14.	RS232 port
15.	Audio Out jack
16.	20W speakers (x2)
17.	Mounting holes for wall mount
18.	AC In socket
19.	Power switch

Note:

• Side USB 3.0 ports are full channel USB ports. USB ports can be used irrespective of the chosen input source.
  • Two HDMI in ports support CEC and 1 HDMI in port supports ARC.
  • USB type-C port supports DisplayPort 1.2 and power delivery (65W).

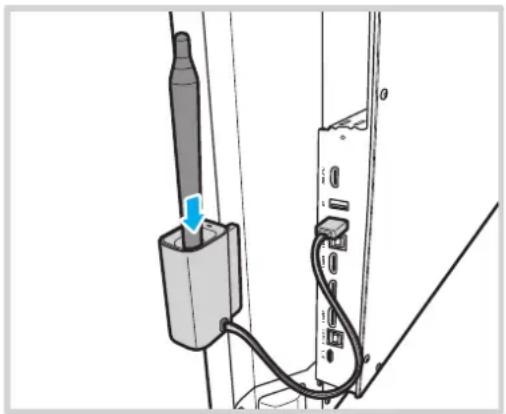

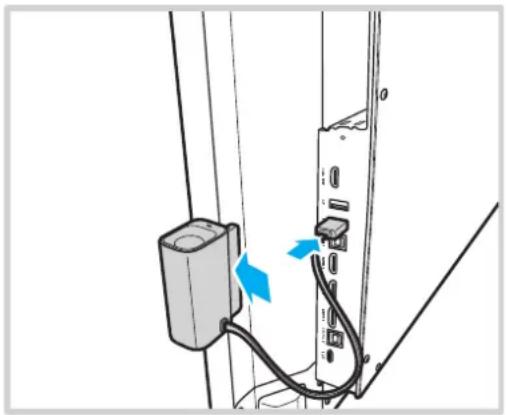

  • USB 2.0 port is for firmware upgrade or for touch pen holder connection. If the touch pen holder is plugged into any of the USB 3.0 ports then the pen holder trigger function can be used only in Android mode.

INTRODUCTION

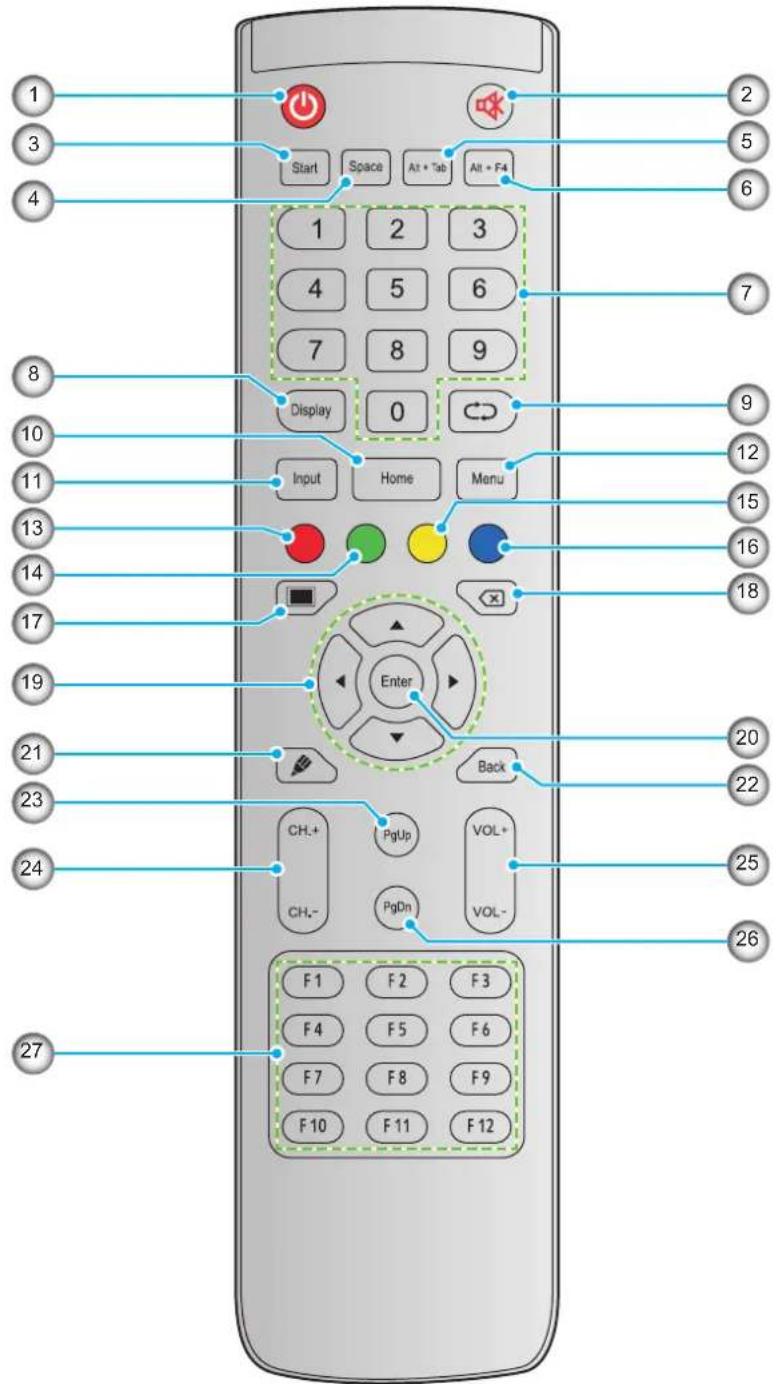

Remote Control

No.	Button Description

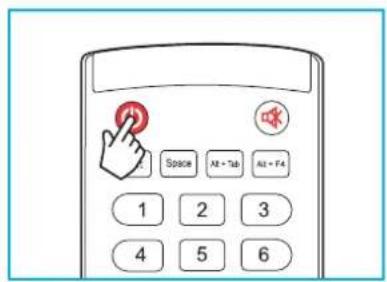

1.	Power ( ⏻ )	Turn on/off the interactive flat panel (IFP).
2.	Mute ( ⚙️ )	Turn off the sound temporarily.
3.	Start Perform the same function as theWindowskey on a computer keyboard.
4.	Space Perform the same function as theSpacekey on a computer keyboard.
5.	Alt+Tab	Perform the same function as theAltandTabkeys on a computer keyboard.Pressing both keys, you can switch between all open applications (windows).

INTRODUCTION

No.	Button Description
6.	Alt+F4	Perform the same function as the Alt and F4 keys on a computer keyboard. Pressing both keys, you can close the current window.
7.	Numeric keys Numeric input keys
8.	Display Show the current input source and information.
9.	Repeat (○)	No function.
10.	Home Return to the Home screen.
11.	Input Select the input source.
12.	Menu Display or hide the OSD menu.
13.	Red (●)	Lock or unlock the Power button (on the IFP) and touch functions.
14.	Green (●)	Lock or unlock the Power button (on the IFP) function.
15.	Yellow (●)	Lock or unlock the touch function.
16.	Blue (●)	Freeze the screen.
17.	Blank (■)	Blank the screen.
18.	Backspace (×)	Perform the same function as the Backspace key on a computer keyboard.
19.	Navigation keys (▲▼◀▶)	Select an item or option.
20.	Enter Confirm the selection.
21.	Creative Board (√)	Launch the Creative Board app.
22.	Back Return to the previous screen.
23.	PgUp Perform the same function as the PgUp key on a computer keyboard.
24.	Channel keys No function.
25.	Volume keys	Adjust the volume level.
26.	PgDn Perform the same function as the PgDn key on a computer keyboard.
27.	Function keys (F1 ~ F12)	Perform the same function as the F1 ~ F12 function keys on a computer keyboard.

Note: If the PC module is not installed into the OPS slot, all computer-related keys will have no function.

SETUP AND INSTALLATION

Wall Mounting Installation

Use only an Optoma-approved optional wall mount kit (available separately). Kit will include the following items:

Dual mounting brackets and wall mount Anchor (x8) Washer (x8)

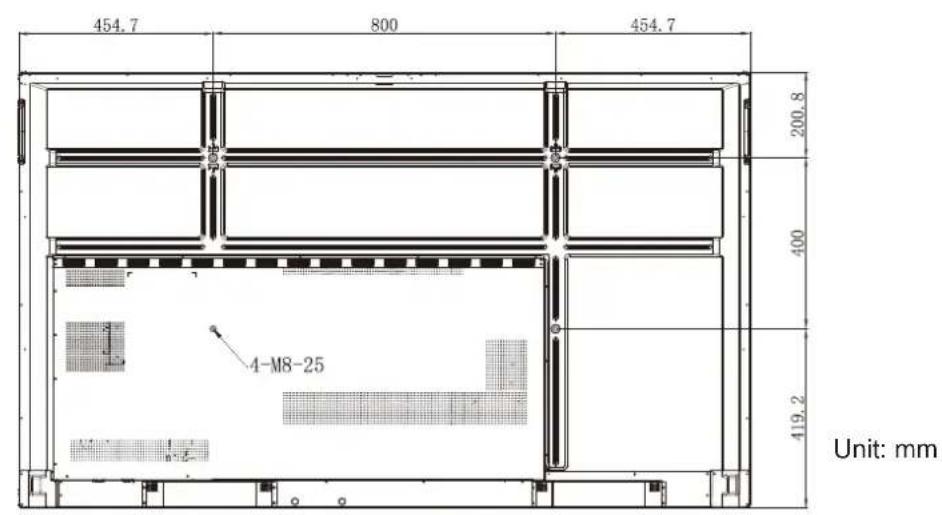

Wall Mount Specifications

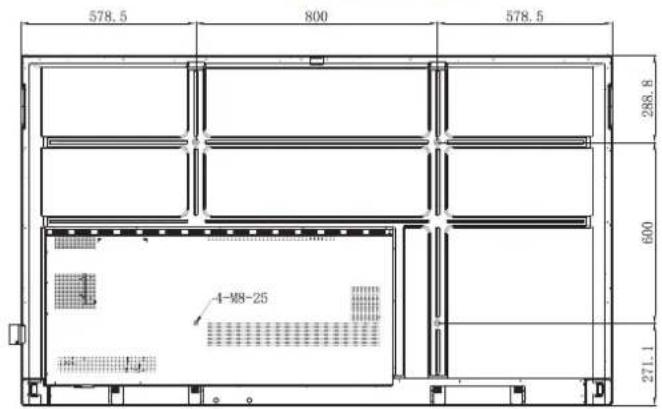

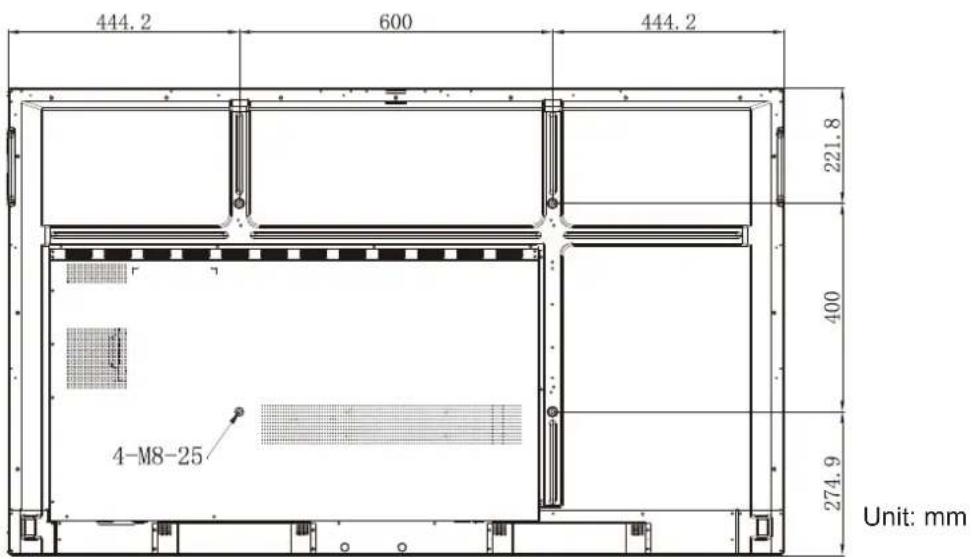

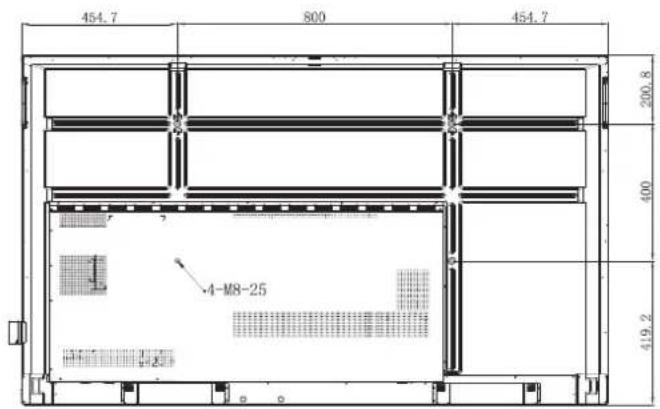

Model Name	VESA Grid Screw Type & Length
65-inch 600	x 400 mm M8*25L
75-inch 800	x 400 mm M8*25L
86-inch 800	x 600 mm M8*25L

65-inch 75-inch

86-inch

SETUP AND INSTALLATION

To mount the IFP on the wall, complete the following steps:

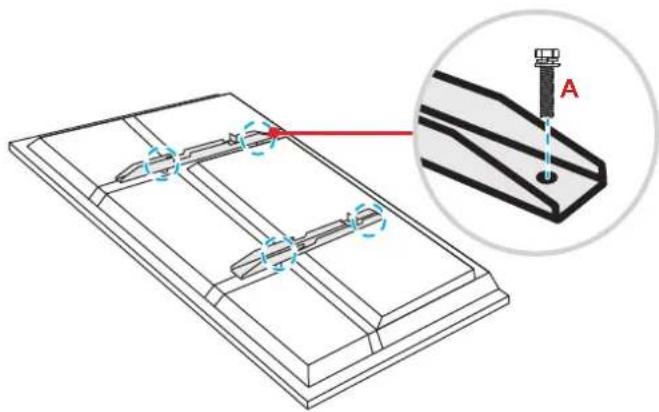

1. Install the dual mounting brackets on the rear of the IFP. Then secure the brackets with four screws (A).

Technical diagram of a mechanical assembly with a magnified inset showing a screwdriver inserted into a component (no text or symbols present)

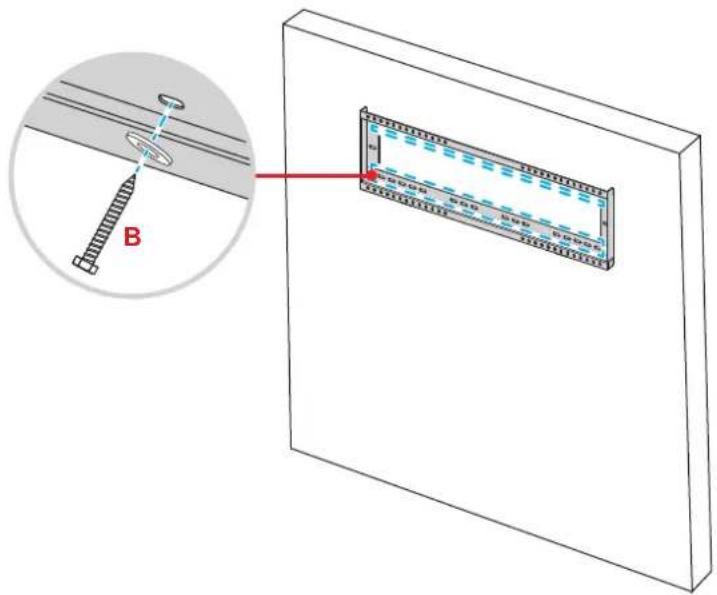

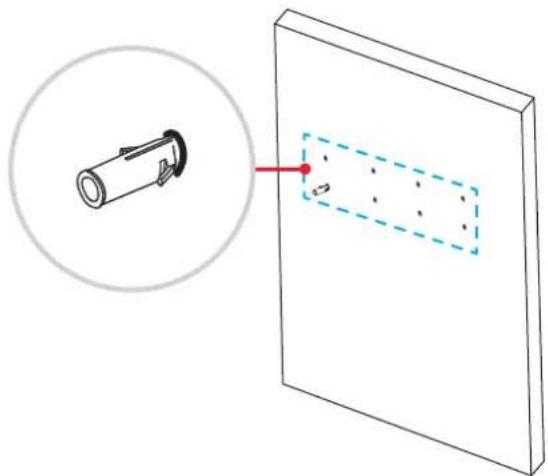

1. Drill eight small holes on the mounting location and insert the anchors into the holes.

Diagram showing a cylindrical object with a ring attached to a wall, and a dashed rectangular box with a red arrow pointing to it (no text or symbols present)

1. Position the wall mount on the wall, then secure the wall mount with eight screws (B) through the washers into the installed anchors on the wall.

SETUP AND INSTALLATION

1. Align and hook the dual mounting brackets to the wall mount.

Diagram showing a vertical panel mounted on a wall with a blue arrow indicating direction (no text or symbols present)

1. Secure the dual mounting brackets and the wall mount with two screws (C).

Technical diagram of a mechanical assembly with a close-up inset showing a component labeled 'C' (no text or symbols present)

Note:

• The maximum wall mount kit load capacity:160kg (352lbs).
• The wall mount should be installed into concrete wall to ensure installation firmness. If concrete wall is not available, we recommend to use a stand instead. Please refer to page 18.
- Screws must be tightly secured; however, to avoid damage to the mounting brackets, wall mount, or IFP, do not overtighten the screws.
• The installation should only be performed by qualified technicians. Improper installation may cause the IFP to fall or malfunction.
• Please note that damage resulting from incorrect installation will void the warranty.

SETUP AND INSTALLATION

Installing an External Mini Computer

Install the mini PC bracket on the rear side of the wall mount, then complete one of the following to install the mini computer:

• Install the screws onto the mini computer, then align and hook the mini computer to the mini PC bracket.
- Align and install the mini computer to the mini PC bracket. Then secure it with four screws.

SETUP AND INSTALLATION

Stand Mounting Installation (Optional)

The stand mount kit includes the following items:

To mount the IFP on the stand, complete the following steps:

1. Install the dual mounting brackets on the rear of the IFP. Then secure the brackets with four screws (A).

Technical diagram of a mechanical assembly with a magnified inset showing a screw inserted into a bracket (no text or symbols present)

Note: Dual mounting brackets, wall mount, and screws (A) are included in the wall mount kit. Refer to "Wall Mounting Installation" on page 14.

SETUP AND INSTALLATION

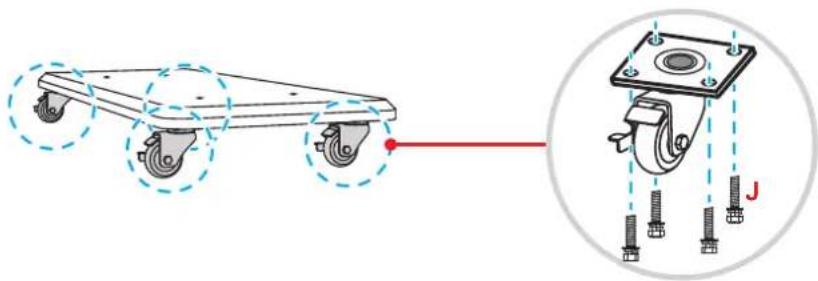

1. Flip the stand base so that you can see the screw holes for the wheel, then install the wheel onto its slot and secure it with four screws (J).

Repeat the same procedure to install the remaining three wheels.

Diagram showing a wheeled cart with wheels and a close-up of its mounting bracket (no text or symbols present)

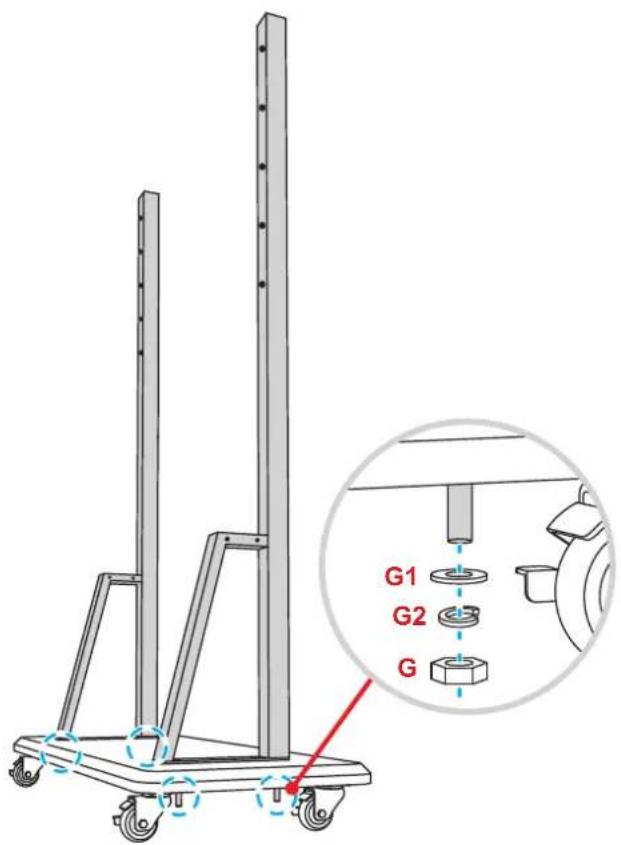

1. Place the stand base on a stable surface, then install the stand pole onto its slot and secure both standoffs with two nuts (G) through the washers (G2 and G1).

Repeat the same procedure to install the other stand pole.

SETUP AND INSTALLATION

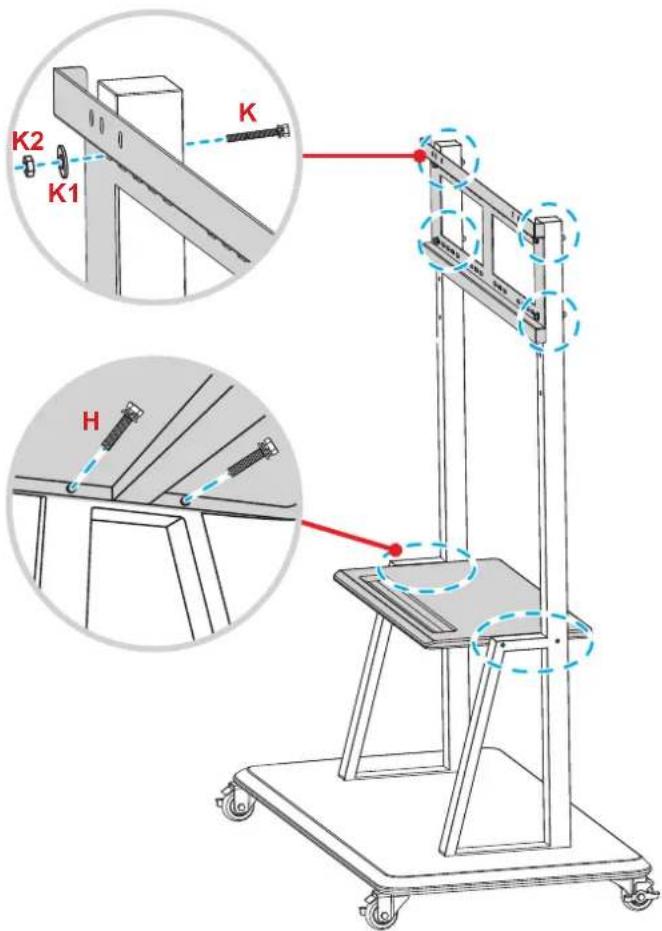

1. Align the pen tray with the screw holes on the middle part of the poles, then secure the pen tray with four screws (H).
2. Install the wall mount on the upper part of the poles, then insert the screws (K) through the screw holes from the rear side of the poles.
3. Place the washers (K1) and the nuts (K2) into the screws, then tighten the nuts (K2) to secure the wall mount in place.

1. Align and hook the dual mounting brackets to the installed wall mount on the stand poles.

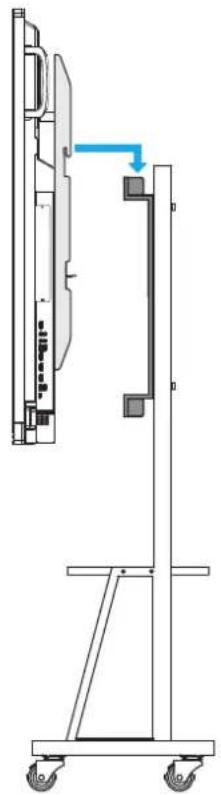

Technical line drawing of a vertical mechanical device with wheels and a blue arrow indicating direction (no text or symbols)

SETUP AND INSTALLATION

Using the Remote Control

Installing/Replacing the Remote Control Batteries

Two (2x) AAA size batteries are supplied for the remote control.

IMPORTANT! Replace only with the same or equivalent type batteries.

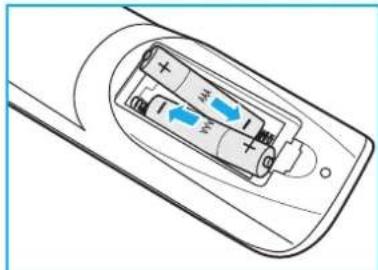

1. Remove the cover of the battery compartment.

Diagram of a smartphone with a scroll wheel and blue arrow indicating rotation (no text or symbols)

1. Insert the two batteries with correct polarity (+/-) as shown inside the battery compartment.

Diagram of a remote control panel with battery and indicator lights (no text or symbols)

1. Replace the cover.

Diagram of a smartphone with a blue arrow indicating rotation or change, showing the battery inside (no text or symbols)

CAUTION

Improper use of batteries can result in chemical leakage or explosion. Be sure to follow the instructions below.

- Do not mix batteries of different types. Different types of batteries have different characteristics.

- Do not mix old and new batteries. Mixing old and new batteries can shorten the life of new batteries or cause chemical leakage in old batteries.

- Remove batteries as soon as they are depleted. Chemicals that leak from batteries that come in contact with skin can cause a rash. If you find any chemical leakage, wipe thoroughly with a cloth.

• The batteries supplied with this product may have a shorter life expectancy due to storage conditions.

- If you will not be using the remote control for an extended period of time, remove the batteries.

- When you dispose of the batteries, you must obey the law in the relative area or country.

SETUP AND INSTALLATION

Remote Control Operating Range

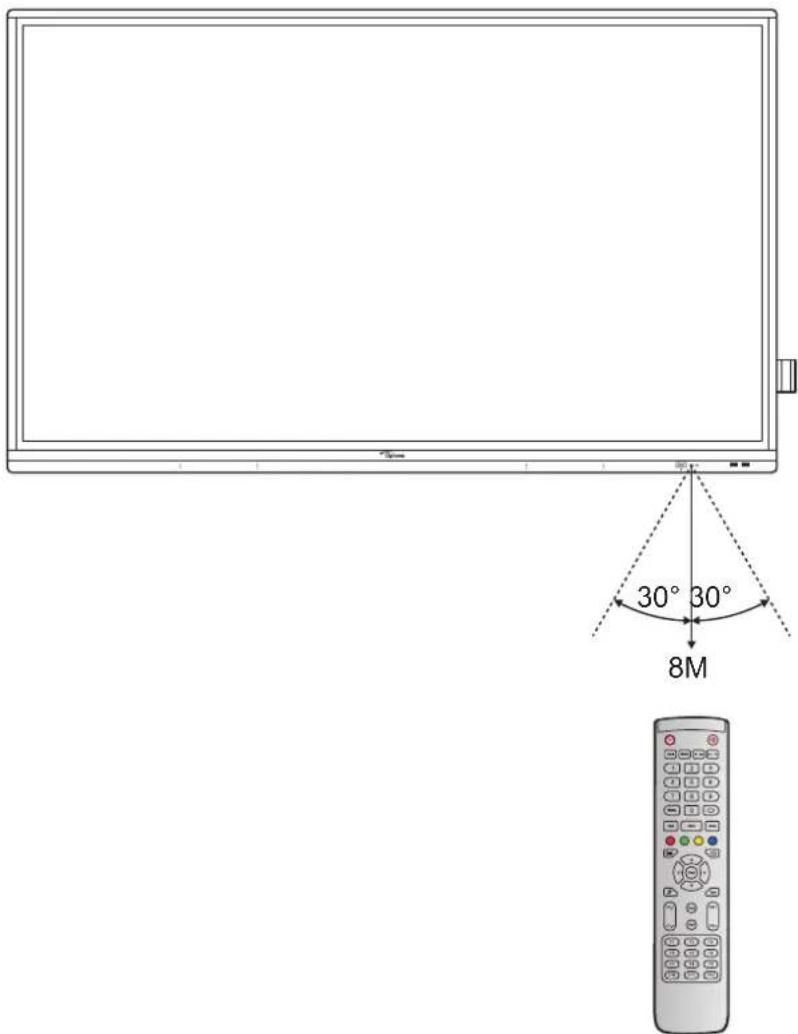

When using the remote control, make sure to point it within ± 30^ to the IR receiver on the IFP. The distance between the remote control and the IR sensor window should not be longer than 8 meters.

- Make sure that there are no obstacles between the remote control and the IR sensor window on the IFP that might obstruct the infra-red beam.

• Make sure the IR transmitter of the remote control is not being used in sunlight or fluorescent lamps directly.

• If the remote control is closed to Inverter-Type fluorescent lamps, it might become ineffective from time to time.

- If the remote control and the IFP are within a very short distance, the remote control might become ineffective.

SETUP AND INSTALLATION

Connections

Connecting to Power

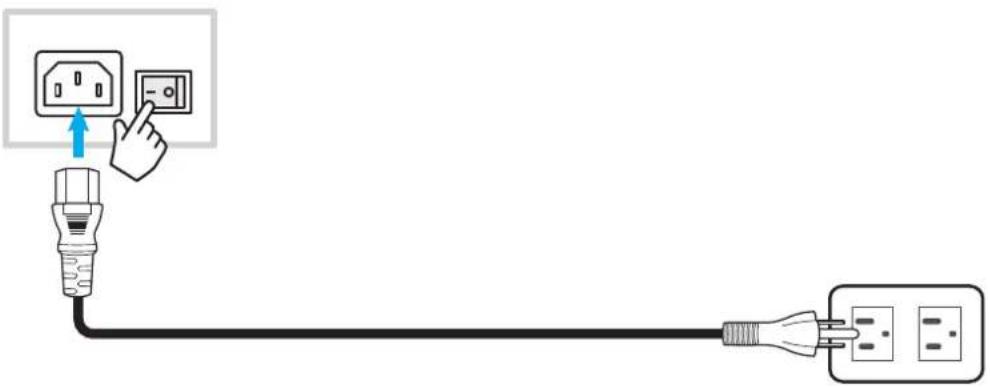

1. Connect one end of the power cord to the AC-in socket on the IFP.
2. Connect the other end of the power cord to a power outlet or a power supply.
3. Set the Power switch to ON (I). The IFP will automatically enter standby mode.

Connecting External Devices

IMPORTANT! To use the touch screen function, make sure to connect one end of the USB cable to the USB type-B TOUCH 1 or TOUCH 2 port on the IFP and the other end of the cable to the USB type-A port on your device.

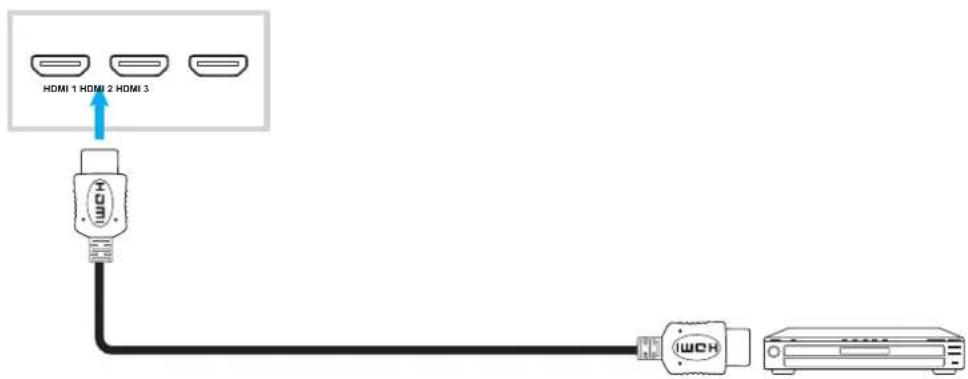

HDMI input connection

- Connect your computer to the IFP using an HDMI cable.

- Connect your video source to the IFP using an HDMI cable.

SETUP AND INSTALLATION

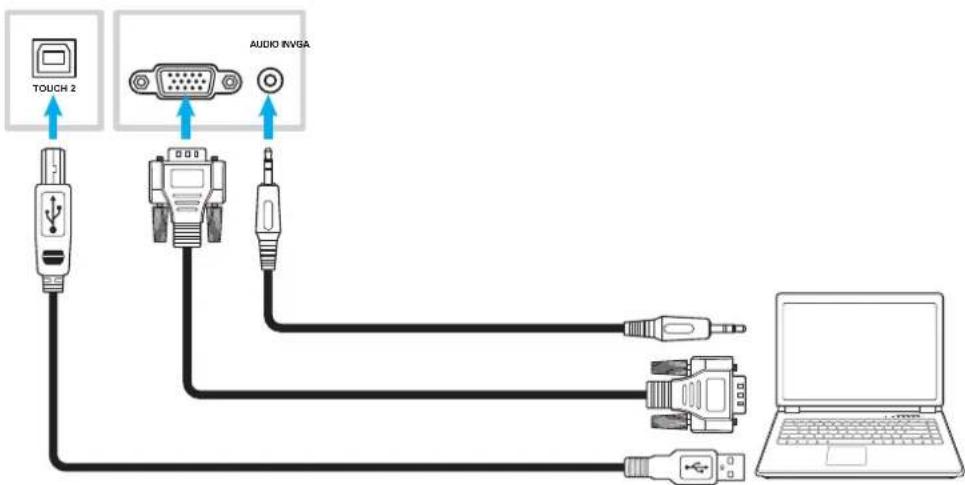

VGA input connection

Connect your computer to the IFP using a VGA cable.

Note:

• For audio input, connect one end of an audio cable to the AUDIO IN jack on the IFP and the other end of the cable to the audio jack on your computer.
• For touch function, connect one end of the USB cable to the TOUCH 2 port on the IFP and the other end to the USB port on your computer.


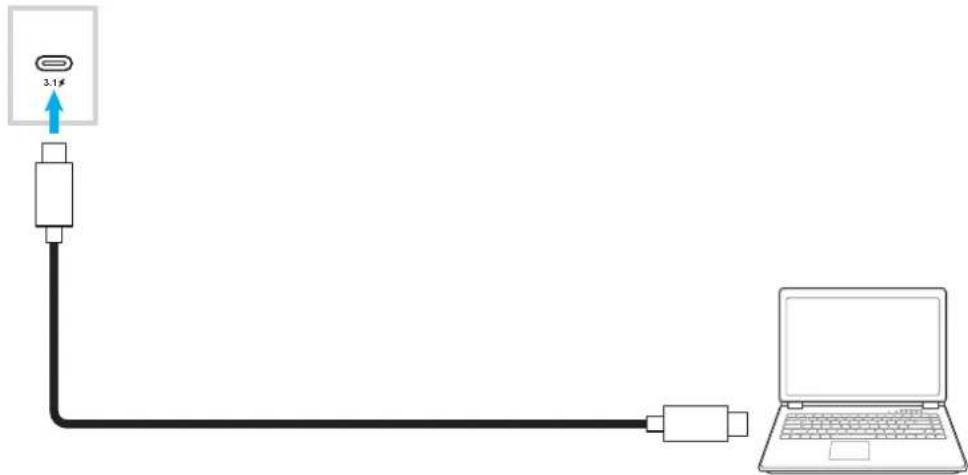

USB type-C connection

Connect your computer to the IFP using a USB type-C cable.

Note:

• USB type-C can be used to transmit audio, video and touch signals.
  • The USB type-C port also supports power delivery and will output 65W.

SETUP AND INSTALLATION

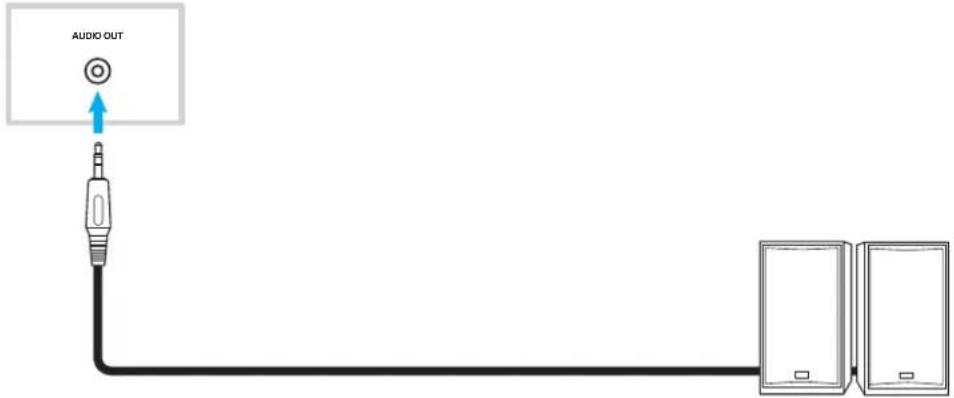

Audio output connection

Connect your external speakers to the Audio-out port on the IFP.

SPDIF connection

Connect your audio equipment to the IFP using a SPDIF cable.

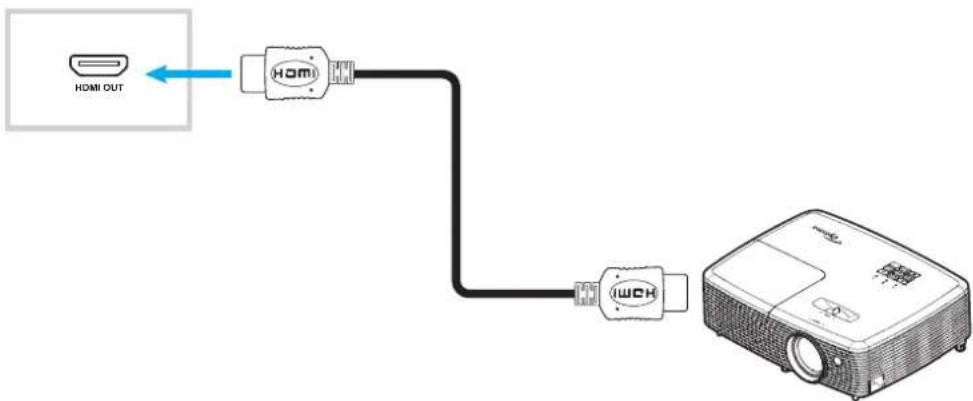

HDMI output connection

Connect your projector to the HDMI out port on the IFP.

SETUP AND INSTALLATION

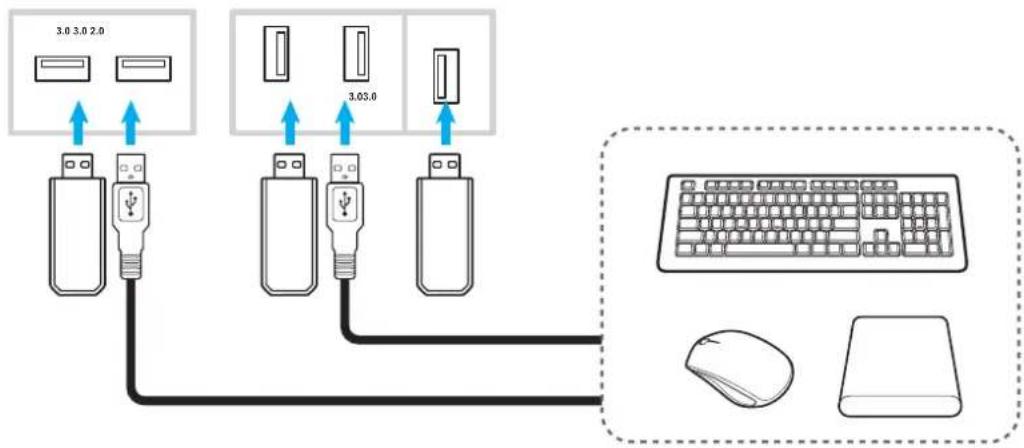

USB connection

Connect your USB peripheral device to the IFP using a USB cable.

Note:

• For the USB flash drive connection, simply plug it into one of the available USB ports.
• USB 2.0 port is reserved for firmware upgrades and the USB quick-draw pen holder.

RS232 connection

Connect your computer to the IFP using a RS232 cable.

LAN connection

Connect your router to the IFP using an Ethernet cable.


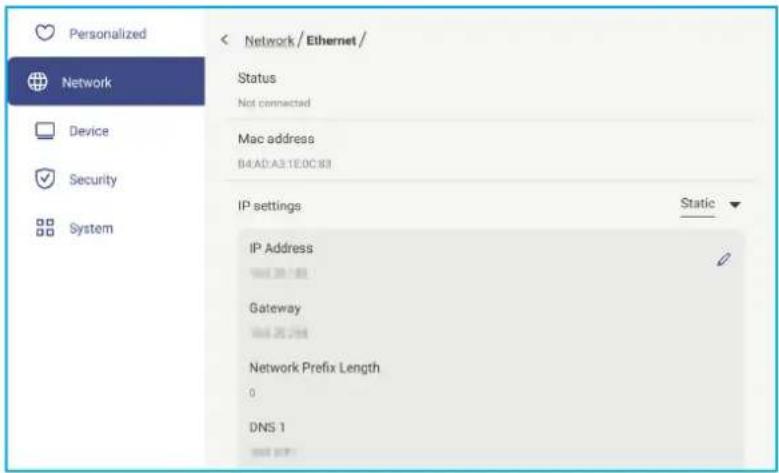

Note: To configure network settings, refer to "Configuring Network Settings" on page 41.

SETUP AND INSTALLATION

Wi-Fi connection

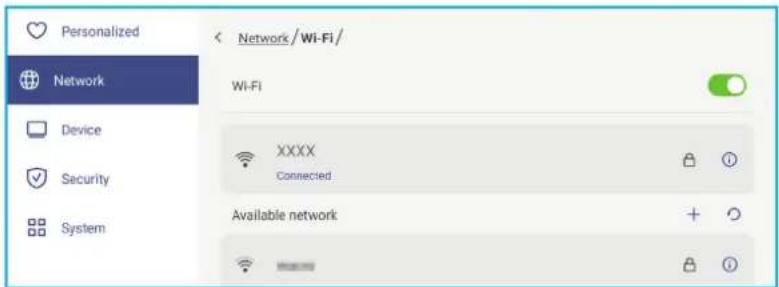

For Wi-Fi connection, you need to install a Wi-Fi dongle to the Wi-Fi slot on the bottom of the IFP. Wi-Fi dongle can receive the signal in an area where there is a Wi-Fi network.

To install the Wi-Fi dongle (model: SI07B), complete the following steps:

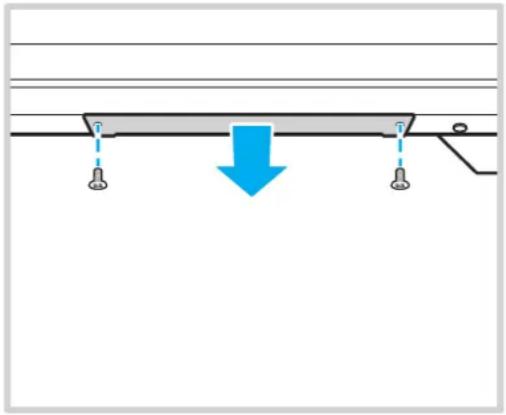

1. Remove two (2) screws from the Wi-Fi slot bracket.
2. Remove the Wi-Fi slot bracket.

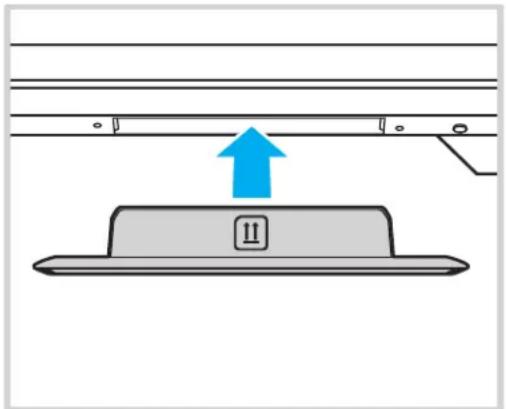

Pure diagram of a beam with a downward blue arrow, no text or symbols present

1. Insert the Wi-Fi dongle to the Wi-Fi slot on the IFP.

Diagram showing a blue upward arrow pointing to a gray base labeled 'II' with connecting lines above (no text or symbols beyond the label)

Note: To configure Wi-Fi settings, refer to "Configuring Network Settings" on page 41.

SETUP AND INSTALLATION

Touch pen holder connection

To install a holder for the touch pen, complete the following steps:

1. Attach the magnetic touch pen holder to the rear side of the screen.
2. Connect the USB cable of the touch pen holder to an available USB port on the IFP.

Note: If the touch pen holder is plugged into the USB 2.0 port then the pen holder trigger function can be used for multiple sources. If the touch pen holder is plugged into the USB3.0 port then it can be used only with Android source.

Diagram showing cable routing between a server rack and a power unit (no text or symbols)

1. Insert the touch pen to its holder.

Diagram of a cable connector with a pen inserted into a socket, showing wiring and connection (no text or symbols)

Note: If the IFP screen is on the Home screen, then removing the touch pen from its holder launches by default the Creative Board. To customize the pen holder trigger action, refer to the setup instructions for this feature (page 44) under the Configuring Device Settings section.

USING THE DEVICE

Turning the Power On/Off

Powering on

Note: After the power cord is properly connected, make sure the Power switch is set to ON (1).

Press the Power button to turn on the IFP. The LED indicator light turns white, indicating it is ready to use.

Note: You can also press the ⏻ button on the remote control to turn on the IFP.

Illustration of a hand pressing a button on a computer monitor (no text or symbols visible)

Powering off

Press the Power button for 3 seconds to turn off the IFP. Press OK at the prompt to turn it off immediately or wait for 10 seconds until the IFP turns off automatically.

When the LED indicator light turns red, this indicates that the IFP has entered standby mode.

Note:

- You can also press the

button on the remote control to turn off the IFP.

- The IFP still consumes power when it is in standby mode. It is highly recommended to unplug the power cord from the power outlet if the IFP will not be used for an extended period of time.

USING THE DEVICE

Setup Wizard

The Setup Wizard will appear on the screen when you turn on your IFP for the first time.

Note: This IFP is equipped with a touch-sensitive screen. You can simply tap the touch screen to operate your IFP.

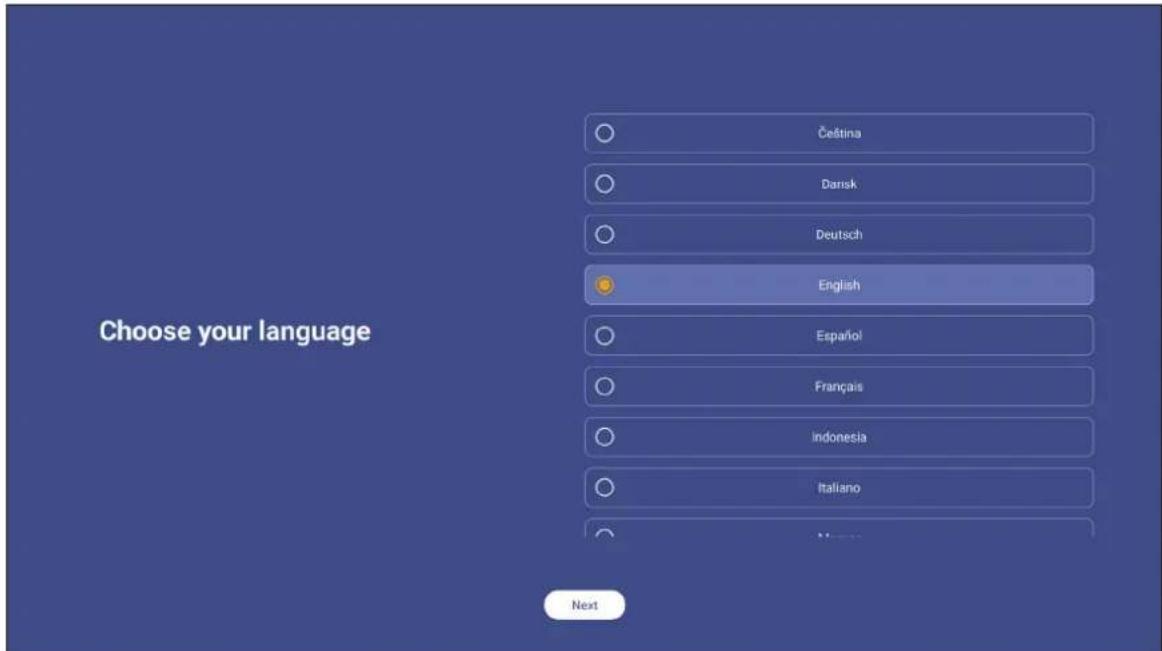

1. Select the language for the on-screen display (OSD) menu. Select Next to continue.

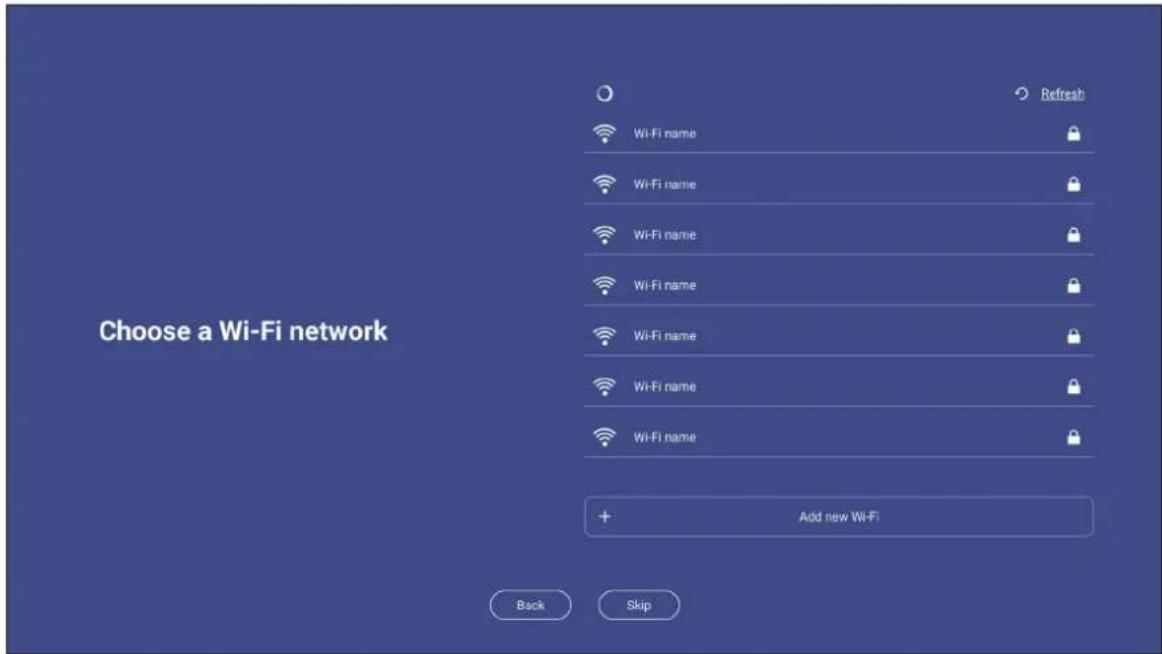

1. If you want to connect your IFP to the Internet wirelessly, select one of the available networks and tap Connect. Otherwise, select Skip.

IMPORTANT!

• To connect to a wireless network, make sure the Wi-Fi dongle is properly plugged into the Wi-Fi dongle slot. Refer to page 27.
• If you are connecting to a secure network, you will need to enter the password when connecting for the first time only.

USING THE DEVICE

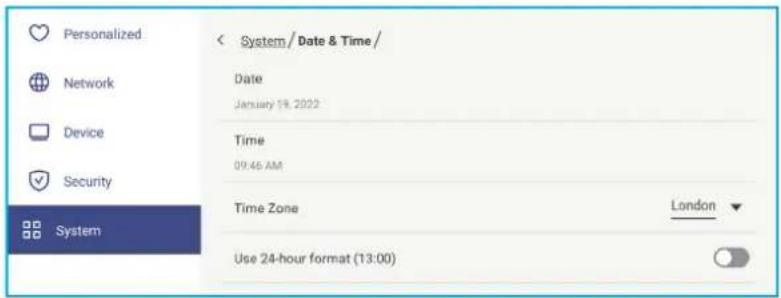

1. Configure the date and time related settings. Select Next to continue.

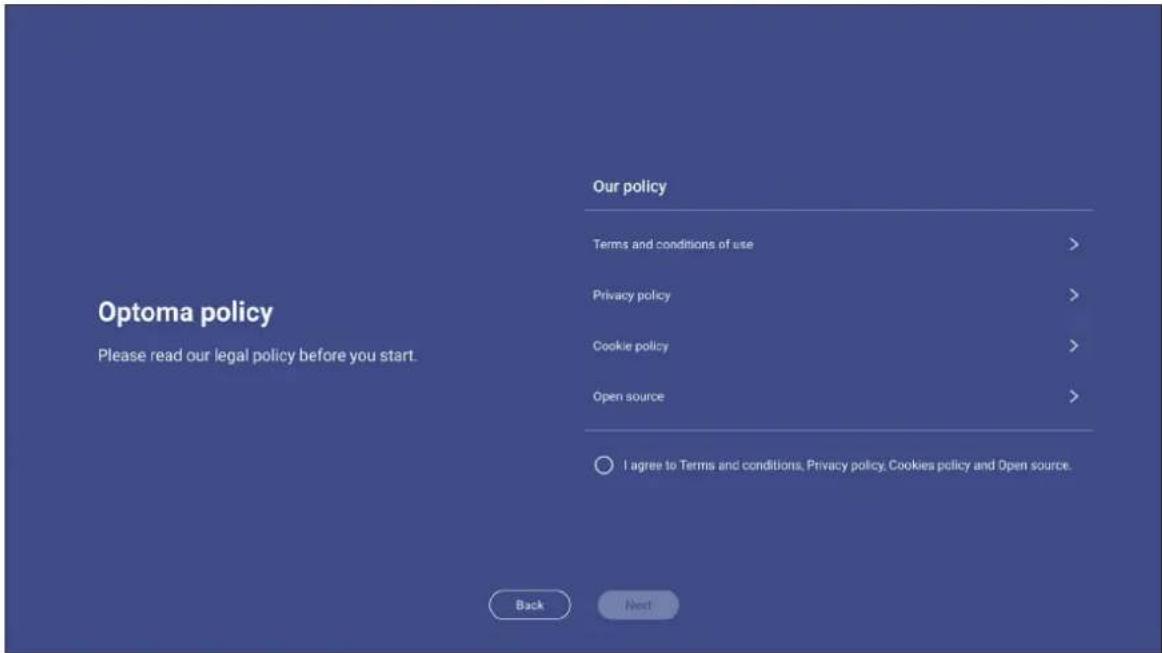

1. Read Optoma's legal policies, including Terms and conditions of use, Privacy policy, Cookie policy, and Open source. Check the I agree to Terms and conditions, Privacy policy, Cookies policy and Open source radio button and then select Next to complete the setup. The IFP is now ready to use.

BASIC OPERATIONS

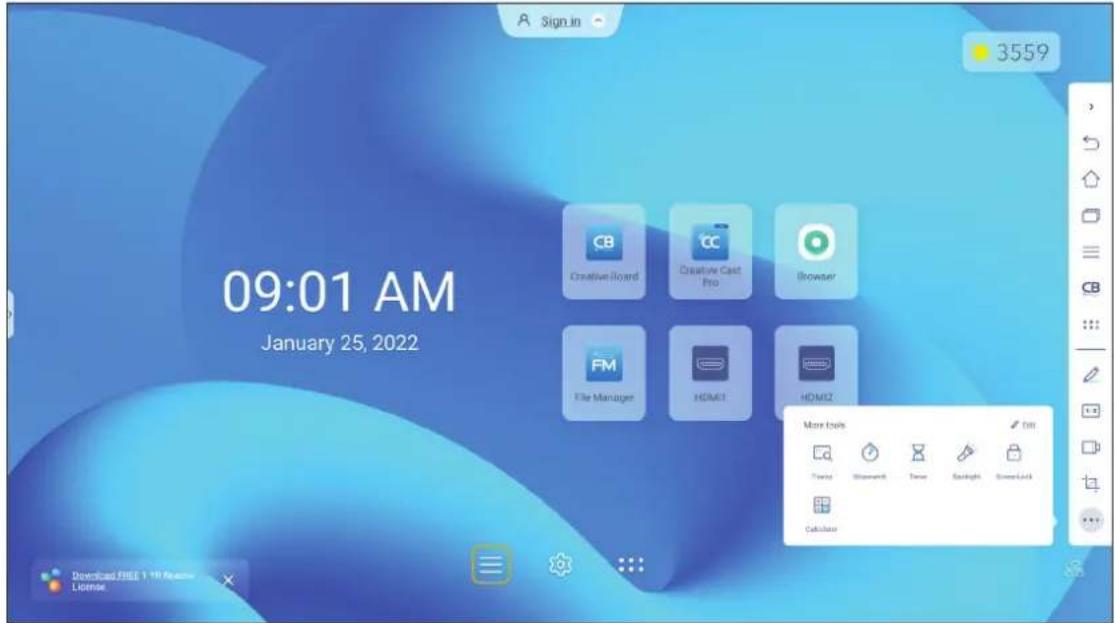

Home Screen Overview

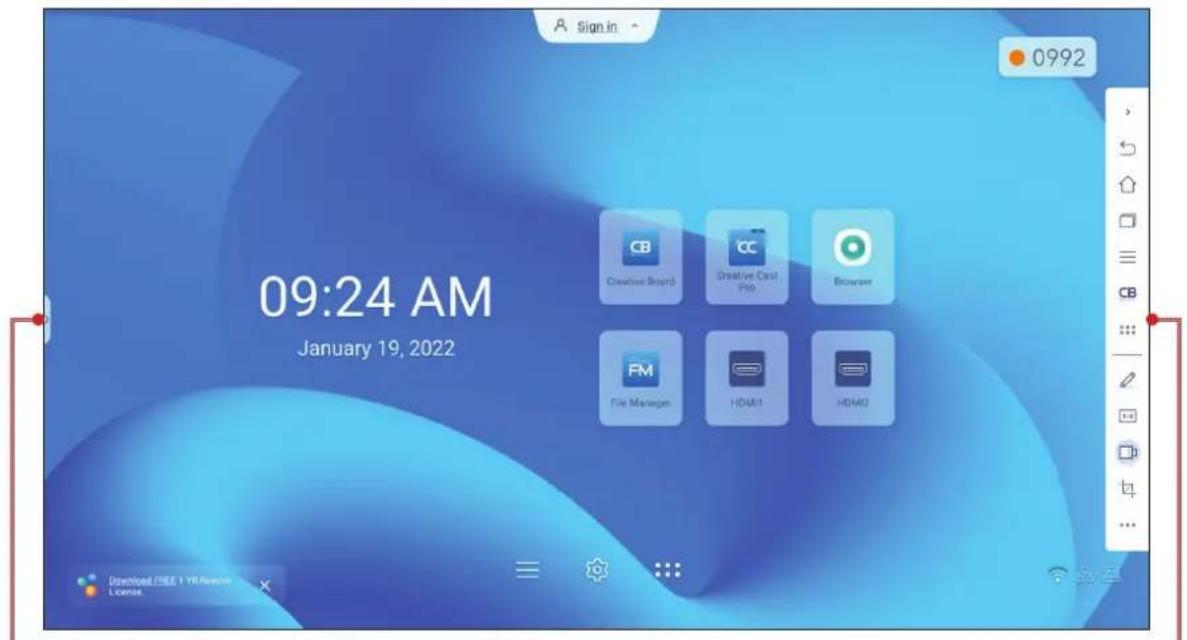

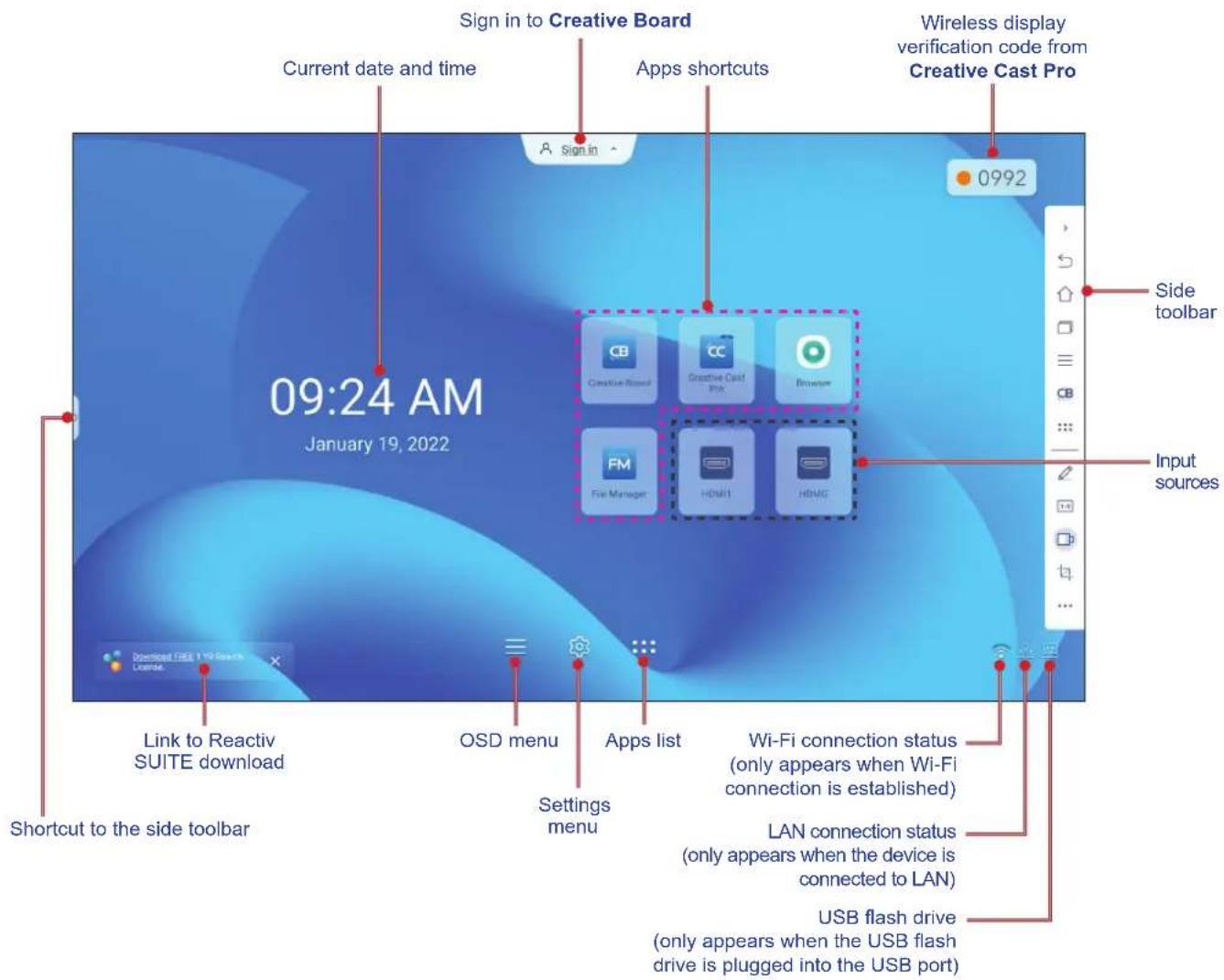

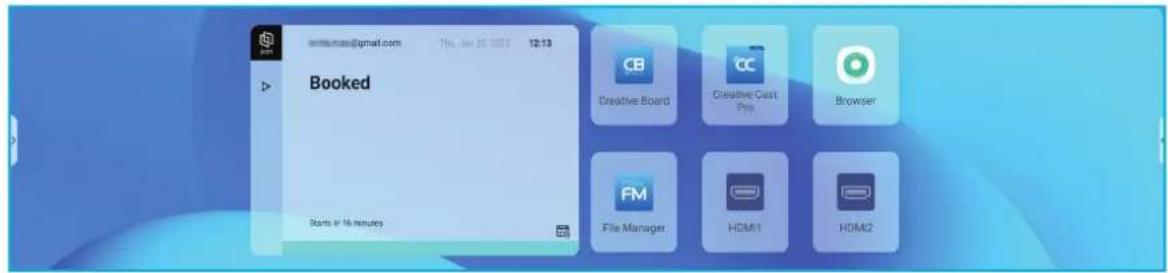

Home screen is displayed every time you start the IFP.

To navigate the Home screen, do any of the following:

• Select an option: simply tap on the desired item.
• Adjust the setting: drag the slider to the left or to the right.

Open the side toolbar: tap > or < on the left or right side of the screen.

Note:

• Unless otherwise specified, this section describes IFP operations using touch gestures.
- You can also use the remote control to operate the IFP.

BASIC OPERATIONS

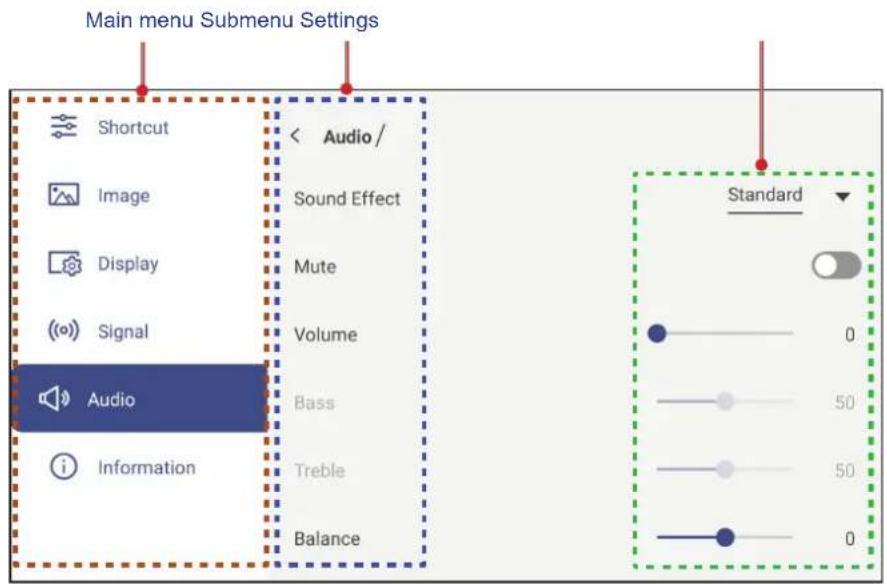

OSD Menu

To open the OSD menu, do any of the following:

- On any screen, drag the bottom of the screen upwards.

• Press the Menu or Input button on the remote control.
• Tap ≡ on the Home screen.

Note:

• To configure the OSD menu settings, simply touch the menu item on the screen and use the screen controls to adjust its value or set the setting. The selected menu item is highlighted in blue.
• To move to the previous item in the menu, tap < or press Back on the remote control.
• To close the OSD menu, touch anywhere on the screen outside the menu or press Back continuously (if necessary) on the remote control.

BASIC OPERATIONS

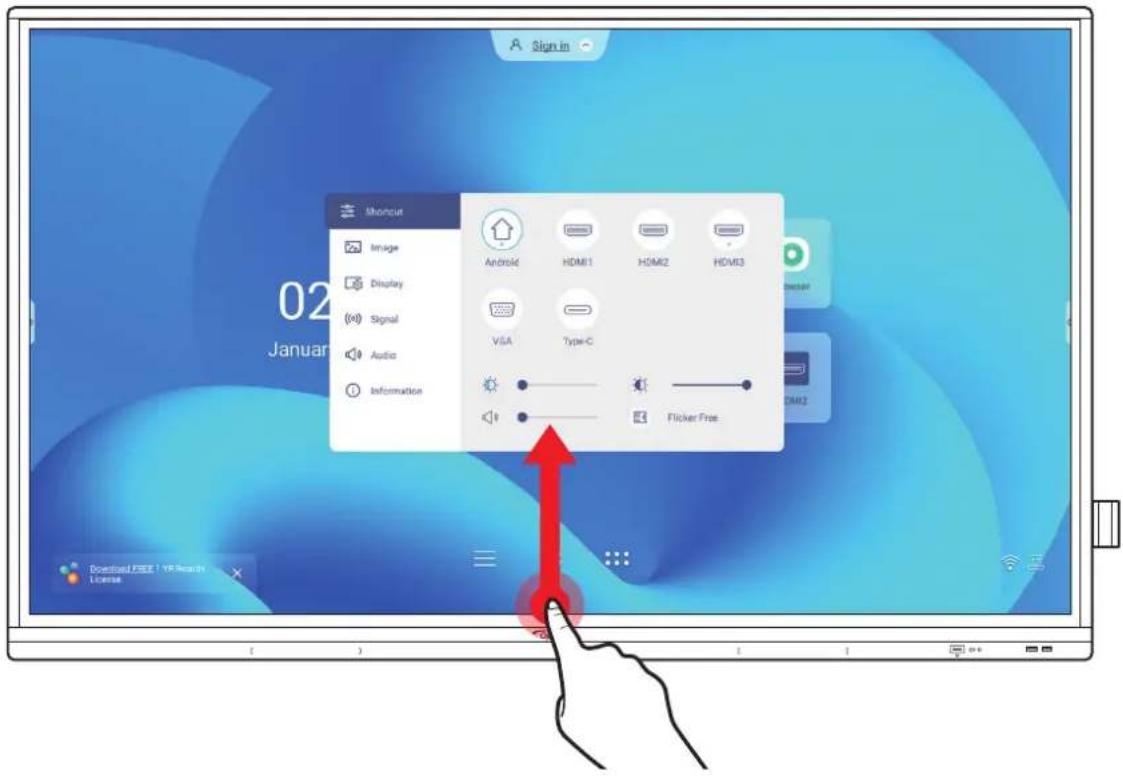

Shortcut Menu

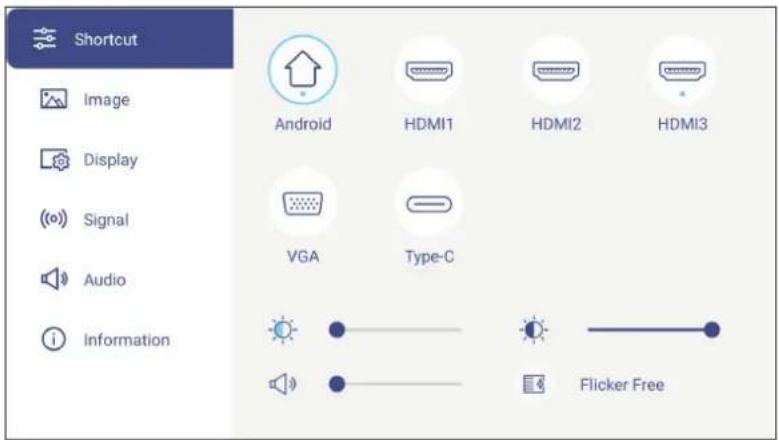

Shortcut menu is the first OSD menu. Complete the following steps:

- Select the input source. Those input sources that are available are marked with the DOT symbol.

Note:

• For more information on making connections to external devices, refer to the "Connections" section.
• The OPS option is only available if the PC module is properly installed into the OPS slot of the IFP.

- Drag the backlight slider bar to the right or to the left to adjust the backlight level.

Note: For comfortable viewing experience, you can enable Flicker Free function.

- Drag the low blue light slider bar to the right or to the left to adjust the low blue light level.

IMPORTANT! Studies have shown that just as the ultra-violet rays can cause eye damage, the shortwavelength blue light rays from displays can cause eyestrain, retina damage, and affect vision over time. Optoma Low Blue Light is an eye protection feature that can reduce the blue light.

IMPORTANT! For protecting your eyes against prolonged display use, we highly recommend you to do the following:

• Let your eyes rest for 10 minutes after 2 hours of continuous use.
  • Roll your eyes upward towards your eyebrows, and then roll your eyes in a large circle every few hours.
  • For every 20 minutes of display viewing, look into the distance for 20 seconds.
• When your eyes get sore, close your eyes for a minute.

- Drag the volume slider bar to the right or to the left to adjust the volume level.

BASIC OPERATIONS

Configuring the Image Settings

In the OSD menu, tap to open the Image menu, then complete the following steps:

- Tap Display Mode and select one of the available options: Presentation, Bright, Cinema, HDR, or User.

Note:

• Image settings can only be adjusted in HDMI, VGA, OPS, and Type-C input. It can't be adjusted and will be grayed-out in Android source.
  • If the Display Mode setting is set to User, you can customize image settings by adjusting the brightness, contrast, and color settings based on your preferences.

• Drag the Brightness slider bar to the right or to the left to adjust the screen brightness level.

• Drag the Contrast slider bar to the right or to the left to adjust the screen contrast level.
• Drag the Color slider bar to the right or to the left to adjust the screen color level from black and white to fully saturated color.

Note: Brightness level, contrast level, and color level can be adjusted only if the Display Mode is set to User. In other display modes these parameters are preset and cannot be adjusted.

• Tap Color Temperature and select one of the available options: Standard, Warm, or Cold.
• Tap Reset to reset all image settings to their defaults.

BASIC OPERATIONS

Configuring the Display Settings

In the OSD menu, tap to open the Display menu, then complete the following steps:

- Tap Aspect Ratio and select one of the available options: 16:9, 4:3, or PTP (Pixel To Pixel).

Note: For 4K input, the aspect ratio will be locked to PTP. For non-4K input, PTP will be grayed out and user can select only 4:3 or 16:9 as aspect ratio.

- Tap Pixel Shift (min) and select one of the available options: Off, 2, 3, 5, 30, or 60.

Note:

• Pixel shift feature helps to prevent image retention.
• Pixel shift is supported with all input sources except for Android.

- Drag the Backlight slider bar to adjust the backlight level.

Note: Backlight can be adjusted also in the Shortcut menu. Refer to page 34.

- Drag the Low Blue Light slider bar to adjust the blue light level.

Note: Low Blue Light can be adjusted also in the Shortcut menu. Refer to page 34.

- Tap Dynamic Black and select one of the available options: Off, Based on Content (not supported in Android), or Based on Ambient light.

Note: Dynamic black feature gives more depth to your image so that bright scenes appear crisp and clear, while dark scenes remain detailed with deep blacks and exceptional light and shade detail.

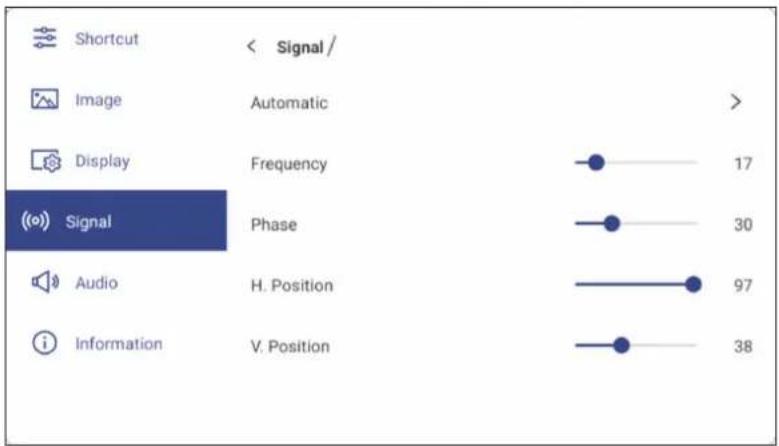

Configuring the Signal Settings (for VGA input only)

In the OSD menu, tap (to) open the Signal menu, then complete the following steps:

BASIC OPERATIONS

• Tap Automatic to automatically adjust the image to its optimized frequency, phase, and position.
• Drag the Frequency slider bar to adjust the vertical noise of the image.
• Drag the Phase slider bar to adjust the horizontal noise of the image.
• Drag the H. Position slider bar to adjust the image horizontal position manually.
• Drag the V. Position slider bar to adjust the image vertical position manually.

Configuring Audio Settings

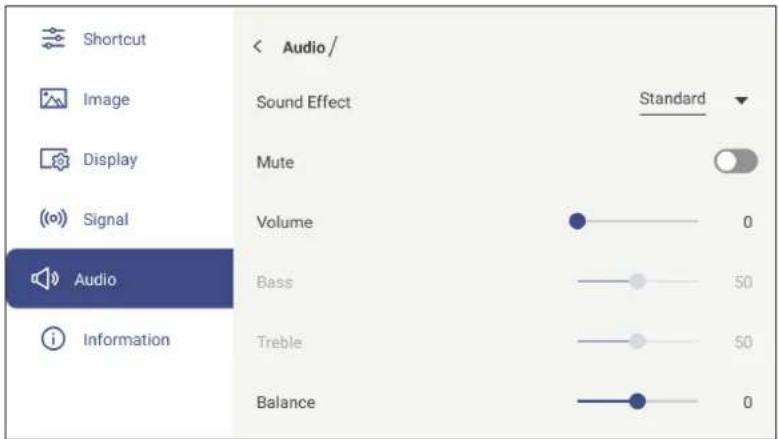

In the OSD menu, tap to open the Audio menu, then complete the following steps:

- Tap Sound Effect and select one of the available options: Standard, Meeting, Class, Movie, or User.

Note: If the sound effect setting is set to User, you can customize audio settings by adjusting the bass and treble level according to your preference.

• Tap Mute to mute or unmute audio.
  Note: You can also mute or unmute audio by pressing the button on the remote control.
• Drag the Volume slider bar to adjust the volume level.
• Drag the Bass slider bar to adjust the bass level that is suitable for your room.

Note: Bass level and treble level can be adjusted only if the Sound Effect is set to User. In other sound effect modes this parameter is preset and cannot be adjusted.

- Drag the Treble slider bar to adjust the treble level that is suitable for your room.

- Drag the Balance slider bar to adjust the sound balance level that is suitable for your room.

BASIC OPERATIONS

Viewing Device Information

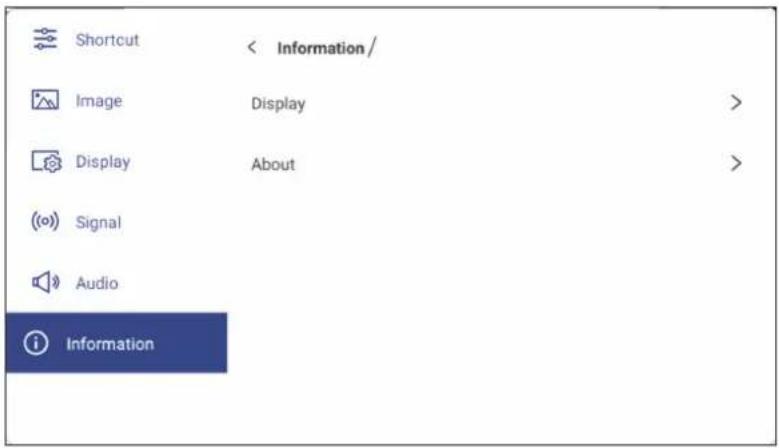

In the OSD menu, tap ⓣ to open the Information menu, then complete the following steps:

• Tap Display to view display mode, current input source, resolution, color depth, and color format.
• Tap About to view regulatory model name, serial number, firmware version, and Android version.

BASIC OPERATIONS

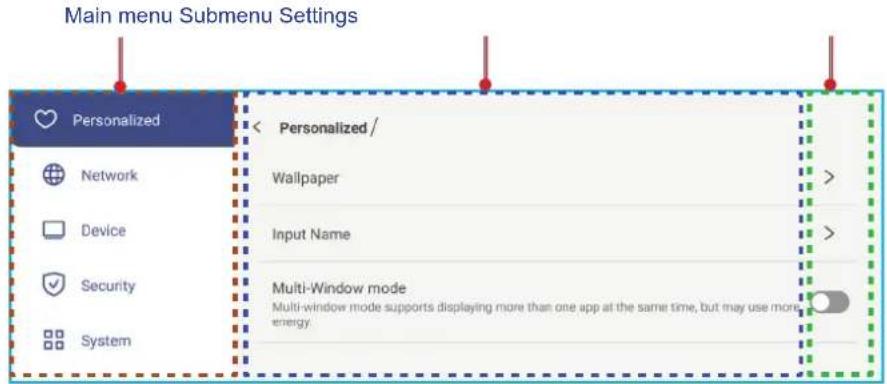

Android Settings Menu

To open the Settings menu, tap 📋 on the Home screen.

Note: Settings can be modified only in Android mode.

Note:

• To configure Android settings, simply touch the menu item on the screen and use the screen controls to adjust its value or set the setting. The selected menu item is highlighted in blue.

• To move to the previous item in the menu, tap < or press Back on the remote control.

• To close the OSD menu, touch anywhere on the screen outside the menu or press Back continuously (if necessary) on the remote control.

Personalizing the System

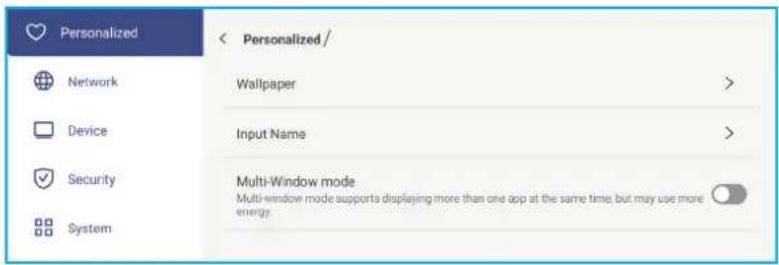

In the Settings menu, tap to open the Personalized menu, then complete the following steps:

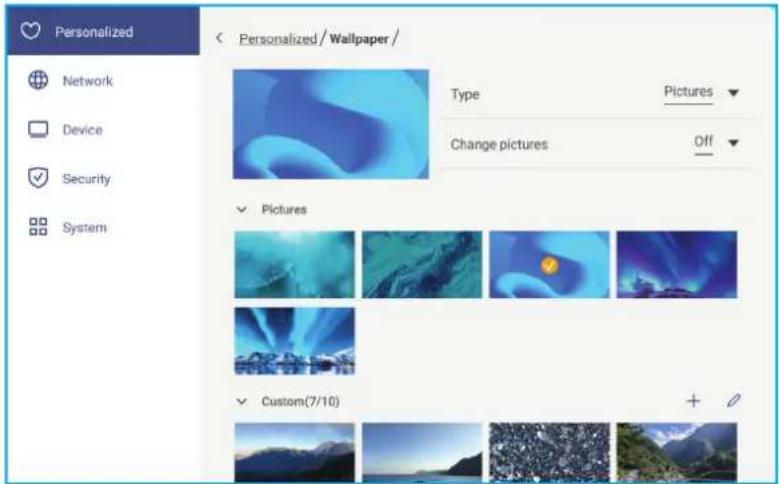

- Tap Wallpaper and select a pre-loaded image as a wallpaper or an image from your gallery.

If you select a pre-loaded wallpaper from the Pictures folder, the setting will take effect immediately.

BASIC OPERATIONS

If you prefer to use a customized wallpaper, follow the steps:

a) In the Custom folder tap +.

b) Select your preferred image from the local or external storage and tap Import. You can import up to 10 images.

c) In the Custom folder tap on the image you wish to use as a wallpaper. The setting takes effect immediately.

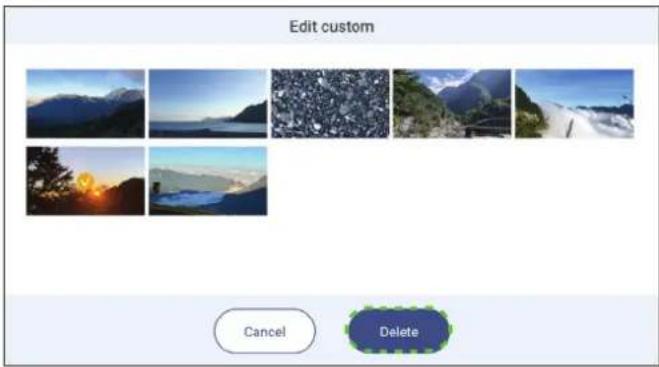

Note: To delete images in the Custom folder, tap. Then select the image and tap Delete.

- Type: Select the image type.

- Change pictures: Select the slideshow interval from 5mins to 1 day. By default the slideshow is off.

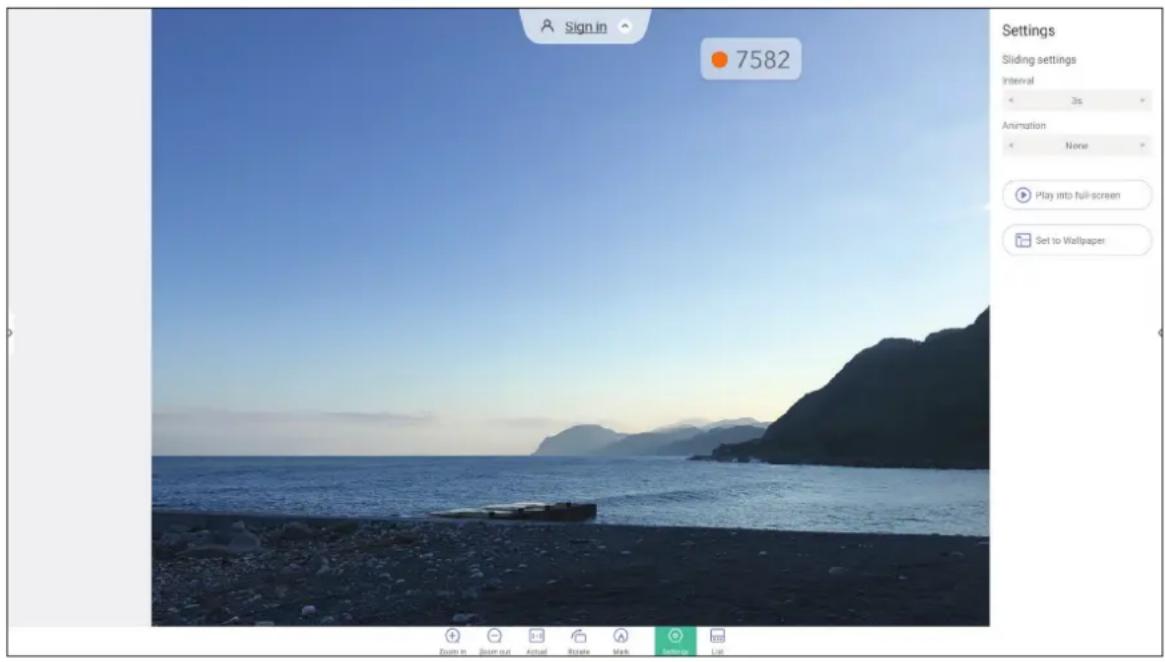

Note: You can also set a wallpaper directly from the File Manager gallery. For more information on the File Manager, refer to page 80.

- Tap Input Name to rename the input. Tap on the input name you wish to change, then type a new name and confirm name modification by tapping OK at the prompt.

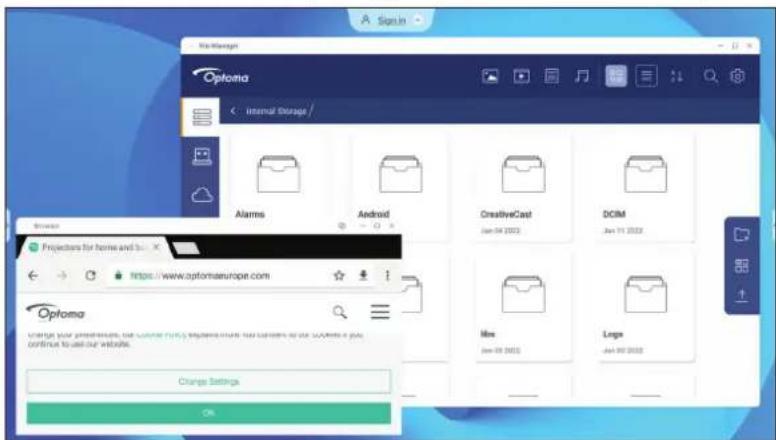

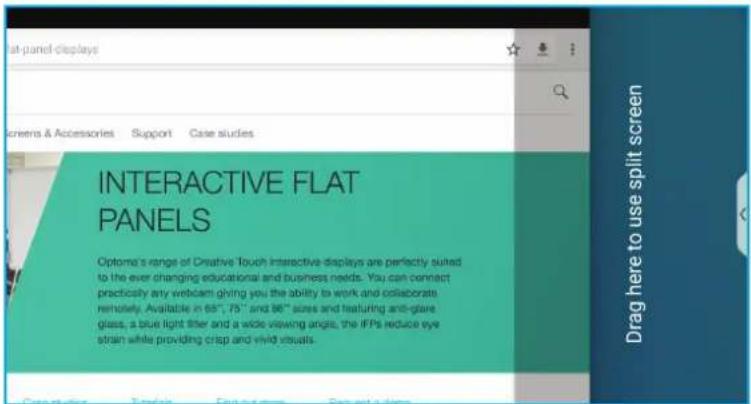

- Tap Multi-Window mode to enable displaying on the screen more than one app at the same time. Tap Restart when prompted to make the setting take effect.

Note: Multi-window mode consumes more computing power and it will increase system loading.

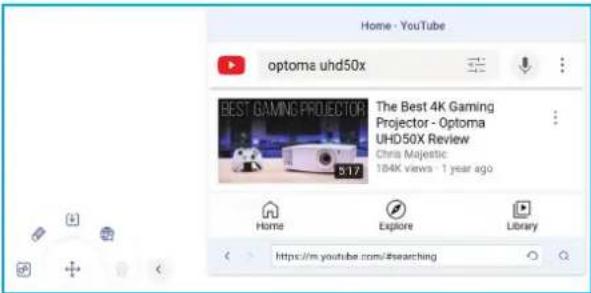

To manage app windows in multi-window mode, long press the app window and do any of the following:

- Move the app window in any of the four directions on the screen.

- Tap ☐ to switch the app window between landscape and portrait modes (if supported).

- Tap☐ to minimize the app window.

BASIC OPERATIONS

- Tap □ or drag the app window to the right or upper corner of the screen to view the app in full screen mode.

Note: When window is NOT in full screen, you can tap and hold on any of the 4 corners of a window until resizing arrow appears, then drag to the desired size and release.

- In full screen mode, drag the upper edge of the screen down and then tap ☐ to see the app in a window.

- Tap ✗ to close the app.

Configuring Network Settings

In the Settings menu, tap to open the Network menu, then complete the following steps:

- Tap Wi-Fi to connect the IFP to the Wi-Fi network and view current connection status. Make sure the Wi-Fi function is enabled. In the Available network list, tap on your preferred Wi-Fi network, for example XXXX. Provide an access password if needed.

IMPORTANT! To connect to a Wi-Fi network, make sure the Wi-Fi dongle is properly installed in the Wi-Fi dongle slot. For more information, refer to page 27.

Note: If your preferred Wi-Fi network is not visible in the list, tap ⬆ to refresh the list. To enter the Wi-Fi network manually, tap +

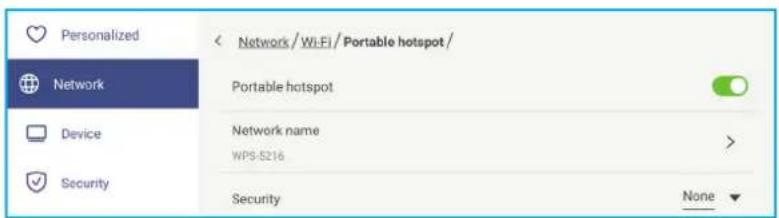

- Enable Portable hotspot feature to share the Wi-Fi network to other wireless devices. Modify the network name and set an access password if necessary.

Note: For a secure connection, set the Wi-Fi encryption (Security field) as WPA2-PSK. Then enter the access password and tap OK.

- Tap Ethernet to configure LAN settings and view the current connection status. In the IP settings section select the network type between static and DHCP. If you set the network type as Static then tap √ and enter the connection settings, such as IP address, gateway, network prefix length, and more.

IMPORTANT! To connect to a wired network, make sure the IFP is connected to LAN. For more information, refer to page 26.

BASIC OPERATIONS

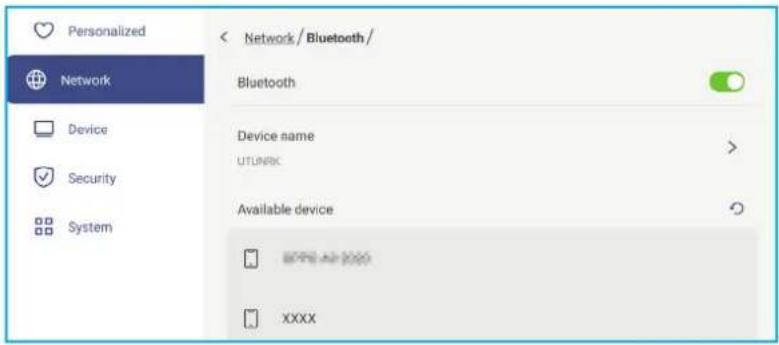

- Tap Bluetooth to enable Bluetooth and connect to other nearby Bluetooth devices. This interactive display supports Bluetooth version 5 and can connect for example to a Bluetooth keyboard, mouse, and speaker. Tap the following:

• Device Name to enter a new device name. To confirm the modification, tap OK at the prompt.
• In the list of Available device, select the device you want to connect to.

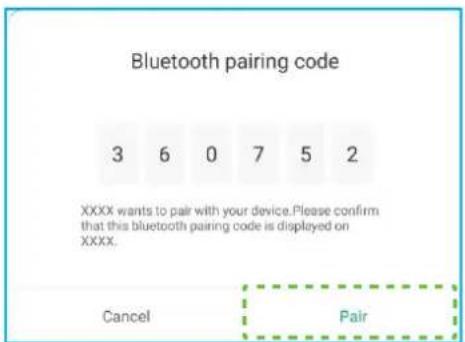

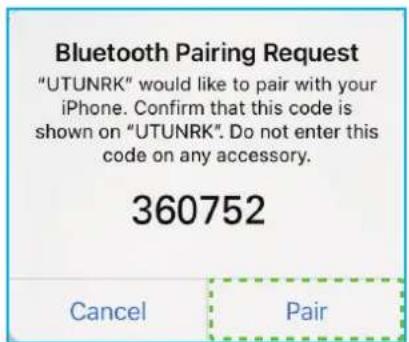

Make sure the pairing codes match on both devices and if they match, tap Pair to confirm.

IFP Portable Device

Note: If the Bluetooth device is not visible in the list of available devices, make sure the device is nearby the IFP and Bluetooth is enabled. Then tap to refresh the list.

BASIC OPERATIONS

Configuring Device Settings

In the Settings menu, tap to open the Device menu, then complete the following steps:

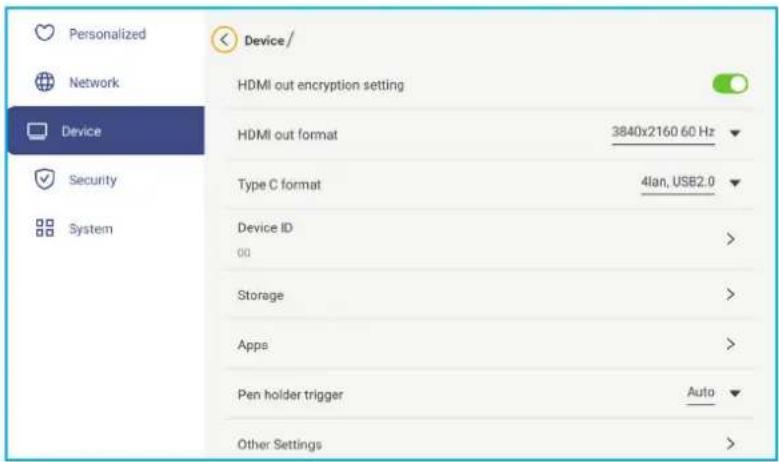

- Tap HDMI out encryption setting to enable or disable encrypting HDMI out signal with HDCP. Note: If the connected monitor does not support HDCP, disable HDMI out encryption function.

- Tap HDMI out format and select the format that can be output from the HDMI port.

- Tap Type C format and select the USB type-C format.

- Tap Device ID to assign a new ID to the IFP. To confirm, tap OK.

- Tap Storage to view storage usage.

BASIC OPERATIONS

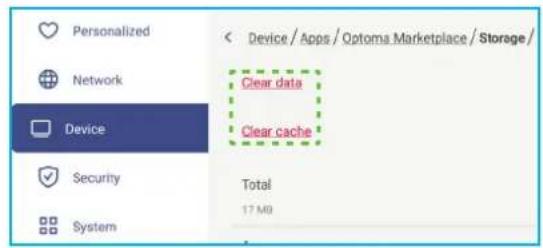

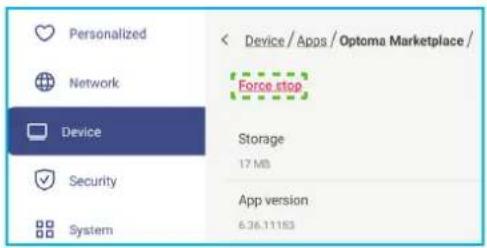

- Tap Apps to view apps information, clear apps data and cache, and force stop apps.

Select an app in the list to force stop it (tap Force stop), view its storage and clear its data (tap Clear data) and cache (tap Clear cache), view app version and set permissions.

- Tap Pen holder trigger and select any of the following trigger actions:

• Auto: When the pen is lifted, the system automatically launches the whiteboard or annotation tools. (Lifting the pen from the Home screen will open the whiteboard. Lifting the pen from any other app or input source will open the annotation tools).
• Whiteboard: When the pen is lifted, the system always launches whiteboard.
• Annotation: When the pen is lifted, the system always launches the annotation tools.
• Disabled: Lifting the pen from the holder does NOT launch the whiteboard or annotation tools.

- Tap Other Settings to configure side toolbar, floating annotation toolbar, touch sound, and email settings.

Tap any of the following:

• Side toolbar settings to select when the toolbar is visible: All channel, Only Android, All channels except OPS, or Disable the side toolbar.

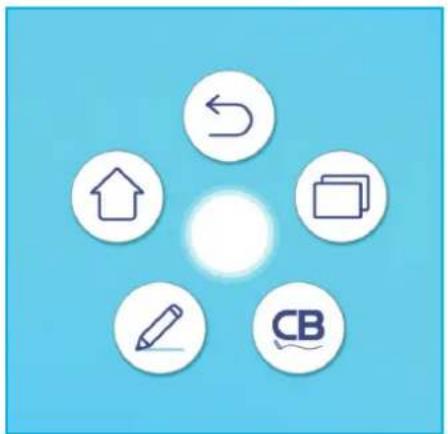

• Floating Point to enable or disable floating annotation toolbar. For more information, refer to page 70.
• Touch Sound to enable or disable audio feedback when you tap items on the screen.
• Email to configure email settings. Enter the IP, ID, password, SMTP address, and other required information. Save the settings. Then tap Confirm to send a test email.

BASIC OPERATIONS

Configuring Security Settings

In the Settings menu, tap to open the Security menu, then complete the following steps:

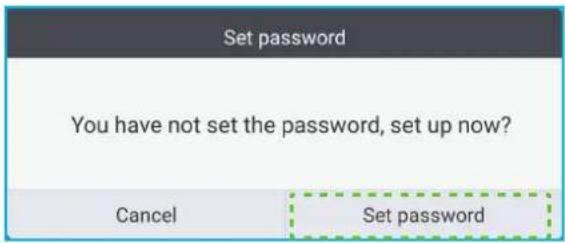

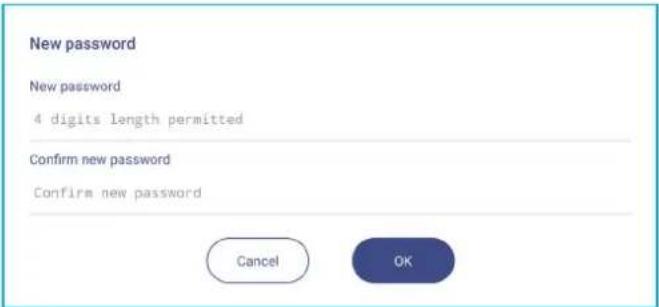

- Tap Screen Lock Password to set screen lock password. Enter a 4-digit password twice at the prompt and then tap OK to confirm.

Note: To remove the screen lock password, tap Clear Screen Lock Password (visible only if the password is set) and enter the current password. Then tap OK to confirm.

- Tap Advanced Setting to set or modify the Advanced Setting password and enable or disable installing third party applications. Do the following:

Note: The DEBUG MENU advanced settings can be also accessed with the Advanced Setting password set in this menu.

a) Enter the Advanced Setting password at the prompt to access the advanced settings and then tap OK to confirm.

Note: The default password is 1 + 2 + 3 + 4 .

BASIC OPERATIONS

b) Select any of the following items:

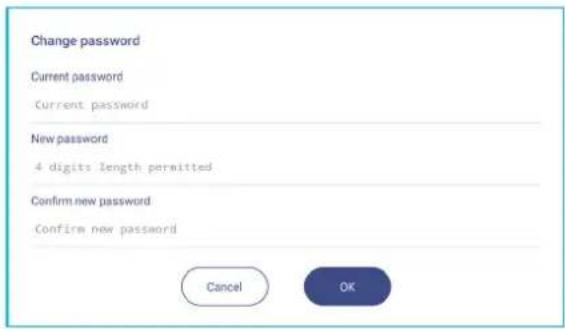

- Change password: Enter the current password and twice the new password. Then tap OK to confirm.

- Reset password to default: Enter the current password and tap Reset to confirm. The password is reset to 1 + 2 + 3 + 4 .

• Under Permissions, tap Unknown source and enable or disable installing third party software from an unknown source.
• Under Permissions, tap Install app from marketplace and enable or disable installing third party software from Optoma Marketplace.

- Tap CA to view and modify trusted CA certificates, user stored credentials, and more.

• Tap Trusted credentials to view and modify trusted CA certificates.
• Tap User credentials to view and modify user stored credentials.
• Tap Install from storage to install credentials from the storage.
• Tap Clear all credentials to remove all user credentials.

Tap Clear at the prompt to confirm.

BASIC OPERATIONS

Enabling or Disabling USB Wi-Fi/USB Disk

a) Press Input + 5 + 9 + 8 + 0 buttons on the remote control.

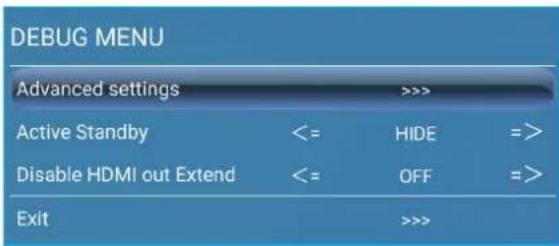

The DEBUG MENU opens.

b) Tap >>> next to the Advanced settings, then enter the Advanced Setting password at the prompt and tap Confirm.

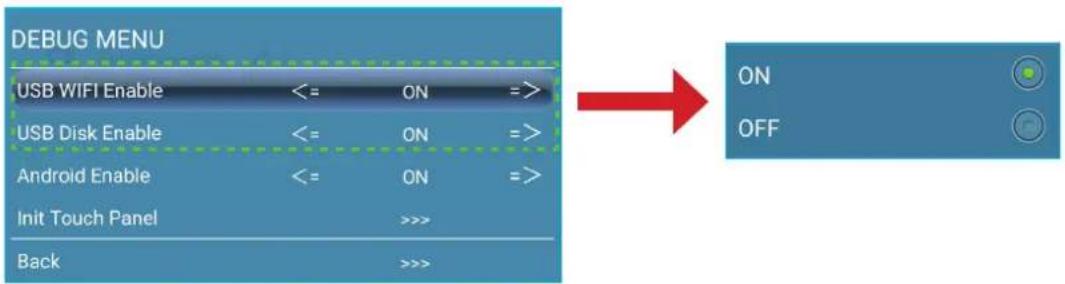

c) Tap <= or => next to USB WIFI Enable and select OFF when prompted to disable USB WIFI. Select ON to enable USB WIFI.

Tap Confirm at the prompt. After the system restarts, the setting takes effect.

BASIC OPERATIONS

Configuring System Settings

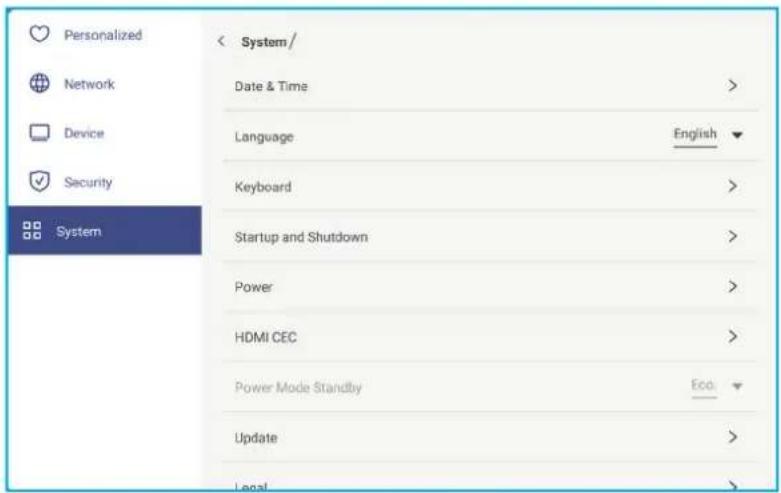

In the Settings menu, tap ☐ to open the System menu, then complete the following steps:

- Tap Date and Time to configure date and time related settings. Tap any of the following:

• Time Zone to select/change the time zone for your area.

• Use 24-hour format (13:00) to enable or disable displaying time in 24-hour format.

• Tap Language to select one of the available language options: English, French, Spanish, Traditional Chinese, Simplified Chinese, Portuguese, German, Dutch, Polish, Russian, Czech, Danish, Swedish, Italian, Turkish, Arabic, Romanian, Hungarian, Finnish, or Norwegian.

• Tap Keyboard to view and manage keyboards.
• Tap Startup and Shutdown to configure settings related to starting and shutting down the IFP. Tap any of the following:

• Startup Input Source item to select one of the available startup input options: Last shutdown input, Android, HDMI 1, HDMI 2, HDMI 3, Type-C, or VGA.
• Standby after startup (black screen) to enable or disable standby after startup.
• Close power off reminder to enable or disable closing power off reminder when the IFP is scheduled to shut down.

BASIC OPERATIONS

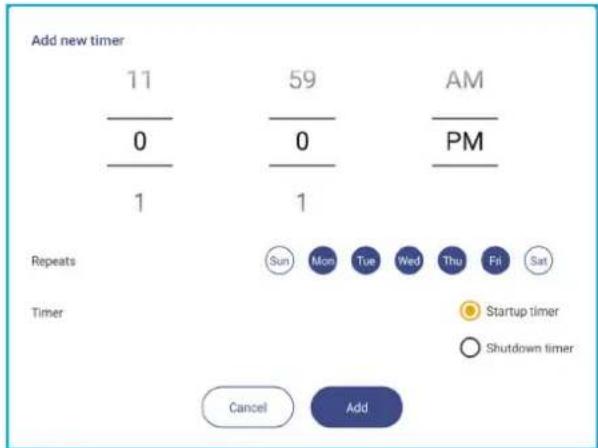

- Timers + to set a startup and shutdown timer. To create a schedule, do the following:

a) To enable startup timer and/or shutdown timer, select the radio button next to Startup timer and Shutdown timer.
b) Set the time and select the day(s) when you want the IFP to follow this startup or shutdown schedule.
c) Tap Add to save the timer.

d) Enable (or disable) the new schedule in Timers menu.

Note:

• Tap ⓘ to modify or remove the schedule.
• You can set up to 3 schedules.

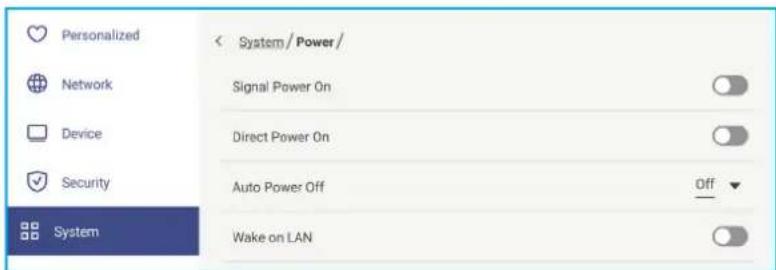

- Tap Power to configure power settings. Tap any of the following:

• Signal Power On to enable or disable starting up the IFP when an input signal is detected.
• Direct Power On to enable or disable starting up the IFP from the power source.

Note: Direct power on feature aids installations that rely on power-on timers.

- Auto Power Off item to select one of the available time intervals in minutes to automatically power off the IFP when there is no input source found: Off (function is disabled), 5, 10, 15, 20, 25, 30, 35, 40, 45, 50, 55, or 60.

BASIC OPERATIONS

- Wake on LAN to enable or disable remotely starting up the IFP over LAN.

Note: Wake on LAN can't work and will be gray out when Power Mode (Standby) is set to Active.

• Tap HDMI CEC to enable or disable any of the available options: Display on then player on, Display off then player off, Player on then display on, or Player off then display off.
• Tap Power Mode (Standby) item to select one of the available options: Eco or Active. By default, Active item is not visible. To enable Active option, do the following:

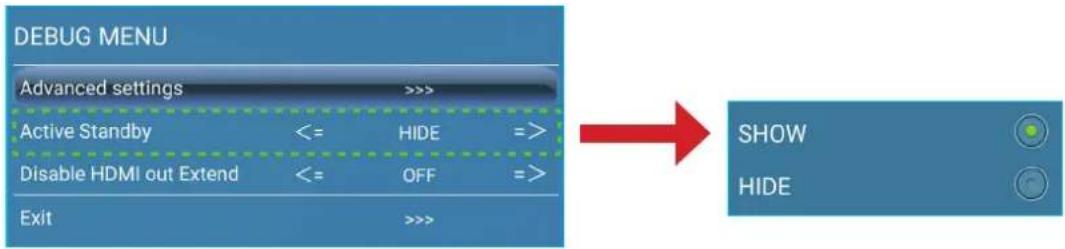

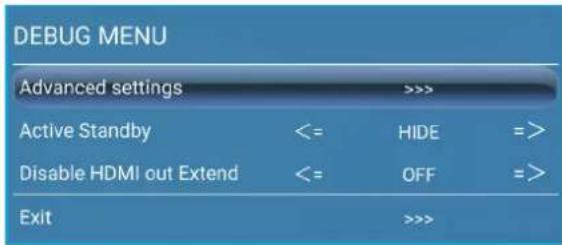

a) Press Input + 5 + 9 + 8 + 0 buttons on the remote control.

The DEBUG MENU opens.

b) Tap HIDE next to Active Standby. Select SHOW at the prompt.

c) Tap Exit to exit the DEBUG MENU.

Active option is available in System Power Mode (Standby) menu.

Note:

• OMS and LAN control remote power on functions will only work when Power Mode (Standby) is set to Active.
  Active Standby mode consumes higher power since system only turns off backlight and mainboard is still working to listen for power on command from LAN and OMS. If you don't have remote power on requirement, we suggest using Eco. Standby mode to save more power.
  It is also highly recommended that you switch back to Eco. Standby mode and turn off the IFP for a period of time. It will help IFP system to release memory and CPU loading.

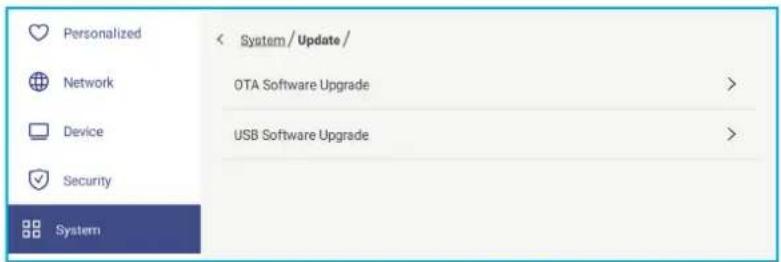

- Tap Update to configure upgrading options. Tap any of the following:

BASIC OPERATIONS

- OTA (Over-The-Air) Software Upgrade to enable or disable upgrading software over Internet. Tap Auto to enable the system to check for firmware upgrades automatically every time the IFP is powered on and connected to the Internet. If the Auto option is disabled, the system will not check for firmware upgrades automatically.

To update the system manually, do the following:

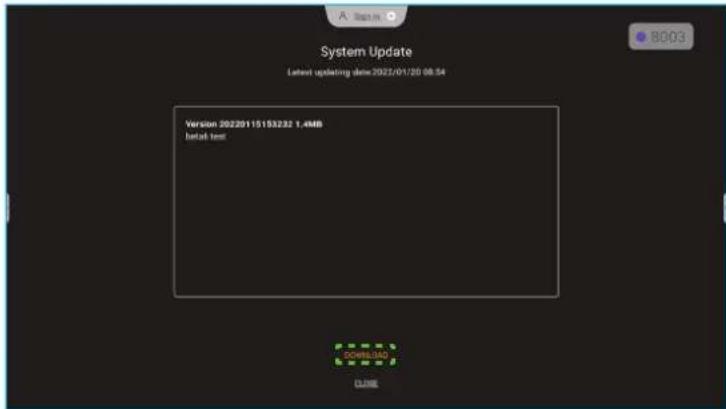

a) Tap UPDATE at the prompt.

b) Tap DOWNLOAD at the System Update window.

c) Tap UPDATE to start the update process.

Wait until the update process is complete.

Note: Upgrading software over Internet requires network connection.

- USB Software Upgrade to update the system from a USB flash disk.

Note: To proceed with upgrading software, save the upgrade file to the USB flash disk first, then connect the disk to a USB 2.0 port on the IFP. Open Advanced Settings System Update USB Software Upgrade and tap Start at the prompt.

Note: If you upgrade IFP's firmware from a USB storage, uncompress the upgrade file first and then copy the uncompressed file to the USB root directory. Make sure the USB flash disk is formatted as FAT32.

IMPORTANT!

• During the update process, either OTA or from a USB storage, DO NOT power off the IFP and DO NOT remove the USB dongle from the IFP. Doing so will damage the system.
• If you update the IFP from a USB storage then all user data saved to the USB storage will be wiped out. If you update the IFP over Internet (OTA) then all user data remains intact.

BASIC OPERATIONS

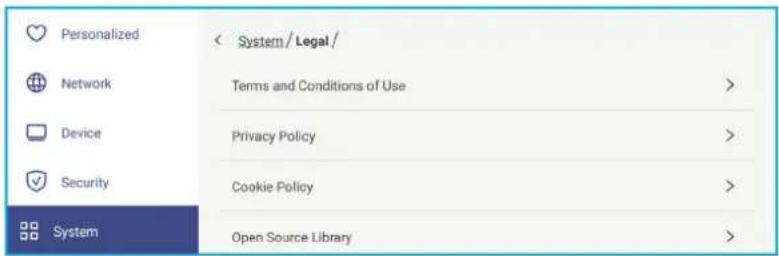

- Tap Legal to view Terms and Conditions of Use, Privacy policy, Cookie policy, and Open Source Library.

BASIC OPERATIONS

Side Toolbar

Tap > or < on the left or right side of the screen to open the side toolbar.

Note: Drag > or < up or down on the screen to relocate it.

Side toolbarShortcut to the side

• To hide the toolbar, tap > or <.

• To return to the previous screen, tap

• To return to Home screen, tap

- To view recent or open tasks and apps, tap ☐. For more information, refer to "Viewing Recent Tasks" on page 54.

- To view the OSD menu, tap ≡. For more information, refer to "OSD Menu" on page 33.

- To open Creative Board, tap CB. For more information, refer to "Creative Board App" on page 55.

- To open the annotation app, tap 📋. For more information, refer to "Annotation App" on page 62.

- To open an online classroom, tap 1-2. For more information, refer to "Airshare" on page 63.

- To open the screen recording tool, tap ☐. For more information, refer to "Floating Annotation Toolbar" on page 70.

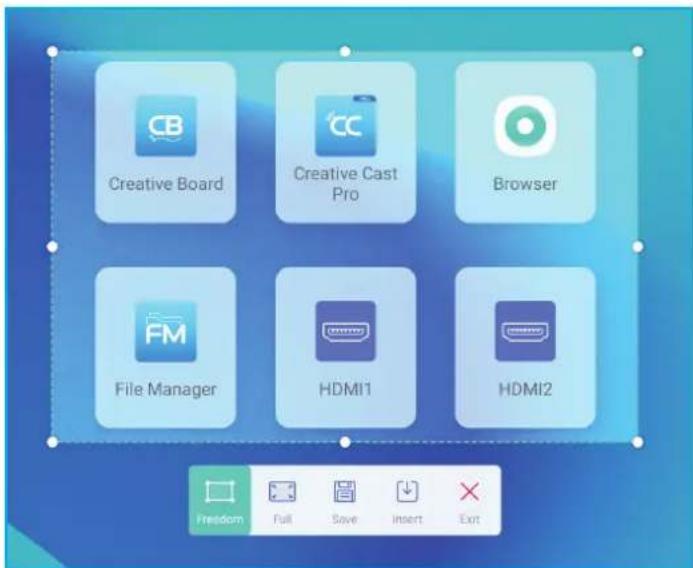

- To open the screen capture tool, tap 📋. Use this tool to capture the screen image and save it to the storage device or insert it into the whiteboard session. For more information, refer to "Screen Capture Tool" on page 68.

• To open more tools, such as Freeze, Stopwatch, Timer, Spotlight, ScreenLock, or Calculator, tap ...

BASIC OPERATIONS

Viewing Recent Tasks

Tap > or < => to view and manage all opened apps.

• Tap on the app you want to launch.
  • To close the app, tap × in the app window.

- In multi-window mode, swipe the app window to the left or to the right or tap ✗ to close the app.

• To clear the list, tap CLEAR ALL.

- In multi-window mode, tap Clean All.

BASIC OPERATIONS

- To use split screen, tap and hold on the desired app and then drag it to the left or to the right of Drag here to use split screen column.

Note: Split screen is not supported in multi-window mode.

Note: You can also view recently used apps in floating annotation toolbar. Refer to ""Floating Annotation Toolbar" on page 70.

Creative Board App

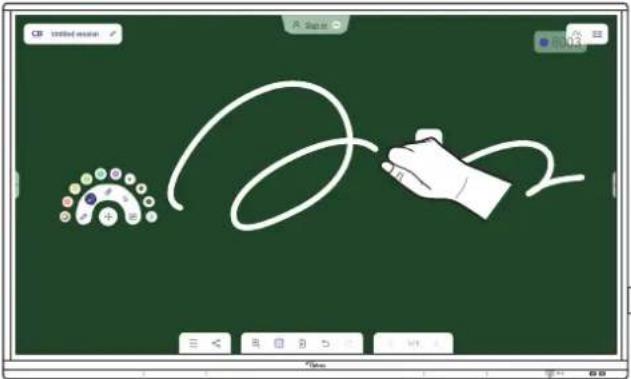

Creative board is an online collaborative whiteboard platform that can bring teams together to brainstorm, sketch and collaborate, anytime, anywhere.

Tap > CB to open the Creative Board.

To start using the app, do the following:

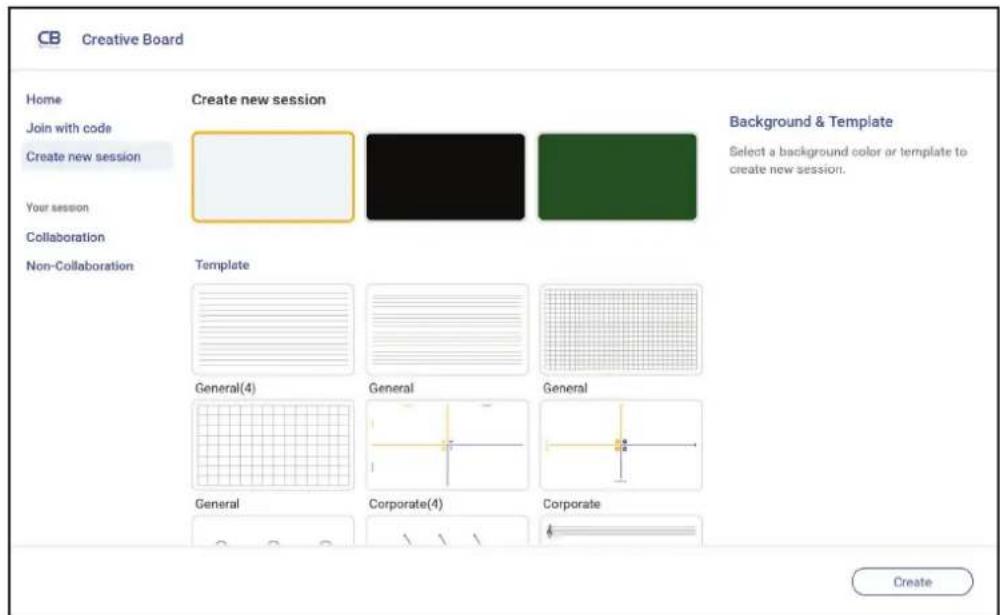

1. Tap on the Create new session tab. Then select a background or template for your content.

Note: To access your cloud sessions, login to Creative Board first.

- To open a recent session, tap on the Home tab and under Recent category tap on the session you want to continue.

- To open a collaboration (saved to the cloud) or non-collaboration (saved locally) session, under Your session category, tap on the session you want to continue.

BASIC OPERATIONS

1. Tap Create and use any of the activities described in the table below:

Note: The floating board is home to many of the primary features found in the Creative Board app, which are detailed here.

Item Description
	Move the floating board	Tap and drag or long-tap on the screen to move the floating board to your preferred location on the screen.
	Minimize the floating board	Tap on theicon to minimize the floating board. Tapto expand the floating board.

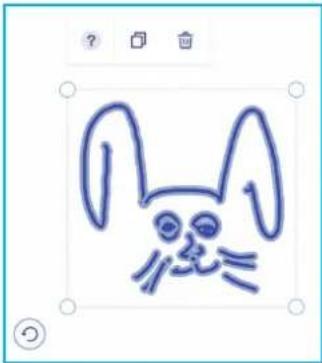

	Pen	Write or draw a freeform line.Tap to select the desired line color and thickness.- Tapto modify the color palette. You can select five palette colors based on the theme or select them individually.IMPORTANT! Avoid damaging the virtual whiteboard. For writing and drawing, use ONLY the supplied touch pen or your fingers.Note:Touch pen is supplied with thin tip and thick tip.Creative Boardcan detect automatically which tip (accordingly) you are using and displays the options based on the tip thickness.If you are using your fingers to write or draw on the virtual whiteboard then it is considered as using a “thick tip pen”.

BASIC OPERATIONS

Item Description
	Eraser	Erase areas of your written texts or drawings. Select the eraser size and drag your fingers over the area you want to remove.Note: You can also use the palm of your hand to erase the item on the whiteboard.
	Select	Select an object on the whiteboard. Tap any of the following to alter the selected area:• (boundary point) to enlarge or shrink.• ? to change the color.• ☐ to duplicate.• ☑ to delete.• ☑ to rotate.

BASIC OPERATIONS

Item Description
	Geometric shape	Draw a geometric shape.Tap to select the desired 2D, 3D shape with several color options, use a ruler to measure distances and draw lines, or use a protractor to measure and draw angles.
	More tools	Tap any of the following tools:import JPG, PNG, or PDF files from different storage devices, including internal storage, USB storage, or cloud drive.embed a fully functional web browser window. You can capture screenshots, resize, relocate, duplicate, and delete the browser window.embed a document camera.
+	Add a page.
≡	Menu	Tap any of the following options:Newto create a new session.Opento open a collaboration or non-collaboration session.Save/Save Asto save/save as the current content to collaboration or non-collaboration session.Importto import a JPG, PNG, or PDF file.Exportto export the session as JPG, PNG, or PDF file.to openSettingsmenu. Then enable or disable auto saving for non-collaboration session, eye protection writing mode, customize floating board, and update software.? to read theCreative Boardapp tutorial.

BASIC OPERATIONS

Item Description

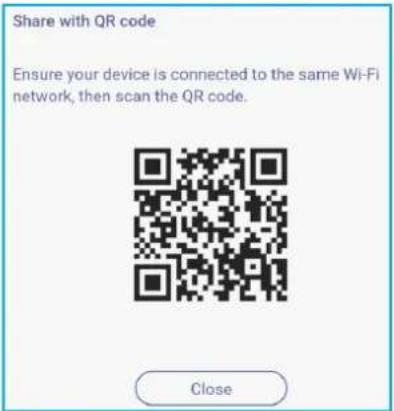

	Share	Tap any of the following to share the file to other devices:•QR Codeto share the file with QR code.Note:Before scanning the QR code to download the file, make sure the IFP and your mobile device are connected to the same Wi-Fi network.•Emailto send the file by email.Note:If you want to send the file by email for the first time, you are prompted to configure email settings first. For more information, refer to page 44.

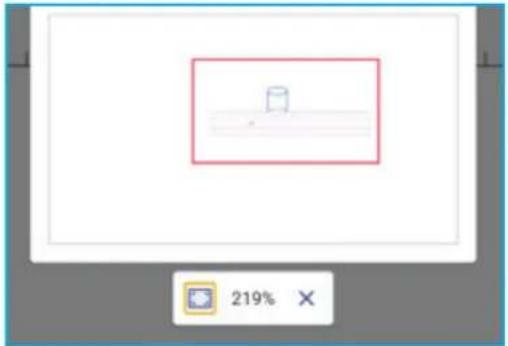

	Zoom	Zoom in or zoom out on the screen. Then tap to open the zoom window. Move the red box to the area that you want to show on the screen.Tap close the zoom window.
	Background options	Select a background or template for your content. Tap Select. Then select your image from the File Manager or from the browser and set as a template for your session.
	Delete a page Delete all items/objects you draw in current page.

BASIC OPERATIONS

Item Description
⇐	Undo Undo your last action.
⇐	Redo Redo your last action.
Page manager	View and manage all pages that are involved in the current session. Tap any of the following:< 2/3 >• K to open the previous or next page.• Page number, for example 2/3 to open the page manager: Tap on the left side to add a page to the left or on the right side to add a page to the right.Tap to delete the selected page.
Session name	The default session name is “Untitled session”.To rename the session, tap and type in a new name at the prompt. Then tap Save.Note:• You can also rename the session on the Creative Board Home tab. Select the session and then tap ⋯ ⇒ Rename. Tap Save at the prompt to save the modifications.• If the session is marked with the icon then it means it is an active collaboration session and if the icon is then it means it is a inactive collaboration session. All other sessions are non-collaboration sessions. To access collaboration sessions, make sure to be logged in to Creative Board.

BASIC OPERATIONS

Item Description
	Sign in	Sign in toCreative Boardwith yourCreative Boardaccount or with your Google account to create collaboration sessions.Sign inWhen signed in, tap view account settings or tap log out.

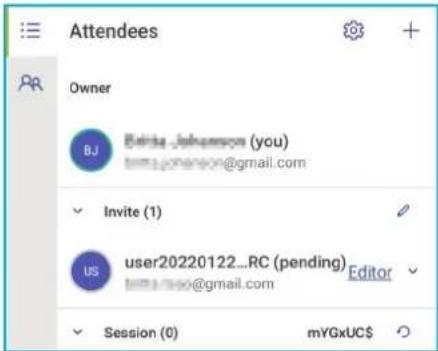

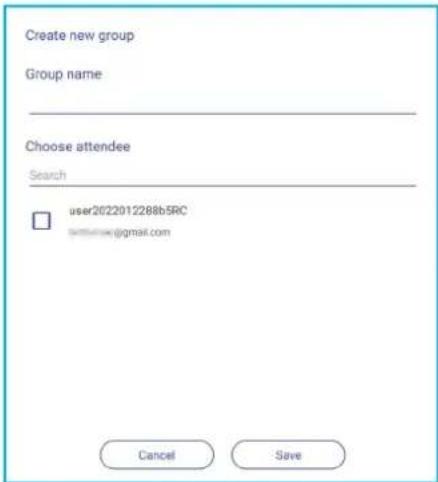

	Attendees management	Invite attendees to join the Google Classroom through theCreative Board.On the Attendees tab, tap and then select any of the following options:Through the Google ClassroomBy sending an email invitation with the session passwordBy sending a session code.On the Attendees tab you can assign a role to the attendee (either viewer or editor), delete (→) attendees, renew (the session code, and configure (attendee settings.Tap to access the Group tab. Then tap and enter the group information, such as group name and attendees. TapSave.To modify group settings, tap...
	Google Classroom management	View the Google Classroom that is related to your sign in account. Tap to change to another classroom or tap to post session link to Google Classroom.

BASIC OPERATIONS

Annotation App

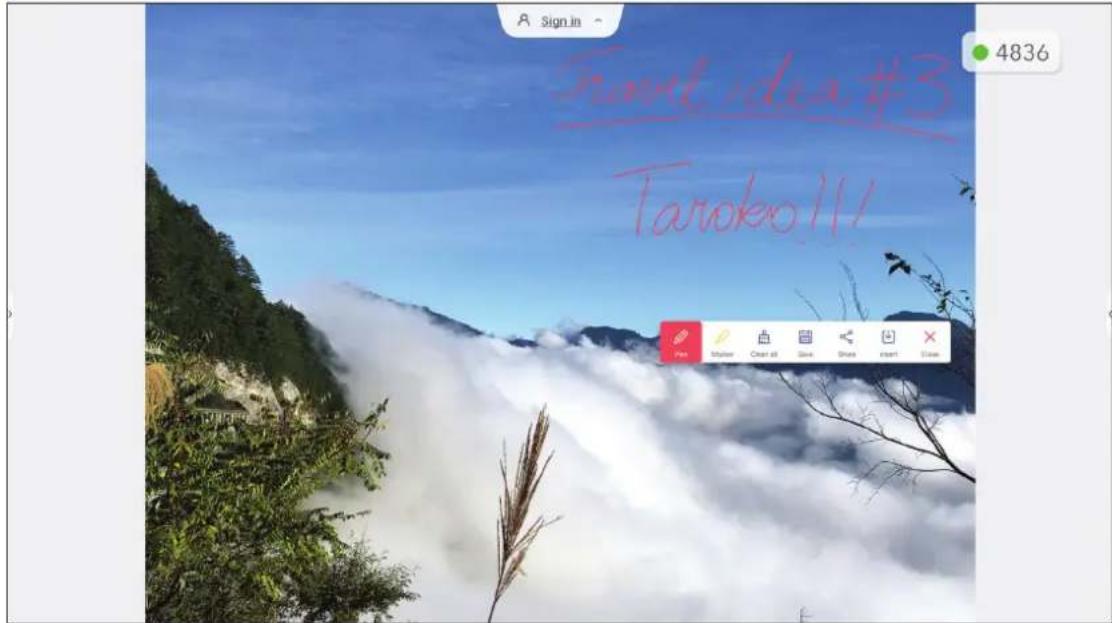

Tap > ⇒ to open the annotation app.

In this mode, you can do the following:

- Tap 📋 to write and draw on the screen.

Note: You can change the pen color by tapping repeatedly.

- Tap to highlight the item on the screen.

Note: You can change the highlighter color by tapping repeatedly.

• To erase all annotations on the screen, tap 📄.

Note: You can also use the palm of your hand to erase the areas of your written texts or drawings.

• To capture a screenshot of the entire screen, tap

- To share the annotation to other wireless devices, tap 📋. Make sure your wireless device is connected to the same Wi-Fi network as the IFP and then scan the QR code with your wireless device.

• To exit the annotation mode, tap ✗

BASIC OPERATIONS

Airshare

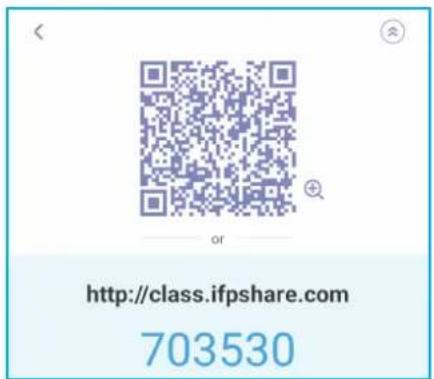

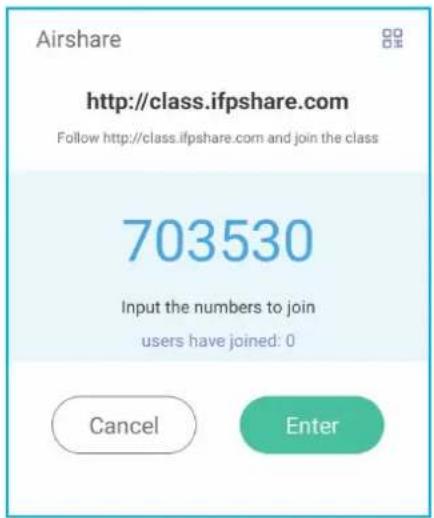

Tap > ⇒ 1+2 to open Airshare. The online classroom access code and URL will be displayed on the screen.

• To display the connection QR code, tap .

To join the virtual classroom remotely, complete the following steps:

1. Connect the IFP to an available network.
2. On your mobile device, enable Wi-Fi function.

IMPORTANT! Make sure you have access to the Internet throughout the entire online session.

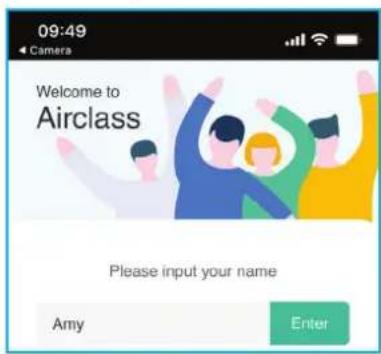

1. Open the classroom URL in a web browser and enter the access code or scan the access QR code. Then enter your name and tap Enter to join the class.

BASIC OPERATIONS

1. On the IFP, tap Enter to start the class session.

To participate in the class, do the following:

Launch the Creative Board app. Then use the following functions:

a. Voter

1. Tap to enter the Voter interface.
2. Select Single choice or Multiple choice to define the answer type.
3. Tap Begin to start answering the question.

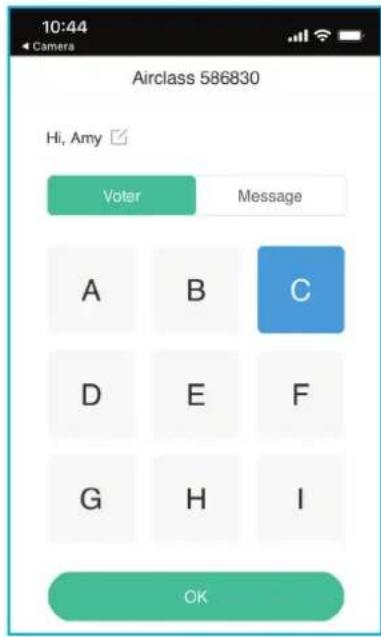

1. The participant can respond by selecting the answer on the mobile device screen and tapping OK.

BASIC OPERATIONS

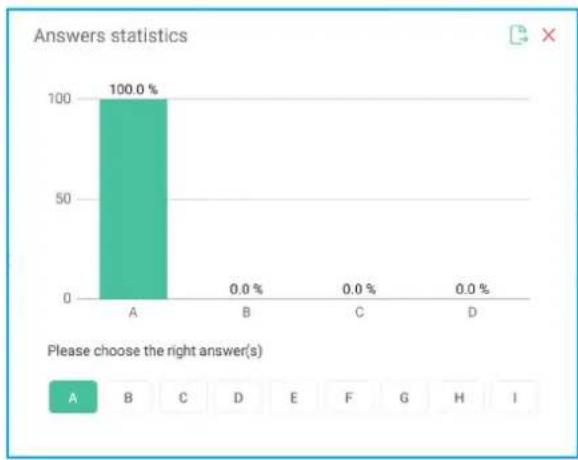

1. To close the answering session, tap Finish. The Answer statistics will be displayed on the screen.
2. Tap the right answer(s) on the statistics screen.

• Tap to save and export the result.
• Tap ✗ to close the Answer statistics page.

b. Responder

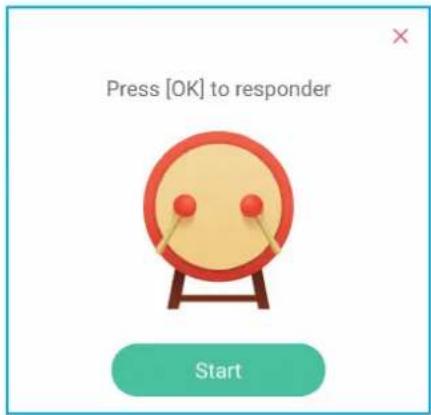

1. Tap to enter the Responder mode. Then tap Start to start the answering mode.

BASIC OPERATIONS

1. When the function is activated, the person who taps Be fast first will get the right to answer. For example, if Amy first taps Be fast, then she will get the right to answer the question.

- Tap Reset to start the answering mode again.

c. Selector

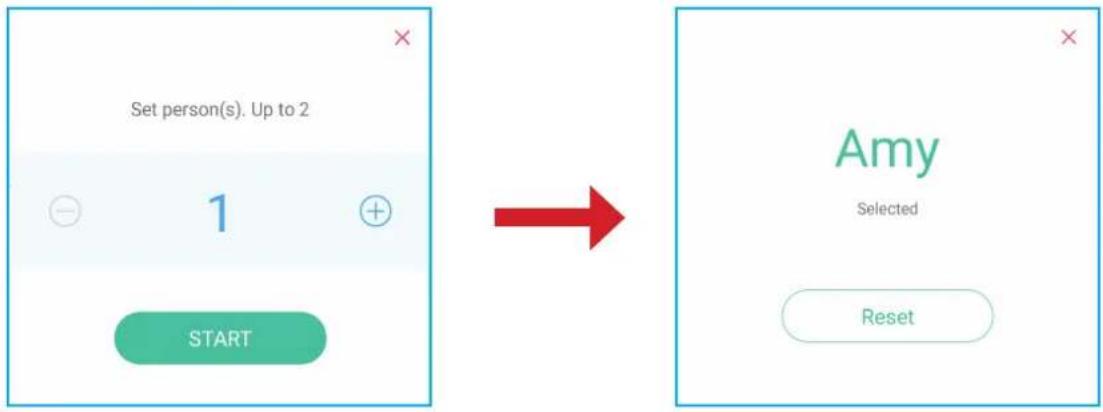

Tap ☐ to enter the selector mode. Select the number of person(s) whom will be selected. Then tap START. The result is displayed on the screen.

- Tap Reset to select again.

BASIC OPERATIONS

d. Message

1. Make sure the message function is enabled

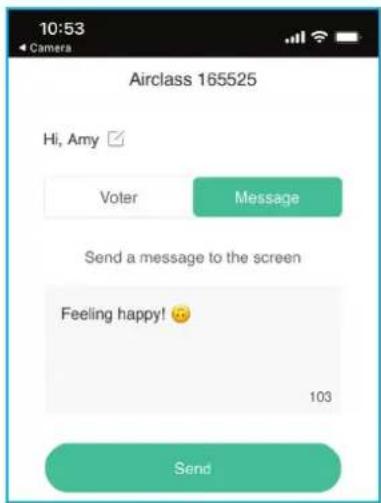

1. On the mobile device, tap Message to switch to the Message screen, then enter your message in the comment text box and tap Send.

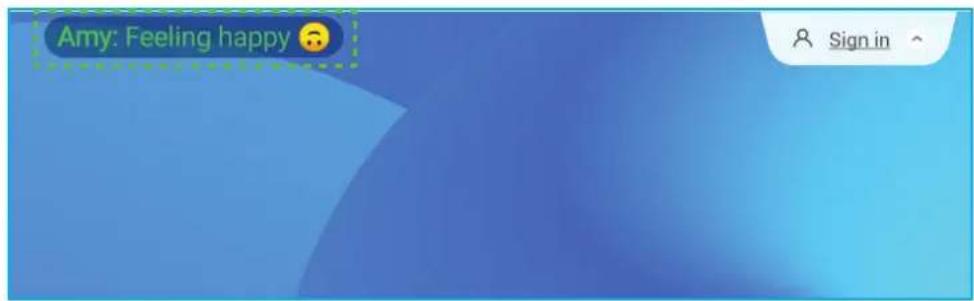

The broadcast message will appear on the IFP screen.

Note:

• Tap to display the class access code, URL, QR code and allow more participants to join the class.
• Tap to export the result.
• Tap ✗ to exit Airshare. Confirm Exit at the prompt. All classroom users will be logged off.

BASIC OPERATIONS

Screen Recorder

Tap > ⇒ ☐ to open screen recording utility. This utility helps you to record video from the IFP's screen and connected camera screen (if enabled).

Note:

• You can drag the recording utility to your preferred location on the screen.
• The screen recording utility can be used only with Android source.

- Tap to start recording the screen. The recording starts 3 seconds after you tap. While recording, tap to pause recording or to stop recording. Then tap OK to save the recording.

- Tap 📋 to configure recording settings: enable or disable connected camera recording, select the preferred video resolution, and select the path where you want the recordings to be saved.

Note: By default, all recordings are saved to the Storage/Record folder.

- Tap × to close the recording tool.

Screen Capture Tool

Tap > ⇒ to open the screen capture tool.

To capture the screen, do the following:

1. Tap either or to manually select the area or to capture the entire screen respectively.
2. Tap to save the screenshot or tap to insert the screenshot directly to the whiteboard session.

Note: To use this feature, please start a Creative Board session FIRST, then use this tool to capture and then insert the screenshot to the Creative Board.

1. Tap ✗ to exit the tool.

BASIC OPERATIONS

More Tools

Tap > ·s to access more tools such as Freeze, Stopwatch, Timer, Spotlight, ScreenLock, and Calculator.

- Tap Freeze ☐ to freeze the screen. Then tap ⚠ to zoom in or tap ⏰ to zoom out. To restore the screen to its original size, tap □ Finally, to exit the tool, tap . ✗

• Tap ⏱ to use the Stopwatch.
• Tap ☒ to use the Timer.
• Tap 📋 to activate Spotlight. Spotlight can be used to direct the audience's focus to a specific part of the board.

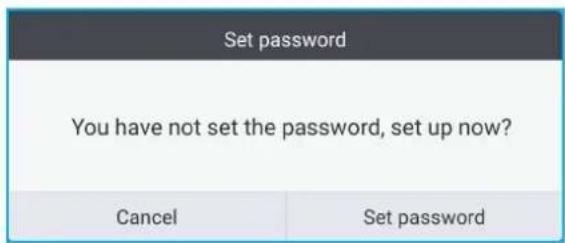

• Tap 🔒 to lock the screen (ScreenLock). If the screen lock password is not set, you are prompted to set the password. Follow the onscreen instructions to complete the procedure.

- Tap to use the Calculator.

BASIC OPERATIONS

To customize More tools icons in the side toolbar, tap ·s Edit. Then tap - next to the icon you want to remove from the side toolbar and tap next to the icon you want to add to the side toolbar. You can add up to 4 icons to the side toolbar.

Floating Annotation Toolbar

Touch and hold the screen with your two fingertips, a centimeter apart from each other. The floating annotation toolbar opens.

Circular icon set with six white icons on a blue background, no text or symbols present

• Tap to return to the previous screen.
• Tap 🏠 to return to Home screen.
• Tap Ⓠ to open annotation app.
• Tap CB to open Creative Board.
• Tap to view recent apps. Tap the app you want to switch to or tap to close the annotation toolbar.

- Tap and drag the annotation toolbar to your preferred location on the screen.

USING THE APPS

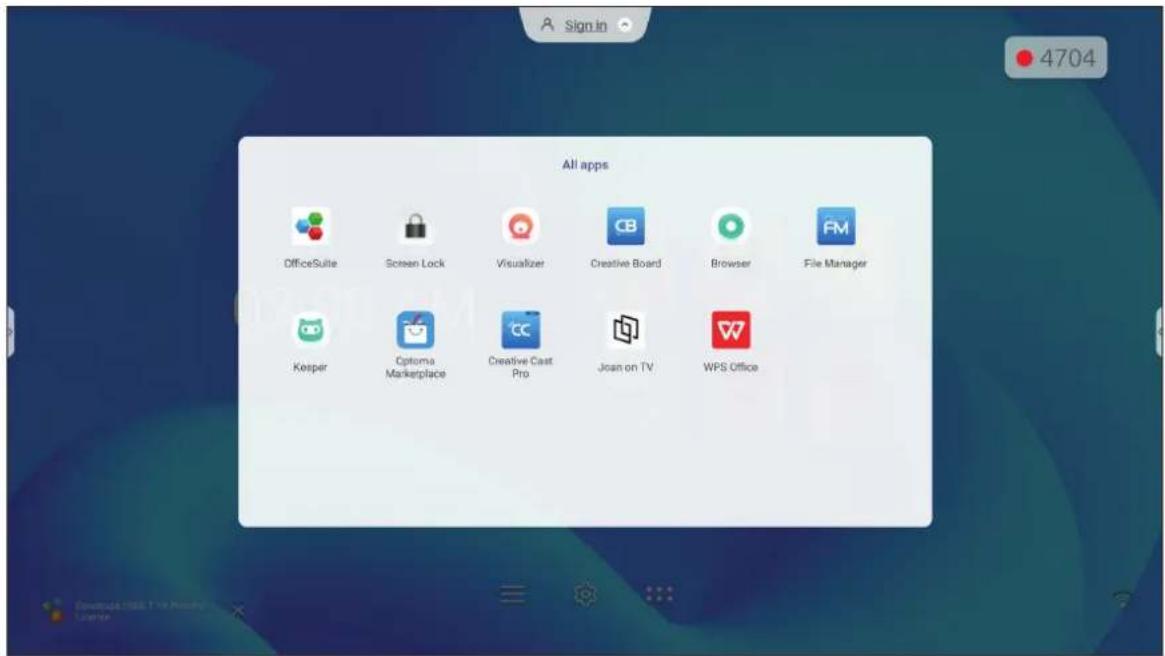

From the Home screen, tap to view the Apps list.

Note: To install a third party application, you have to enable the Unknown sources setting first in the Advanced Settings Security menu. Refer to “Configuring Security Settings” on page 45.

You can then install the downloaded APK (Android Package) file into your system.

IMPORTANT! The embedded Android 9.0 operation system is not standard Android. As such, Google Play is not available in the Apps list. The installed third party application might not work properly if it is not designed for IFP. Optoma will not guarantee that these self-installed Apps work.

Optoma interactive flat panel displays run a customized Android operating system and do not support Google Play Services. The operating system may not be compatible with all third-party Android apps. Third-party Android apps can vary in quality and some even contain malicious codes, which could compromise system security and may invalidate product warranty. Optoma makes no representations regarding the quality, security or suitability of any third-party apps and their compatibility with the Optoma interactive flat panel. Optoma shall have no responsibility or liability with respect to any damage, faults, loss in functionality or security issues arising as a direct or indirect result of the installation of third-party apps on the interactive flat panel. Optoma support in rectifying any issue which may result from the installation of third-party apps will be chargeable and may be limited. Information is correct at the time of writing and is subject to change.

USING THE APPS

Creative Cast

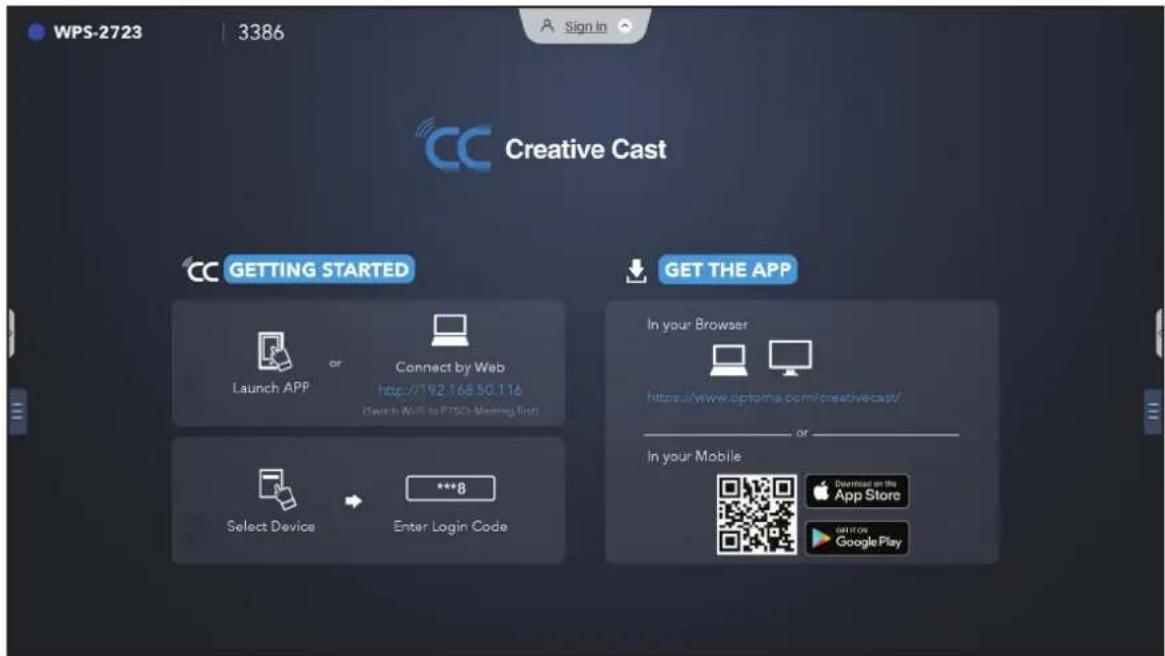

Tap Creative Cast to start wireless sharing and projection via Wi-Fi or LAN.

IMPORTANT!

• The IFP and your mobile device/computer must be connected to the same Wi-Fi or LAN network.
- While in use, make sure that you have access to the Internet.

Supported Operating Systems for Casting

Collavision Senders Available Version
	Windows	Windows 10, 11 and above
	Mac Mac OS X 10.12 and above
	iPhone iOS 13 and above
	Android	Android 9.0 and above
	Chrome Chromebook OS V74 and above

Proprietary Sharing

Features Operation	System
Web Sharing (Web Sender)	Chrome Browser
AirPlay Support iOS 9 and above
ChromeCast

USING THE APPS

Mobile Device

When the setup guide screen appears, scan the QR code to download and install the Creative Cast app onto your mobile device.

To connect to the IFP, complete the following steps:

Note: The connection steps are described based on an iOS device.

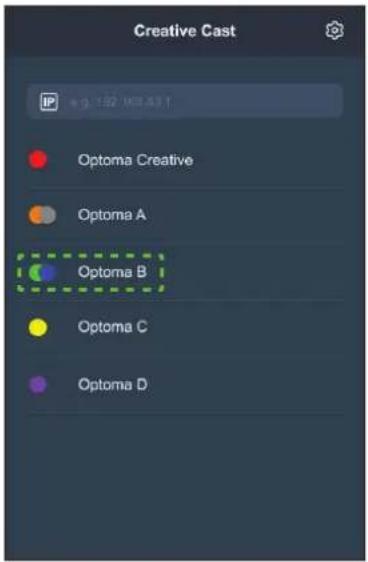

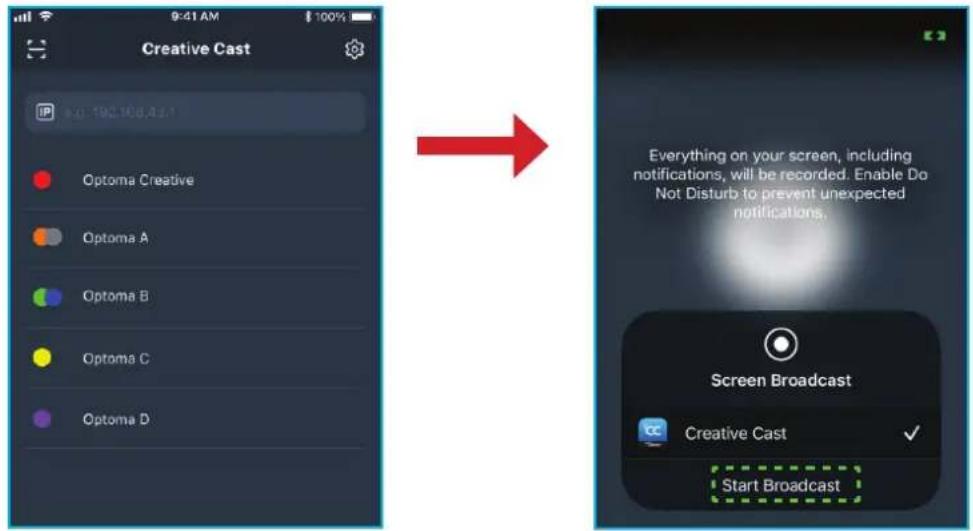

1. Launch the Creative Cast

app. Select the device and then tap Start Broadcast.

USING THE APPS

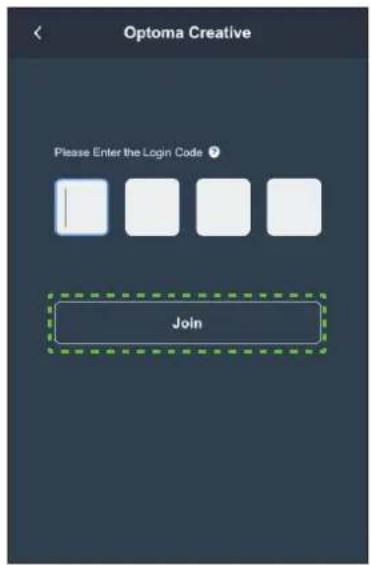

1. Enter the Creative Cast verification code from the launcher screen to establish the connection.

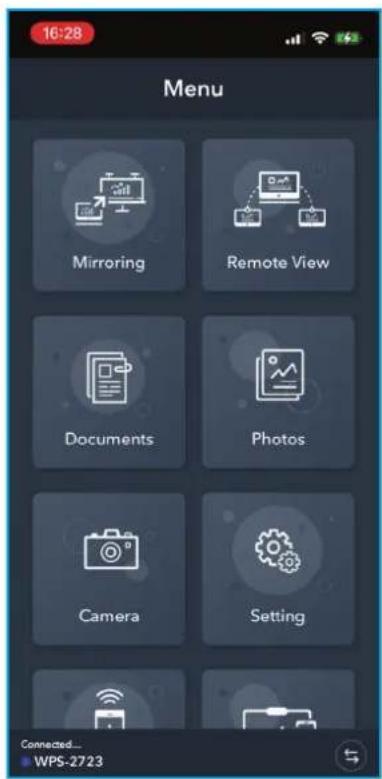

1. Tap any of the following:

USING THE APPS

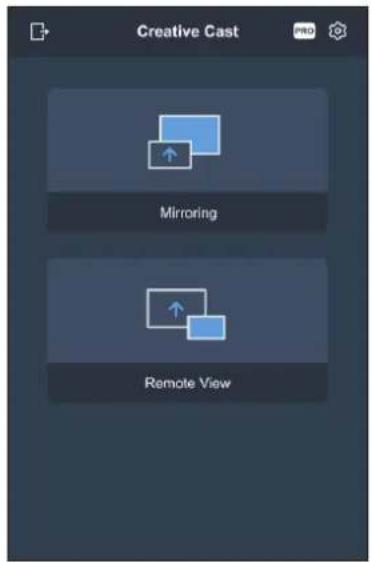

• Mirroring to mirror your mobile device's screen to the IFP.
• Remote View to mirror the IFP screen to your mobile device with annotation and image saving feature.
• Document to view and share documents.
  • Photo to view and share photos.

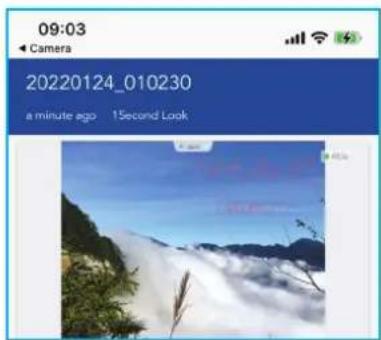

• Camera to stream your mobile device's camera to the IFP.
• Settings to modify your mobile device's user name and view the Creative Cast version.
  • Smart Control to use your mobile device as a remote control to control the IFP.
• Screen Control to mirror the IFP screen to your mobile device. You can use your mobile device to operate the IFP.
• Custom Menu to customize the Creative Cast menu in your mobile device.

4. To stop the screen broadcast, tap

Computer

You can mirror the screen of your computer via Chrome browser or Creative Cast. To use either of these options, open the browser and enter to the URL field the IP address that is displayed on the launcher screen. For example, http://10.5.13.83.

• To download Creative Cast, tap on the respective operating system icon next to Get Apps link.

USING THE APPS

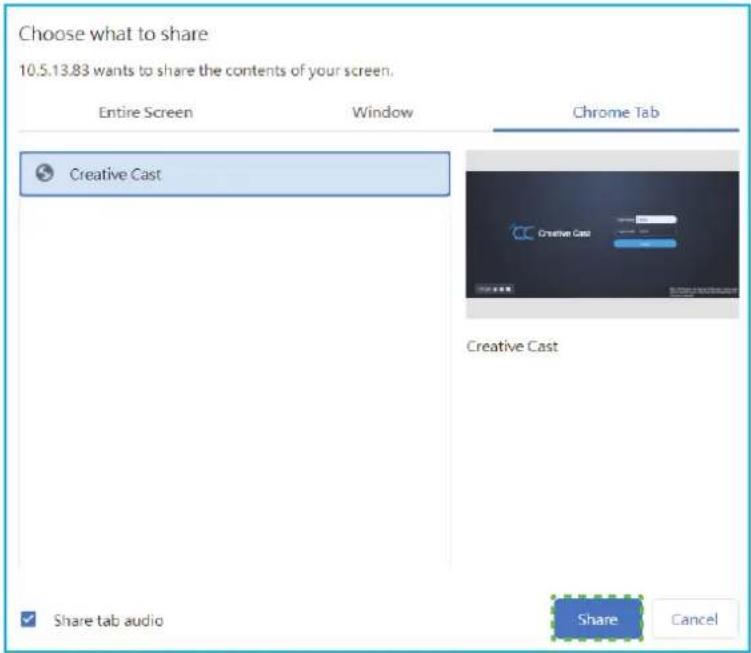

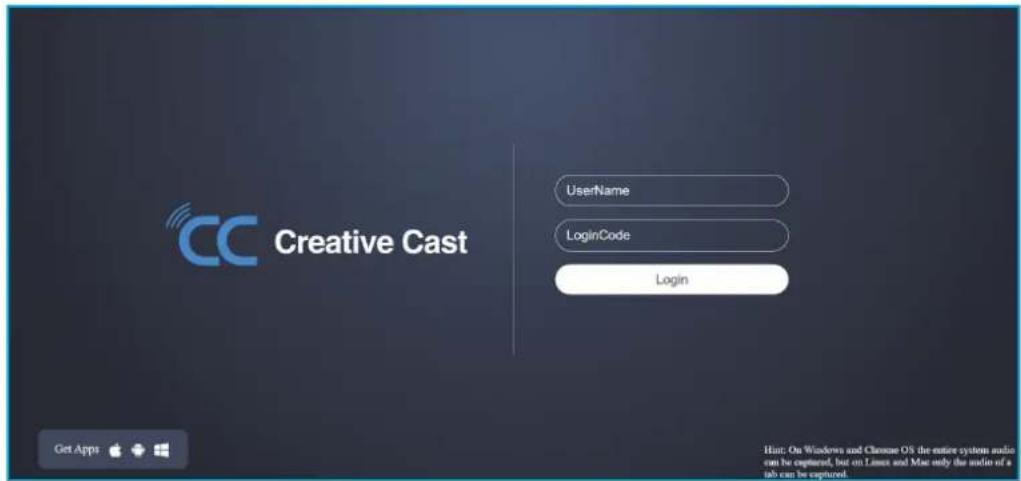

- To start screen casting from Chrome browser, enter your preferred user name (UserName), LoginCode (verification code on the launcher screen) and tap Login. Select what you want to share and then click Share.

Note:

- If you want to share audio during screen casting, tap on the launcher screen.

• The user name that you enter for screen casting will be used also in Moderation mode.

To stop sharing, do either of the following:

- Click Stop sharing on your browser or

- Click on the launcher screen.

USING THE APPS

To start screen casting from desktop app, download the Creative Cast to your computer.

1. Launch the app and click on the device name.

- If the IFP is not visible in the Room List, input the IFP's IP address manually to the Input IP address field. Press Enter to start searching for the device.

1. Enter the login code from the launcher screen and tap Join.

USING THE APPS

3. Click any of the following:

• Mirroring to mirror your computer's screen to the IFP.
• Remote View to mirror the IFP screen to your computer with annotation and image saving feature.

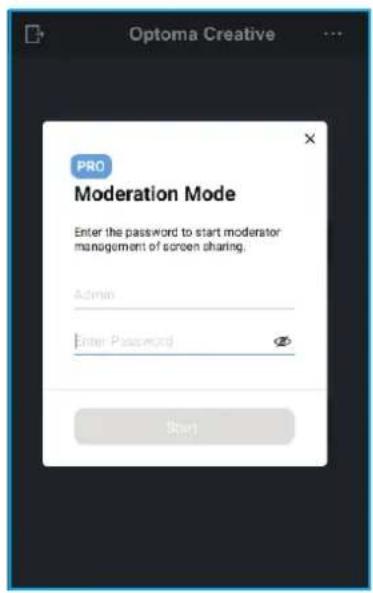

• PRO (Moderation Mode) to select up to 4 screens to display on the IFP. Enter the password (default: admin) and click Start.

Note: To modify the password, refer to "Creative Cast Settings" on page 79.

USING THE APPS

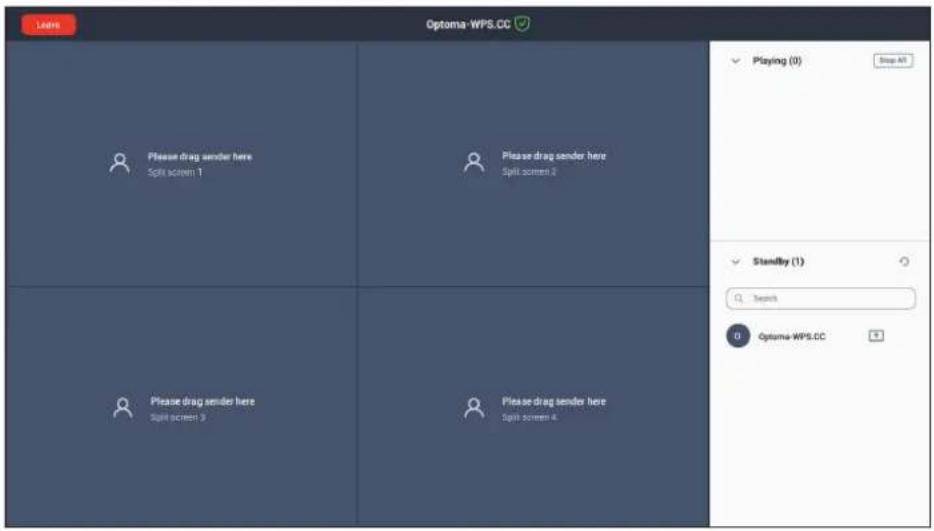

Select the screens to display.

1. To exit the moderation mode, tap Leave

Creative Cast Settings

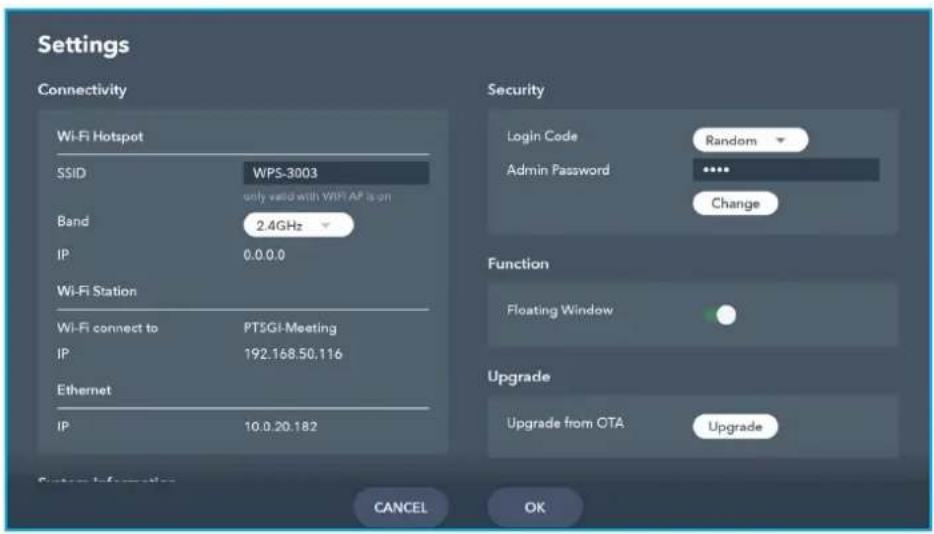

Tap and then tap on any of the following icons to configure the Creative Cast launcher screen settings:

• Grouping to share the screen to other devices.
• Settings to manage connection settings, view Creative Cast version and upgrade software, configure login code settings, set the administrator password for the Moderator user, and enable or disable floating window feature.

- Minimize the menu bar.

USING THE APPS

File Manager

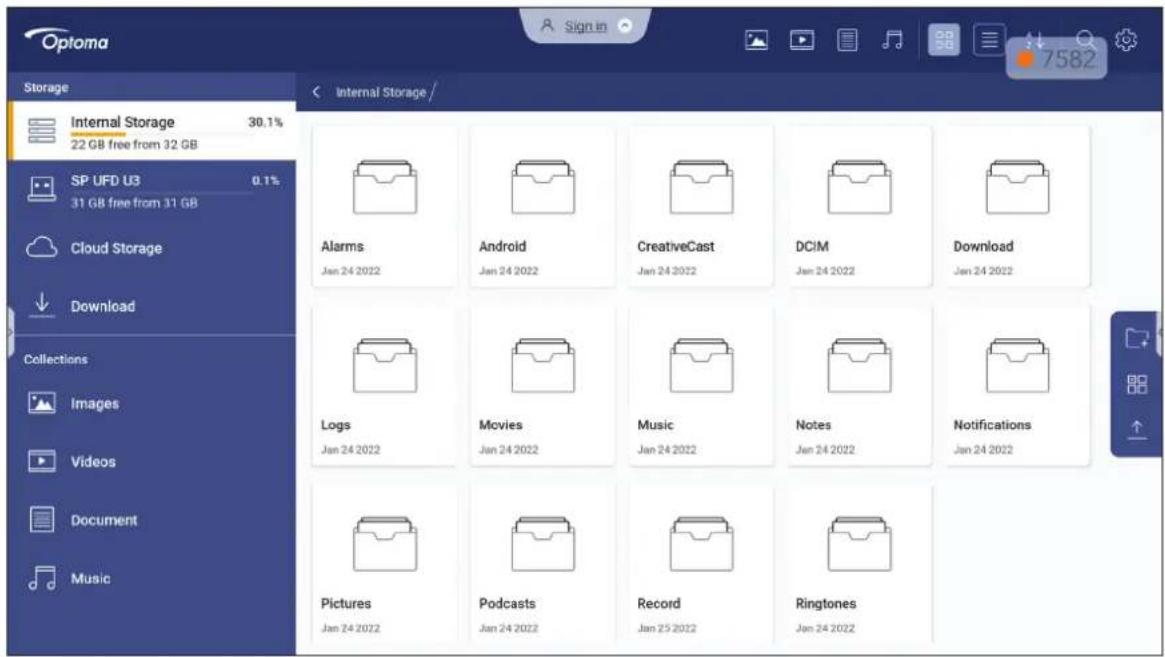

Tap File Manager to manage files and folders.

Managing Files

Select a storage location and browse for a file or folder you want to view then tap twice on a file or folder to open. The table below will help you navigate File Manager and its included features.

Item Description
	Images Display only image files in the selected storage location.
	Videos Display only video files in the selected storage location.
	Document Display only document files in the selected storage location.
	Music Display only audio files in the selected storage location.
	Thumbnail view View files and folders as thumbnails.
	List view View files and folders as a list.
	Sort Sort files and folders by name or by date in ascending or descending order.
	Search Search files and folders using key words or names.
	Software version View software version and update app (if necessary).
	New Folder Add a new folder.
	Select	Select files and folders. When selected, tap any of the following:undo your last action.check/uncheck all items.cut and paste item(s).copy and paste item(s).delete item(s).rename an item.share an item with QR code.Note: For file sharing with QR code, make sure your mobile device is connected to the same network as the IFP.compress item(s).move/copy item(s) to another location or view item details.

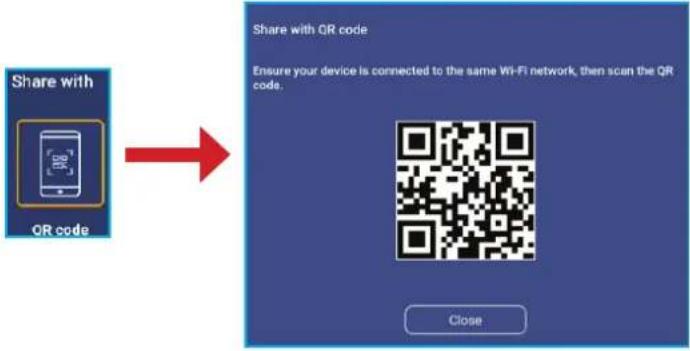

	Share item(s)	Share item(s) between the IFP and your mobile device over web browser.Note:By default, all items that you upload to the IFP are saved toDownloadfolder.For item(s) upload, make sure your mobile device is connected to the samenetwork as the IFP.

USING THE APPS

Cloud Storage

Tap File Manager FM Cloud Storage to create an account or use an existing account to access your cloud storage.

To create an account:

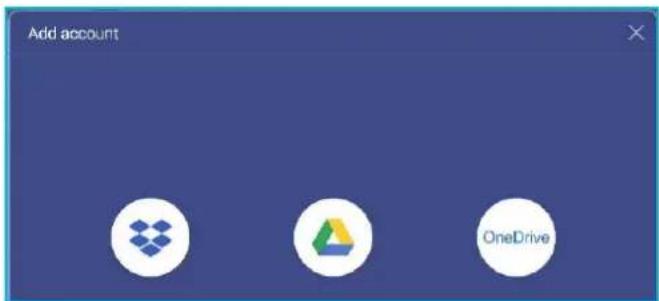

1. Tap or Add account.
2. Select the drive type.

1. Follow on-screen instructions to create an account or sign in to your existing account.

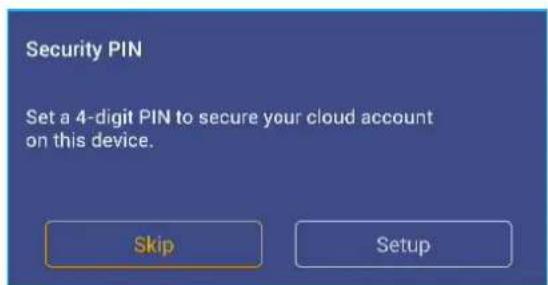

2. After successful login, you are prompted to set a security PIN. Tap Setup to set the PIN or Skip to skip this step.

Note: PIN code is used to protect user's cloud storage from being illegally accessed. When system status changes (for example, from standby to normal, from backlight off to on), a user must key in the PIN code the set up for verification in order to access their cloud storage..

Your account will be listed in the Cloud Storage menu.

USING THE APPS

1. To manage your cloud storage account(s) in the File Manager, tap any of the following:

• _+ to add another cloud storage account.
• to lock the cloud storage account.
• to delete the cloud storage account.

Note: Locking and deleting the cloud storage account in the File Manager will only prevent or remove access to that cloud storage in the File Manager and will not lock or delete the cloud storage in its original location, for example in Google.

Playing Multimedia Files

Multimedia formats supported

Media Type Supported Format
Video	Video support format (codec) up to 4K resolution:.avi (MPEG-1, MPEG-2 MP@HL, MPEG-4 SP@L0-3, ASP@L0-5, H.264, MP, HP@Level 4.1,H263, VP6, MJPEG).ts (MPEG-2 MP@HL, MPEG-4 SP@L0-3,ASP@L0-5, H.264 MP, HP@Level 4.1, VC1 AP, H265).mpg, .mpeg (MPEG-1, MPEG-2 MP@HL, H.264 MP, HP@Level 4.1).mp4 (MPEG-4 SP@L0-3, ASP@L0-5, H.264 MP, HP@Level 4.1, H265).mov (MPEG-4 SP@L0-3, ASP@L0-5, MJPEG, H.264 MP, HP@Level 4.1, H265).mkv (VP9, H.265).3gp (H.264 MP, HP@Level 4.1, H263, MPEG-4 SP@L0-3, ASP@L0-5)
Audio	Audio support format (codec):.wma (WMA/WMAPro: 128Kbps~320Kbps, 8KHz~48KHz sampling rate).mp3 (MPEG Layer 3: 32Kbps~320Kbps, 32KHz~48KHz sampling rate).wav (PCM: Max 320Kbps, Max 48kHz sampling rate / ADPCM: 384Kbps, 8KHz ~ 48Khz sampling rate).m4a (ACC: 24kbps ~ 384kbps, 16KHz~48KHz sampling rate).ogg (Vorbis: Max 320Kbps, 8KHz~48KHz sampling rate)
Image	Supported image format (with the maximum resolution):.png (8k*8k).jpeg (baseline 8k*8k; progressive 4k*4k).bmp (8k*8k).gif (4k*4k)

USING THE APPS

Playing videos

Select the video you want play and tap twice on it to start playback.

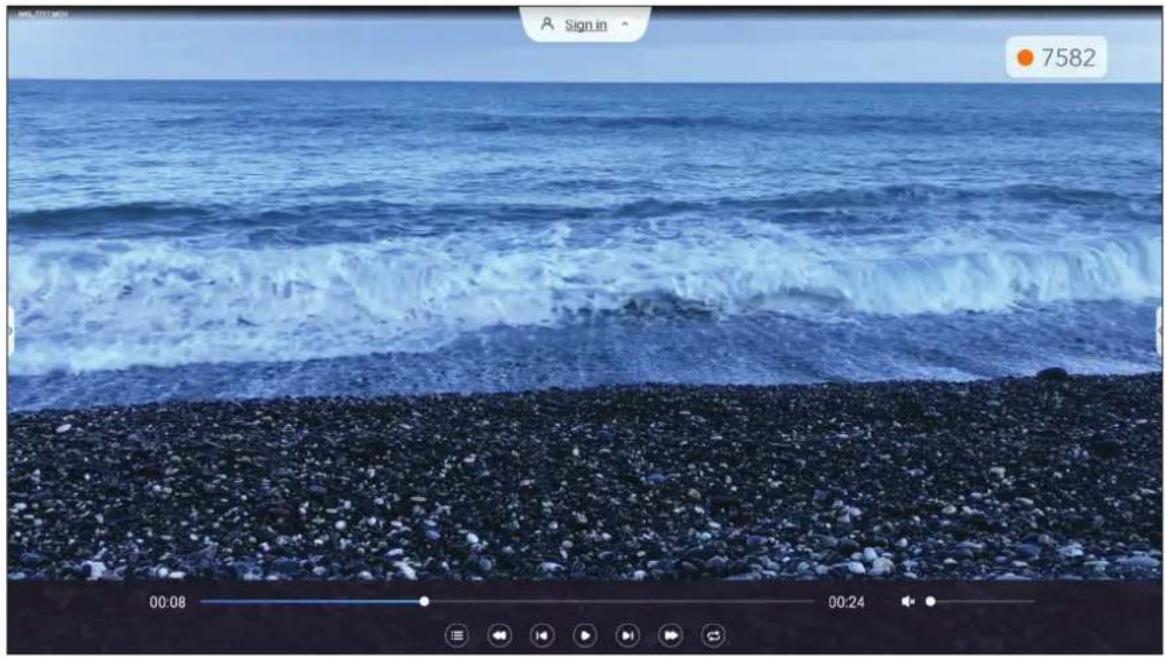

During the playback tap on the screen to open the playback control toolbar. Then tap any of the following:

Item Description
	List Display video thumbnails.
	Rewind Rewind video.
	Previous video Skip to the previous video.
	Pause/Play toggle	Tap 📄 to Pause the playback. To resume, tap 🌐
	Next video Skip to the next video.
	Fast forward Fast forward video.
	Loop/Play once toggle	Tap 🎨 to play all video files in a loop or tap play the current video file in a loop.Tap play through all videos in the list once.
	Volume control Adjust the volume level.

Note: To stop playback, open the side toolbar and tap ↩ or press the Back button on the remote control.

USING THE APPS

Playing music

Select the audio track you want to play and tap twice on it to start playback.

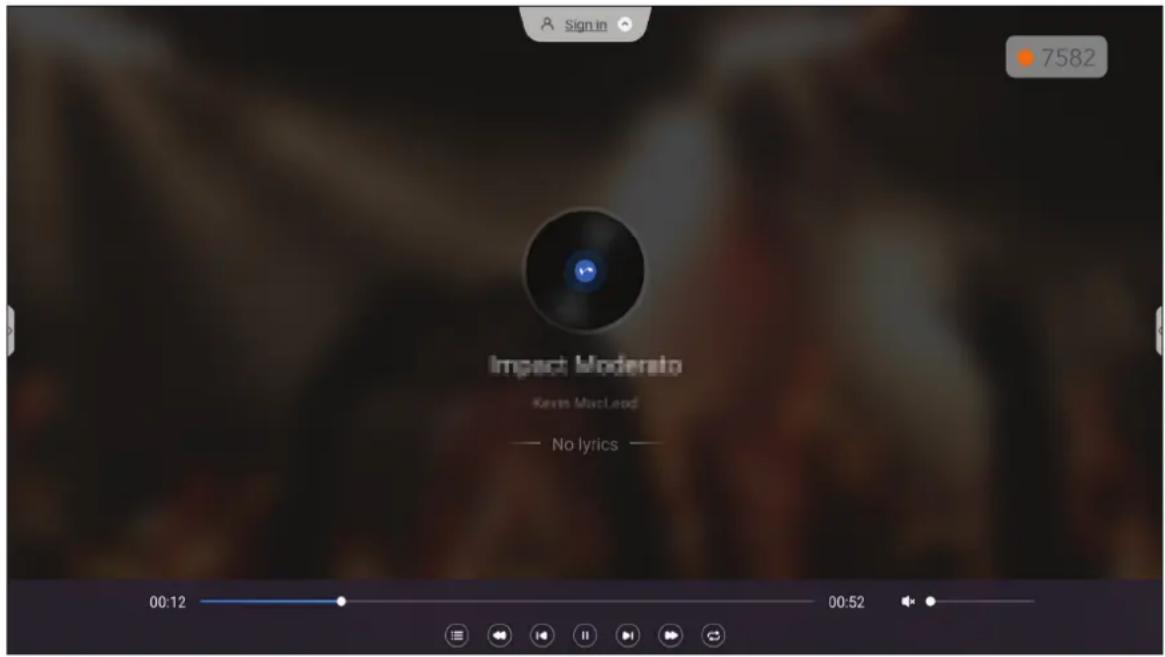

During playback tap on the screen to open the playback control toolbar. The table below explains the functions available on the playback control toolbar.

Item Description
	List Display track list.
	Rewind Rewind the track.
	Previous track Return to the previous track.
	Pause/Play toggle	Tap 📄 to Pause playback. To resume, tap ▶
	Next track Skip to the next track.
	Fast forward Fast forward the track.
	Loop/Play once toggle	Tap 📋 to play all tracks in a loop or tap play the current track in a loop.Tap play through all tracks in the list once.
	Volume control Adjust the volume level.

Note: To stop playback, open the side toolbar and tap ↩ or press the Back button on the remote control.

USING THE APPS

Viewing images

Select the image you want to display and tap twice to open it on the screen.

Tap on the screen to open the image control toolbar. The table below explains the functions available on the image control toolbar.

Item Description
	Zoom in/Zoom out	Magnify the image or zoom out on the magnified image.As an alternative, touch the screen with your two fingers and move them apart to zoom in or together to zoom out.
	Actual Display the image in its actual size.
	Rotate Rotate the image clockwise.
	Mark Annotate over the image.
	Settings	Configure the slideshow settings and tap Play into full-screen to start the slideshow. Tap to stop the slideshow.Tap Set to Wallpaper to set the image as the device wallpaper.
	List Display image list.

Note: To return to the file manager, open the side toolbar and tap ↩ or press the Back button on the remote control.

USING THE APPS

Screen Lock

Tap Screen Lock to set the 4-digit pin code. Using the pin code, you can block the IFP from unauthorized use.

To set the pin code for the first time, launch the Screen Lock app. Then tap Set password.

The Advanced Settings Security menu will open. To set the password, refer to “Configuring Security Settings” on page 45.

Browser

Tap Browser to access web pages.

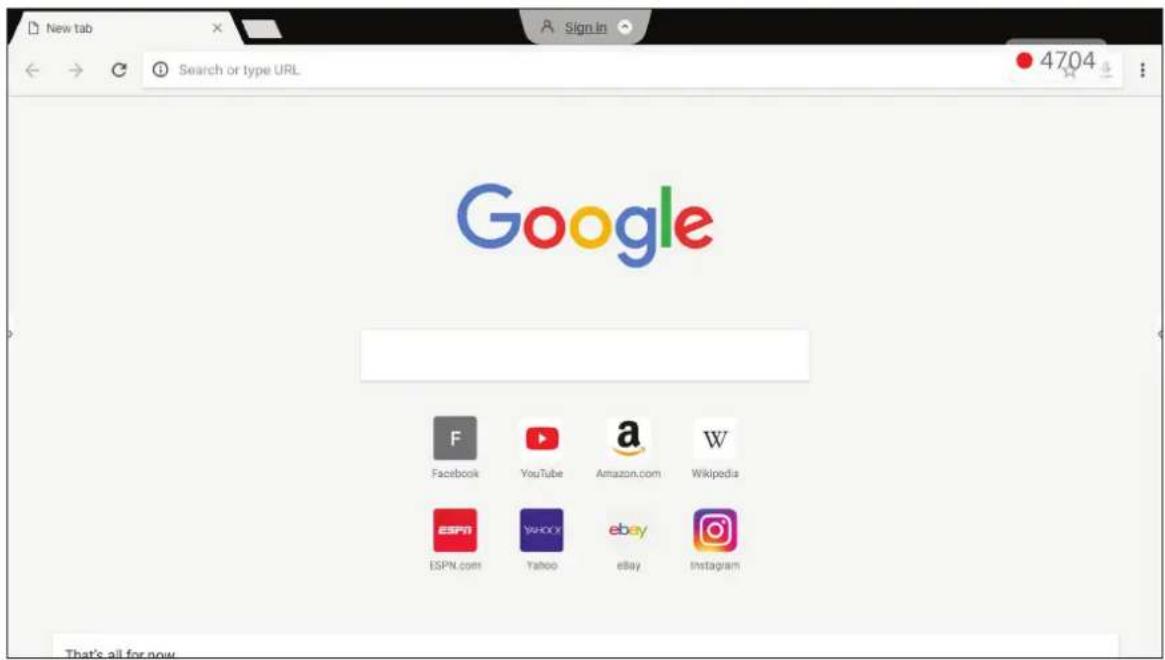

USING THE APPS

Optoma Marketplace

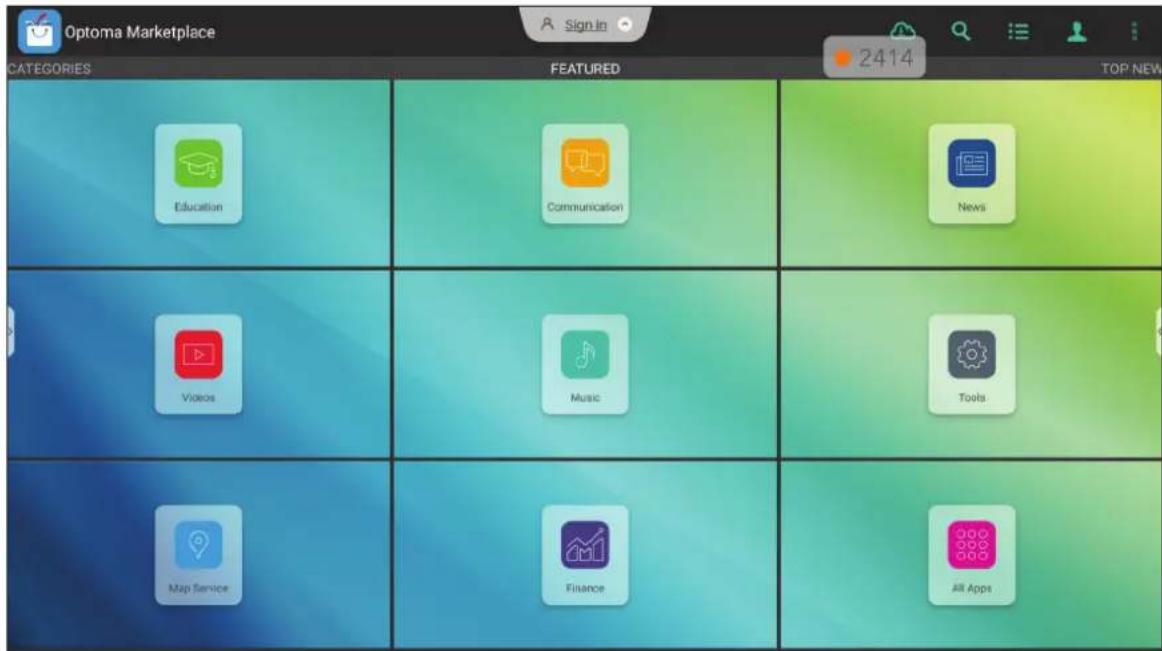

Tap Optoma Marketplace to visit the built-in app store and to download and install other third-party apps to the IFP.

Note: To install third-party apps, make sure the Install app from marketplace option is enabled in the Settings Security Advanced Setting Permissions section. Refer to page 46.

Disclaimer for unauthorized apps on Creative Touch range Android-based interactive displays

For system security, Optoma's Creative Touch interactive flat panel displays run on a customized Android operating system. Additionally Optoma interactive flat panel displays do not support Google Play Services. Optoma has streamlined the Android operating system so only modules related to display features remain. The customized Android operating system may not be compatible with all third-party Android apps. Third-party Android apps can vary in quality and some even contain malicious codes, which could compromise system security and functionality and may invalidate your product warranty.

Optoma makes no representations regarding the quality, security or suitability of any third-party apps and their compatibility with the Optoma interactive flat panel. Optoma shall have no responsibility or liability with respect to any damage, faults, loss in functionality or security issues arising as a direct or indirect result of the installation of third-party apps on the interactive flat panel. Optoma support in rectifying any issue which may result from the installation of third-party apps will be chargeable and may be limited.

USING THE APPS

Keeper

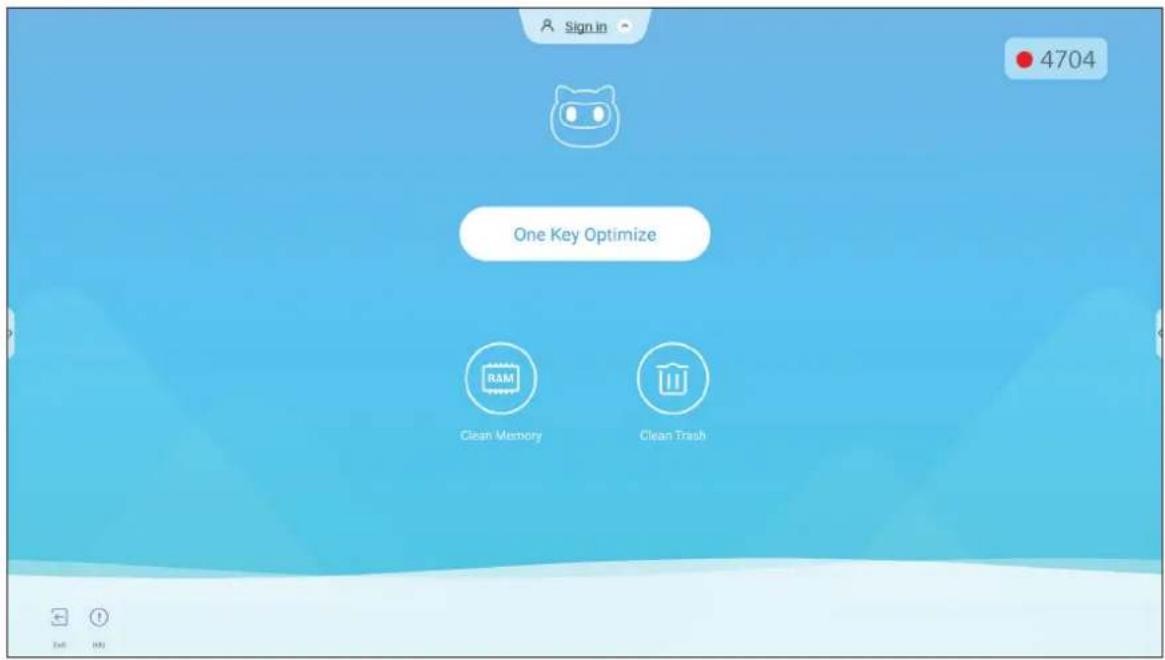

Tap Keeper to open the Keeper app and begin cleaning and optimizing the data on the IFP.

• For automatic cleaning of the memory, deleting temporary and junk files, tap One Key Optimize.
• For manual cleaning of the memory, tap Clean Memory. For manual deleting temporary and junk files, tap Clean Trash.

USING THE APPS

Joan on TV

Tap Joan on TV to get the access PIN number needed to connect the IFP to the Joan Portal.

To connect the IFP to the Joan Portal, complete the following steps:

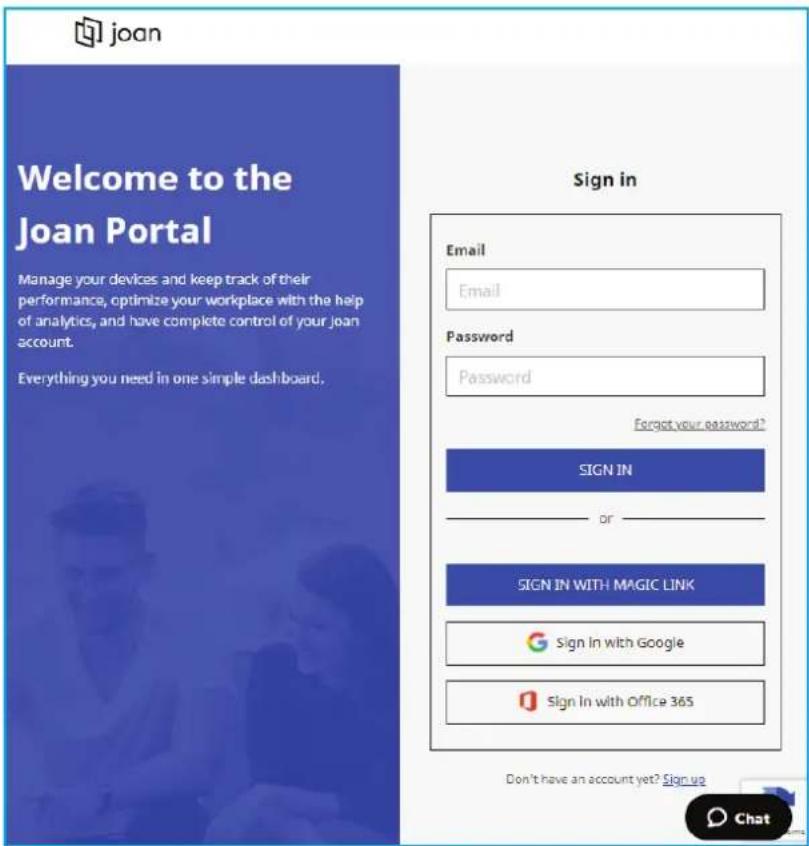

1. Open the web browser on your computer and enter http://portal.getjoan.com into the address bar. The Joan Portal login page will open. Sign in to the Joan Portal. If you have not yet created your Joan account, click Sign Up to create your account.

USING THE APPS

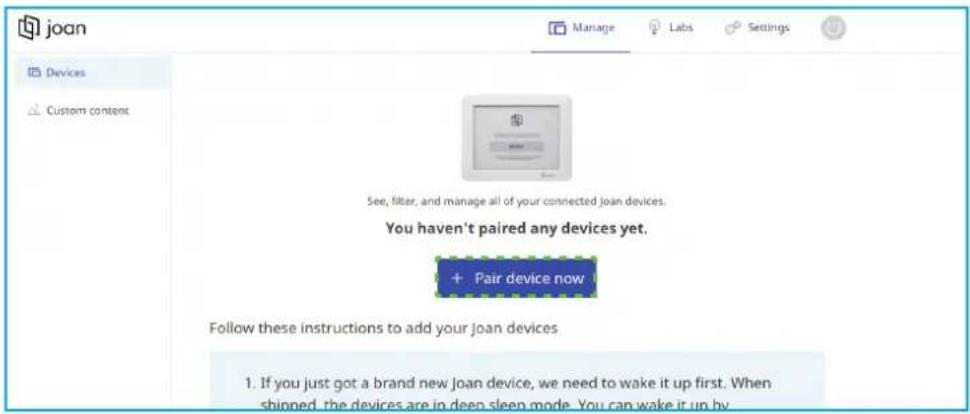

1. Click Pair device now to pair with IFP.

1. Or the "Let's pair your device" page, select any of the pairing methods.

For example, click PAIR DEVICE to pair with the IFP using the PIN number.

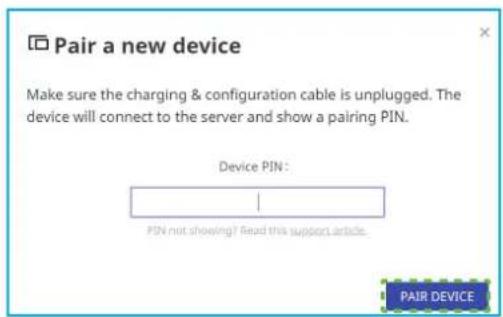

1. Enter the PIN number that is displayed on the IFP at the prompt and click PAIR DEVICE.

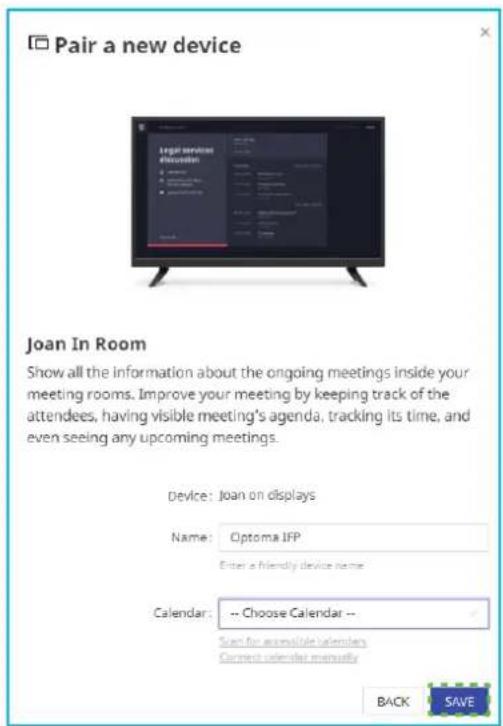

1. Enter the device name and select the calendar. Click SAVE to save the information.

All the meetings in the selected calendar will appear on the screen of the IFP.

USING THE APPS

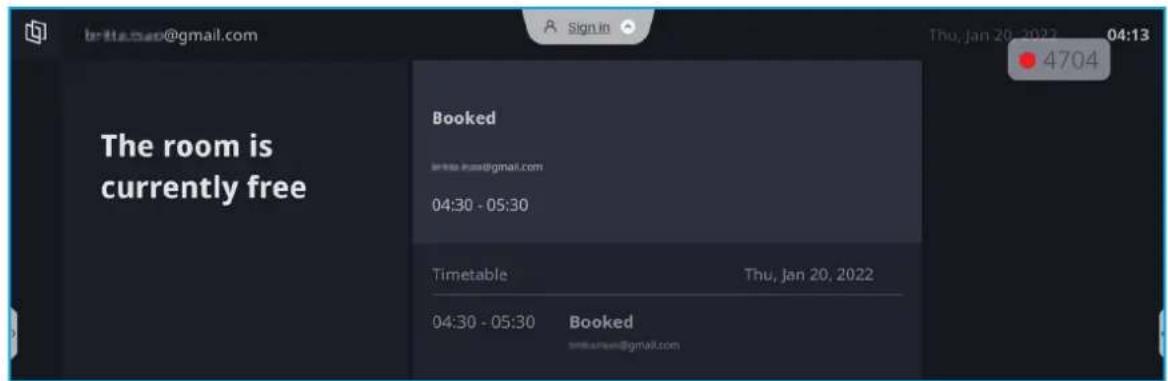

After successful connection, the IFP will display meeting room(s) schedule, meeting reminders, and meeting room reminders that are set in Joan Portal.

USING THE APPS

Visualizer

Visualizer is an operation app for a document camera. If you connect a document camera device, tap Visualizer to set it up.

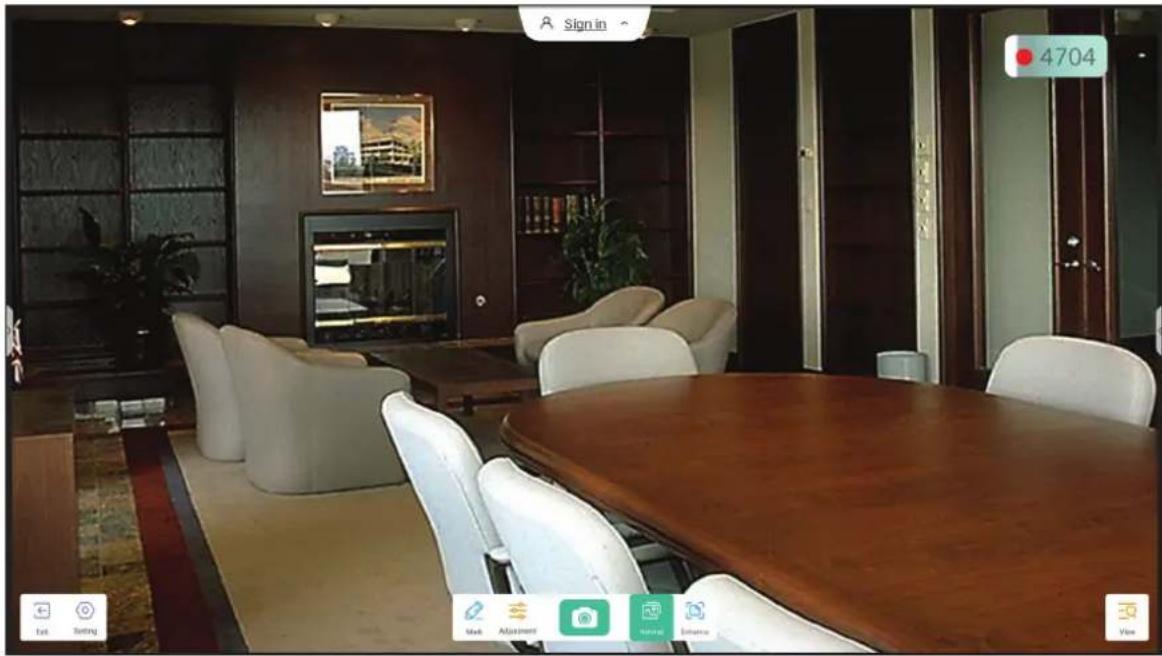

Interior view of a modern dining room with a large round table, white chairs, and bookshelves (no visible text or symbols)

To use Visualizer, complete the following steps:

1. Connect a USB document camera to an available USB port on the IFP.
2. Launch Visualizer app. The table below explains the various functions available in the Visualizer app.

Item Description
	Mark	Write and draw on the screen. For more information, refer to “Annotation App” on page 62.
	Capture screen	Capture the screen image.Note: By default, images are saved to VideoPresenter/photograph/{current date} folder.
	Normal mode	Pinch the screen to zoom in/zoom out, rotate the video image and move it around on the screen.
[4AKG]	Enhance mode Display the video image in full screen.
[ABOW]	Adjustment	Adjust the video image settings:Exhibition settings: size, scaling, rotation, and typeAdvanced options: brightness, contrast, saturation, and sharpness.Note: Settings can be configured only in Normal mode.
[XXSC]	View	Simultaneously display and customize multiple video streams or video captures.Note: View feature is available only in Normal mode.
[45KG]	Setting View connected camera(s) and select preferred resolution.
	Exit Exit Visualizer.

USING THE APPS

Other Software

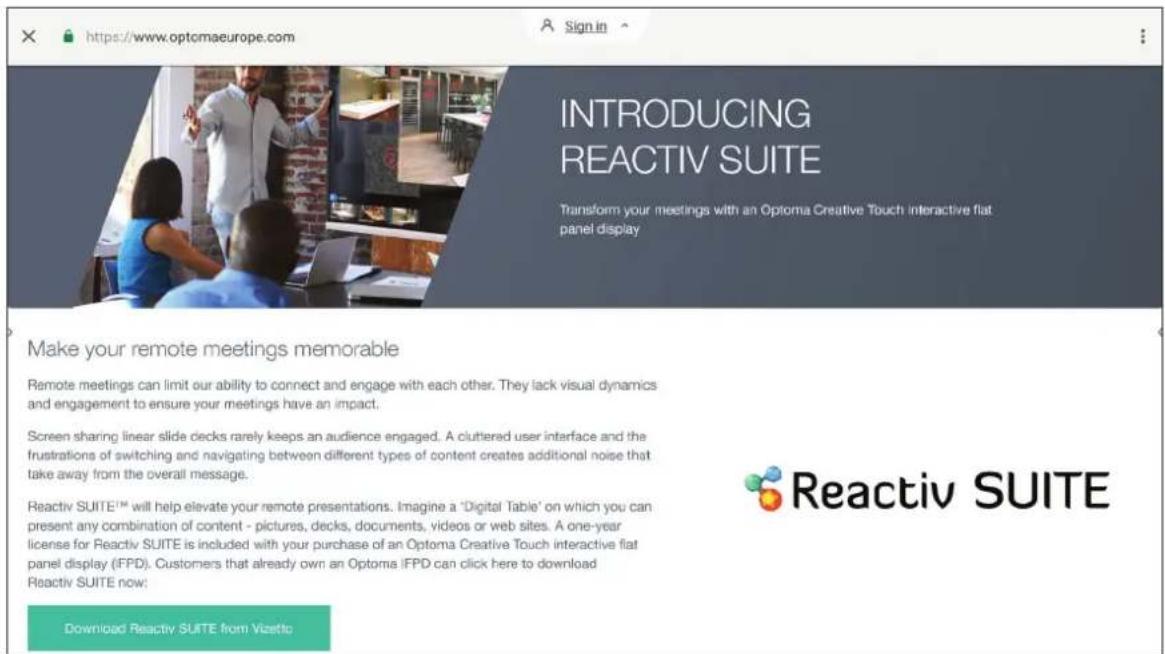

Reactiv Suite Reactiv SUITE Making Your Meetings Memorable

Reactiv SUITE is a digital workspace where multimedia content can be displayed, organised, manipulated, and annotated as naturally as paper. Present multiple types of non-linear content and seamlessly capture feedback without the extra clicks and micro-frustrations of traditional screen sharing tools. Even pin your camera and elevate your presence to stand out.

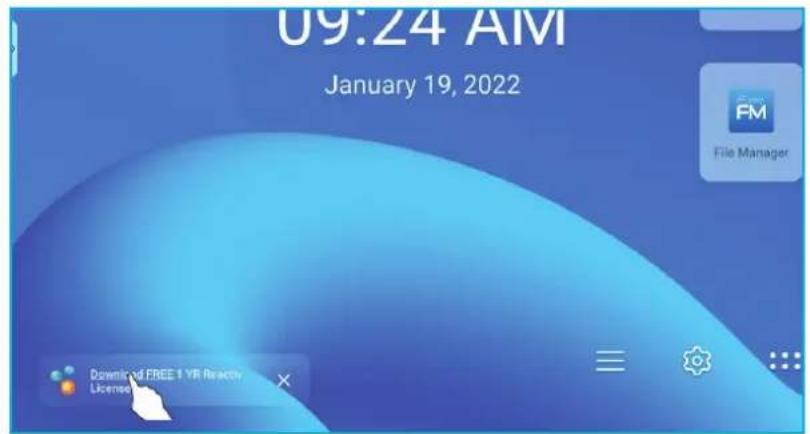

A one-year license for Reactiv SUITE is included with your purchase of the IFP. To learn how to claim your one-year license, tap the Download FREE 1 YR Reactiv License link on the IFP Home screen.

USING THE APPS

Optoma Management Suite (OMS) ^TM

OMS is a large display management software that operates through LAN or over Internet. It simplifies the management of the IFP remotely.

OMS has the following features:

• Accessible from anywhere with Internet access at anytime (cloud solution coming soon!).
  • Device monitoring, alerts, control, scheduling, broadcasting, and more.
  • Over-the-air firmware updates (cloud solution coming soon!).

To start using OMS over LAN, complete the following steps:

1. Connect the IFP and your PC to the same LAN.

Open the browser and download the OMS app to your PC from the Optoma web page: https://www.optomausa.com/product-details/optoma-management-suite#downloads

1. Install OMS to your PC.

2. Double-click on

The OMS control page will open.

USING THE APPS

1. Click on Add Device.

2. Select Automatic Search and click Search to search for devices automatically.

Note: If the device cannot be found automatically, then click Manual Search to search the device by the IP address or click Range Search to search the devices within the range of IP addresses.

1. Select the device and click Add.

1. Select the device and then use the screen controls to display a message on the screen of the selected IFP, power on/off the IFP, enable/disable wake on LAN, select an input source, enable/disable AV mute mode, mute or unmute the IFP, monitor the device's status, usage time, mute status, temperature, and more.

Note: For enhanced device management, you can group similar devices. To create a device group, click Add ⇒ Group. Then add the selected devices to the group.

ADDITIONAL INFORMATION

Dimensions

65-inch

Pure schematic diagram of a mechanical or electrical component with no text, numbers, or symbols

ADDITIONAL INFORMATION

75-inch

ADDITIONAL INFORMATION

86-inch

ADDITIONAL INFORMATION

Supported Timing List

No.	Signal Timing Name Reference		Clock Hf Vf Input		Source
			[MHz] [KHz] [Hz]		VGA HDMI	1/2/3 (2.0)	Type C
1	720x400 @70Hz	IBM	28.32	31.78	70.00	Y	/	Y
2	640x480 @60Hz	VESA	25.18	37.92	59.94	Y	Y	Y
3	640x480 @72Hz	VESA	31.50	37.86	72.81	Y	/	Y
4	640x480 @75Hz	VESA	31.50	37.50	75.00	Y	/	Y
5	800x600 @56Hz	VESA	36.00	35.15	56.25	Y	/	Y
6	800x600 @60Hz	VESA	40.00	37.87	60.31	Y	Y	Y
7	800x600 @72Hz	VESA	50.00	48.07	72.18	Y	/	Y
8	800x600 @75Hz	VESA	49.50	46.87	75.00	Y	/	Y
9	832x624 @75Hz	MAC	57.28	49.72	74.55	Y	/	Y
10	1024x768 @60Hz	VESA	65.00	48.36	60.00	Y	Y	Y
11	1024x768 @70Hz	VESA	75.00	56.47	70.06	Y	/	Y
12	1024x768 @75Hz	VESA	78.75	60.02	75.02	Y	/	Y
13	1152x864 @75Hz	VESA	108.00	67.50	75.00	Y	/	Y
14	1280x768 @60Hz(RB)	CVTRB	68.25	47.39	59.99	Y	Y	Y
15	1280x768 @60Hz	CVT	79.50	47.77	59.87	Y	Y	Y
16	1280x720 @60Hz	CEA-861	74.25	44.67	60.00	Y	/	Y
17	1280x800 @60Hz	CVT	83.50	49.70	59.81	Y	Y	Y
18	1280x960 @60.000Hz	VESA	108.00	60.00	60.00	Y	Y	Y
19	1280x1024 @60Hz	VESA	108.00	63.98	60.00	Y	Y	Y
20	1360x768 @60Hz	VESA	85.50	47.71	60.01	Y	Y	Y
21	1440x900 @60Hz(RB)	CVTRB	88.75	55.46	59.90	Y	Y	Y
22	1440x900 @60Hz	CVT	106.50	55.93	59.88	Y	Y	Y
23	1600x1200 @60Hz	VESA	162.00	75.00	60.00	Y	/	Y
24	1680x1050 60Hz	CVT	146.25	65.29	59.95	Y	Y	Y
25	1920x1080 60Hz	CEA-861	148.50	67.50	60.00	Y	Y	Y
26	720(1440)x480i	CEA-861	27.00	15.73	59.94	/	Y	/
27	480p 59Hz	CEA-861	27.00	31.46	59.94	/	Y	/
28	480p 60Hz	CEA-861	27.02	31.50	60.00	/	Y	/
29	720(1440)x576i	CEA-861	27.00	15.62	50.00	/	Y	/
30	576p	CEA-861	27.00	31.25	50.00	/	Y	/
31	720p 60Hz	CEA-861	74.25	45.00	60.00	/	Y	/
32	720p 59Hz	CEA-861	74.17	44.95	59.94	/	Y	/
33	720p 50Hz	CEA-861	74.25	37.50	50.00	/	Y	/
34	1080i 60Hz	CEA-861	74.25	33.75	60.00	/	Y	/

ADDITIONAL INFORMATION

No.	Signal Timing Name Reference	Clock Hf Vf Input		Source
		[MHz] [KHz] [Hz]		VGA HDMI	1/2/3 (2.0)	Type C
35	1080i 59Hz	CEA-861	74.17	33.71	59.94	/	Y
36	1080i 50Hz	CEA-861	74.25	28.12	50.00	/	Y
37	1080p 60Hz	CEA-861	148.25	67.50	60.00	/	Y
38	1080p 59Hz	CEA-861	148.35	67.44	59.94	/	Y
39	1080p 50Hz	CEA-861	148.50	56.25	50.00	/	Y
40	1080p 30Hz	CEA-861	74.25	33.75	30.00	/	Y
41	1080p 29Hz	CEA-861	74.17	33.71	29.97	/	Y
42	1080p 25Hz	CEA-861	74.25	28.12	25.00	/	Y
43	1080p 24Hz	CEA-861	74.25	27.00	24.00	/	Y
44	1080p 23Hz	CEA-861	74.17	26.97	23.97	/	Y
45	3840x2160 60Hz	CEA-861	594.00	135.00	60.00	/	Y
46	3840x2160 50Hz	CEA-861	594.00	112.50	50.00	/	Y
47	3840x2160 30Hz	CEA-861	297.00	67.50	29.97	/	Y
48	3840x2160 25Hz	CEA-861	297.00	56.25	25.00	/	Y
49	3840x2160 24Hz	CEA-861	297.00	54.00	23.98	/	Y
50	4096x2160 24Hz	CEA-861	297.00	54.00	24.00	/	Y

ADDITIONAL INFORMATION

RS232 Protocol Function List

Note: IFP supports RS232 and RJ45 (port 23) control command.

RS232 Pin Assignments

Pin No.	Spec.(from IFP side)
1 N/A
2 TXD
3 RXD
4 N/A
5 GND
6 N/A
7 N/A
8 N/A

RS232 RJ45 Control Connection

RS232 Settings LAN Control Settings
Baud Rate	9600 IP Machine IP
Data Bits	8	Port	23
Parity	None
Stop Bits	1
Flow Control	None

~	X	X	X	X	X		X	X	CR
Lead Code	Device ID(where 01 indicates Device ID = 01)		Command ID			Space	Variable		Carriage return

ADDITIONAL INFORMATION

SET Command

Type	Category Parameter	CMD Hex Code CMD			Response
					Success	Failed
SET	Power	Power off ~xx00	n n=0 7E	30 30 30 30 20 30 0d P F
		Power on ~xx00	n n=1 7E	30 30 30 30 20 31 0d P F
		Restart ~xx00 n	n=3 7E 30	30 30 30 20 33 0d P F
	Power Mode (standby)	Eco. ~xx114 n n	=0 7E 30 30	31 31 34 20 30 0d P F
		Active		n=1 7E 30 30 31 31 34 20 31 0d P F
	Treble	0 ~ 100	~xx95 n	n=0-100	7E 30 30 39 35 20 30 0dto7E 30 30 39 35 20 31 30 30 0d	P	F
	Bass	0 ~ 100	~xx96 n	n=0-100	7E 30 30 39 36 20 30 0dto7E 30 30 39 36 20 31 30 30 0d	P	F
	Balance	0 ~ 100	~xx99 n	n=0-100	7E 30 30 39 39 20 30 0dto7E 30 30 39 39 20 31 30 30 0d	P	F
	Contrast	0 ~ 100	~xx22 n	n=0-100	7E 30 30 32 32 20 30 0dto7E 30 30 32 32 20 31 30 30 0d	P	F
	Brightness	0 ~ 100	~xx21 n	n=0-100	7E 30 30 32 31 20 30 0dto7E 30 30 32 31 20 31 30 30 0d	P	F
	Sound Mode	Standard	~xx252 n	n=1 7E	30 30 32 35 32 20 31 0d P F
		Meeting		n=4 7E	30 30 32 35 32 20 34 0d P F
		User		n=2 7E	30 30 32 35 32 20 32 0d P F
		Classroom		n=3 7E	30 30 32 35 32 20 33 0d P F
		Movie		n=5 7E	30 30 32 35 32 20 35 0d P F
	Volume	0 ~ 100	~xx81 n	n=0-100	7E 30 30 38 31 20 30 0dto7E 30 30 38 31 20 31 30 30 0d	P	F
	Video Mute	Off	~xx13 n	n=0 7E	30 30 31 33 20 30 0d P F
		On		n=1 7E	30 30 31 33 20 31 0d P F
	Mute	Off	~xx80 n	n=0 7E	30 30 38 30 20 30 0d P F
		On		n=1 7E	30 30 38 30 20 31 0d P F
	Input Source	HDMI1	~xx12 n	n=1 7E	30 30 31 32 20 31 0d P F
		HDMI2		n=15	7E 30 30 31 32 20 31 35 0d P F
		HDMI3		n=16	7E 30 30 31 32 20 31 36 0d P F
		USB Type C		n=27	7E 30 30 31 32 20 32 37 0d	P	F
		VGA		n=5 7E	30 30 31 32 20 35 0d P F
		Solot in PC		n=25	7E 30 30 31 32 20 32 35 0d P F
		Android		n=24	7E 30 30 31 32 20 32 34 0d P F
	Aspect Ratio	4:3	~xx60 n	n=1 7E	30 30 36 30 20 31 0d P F
		16:9		n=2 7E	30 30 36 30 20 32 0d P F
		PTP		n=14	7E 30 30 36 30 20 31 34 0d P F
	Language	English	~xx70 n	n=1 7E	30 30 37 30 20 31 0d P F
		Français		n=3 7E	30 30 37 30 20 33 0d P F

ADDITIONAL INFORMATION

Type	Category Parameter		CMD Hex Code CMD		Response
					Success	Failed
SET	Language	Español	n=5 7E	30 30 37 30 20 35 0d P F
		Traditional Chinese	n=13 7E	30 30 37 30 20 31 33 0d P F
		Simplified Chinese	n=14 7E	30 30 37 30 20 31 34 0d P F
		Português n=6 7E	30 20 36 0d P F
		German n=2 7E	30 20 32 0d P F
		Dutch n=8 7E 30	20 38 0d P F
		Polish n=7 7E 30	20 37 0d P F
		Russia n=17 7E	20 20 31 37 0d P F
		Czech	n=19 7E	30 30 37 30 20 31 39 0d P F
		Danish	n=24 7E	30 30 37 30 20 32 34 0d P F
		Swedish	n=9 7E	30 30 37 30 20 39 0d P F
		Italian	n=4 7E	30 30 37 30 20 34 0d P F
		Turkish	n=22 7E	30 30 37 30 20 32 32 0d P F
		Arabic	n=20 7E	30 30 37 30 20 32 30 0d P F
		Romanian	n=27 7E	30 30 37 30 20 32 37 0d P F
		Hungarian	n=18 7E	30 30 37 30 20 31 38 0d P F
		Finnish	n=11	7E 30 30 37 30 20 31 31 0d P F
		Norge	n=10 7E	30 30 37 30 20 31 30 0d P F
	Picture Mode	Presentation	n=1 7E	30 30 32 30 20 31 0d P F
		Bright n=2 7E 30	20 32 0d P F
		Cinema	n=3 7E	30 30 32 30 20 33 0d P F
		User	n=5 7E	30 30 32 30 20 35 0d P F
		HDR	n=21 7E	30 30 32 30 20 32 31 0d P F
	Color	0 ~ 100	~xx45 n	n=0-100	7E 30 30 34 35 20 30 0dto7E 30 30 34 35 20 31 30 30 0d	P	F
	Backlight	0 ~ 100	~xx251 n	n=0-100	7E 30 30 32 35 31 20 30 0dto7E 30 30 32 35 31 20 31 30 30 0d	P	F
	Color Temp	Cool	~xx36 n	n=2 7E	30 30 33 36 20 32 0d P F
		Standard	n=1 7E	30 30 33 36 20 31 0d P F
		Warm n=4 7E 30	30 33 36	20 34 0d P F
	Freeze	Unfreeze	~xx04 n	n=0 7E	30 30 30 34 20 30 0d P F
		Freeze		n=1	7E 30 30 30 34 20 31 0d	P	F
	Pixel shift interval (min)	Off	~xx250 n	n=0	7E 30 30 32 35 30 20 30 0d	P	F
		2		n=2	7E 30 30 32 35 30 20 32 0d	P	F
		3		n=3	7E 30 30 32 35 30 20 33 0d	P	F
		5		n=5	7E 30 30 32 35 30 20 35 0d	P	F
		30		n=30	7E 30 30 32 35 30 20 33 30 0d	P	F
		60		n=60	7E 30 30 32 35 30 20 36 30 0d	P	F
	Remote control command	Vol +	~xx140 n	n=17	7E 30 30 31 34 30 20 31 37 0d	P	F

ADDITIONAL INFORMATION

Type	Category Parameter	CMD Hex Code CMD			Response
					Success	Failed
SET	Remote control command	Vol -	n=18 7E	30 30 31 34 30 20 31 38 0d P F
		Remote UP n=10 7E 30 30 n=14 7E 30	31 34 30 20 31 30 0d P F
		Remote DOWN	30 31 34	30 20 31 34 0d P F
		Remote LEFT n=11 7E 30	30 31 34 30	20 31 31 0d P F
		Remote RIGHT n=13 7E 30	30 31 34	30 20 31 33 0d P F
		Remote OK n=12 7E 30 30	31 34 30 20 31 32 0d P F
		Remote Menu Key	n=20 7E	30 30 31 34 30 20 32 30 0d P F
		Remote Input source	n=47 7E	30 30 31 34 30 20 34 37 0d P F
		Remote Exit n=74 7E 30 30	31 34 30	20 37 34 0d P F
	Display message on the OSD		~xx210	nn.....n	7E 30 30 32 31 30 20 nn...n od	P	F
	Reset To Default		~xx112	n=1	7E 30 30 31 31 32 20 31 od	P	F
	OSD lock	OSD lock On with password	~xx239	n=1 ~nnnn	7E 30 30 32 33 39 20 31 20 a 0d P	F
		OSD lock Off with password	~xx239	n=2 ~nnnn	7E 30 30 32 33 39 20 32 20 a 0d P	F

GET Command

Type	Category	CMD		Hex Code CMD	Response
					Success	Parameter	Failed
GET	Power ~xx124 n n=1			7E 30 30 31 32 34 20 31 0D	Ok0	Power off F
					OK1	Power on F
	Contrast	~xx126 n	n=1	7E 30 30 31 32 36 20 31 0D	OK0-100	0-100	F
	Brightness	~xx125 n	n=1	7E 30 30 31 32 35 20 31 0D	OK0-100	0-100	F
	Volume	~xx120 n	n=1	7E 30 30 31 32 30 20 31 0D	OK0-100	0-100	F
	Video Mute	~xx363 n	n=1	7E 30 30 33 36 33 20 31 0D	OK0	Off	F
					OK1	On	F
	Mute	~xx356 n	n=1	7E 30 30 33 35 36 20 31 0D	OK0	Off	F
					OK1	On	F
	Sound Mode	~xx139	n=1	7E 30 30 31 33 39 20 31 0D	OK1	Standard	F
					OK2	User	F
					OK3	Classroom	F
					OK4 Meeting	F
					OK5	Movie	F
	Input Source	~xx121 n	n=1	7E 30 30 31 32 31 20 31 0D	OK7	HDMI1	F
					OK8	HDMI2	F
					OK9	HDMI3	F
					OK23	USB Type C	F
					OK2 VGA	F
					OK20	Android	F
					OK21	Slot in PC	F

ADDITIONAL INFORMATION

Type	Category	CMD Hex Code		Code CMD	Response
					Success Parameter	Failed
GET	Aspect Ratio	~xx127 n n=1		7E 30 30 31 32 37 20 31 0D	OK1 4:3 F
					OK2 16:9 F
					OK14 PTP F
	Picture Mode	~xx123 n n=1		7E 30 30 31 32 33 20 31 0D	OK1 Presentation F
					OK2	Bright	F
					OK3	Cinema	F
					OK5	User	F
					OK10	DICOM SIM.	F
					OK21	HDR	F
	Color Temp	~xx128 n n=1		7E 30 30 31 32 38 20 31 0D	OK1	Cool	F
					OK0	Standard	F
					OK3	Warm	F
	WLAN status	~xx451 n n=1		7E 30 30 34 35 31 20 31 0D	OK0	Disconnected	F
					OK1	Connected	F
	WLAN Mac address	~xx555 n n=2		7E 30 30 35 35 35 20 32 0D	Oknn:nn:nn:nn:nn:nn	Mac Address	F
	WLAN IP address	~xx451 n n=2		7E 30 30 34 35 31 20 32 0D	Oknnn:nnn:nnn:nnn	IP address	F
	LAN status	~xx87 n	n=1 7E	30 30 38 37 20 31 0D	OK0	Disconnected	F
					OK1	Connected	F
	LAN Mac address	~xx555 n n=1		7E 30 30 35 35 35 20 31 0D	Oknn:nn:nn:nn:nn:nn	Mac Address	F
	LAN IP address	~xx87 n	n=3	7E 30 30 38 37 20 33 0D	Oknnn:nnn:nnn:nnn	IP address	F
	FW version	~xx122 n n=1		7E 30 30 31 32 32 20 31 0D	Oknnnnnnnnnnnnnnn (ex. 20190926164814)	FW version	F
	Usage hour	~xx108 n n=1		7E 30 30 31 30 38 20 31 0D	Oknnnnn	Suage hours	F
	Device type	~xx149 n n=1		7E 30 30 31 34 39 20 31 0D	OK2	Device type = IFP	F
	Information string	~xx150 n	n=1	7E 30 30 31 35 30 20 31 0D	OKabbbbccddddee (Note*1)		F
			n=2	7E 30 30 31 35 30 20 32 0D	Oknnn	Device native resolution	F
			n=3	7E 30 30 31 35 30 20 33 0D	Oknnn (ex. OKHDMI1)	Input source	F
			n=4	7E 30 30 31 35 30 20 34 0D	Oknnn (ex. OK1920x1080)	Source resolutuion	F
			n=16	7E 30 30 31 35 30 20 31 36 0D	OK0	Power mode (standby) = Eco.	F
					OK1	Power mode (standby) = Active	F
			n=17	7E 30 30 31 35 30 20 31 37 0D	OK0	DHCP = Off	F
					OK1	DHCP = On	F
			n=18	7E 30 30 31 35 30 20 31 38 0D	Oknnn (ex. OK48)	System temperature	F
			n=19	7E 30 30 31 35 30 20 31 39 0D	Oknnn (ex. OK60Hz)	Source refresh rate	F

ADDITIONAL INFORMATION

Type	Category	CMD Hex Code		Code CMD	Response
					Success Parameter	Failed
GET	Regulatory Model name	~xx151 n n=3		7E 30 30 31 35 31 20 33 0d	Oknnn (ex. SLUGRK)	Regulatory model name (will provide when kick off)	F
System Auto send	Standby Mode	INFO0
	Warming up	INFO1
	Cooling down	INFO2
	Over temperature				INFO7
GET	OSD lock ~xx229	n n=1		7E 30 30 32 32 39 20 31 0D	OK0 OSD lock	= Off F
					OK1 OSD lock	= On F

Note: (*1)

Power Running Time	Input	Source	Firmware	Version Display Mode
a=0 Power Offa=1 Power On	Usage hours = nnnnn	cc=02 VGA1cc=08 HDMI2cc=10 Componentcc=14 HDMI3cc=15 DisplayPortcc=18 Androidcc=19 Slot in PCcc=21 USB Type C		#####	ee=01 Presentationee=02 Brightee=05 Useree=21 HDRee=03 Cinemaee=10 DICOM SIM.

LED Indicator

Power LED Color & Behavior	Status
Solid Red	Standby mode
Solid White	Power on
Flash Red then Blue continuously	Backlight off

ADDITIONAL INFORMATION

Troubleshooting

If you experience a problem with your device, please refer to the following information. If a problem persists, please contact your local reseller or service center.

?

No picture or sound.

• Make sure all signal and power connections are properly connected.
• Make sure the correct input mode is selected. Refer to the "Shortcut Menu" section.
• Make sure the IFP is not turned off.
• Turn off the mute function.
• Make sure the volume is not set to the minimum level.

?

The IFP automatically shuts down.

• Check whether there is a sudden power outage.
• Make sure the power cord is not disconnected.

?

The signal is out of range

- The signal may be incompatible. Refer to the "Supported Timing List" section.

- For the VGA input source, try the automatic screen adjustment or adjust the Frequency and Phase settings in OSD Signal menu.

?

The touch panel does not respond

• Make sure the screen is not exposed to direct sunlight or other strong light.
• For the external device connection, make sure the USB cable is properly connected to the Touch USB port of the IFP.

?

If the remote control does not work

• Check that the operating angle of the remote control is pointed within ± 30^ to the IR receiver on the IFP.
• Make sure there are no obstructions between the remote control and the IFP. The distance between the remote control and the IR sensor window should not be longer than 8 meters.
• Make sure batteries are inserted correctly and replace the batteries if they are depleted. Refer to the "Installing/Replacing the Remote Control Batteries" section.

ADDITIONAL INFORMATION

Maintenance

Proper routine maintenance can help with early fault detection and keep the IFP looking like new.

IMPORTANT! Before cleaning and performing any maintenance task, make sure to unplug the power cord from the power outlet to prevent electric shock.

Cleaning the Screen

• When the screen requires cleaning, please unplug the power cord first.
• Please use a soft, dust-free, dry cloth to wipe the screen.
• Do not use water or a spray cleaner to clean the IFP.
• Please contact the service center for internal cleaning of the IFP.

Clean the Front Frame

Use a dry, soft, lint-free cloth to wipe the front frame.

ADDITIONAL INFORMATION

Optoma Global Offices

For service or support, please contact your local office.

USA

47697 Westinghouse Drive, 888-289-6786

Fremont, CA 94539, USA 510-897-8601

www.optomausa.com [e-mail]

Canada

47697 Westinghouse Drive, 888-289-6786

Fremont, CA 94539, USA 510-897-8601

www.optomausa.com [e-mail]

Latin America

47697 Westinghouse Drive, 888-289-6786

Fremont, CA 94539, USA 510-897-8601

www.optomausa.com [e-mail]

Europe

Unit 1, Network 41, Bourne End Mills,

Hemel Hempstead, Herts,

HP1 2UJ, United Kingdom [phone]

www.optoma.eu [phone]

Service Tel: [phone] [e-mail]

Benelux BV

Randstad 22-123 [phone]

1316 BW Almere [phone]

The Netherlands

www.optoma.nl

France

[e-mail]

www.os-worldwide.com

Taiwan

12F., No.213, Sec. 3, Beixin Rd., Xindian Dist., New Taipei City 231, Taiwan, R.O.C.

www.optoma.com.tw

[phone]

[phone]

[e-mail]

asia.optoma.com

Hong Kong

Unit A, 27/F Dragon Centre,

79 Wing Hong Street,

Cheung Sha Wan,

Kowloon, Hong Kong

[phone]

[phone]

www.optoma.com.hk

China

Room 2001, 20F, Building 4,

No. 1398 Kaixuan Road,

Changning District

Shanghai, 200052, China

[phone]

[phone]

[e-mail]

www.optoma.com.cn
