Live Free 2 TWS - Wireless Earbuds JBL - Free user manual and instructions

Product Type	In-ear wireless headphones
Brand	JBL
Model	Live Free 2 TWS
Speaker Size	10 mm / 0.4 inch
Power Supply	5V = 1A (wired charging), compatible with Qi wireless charging
Earbud Weight	4.9 g each (9.8 g total)
Charging Case Weight	43.7 g
Battery Life (ANC off)	Up to 6 hours
Battery Life (ANC on)	Up to 5 hours
Frequency Response	20 Hz - 20 kHz
Impedance	32 ohms
Sensitivity	102 dB SPL at 1 kHz
Maximum Sound Pressure	94 dB
Microphone Sensitivity	-38 dBV/Pa at 1 kHz
Bluetooth Version	5.2
Active Noise Cancellation	Yes, with Ambient Aware and TalkThru modes
Controls	Touch controls (tap, hold), auto play/pause
Multipoint Connectivity	Up to 2 devices simultaneously
Voice Assistants	Compatible with Siri, Google Assistant, Alexa
Wireless Charging	Yes, on Qi-certified charging pad
Cleaning	Use a soft, dry cloth. Do not use liquid products.
RF Safety	SAR head: 0.407 W/kg; body: 0.33 W/kg

Frequently Asked Questions - Live Free 2 TWS JBL

How to connect my JBL Live Free 2 TWS earbuds to my phone?

Take the earbuds out of the case, enable Bluetooth on your phone, and select "JBL LIVE FREE 2 TWS" from the device list. Connection is automatic after initial setup.

How to activate active noise cancellation (ANC)?

Press and hold the touch button on the left or right earbud to switch between ANC, Ambient Aware, TalkThru, and off. You can also configure controls via the JBL Headphones app.

What is the battery life of the earbuds?

With noise cancellation off, battery life is 6 hours. With ANC on, it is 5 hours. The charging case provides additional charges.

How to reset the earbuds to factory settings?

Place the earbuds in the case, then press and hold the touch button on each earbud for 10 seconds until the LEDs flash white. The earbuds will be reset.

Can I use a single earbud in mono mode?

Yes, thanks to the Dual Connect + Sync feature, you can use a single earbud in mono mode. The other earbud stays in the case.

How to charge the charging case?

The case charges via a USB-C cable with a 5V=1A power supply or on a certified Qi wireless charging pad (not included). The LEDs indicate charging status.

How to clean my earbuds?

Use a soft, dry cloth to clean the earbuds and case. Do not use liquid or abrasive products. Remove the silicone tips and rinse them with warm water if needed.

What to do if an earbud does not turn on or connect?

Make sure the earbud is charged. Place it in the case and close the lid for 5 seconds, then try again. If the problem persists, perform a factory reset.

How to use multipoint to connect two devices?

Activate multipoint connection by pressing and holding the touch button on the right earbud for 2 seconds. Connect the first device, then the second. You can switch between them automatically.

What touch controls are available?

Tap once: play/pause. Tap twice: next track. Tap three times: previous track. Press and hold: activate ANC or voice assistant depending on configuration.

USER MANUAL Live Free 2 TWS JBL

Close-up of a smiling woman with blonde hair wearing an orange top, outdoors with blurred background (no text or symbols visible)

LIVEFREE2TMS

JBL

HARMAN

WHAT'S IN THE BOX

JBL

APP

JBL

JBL HEADPHONES

GET EVEN MORE CONTROL AND PERSONALIZATION OF YOUR LISTENING EXPERIENCE WITH THIS FREE APP.

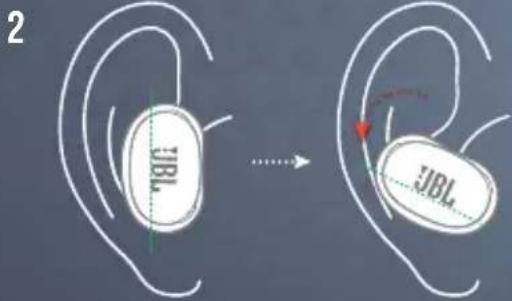

HOW TO WEAR

1 TRY DIFFERENT SIZES FOR A PERFECT FIT AND AUDIO PERFORMANCE.

S/M/L

2 JBL JBL

3 JBL JBL 10 min

FIRST TIME USE

JBL JBL LATE FREE 2

POWER

ON &

CONNECT

Line drawing of an open wireless earbuds with two buttons, no text or symbols present

OTHERS ANDROID

Settings Bluetooth Bluetooth DEVICES JBL LIVE FREE 2 TWS Connected Now Discoverable

TM 6.0+

Fast Pair • now JBL LIVE FREE 2 TWS Tap to pair. Device will be tied to Your Google Account

Fast Pair
CHOOSE "JBL LIVE FREE 2 TWS" TO CONNECT

DUAL CONNECT + SYNC

JBL TBL LRL/R

STEREO MODE

USB1 000000

MONO MODE

UBL 000000

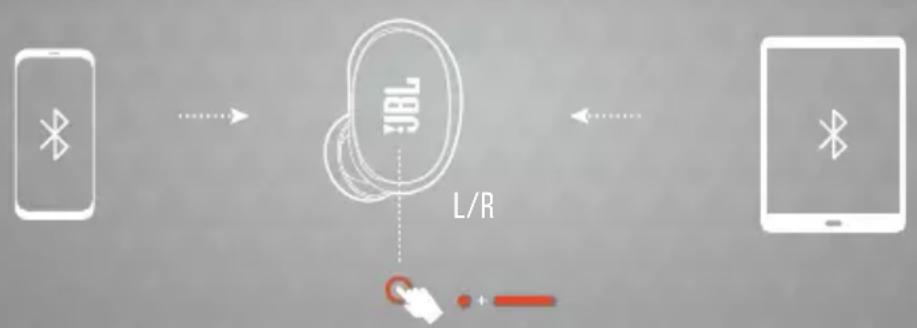

MULTI-POINT CONNECTION

(MAXIMUM 2 DEVICES)

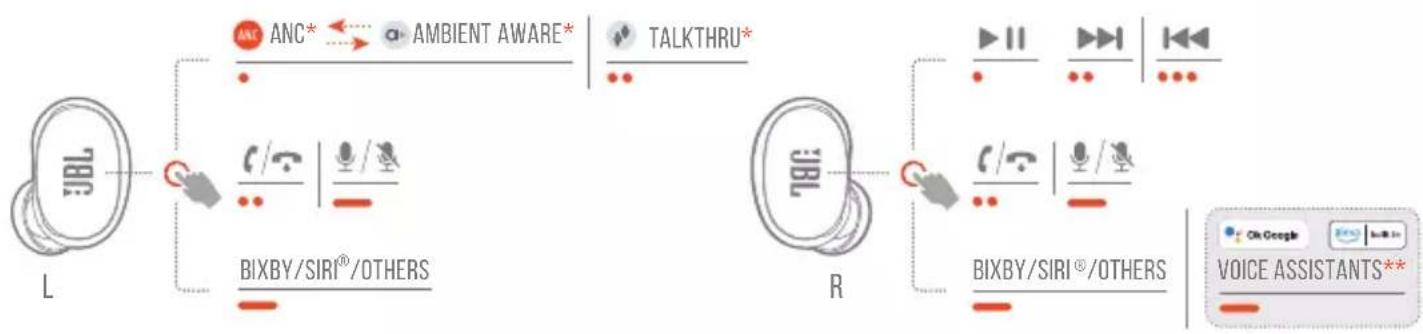

CONTROLS

• TAP × 1 •• TAP × 2 ••• TAP × 3 ••• HOLD [2 s]

* ENABLE ADVANCE CONTROLS BY CONNECTING YOUR JBL LIVE FREE 2 TWS TO JBL HEADPHONES APP 📄. ** ENABLE YOUR VOICE ASSISTANT THROUGH JBL HEADPHONES APP AND ASSIGN IT TO YOUR PREFERRED EARBUD (L/R).

AUTO PLAY/PAUSE

JBL JBL

JBL JBL

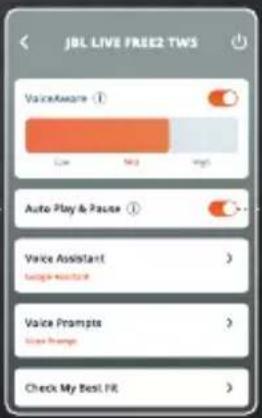

JBL LIVE FREE2 TWS Voice Aware ① Low High High Auto Play & Pause ① Voice Assistant Google Assistant Voice Prompts Create Prompts Check My Best FX

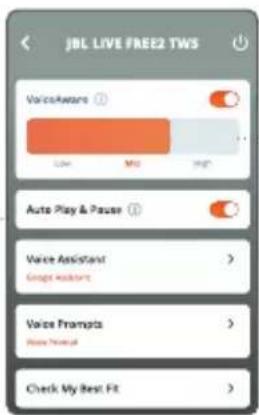

VOICEAWARE

Diagram illustrating ear behavior with labeled directional indicators and a positive sign, likely representing sound or audio signals.

JBL LIVE FREE2 TWS Voice Awards Low High Auto Play & Pause Voice Assistant > Google Hosters Voice Prompts > Pass Prompts Check My Best Fit >

VoiceAware ① Low Mid High

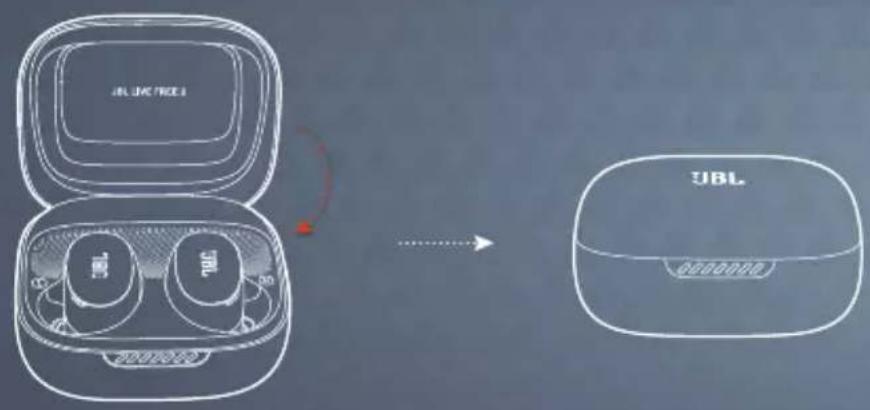

POWER OFF

BANKRED UBL UBL UBL UBL

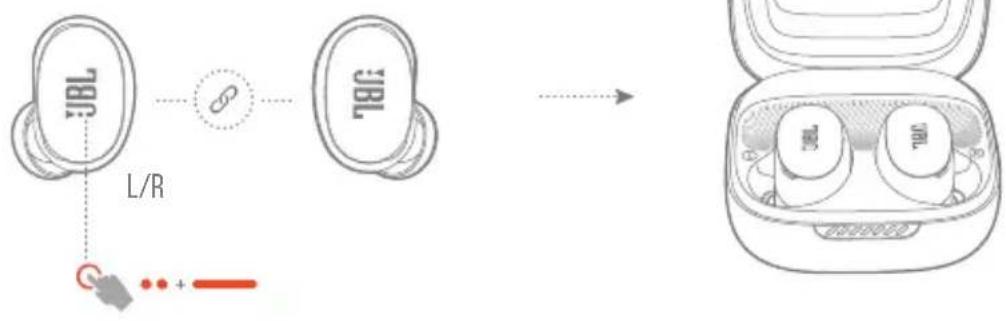

FACTORY RESET

..

TAP × 2

-

HOLD(5s)

UBL L/R UBL UBL UBL

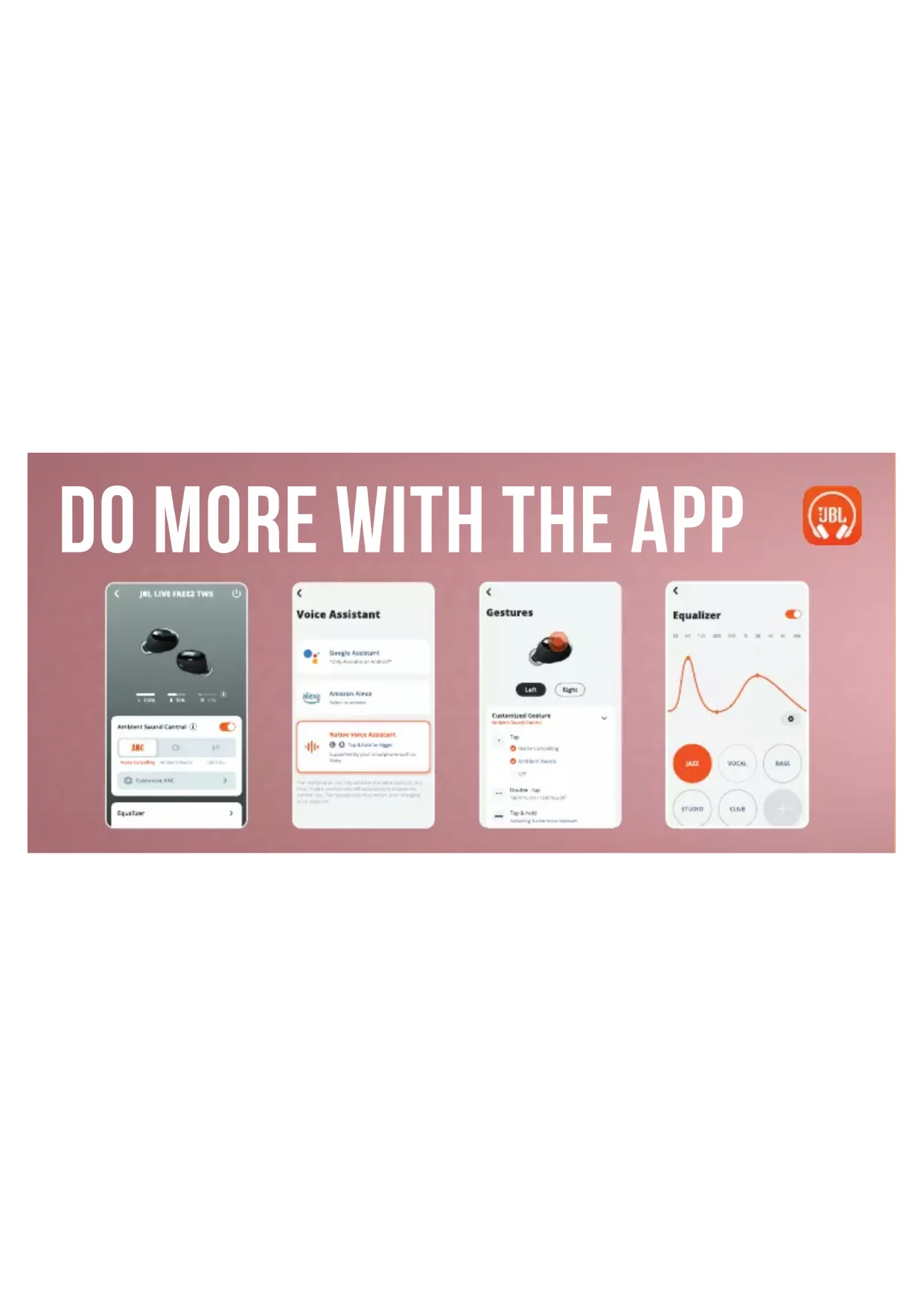

DO MORE WITH THE APP

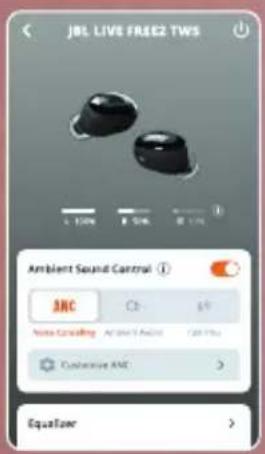

JBL LIVE FREE2 TWS Ambient Sound Control ANC None Sensing AC/AC/AC Customize ANC EquiTow

Voice Assistant Google Assistant "Only Available on Android" Amazon Kirea Selected as: Native Voice Assistant Tap Adventor Trigger Supported by your school graduate hand-on-day The voice assistant will look up and see your voice assistant on a user. Prepared personal details with corresponding physician the patient visit. The local voice may medium when managing the local clinic.

Gestures Left Right Customized Gesture Ambient Surgical Gesture Top ● Inside Cancelling ● Ambient Assets OFF Double Top Take Up for Tolerance Off Top & Hold Adding New Home Assistant

Equalizer JAZZ VOCAL BASS STUDIO CLUB

HANDS-FREE VOICE CONTROL

GET MORE DONE ON THE GO. SAY "OK GOOGLE" TO GET STARTED.

"Play my Workout playlist"

"Turn on noise canceling"

"Turn off ambient mode"

"What's my schedule today?"

"Set an alarm for 7 AM"

NOTE: ONLY AVAILABLE ON ANDROID™

Ok Google

HANDS-FREE VOICE CONTROL

ASK ALEXA TO PLAY MUSIC, ANSWER QUESTIONS, PLAY THE NEWS, CHECK THE WEATHER, SET ALARMS, CONTROL COMPATIBLE SMART HOME DEVICES, AND MORE.

"Alexa, play today's hits"

"Alexa, volume up."

"Alexa, skip this song."

"Alexa, what's the weather?"

"Alexa, turn off the TV."

"Alexa, start my commute"

alexa

built-in

NOTE: ANDROID™6.0 OR HIGHER IS REQUIRED FOR FULL ACCESS TO ALEXA FEATURES WHEN USING THIS DEVICE. ALEXA ISN'T AVAILABLE IN ALL LOCATIONS.

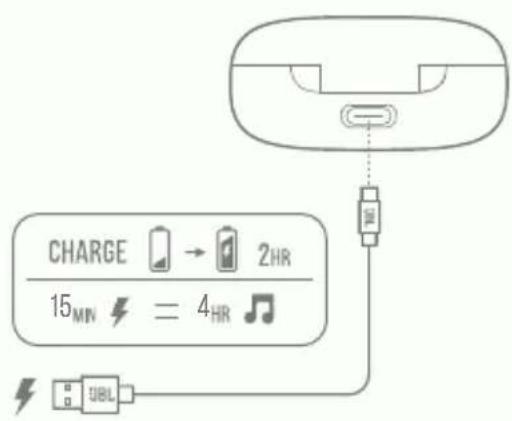

CHARGING

CHARGE → 2HR 15MN = 4HR ⏱ UBL

UBL UBL UBL

CHARGING THROUGH A QI-CERTIFIED WIRELESS CHARGING PAD (NOT INCLUDED)

JBLI 2014-030

LED

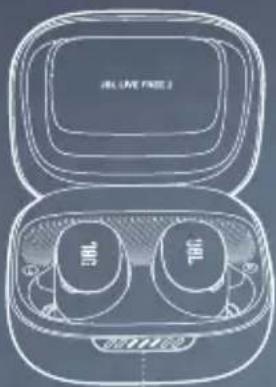

BEHAVIORS

BT CONNECTING

BT CONNECTED

BT NOT CONNECTED

Line drawing of a wireless earbuds with open case (no text or symbols)

LOW BATTERY

CHARGING

FULLY CHARGED

TECH SPEC

Model: LIVE FREE 2 TWS

Driver size: 10 mm/0.4" Dynamic Driver

Power supply: 5V --- 1A

Earbud: 4.9 g per pc (9.8 g combined)/0.01 lbs per pc (0.02 lbs combined)

Charging case: 43.7 g/0.094 lbs

Earbud battery type: Lithium-ion Battery (45 mAh / 3.85 V)

Charging case battery type: Lithium-ion Battery (620 mAh / 3.8 V)

Charging time: 2 hrs from empty

Wireless charging time: 4 hrs from empty

Music playtime with BT on and ANC off: 7 hrs

Music playtime with BT on and ANC on: up to 6 hrs

Music playtime with BT on and True Adaptive ANC on: 5 hrs

Frequency response: 20 Hz - 20 kHz

Impedance: 32 ohm

Sensitivity: 102 dB SPL@1 kHz

Maximum SPL: 94 dB

Microphone sensitivity: -38 dBV/Pa@1 kHz

Bluetooth version: 5.2

Bluetooth profile version: A2DP V1.3, AVRCP V1.6, HFP V1.8

Bluetooth transmitter frequency range: 2.4 GHz - 2.4835 GHz

Bluetooth transmitter power: < 9 dBm EIRP

Bluetooth transmitter modulation: GFSK, π/4 QPSK, 8DPSK

Maximum operation temperature:

45°C

FRD

CONTENU DE LA BOÎTE APPLICATION

The Ground Truth image displays a single, solid horizontal line. According to Rule 2 (UNDERSCORE & LINE RULES), this is a stylistic or background line, not a placeholder underscore. Therefore, the OCR result must ignore it and output nothing or only meaningful text. The provided OCR content is "____", which consists of four underscores. This is an incorrect interpretation of the line as a placeholder, violating the rule that stylistic lines must be ignored. The OCR has hallucinated underscores where none should exist based on the GT's visual context. Hence, the OCR result is inconsistent with the Ground Truth.

7 heures

1. 0 < 1

jusqu'à 6 heures

5 heures

20 Hz - 20 kHz

32 ohms

102 dB SPL à 1 kHz

94 dB

-38 dBV/Pa à 1 kHz

5.2

A2DP V1.3, AVRCP V1.6, HFP V1.8

2,4 GHz - 2,4835 GHz

< 9 dBm EIRP

[Non-Text]

GFSK, π/4 QPSK, 8DPSK

45°C

HVAD ER DER I AESKEN

APPEN

ANC (Aktives Noise-Cancelling)*

Ambient Aware

(Umgebungsbewusst)*

A2DP V1.3, AVRCP V1.6, HFP V1.8

2.4 GHz - 2.4835 GHz

< 9 dBm EIRP

GFSK, π/4 QPSK, 8DPSK

45°C

LED-MERKKIVALON TOIMINNOT

A2DP V1.3, AVRCP V1.6, HFP V1.8

2,4 GHz - 2,4835 GHz

< 9 dBm EIRP

GFSK, π/4 QPSK, 8DPSK

45 °C

A2DP V1.3, AVRCP V1.6, HFP V1.8

2.4 GHz - 2.4835 GHz

< 9 dBm EIRP

GFSK, π/4 QPSK, 8DPSK

45°C

NL

VERPAKKINGSINHOUD

APP

A2DP V1.3, AVRCP V1.6, HFP V1.8

-

2,4 GHz - 2,4835 GHz

< 9 dBm EIRP

GFSK, π/4 QPSK, 8DPSK

45°C

NO

DETTE ER I ESKEN

APP

A2DP V1.3, AVRCP V1.6, HFP V1.8

2,4 GHz - 2,4835 GHz

< 9 dBm EIRP

GFSK, π/4 QPSK, 8DPSK

45°C

ZAWARTOŚĆ ZESTAWU

APLIKACJA

FLERPUNKTSANSLUTNING

A2DP V1.3, AVRCP V1.6, HFP V1.8

2,4 GHz - 2,4835 GHz

GFSK, π/4 QPSK, 8DPSK

45°C

KUTU İCERİĞI

UYGULÁMA

Ambient Aware (Ortam

Farkındalığı)*

Talkthru*

JBL Headphones Uygulamasina

A2DP V1.3, AVRCP V1.6, HFP V1.8

2.4 GHz - 2.4835 GHz

< 9 dBm EIRP

GFSK, ^11 /4 OPSK, 8DPSK

45℃

包装盒內物品

應用程式

通過這個免費的應用程

序，您可以更好地控制和

個性化您的聆聽體驗。

如何佩戴

嘗試不同尺寸以獲得完美的貼合度及音效。

首次使用

開機並連接

其他

KEGUNAAN LAIN APLIKASI

MENGIST DAYA

A2DP V1.3, AVRCP V1.6, HFP V1.8

GFSK, π/4 QPSK, 8DPSK

Suhu pengoperasian maksimal:

45°C

JPK

同梱品

アプリ

한쪽 0.01lbs(양쪽 0.02lbs)

A2DP V1.3, AVRCP V1.6, HFP V1.8

2.4GHz\~2.4835GHz

< 9 dBm EIRP

GFSK,π/4 QPSK,8DPSK

45°C

MM

ඉංක්‍යාන්: මිඩාජේ

ඉංා:ජා:

32058

நெண்ணைகளி வர்படு:நெ

"IBL LIVE FREE 2 TWS" 08

Impedance:	32 ohm
Sensitivity:	102 dB SPL@1 kHz
Maximum SPL:	94 dB
Microphone sensitivity:	-38 dBV/Pa@1 kHz
Bluetooth version:	5.2
Bluetooth profile version:	A2DP V1.3i AVRCP V1.6i
Bluetooth transmitter frequency range:	2.4 GHz - 2.4835 GHz
Bluetooth transmitter power:	< 9 dBm EIRP
Bluetooth transmitter modulation:	GFSK, π/4 QPSK, 8DPSK
	45 °C

AR

HANDSFREE-RÖSTSTYRNING

"Aktivera brusreducering"

The SAR limit of Canada (C) is 1.6W/kg averaged over one gram of tissue. Device types: (IC: 6132A-LFREETWS2) has also been tested against this SAR limit According to this standard, the highest SAR value reported during product certification for head use is 0.407W/Kg.

The device was tested for typical bodily operations where the product was kept 0 mm from the head. To maintain compliance with IC RF exposure requirements, use accessories that maintain a separation distance of 0mm between the user's head and the back of the headset. The use of belt clips, holsters and similar accessories shall not contain metal parts in its assembly. Use of accessories that do not meet these requirements may not comply with IC RF exposure requirements and should be avoided.

Head operation

The device was subjected to a typical head manipulation test. In order to comply with RF exposure requirements, a minimum separation distance of 0 cm must be maintained between the user's ear and the product (including the antenna). Head exposure that do not meet these requirements may not meet RF exposure requirements and should be avoided. Use only the supplied or approved antenna.

IC: 6132A-LFREETWS2

DO NOT ATTEMPT TO OPEN, SERVICE, OR DISASSEMBLE THE BATTERY | DO NOT SHORT CIRCUIT | MAY EXPLODE IF DISPOSED OF IN FIRE | RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE | DISPOSE OR RECYCLE USED BATTERIES ACCORDING TO THE INSTRUCTIONS

The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by HARMAN International Industries, Incorporated is under license. Other trademarks and trade names are those of their respective owners.

Google, Android and Google Play are trademarks of Google LLC.

Amazon, Alexa, Amazon Music, and all related logos are trademarks of Amazon, Inc. or its affiliates.
