USER MANUAL Pro+ TWS JBL

Line drawing of a JBL brand wireless earbuds with two earbuds and a branded case (no text or symbols on the devices themselves)

M L S M L USB USB

APP

JBL

JBL HEADPHONES

GET EVEN MORE CONTROL AND PERSONALIZATION OF YOUR LISTENING EXPERIENCE WITH THIS FREE APP.

HOW TO WEAL

* [M/L] [S/M/L]

* TRY DIFFERENT SIZES OF EARTIPS FOR BEST FIT AND SEAL.

Illustration of a white earbuds with curved lines indicating motion or signal flow (no text or symbols)

Diagram of a ear with a white microphone and red curved arrow indicating rotation (no text or symbols)

JBL

Check my best fit For your best ear ear performance, check the fit of your ear type. Check the earbuds when checked to your ear so that the most terminal ear is possible. The earbuds should be sure when anything.

FIRST TIME USE

Diagram illustrating the evolution of wireless earbuds from two types of earbuds to a single pair, with an inset showing a rocket launch.

POWER ON & CONNECT

1

Line drawing of a closed electronic device with open casing and internal compartments (no text or symbols)

2

Pure diagram of two identical mechanical components with no text or symbols

OTHERS

3

ANDROID™ 6.0+

Settings Bluetooth Bluetooth DEVICES JBL LIVE PRO+ TWS Connected Now Discoverable

Fast Pair now
JBL LIVE PRO+ TWS

Tap to pair. Device will be tied to

Your Google Account

Fast Pair

CHOOSE "JBL LIVE PRO+ TWS" TO CONNECT

DUAL CONNECT + SYNC

STEREO MODE

Line drawing of a stylized OBL brand electronic device (no text or symbols)

MONO MODE

Line drawing of a UBL-branded electronic device with a circular button and ventilation slots (no text or symbols)

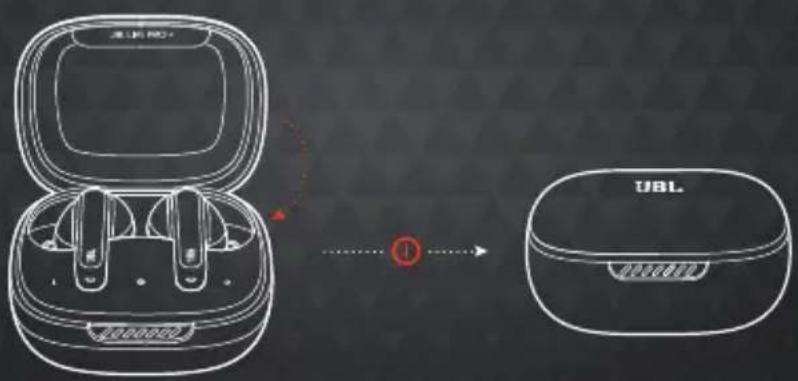

POWER OFF

UBL ① → UBL

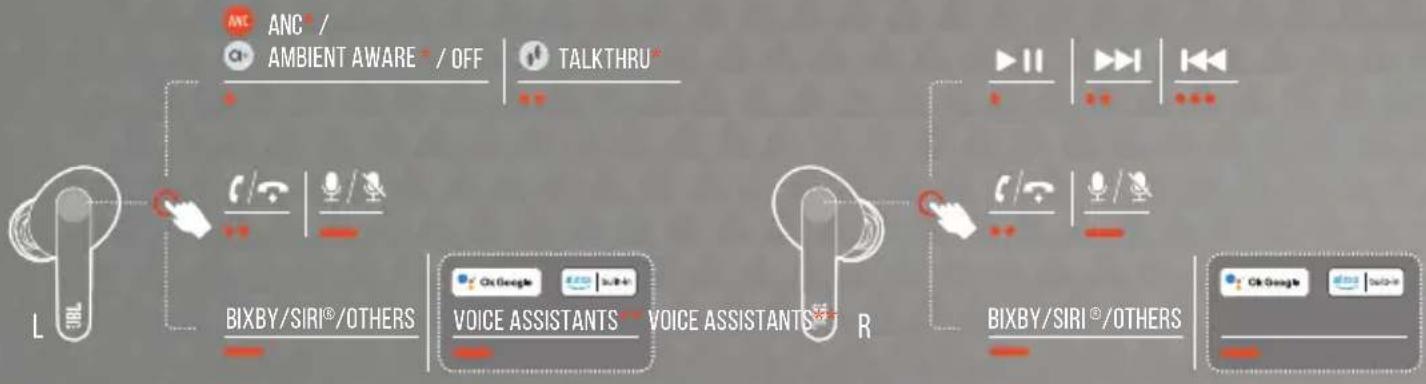

MANUAL CONTROLS

CONNECT TO A BLUETOOTH DEVICE RESET

L/R

5s 5s

BUTTON COMMAND

ENABLE ADVANCE CONTROLS BY CONNECTING YOUR JBL LIVE PRO+TWS TO JBL HEADPHONES APP ENABLE VOICE ASSISTANT THROUGH JBL HEADPHONES APP AND ASSIGN IT TO YOUR PREFERRED EARBUD (L/R).

AUTO PLAY/PAUSE

Diagram illustrating wireless earbuds with audio playback icons and note symbols

Diagram illustrating ear ear replacement technique with labeled ear and ear packages, showing a red arrow indicating rotation.

DO MORE WITH THE APP

JBL LIVE PRO+ TWS 100% 3% 12% 8% Noise Convailing Decaying Audio Ambient Sound Control Audio/Video Smart Audio & Video Normal 10 Sat

Voice Assistant Set up your preferred voice assistant with your 30 headphones. ▲ Your headphones may restart during the setup. Google Assistant: * * only available on Android* Amazon Alexa

Gestures Right Select the option to assign the functions to your headphone: Playback control Tap Playback DoubleTap New Task TripleTap Feedback Task Tap & Field Acturing Mouse Motor Assist

EQ + 120 120 340 340 560 560 108 Audio + 120 120 340 340 560 560 Audio + 120 120 340 340 560 560 + 120 120 340 340 560 + 120 120 340 340 560 + 120 120 340 340 560 + 120 120 340 340 560 + 120 120 340 340 560 + 120 + 120 + 120 + 120 + 120 + 120 + 120 + 120 + 120 + 120 + 120 + 120 + 120 + 120 + 120 + 120 + 120 +

HANDS-FREE VOICE CONTROL

GET MORE DONE ON THE GO. SAY "OK GOOGLE" TO GET STARTED.

"Play my Workout playlist"

"Turn up the volume"

"Send a message"

"What's my schedule today?"

"Set an alarm for 7 AM"

Ok Google

NOTE: ONLY AVAILABLE ON ANDROID™

HANDS-FREE VOICE CONTROL

"Alexa"

"What's the weather?"

"Play today's hits"

"Turn on the lights"

• • •

built-in

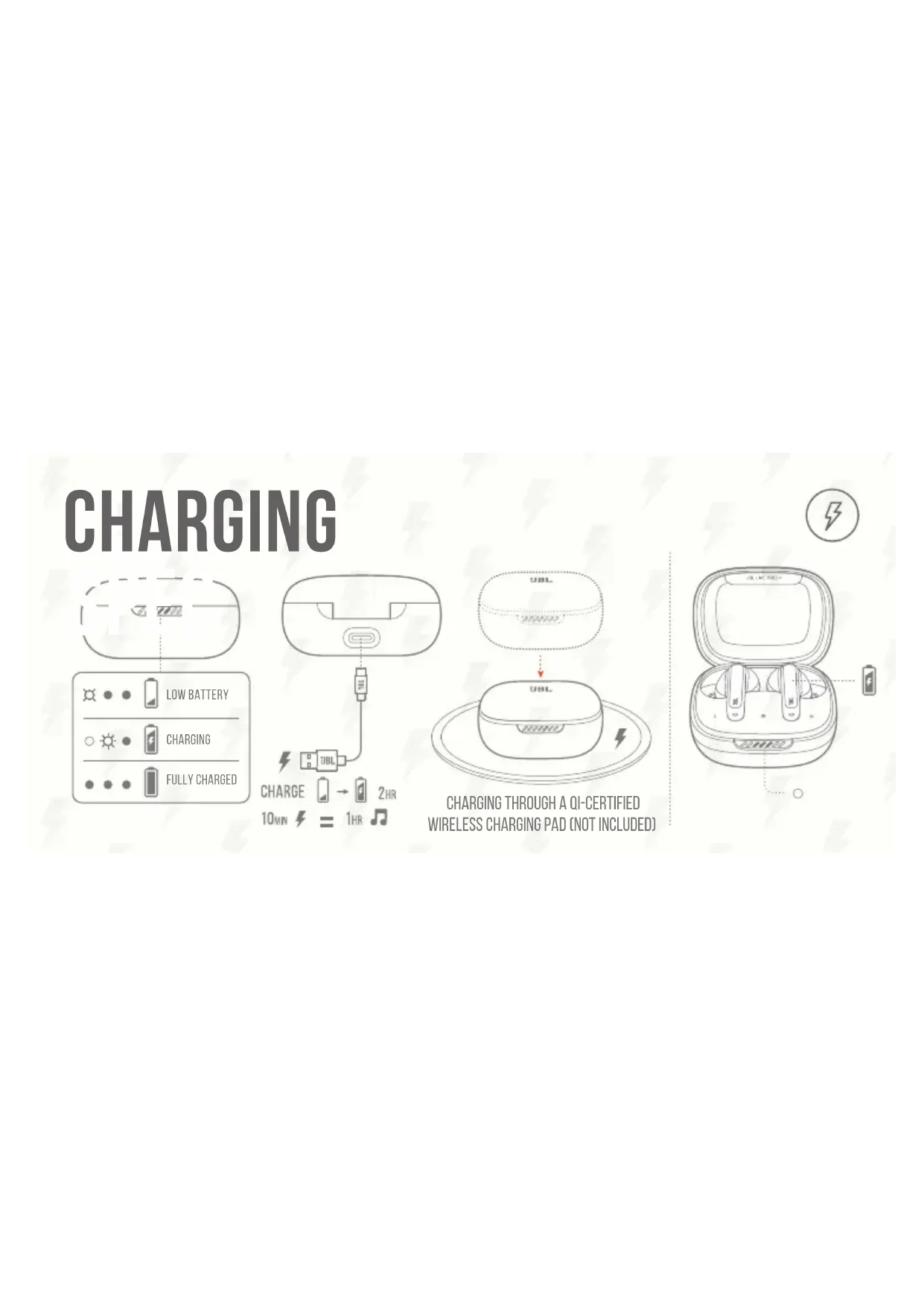

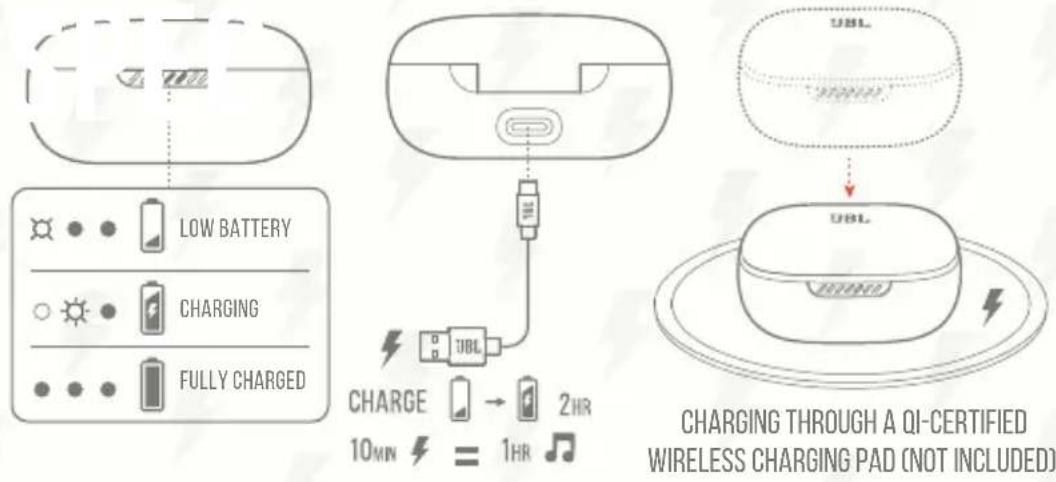

CHARGING

Line drawing of an open wireless earbuds with a battery icon and indicator lights (no text or symbols)

LED BEHAVIORS

BT PAIRING

BT CONNECTED

BT NOT CONNECTED

Line drawing of an open earbuds with two earphones (no text or symbols)

BT PAIRING

BT CONNECTED

BT NOT CONNECTED

TECH SPEC

Model: LIVE PRO+ TWS

Driver size: 11 mm/0.43" Dynamic Driver

Power supply: 5 V = 1 A

Earpiece: 5 g per pc (10 g combined) / 0.01 lbs per pc (0.02 lbs combined)

Charging case: 49.5 g/0.11 lbs

Headset battery type: Lithium-ion polymer (3.7 V, 55 mAh)

Charging case battery type: Lithium-ion polymer (3.7 V, 500 mAh)

Charging time: 2 hrs from empty

Wireless charging time: 3 hrs from empty

Music playtime with BT on and ANC on: up to 6 hrs

Music playtime with BT on and ANC off: up to 7 hrs

Frequency response: 20 Hz – 20 kHz

Impedance: 16 ohm

Sensitivity: 102 dB SPL@1kHz/1mW

Maximum SPL: 91 dB

Microphone sensitivity: -38 dBV@1kHz/Pa

Bluetooth version: 5.0

Bluetooth profile version: A2DP V1.3, AVRCP V1.6, HFP V1.7

Bluetooth transmitter frequency range: 2400 – 2483.5 MHz

Bluetooth transmitter power: <13 dBm (EIRP)

Bluetooth transmitter modulation: GFSK, π/4 DQPSK, 8DPSK

Maximum operation temperature: 45°C

DA

Bluetooth-profil version: A2DP V1.3, AVRCP V1.6, HFP V1.7

Frekvensområde for

Bluetooth-transmitter: 2400 – 2483,5 MHz

Bluetooth-sendeeffekt: <13 dBm (EIRP)

Bluetooth

sendemodulation: GFSK, π/4 DQPSK, 8DPSK

Bluetooth-Profilversion: A2DP V1.3, AVRCP V1.6, HFP V1.7

ZAWARTOŚĆ ZESTAWU | APLIKACJA: JBL Headphones

Bluetooth-profilens version: A2DP V1.3, AVRCP V1.6, HFP V1.7

Bluetooth-sändarens

한쪽 0.01lbs(양쪽 0.02lbs)

49.5g/0.11lbs

충전케이스:

리튬 이온 풀리머

(3.7V, 55mAh)

충전 케이스 배터리

리튬 이온폴리머

유형

(3.7V, 500mAh)

충전 시간:

배터리 방전부터 2시간

무선 충전 시간:

배터리 방전부터 3시간

BT 및 ANC사용시음악

재생 시간:

최대 6시간

Driver Size: 11 mm/0.43" Dynamic

Driver

Power supply: 5 V

=A

Earpiece: ๑๕๔๐๖๕๊ ๒ ๓๑

[0] : 3 hrs from empty

BT རྩོ ANC སྱི རྩོ

Frequency response: 20 Hz - 20 kHz

Impedance: 16 ohm

Sensitivity: 102 dB@ 1kHz/1mW

Maximum SPL: 91 dB

Microphone

sensitivity: -38 dBV@1kHz/Pa

Bluetooth version: 5.0

Bluetooth profile A2DP V1.3, AVRCP

version: V1.6, HFP V1.7

Bluetooth transmitter

frequency range: 2400 - 2483.5 MHz

Bluetooth transmitter

power: <13 dBm (EIRP)

#	JBL Headphones.	#	#	#
#	#	#	#	#
#	#	#	#	#
#	#	#	#	#
#	#	#	#	#
#	#	#	#	#
#	#	#	#	#
#	#	#	#	#
#	#	#	#	#
#	#	#	$	#
#	#	#	#	#
#	#	#	#	#
#	#	#	#	#
#	#	#	#	#
#	#	#	#	#
#	#	#	#	#
#	#	#	#	#
#	#	#	#	#

7 GHz	ANC BT
20Hz – 20kHz	:
16 GHz	:
102dB SPL@1kHz/1mW	:
91dB	:
1kHz/Pa-38dBV	:
5.0	:
A2DP V1.3, AVRCP V1.6,HFP V1.7	:
	:
(EIRP) 13dBm-7 GHz	:
GFSK, n/4 DQPSK, 8DPSK	:

LIVE PRO + TWS	:
0.43/10 11	:
5V ==1A	:
(7V, 10)	:
49.5	:
(3.7V, 55mAh)	:
(3.7V, 500 mAh)	:
3.5MHz - 2400	:
75/6	:

HE

DE

HANDSFREE-RÖSTSTYRNING

The SAR limit of Canada (C) is 1.6 W/kg averaged over one gram of tissue. Device types: (IC: 6132A-LIVEPROTWSP) has also been tested against this SAR limit According to this standard, the highest SAR value reported during product certification for head use is 0.7975 W/kg. The device was tested for typical bodily operations where the product was kept 0 mm from the head. To maintain compliance with IC RF exposure requirements, use accessories that maintain a separation distance of 0mm between the user's head and the back of the headset. The use of belt clips, holsters and similar accessories shall not contain metal parts in its assembly. Use of accessories that do not meet these requirements may not comply with IC RF exposure requirements and should be avoided.

Head operation

The device was subjected to a typical head manipulation test. In order to comply with RF exposure requirements, a minimum separation distance of 0 cm must be maintained between the user's ear and the product (including the antenna). Head exposure that do not meet these requirements may not meet RF exposure requirements and should be avoided. Use only the supplied or approved antenna.

IC: 6132A-LIVEPROTWSP

DO NOT ATTEMPT TO OPEN, SERVICE, OR DISASSEMBLE THE BATTERY | DO NOT SHORT CIRCUIT | MAY EXPLODE IF DISPOSED OF IN FIRE | RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE | DISPOSE OR RECYCLE USED BATTERIES ACCORDING TO THE INSTRUCTIONS

Bluetooth®

The Bluetooth ^® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by HARMAN International Industries, Incorporated is under license. Other trademarks and trade names are those of their respective owners.

Ok Google

Google, Android and Google Play are trademarks of Google LLC.

built-in

Amazon, Alexa, Amazon Music, and all related logos are trademarks of Amazon, Inc. or its affiliates. Alexa is not available in all languages and countries, Alexa features and functionality may vary by location. See www.amazon.com/alexa-availability for details.

ANATEL
