USER MANUAL DO242SV DOMO

I PRODUCTSPECIFIEKE WAARSCHUWINGEN

I AVERTISSEMENTS SPÉCIFIQUES AU PRODUIT

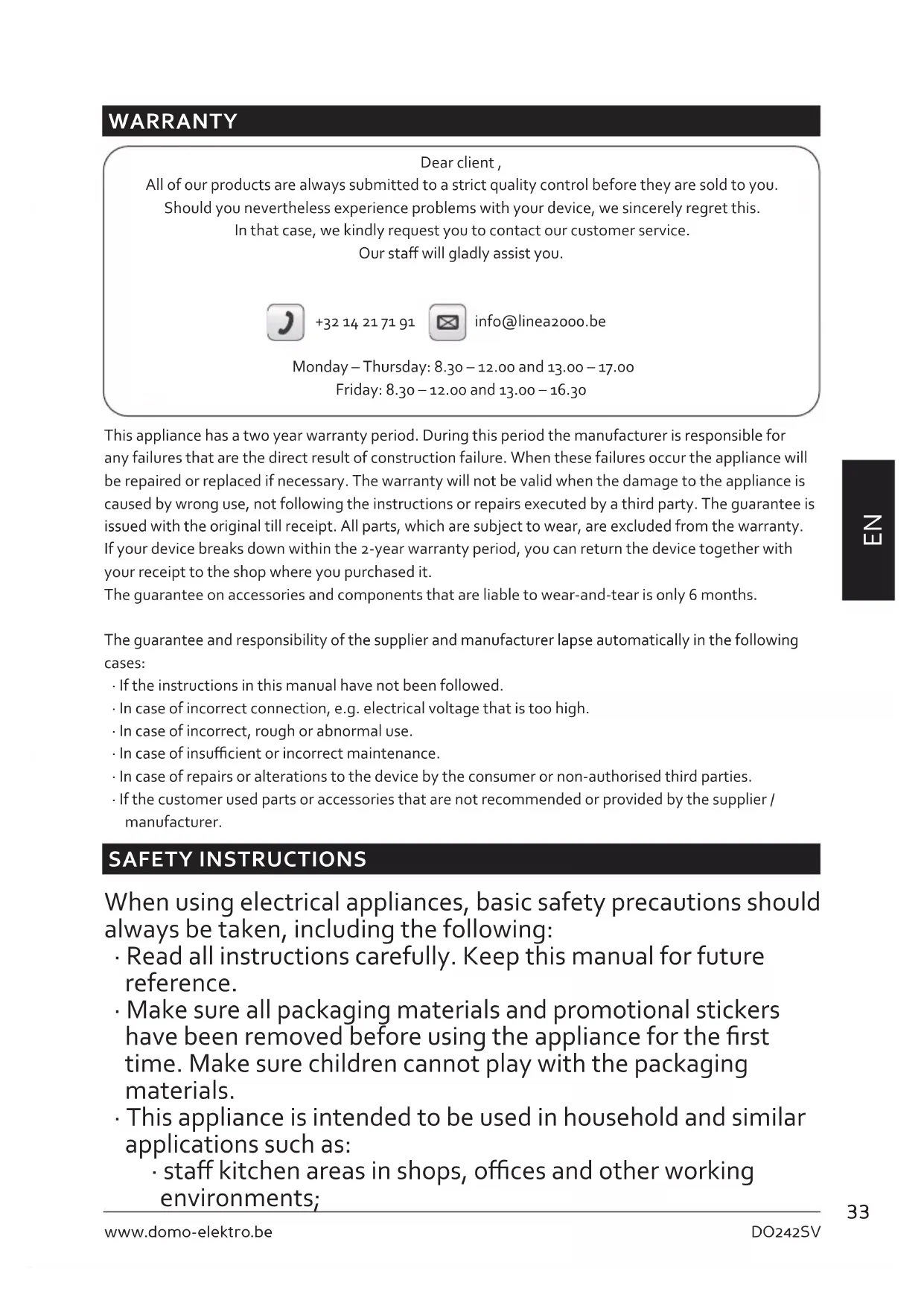

WARRANTY Dear client , All of our products are always submitted to a strict quality control before they are sold to you. Should you nevertheless experience problems with your device, we sincerely regret this. In that case, we kindly request you to contact our customer service. Our sta will gladly assist you. [phone] [e-mail] Monday – Thursday: 8.30 – 12.00 and 13.00 – 17.00 Friday: 8.30 – 12.00 and 13.00 – 16.30 This appliance has a two year warranty period. During this period the manufacturer is responsible for any failures that are the direct result of construction failure. When these failures occur the appliance will be repaired or replaced if necessary. The warranty will not be valid when the damage to the appliance is caused by wrong use, not following the instructions or repairs executed by a third party. The guarantee is issued with the original till receipt. All parts, which are subject to wear, are excluded from the warranty. If your device breaks down within the 2-year warranty period, you can return the device together with your receipt to the shop where you purchased it. The guarantee on accessories and components that are liable to wear-and-tear is only 6 months. The guarantee and responsibility of the supplier and manufacturer lapse automatically in the following cases:

• If the instructions in this manual have not been followed.

• In case of incorrect connection, e.g. electrical voltage that is too high.

• In case of incorrect, rough or abnormal use.

• In case of insucient or incorrect maintenance.

• In case of repairs or alterations to the device by the consumer or non-authorised third parties.

• If the customer used parts or accessories that are not recommended or provided by the supplier / manufacturer. SAFETY INSTRUCTIONS When using electrical appliances, basic safety precautions should always be taken, including the following:

• Read all instructions carefully. Keep this manual for future reference.

• Make sure all packaging materials and promotional stickers have been removed before using the appliance for the rst time. Make sure children cannot play with the packaging materials.

• This appliance is intended to be used in household and similar applications such as:

• sta kitchen areas in shops, oces and other working environments;34 DO242SV

• by clients in hotels, motels and other residential type environments;

• bed and breakfast type environments.

• Children should be supervised to ensure that they do not play with the appliance.

• This appliance can be used by children aged from 16 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

• Children shall not play with the appliance.

• Cleaning and user maintenance shall not be made by children unless they are older than 16 or supervised.

• Keep the appliance and its cord out of reach of children younger than 16 years.

• All repairs should be carried out by the manufacturer or its aftersales service.

• Any injury or damage caused by failure to comply with these rules are at your own risk. Neither the manufacturer, importer, or the supplier may be held liable.

I ELECTRICAL WARNINGS

• In order to avoid a hazard this appliance must not be supplied through an external switching device, such as a timer or a separate remote control, or connected to a circuit that is regularly switched on and o by the utility.

• The appliance must be disconnected from its power source when not in use, during service and when replacing parts. Allow to cool before putting on or taking o parts, and before cleaning the appliance. To disconnect, turn controls to “OFF” or “0” position, then remove the plug from the wall. Never pull the cord or appliance to remove the plug from the socket.

• Before use, check carefully that the electric tension and frequency of the power net at your home match the indications on the rating label of the appliance.

• The appliance must be plugged into an appropriate outlet that is installed in accordance with local installation regulations.

• Keep the power cord away from hot parts and don’t cover the appliance.

• Unwrap the cord completely to prevent overheating of the cord. Do not allow the power cord supply to run underneath or around the unit.

• Do not operate this appliance with a damaged cord or plug or in the event the appliance malfunctions or has been damaged in any manner. Return the appliance to the DOMO Service Department or its service agent for examination, repair, or electrical or mechanical adjustment. Do not try to repair the appliance yourself.

• Only use the supplied charger to charge the appliance. Other chargers may damage the appliance/battery and render the appliance unusable. I INSTALLATION

• Do not place near ammable materials, gases or explosives.

• Do not use or store this appliance outdoors.

• Always use the appliance on a steady, dry and level surface.

• Never place this appliance near a gas stove or electrical stove or in a place where it may come into contact with a warm appliance. I USE

• Do not use this appliance for other than intended use.

• Only use the appliance for domestic use. The manufacturer cannot be held responsible for accidents that result from improper use of the appliance or not following the instructions described in this manual.

• Never leave the appliance unattended while it is functioning.

• Do not operate the appliance with wet hands.

• The use of accessories that are not recommended or sold by the manufacturer can cause re, electrical shock or injuries. Only use the utensils delivered with the appliance.

I CLEANING AND MAINTENANCE

• To protect against electrical shock or burns, do not immerse unit, cord, or plug in water or other liquid.

• Failure to maintain this appliance in a clean condition could adversely aect the life of the appliance and possibly result in a hazardous situation.36 DO242SV

• Do not use the vacuum cleaner to vacuum up detergents, liquids, needles, matches and other similar liquids, sharp objects or ammable objects.

• Do not use the vacuum cleaner to vacuum up cement, powder and other small particles. Also avoid vacuuming up large objects. The vacuum cleaner could be clogged, the motor could overheat or other damage may occur.

• Make sure that the air intake or the oor suction opening do not become blocked.

• Make sure that the machine does not come into contact with liquids.

• First charge a new battery up completely.

• Pull the plug from the outlet when the vacuum cleaner is fully charged.

• This product contains a rechargeable battery. Batteries should be recycled. Do not drill into the battery or expose it to high temperatures; the battery could explode.

• Under extreme circumstances, there could be leakage of the battery. If the liquid from the battery comes into contact with the skin, wash it o immediately with water and soap or neutralize it with a mild acid such as lemon juice or vinegar. If the liquid comes into contact with the eyes, rinse them liberally with water for at least 10 minutes and contact a doctor.

• Do not place foreign objects in the openings of your machine. Do not use the machine if an opening is blocked. Keep the machine free from dust, dirt, hair or anything that could reduce the air supply.

• Remove large and sharp objects from the oor to prevent damage to the plastic components, the brushes and the motor.

• Keep hair, loose clothing, ngers and other body parts away from openings and moving parts.

• Never use the appliance without lters. This will damage the motor and render it unusable.

13. Wall xing (screws and plugs included)

14. Crevice vacuum cleaner

ASSEMBLY The handheld vacuum

1. Attach the dust container to the motor unit. Attach the container to the motor body by twisting

2. Click the motorised oor brush, the dust brush or the crevice tool into the opening at the front of the

appliance. The stick vacuum cleaner

1. Attach the dust container to the motor unit. Attach the container to the motor body by twisting

2. Click the vacuum wand into the suction opening at the front of the appliance.

3. Click the motorised oor brush, the dust brush or the crevice tool into the vacuum wand.

To disassemble the appliance, remove the following parts one by one: The oor brush (or the crevice tool or dusting brush), the wand and the dust container. To do this, press the release button and remove the relevant part by pulling rmly.

WALL MOUNT Please follow below instructions to x the wall mount:

1. Drill 4 holes in the wall corresponding to the attachment points of the wall mount. Please ensure

the distance between the power socket and the upper drill holes is no more than 1.5 metres. The minimum height for wall mounting is 1.2 metres.

2. Insert the supplied plugs into the wall.

3. Fix the wall mount using the supplied screws.

4. To store the device, simply hang it on the wall mount.

5. To take the stick vacuum out of the wall mount, push the release hook down.

• Prior to rst use, charge the machine for 24 hours in order to be able to utilize the full capacity of the battery. The appliance should be charged for 4-5 hours afterwards.

• Place it back in the wall mount before plugging the adapter into the socket.

• To extend the life of the battery, the appliance should be fully charged regularly and the battery should be allowed to drain.

• The appliance will warm up slightly when charging; this is normal.

• The battery charge indicator indicates when the appliance has been fully charged. The lights will blink and will illuminate in turn when the battery is charging. When all the lights are on, the battery is fully charged.

• The appliance cannot be used while charging. USE

• Press the on/o button to turn the appliance on. The white battery indicator lights will illuminate to display the battery level. The lights will ash when the battery is low.

• Use the speed controller button to decrease the speed and increase the usage time. Decreased suction power provides longer vacuuming times. Press the speed controller button to bring the vacuum to full power.

• The autonomy depends on the type of surface. It will work for less time on carpets than on a hard surface.

• While vacuuming, warm air will come out of the motor compartment. This is normal.

• When you switch on the machine, the rotating oor brush at the bottom of the oor nozzle will begin to turn. This will cause the dirt in the opening to be shifted and thereby vacuumed up.

• The machine is equipped with a safety which will ensure that the machine shuts itself o if, for example, objects which are too large are sucked up, or if ngers become tangled in the oor brush.39 DO242SV www.domo-elektro.be

This is for personal safety and to protect the motor. To reverse the oor brush, press the on/o button once more.

• For the best results, clean the dust reservoir and the lters after each use. This is better for the suction power and the life span of the machine. Make sure that the dust in the dust reservoir does not exceed the maximum level.

CLEANING AND MAINTENANCE

CLEANING THE MACHINE

Clean the machine with a slightly moist soft cloth. Dry the machine o well. Never submerge the machine in water!

CLEANING THE DUST RESERVOIR

1. Never exceed the maximum indicator on the dust container. Empty the dust container by pulling the

round release button. The dust container falls open and you can then remove the coarse dirt.

2. Remove the wand. Pull the dust container release again. Unscrew the dust container clockwise from

the motor unit. The dust container contains the following parts: - HEPA lter: this dust lter captures the small dust particles. - Plastic coarse debris lter: this ensures that the large dust particles remain in the dirt receptacle. - Dirt receptacle: this is where all large dirt particles are collected.

3. Remove the HEPA lter from the coarse lter, paying attention to the lock symbols.

4. Remove the coarse lter from the dust container by pushing it upwards from the bottom of the dust

5. You can now clean all the parts separately. We recommend you do this with compressed air. If you

do not have compressed air, you can wash out the lters. Make sure they are completely dry before using them again.

6. Replace the HEPA lter in the coarse debris lter.

7. Put the lters back in the dirt receptacle.

8. Put the dirt receptacle back on the motor section by turning it counter-clockwise. A click will be

heard when the dust container is in place. We advise replacing the lters regularly to ensure an optimal operation of the machine. Dirty lters will reduce the suction power drastically. After every cleaning, clean the dust reservoir and the lters to extend the life span of your machine.40 DO242SV

1. Remove the oor nozzle from the upright vacuum cleaner. Press the release button at the back of

the oor nozzle and remove it from the machine.

2. Press the release in and slide the cover upwards. Then push the cover outward to remove it.

3. Remove the rotating oor brush from the oor nozzle.

4. Remove hairs and other dirt that have wrapped around the oor brush. If you do not clean the oor

brush regularly, it will become damaged and your machine will become unusable.

5. The rotating oor brush may be rinsed o under running water. Make sure that it is completely dry

6. Place the oor brush back into the oor nozzle when it is clean.

7. Slide the cover back and slide it closed again to secure the oor brush.

8. Push the nozzle back onto the stick. The machine is now again ready for use.

Stuck hairs can damage the machine or your oor. Always remove the hairs stuck on the brushes.

PROBLEM AND SOLUTION

PROBLEM SOLUTION The machine does not start up. The battery is empty. Charge the machine. The appliance has stopped working. The appliance has overheated. Allow the appliance to cool down and clean the appliance. The appliance stopped working and the lights on the appliance ashed for 10 seconds. If the wand or lters are blocked, the appliance switches to safety mode and the lights of the appliance will ash. Check and clean the wand and lters. The machine does not vacuum. · The lters are dirty.

• The dust container is full.

• The oor brush is blocked.

• The suction opening is blocked.

• Clean the appliance as described in this manual. Suction power is reduced signicantly. We recommend that you thoroughly clean the lter as well as the dust container and the accessories as described in this manual. If the lters are saturated, they can be reordered. The indicator light does not light up during charging.

• There is no proper contact.

• Make sure the adapter is connected properly.

PROBLEM SOLUTION The operating time of the appliance is getting shorter and shorter. The battery is broken. Contact our customer service. Charge the appliance for a full day and try again. We also recommend that you regularly allow the battery to drain and recharge it fully. The operating life of the appliance will be longer on at surfaces than on carpets. The stick vacuum cleaner is xed in the wall mount. Push the release hook down to unlock the stick vacuum. ENVIRONMENTAL GUIDELINES This symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it must be brought to the applicable collection point for recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city oce, your household waste disposal service or the shop where you purchased the product. The packaging is recyclable. Please treat the packaging ecologically. NON-REMOVABLE BATTERY The appliance is battery-operated, and the battery must not be disposed of with household waste, even after use. You can take the appliance to a collection point for discarded electrical appliances (Recupel) in your neighbourhood (container park, specialist shop, etc.). Batteries contain substances that are dangerous to human health and to the environment.42 DO242SV
