USER MANUAL DO1100SV DOMO

I PRODUCTSPECIFIEKE WAARSCHUWINGEN

I AVERTISSEMENTS SPÉCIFIQUES AU PRODUIT

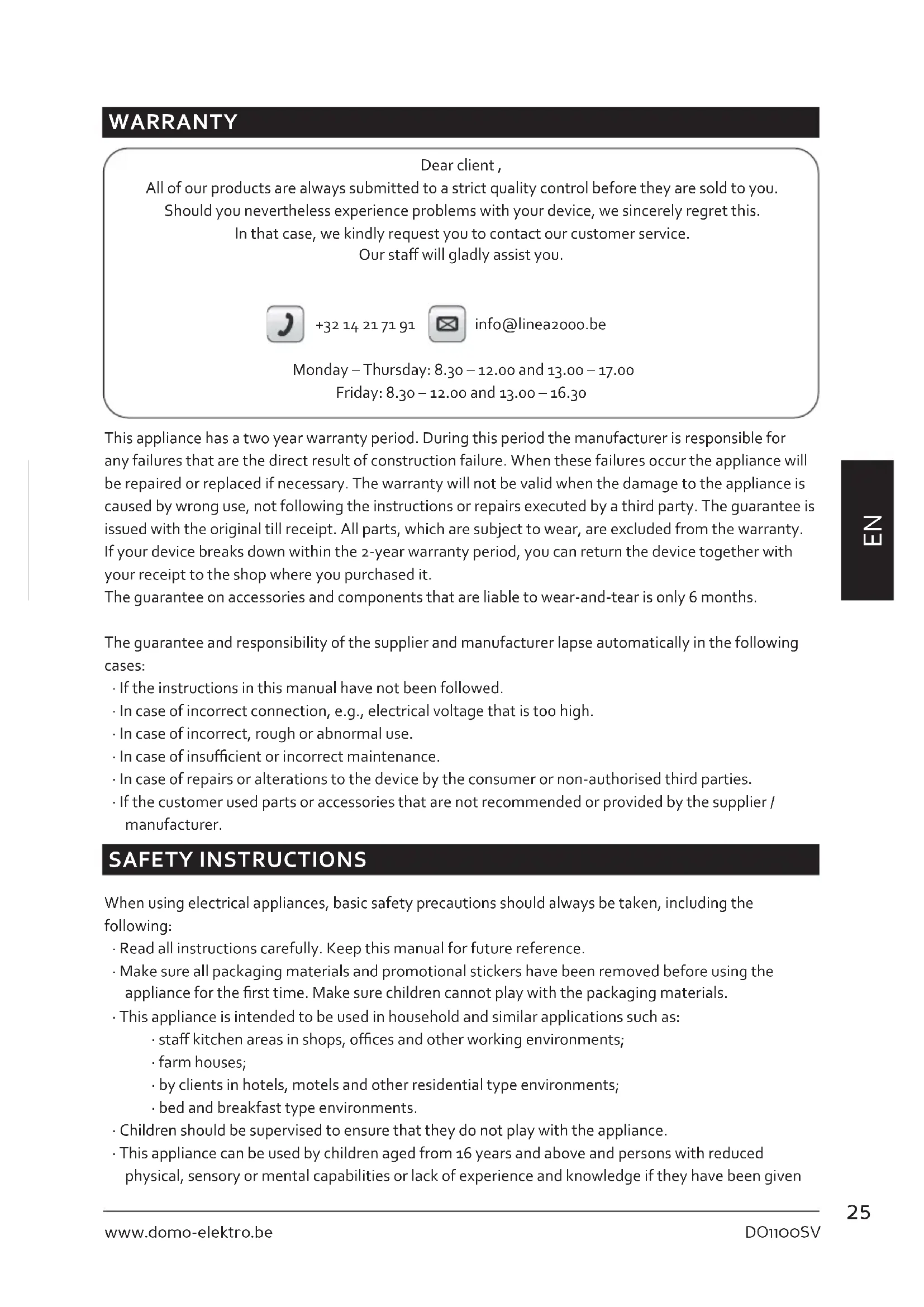

WARRANTY Dear client , All of our products are always submitted to a strict quality control before they are sold to you. Should you nevertheless experience problems with your device, we sincerely regret this. In that case, we kindly request you to contact our customer service. Our sta will gladly assist you. [phone] [e-mail] Monday – Thursday: 8.30 – 12.00 and 13.00 – 17.00 Friday: 8.30 – 12.00 and 13.00 – 16.30 This appliance has a two year warranty period. During this period the manufacturer is responsible for any failures that are the direct result of construction failure. When these failures occur the appliance will be repaired or replaced if necessary. The warranty will not be valid when the damage to the appliance is caused by wrong use, not following the instructions or repairs executed by a third party. The guarantee is issued with the original till receipt. All parts, which are subject to wear, are excluded from the warranty. If your device breaks down within the 2-year warranty period, you can return the device together with your receipt to the shop where you purchased it. The guarantee on accessories and components that are liable to wear-and-tear is only 6 months. The guarantee and responsibility of the supplier and manufacturer lapse automatically in the following cases:

• If the instructions in this manual have not been followed.

• In case of incorrect connection, e.g., electrical voltage that is too high.

• In case of incorrect, rough or abnormal use.

• In case of insucient or incorrect maintenance.

• In case of repairs or alterations to the device by the consumer or non-authorised third parties.

• If the customer used parts or accessories that are not recommended or provided by the supplier / manufacturer. SAFETY INSTRUCTIONS When using electrical appliances, basic safety precautions should always be taken, including the following:

• Read all instructions carefully. Keep this manual for future reference.

• Make sure all packaging materials and promotional stickers have been removed before using the appliance for the rst time. Make sure children cannot play with the packaging materials.

• This appliance is intended to be used in household and similar applications such as:

• sta kitchen areas in shops, oces and other working environments;

• by clients in hotels, motels and other residential type environments;

• bed and breakfast type environments.

• Children should be supervised to ensure that they do not play with the appliance.

• This appliance can be used by children aged from 16 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given26 DO1100SV

supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 16 and supervised.

• Keep the appliance and its cord out of reach of children younger than 16 years.

• All repairs should be carried out by the manufacturer or its aftersales service.

• Any injury or damage caused by failure to comply with these rules are at your own risk. Neither the manufacturer, importer, or the supplier may be held liable.

I ELECTRICAL WARNINGS

• In order to avoid a hazard this appliance must not be supplied through an external switching device, such as a timer or a separate remote control, or connected to a circuit that is regularly switched on and o by the utility.

• The appliance must be disconnected from its power source when not in use, during service and when replacing parts. Allow to cool before putting on or taking o parts, and before cleaning the appliance. To disconnect, turn controls to “OFF” or “0” position, then remove the plug from the wall. Never pull the cord or appliance to remove the plug from the socket.

• Check carefully that the voltage and frequency of the power net match the indications on the rating label of the appliance.

• The plug must be plugged into an appropriate outlet that is installed and grounded in accordance with all local standards and requirements.

• Do not let the power supply cord hang over the edge of a counter, or touch hot surfaces.

• Keep the power cord away from hot parts and don’t cover the appliance.

• Unwrap the cord completely to prevent overheating of the cord. Do not allow the power cord supply to run underneath or around the unit.

• The appliance may not be used with an extension lead or a multiple socket.

• Do not operate this appliance with a damaged cord or plug or in the event the appliance malfunctions or has been damaged in any manner. Return the appliance to the DOMO Service Department or its service agent for examination, repair, or electrical or mechanical adjustment. Do not try to repair the appliance yourself. I INSTALLATION

• Do not place near ammable materials, gases or explosives.

• Do not use or store this appliance outdoors.

• Always use the appliance on a steady, dry and level surface.

• Never place this appliance near a gas stove or electrical stove or in a place where it may come into contact with a warm appliance. I USE

• Do not use this appliance for other than intended use.

• Only use the appliance for domestic use. The manufacturer cannot be held responsible for accidents that result from improper use of the appliance or not following the instructions described in this manual.

• Never leave the appliance unattended while it is functioning.

• Do not operate the appliance with wet hands.

• The use of accessories that are not recommended or sold by the manufacturer can cause re, electrical shock or injuries. Only use the utensils delivered with the appliance.27 DO1100SV www.domo-elektro.be

I CLEANING AND MAINTENANCE

• To protect against electrical shock or burns, do not immerse unit, cord, or plug in water or other liquid.

• Failure to maintain this appliance in a clean condition could adversely aect the life of the appliance and possibly result in a hazardous situation.

I PRODUCT-SPECIFIC WARNINGS

• Do not use the vacuum cleaner to vacuum up detergents, liquids, needles, matches and other similar liquids, sharp objects or ammable objects.

• Do not use the vacuum cleaner to vacuum up cement, powder and other small particles. Also avoid vacuuming up large objects. The vacuum cleaner could be clogged, the motor could overheat or other damage may occur.

• Make sure that the air intake opening does not become blocked.

• Make sure that the machine does not come into contact with liquids.

• First charge a new battery up completely.

• Pull the plug from the outlet when the vacuum cleaner is fully charged.

• This product contains a rechargeable battery. Batteries should be recycled. Do not drill into the battery or expose it to high temperatures; the battery could explode.

• Under extreme circumstances, there could be leakage of the battery. If the liquid from the battery comes into contact with the skin, wash it o immediately with water and soap or neutralize it with a mild acid such as lemon juice or vinegar. If the liquid comes into contact with the eyes, rinse them liberally with water for at least 10 minutes and contact a doctor.

• Do not place foreign objects in the openings of your machine. Do not use the machine if an opening is blocked. Keep the machine free from dust, dirt, hair or anything that could reduce the air supply.

• Remove large and sharp objects from the oor to prevent damage to the plastic components, the brushes and the motor.

• Keep hair, loose clothing, ngers and other body parts away from openings and moving parts.

• Never use the appliance without a lters. This will damage the motor and render it unusable.

PARTS 1. Handle2. On-o button3. Battery indicator4. Speed button5. Motor compartment6. HEPA lter7. Coarse debris lter8. Dust reservoir9. Charging base with storage for accessories10. Dust brush11. Crevice vacuum cleaner12. Adapter13. Unlock button for dust reservoir14. Floor nozzle15. Two-part extension tube

BEFORE THE FIRST USE

• Carefully remove the device from the packaging. Remove any promotional stickers. · Clean the outside of the device with a soft damp cloth. CHARGING 1. Assemble the charging base by clicking both parts together.2. Insert the end of the adapter into the socket at the bottom of the charging base.

3. You can easily t the cord in the recess at the bottom of the charging base so that it stays in place.

4. Place the appliance in its storage base. Plug the adapter into the wall socket to charge the appliance.

• The battery indicator shows when the appliance is fully charged. While charging, the indicator ashes. When the battery is fully charged, the indicator will turn o.

• The machine cannot be started during charging.

• Prior to rst use, charge the machine for 3-5 hours in order to be able to utilize the full capacity of the battery. USE

1. Remove the handheld vacuum cleaner from its charging base.

2. Press the on/o button to turn the appliance on.

3. The motor in the device will start working, allowing you to vacuum crumbs or small dust particles.

4. Press the speed controller to decrease the speed and to increase it again.

5. Press the on/o button again to turn o the appliance.

6. Return the handheld vacuum and accessories to the charging base for storage or charging.

• The battery indicator light indicates the battery level. When the battery is low, the indicator will blink on and o.

• For the best results, clean the dust reservoir and the lters after each use. This is better for the suction power and the life span of the machine.

• While vacuuming, warm air will come out of the motor compartment. This is normal. ACCESSORIES You can use the following accessories on the hand-held vacuum cleaner:

1. Dust brush: for furniture, bookshelves, curtains and hard to clean surfaces.

2. Crevice vacuum cleaner: for crevices, corners, stairs, keyboards,...

3. Two-part extension tube and oor nozzle: turn the hand vacuum cleaner into a stick vacuum cleaner.

Put both parts of the tube and the oor nozzle onto the appliance to use it on the oor.

CLEANING AND MAINTENANCE

CLEANING THE MACHINE

Clean the machine with a slightly moist soft cloth. Dry the machine o well. Never submerge the machine in water!

reservoir and the lters after each use. This is better for the suction power and the life span of the machine.

2. Press the dust container release to release the dust container from the appliance.30

3. Pull the lters out of the dirt receptacle (C). Empty the canister.

4. Remove the HEPA lter (A) from the coarse debris lter (B). Pay attention to the lock

symbol. A. HEPA lter: this round dust lter captures the small dust particles. B. Coarse debris lter: this ensures that the large dust particles remain in the dirt receptacle. C. Dirt receptacle: this is where all large dirt particles are collected.

5. You can now clean all the parts separately. We recommend you do this with compressed

air. If you do not have compressed air, you can wash out the parts. Make sure they are completely dry before using them again.

6. Replace the HEPA lter in the coarse debris lter. Pay attention to the lock symbol.

7. Put the lters back in the dirt receptacle.

We advise replacing the lters regularly to ensure an optimal operation of the machine. Dirty lters will reduce the suction power drastically. For the best results, clean the dust reservoir and the lters after each use. This is better for the suction power and the life span of the machine.

CLEANING THE ROTATING BRUSH

Hair and threads can get stuck in the brush of the oor nozzle over time. These will prevent the brush from eciently picking up the dirt and bringing it to the suction opening. Clean the rotating brush according to the following steps:

1. Remove the oor nozzle from the upright vacuum cleaner.

2. Unscrew the cap at the right side of the oor brush (position “UNLOCK”) with a coin or other

appropriate tool. Once you have opened the lock, you can release the cover by pulling on it.

3. Remove the rotating oor brush from the oor nozzle.

4. Remove hairs and other dirt that have wrapped around the oor brush. If you do not clean the oor

brush regularly, it will become damaged and your machine will become unusable.

5. The rotating oor brush may be rinsed o under running water. Make sure that it is completely dry

6. Place the oor brush back into the oor nozzle when it is clean.

7. Put the cap back onto the oor nozzle and tighten it (position “LOCK”).

8. Push the nozzle back onto the stick. The machine is now again ready for use.

PROBLEM AND SOLUTION

Problem Solution The battery charge indicator will ash on and o.

• The battery is empty. Charge the machine. The machine does not start up. · The battery is empty. Charge the machine. The machine does not vacuum. · The lters are dirty/the dust reservoir is full. Clean the machine as described in this manual. The running time of the machine is shorter and shorter.

• The lters are dirty/the dust reservoir is full. Clean the machine as described in this manual.

• The machine is not suciently charged. Charge the machine fully and try again.

• Stuck hairs. Remove the hairs stuck on the brushes.

• We advise replacing the lters regularly to ensure an optimal operation of the machine. Order the original DOMO accessories and parts online at: webshop.domo-elektro.be ENVIRONMENTAL GUIDELINES This symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it must be brought to the applicable collection point for recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city oce, your household waste disposal service or the shop where you purchased the product. The packaging is recyclable. Please treat the packaging ecologically. NON-REMOVABLE BATTERY The appliance is battery-operated, and the battery must not be disposed of with household waste, even after use. You can take the appliance to a collection point for discarded electrical appliances (Recupel) in your neighbourhood (container park, specialist shop, etc.). Batteries contain substances that are dangerous to human health and to the environment.LINEA 2000 BV - Dompel 9 - 2200 Herentals - Belgium - Tel: [phone] - Fax: [phone] BESTEL de originele Domo-accessoires en -onderdelen online via: of scan hier: COMMANDEZ d’authentiques accessoires et pièces Domo en ligne sur: ou scannez ici: BESTELLEN SIE die Domo Original-Zubehör und -Ersatzteile online über: oder hier scannen: ORDER the original Domo accessories and parts online at: or scan here: webshop.domo-elektro.be Webshop
