USER MANUAL DO1103SV DOMO

I PRODUCTSPECIFIEKE WAARSCHUWINGEN

I AVERTISSEMENTS SPÉCIFIQUES AU PRODUIT

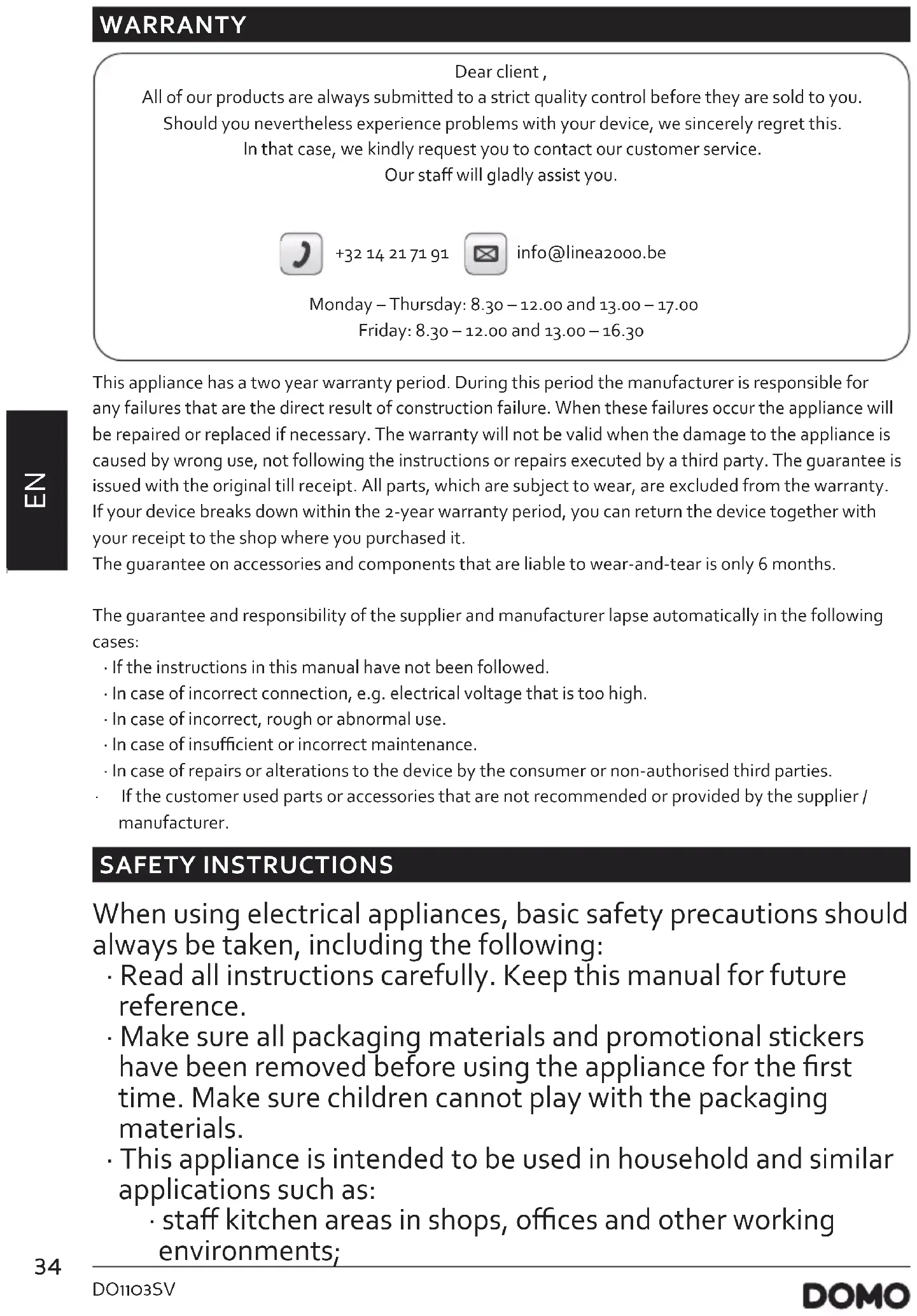

WARRANTY Dear client , All of our products are always submitted to a strict quality control before they are sold to you. Should you nevertheless experience problems with your device, we sincerely regret this. In that case, we kindly request you to contact our customer service. Our sta will gladly assist you. [phone] [e-mail] Monday – Thursday: 8.30 – 12.00 and 13.00 – 17.00 Friday: 8.30 – 12.00 and 13.00 – 16.30 This appliance has a two year warranty period. During this period the manufacturer is responsible for any failures that are the direct result of construction failure. When these failures occur the appliance will be repaired or replaced if necessary. The warranty will not be valid when the damage to the appliance is caused by wrong use, not following the instructions or repairs executed by a third party. The guarantee is issued with the original till receipt. All parts, which are subject to wear, are excluded from the warranty. If your device breaks down within the 2-year warranty period, you can return the device together with your receipt to the shop where you purchased it. The guarantee on accessories and components that are liable to wear-and-tear is only 6 months. The guarantee and responsibility of the supplier and manufacturer lapse automatically in the following cases:

• If the instructions in this manual have not been followed.

• In case of incorrect connection, e.g. electrical voltage that is too high.

• In case of incorrect, rough or abnormal use.

• In case of insucient or incorrect maintenance.

• In case of repairs or alterations to the device by the consumer or non-authorised third parties.

• If the customer used parts or accessories that are not recommended or provided by the supplier / manufacturer. SAFETY INSTRUCTIONS When using electrical appliances, basic safety precautions should always be taken, including the following:

• Read all instructions carefully. Keep this manual for future reference.

• Make sure all packaging materials and promotional stickers have been removed before using the appliance for the rst time. Make sure children cannot play with the packaging materials.

• This appliance is intended to be used in household and similar applications such as:

• sta kitchen areas in shops, oces and other working environments;35 DO1103SV www.domo-elektro.be

• by clients in hotels, motels and other residential type environments;

• bed and breakfast type environments.

• Children should be supervised to ensure that they do not play with the appliance.

• This appliance can be used by children aged from 16 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

• Children shall not play with the appliance.

• Cleaning and user maintenance shall not be made by children unless they are older than 16 or supervised.

• Keep the appliance and its cord out of reach of children younger than 16 years.

• All repairs should be carried out by the manufacturer or its aftersales service.

• Any injury or damage caused by failure to comply with these rules are at your own risk. Neither the manufacturer, importer, or the supplier may be held liable.

I ELECTRICAL WARNINGS

• In order to avoid a hazard this appliance must not be supplied through an external switching device, such as a timer or a separate remote control, or connected to a circuit that is regularly switched on and o by the utility.

• The appliance must be disconnected from its power source when not in use, during service and when replacing parts. Allow to cool before putting on or taking o parts, and before cleaning the appliance. To disconnect, turn controls to “OFF” or “0” position, then remove the plug from the wall. Never pull the cord or appliance to remove the plug from the socket.

• Before use, check carefully that the electric tension and frequency of the power net at your home match the indications on the rating label of the appliance.

• The appliance must be plugged into an appropriate outlet that is installed and grounded in accordance with local installation regulations.

• Do not let the power supply cord hang over the edge of a counter, or touch hot surfaces.36 DO1103SV

• Keep the power cord away from hot parts and don’t cover the appliance.

• Unwrap the cord completely to prevent overheating of the cord. Do not allow the power cord supply to run underneath or around the unit.

• The appliance may not be used with an extension lead or a multiple socket.

• Do not operate this appliance with a damaged cord or plug or in the event the appliance malfunctions or has been damaged in any manner. Return the appliance to the DOMO Service Department or its service agent for examination, repair, or electrical or mechanical adjustment. Do not try to repair the appliance yourself. I INSTALLATION

• Do not place near ammable materials, gases or explosives.

• Do not use or store this appliance outdoors.

• Always use the appliance on a steady, dry and level surface.

• Never place this appliance near a gas stove or electrical stove or in a place where it may come into contact with a warm appliance. I USE

• Do not use this appliance for other than intended use.

• Only use the appliance for domestic use. The manufacturer cannot be held responsible for accidents that result from improper use of the appliance or not following the instructions described in this manual.

• Never leave the appliance unattended while it is functioning.

• Do not operate the appliance with wet hands.

• The use of accessories that are not recommended or sold by the manufacturer can cause re, electrical shock or injuries. Only use the utensils delivered with the appliance.

I CLEANING AND MAINTENANCE

• To protect against electrical shock or burns, do not immerse unit, cord, or plug in water or other liquid.

• Failure to maintain this appliance in a clean condition could adversely aect the life of the appliance and possibly result in a hazardous situation.37 DO1103SV www.domo-elektro.be

• Do not use the vacuum cleaner to vacuum up detergents, liquids, needles, matches and other similar liquids, sharp objects or ammable objects.

• Do not use the vacuum cleaner to vacuum up cement, powder and other small particles. Also avoid vacuuming up large objects. The vacuum cleaner could be clogged, the motor could overheat or other damage may occur.

• Make sure that the air intake or the oor suction opening do not become blocked.

• Make sure that the machine does not come into contact with liquids.

• First charge a new battery up completely.

• Pull the plug from the outlet when the vacuum cleaner is fully charged.

• This product contains a rechargeable battery. Batteries should be recycled. Do not drill into the battery or expose it to high temperatures; the battery could explode.

• Under extreme circumstances, there could be leakage of the battery. If the liquid from the battery comes into contact with the skin, wash it o immediately with water and soap or neutralize it with a mild acid such as lemon juice or vinegar. If the liquid comes into contact with the eyes, rinse them liberally with water for at least 10 minutes and contact a doctor.

• Do not place foreign objects in the openings of your machine. Do not use the machine if an opening is blocked. Keep the machine free from dust, dirt, hair or anything that could reduce the air supply.

• Remove large and sharp objects from the oor to prevent damage to the plastic components, the brushes and the motor.

• Keep hair, loose clothing, ngers and other body parts away from openings and moving parts.

• Never use the appliance without lters. This will damage the motor and render it unusable.

3. Crevice vacuum cleaner

ASSEMBLY The handheld vacuum

1. Attach the dust container to the motor unit. To do this, rst place the bottom of the reservoir into

the motor unit. Then click the top of the dust container onto the motor unit.

2. Click the motorised oor brush, the dust brush or the crevice tool into the opening at the front of the

The stick vacuum cleaner

1. Attach the dust container to the motor unit. To do this, rst place the bottom of the reservoir into

the motor unit. Then click the top of the dust container onto the motor unit.

2. Click the vacuum wand into the suction opening at the front of the appliance.

3. Click the motorised oor brush, the dust brush or the crevice tool into the vacuum wand.

To disassemble the appliance, remove the following parts one by one: The oor brush (or the crevice tool or dusting brush), the wand and the dust container. To do this, press the release button and remove the relevant part by pulling rmly. CHARGING

• Prior to rst use, charge the machine for 24 hours in order to be able to utilize the full capacity of the battery. The appliance should be charged for 4-5 hours afterwards.

• First, connect the adapter to the appliance and then plug the adapter into a power socket.

• To extend the life of the battery, the appliance should be fully charged regularly and the battery should be allowed to drain.

• The appliance will warm up slightly when charging; this is normal.

• The light on the handle will ash while the appliance is charging. Once the appliance is fully charged, the lights will turn o.

• The appliance cannot be used while charging.40 DO1103SV

• Hold the wall mount against the wall and use a pencil the mark the drill holes. Please ensure the distance between the power socket and the upper drill holes is no more than 1.5 metres. The minimum height for wall mounting is 1.2 metres.

• Drill the holes. We recommend using screws with a diameter of 4 mm and a length of 30 mm.

• Push two plugs (suitable for screws measuring 4 mm in diameter and 30 mm in length) into the drilled holes. Hold the wall mount ush with the drill holes and screw to ax.

• You can now hang the appliance in the wall mount and connect the adapter as described above. USE

• Assemble the unit as described earlier in this manual.

• For large areas, use the oor brush together with the wand.

• For smaller areas (e.g. car) or higher surfaces (e.g. tables, chairs, etc.), use the appliance with just the oor nozzle.

• For hard-to-reach places (e.g. corners, narrow openings, etc.), click the crevice tool into the suction opening.

• Use the dusting brush when using the appliance on sofas, curtains or other types of textiles.

• Press the on/o switch once to turn the appliance on. The appliance will start working. The appliance has 3 settings:

• HIGH: Blue light on Adjust the suction by pressing the mode button repeatedly. Lower suction means longer usage time.

• Suction power will decrease when the battery is almost empty. The upper battery light will switch o rst, then the bottom light will ash and the appliance will stop working eventually.

• This appliance must only be used on a dry surface. When you switch on the machine, the rotating oor brush at the bottom of the oor nozzle will begin to turn. This will cause the dirt in the opening to be shifted and thereby vacuumed up. Dirt will collect in the container. Be careful not to suck up large pieces of dirt, as this could block the suction opening and damage the appliance.

• For the best results, clean the dust reservoir and the lters after each use. This is better for the suction power and the life span of the machine.

CLEANING AND MAINTENANCE

• Remove the oor brush after every use and remove any hairs or dirt from the rotating brush.

• Click the release ap at the bottom of the oor brush and remove the rotating brush.

• You can now remove and clean the rotating brush.

• After cleaning, place the rotating brush back into the oor brush and click the locking mechanism back into place.41 DO1103SV www.domo-elektro.be

THE TUBE Remove the tube and check it for blockages.

CLEANING THE DUST RESERVOIR

• Empty the dust container by pressing the release button. The dust container falls open and you can then remove the coarse dirt.

• Remove the dust reservoir. Then remove the coarse dirt lter and the round lter from the dust container.

• Never exceed the maximum indicator on the dust container. THE FILTERS

• There are two lters in the dust container: the plastic coarse dirt lter and the round lter.

• Remove the lters from the dust container. The coarse dirt lter will become visible in the dust container after you remove the round lter. Remove it from the dust container. Blow the lters clean using compressed air. If this is not available, you can also wash the lters. Leave the lters to dry for a minimum of 12 hours before placing back into the dust container.

THE MOTOR COMPARTMENT

• There is another lter in the motor compartment. It lters the air coming from the motor compartment.

• Rotate the cover towards the open lock and remove the cover.

• Pull the lter from the motor compartment.

• Blow the lter clean using compressed air or clean under running water.42 DO1103SV

The exterior of the appliance and the accessories can be cleaned using a damp cloth. Afterwards, wipe the appliance with a dry cloth. Never immerse the appliance in water! Leave all lters to dry for a minimum of 12 hours before reuse!

PROBLEM AND SOLUTION

PROBLEM SOLUTION The machine does not start up. The battery is empty. Charge the machine. The appliance has stopped working. The appliance has overheated. Allow the appliance to cool down and clean the appliance. The appliance stopped working and the lights on the appliance ashed for 10 seconds. If the wand or lters are blocked, the appliance switches to safety mode and the lights of the appliance will ash. Check and clean the wand and lters. The machine does not vacuum. · The lters are dirty.

• The dust container is full.

• The oor brush is blocked.

• The suction opening is blocked.

• Clean the appliance as described in this manual. Suction power is reduced signicantly. We recommend that you thoroughly clean the lter as well as the dust container and the accessories as described in this manual. If the lters are saturated, they can be reordered. The indicator light does not light up during charging.

• There is no proper contact.

• Make sure the adapter is connected properly.

PROBLEM SOLUTION The operating time of the appliance is getting shorter and shorter. The battery is broken. Contact our customer service. Charge the appliance for a full day and try again. We also recommend that you regularly allow the battery to drain and recharge it fully. The operating life of the appliance will be longer on at surfaces than on carpets. ENVIRONMENTAL GUIDELINES This symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it must be brought to the applicable collection point for recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city oce, your household waste disposal service or the shop where you purchased the product. The packaging is recyclable. Please treat the packaging ecologically. NON-REMOVABLE BATTERY The appliance is battery-operated, and the battery must not be disposed of with household waste, even after use. You can take the appliance to a collection point for discarded electrical appliances (Recupel) in your neighbourhood (container park, specialist shop, etc.). Batteries contain substances that are dangerous to human health and to the environment.44 DO1103SV
