W482CAD-E - Surveillance Camera Lorex - Free user manual and instructions

Product Type	2K Wi-Fi Surveillance Camera
Brand	Lorex
Model	W482CAD-E
Video Resolution	2K (2560 x 1440 pixels)
Connectivity	Dual-band Wi-Fi 2.4 GHz / 5 GHz
Power Supply	USB 5V power adapter (included), 2.8 m USB power cable
Night Vision	Yes, with mechanical IR filter (range not specified)
Audio	Built-in microphone and speaker, two-way audio (Talk)
Motion Detection	Yes, with person detection; optimal distance 1.5 to 15 m
Local Storage	Pre-inserted microSD card (capacity not specified)
Mobile App	Lorex Home (iOS and Android)
Advanced Features	Built-in siren, spotlight, privacy mode, snapshot, recording
Dimensions (wall mount)	78 mm (H) x 78 mm (W) x 128 mm (D)
Dimensions (ceiling mount)	107 mm (H) x 78 mm (W) x 132 mm (D)
Weight	Approximately 200 g (not specified)
Mounting	Wall or ceiling, brackets included (wall plate, ceiling/table stand)
Package Contents	Camera, adapter, 3 m extension cable, brackets, screws, anchors, template, key, microSD card
Operating Temperature	Estimated: -20°C to 40°C (not specified in manual)
Protection Rating	Not specified; recommended sheltered installation
Certifications	FCC Part 15, UL/CSA (power adapter)
Warranty	Limited warranty (see Lorex website)
Manual Languages	French, English, Spanish

Frequently Asked Questions - W482CAD-E Lorex

How to set up the Lorex W482CAD-E camera?

Connect the power to the camera using the provided adapter. Wait for the status indicator to blink green and the chime to sound. Download the Lorex Home app, create an account or log in, then tap + in the app and follow the instructions.

What to do if the status indicator blinks green?

A green blink means the camera is ready to connect to the network. If already configured, it may indicate a loss of connection. Check your Wi-Fi router and move the camera closer if necessary.

How to mount the camera on the wall?

Use the mounting template to drill two 6 mm (15/64 in) holes above the triangle symbols. Attach the mounting plate with the provided screws, then clip the wall bracket onto the plate. Screw the camera onto the bracket using the threaded insert and adjust the angle.

How to mount the camera on the ceiling?

Use the template to drill four 6 mm holes. Remove the caps from the ceiling/table stand. Screw the camera onto the stand, then attach the stand to the ceiling with the provided screws. Use the adjustment ring to orient the camera.

How to optimize motion detection?

Place the camera at a height of 2.5 to 5 m (8 to 16 ft), angled downward 30° to 60°. Detection is optimal for objects between 1.5 and 15 m (5 to 50 ft). Avoid obstacles and interference sources.

What to do if I don't hear the chime during setup?

Make sure the power adapter is properly connected and the camera is powered on. If the light does not blink green, perform a reset by pressing and holding the pairing/reset button for about 10 seconds.

How to reset the camera to factory settings?

Locate the pairing/reset button on the bottom of the camera. Hold it down until the status indicator blinks red, then release. The camera will restart and be ready for a new setup.

Is audio recording legal with this camera?

Audio recording without consent is illegal in some jurisdictions. Lorex disclaims any liability for use that does not comply with local laws. Check the laws in your country before using the audio function.

Can I use a higher capacity microSD card?

The manual does not specify the maximum supported capacity. The camera comes with a pre-inserted microSD card. For higher capacity, check the Lorex website or test a reputable brand card, but ensure compatibility (FAT32/exFAT format recommended).

How to flip the camera image if mounted on the ceiling?

After mounting the camera on the ceiling, open the Lorex Home app, go to camera settings, then enable the Image Rotation option to correct the image.

USER MANUAL W482CAD-E Lorex

Thank you for your purchase!

How to get started with your 2K Wi-Fi Camera

Safety precautions

• Read this guide carefully and keep it for future reference.
• Follow all instructions for safe use and handling of the product.
• Operate the camera within the specified temperature, humidity and voltage and use manufacturer approved accessories.
• Do not disassemble the camera.
• Do not point the camera directly at the sun or a source of intense light.
  • Periodic cleaning may be required. Use a damp cloth only. Do not use any harsh, chemical-based cleaners.

Disclaimers

• A regulated UL / CSA approved power supply is required for use with this camera (included).
  Use of a non-regulated, non-conforming power supply can damage this product and voids the warranty.
• Not intended for submersion in water. Installation in a sheltered location recommended.
• Audio recording without consent is illegal in certain jurisdictions. Lorex Corporation assumes no liability for use of its products that does not conform with local laws.
• This camera includes an Auto Mechanical IR Cut Filter. When the camera changes between Day/Night viewing modes, an audible clicking noise may be heard from the camera. This clicking is normal, and indicates that the camera filter is working.
• Some channels on the 5GHz Wi-Fi band are restricted in Canada. This means certain Wi-Fi networks may not be available to connect to during setup.

Contents

Section 1 Package Contents & Dimensions

2 Overview
3 Status Indicator
4 Camera Setup
5 App Live View
6 Camera Placement
7 Optimize Motion Detection
8 Wall Mounting
9 Ceiling Mounting

1 Package contents

2K Wi-Fi Camera (x1)

Power Adapter (x1)

9.8 ft (3m) Weatherproof Extension Cable (x1)

Wall Mounting Bracket (x1)

Ceiling/Table Mounting Bracket (x1)

Pre-inserted Memory Card (x1)

Mounting Template (x1)

Mounting Plate (x1)

Anchors (x8) Screws (x8)

Wrench (x1)

Cable Clips (x4)
Note: The following contents is based on 1 camera

Dimensions

Camera with Wall Mount

• Height: 3.1" (78mm)
- Width: 3.1" (78mm)
• Length: 5.0" (128mm)

Camera with Ceiling Mount

• Height: 4.2" (107mm)
- Width: 3.1" (78mm)
• Length: 5.2" (132mm)

2 Overview

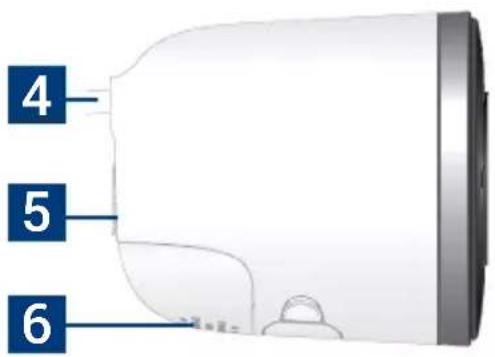

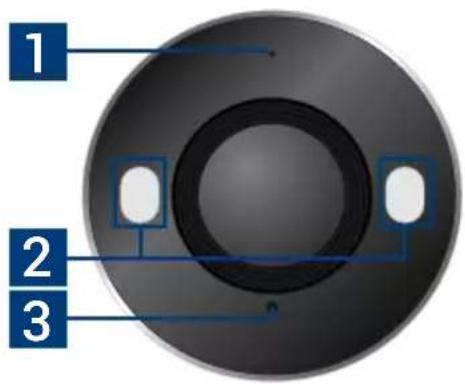

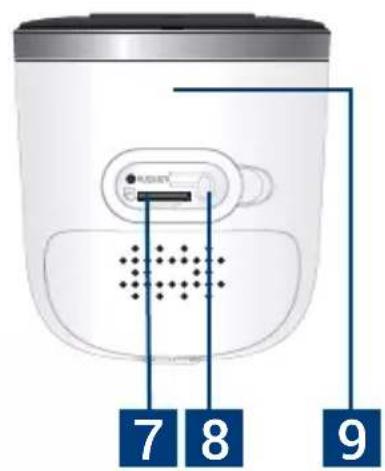

FRONT SIDE BOTTOM

1 2 3

4 5 6

7 8 9

1. Microphone
2. Warning light

3. Status indicator

4. 9.2ft (2.8m) USB power cord

5. Threaded insert (for mounting)

6. Speaker

7. MicroSD slot (card included)

8. Pairing / reset button
9. QR code

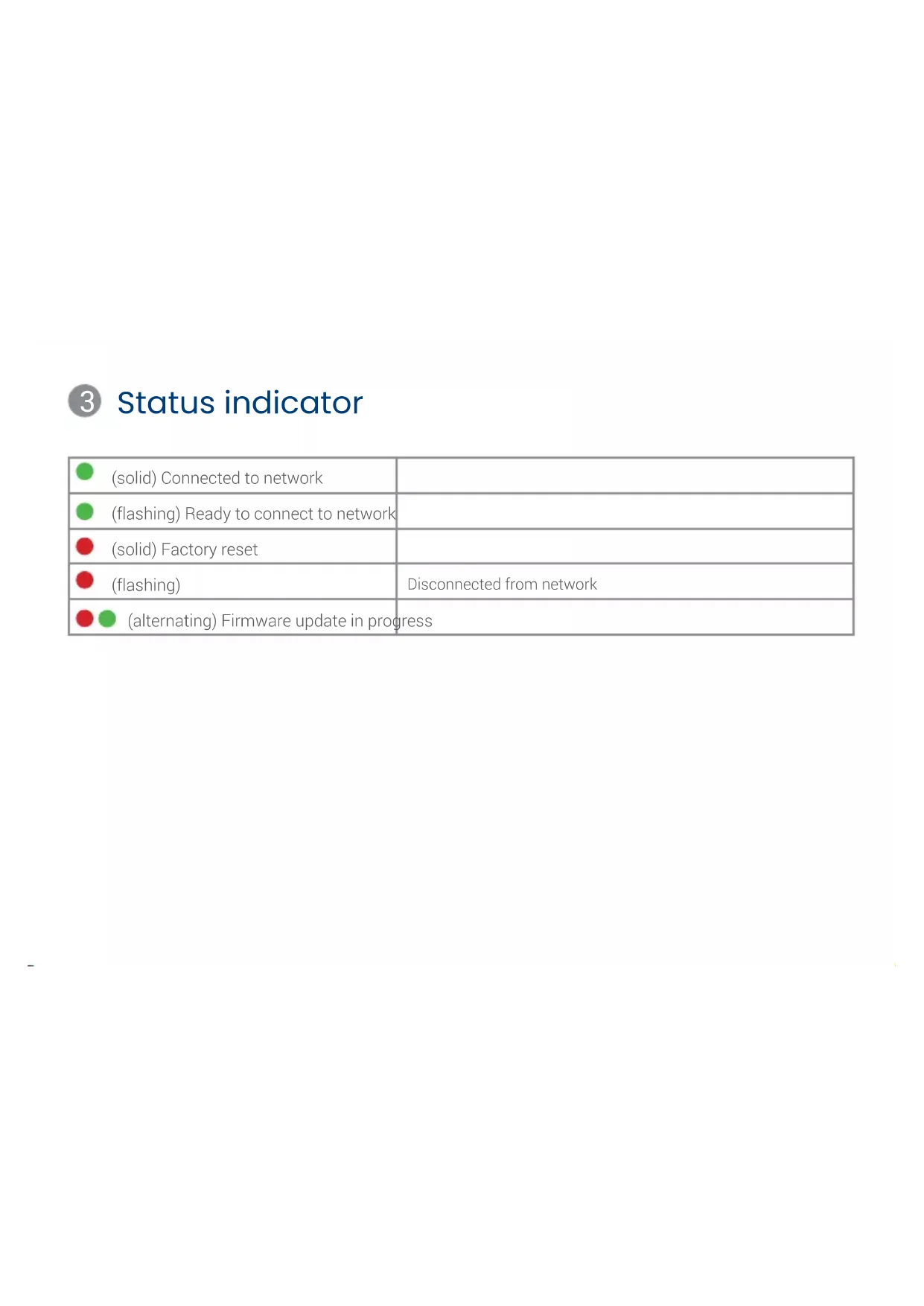

Status indicator

(solid) Connected to network
(flashing) Ready to connect to network
(solid) Factory reset
(flashing)	Disconnected from network
(alternating) Firmware update in progress

4 Camera setup

1. Connect power to the camera with the provided power adapter. When you hear the chime and the status indicator is flashing green, the device is ready for setup.
   Optional: Connect the weatherproof extension cable to the camera's cable.
2. Download the Lorex Home app by scanning the QR code.
3. Open the Lorex Home app, and sign in or create an account.
4. Tap + in the app, then follow the in-app instructions to complete the device setup.

Pure electrical circuit lines without any symbols

Devices + Tap to add your first device

Ensure you update to the latest app and camera firmware version.

5 App Live View

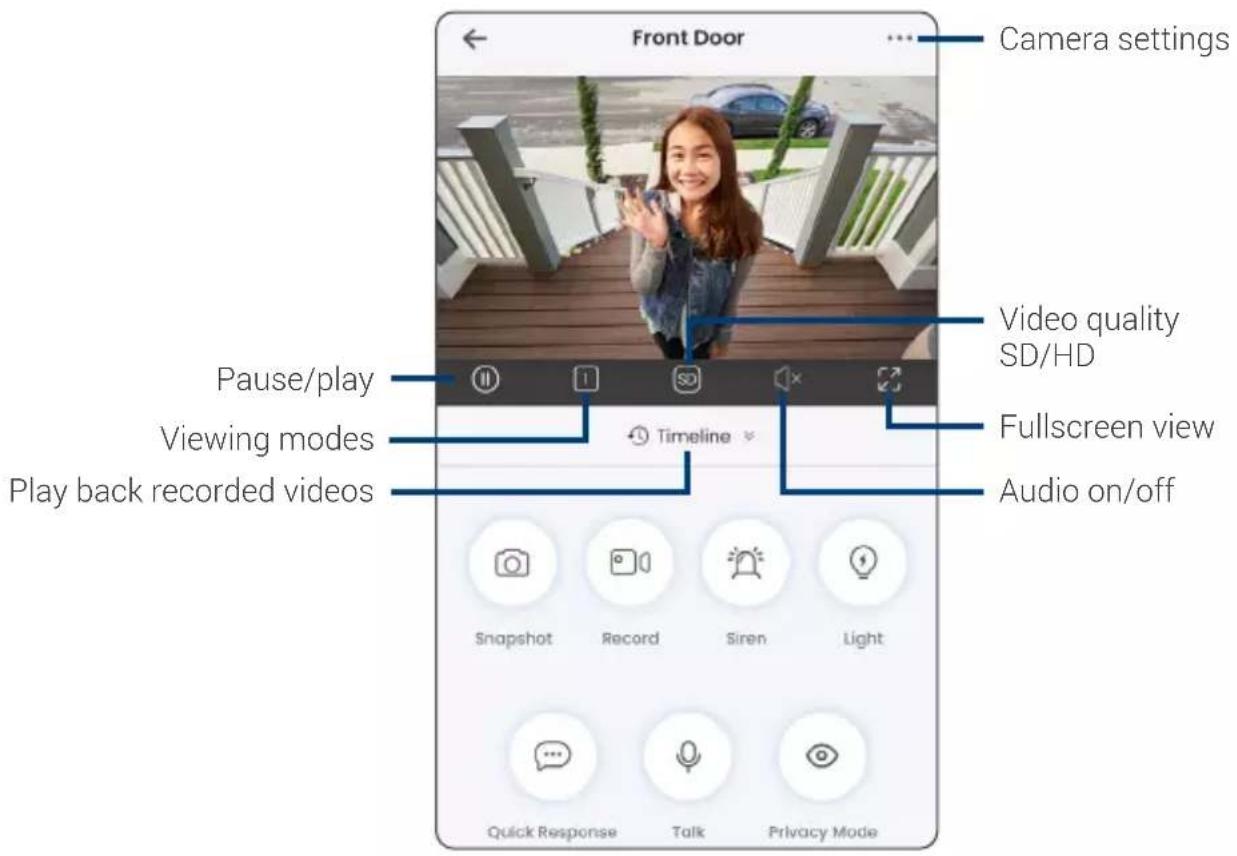

Front Door Camera settings Video quality SD/HD Fullscreen view Audio on/off Pause/play Viewing modes Play back recorded videos Timeline Snapshot Record Siren Light Quick Response Talk Privacy Mode

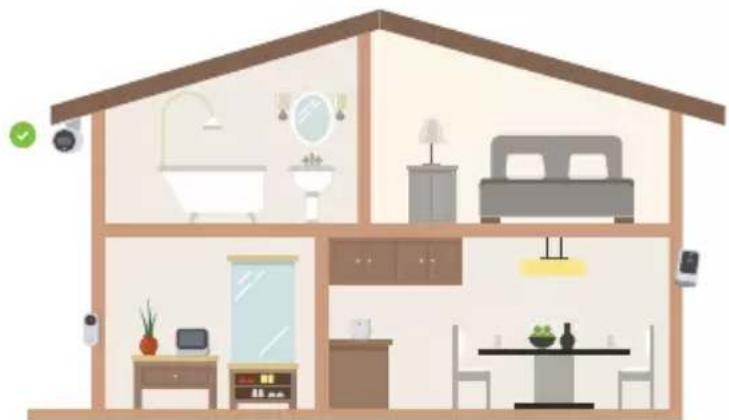

6 Camera Placement

- Place the camera close to your Wi-Fi router as possible.

- Reduce the number of obstructive materials between the camera and the router or access point. Concrete, brick, metal and wood are the most common materials in your house that can cause poor signal strength.

- Other electronic devices such as microwaves, TVs, cordless phones, and baby monitors can cause signal interference. It is recommended to install the camera as far away from these devices as possible.

Illustration of a single home with living room and furniture layout (no text or symbols)

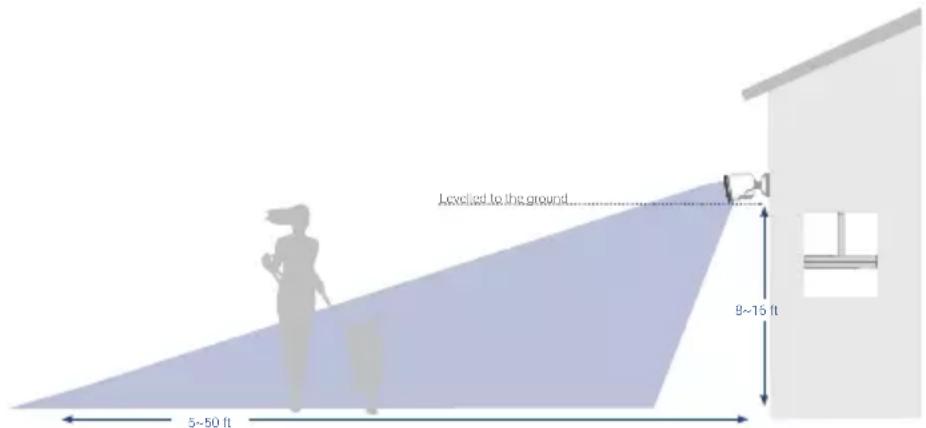

7 Optimize Motion Detection

Distance Optimal accuracy for objects within 5ft to 50ft (1.5\~15m).

Angle Angle the camera around 30^-60^ down from the level position.

Height Install the camera between 8-16ft (2.5\~5m) off of the ground.

Levelled to the ground 8~15 ft 5~50 ft

Note: Accuracy of person detection will be influenced by multiple factors, such as the person's distance from the camera, the height of the person, and the height and angle of the camera. Night vision will also impact the accuracy and distance of detection.

8 Wall Mounting

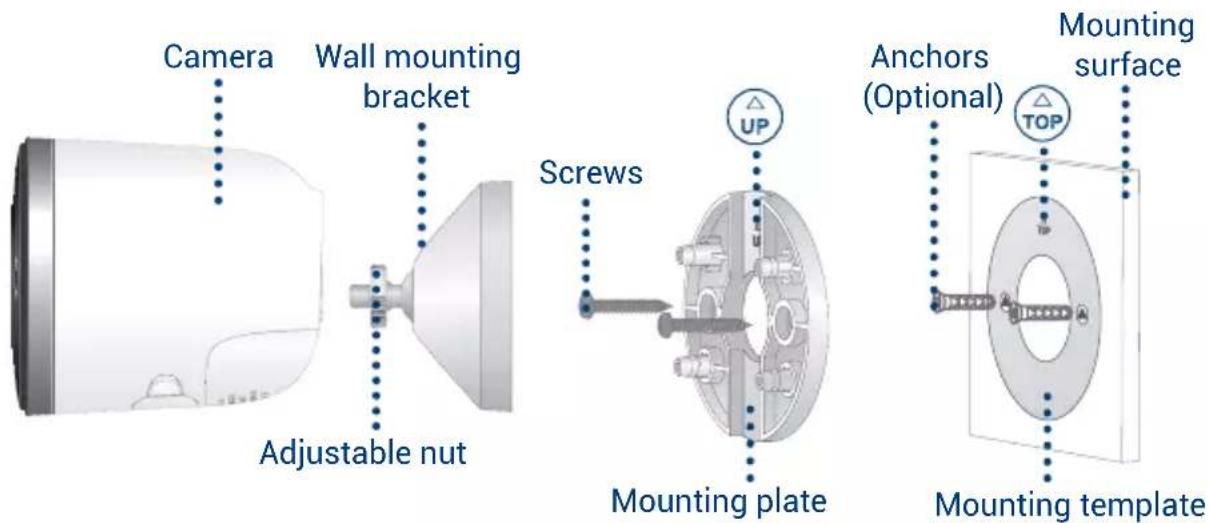

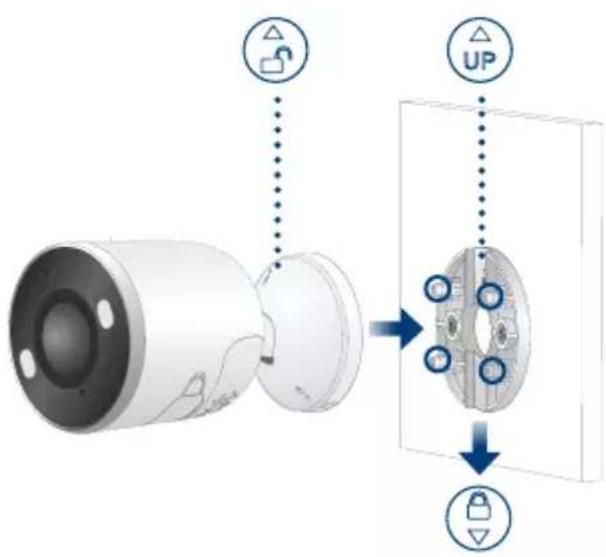

Camera Wall mounting bracket Adjustable nut Screws UP Mounting plate Anchors (Optional) TOP Mounting surface Mounting template

To wall mount the camera:

1. Place the mounting template onto the desired location.

Note: Ensure an outlet is nearby, and keep in mind the cable lengths.

1. Using a 15/64" (6mm) drill bit, drill 2 holes over the triangle symbols on the template.

Optional: Drill 15/64" (6mm) holes for the anchors.

1. Align the arrows of the mounting plate and template. Using a screwdriver and the provided screws, secure the mounting plate to the surface.
2. Align the arrows between the wall mounting bracket and plate. Push the bracket in to install, then slide down to lock in place. You will hear a 'click' when the bracket is installed.
3. Attach the camera to the mounting bracket using the threaded insert at the rear of the camera. Rotate the camera clockwise until attached, then tighten into place with the adjustable nut.
4. Adjust the camera to the desired angle.

Note: If the camera is not holding in place or difficult to adjust, unplug the camera and slide the bracket up to detach from the mounting plate. Tighten or loosen the 3 screws at the back of the mounting bracket to adjust accordingly. Repeat steps 4-6 to re-install.

Diagram illustrating the process of inserting a device into a housing, with labeled parts and directional arrows.

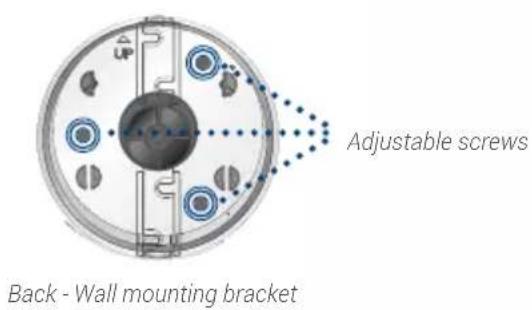

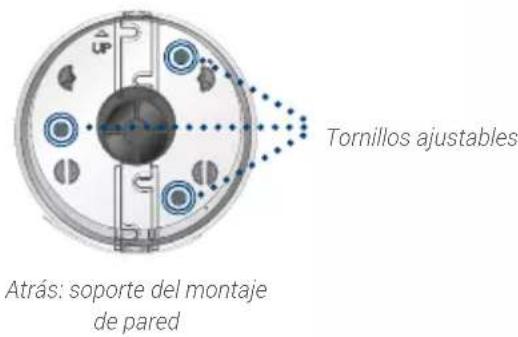

Adjustable screws Back - Wall mounting bracket

9 Ceiling Mounting

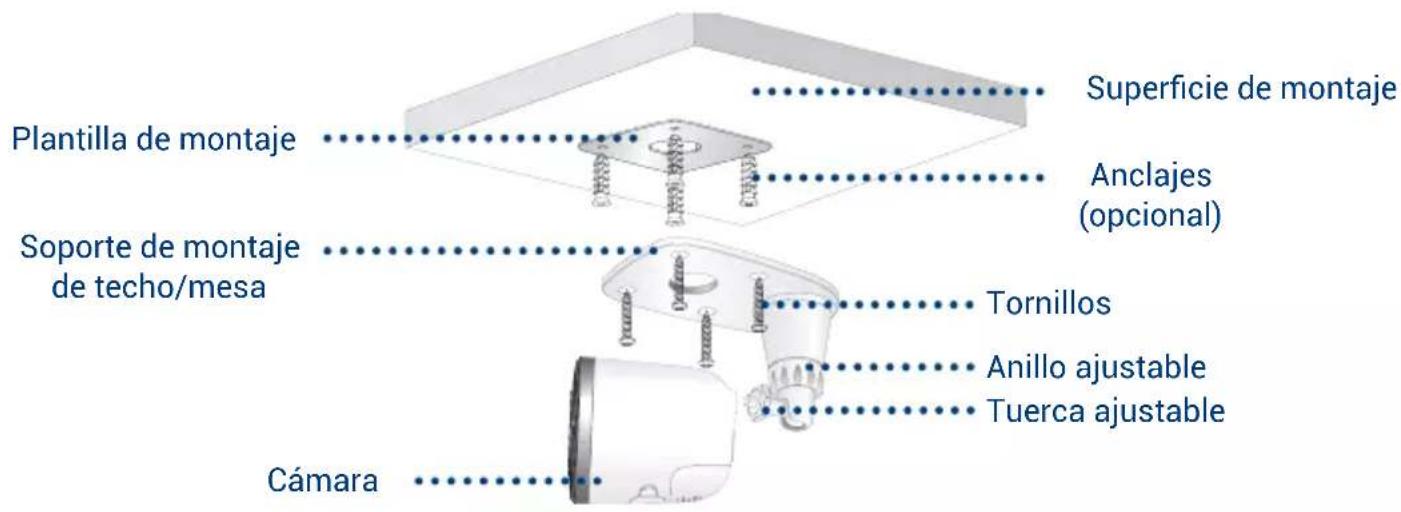

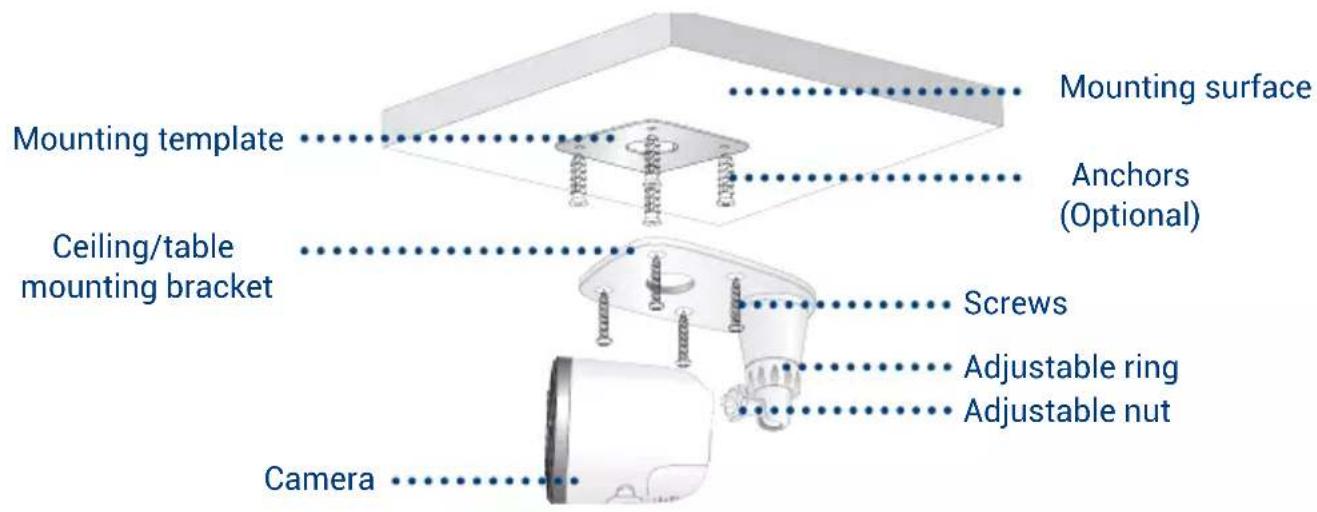

Mounting template Ceiling/table mounting bracket Camera Mounting surface Anchors (Optional) Screws Adjustable ring Adjustable nut

To ceiling mount the camera:

1. Place the mounting template onto the desired location.
   Note: Ensure an outlet is nearby, and keep in mind the cable lengths.

2. Using a 15/64" (6mm) drill bit, drill 4 holes over the X symbols on the template.
   Optional: Drill 15/64" (6mm) holes for the anchors.

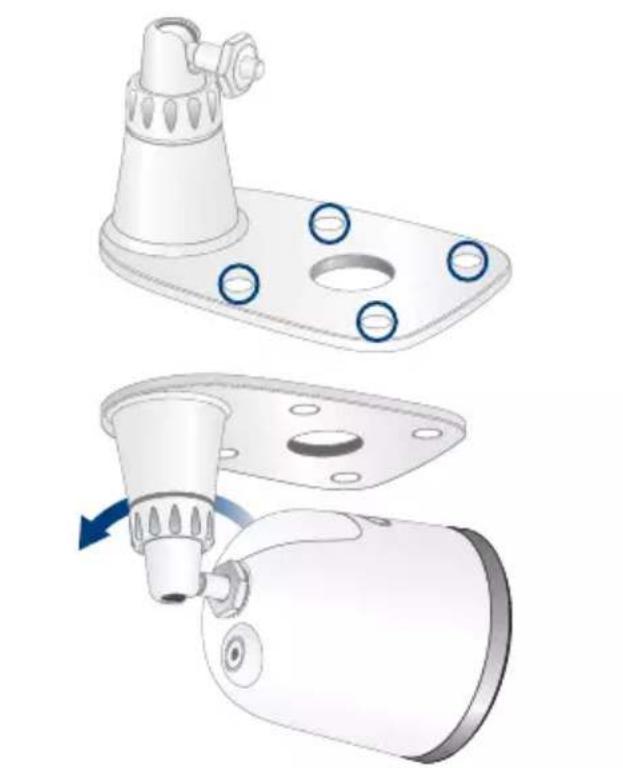

3. Remove the 4 pre-inserted plugs from the ceiling/table mounting bracket.

4. Attach the camera to the ceiling/table mounting bracket using the threaded insert at the rear of the camera. Rotate the camera clockwise until attached, then use the wrench to tighten the adjustable nut in place.
5. Place the bracket over the drilled holes. Using a screwdriver and the provided screws, secure the bracket to the surface.
6. Rotate the adjustable ring counter-clockwise to loosen and adjust the camera to the desired position, then tighten to secure.

Optional:

• Feed the camera cable through the hole at the base of the bracket or the mounting surface.
• Open the camera's settings in the app and enable Image Rotation to flip the camera image.

Technical illustration of a mechanical component with two views showing assembly steps (no text or symbols)

Image Rotation

Need help?

Visit help.lorex.com for up-to-date information and resources:

• Download product guides
• Watch how-to-videos
  • Find related troubleshooting tips & FAQs

Register your product

Please see our full Terms of Service and Limited Hardware Warranty Policy visit, lorex.com/warranty.

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.

Copyright © 2021 Lorex Corporation

As our products are subject to continuous improvement, Lorex reserves the right to modify product design, specifications and prices, without notice and without incurring any obligation. E&OE. All rights reserved.

W482CAD_QSG_TRILINGUAL_R1
