USER MANUAL Comète 40TH TRIANGLE

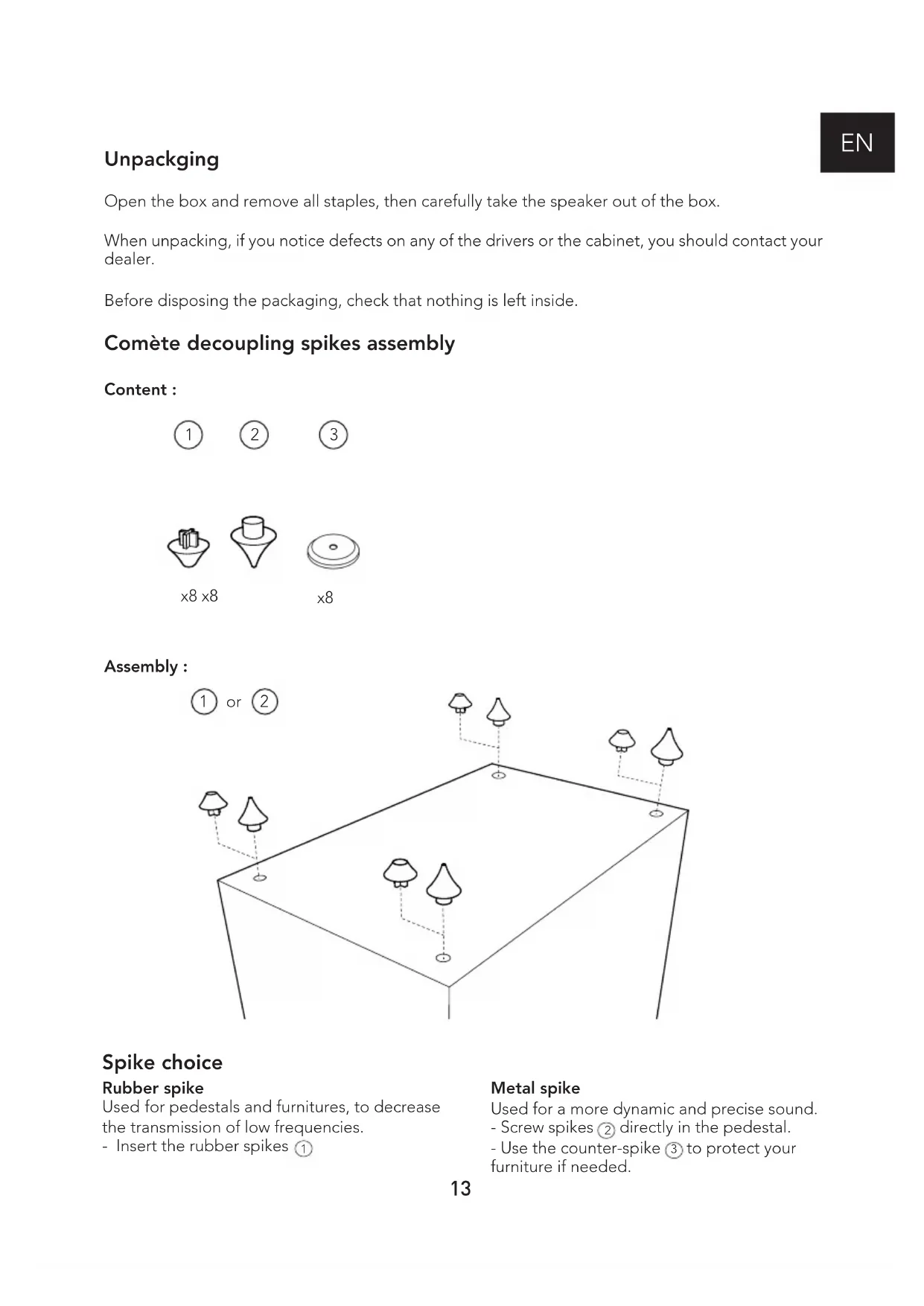

Unpackging Open the box and remove all staples, then carefully take the speaker out of the box. When unpacking, if you notice defects on any of the drivers or the cabinet, you should contact your dealer. Before disposing the packaging, check that nothing is left inside. Comète decoupling spikes assembly Content : Assembly :

Spike choice Metal spike Used for a more dynamic and precise sound. - Screw spikes directly in the pedestal. - Use the counter-spike to protect your furniture if needed. Rubber spike Used for pedestals and furnitures, to decrease the transmission of low frequencies. - Insert the rubber spikes

anniversary stand for optimal ear level position. For more stability, you can fasten the speaker to the stand with the supplied screws. (* These screws are supplied with the stand)

sure to put it on non-abrasive surface).

2- Fasten the pedestal on the loudspeaker by

using the supplied washers , screws and Allen key .

Metal spike Used for a more dynamic and precise sound. - Screw the metal spikes . - Use the counter-spike to protect your furniture if needed. Rubber spike Used for wooden oor or tiles, to decrease the transmission of low frequency to the oor - Insert the rubber spikes .

Connections For optimal sound reproduction, we suggest that you choose a loudspeaker cable of high quality to connect your amplier to your TRIANGLE loudspeakers. You should use cables of the same lengh for the left and right channels and take special care to respect the + and - polarity for each channel. Don’t forget to strip the cables if it’s necessary.

BI-AMPLIFICATION AND BI-WIRING

For those wishing to improve their listening system further, it is possible to use bi-amplication or bi-wiring. With bi-amplication, interference between the woofers and other drivers is totally eliminated, as each one is driven by its own amplier. It is compulsory to use identical ampliers to conserve the uniformity of the loudspeaker. To do this, remove the terminal jumpers and use two stereo ampliers. On the speakers, the upper terminals are the signal inputs for midrange and treble. The lower terminals are the signal inputs for bass. Use one amplier to feed the bass, and the second for the midrange and treble (see the next page diagram). Instead of two ampliers, you can use a single amplier if it is equipped with zones 1 and 2. Both zones should be selected. You need to remove the terminal jumpers for bi-wiring. To get the most out of you loudspeakers, we advise you to get a good quality amplier. You do not have to choose your amplier power by checking your loudspeaker power handling. It is better to have a powerful amplier that you will be using in its lower range of power than a «small» amplier that will be pushed to its limits. Distorded sound from an amplier is bad for your loudspeakers. As soon as you hear distorded sound you should lower the volume on your amplier. Stay reasonable when using your loudspeaker at high power, they are not made for sound reinforcement system at large concert venue. For further informations concerning your system, please consult our website : http://trianglehi.com/

Bi-amplication Bi-wiring17

Bi-wiring Bi-amplication

Positioning for stereo When positioning your loudspeakers, apply the following rules : - Avoid rooms with too much reverberation, such as tiled rooms without carpets or curtains. - Your listening position should not be too close to the loudspeakers, leave a minimum of 2 m. - The distance between the speakers should be a minimum of 2 m for a good stereo effect. - If possible, place the speakers so that sound is «diffused» lenghwise within the room. - Avoid placing the speaker in corners; they should be at least at 40 cm away from the back wall and at least 50 cm from the sidewalls. Generally, a position close to the rear wall increase the response in the low frequencies (and reduce the imaging) and contrariwise, a position far from the back wall reproduces a wide and deep sound image. Carry out several test positions to nd the best room set-up. >0.5m >0.5m >0.4m >2m >2m19

Positioning for home-cinema A typical home-cinema installation includes : 1 Two main speakers, left and right 2 A center speaker 3 One or several subwoofers 4 Surround speakers (5.1 signal : 2 rear speakers, 6.1 signal : 3 rear speakers, 7.1 signal : 4 rear speakers) To place the main speakers in the best position, follow the same rules as for a stereo installation (see previous page on stereo positioning). - The center speaker should be placed along the line formed by the two main speakers. - For home-cinema setups a subwoofer is highly recommended in order to reproduce the special bass effects channel featured on supports such as DVD, Blu-Ray, streaming services and digital TV broadcast. The positioning of the subwoofer is not critical if you select a crossover frequency below 80 Hz. Above this frequency, it is better to move the subwoofer closer to the main speakers. The best position being in between the two main speakers. Ensure that it is not placed in the corner of the room to avoid creating unpleasant resonances. - We recommend that you place the rear speakers at between 1.5 and 2 m of height. Their role is to reproduce surround sound. Ensure that you take into account the weight of the speaker when xing it onto the wall. You will nd further instructions for conguring your installation in your A/V amplier owner’s manual.
