Product type	Floorstanding speaker (loudspeaker)
Brand	Triangle
Model	Celius 902
Category	Loudspeaker
Acoustic configuration	2-way (bass, midrange/treble)
Nominal impedance	8 ohms (estimated)
Dimensions (W × H × D)	220 × 980 × 300 mm
Weight	20 kg
Finish	Wood veneer (MDF cabinet)
Supplied accessories	Base, 4 fixing screws, 4 decoupling spikes, 1 tightening key, 4 rubber pads, user manual
Special features	Bi-wiring and bi-amping possible (4-terminal binding post)
Stereo placement	Minimum 2 m between speakers; minimum 2 m from listening area; floorstanding: at least 40 cm from back wall
Home theater placement	Center channel on the line of the main speakers; subwoofer recommended; surround channels at 1.5-2 m height
Maintenance and cleaning	Soft, dry, lint-free cloth
Safety	Do not use near water; do not block vents; avoid heat sources; unplug during thunderstorms
Warranty	2 years after online registration or by coupon
Warranty exclusions	Burnt voice coil, professional use, humidity, torn diaphragm, impacts, unauthorized intervention

Frequently Asked Questions - Celius 902 TRIANGLE

How to assemble the base of the Celius 902 speaker?

Place the speaker on its top face (on a non-abrasive surface). Screw the base using the provided key. Choose the spikes according to the floor type: screwable metal spikes for carpet/rug, rubber pads for hard floor.

How to connect the speaker and what is bi-wiring?

Use cables of sufficient cross-section and equal length for the right and left channels. Respect the + and - polarities. For bi-wiring, remove the link cables from the binding post and connect one amplifier to the bass terminals (low) and another to the midrange/treble terminals (high). For bi-amping, use two identical amplifiers.

What is the recommended distance between speakers for stereo listening?

The distance between speakers must be at least 2 meters to ensure a good stereo effect. The listening area must also be at least 2 meters from the speakers.

How to clean the speaker?

Use only a soft, dry, lint-free cloth. Never use liquid or abrasive products.

What are the warranty conditions of the speaker?

The warranty is 2 years from the date of purchase, after online registration or by coupon. It covers manufacturing defects. Excluded: burnt voice coil, professional use, damage due to humidity, torn diaphragm, impacts, unauthorized intervention.

How to register my product for the warranty?

You can register online at http://register.trianglehifi.com/ or return the completed warranty coupon to: TRIANGLE DISTRIBUTION FRANCE, 44 rue Barreyre - CS 40099, 33300 Bordeaux Cedex FRANCE.

Can I use decoupling spikes on carpet?

Yes, for soft surfaces like carpet or rug, use the screwable metal spikes provided. For hard floors, prefer the rubber pads.

What to do in case of malfunction or damage?

Contact your authorized TRIANGLE dealer or a qualified person. Do not attempt to repair the device yourself. Damage caused by unauthorized intervention is not covered by the warranty.

What amplifier power is recommended for this speaker?

The manual does not specify an exact power. It is recommended to use an amplifier of sufficient power to listen at high volume without clipping. Excessive power can burn the voice coil (excluded from warranty).

How to place the speakers for a home theater?

Place the main speakers as in stereo. The center channel must be aligned with the mains. The subwoofer can be placed between the main speakers. The surround channels should be installed at 1.5-2 meters height.

USER MANUAL Celius 902 TRIANGLE

MANUFACTURE ELECTROACOUSTIQUE

902

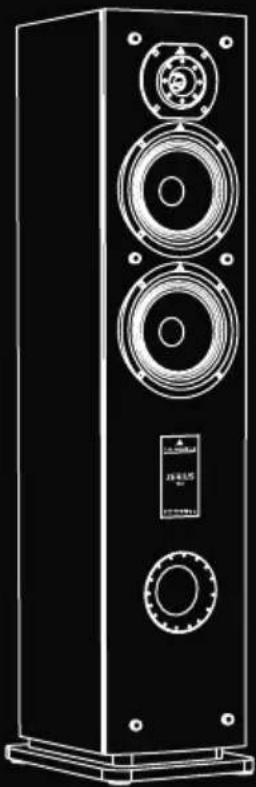

Line drawing of a multi-tiered speaker tower with visible speakers and control knobs (no text or symbols)

Mode d'emploi & Garantie Owner's manual & Warranty

INSTRUCTIONS DE SÉCURITÉ

WARNING : Read carefully all the safety instructions before using the device.

• Keep these safety instructions for future references.
  ▶Do not use this apparatus near water or liquid.
  ▶Only clean with a dry and soft cloth.
  ▶Do not block any aperture (vents) of the device.

▶ Do not install near any heat sources such as radiators, stoves, or any other apparatus (including amplifiers) that produce heat.

▶Only use accessories specified by the manufacturer.

- Be sure that the stand/table/furniture is strong enough to support the apparatus. - Protect the power cord from being walked on or pinched particularly at the plugs and also protect the connector where it exit from the apparatus.

▶ Unplug the apparatus during lightning storms or when it's unused for long periods of time.

The plug of the apparatus must fit with the outlet. Never modify the plug in any way. Apparatus should be connected to a mains socket outlet with protective earthing connection.

▶ Refer to your authorized TRIANGLE dealer or qualified service personnel if the apparatus is damaged in any way, such as power supply cord or plug is damaged, liquid has been spilled or objects have fallen on the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

www.trianglehifi.com

support.trianglehifi.com

SUPPORT & FAQ

facebook.com/triangle.electroacoustique

twitter.com/trianglehifi

SOMMAIRE / SUMMARY

GARANTIE / WARRANTY 4

MODE D'EMPLOI - FRANÇAIS 7

▶Unpacking 16
▶Assembly 16
▶Connecting 18
▶Stereo positionning 20
▶Home Cinema positionning 21

INFORMATIONS TECHNIQUES / TECHNICAL INFORMATIONS

22

GARANTIE / WARRANTY

Thanks for buying a TRIANGLE product.

We want you to enjoy your purchase to the fullest. The first step is an easy registration of your products. By doing this, you will benefit from helpful tips, products support, special offers and 2 years warranty.

1- Online registration

Register your product easily online at the following address : http://register.trianglehifi.com/

2- Warranty card

You can also register your product and validate your warranty by filling the warranty card and sending it to :

TRIANGLE DISTRIBUTION FRANCE

44 rue Barreyre - CS 40099

33300 Bordeaux Cedex FRANCE

Note on the warranty

Your TRIANGLE loudspeakers are warranted for 2 years. This warranty takes effect from the date of purchase and covers any manufacturing defect or damage your loudspeakers could suffer as a result of these same defects. This warranty is granted solely to the first owner of the product, and is not transmittable in the case of resale. To validate your warranty, you will need to register online or mail the warranty coupon to TRIANGLE. Please note, this warranty is voided if any fault arises from ill-treatment or careless handling of the product.

The following are not guaranteed :

▶A burned voice-coil caused by overloading the driver
▶Any fault occurring from professional usage (public sound systems, PA systems, etc.)
▶Any fault resulting from storage in areas of high humidity
▶A pierced or torn membrane
▶A torn suspension
▶Any fault resulting from a mechanical shock (ex if dropped or handled roughly)
▶Any fault arising from servicing by anyone other than an authorized TRIANGLE service technician
▶ Damaged cabinets due to mishandling

Technical line drawings of mechanical components including a bolt, plate, and base plate (no text or symbols)

Line drawing of a tall speaker tower with three circular cutouts and a rectangular panel on top (no text or symbols)

Technical line drawing of a mechanical assembly with two views (top and bottom) showing mounting holes and supporting bolts (no text or symbols)

Simple line drawing of a square table with four legs and a central support (no text or symbols)

Surfaces rigides (parquet, carrelage) : plots caoutchouc adhésifs

Simple line drawing of a rectangular table with three legs and a central knob (no text or symbols)

Line drawing of a tall speaker tower with three circular cutouts and a rectangular panel on top (no text or symbols)

Simple line drawing of a 3D cube with four corner holes and vertical supports (no text or symbols)

Surfaces rigides (parquet, carrelage) : plots caoutchouc adhésifs

Simple line drawing of a 3D cube with four small circular components on top (no text or symbols)

>0.4m >0.5m >0.5m >2m >2m

PLACEMENT POUR LE HOME CINEMA

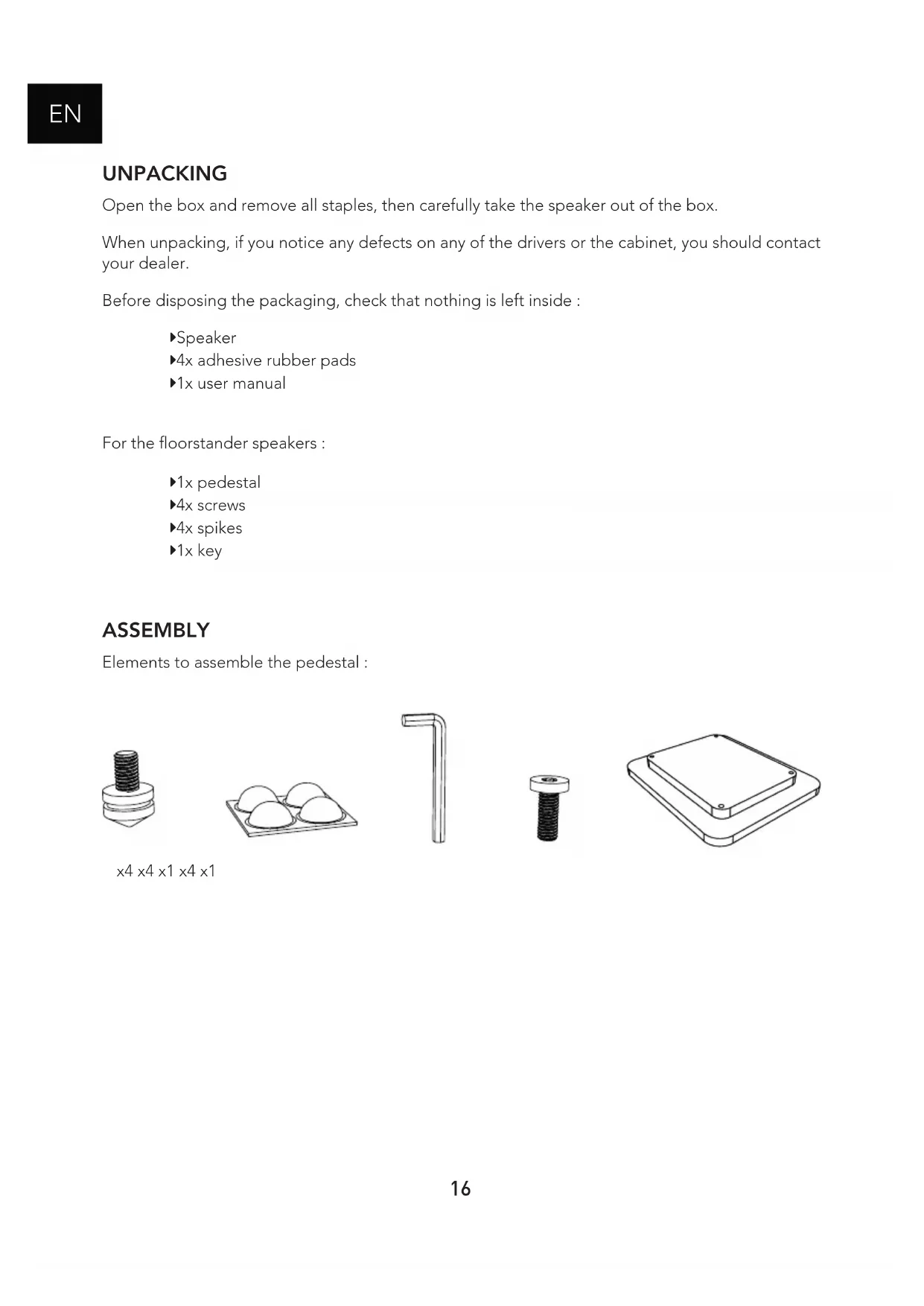

Open the box and remove all staples, then carefully take the speaker out of the box.

When unpacking, if you notice any defects on any of the drivers or the cabinet, you should contact your dealer.

Before disposing the packaging, check that nothing is left inside :

▶Speaker
▶4x adhesive rubber pads
▶1x user manual

For the floorstander speakers :

▶1x pedestal
▶4x screws
▶4x spikes
▶1x key

ASSEMBLY

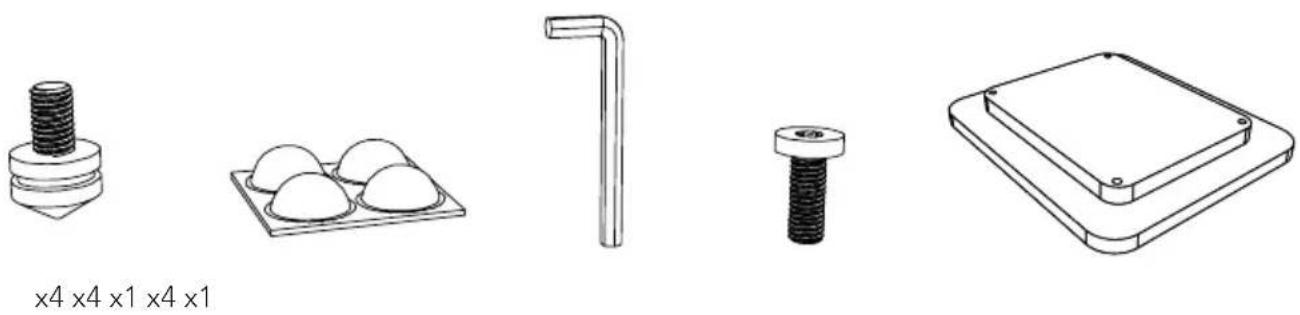

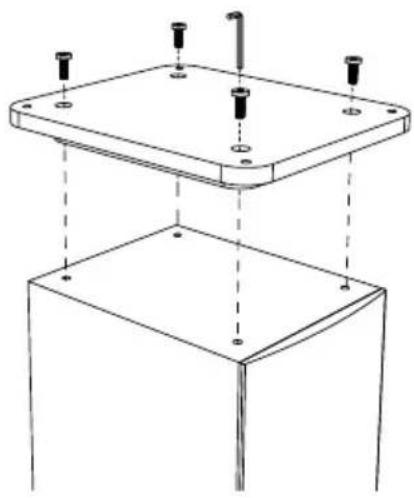

Elements to assemble the pedestal :

Technical line drawings of mechanical components including a bolt, plate, and base plate (no text or symbols)

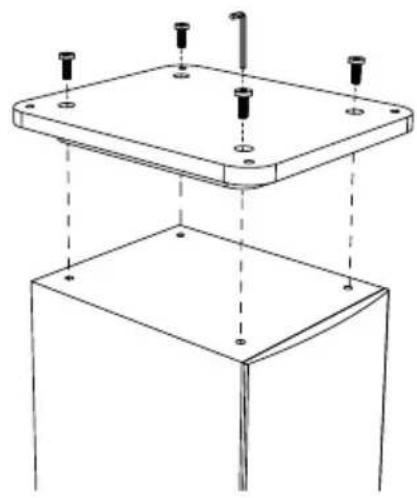

Pedestal and spikes assembly

Line drawing of a tall speaker tower with three circular cutouts and a rectangular panel (no text or symbols)

Technical line drawing of a mechanical assembly with two views (top and bottom) showing mounting holes and supporting bolts (no text or symbols)

Simple line drawing of a square table with four legs and a central base (no text or symbols)

Rigid ground (wood floor) : adhesive rubber pads

Simple line drawing of a rectangular table with three small protrusions and a central rod (no text or symbols)

Soft ground (carpet, rug) : metal spikes screwed

123 Place your loudspeaker on the upper face (be sure to place it on a non-abrasive surface).

○ Screw the pedestal using the supplied key.

○ Choose spikes according to your ground.

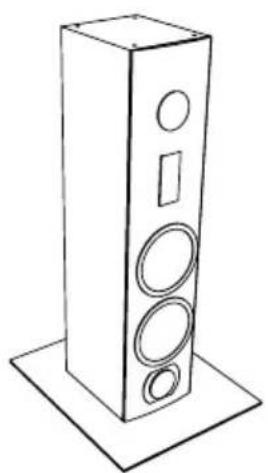

Spike assembly without pedestal

Line drawing of a tall speaker tower with three circular cutouts and a rectangular panel (no text or symbols)

Simple line drawing of a 3D cube with four corner holes (no text or symbols)

Rigid ground (wood floor) : adhesive rubber pads

Simple line drawing of a cube with four small circular components on top (no text or symbols)

Soft ground (carpet, rug) : metal spikes screwed

1 Place your loudspeaker on the upper face (be sure to place it on a non-abrasive surface).

② Choose spikes according to your ground.

CONNECTIONS

For optimal sound reproduction, we suggest that you choose a loudspeaker cable of high quality to connect your amplifier to your TRIANGLE loudspeakers. You should use cables of the same length for the left and right channels and take special care to respect the + and - polarity for each channel. Don't forget to strip the cables if it's necessary.

Bi-amplification and bi-wiring

For those wishing to improve their listening system further, it is possible to use bi-amplification or bi-wiring.

A

With bi-amplification, interference between the woofers and other drivers is totally eliminated, as each one is driven by its own amplifier. It is compulsory to use identical amplifiers to conserve the uniformity of the loudspeakers.

To do this, remove the terminal jumpers and use two stereo amplifiers. On the speakers, the upper terminals are the signal inputs for midrange and treble. The lower terminals are the signal inputs for bass. Use one amplifier to feed the bass, and the second for the midrange and treble (see the diagram on the next page).

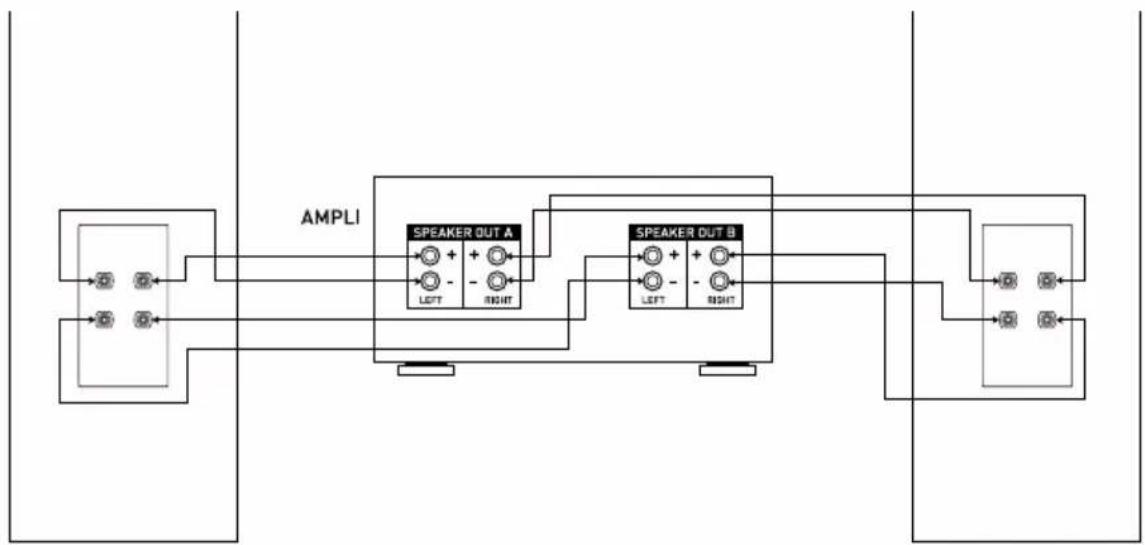

B

Instead of two amplifiers, you can use a single amplifier if it is equipped with two sets of speakers A and B. Both sets should be selected. This is bi-wiring and not bi-amplification.

For further informations concerning your system, please consult our website :

http://trianglehifi.com/

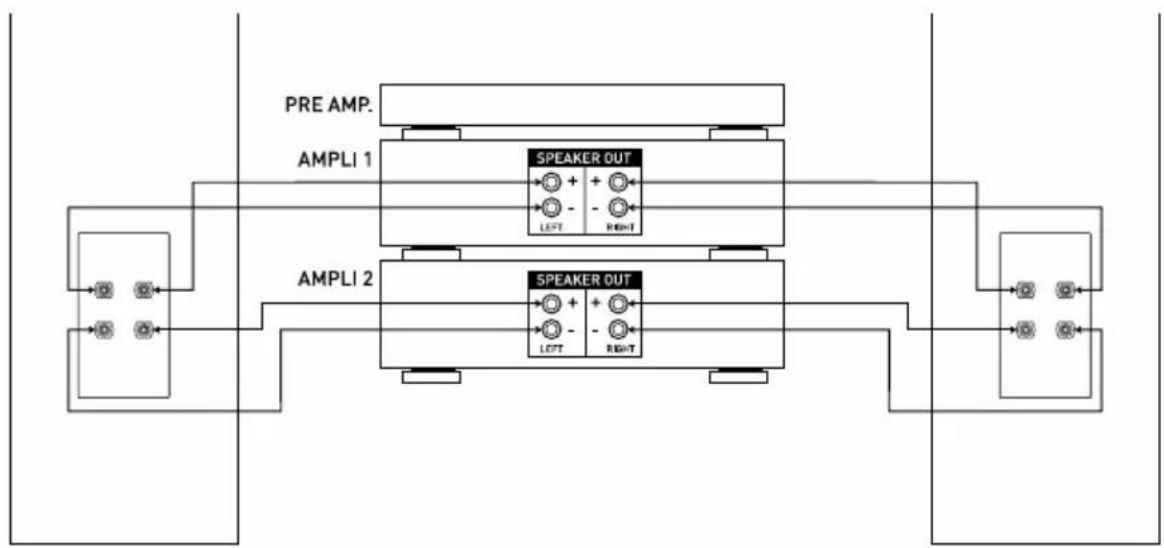

A

B

POSITIONING FOR STEREO

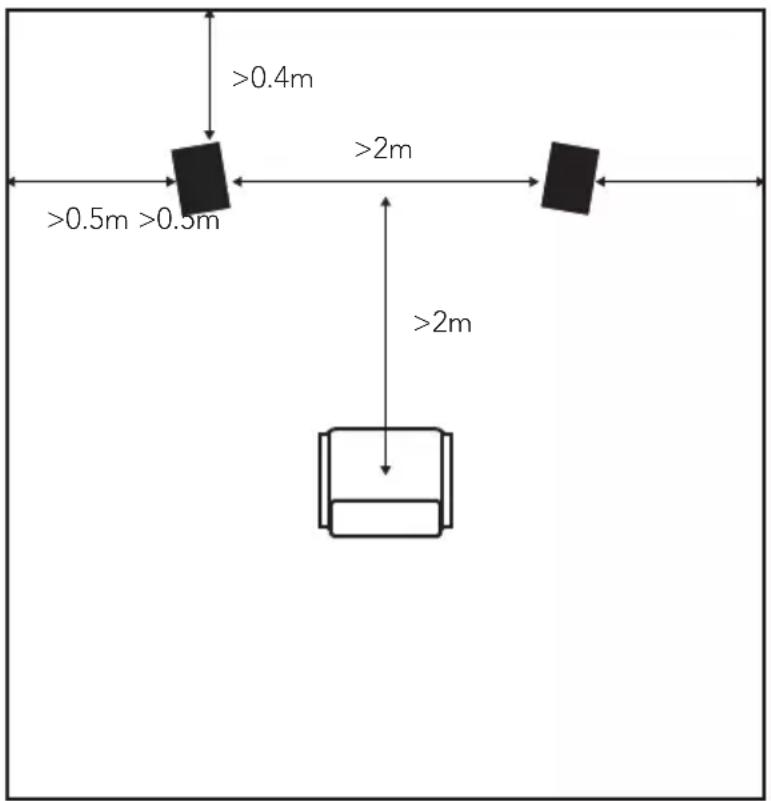

When positioning your loudspeakers, apply the following rules :

• Avoid rooms with too much reverberation, such as tiled rooms without carpets or curtains.
  Your listening position should no be too close to the loudspeakers, leave a minimum of 2 m
  The distance between the speakers should be a minimum of 2 m for a good stereo effect.

If possible, place the speakers so that sound is «diffused» lengthwise within the room.

- Avoid placing the speaker in corners; they should be at least at 40 cm away from the back wall and at least 50 cm from the sidewalls. Generally, a position close to the rear wall increase the response in the low frequencies (and reduce the imaging) and contrariwise, a position far from the back wall reproduces a wide and deep sound image. Carry out several test positions to find the best room set-up.

>0.4m >0.5m >0.5m >2m >2m

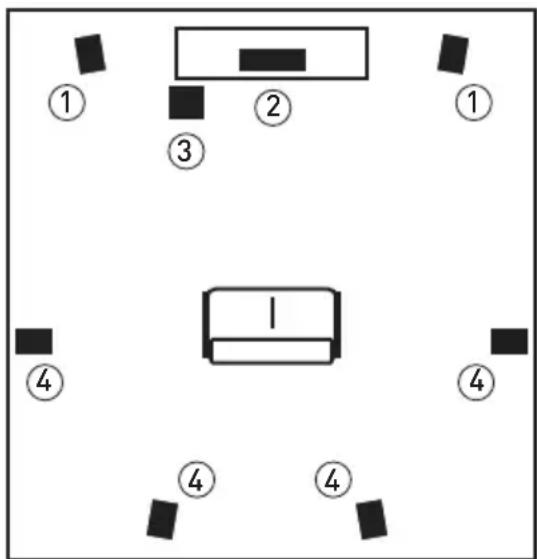

POSITIONING FOR HOME CINEMA

A typical home cinema installation includes:

1. Two main speakers, left and right
2. A center speaker
3. One or several subwoofers
4. Surround speakers (5.1 signal : 2 rear speakers, 6.1 signal : 3 rear speakers, 7.1 signal : 4 rear speakers).

To place the main speakers in the best position, follow the same rules as for a stereo installation (see previous page on stereo positioning).

The center speaker should be placed along the line formed by the two main speakers.
For home cinema setups a subwoofer is highly recommended in order to reproduce the special bass effects channel featured on supports such as DVD audio or video. The positioning of the subwoofer is not critical if you select a crossover frequency below 80 Hz. Above this frequency, it is better to move the subwoofer closer to the main speakers. The best position being in between the two main speakers. Ensure that it is not placed in the corner of the room to avoid creating unpleasant resonances.
We recommend that you place the rear speakers at between 1.5 and 2 m of height. Their role is to reproduce surround sound. Ensure that you take into account the weigh of the speaker when fixing it onto the wall.

You will find further instructions for configuring your installation in your A/V amplifier owner's manual.

① ② ③ ④ ④ ④

GAMME 902 / 902 RANGE

Spécifications techniques Technical specifications	CELIUS ANTAL ZERIUS COMETE SEXTAN
Type Bass Reflex Bass Reflex	Bass Reflex Bass Reflex
Nombre de voies Ways	3 3 2.5 2 2
Sensibilité Sensitivity	92 dB/m 91 dB/m 91 dB/m 91 dB/m
Bande passante (+/- 3dB) Bandwidth	45Hz - 20 KHz 50Hz - 20 KHz 50Hz - 20 KHz 55Hz - 20 KHz			60Hz - 20 KHz
Puissance admissible Power handling (W RMS)	120W 120W 100W 80W 80W
Impédance minimum Minimal impedance	5 ohms 4.5 ohms 4 ohms 4 ohms
Dimensions (mm/inch)	220 x 280 x 1120 8.66x11.02x44.09	220 x 250 x 1070 8.66x9.84x42.12	220 x 280 x 960 8.66x11.02x37.79	220 x 280 x 400 8.66x11.02x15.75	500 x 300 x 200 19.68x11.81x7.87
Poids de l'enceinte Net weight	23,7 kg 50.7 lbs	22 kg 48.5 lbs	19 kg 41.88 lbs	15,2 kg 33.06 lbs	11 kg 24.25 lbs
Poids avec packaging Gross weight	26 kg 57.32 lbs	24 kg 52.91 lbs	20,8 kg 44.09 lbs	16,7 kg 35.27 lbs	12,2 kg 26.45 lbs

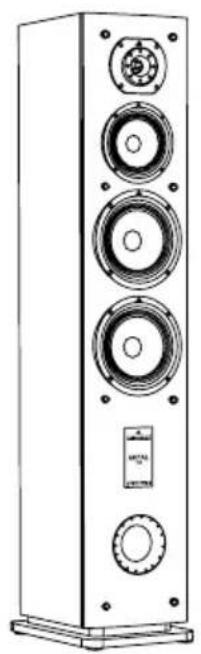

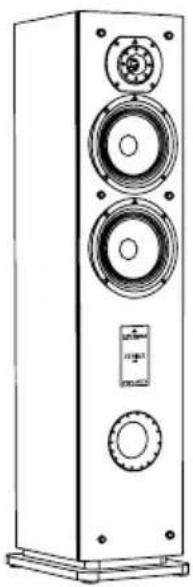

Line drawing of a multi-tiered speaker tower with multiple speakers and control panel (no text or symbols)

Line drawing of a multi-tiered speaker tower with multiple speakers and control panel (no text or symbols)

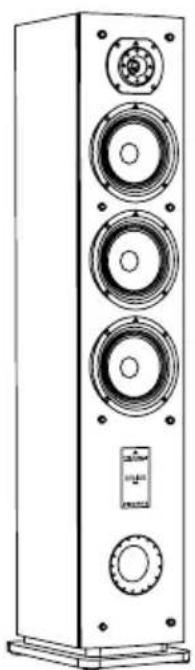

Line drawing of a multi-tiered speaker tower with three speakers and control panel (no text or symbols)

CELIUS ANTAL ZERIUS COMETE SEXTAN

TRIANGLE

MANUFACTURE ELECTROACOUSTIQUE
