Product Type	Door/window sensor for LED lighting
Brand	EtiamPro
Model	LQS01
Input voltage	12-24 VDC
Maximum rated current	3 A
Detection range	4-20 cm
Drilling diameter	8 mm
Cable length	100 cm
Protection rating	IP20
Operating temperature	-20°C to 45°C
Main functions	Automatic on/off of LED strips when door opens/closes
Installation type	Recessed (8 mm drilling) with concealable control module
Suitable for	12V and 24V LED strips
Weight	Approximately 50 g
Maintenance and cleaning	Clean with a soft dry cloth. Do not use abrasive products.
Safety	Do not expose to rain, moisture or splashes. Keep out of reach of children.
General information	Do not dispose of with household waste. Recycle according to local regulations.

Frequently Asked Questions - LQS01 EtiamPro

How to install the LQS01 sensor?

Drill an 8 mm hole at the desired location, insert the infrared sensor and fix it with mounting glue if necessary. Connect the cable to the switching module, then connect the LED strip and power supply. Test the operation before finalizing the installation.

What power supply voltage to use?

The sensor operates with a voltage of 12 to 24 VDC. Make sure your LED strip and power supply are compatible.

What is the detection range?

The detection range is 4 to 20 cm. The ideal distance depends on the reflectivity of the door surface.

Can I use this sensor with 5V LED strips?

No, the sensor is designed for 12V or 24V LED strips only. Using a different voltage may damage the device.

What to do if the LED strip does not turn on when opening the door?

First check the connections and power supply. Make sure the sensor is properly aligned and that the detection distance is respected. Try moving the sensor slightly to optimize infrared reflection.

Is the sensor waterproof?

No, the protection rating is IP20, meaning it is not protected against moisture. Install it inside a cabinet or furniture away from water.

Can this sensor be used for applications other than cabinets?

Yes, it can be used for any door or window where automatic lighting is desired, provided the mounting and detection conditions are suitable.

How to clean the sensor?

Use a soft dry cloth to remove dust. Do not use solvents or chemicals.

Does the sensor work with glass doors?

Yes, but the glass surface must be sufficiently reflective for the infrared signal. If detection is unstable, add a reflector or adjust the sensor position.

How to dispose of this product at end of life?

Do not dispose of the device with household waste. Take it to an electronic waste collection point or return it to your retailer for recycling.

USER MANUAL LQS01 EtiamPro

Door sensor switch - recessed installation - 12V/24V

Coiled black cable with a connector and terminal connector, no visible text or symbols

USER MANUAL 3

GEBRUIKERSHANDLEIDING 8

MODE D'EMPLOI 12

MANUAL DEL USUARIO 16

Technical diagram showing a mechanical assembly with labeled dimensions and component features

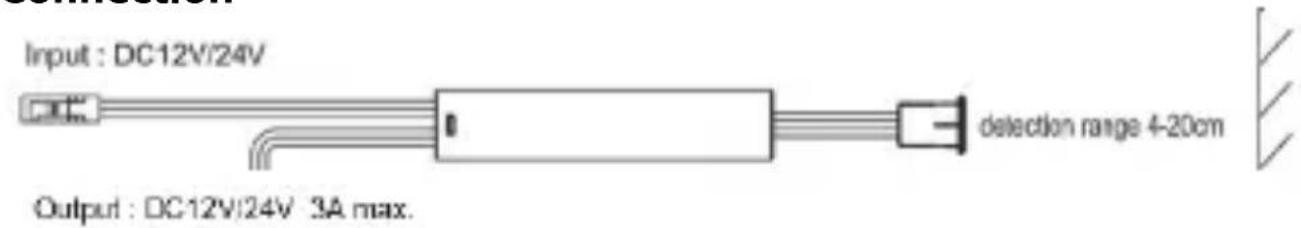

Connection

Input : DC12V/24V detection range 4-20cm Output : DC12V/24V 3A max.

V. 01 - 15/11/2023

2

©Velleman Group nv

LQS01

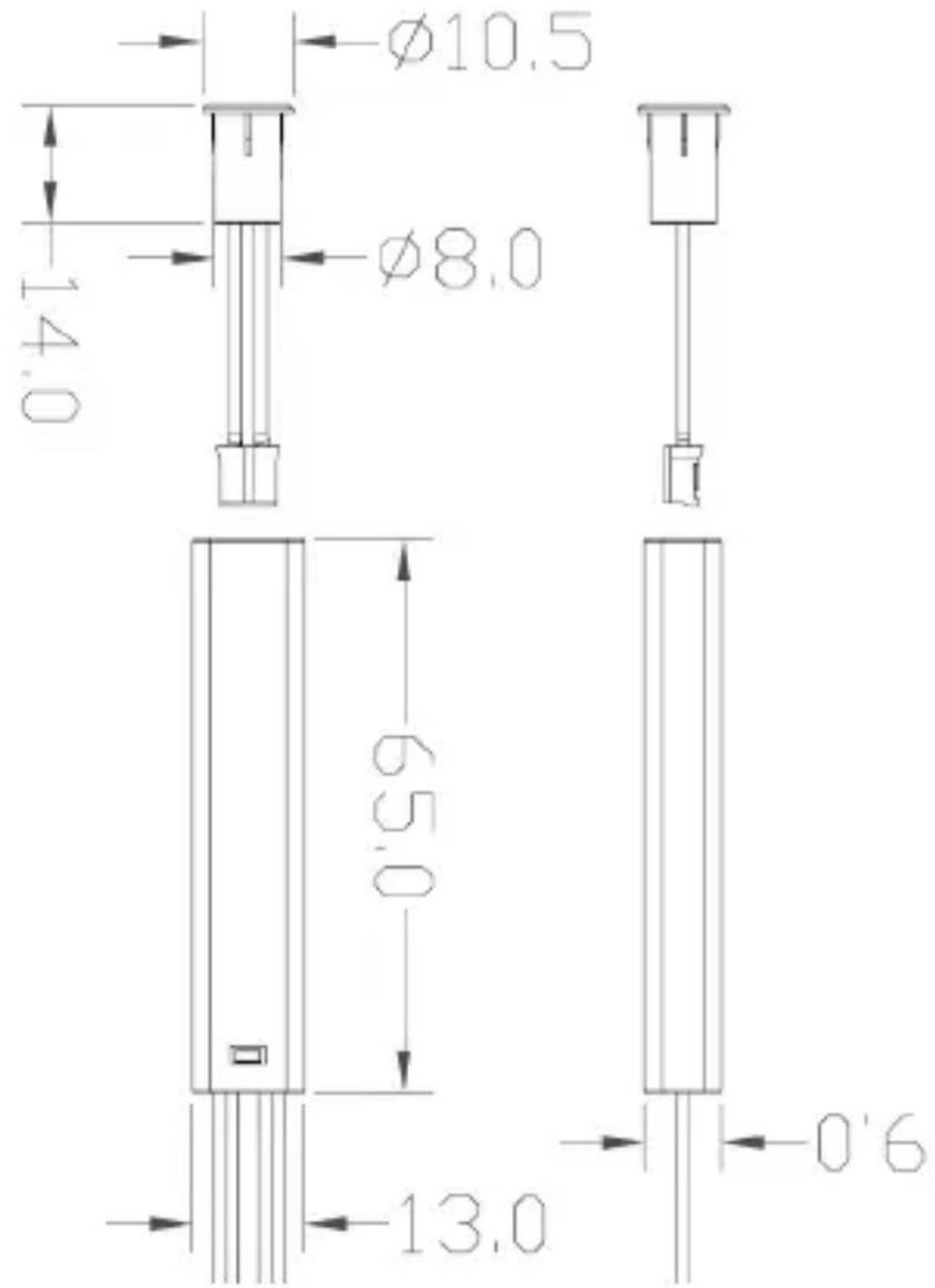

Product dimensions

Ø10.5 Ø8.0 14.0 65.0 0.6 13.0

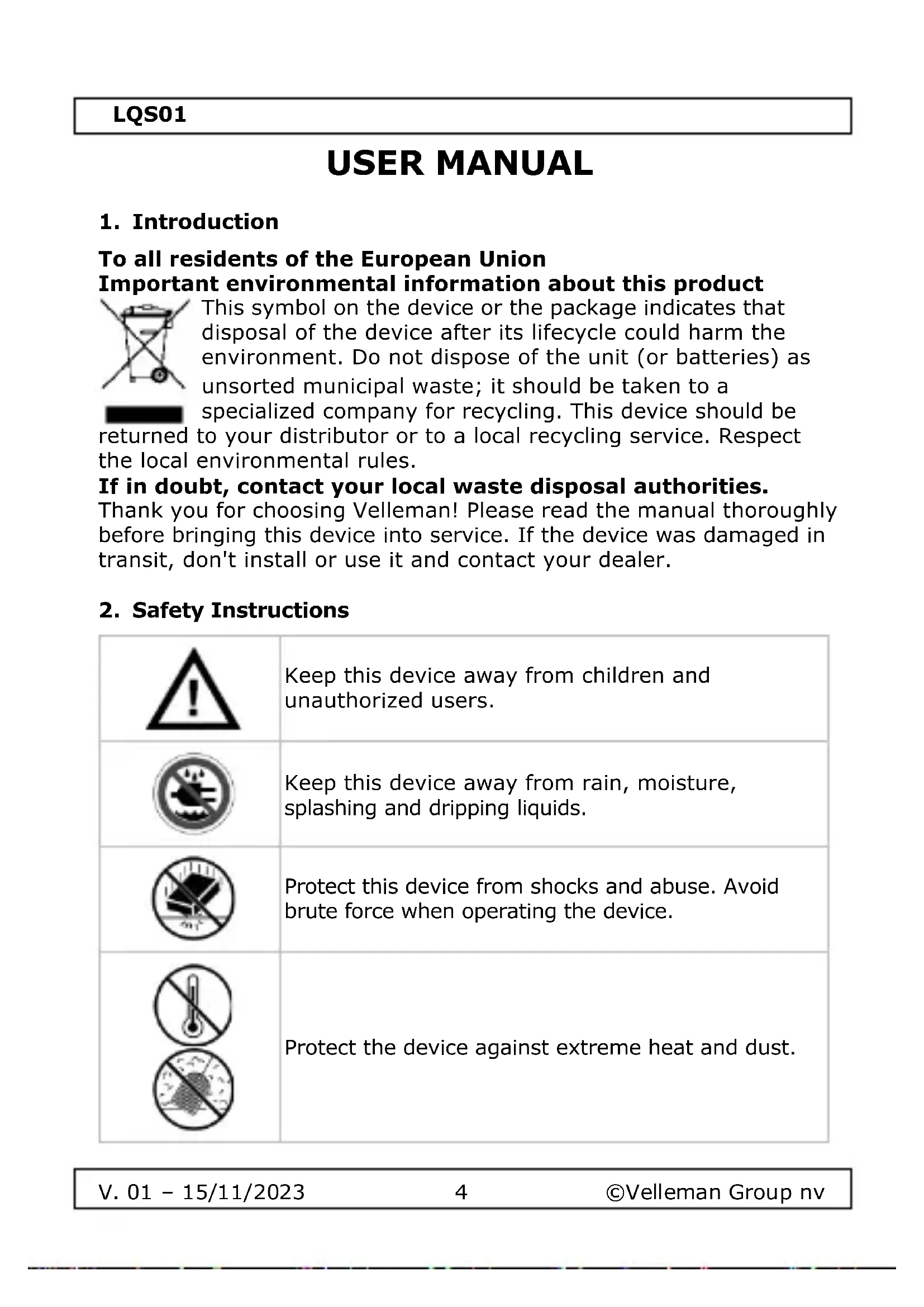

USER MANUAL

1. Introduction

To all residents of the European Union Important environmental information about this product

This symbol on the device or the package indicates that disposal of the device after its lifecycle could harm the environment. Do not dispose of the unit (or batteries) as unsorted municipal waste; it should be taken to a specialized company for recycling. This device should be returned to your distributor or to a local recycling service. Respect the local environmental rules.

If in doubt, contact your local waste disposal authorities.

Thank you for choosing Velleman! Please read the manual thoroughly before bringing this device into service. If the device was damaged in transit, don't install or use it and contact your dealer.

2. Safety Instructions

	Keep this device away from children and unauthorized users.
	Keep this device away from rain, moisture, splashing and dripping liquids.
	Protect this device from shocks and abuse. Avoid brute force when operating the device.
	Protect the device against extreme heat and dust.

LQS01

3. General Guidelines

Refer to the Velleman Group NV® Service and Quality Warranty on the last pages of this manual.

• Familiarise yourself with the functions of the device before actually using it.
  • All modifications of the device are forbidden.
• Only use the device for its intended purpose. Using the device in an unauthorised way will void the warranty.

4. Features and specifications

• This compact door sensor will automatically switch on LED lighting in your cabinets or dressing room. Simply mount this flush mount sensor by drilling an 8mm hole in the cabinet. You can easily conceal the electronic control module in a false wall. This will give you a perfectly finished installation.
• This Sensor ensures that your LED strip automatically turns off when the cabinet door is closed and immediately turns on when the door is opened. Save energy and enjoy convenient lighting in your cabinets. See image on page 2
• suitable for: 12 and 24V LED strips

5. Installation

Determine the Mounting Location:

Determine the location where the door sensor should be placed. Generally, it is optimal if the sensor is at a height where it can properly reflect the infrared signal when the door is closed.

Drill the Mounting Hole:

Use the drill to drill a hole at the marked location. Make sure the hole is large enough (8mm) to safely mount the infrared sensor.

Place the Infrared Sensor:

Insert the infrared sensor into the drilled hole and fix it securely with some mounting glue if necessary). Then connect the connecting cable to the switch module.

Mount the LED Strip:

V. 01 - 15/11/2023

5

©Velleman Group nv

LQS01

Mount the LED Strip on the inside of the cabinet in an aluminum profile.

Connect the wiring from the switch module of the infrared sensor to the LED Strip and connect the input of the switch module to an LED power supply. Connection diagram see page 2.

Test Operation:

Close the cabinet door and observe if the infrared sensor reflects the signal. Then open the door to verify that the LED Strip turns on as expected.

Optimize Placement (if necessary):

If the LED Strip does not respond consistently when opening and closing the door, adjust the position of the infrared sensor.

Experiment with minor adjustments until the desired operation is achieved.

Close the cabinet door and check functionality. The LED Strip should now automatically turn on when the door is opened and turn off when the door is

6. Technical Specifications

Physical properties
Cable length	100 cm
Maximum current rating	3 A
Input voltage rating VDC range	12-24 V
drill diameter	8 mm
Detection range	4-20 cm
IP rating	IP20
Operating temperature range	-20-45 °C

Use this device with original accessories only. Velleman Group nv cannot be held responsible in the event of damage or injury resulting from (incorrect) use of this device. For more info concerning this product and the latest version of this

LQS01

manual, please visit our website www.velleman.eu. The information in this manual is subject to change without prior notice.

© COPYRIGHT NOTICE

The copyright to this manual is owned by Velleman Group nv. All worldwide rights reserved. No part of this manual may be copied, reproduced, translated or reduced to any electronic medium or otherwise without the prior written consent of the copyright holder.

GEBRUIKERSHANDLEIDING

1. Inleiding

Two circular signs with prohibition symbols: one indicating a thermometer, the other indicating a sandbag or pile.

Monteer de LED Strip:

Two circular signs with prohibition symbols: one indicating a thermometer, the other indicating a sand or dust hazard.

Two circular signs with prohibition symbols: one indicating a thermometer, the other indicating a sandbag or dust.

so it is a best thinging of the 11-12 in our study article.

Two circular signs with a thermometer and a crossed-out diagram showing a particle on a surface, indicating no heat or pollution.

Two circular signs with prohibition symbols: one indicating a thermometer, the other indicating a sand or dust hazard.

Proteja o dispositivo contra calor extremo e poeira.

Velleman® Service and Quality Warranty

Since its foundation in 1972, Velleman® acquired extensive experience in the electronics world and currently distributes its products in over 85 countries.

All our products fulfil strict quality requirements and legal stipulations in the EU. In order to ensure the quality, our products regularly go through an extra quality check, both by an internal quality department and by specialized external organisations. If, all precautionary measures notwithstanding, problems should occur, please make appeal to our warranty (see guarantee conditions).

General Warranty Conditions Concerning Consumer Products (for EU):

• All consumer products are subject to a 24-month warranty on production flaws and defective material as from the original date of purchase.
• Velleman® can decide to replace an article with an equivalent article, or to refund the retail value totally or partially when the complaint is valid and a free repair or replacement of the article is impossible, or if the expenses are out of proportion.

You will be delivered a replacing article or a refund at the value of 100% of the purchase price in case of a flaw occurred in the first year after the date of purchase and delivery, or a replacing article at 50% of the purchase price or a refund at the value of 50% of the retail value in case of a flaw occurred in the second year after the date of purchase and delivery.

- Not covered by warranty:

• all direct or indirect damage caused after delivery to the article (e.g. by oxidation, shocks, falls, dust, dirt, humidity...), and by the article, as well as its contents (e.g. data loss), compensation for loss of profits;
• consumable goods, parts or accessories that are subject to an aging process during normal use, such as batteries (rechargeable, non-rechargeable, built-in or replaceable), lamps, rubber parts, drive belts... (unlimited list);
• flaws resulting from fire, water damage, lightning, accident, natural disaster, etc....;
• flaws caused deliberately, negligently or resulting from improper handling, negligent

maintenance, abusive use or use contrary to the manufacturer's instructions;

• damage caused by a commercial, professional or collective use of the article (the warranty validity will be reduced to six (6) months when the article is used professionally);
• damage resulting from an inappropriate packing and shipping of the article;
• all damage caused by modification, repair or alteration performed by a third party without written permission by Velleman®.
• Articles to be repaired must be delivered to your Velleman® dealer, solidly packed (preferably in the original packaging), and be completed with the original receipt of purchase and a clear flaw description.
• Hint: In order to save on cost and time, please reread the manual and check if the flaw is caused by obvious causes prior to presenting the article for repair. Note that returning a non-defective article can also involve handling costs.
• Repairs occurring after warranty expiration are subject to shipping costs.
• The above conditions are without prejudice to all commercial warranties.

The above enumeration is subject to modification according to the article (see article's manual).
