USER MANUAL A451 Kohersen

Model A451 USER MANUAL15

INTRODUCTION Thank you for purchasing the product. To ensure the proper use and maintenance of our device, we provide you with this operating manual. Please read the manual carefully before using the device and keep it for future reference. The device is intended for domestic use only and may not be used for industrial or commercial purposes. The manual only contains instructions and guidelines for the use and maintenance of the device. If the manual is missing the information you are looking for, please contact the Customer Service. If there are shortcomings in the manual, you are welcome to make any suggestions to supplement it. 1. SAFETY INSTRUCTIONS ................................................................................................... 16 2. QUICK START ..................................................................................................................... 18

Read this operating manual carefully and keep it in a safe and easily accessible place. Only use the device as described in this manual. In the event of damage resulting from failure to comply with the guidelines set out in this manual, the warranty shall immediately and automatically become null and void. The manufacturer shall not be liable for damage resulting from failure to comply with the guidelines of this manual, including improper storage, improper use or use not in accordance with the requirements of this manual. 1.1. The device is intended for domestic use only. The product is not intended for commercial use. 1.2. The device is not intended for use for other applications that are not covered by the warranty, including in particular: - in employee kitchens in ofces, shops and other professional work environments, - in agri-tourism and agricultural farms, - in hotels, motels and other residential facilities, - in boarding houses and guest rooms. 1.3. The device is not intended for use in bathrooms or near water. 1.4. The device is not intended for use outdoors. 1.5. Only use the device as described in this manual. Any other use is not recommended and may cause re, electric shock or injury. 1.6. The device shall not be used by children under 8 years of age. 1.7. Keep the device and its power cable out of the reach of children under 8 years of age. 1.8. Cleaning and maintenance of the device shall not be carried out by children under 8 years of age. 1.9. Keep packaging elements and protective lms out of the reach of children under 8 years of age. 1.10. The device can be used by children aged 8 years and over, provided that they are under constant supervision of an adult and have received instructions on the safe use of the device and that they understand the risks involved in using the device. 1.11. Cleaning and maintenance of the device can be carried out by children aged 8 years and over, provided they are under constant supervision of an adult. 1.12. The device can be used by persons with reduced physical, sensory or mental capabilities, or lacking experience and/or knowledge, provided that they are under constant supervision of a guardian and have received instructions on the safe use of the device and that they understand the risks involved in using the device. 1.13. The device shall only be connected to earthed sockets. 1.14. Before connecting the device, check whether the voltage and frequency of the electrical system correspond to the voltage and frequency indicated on the device’s nameplate. In case of incompatibility, do not connect the device. 1.15. Do not use the device with an extension cable. 1.16. Do not use the device with an external time switch or a separate remote control system. 1.17. Keep the device and its power cable away from damp and slippery surfaces, sources of water and other liquids, sources of heat, and sharp edges. 1.18. Keep the device and its power cable away from exposed light sources (e.g., lit candles). 1.19. Do not place any objects on top of the device. 1.20. Do not place the device under a wall-hung cabinet or in a corner. Ensure that there is free space above the device. 1.21. Place the power cable so that it does not hang over the edge of the worktop or table. 1.22. Ensure that the power cable is positioned in such a way that it is not kinked, bent, crushed or strained, as this can lead to damage.17

1.23. Position the power cable so that there is no risk of it being accidentally pulled or tripped over. 1.24. Do not use the power cable as a carrying handle to move the device. Periodically inspect the power cable, plugs and other parts of the device for damage. If damage is found, discontinue use of the product and contact the Customer Service to replace the defective part. 1.25. If damage to the power cable is found, discontinue the use of the device immediately. Replacement of the power cable is carried out by the manufacturer or its authorised service. 1.26. When disconnecting the power cable from the socket, grab the power cable plug. Do not disconnect the power cable from the socket by grabbing the cable directly. 1.27. Do not touch or hold the device or its power cable with wet hands. 1.28. Always disconnect the device from the power source during cleaning, maintenance and transport. 1.29. Use the device only with the supplied power base and accessories recommended by the manufacturer. Do not use the supplied power base with other devices. 1.30. The device shall only be used to boil drinking water. Do not use the device to boil substances other than drinking water. 1.31. Never put in more drinking water than indicated by the MAX mark and never put in less drinking water than indicated by the MIN mark (see section 4. General device information). 1.32. Ensure that there is adequate amount of drinking water in the device before each start-up. 1.33. Ensure that the lter is properly attached to the unit before each start-up. 1.34. Ensure that the lid is rmly closed before each start-up. Do not turn on the device when the lid is open. 1.35. Never open the lid while the device is running. 1.36. Never remove the lter while the device is running and when there is hot drinking water in the device. 1.37. Never remove the device from the power base while the device is running. 1.38. Never move the device while it is running. 1.39. CAUTION: Hot steam escapes through the spout during operation of the device, which can cause burns. 1.40. CAUTION: When the device is running, the body, the spout, the lter and the lid heat up and are very hot during operation. Do not touch hot surfaces. Only touch the handle and the cool touch zone of the device. 1.41. Never boil the same drinking water again. 1.42. Drinking water has to be poured out of the device if it has been in it for more than 1 hour. Drinking water can spoil over time due to the formation of germs. Use fresh drinking water at all times. 1.43. To pour drinking water out of the device, lift the device from the power base. Never pour drinking water out of the device while it is on the power base. If the power base gets wet, rst disconnect the device from the power source and then wipe the power base dry before using it again. 1.44. If you notice any damage or malfunction of the device, immediately disconnect the device from the power source and do not use the device until the fault is xed. 1.45. Do not repair the device yourself. Have the device repaired only by an authorised service centre. An authorised service centre is the manufacturer’s after-sales service centre that is authorised to carry out repairs and x all kinds of faults. In case of problems, please return the device to this centre. 1.46. If smoke or re is observed, immediately disconnect the device from the power source. 1.47. Do not place or insert any objects into openings in the device that are not intended for this purpose. 1.48. Make sure that no objects fall into the openings of the device and that no liquids enter them. 1.49. Do not use accessories that are not recommended by the manufacturer.18

ATTENTION! Before carrying out the actions described in this section, to avoid damage to the equipment and/or personal injury, be sure to read section „1. Safety instructions.” The manufacturer shall not be held liable for damage resulting from the use of the device not in accordance with the manual. Place the device on a at table/worktop, at least 10 cm away from the wall/edge and other objects, and make sure there is free space above the device. Then pour 0.5 (MIN) to 1.7 (MAX) litres of drinking water into the kettle, close the lid, connect the power base to a power source (earthed socket), place the kettle on the power base and turn it on. The kettle will heat the water, bringing it to the boil. Once the heating is complete, wait until the water has stopped boiling and pour it into a glass or other hot water resistant vessel/container. CAUTION: The water is hot when boiled, so do not drink it right away. When you have nished using the kettle, disconnect it from the power source (earthed socket), wait for it to cool down and wash the kettle according to the procedure described in section 5. Cleaning and maintenance.

3. OPERATION AND USE OF THE DEVICE

3.1. Before rst use Do not open the packaging without due care and attention and using a sharp knife or other sharp objects, as this may damage the device. Remove all parts of the device and the operating manual from the box, remove the protective lms and then check that the contents of the package are complete and that the individual parts are not damaged. If you notice any irregularities, do not use the damaged parts and contact the service centre at the address specied in section 8. Warranty and service. Important: Before using, follow the instructions below. - Remove all packaging and protection elements from the kettle and keep or dispose of them safely in accordance with local recycling regulations. Keep plastic packaging materials out of the reach of children. - Unwind the power cable to its full length and inspect it for damage. Do not use the device if the device or its power cable is damaged or not functioning properly. In case of damage, contact the Customer Service for advice on the inspection, repair or return of the damaged product. - Keep the operating manual and proof of purchase of the product for future reference. - Make sure the switch is in the OFF (up) position before connecting the device to a power source (earthed socket). - Lift the device vertically from the power base, open the lid and pour cold water into the device to the MAX level (1.7 l) and boil it, then pour out all the water. This is done to remove residues from the production process and transport. - Repeat the above procedure twice before using the device to boil water for drinking. Your new kettle is now ready to use.19

3.2. Automatic switch-off The device is equipped with an automatic switch-off function. It shuts off the power to the device when it is empty to prevent accidental use without water. After activating this safety function, disconnect the device from the power source and allow it to cool down for a few minutes before relling with water. The boil-dry protection will reset and the device will be ready for use again. If the device is still at too high temperature, the safety feature will not allow it to start until the appropriate temperature is reached. 3.3. Kettle operation - To ll the kettle, remove it from the power base, press the lid opening button to open it, ll it with the appropriate amount of drinking water and then close the lid. - Make sure the kettle is lled with water at least to the MIN level, but not above the MAX level. Too little water will cause the kettle to turn off before the water boils. Too much water will cause hot water to spill out of the spout during boiling. Be careful not to let water spill onto the power base. - Make sure the lid is closed before placing the kettle on the power base. - Plug the power base with dry hands into a power source (earthed socket). - Press the ON/OFF switch. - The control lamp will illuminate and water heating will begin. Do not open the lid while the device is running. - The kettle will automatically turn off when the water boils: the ON/OFF switch will return to the OFF position and the control lamp will no longer be illuminated. The lid must be properly closed for the automatic switch-off function to be active. To stop the heating process at any time during operation, remove the kettle from the power base or slide the ON/OFF switch upwards. - Wait until the water in the kettle has stopped boiling completely before pouring the water out of the kettle. Remove the kettle from the power base by grabbing the handle and lifting it. When pouring water out of the kettle, be careful not to get burned by hot water or hot steam. Do not open the lid when the water in the kettle is hot. To reboil the water, allow the kettle to cool down for 15-20 seconds before pressing the ON/OFF switch again to boil the water. Hot surface! The body, spout, lter and lid heat up and are very hot during operation. Only touch the handle and the cool touch zone of the device (see section 4. General device information). The kettle can be stored on the power base, but you must then ensure that the power is switched off when the kettle is not in use.20

NOTE: The electric kettle is equipped with an earthed plug. To reduce the risk of electric shock, this plug ts into the socket in only one way. If the plug does not t your contact, consult a qualied electrician. Never change the plug yourself.

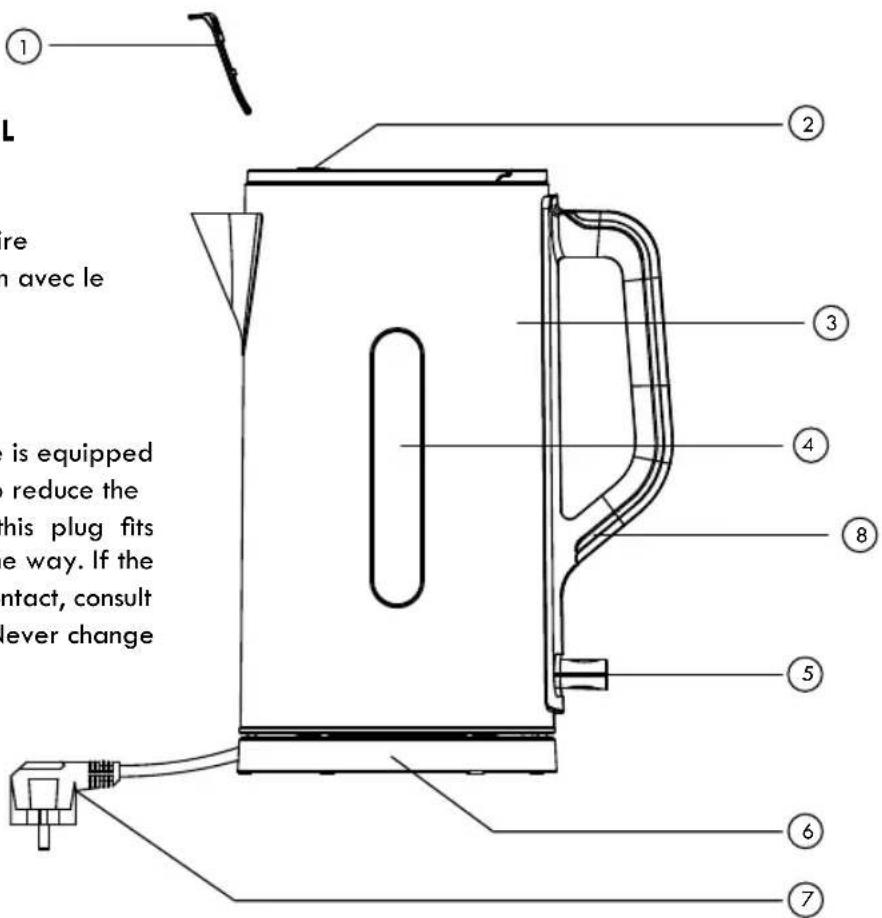

4. Water level window with MIN and MAX

markings on the sides (on the body)

7. Plug with cable approx. 80 cm long

8. Handle - Cool Touch Area

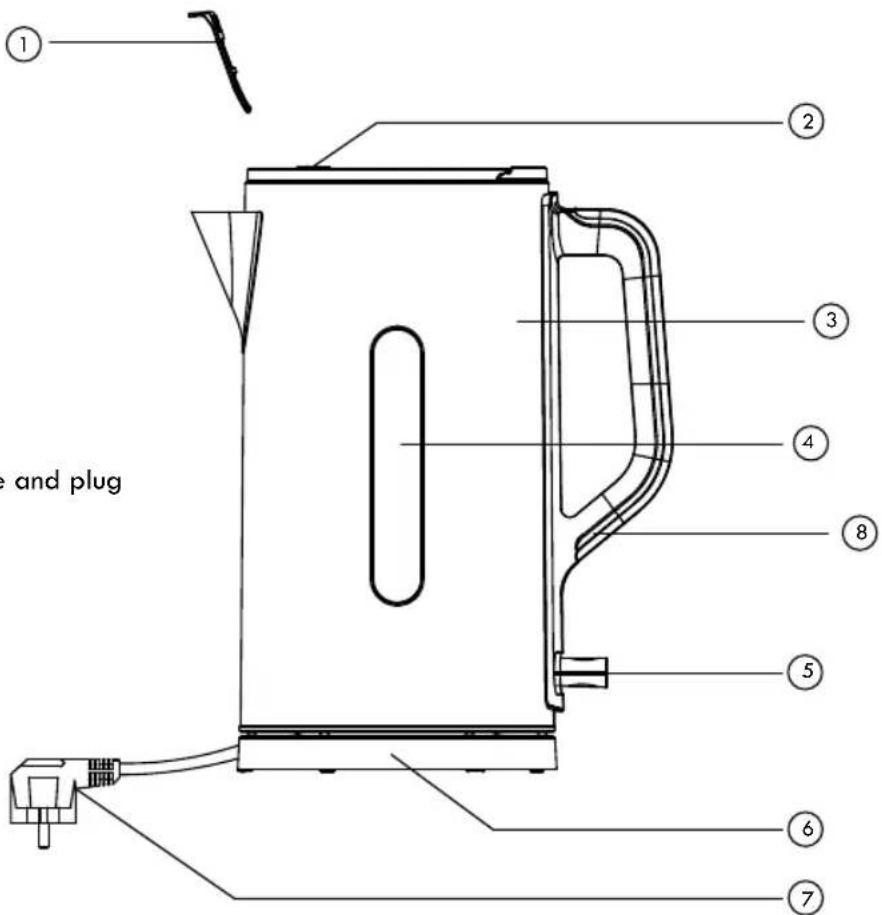

PARTS OF THE DEVICE (in the image opposite): The set includes: - Kettle body - Kettle base with cable and plug - Water lter21

Always disconnect the kettle from the power socket and allow it to cool down before cleaning. Never submerge the device, cable or power base in water or any other liquid and never rinse with water or detergents! 5.1. Cleaning the kettle - Use a soft, moist cloth and a mild, non-abrasive detergent to wipe the outside of the kettle. Then dry the outside of the kettle using a soft, dry cloth. - To prevent damage to the surface of the kettle, do not use scourers, steel wool (wire brushes), solvents or harsh chemical or alkaline cleaners. - Essential oils and organic solvents, e.g., lemon juice or orange peel juice or cleaning agents containing acetic acid, can damage plastic components. 5.2. Cleaning the lter - Clean the lter regularly to ensure its proper function, i.e., trapping limescale particles and preventing them from falling in when water is poured through the spout. - To clean the lter, remove it (see section 4. General device information) from the kettle and rinse it under running water. Then wipe the lter with a soft brush. - To prevent damage to the lter, do not use tools or cleaning agents that could tear or damage the lter during cleaning. - If the above steps do not completely remove the limescale from the lter, descale the device (see section 5.3. Descaling). 5.3. Descaling - Descale the device regularly in order to obtain the best possible results from its operation. The frequency of descaling depends on the hardness of the water poured into the device and the frequency of use. - It is recommended to carry out descaling using commercially available limescale removers intended for domestic appliances. When using this type of product, carry out the descaling by following the instructions on the packaging of your product. - If limescale remover is not available on the market, the descaling process can be carried out using white vinegar. If using this type of product, carry out descaling by lling the kettle with enough white vinegar to cover the bottom of the kettle to a depth of about

1.5 cm, leaving it in the kettle overnight. Do not switch on the device during the descaling

process. - It may be necessary to repeat the descaling process several times with white vinegar until the limescale deposit is completely removed. Remember to use fresh vinegar every time. - Once the descaling process is complete, empty the kettle and then ll it with fresh, clean water. Start the device bringing the water to the boil and then empty the kettle. - Repeat until all traces of white vinegar have been removed. 5.4. Storage - Before storing the unit, clean it according to the attached manual (see section 5. Cleaning and maintenance). - Store the device in a dry, dust-protected place out of the reach of children. - Store the device in its original packaging.22

Problem Cause Solution The device is not working. The device is not plugged in. Connect the device to the power source. The ON/OFF switch has not been pressed. Press the ON/OFF switch. Overheating protection has been triggered. Wait for the device to cool down. The device is damaged. Stop using the device and contact the Customer Service. The device turns off before the water heating process is completed. Too much mineral sediment has accumulated. Clean the kettle (see section 5. Cleaning and maintenance). The device does not stop The lid is not closed properly. Close the lid using the Cool Touch Area. The kettle lid does not open. Limescale has built up on the lid opening mechanism. Clean the kettle (see section 5. Cleaning and maintenance). Water gushes from the spout of the kettle body The kettle may be overlled. Check the water level. There may be some descaling agent in the kettle. Clean the kettle (see section 5. Cleaning and maintenance). The lter may not be in place. Check that the lter is tted properly.23

Proper disposal of this product This sign indicates that within the EU this product should not be disposed of with household waste. In order to avoid environmental contamination and risks to human health resulting from uncontrolled waste disposal, recycle the product so that some of the raw materials can be recovered. To return a used device, use the return and collection systems or contact the seller at the place where the product was purchased. They will be able to take the product away and recycle it in an environmentally safe way. Disposal shall be carried out in accordance with local environmental and waste disposal regulations. For more detailed information on this subject and the recovery of materials and recycling of this device, please contact the State Inspection of Environmental Protection or your local waste disposal company. Remember that every person, through their behaviour and actions, has a direct impact on the environment in which they live. By not following the above recommendations, you are contributing to increasing the negative effects on the environment and human health. Electric Kettle Kohersen Modern Matt Model: A451 Voltage 220-240 V; 50-60 Hz Power 2520-3000 W Manufacturer: DLF Sp. z o.o. ul. Sportowa 8c, 81-300 Gdynia, Poland Phone: [phone] Email: [e-mail] www.dlf.pl

NOTE: The electric kettle is equipped with an earthed plug. To reduce the risk of electric shock, this plug ts into the socket in only one way. If the plug does not t your contact, consult a qualied electrician. Never change the plug yourself
