Product type	Automatic watch winder for mechanical watches
Brand	Klarstein
Model	Brienz 3
Power supply	USB cable (power adapter not included, compatible with 3-9 V phone charger)
Winding programs	P1: 2 min forward, 6 min pause; P2: 2 min backward, 6 min pause; P3: 2 min forward, 6 min pause, 2 min backward, 6 min pause; P4: 5 min forward/backward for 3 h, then stop 9 h
Lighting	Blue LED with independent switch
Capacity	One watch (men's or women's bracelet, memory foam cushion)
Support material	Memory foam
Rotation speed	Programmable (2 minutes of rotation with pauses)
Automatic stop	Yes, when the lid is opened
Compatibility	Mechanical automatic winding watches
Power cable	Universal USB, usable with external battery
Included accessories	Wiping cloth, USB cable
Maintenance	Wipe with the provided soft cloth
Safety	Use only a 3-9 V USB adapter; do not rotate the plate manually; let the motor rest for 2 hours after 30 days of continuous use
Recycling	Do not dispose of with household waste; contains batteries; take to a collection point
Power consumption	Approximately 1500-2100 mA (equivalent to 5 batteries 1.5 V)

Frequently Asked Questions - Brienz 3 Klarstein

I don't have a power adapter, how can I power the winder?

The product comes with a USB cable. Plug it into a phone charger (output 3-9 V) or an external battery.

Why won't the winder rotate?

Check that the USB cable is securely connected to the winder and adapter. Make sure the adapter is plugged into a wall outlet and the switch under the plate is set to on.

Why does the winder stop after a few minutes?

This is normal depending on the program. For example, program P4 alternates 3 hours of rotation then 9 hours of rest. Please refer to the program description in the manual.

My watch does not wind properly, what to do?

Make sure your watch is an automatic mechanical watch. Program P4 may be insufficient for some movements. Use P1, P2, or P3 instead.

How do I install my watch on the cushion?

Remove the memory foam cushion, place the watch around it, close the bracelet, and insert the cushion into the slot on the plate. If the bracelet is short, fasten it by applying slight force or in a different orientation.

The winder has no battery compartment, how does it work?

It uses a USB cable, which is more economical and durable. You can power it via a wall adapter or an external battery (typical capacity 10000-20000 mAh).

What input voltage is required?

DC input accepts 5 to 9 V. Use a standard USB power adapter (phone charger) with the appropriate voltage.

Can I let my winder run continuously?

To extend motor life, let it rest for 2 hours after 30 days of continuous use.

Can the rotating plate turn in both directions?

Yes, depending on the program. P1 rotates forward, P2 backward, P3 alternates both directions, P4 combines forward and backward.

Is there a switch for the LED light?

Yes, an independent ambient lighting switch allows you to turn the blue LED light on or off.

USER MANUAL Brienz 3 Klarstein

Berlin Brands Group UK Limited

PO Box 42

272 Kensington High Street

London, W8 6ND

United Kingdom

TECHNISCHE DATEN

Artikelnummer Stromversorgung Anzahl Uhren
10045566 220-240 V ~ 50/60	Hz 1
10045567 220-240 V ~ 50/60	Hz 2
10045568 220-240 V ~ 50/60	Hz 1
10045569 220-240 V ~ 50/60	Hz 1
10045570 220-240 V ~ 50/60	Hz 1
10045571 220-240 V ~ 50/60	Hz 1
10045572 220-240 V ~ 50/60	Hz 1
10045573 220-240 V ~ 50/60	Hz 1
10045574 220-240 V ~ 50/60	Hz 2
10045575 220-240 V ~ 50/60	Hz 1

Dear customer,

Congratulations on your purchase. Please read the following instructions carefully and follow them to prevent potential damage. We accept no liability for damage caused by disregarding the instructions and improper use. Please scan the QR code to access the latest operating instructions and further information about the product.

OVERVIEW (10045568,10045575,10045567,10045573)

(1) Power supply
(2) Ambient light switch
(3) Program switch
(4) Watch holder
(5) Rotary plate
(6) USB cable
(7) Wipe
(8) Blue LED light
(9) Right rotary plate switch

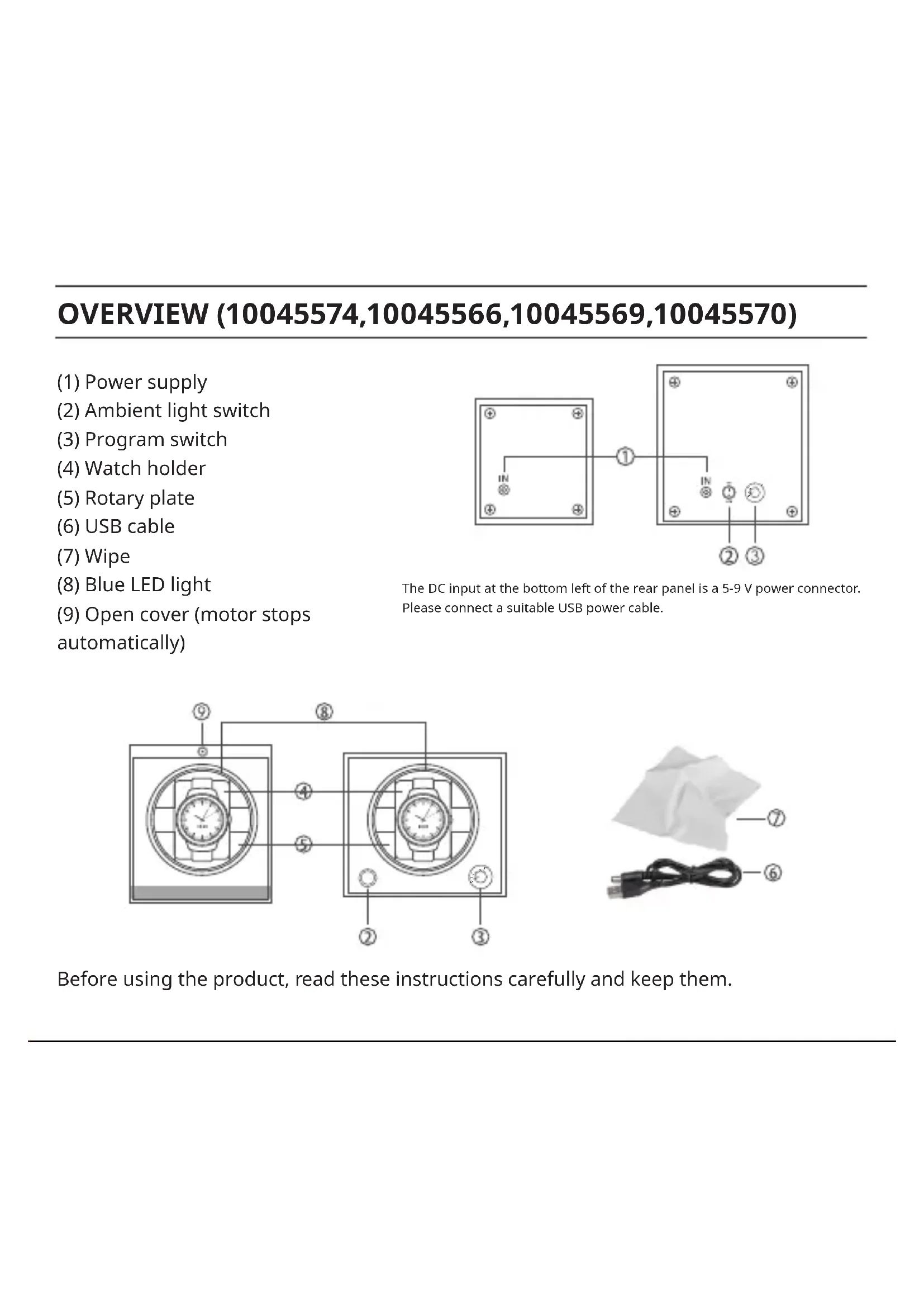

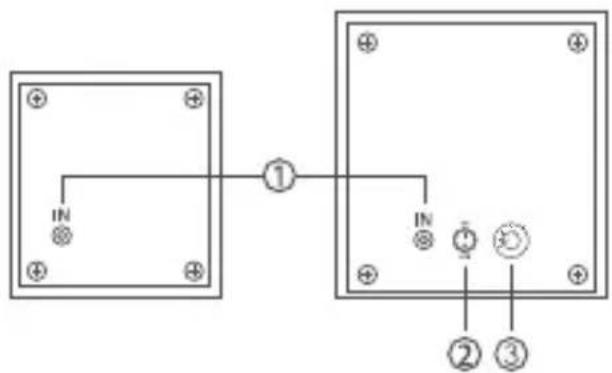

OVERVIEW (10045574,10045566,10045569,10045570)

(1) Power supply
(2) Ambient light switch
(3) Program switch
(4) Watch holder
(5) Rotary plate
(6) USB cable
(7) Wipe
(8) Blue LED light
(9) Open cover (motor stops automatically)

The DC input at the bottom left of the rear panel is a 5-9 V power connector. Please connect a suitable USB power cable.

Before using the product, read these instructions carefully and keep them.

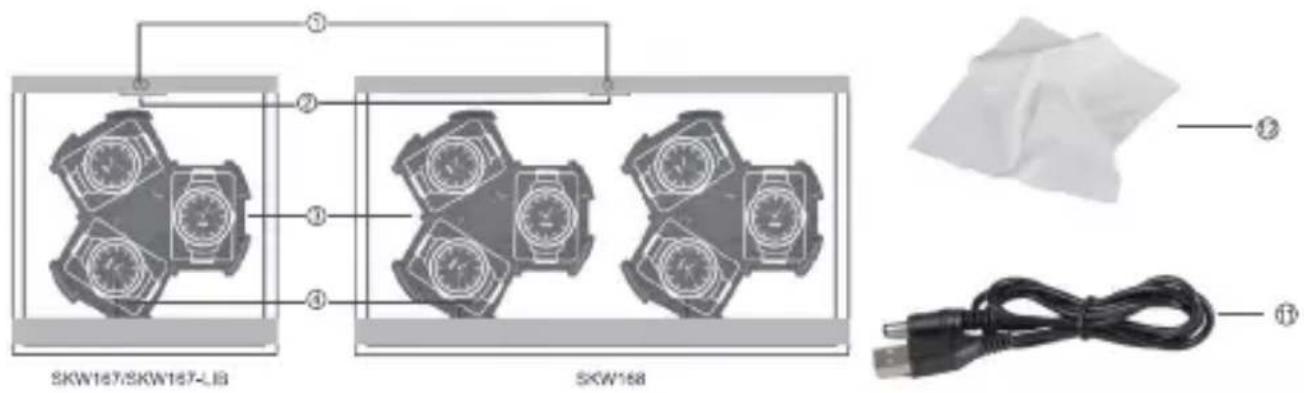

OVERVIEW (10045571,10045572)

The DC input at the bottom left of the rear panel is a 5-9 V power connector. Please connect a suitable USB power cable.

(1) Open cover (motor stops automatically)
(2) Blue LED light
(3) Rotary plate
(4) Memory foam holder

(5) Power supply
(6) Ambient light switch
(7) Program switch
(8) Power switch

(9) Charging indicator
(SKW167-LIB only)
(10) Right rotary plate switch
(11) USB cable
(12) Wipe

Before using the product, read these instructions carefully and keep them.

Remove the memory foam holder from the rotary plate, place your watch around it, close the strap and place the holder in the groove. If you cannot place your watch around the holder normally (because the strap is too short), either strap the watch in place with force, as the memory foam can be deformed, or attach the watch to the memory foam holder in a different alignment (as shown in the picture below right).

Normal watch alignment Alignment for watches with a short strap

DEVICE PROPERTIES

• Universal USB power supply cable, suitable for all mobile phone power adapters.
• A power bank can also be used as a power source, which is more durable and economical than batteries.
• The multi-level program is suitable for various application scenarios.
• Blue LED ambient light (with independent switch control).
• Men's and women's watches can be attached to the memory foam holder.

Please note:

• Operate this product with a mobile phone power adapter with an output voltage of 3-9 V.
• Never use the power adapter of another electronic device.
• Do not turn the rotary plate in the watch winder, otherwise the built-in circuit of your watch winder will be damaged.
• To increase motor life, allow the motor to rest for 2 hours after 30 consecutive days.

PROGRAMS

OFF: Rotate off
P1: 2 minutes forward, 6 minutes rest, etc.
P2: 2 minutes backwards, 6 minutes rest, etc.
- P 3: 2 minutes forward, 6 minutes break, 2 minutes backwards, 6 minutes break, etc.
- P 4: The watch winder holds for 3 hours and stops after 9 hours after rotating forward 5 minutes and backward 5 minutes.
ON/OFF switch: Ambient light on/off

Frequently Asked Questions

(1) Where can I find the AC adapter?

This product is not equipped with an AC adapter but rather with a USB power cord. Connect your mobile phone's power adapter to this USB power cable to operate the product.

(2) Why doesn't the watch winder rotate?

Check that the power cord is properly attached to the watch winder. Check if your power adapter is properly connected to the mains. Check that the button switch under the watch winder turntable is in the working position.

(3) Why does the watch winder stop running after a few minutes?

Usually it will run again in a few minutes (depending on the program).

If it doesn't work for a long time, please check the details of the set program. In program 4 it stays still for 9 hours. Many customers then mistakenly think that the product is broken. After 9 hours, however, the watch winder starts again and continues with the program. If this is not the case, please read the answers to question 2.

(4) The watch winder cannot wind my movement, why?

First, make sure your mechanical watch has an automatic movement winding feature. Program 4 is not suitable for mechanical watches with low efficiency, in the worst case the watch will break.

(5) How do I put my watch on the watch holder correctly?

Remove the memory foam holder from the rotary plate, place your watch around it, close the strap and place the holder in the groove. If you cannot put your watch around the mount normally (because the strap is too short), use force to buckle the watch as the memory foam can be reshaped.

(6) Why is there no battery compartment in the watch winder?

This product is equipped with a USB power cord, so it can be charged by the mobile phone power adapter or a power bank, the durability and economy of which is several times higher than that of a battery. The charging capacity of the watch winder is around 1500-2100 mA (as much as five conventional 1.5 batteries). A traditional power bank has a capacity of about 10000-20000 mA, so it can be used for repeated charging.

DISPOSAL CONSIDERATIONS

If there is a legal regulation in your country regarding the disposal of electrical and electronic equipment, this symbol on the product or on the packaging indicates that this product must not be disposed of with household waste. Instead, it must be taken to a collection point for the recycling of electrical and electronic equipment. By disposing of this product in accordance with the regulations, you are protecting the environment and the health of those around you from negative consequences. For information on recycling and disposal of this product, contact your local government or household waste disposal service.

This product contains batteries. If there is a legal regulation in your country regarding the disposal of batteries, the batteries must not be disposed of in household waste. Consult your local regulations for the disposal of batteries. By disposing of this product in accordance with the regulations, you are protecting the environment and the health of those around you from negative consequences.

MANUFACTURER & IMPORTER (UK)

Manufacturer:

Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Germany.

Importer for Great Britain:

Berlin Brands Group UK Limited

PO Box 42

272 Kensington High Street

London, W8 6ND

United Kingdom

TECHNICAL DATA

Article number Power supply	Number of watches
10045566 220-240 V ~ 50/60	Hz 1
10045567 220-240 V ~ 50/60	Hz 2
10045568 220-240 V ~ 50/60	Hz 1
10045569 220-240 V ~ 50/60	Hz 1
10045570 220-240 V ~ 50/60	Hz 1
10045571 220-240 V ~ 50/60	Hz 1
10045572 220-240 V ~ 50/60	Hz 1
10045573 220-240 V ~ 50/60	Hz 1
10045574 220-240 V ~ 50/60	Hz 2
10045575 220-240 V ~ 50/60	Hz 1

Estimado cliente:

Berlin Brands Group UK Limited

PO Box 42

272 Kensington High Street

London, W8 6ND

Reino Unido

DATOS TÉCNICOS

Número del articulo Suministro electrico Número de reojes
10045566 220-240 V ~ 50/60	Hz 1
10045567 220-240 V ~ 50/60	Hz 2
10045568 220-240 V ~ 50/60	Hz 1
10045569 220-240 V ~ 50/60	Hz 1
10045570 220-240 V ~ 50/60	Hz 1
10045571 220-240 V ~ 50/60	Hz 1
10045572 220-240 V ~ 50/60	Hz 1
10045573 220-240 V ~ 50/60	Hz 1
10045574 220-240 V ~ 50/60	Hz 2
10045575 220-240 V ~ 50/60	Hz 1

Cher client, chere clientele,

Berlin Brands Group UK Ltd

PO Box 42

272 Kensington High Street

London, W8 6ND

United Kingdom

FICHE TECHNIQUE

Numero d'article Alimentation	Nombre de montres
10045566 220-240 V ~ 50/60	Hz 1
10045567 220-240 V ~ 50/60	Hz 2
10045568 220-240 V ~ 50/60	Hz 1
10045569 220-240 V ~ 50/60	Hz 1
10045570 220-240 V ~ 50/60	Hz 1
10045571 220-240 V ~ 50/60	Hz 1
10045572 220-240 V ~ 50/60	Hz 1
10045573 220-240 V ~ 50/60	Hz 1
10045574 220-240 V ~ 50/60	Hz 2
10045575 220-240 V ~ 50/60	Hz 1

Gentile cliente,
