Product type	Automatic watch winder for mechanical watches
Brand	Klarstein
Model	Brienz 1
Power supply	USB power cable (5-9 V DC, 1500-2100 mA); mains adapter not included
Winding programs	4 programs: P1 (2 min forward, 6 min pause), P2 (2 min reverse, 6 min pause), P3 (alternating forward/reverse 2 min, pause 6 min), P4 (5 min forward/reverse, cycle 3h, stop 9h)
Lighting	Blue LED ambient light with independent switch
Watch support	Removable memory foam cushion, adaptable for men's and women's watches (short strap possible)
Rotating plate	Automatic rotation with lid opening detection (motor stops)
Charge indicator	Yes (model SKW167-LIB only)
Maintenance	Let the motor rest for 2 hours after 30 days of continuous use; clean with the provided cloth
Included accessories	USB power cable, memory foam cushion, wiping cloth
Safety	Do not manually turn the plate; use only a 3-9 V mains adapter; do not use a power supply from other devices
Compatibility	Automatic mechanical watches; not suitable for program P4 for low-winding watches
External power possible	External battery (power bank) can be used as power source
Number of manual pages	68 pages

Frequently Asked Questions - Brienz 1 Klarstein

Where can I find the mains adapter?

This product is delivered without a mains adapter but with a USB power cable. Use your mobile phone's mains adapter (output 5-9 V) connected to this cable.

Why is the winder not turning?

Check that the power cable is properly attached to the winder, that the adapter is plugged into the mains, and that the switch under the rotating plate is in the on position.

Why does the winder stop after a few minutes?

This is normal depending on the selected program. For example, program P4 has a stop of 9 hours after 3 hours of rotation. If the stop persists abnormally, check the connections and the switch.

The winder is not winding my watch, why?

Make sure your watch is an automatic mechanical watch. Program P4 is not suitable for low-winding watches; use P1, P2, or P3 instead.

How do I correctly install my watch on the support?

Remove the foam support from the plate, place the watch around it, close the strap, then insert the support into the groove. If the strap is too short, gently force it as the foam deforms, or orient the watch differently.

Why is there no battery compartment?

This product uses a USB cable for power, which is more economical and durable than batteries. You can plug it into a mains adapter or an external battery (capacity 1500-2100 mA).

Can I use an external battery?

Yes, you can use an external battery (power bank) as a power source. It is more durable and economical than traditional batteries. A typical external battery (10,000-20,000 mA) allows multiple cycles.

What maintenance is recommended?

To extend the motor's lifespan, let it rest 2 hours after 30 days of continuous use. Use the provided cloth to clean the device.

What programs are available?

Four programs: P1 (2 min forward, 6 min pause), P2 (2 min reverse, 6 min pause), P3 (alternating forward/reverse 2 min, pause 6 min), P4 (5 min forward/reverse, cycle 3h, stop 9h). Select via the program selector.

Does the blue LED light always work?

The blue LED ambient light is controlled by an independent ON/OFF switch. You can turn it on or off as you prefer.

USER MANUAL Brienz 1 Klarstein

QR code image containing encoded data, no visible human-readable text

ÜBERSICHT (10045568,10045575,10045567,10045573)

Diagram showing two rectangular electronic components with labeled terminals and internal indicators, likely representing a circuit or signal connection.

Diagram showing a cable being opened into a smartwatch with labeled parts and control panel, including a close-up of the switch.

ÜBERSICHT (10045574,10045566,10045569,10045570)

Electrical wiring diagram showing two components connected via labeled terminals and connection points

Diagram showing two wristwatches connected by labeled parts, with numbered annotations indicating components.

Two types of medical or electronic components: a folded paper and a black USB cable, both with numbered labels (⑦ and ⑥) — no readable text or symbols beyond labels.

Close-up of a wristwatch with black dial and silver strap (no visible text or symbols)

Close-up of a wristwatch with metallic frame and wrist strap (no visible text or symbols)

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

Berlin Brands Group UK Limited

PO Box 42

272 Kensington High Street

London, W8 6ND

United Kingdom

TECHNISCHE DATEN

Artikelnummer Stromversorgung Anzahl Uhren
10045566 220-240 V ~ 50/60	Hz 1
10045567 220-240 V ~ 50/60	Hz 2
10045568 220-240 V ~ 50/60	Hz 1
10045569 220-240 V ~ 50/60	Hz 1
10045570 220-240 V ~ 50/60	Hz 1
10045571 220-240 V ~ 50/60	Hz 1
10045572 220-240 V ~ 50/60	Hz 1
10045573 220-240 V ~ 50/60	Hz 1
10045574 220-240 V ~ 50/60	Hz 2
10045575 220-240 V ~ 50/60	Hz 1

Dear customer,

Congratulations on your purchase. Please read the following instructions carefully and follow them to prevent potential damage. We accept no liability for damage caused by disregarding the instructions and improper use. Please scan the QR code to access the latest operating instructions and further information about the product.

QR code image containing encoded data, no visible human-readable text

OVERVIEW (10045568,10045575,10045567,10045573)

(1) Power supply
(2) Ambient light switch
(3) Program switch
(4) Watch holder
(5) Rotary plate
(6) USB cable
(7) Wipe
(8) Blue LED light
(9) Right rotary plate switch

Diagram showing two rectangular electronic components with labeled terminals and indicator lights, likely representing a circuit or signal connection.

Product assembly diagram showing cable, pad, and control panel with labeled parts and functions

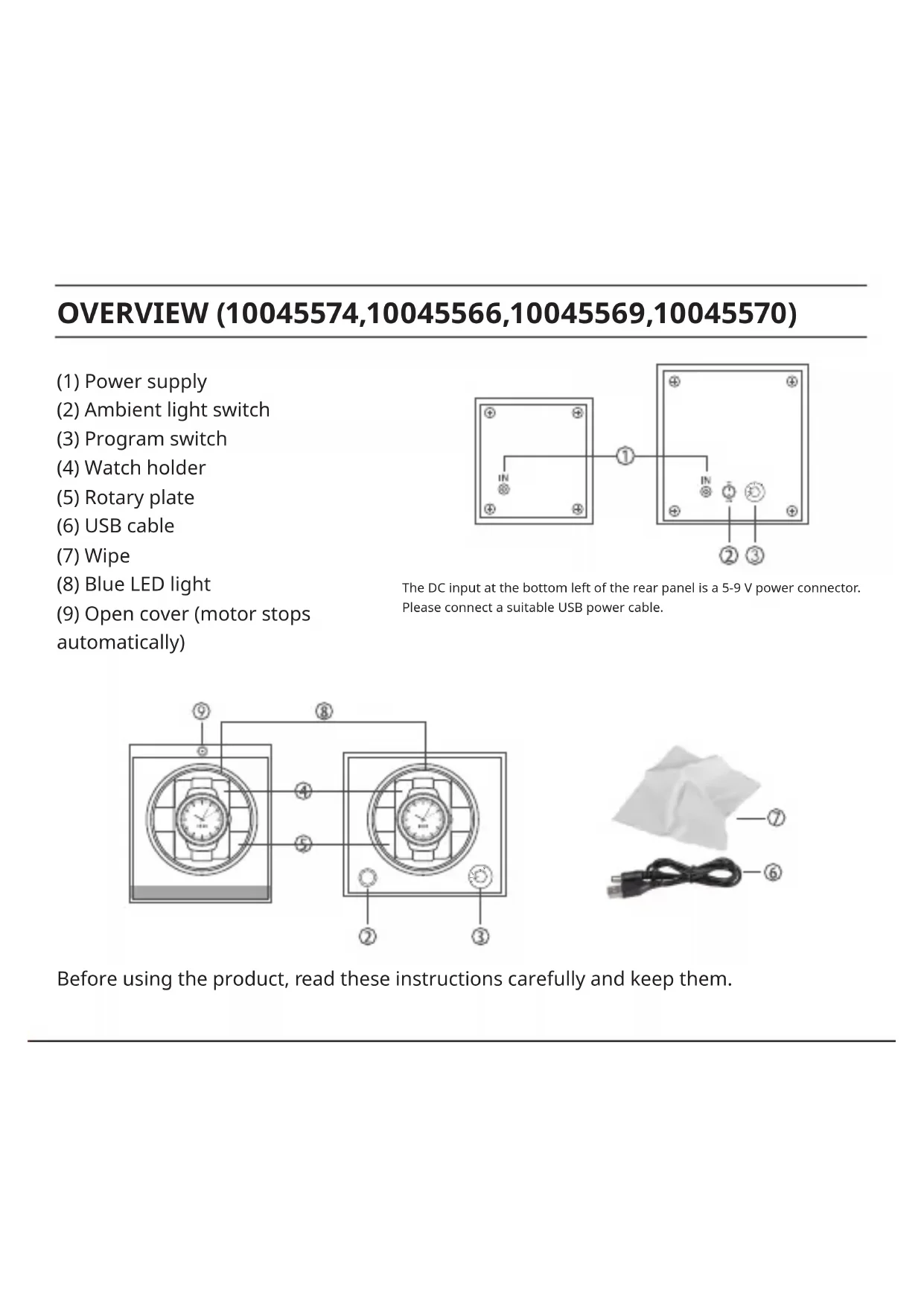

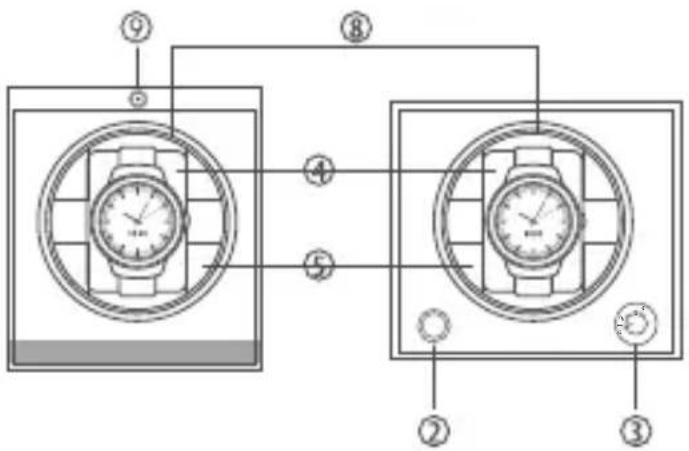

OVERVIEW (10045574,10045566,10045569,10045570)

(1) Power supply
(2) Ambient light switch
(3) Program switch
(4) Watch holder
(5) Rotary plate
(6) USB cable
(7) Wipe
(8) Blue LED light
(9) Open cover (motor stops automatically)

IN ① IN ② ③

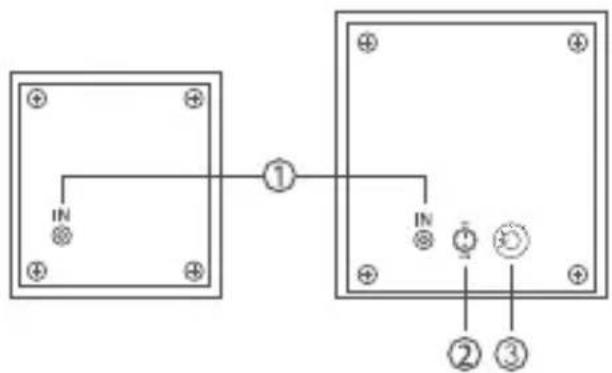

The DC input at the bottom left of the rear panel is a 5-9 V power connector. Please connect a suitable USB power cable.

Diagram showing two wristwatches connected by labeled parts, with numbered annotations indicating components.

Two types of medical or electronic components: a folded paper sheet and a black USB cable, both without any visible text or symbols.

Before using the product, read these instructions carefully and keep them.

OVERVIEW (10045571,10045572)

The DC input at the bottom left of the rear panel is a 5-9 V power connector. Please connect a suitable USB power cable.

(1) Open cover (motor stops automatically)
(2) Blue LED light
(3) Rotary plate
(4) Memory foam holder

(5) Power supply
(6) Ambient light switch
(7) Program switch
(8) Power switch

(9) Charging indicator
(SKW167-LIB only)
(10) Right rotary plate switch
(11) USB cable
(12) Wipe

Before using the product, read these instructions carefully and keep them.

Remove the memory foam holder from the rotary plate, place your watch around it, close the strap and place the holder in the groove. If you cannot place your watch around the holder normally (because the strap is too short), either strap the watch in place with force, as the memory foam can be deformed, or attach the watch to the memory foam holder in a different alignment (as shown in the picture below right).

Close-up of a wristwatch with black dial and silver strap (no visible text or symbols)

Close-up of a metallic wristwatch with wrist strap and analog dial (no visible text or symbols)

Normal watch alignment Alignment for watches with a short strap

DEVICE PROPERTIES

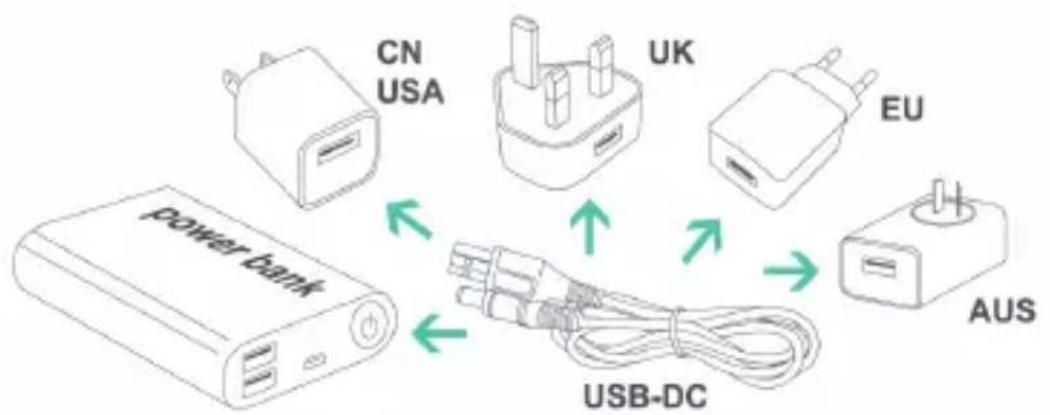

CN USA UK EU power bank USB-DC AUS

• Universal USB power supply cable, suitable for all mobile phone power adapters.
- A power bank can also be used as a power source, which is more durable and economical than batteries.
- The multi-level program is suitable for various application scenarios.
- Blue LED ambient light (with independent switch control).
- Men's and women's watches can be attached to the memory foam holder.

Please note:

• Operate this product with a mobile phone power adapter with an output voltage of 3-9 V.
• Never use the power adapter of another electronic device.
• Do not turn the rotary plate in the watch winder, otherwise the built-in circuit of your watch winder will be damaged.
  • To increase motor life, allow the motor to rest for 2 hours after 30 consecutive days.

PROGRAMS

• OFF: Rotate off
  • P 1: 2 minutes forward, 6 minutes rest, etc.
  • P 2: 2 minutes backwards, 6 minutes rest, etc.
  • P 3: 2 minutes forward, 6 minutes break, 2 minutes backwards, 6 minutes break, etc.
  • P 4: The watch winder holds for 3 hours and stops after 9 hours after rotating forward 5 minutes and backward 5 minutes.
  • ON/OFF switch: Ambient light on/off

1 2 3 4 OFF

FREQUENTLY ASKED QUESTIONS

(1) Where can I find the AC adapter?

This product is not equipped with an AC adapter but rather with a USB power cord. Connect your mobile phone's power adapter to this USB power cable to operate the product.

(2) Why doesn't the watch winder rotate?

Check that the power cord is properly attached to the watch winder. Check if your power adapter is properly connected to the mains. Check that the button switch under the watch winder turntable is in the working position.

(3) Why does the watch winder stop running after a few minutes?

Usually it will run again in a few minutes (depending on the program).

If it doesn't work for a long time, please check the details of the set program. In program 4 it stays still for 9 hours. Many customers then mistakenly think that the product is broken. After 9 hours, however, the watch winder starts again and continues with the program. If this is not the case, please read the answers to question 2.

(4) The watch winder cannot wind my movement, why?

First, make sure your mechanical watch has an automatic movement winding feature. Program 4 is not suitable for mechanical watches with low efficiency, in the worst case the watch will break.

(5) How do I put my watch on the watch holder correctly?

Remove the memory foam holder from the rotary plate, place your watch around it, close the strap and place the holder in the groove. If you cannot put your watch around the mount normally (because the strap is too short), use force to buckle the watch as the memory foam can be reshaped.

(6) Why is there no battery compartment in the watch winder?

This product is equipped with a USB power cord, so it can be charged by the mobile phone power adapter or a power bank, the durability and economy of which is several times higher than that of a battery. The charging capacity of the watch winder is around 1500-2100 mA (as much as five conventional 1.5 batteries). A traditional power bank has a capacity of about 10000-20000 mA, so it can be used for repeated charging.

DISPOSAL CONSIDERATIONS

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

If there is a legal regulation in your country regarding the disposal of electrical and electronic equipment, this symbol on the product or on the packaging indicates that this product must not be disposed of with household waste. Instead, it must be taken to a collection point for the recycling of electrical and electronic equipment. By disposing of this product in accordance with the regulations, you are protecting the environment and the health of those around you from negative consequences. For information on recycling and disposal of this product, contact your local government or household waste disposal service.

This product contains batteries. If there is a legal regulation in your country regarding the disposal of batteries, the batteries must not be disposed of in household waste. Consult your local regulations for the disposal of batteries. By disposing of this product in accordance with the regulations, you are protecting the environment and the health of those around you from negative consequences.

MANUFACTURER & IMPORTER (UK)

Manufacturer:

Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Germany.

Importer for Great Britain:

Berlin Brands Group UK Limited

PO Box 42

272 Kensington High Street

London, W8 6ND

United Kingdom

TECHNICAL DATA

Article number Power supply Number of watches
10045566 220-240 V ~ 50/60 Hz 1
10045567 220-240 V ~ 50/60 Hz 2
10045568 220-240 V ~ 50/60 Hz 1
10045569 220-240 V ~ 50/60 Hz 1
10045570 220-240 V ~ 50/60 Hz 1
10045571 220-240 V ~ 50/60 Hz 1
10045572 220-240 V ~ 50/60 Hz 1
10045573 220-240 V ~ 50/60 Hz 1
10045574 220-240 V ~ 50/60 Hz 2
10045575 220-240 V ~ 50/60 Hz 1

Estimado cliente:

QR code image containing encoded data, no visible human-readable text

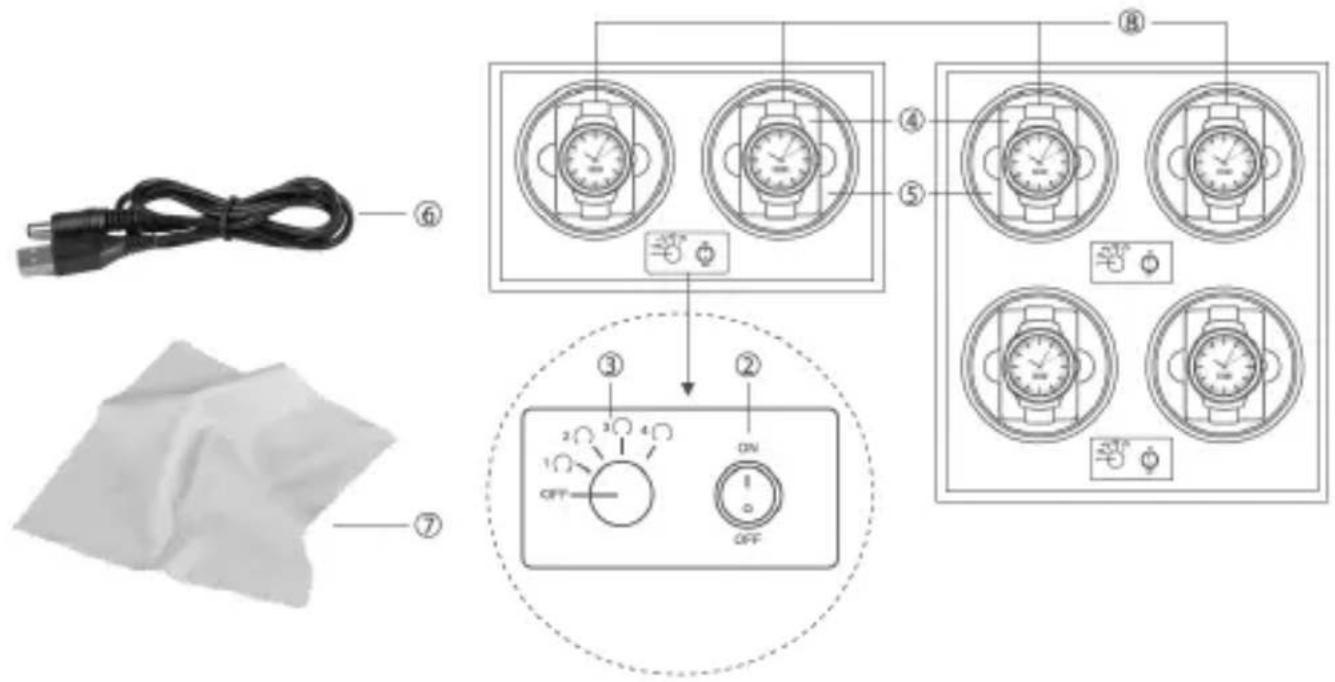

DESCRIPCIÓN (10045568,10045575,10045567,10045573)

Diagram showing two rectangular electronic components with labeled terminals and internal indicators, likely representing a circuit or signal connection.

Diagram showing a cable being opened into a smartwatch with labeled parts and control panel, including a close-up of the switch.

DESCRIPCIÓN (10045574,10045566,10045569,10045570)

Electrical wiring diagram showing two components connected via labeled terminals and connection points

Diagram showing two wristwatches connected by labeled parts, with numbered annotations for each.

Two white plastic sheets and a black USB cable, labeled with numbers ⑦ and ⑥ (no text or symbols on the main objects)

Close-up of a wristwatch with black dial and silver strap (no visible text or symbols)

Close-up of a wristwatch with metallic frame and wrist strap (no visible text or symbols)

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

Berlin Brands Group UK Limited

PO Box 42

272 Kensington High Street

London, W8 6ND

Reino Unido

DATOS TÉCNICOS

Número del artículo Suministro eléctrico Número de relojes
10045566 220-240 V ~ 50/60	Hz 1
10045567 220-240 V ~ 50/60	Hz 2
10045568 220-240 V ~ 50/60	Hz 1
10045569 220-240 V ~ 50/60	Hz 1
10045570 220-240 V ~ 50/60	Hz 1
10045571 220-240 V ~ 50/60	Hz 1
10045572 220-240 V ~ 50/60	Hz 1
10045573 220-240 V ~ 50/60	Hz 1
10045574 220-240 V ~ 50/60	Hz 2
10045575 220-240 V ~ 50/60	Hz 1

Cher client, chère cliente,

QR code image containing encoded data, no visible human-readable text

APERÇU (10045568,10045575,10045567,10045573)

ant ① IN ②

Diagram showing a cable being installed next to four smartwatches with labeled control buttons and a separate panel for display.

APERÇU (10045574,10045566,10045569,10045570)

Electrical wiring diagram showing two components connected via labeled terminals and connection points

Diagram showing two wristwatches connected by labeled parts, with numbered annotations for each.

Two types of medical or electronic components: a folded paper and a black USB cable, both with numbered labels (⑦ and ⑥) — no readable text or symbols beyond labels.

Close-up of a wristwatch with black dial and silver strap (no visible text or symbols)

Close-up of a wristwatch with metallic frame and wrist strap (no visible text or symbols)

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

Berlin Brands Group UK Ltd

PO Box 42

272 Kensington High Street

London, W8 6ND

United Kingdom

FICHE TECHNIQUE

Numéro d'article Alimentation Nombre de montres
10045566 220-240 V ~ 50/60	Hz 1
10045567 220-240 V ~ 50/60	Hz 2
10045568 220-240 V ~ 50/60	Hz 1
10045569 220-240 V ~ 50/60	Hz 1
10045570 220-240 V ~ 50/60	Hz 1
10045571 220-240 V ~ 50/60	Hz 1
10045572 220-240 V ~ 50/60	Hz 1
10045573 220-240 V ~ 50/60	Hz 1
10045574 220-240 V ~ 50/60	Hz 2
10045575 220-240 V ~ 50/60	Hz 1

Gentile cliente,

QR code image containing encoded data, no visible human-readable text

PANORAMICA (10045568,10045575,10045567,10045573)

Diagram showing a cable being installed next to four smartwatches with labeled control buttons and a separate panel for display.

PANORAMICA (10045574,10045566,10045569,10045570)

IN ① IN ② ③

Diagram showing two wristwatches connected by labeled parts, with numbered annotations for each.

Two types of medical or electronic devices: a folded paper and a USB cable, both with no visible text or symbols.

Close-up of a wristwatch with black dial and silver strap (no visible text or symbols)

Close-up of a silver wristwatch with black strap and white dial (no visible text or symbols)

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

PRODUTTORE E IMPORTATORE (UK)

Produttore:

Chal-Tec GmbH, Wallstraße 16, 10179 Berlino, Germania.

Berlin Brands Group UK Limited

PO Box 42

272 Kensington High Street

London, W8 6ND

United Kingdom

DATI TECNICI

Numero articolo Alimentazione Numero di orologi
10045566 220-240 V ~ 50/60	Hz 1
10045567 220-240 V ~ 50/60	Hz 2
10045568 220-240 V ~ 50/60	Hz 1
10045569 220-240 V ~ 50/60	Hz 1
10045570 220-240 V ~ 50/60	Hz 1
10045571 220-240 V ~ 50/60	Hz 1
10045572 220-240 V ~ 50/60	Hz 1
10045573 220-240 V ~ 50/60	Hz 1
10045574 220-240 V ~ 50/60	Hz 2
10045575 220-240 V ~ 50/60	Hz 1

KLARSTEIN
