USER MANUAL Brienz 6 Klarstein

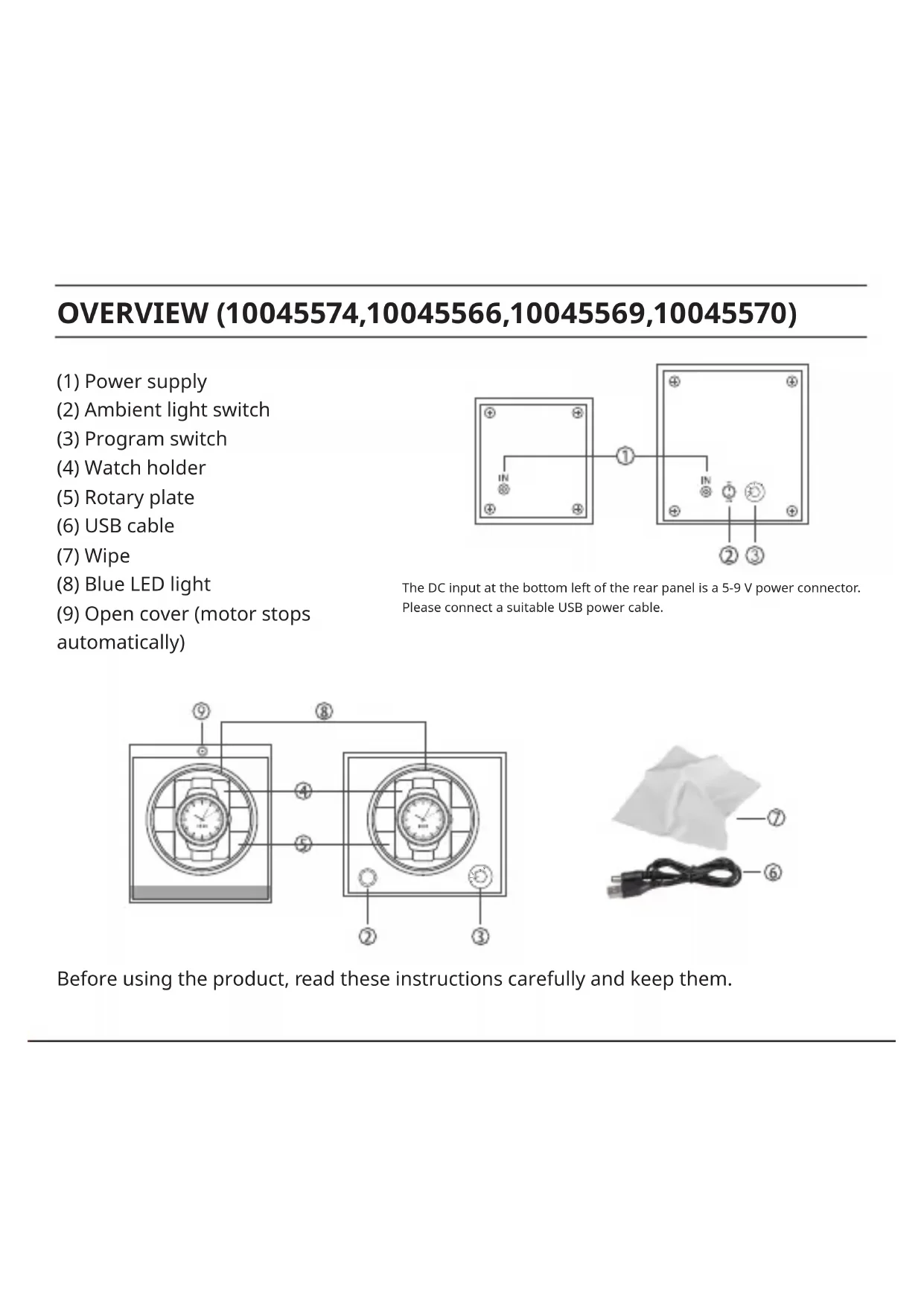

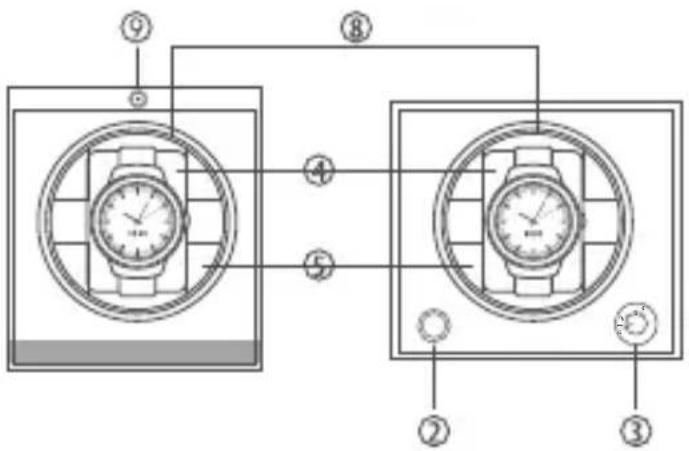

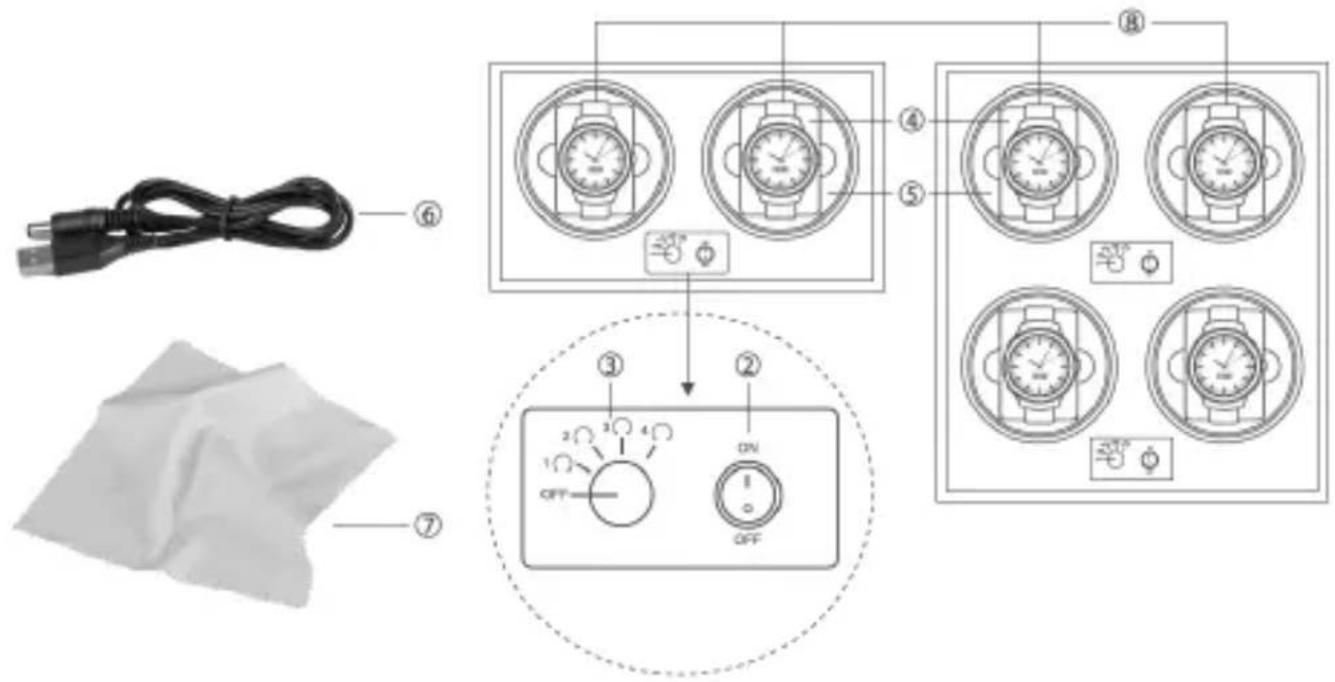

OVERVIEW (10045574,10045566,10045569,10045570) (1) Power supply (2) Ambient light switch (3) Program switch (4) Watch holder (5) Rotary plate (6) USB cable (7) Wipe (8) Blue LED light (9) Open cover (motor stops automatically) Before using the product, read these instructions carefully and keep them. The DC input at the bottom left of the rear panel is a 5-9 V power connector. Please connect a suitable USB power cable.OVERVIEW (10045571,10045572) (1) Open cover (motor stops automatically) (2) Blue LED light (3) Rotary plate (4) Memory foam holder (5) Power supply (6) Ambient light switch (7) Program switch (8) Power switch (9) Charging indicator (SKW167-LIB only) (10) Right rotary plate switch (11) USB cable (12) Wipe The DC input at the bottom left of the rear panel is a 5-9 V power connector. Please connect a suitable USB power cable. Before using the product, read these instructions carefully and keep them.Remove the memory foam holder from the rotary plate, place your watch around it, close the strap and place the holder in the groove. If you cannot place your watch around the holder normally (because the strap is too short), either strap the watch in place with force, as the memory foam can be deformed, or attach the watch to the memory foam holder in a dierent alignment (as shown in the picture below right). Normal watch alignment Alignment for watches with a short strapDEVICE PROPERTIES

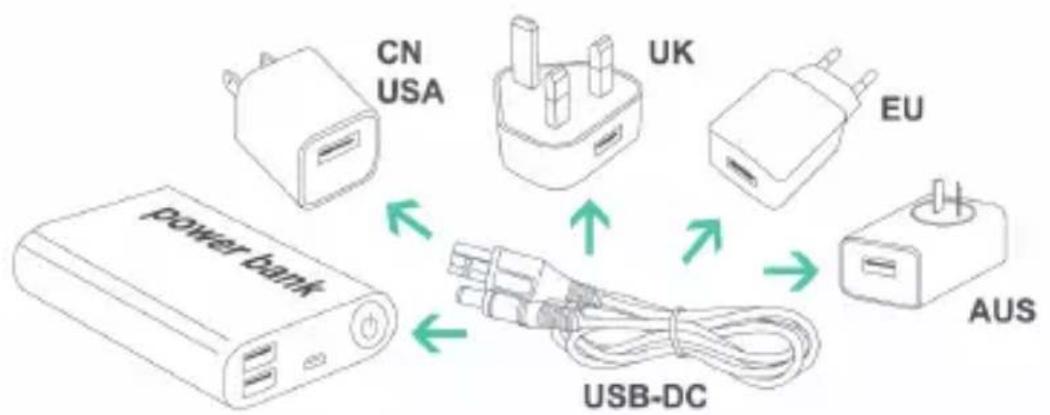

• Universal USB power supply cable, suitable for all mobile phone power adapters.

• A power bank can also be used as a power source, which is more durable and economical than batteries.

• The multi-level program is suitable for various application scenarios.

• Blue LED ambient light (with independent switch control).

• Men's and women's watches can be attached to the memory foam holder.Please note:

• Operate this product with a mobile phone power adapter with an output voltage of 3-9 V.

• Never use the power adapter of another electronic device.

• Do not turn the rotary plate in the watch winder, otherwise the built-in circuit of your watch winder will be damaged.

• To increase motor life, allow the motor to rest for 2 hours after 30 consecutive days. PROGRAMS

• P 1: 2 minutes forward, 6 minutes rest, etc.

• P 2: 2 minutes backwards, 6 minutes rest, etc.

• P 3: 2 minutes forward, 6 minutes break, 2 minutes backwards, 6 minutes break, etc.

• P 4: The watch winder holds for 3 hours and stops after 9 hours after rotating forward 5 minutes and backward 5 minutes.

• ON/OFF switch: Ambient light on/oFREQUENTLY ASKED QUESTIONS (1) Where can I nd the AC adapter? This product is not equipped with an AC adapter but rather with a USB power cord. Connect your mobile phone's power adapter to this USB power cable to operate the product. (2) Why doesn't the watch winder rotate? Check that the power cord is properly attached to the watch winder. Check if your power adapter is properly connected to the mains. Check that the button switch under the watch winder turntable is in the working position. (3) Why does the watch winder stop running after a few minutes? Usually it will run again in a few minutes (depending on the program). If it doesn't work for a long time, please check the details of the set program. In program 4 it stays still for 9 hours. Many customers then mistakenly think that the product is broken. After 9 hours, however, the watch winder starts again and continues with the program. If this is not the case, please read the answers to question 2.(4) The watch winder cannot wind my movement, why? First, make sure your mechanical watch has an automatic movement winding feature. Program 4 is not suitable for mechanical watches with low eciency, in the worst case the watch will break. (5) How do I put my watch on the watch holder correctly? Remove the memory foam holder from the rotary plate, place your watch around it, close the strap and place the holder in the groove. If you cannot put your watch around the mount normally (because the strap is too short), use force to buckle the watch as the memory foam can be reshaped. (6) Why is there no battery compartment in the watch winder? This product is equipped with a USB power cord, so it can be charged by the mobile phone power adapter or a power bank, the durability and economy of which is several times higher than that of a battery. The charging capacity of the watch winder is around 1500-2100 mA (as much as ve conventional 1.5 batteries). A traditional power bank has a capacity of about 10000-20000 mA, so it can be used for repeated charging.DISPOSAL CONSIDERATIONS If there is a legal regulation in your country regarding the disposal of electrical and electronic equipment, this symbol on the product or on the packaging indicates that this product must not be disposed of with household waste. Instead, it must be taken to a collection point for the recycling of electrical and electronic equipment. By disposing of this product in accordance with the regulations, you are protecting the environment and the health of those around you from negative consequences. For information on recycling and disposal of this product, contact your local government or household waste disposal service. This product contains batteries. If there is a legal regulation in your country regarding the disposal of batteries, the batteries must not be disposed of in household waste. Consult your local regulations for the disposal of batteries. By disposing of this product in accordance with the regulations, you are protecting the environment and the health of those around you from negative consequences.MANUFACTURER & IMPORTER (UK) Manufacturer: Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Germany. Importer for Great Britain: Berlin Brands Group UK Limited PO Box 42 272 Kensington High Street London, W8 6ND United KingdomTECHNICAL DATA Article number Power supply Number of watches 10045566 220-240 V ~ 50/60 Hz 1 10045567 220-240 V ~ 50/60 Hz 2 10045568 220-240 V ~ 50/60 Hz 1 10045569 220-240 V ~ 50/60 Hz 1 10045570 220-240 V ~ 50/60 Hz 1 10045571 220-240 V ~ 50/60 Hz 1 10045572 220-240 V ~ 50/60 Hz 1 10045573 220-240 V ~ 50/60 Hz 1 10045574 220-240 V ~ 50/60 Hz 2 10045575 220-240 V ~ 50/60 Hz 1Estimado cliente: Le felicitamos por la adquisición de este producto. Lea atentamente el siguiente manual y siga cuidadosamente las instrucciones de uso con el n de evitar posibles daños. La empresa no se responsabiliza de los daños ocasionados por un uso indebido del producto o por haber desatendido las indicaciones de seguridad. Escanee el siguiente código QR para obtener acceso al manual de usuario más reciente e información adicional sobre el producto.DESCRIPCIÓN (10045568,10045575,10045567,10045573) (1) Conexión a la red eléctrica (2) Interruptor de luz ambiente (3) Interruptor de programación (4) Soporte del reloj (5) Plato giratorio (6) Cable de alimentación USB (7) Paño de limpieza (8) Luz LED azul (9) Interruptor derecho plato giratorio1
