Product type	Percussion massage device
Brand	Zeegma
Model	Cure
Number of massage heads	12
Replacement pads	4
Speed levels	7
Screen	LCD touch screen
Pressure sensor	Yes
Automatic shutdown	After 10 minutes of continuous use
Maximum duration per zone	1 minute
Power supply	Rechargeable internal battery 12V DC 1A
Charging time	3 to 4 hours
Main switch	Yes
Non-slip handle	Yes
Recommended use	Muscles, avoid bones and neck
Maintenance	Clean with a damp cloth, do not immerse
Safety	Pressure sensor, automatic shutdown, overheating protection
Compliance	European WEEE Directive
Included accessories	Power cord, 12 heads, 4 pads

Frequently Asked Questions - Cure Zeegma

How to charge the device?

Make sure the main switch is set to OFF. Plug the power cord into the charging port and connect it to a 12V DC 1A charger. The battery indicator flashes during charging. Full charging takes about 3 to 4 hours.

How long can I massage one area?

Do not massage the same area for more than one minute. The device automatically turns off after 10 minutes of continuous operation to prevent overheating.

What to do if the device does not turn on?

Check that the main switch is set to ON and the battery is sufficiently charged. If the problem persists, contact Zeegma support.

Which heads to use for large muscle areas?

Use the scapular head (fig. 4) for large areas, the ball head (fig. 3) for large areas of medium intensity, or the arc-shaped head (fig. 8) to help with swelling.

How to remove and change a head?

To remove a head, pull it without twisting. To insert a new head, align it and press firmly until it clicks into place.

Can I use the device if I am pregnant?

Pregnant women should consult a doctor before using this device.

Is the device waterproof?

No, the device is not waterproof. Do not immerse it in water and avoid humid environments.

How to clean the device?

Wipe the device with a damp cloth, then dry it thoroughly before next use. Do not use chemical products.

What to do if the pressure sensor activates?

If the pressure is too high, the pressure sensor displays and the device stops operation. Reduce the pressure to resume the massage.

Can I repair the device myself?

No, do not repair or modify the device. Contact an authorized service center of the manufacturer for any repairs.

USER MANUAL Cure Zeegma

ZEEGMA 100%

ZEEGMA

A

ZEEGMA 1 2 3 4 1007

1.00% 2.50% 3.50% 4.50% 5.00% 6.00% 7.00% 8.00% 9.00% 10.00% 11.00% 12.00% 13.00% 14.00% 15.00% 16.00% 17.00% 18.00% 19.00% 20.00% 21.00% 22.00% 23.00% 24.00% 25.00% 26.00% 27.00% 28.00% 29.00% 30.00% 31.00% 32.00% 33.00% 34.00% 35.00% 36.00% 37.00% 38.00% 39.00% 40.00% 41.00% 42.00% 43.00% 44.00% 45.00% 46.00% 47.00% 48.00% 49.00% 50.00%

9
5
7
6
8
-

Coiled black cable with USB port, no text or symbols visible

10
11

OFF ON

1

Hand inserting a black plastic tool into a gray electric hand, with a green arrow indicating direction (no text or symbols visible)

2

Hand inserting a black cylindrical device into a black body, with a green arrow indicating the left-hand rule (no text or symbols on the device itself)

Black spherical object with a protruding shaft, shown against a white background (no text or symbols)

Black plastic key-shaped tool with a handle and spout, shown against a white background (no text or symbols)

Black plastic connector component with threaded end and tapered tip, no visible text or symbols

Black plastic mechanical component with a flanged top and stepped shaft (no text or symbols visible)

Black plastic mechanical component with a curved handle and threaded end (no text or symbols visible)

Black plastic hair clip with serrated edge and central shaft (no text or symbols)

Black plastic mechanical component with a flared top and cylindrical shaft (no text or symbols visible)

Orange plastic mechanical component with black cylindrical body and serrated ends, labeled '10' in corner (no text or symbols on the object itself)

Orange and black plastic connector component (no text or symbols visible)

11

Black plastic pushpin with serrated tip and handle (no text or symbols)

2

Black plastic mechanical component with three curved arms (no text or symbols visible)

13

Black plastic tool with a curved handle and rectangular grip (no text or symbols visible)

4

A

Orange mechanical component with a downward arrow and a crack, no text or symbols present

B

Orange plastic mechanical component with a blue upward arrow emerging from its base (no text or symbols)

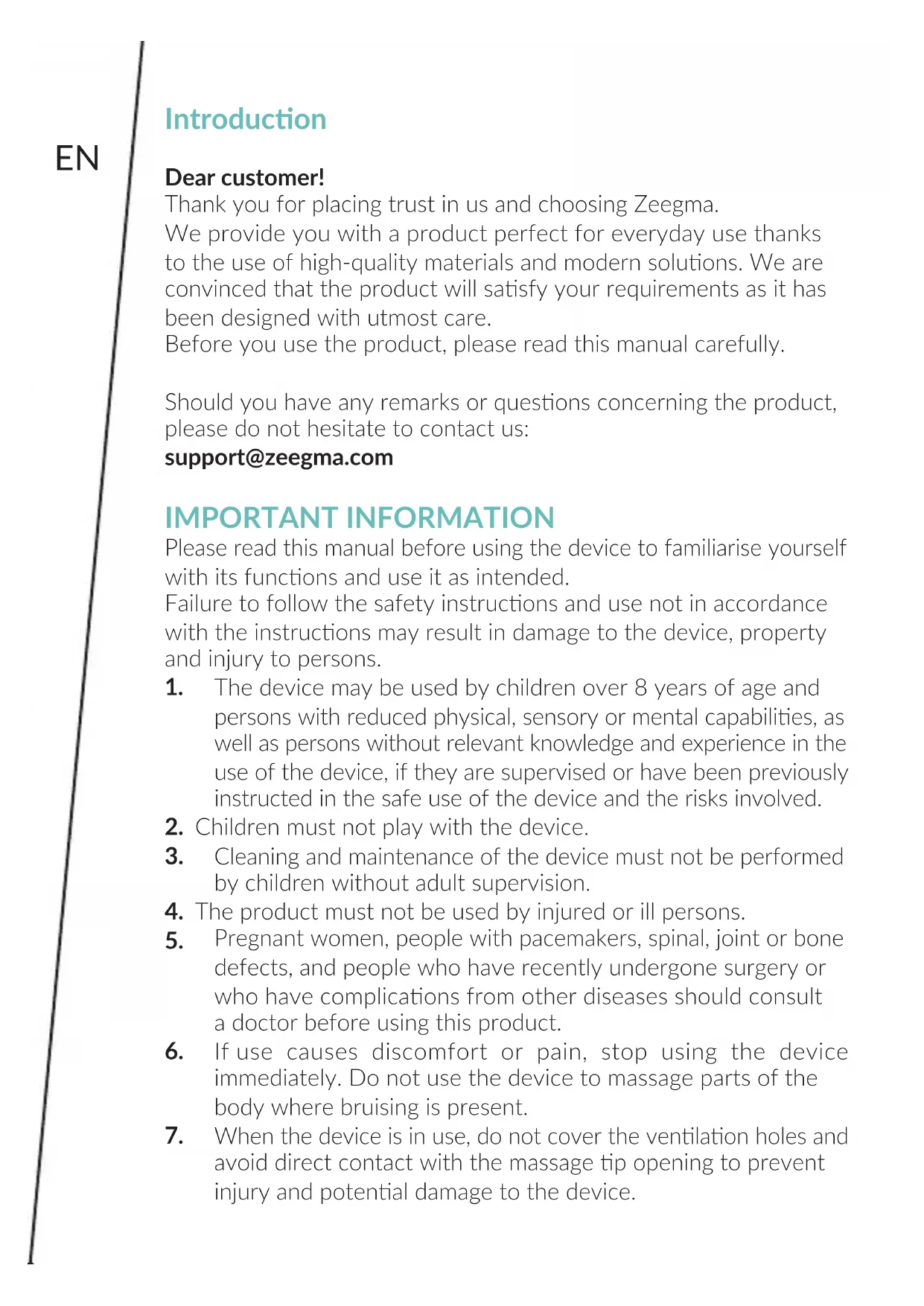

Introduction

Dear customer!

Thank you for placing trust in us and choosing Zeegma.

We provide you with a product perfect for everyday use thanks to the use of high-quality materials and modern solutions. We are convinced that the product will satisfy your requirements as it has been designed with utmost care.

Before you use the product, please read this manual carefully.

Should you have any remarks or questions concerning the product, please do not hesitate to contact us:

[e-mail]

IMPORTANT INFORMATION

Please read this manual before using the device to familiarise yourself with its functions and use it as intended.

Failure to follow the safety instructions and use not in accordance with the instructions may result in damage to the device, property and injury to persons.

1. The device may be used by children over 8 years of age and persons with reduced physical, sensory or mental capabilities, as well as persons without relevant knowledge and experience in the use of the device, if they are supervised or have been previously instructed in the safe use of the device and the risks involved.

2. Children must not play with the device.

3. Cleaning and maintenance of the device must not be performed by children without adult supervision.

4. The product must not be used by injured or ill persons.

5. Pregnant women, people with pacemakers, spinal, joint or bone defects, and people who have recently undergone surgery or who have complications from other diseases should consult a doctor before using this product.

6. If use causes discomfort or pain, stop using the device immediately. Do not use the device to massage parts of the body where bruising is present.

7. When the device is in use, do not cover the ventilation holes and avoid direct contact with the massage tip opening to prevent injury and potential damage to the device.

8. Stop using the device immediately if the massaging tip has fallen off or the device operates in an abnormal manner.

9. Do not repair or modify the device. These operations can only be performed by an authorized service center.
10. Do not start the device if you notice any damage.
11. Do not use the device when it begins to malfunction, has been dropped or got wet, becomes excessively hot, discoloration, bulges appear, makes unnatural sounds, smells, and when other abnormal phenomena occur. In such instances, immediately contact the manufacturer's authorized service center.
12. Check the power cord regularly for damage. Do not use the device if the power cord is damaged.
13. Use only the power cord supplied with the set.
14. The device is not waterproof, do not immerse it in water or keep it in a damp place.
15. Use the device away from heat sources, high temperatures, hot surfaces, direct sunlight, sources of sparking, open flames, oils and sharp edges.
16. Do not use the device in an environment containing flammable, explosive or toxic substances.
17. Work along the muscle fibers during the massage.
18. Do not use chemicals to clean the device.
19. Do not use the device for purposes other than those for which it was designed.
20. Use the included tips only for their intended purpose.
21. Ensure that the local power source is compatible with the product's power requirements. The device can only be charged with a SELV charger with 12 V DC 1 A output parameters.
22. This device contains a non-replaceable battery.
23. Do not throw the device and avoid even accidental falls.

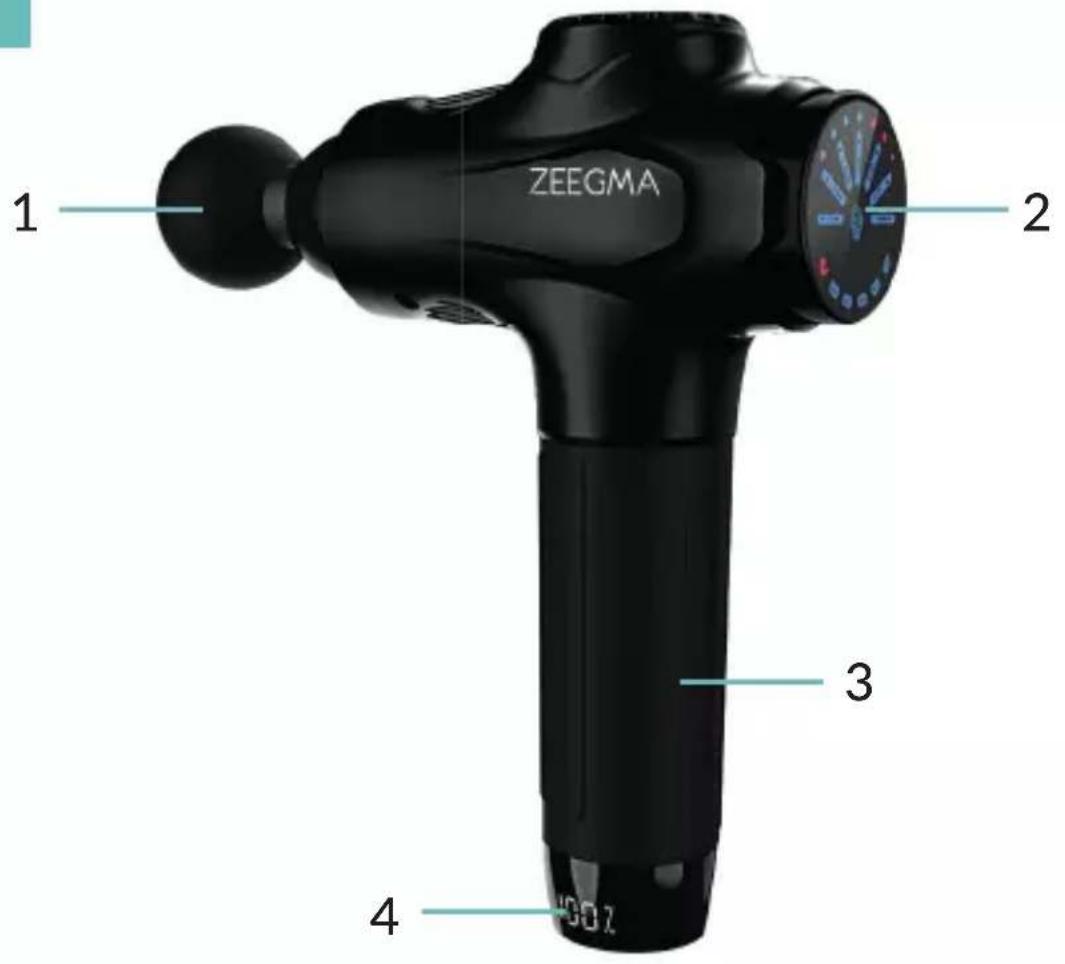

LIST OF PARTS (fig. A)

1. Massaging tip
2. Touch screen LCD control panel
3. Non-slip handle with internal battery
4. Battery monitor

5. Pressure sensor

6. On/off switch

7. Speed indicator
8. Battery level indicator
9. Power cord
10. Charging port
11. Main on/off switch

CHARGING

Make sure the device is fully charged before first use. Charging takes approximately 3-4 hours.

Insert one end of the power cable (9, fig. A) into the charging port (10, fig. A) and the other end into the charger (not supplied), then connect the device to the power source. During charging, the battery level indicator (8, fig. A) will flash.

Before charging, the device must be switched off using the main switch.

Do not charge the device in an environment with high temperatures and/or humidity, or in direct sunlight.

It is recommended to recharge the device when the battery level drops to 20%. The battery level is displayed on the control panel (2, fig. A) and on the battery monitor (4, fig. A).

USE

1. Choose the right tip to suit the part of the body to be massaged (see: Massaging tips).

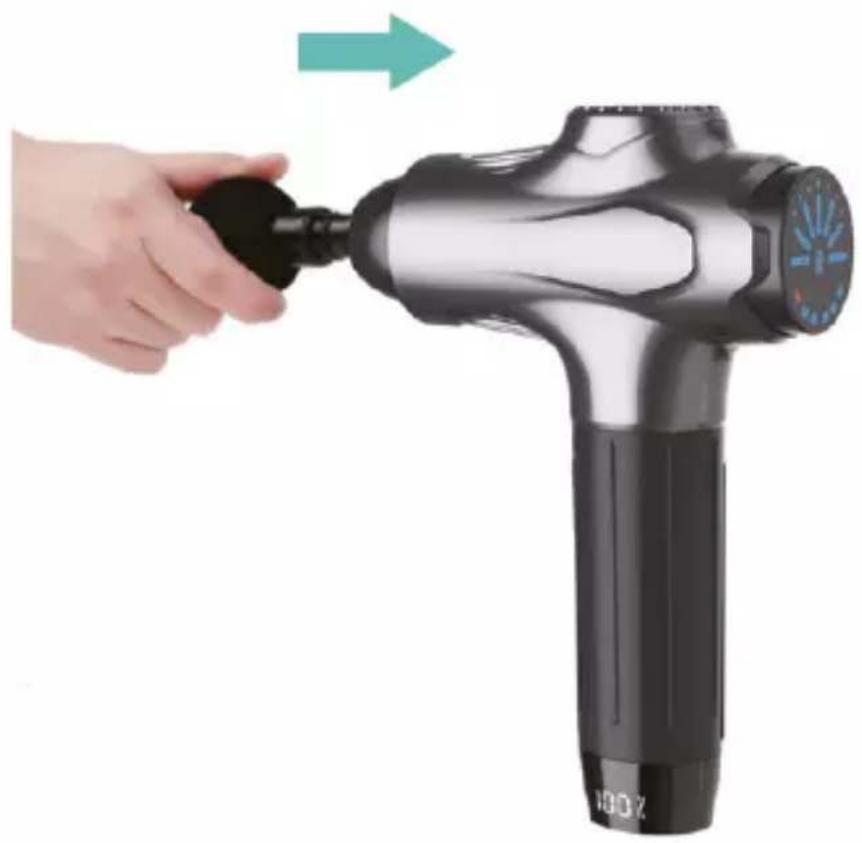

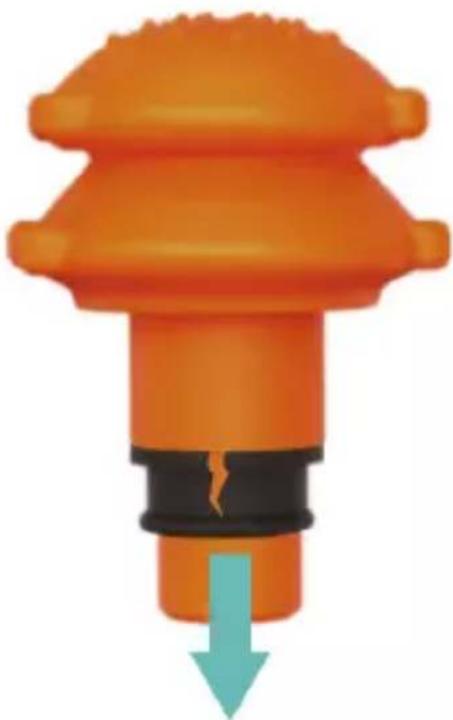

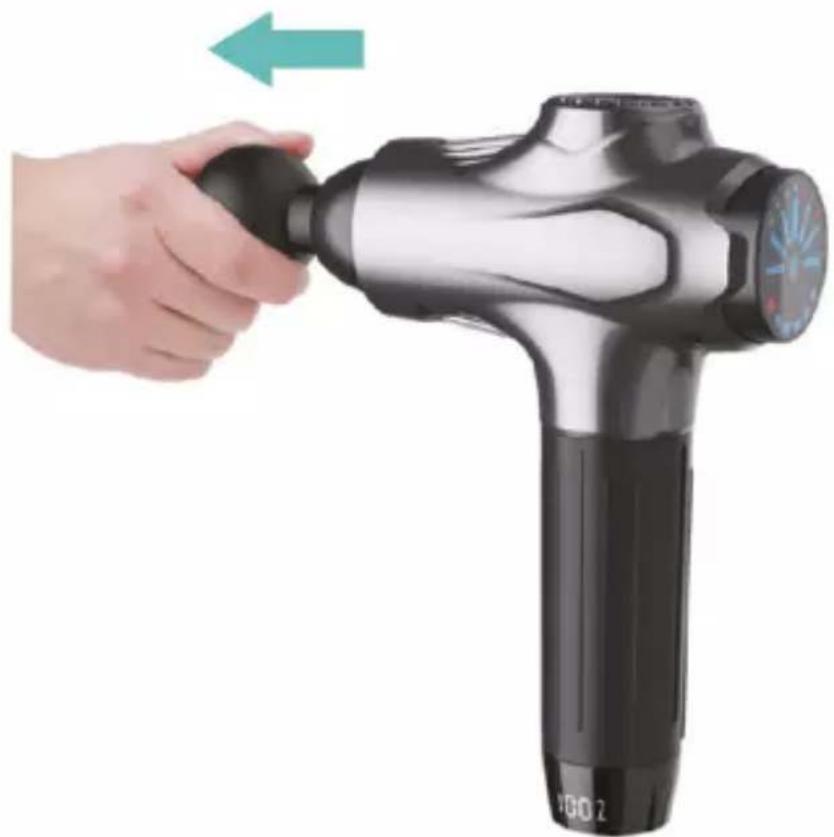

2. Insert the desired tip and press down firmly (fig. 1). To remove the tip, pull (fig. 2). When removing the tip, do not rotate it.
3. Switch on the device by moving the main switch (11, fig. A) from the OFF to the ON position.
4. Start the device with a single touch of the switch (6, fig. A) located on the touch control panel (2, fig. A).
5. Select one of the seven speed levels (7, fig. A) by pressing the switch (6, fig. A) again. The speed level will increase when a stronger pressure is applied.
6. To switch the device off, press and hold the on/off switch (6, fig. A) and then move the main switch (11, fig. A) from the ON to the OFF position.

Note! Massage of a given body area should not last longer than 1 minute. The device will automatically switch off after 10 minutes of continuous operation to avoid overheating of the motor and batteries. To resume operation, press the switch.

Do not use this device on wet or dirty skin. The device can be used in areas covered by clothing. The device should be pressed against the body and gently moved between the different points.

Note! High speed levels should only be used during soft tissue massage. Do not use high levels of speed or strong pressure on the bones. Do not use the device to massage parts of the body above the neck.

Note! If the pressure is too strong, the pressure sensor (5, fig. A) will be displayed and the device will interrupt operation, which will resume when the pressure is reduced. The device will stop working when the pressure sensor reaches its highest value.

MASSAGING TIPS

There are 12 massage tips available in the set.

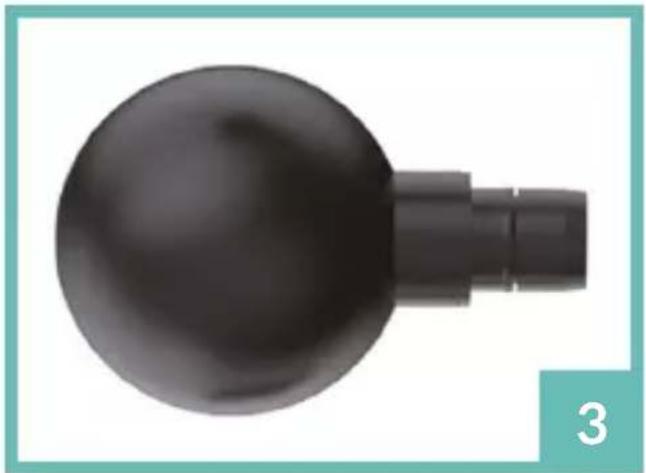

• Ball-type tip – for larger muscle areas and medium-intensity massage (fig. 3),

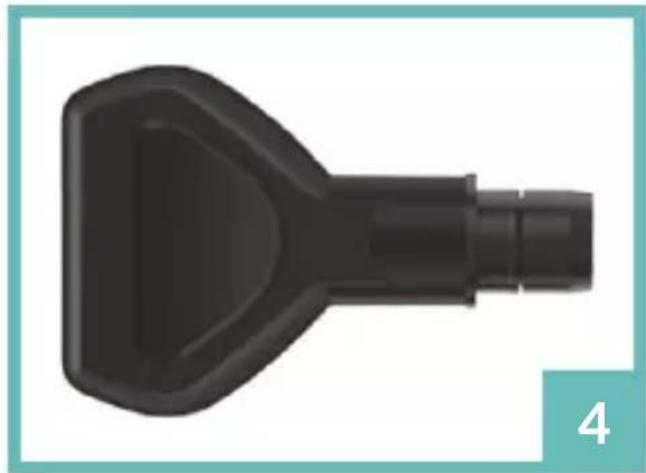

• Scapular tip – for larger muscle areas (fig. 4),

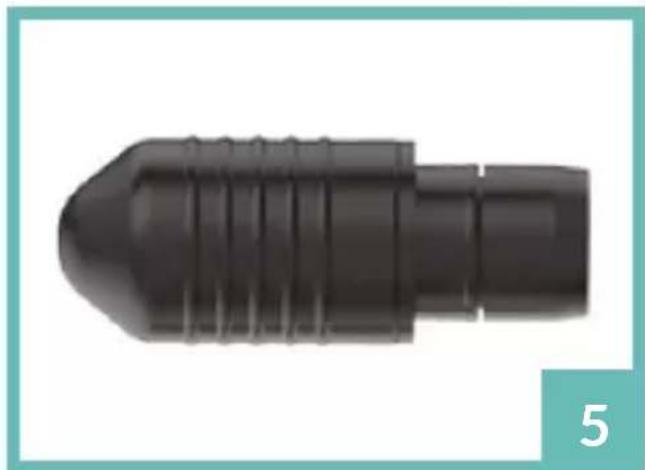

• Bullet-type tip – for an intensive point massage, eliminating muscle pains (fig. 5)

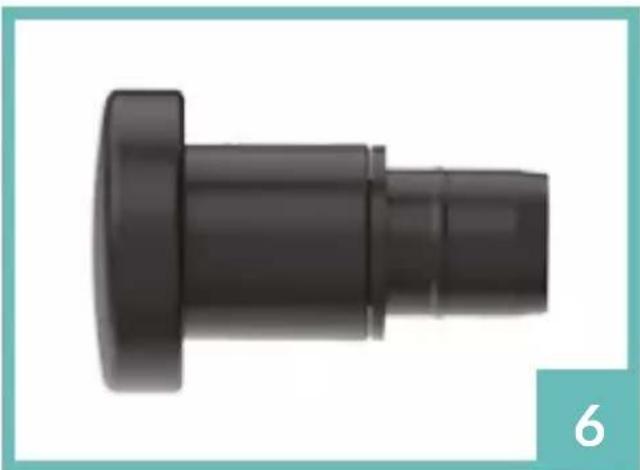

• Flat tip – for the deepest muscle tissues with a highly compacted structure (fig. 6),

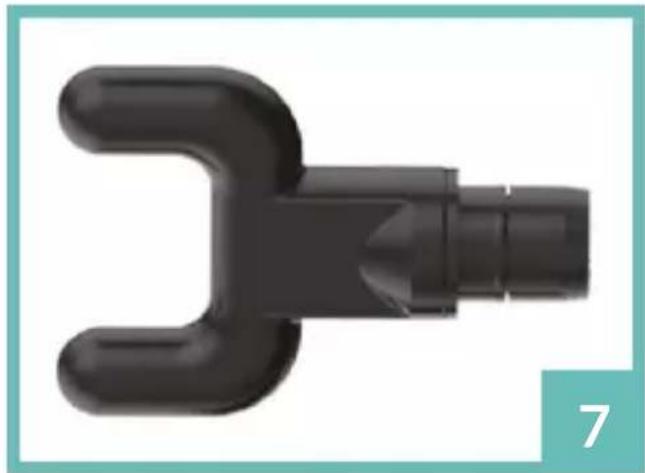

• U-shaped tip – to massage the muscles in the vertebral region (fig. 7),

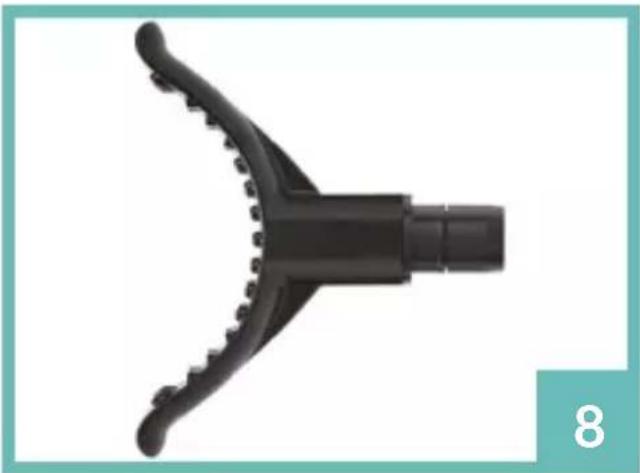

• Bow-type tip – with tabs, designed for large muscle areas, helps combat swelling (fig. 8)

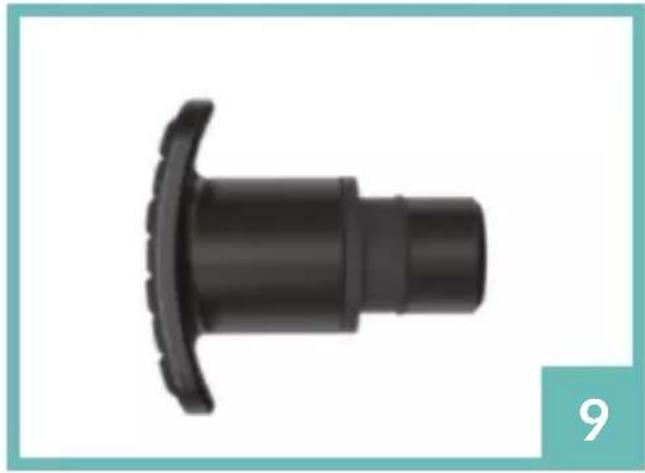

• T-shaped tip – for massage of shoulders, feet and soft tissues, helps in the fight against cellulite (fig. 9),

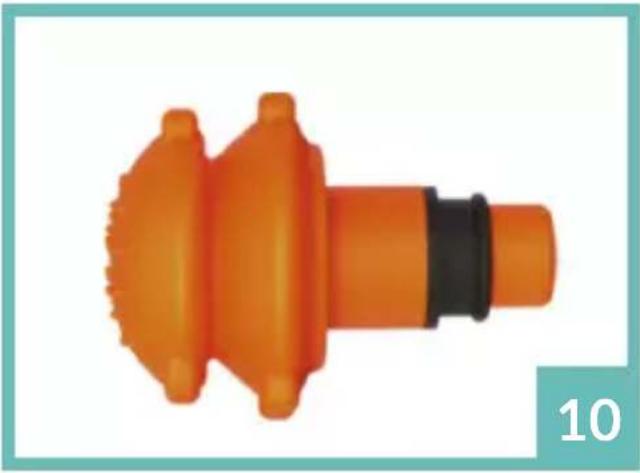

• Cork tip – for muscles near the bone (fig. 10),
• Pneumatic tip – for a very gentle massage of the most tense muscles, for relaxation massage (fig. 11),
• Serrated tip – for muscles on the back and for intensive massage of small muscle groups (fig. 12)
• Four-arm tip – for shoulder massage (fig. 13),
• Thumb-type tip – for relaxing massage, for all muscle areas (fig. 14).

The set includes 4 spare rubber pads (fig. 15).

TROUBLESHOOTING

Problem Solution
The device does not switch on.	Make sure the main switch has been moved to the ON position. Make sure the battery level is high.
The sound becomes louder after prolonged use.	This is normal and related to the frequency of use. In case of unusual sound or operation, contact the manufacturer.

CLEANING AND MAINTENANCE

The device should be wiped with a damp cloth and dried thoroughly before the next use.

The photos are for reference only, the actual look of the products may differ from the ones shown in the pictures.

Einführung

DE

EN: The product complies with requirements of EU directives.

Pursuant to the Directive 2012/19/EU, this product is subject to selective collection. The product must not be disposed of along with domestic waste as it may pose a threat to the environment and human health. The worn-out product must be handed over to the electrics and electronics recycling center.
