Product Type	Waterproof case for Canon compact digital camera
Compatibility	PowerShot SX230 HS (and other compatible models)
Maximum waterproof depth	40 meters (130 feet)
Waterproof standard	IPX8 (IEC/JIS equivalent)
Body material	Polycarbonate
Dimensions (excluding protruding parts)	139.4 × 89.7 × 115.9 mm
Weight (case only with diffusion plate)	Approx. 500 g
Operating temperature	0 to 40 °C
Waterproof seal	O-ring (annual replacement recommended)
Power supply	Via inserted camera (internal battery)
Main functions	Waterproof protection for underwater shooting; access to controls: shutter, zoom, dials
Underwater mode	Integrated underwater white balance in the camera
Included accessories	Strap, wrist strap, diffusion plate, silicone grease
Optional accessories	WW-DC1 weight (1 or 2 depending on fresh or salt water)
Maintenance and cleaning	Rinse with fresh water after use in sea; wipe with a soft cloth; do not wash the interior with water
Safety precautions	Do not use as a buoy; remove the strap underwater; do not disassemble or modify
Spare parts and repairability	Replaceable waterproof seal (contact Canon support); other parts not user-serviceable
Warranty	Follow usage instructions to maintain waterproof integrity

Frequently Asked Questions - WP-DC42 CANON

Which Canon cameras are compatible with the WP-DC42 case?

The WP-DC42 is designed for Canon PowerShot cameras, especially the SX230 HS. Check the compatibility list in the camera's user manual.

How to install the camera in the waterproof case?

Ensure the seal is clean and greased. Insert the camera without the wrist strap, close the latch and check the lock. Perform a waterproof test at 15 cm for 3 minutes before use.

What maximum depth can I reach with this case?

The case is certified for a maximum depth of 40 meters (130 feet). Never exceed this limit.

How to maintain the waterproof seal?

After each use, clean the seal with a cotton swab, apply a thin layer of the provided silicone grease and check that it is not damaged. Replace it once a year.

Can I use the case without the diffusion plate?

The diffusion plate is necessary to avoid overexposure due to the flash underwater. Without it, photos may be overexposed. Always attach it before entering the water.

What to do in case of condensation inside the case?

Immediately turn off the camera, remove it from the case and wipe all surfaces with a soft, dry cloth. Avoid sudden temperature changes.

How to activate Underwater mode on the camera?

Turn the dial to SCN, press the FUNC button, select Underwater mode with the arrows, then confirm. The white balance will adjust automatically.

Can I use the provided strap underwater?

No, the strap can wrap around the neck and pose a choking hazard. Replace it with the provided wrist strap before any underwater use.

How to clean the case after use in the sea?

Rinse the closed case thoroughly with fresh water, then wipe it with a soft cloth. Then open it, remove the camera and wipe the interior without washing it with water.

Where can I buy a replacement seal or additional weights?

Contact Canon customer service or an authorized dealer. The WW-DC1 weights are sold separately: 1 weight in fresh water, 2 in salt water.

USER MANUAL WP-DC42 CANON

Prohibition sign showing a person with a medical device and a cross symbol, indicating no smoking or anti-smoking.

注意

Prohibition sign with sun and camera symbol crossed out, indicating no exposure or absence of a device

Technical diagram of a device with numbered parts for identification and assembly reference.

Labeled diagram of a camera with numbered parts for identification

Diagram of a digital camera with labeled parts including cable and adjustment arrows

Diagram of a camera with numbered parts indicating cable or adjustment steps

Diagram of a camera with numbered parts indicating adjustment or assembly steps

リストストラップ ネックスト

Technical line drawing of a camera module with an inset close-up showing internal components (no text or symbols)

拡散板を取り付けます。

Technical line drawing of a mechanical housing or enclosure with mounting holes and a central square component (no text or symbols)

防水パッキン

バックルを外してケースを開きます。

Line drawing of a device's internal components, showing a device with a handle and internal wiring (no text or symbols)

Line drawing of a mechanical device with adjustment knob and scroll (no text or symbols)

ケースを閉じます。

Diagram of a device with labeled parts and directional arrows indicating rotation or adjustment.

Line drawing of hands holding a digital camera module (no text or symbols)

ケースを閉じます。

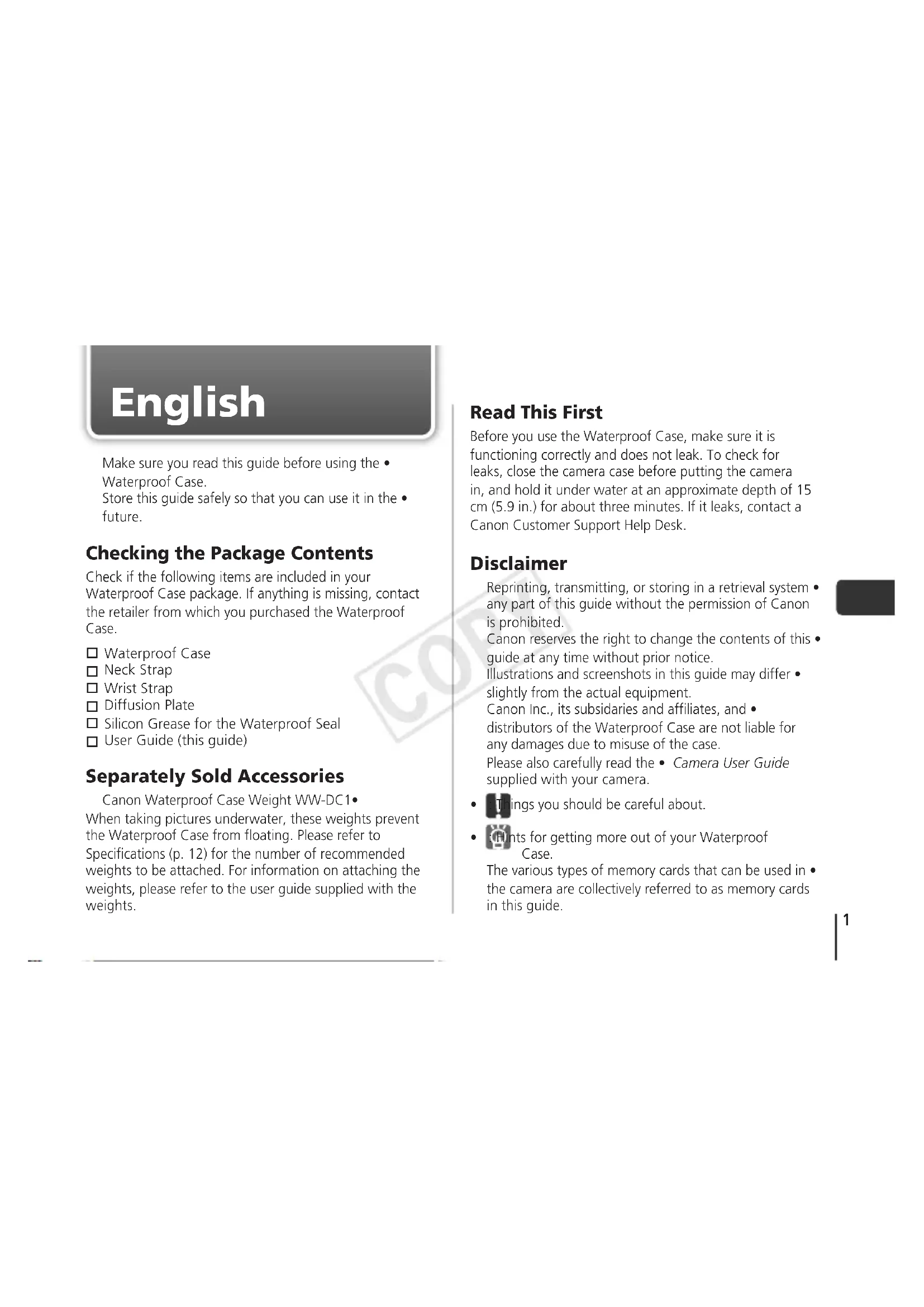

Make sure you read this guide before using the • Waterproof Case.

Store this guide safely so that you can use it in the future.

Checking the Package Contents

Check if the following items are included in your Waterproof Case package. If anything is missing, contact the retailer from which you purchased the Waterproof Case.

□ Waterproof Case
□ Neck Strap
□ Wrist Strap
□ Diffusion Plate
□ Silicon Grease for the Waterproof Seal
□ User Guide (this guide)

Separately Sold Accessories

Canon Waterproof Case Weight WW-DC1• When taking pictures underwater, these weights prevent the Waterproof Case from floating. Please refer to Specifications (p. 12) for the number of recommended weights to be attached. For information on attaching the weights, please refer to the user guide supplied with the weights.

Read This First

Before you use the Waterproof Case, make sure it is functioning correctly and does not leak. To check for leaks, close the camera case before putting the camera in, and hold it under water at an approximate depth of 15 cm (5.9 in.) for about three minutes. If it leaks, contact a Canon Customer Support Help Desk.

Disclaimer

Reprinting, transmitting, or storing in a retrieval system • any part of this guide without the permission of Canon is prohibited.

Canon reserves the right to change the contents of this guide at any time without prior notice.

Illustrations and screenshots in this guide may differ • slightly from the actual equipment.

Canon Inc., its subsidiaries and affiliates, and • distributors of the Waterproof Case are not liable for any damages due to misuse of the case.

Please also carefully read the • Camera User Guide supplied with your camera.

• Things you should be careful about.

• Rints for getting more out of your Waterproof Case.

The various types of memory cards that can be used in • the camera are collectively referred to as memory cards in this guide.

Safety Precautions

Before using the Waterproof Case, please ensure that you • read the safety precautions below. Always ensure that the Waterproof Case is operated correctly.

The safety precautions noted on the following pages are intended to prevent injuries to yourself and other persons, or damage to the equipment.

Warning Denotes the possibility of serious injury or death.

Caution Denotes the possibility of injury.

Caution Denotes the possibility of damage to the Waterproof Case and camera.

Warning

Be sure to remove the camera after using the Waterproof Case.

Leaving the camera in the Waterproof Case and placing it in direct sunlight or other places subject to high temperatures may result in fire, or cause the case to burst.

Do not use the Waterproof Case as a personal flotation device (such as a life preserver).

Do not use the neck strap under water.

Remove the neck strap and attach the wrist strap before using the Waterproof Case underwater. Using the neck strap may cause it to become wrapped around the neck and result in strangulation or other injuries.

Caution

Immediately turn off the camera if the Waterproof Case leaks.

Leaks could result in fire or electrical shock. Thoroughly wipe the Waterproof Case interior and the camera dry and contact a Canon Customer Support Help Desk.

Caution

Be careful of condensation.

Moving the Waterproof Case rapidly between hot and cold temperatures may cause condensation (water droplets) to form on its internal surfaces. If this occurs, stop using the camera as the condensation may cause a malfunction. Remove the camera, and wipe off the condensation from the case and camera with a soft, dry cloth so that it is completely dry.

Do not insert the camera with the strap attached. Do not press the buttons or lever with unnecessary force when using the case underwater. Do not spray the waterproof seal with tap-water. Do not damage the waterproof seal, or allow dirt to accumulate between the waterproof seal and the case. Do not disassemble or modify the Waterproof Case.

The above actions could cause leaks.

Avoid using or storing the Waterproof Case in the following places.

Depths exceeding 40 meters • (130 ft.).

Places subject to temperatures • above 40 °C (104 °F).

Warning sign with prohibition symbol and sun icon, indicating no exposure to a camera

Avoid placing, or storing the Waterproof Case in the following places.

Places subject to strong sunlight.

Humid or dusty areas.

Near substances such as •

naphthalene or insecticides

Do not drop or throw the Waterproof Case.

The above actions may warp the case and cause malfunctions.

Use only the supplied silicon grease.

Use of other waterproofing products may impair the strength of the Waterproof Case.

Waterproof Seal

Debris stuck to the waterproof seal may cause water • leakage. Catching a single strand of hair, or a tiny grain of sand in the seal can cause leaks.

If you notice that the waterproof seal is damaged or • cracked, stop using the case immediately and contact a Canon Customer Support Help Desk.

When storing your Waterproof Case, keep it open to prevent the waterproof seal from deforming and to maintain its waterproof capabilities.

Protect the waterproof seal from dust and scratches during • storage.

To ensure that the case remains watertight, you should replace the seal once a year.

- Please contact a Canon Customer Support Help Desk for replacement seals.

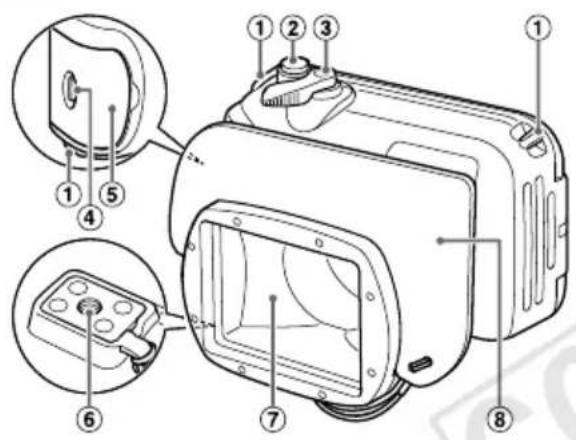

Components Guide

Technical diagram of a device with numbered parts and exploded views, likely illustrating a mechanical or electronic assembly.

① Strap Mounts
② Shutter Button
③ Zoom Lever
④ Lock Release Switch
⑤ Catch
⑥ Tripod Socket
⑦ Lens Window
⑧ Diffusion Plate

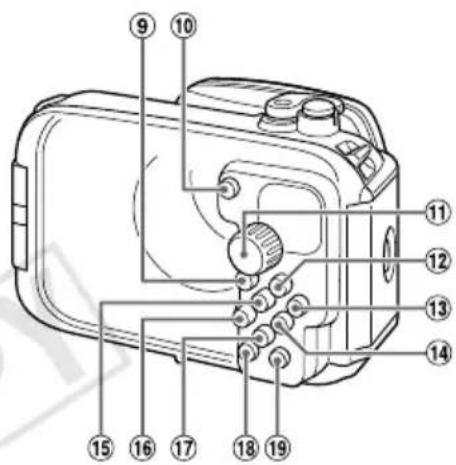

Labeled diagram of a digital camera with numbered parts for identification

⑨ Movie Button
⑩ Power Button
⑪ Mode Dial
⑫ (Playback) Button
13 FUNC./SET (Function/Set) Button
⑭ ↓ (Flash)/▶ Button
⑮ (Exposure Compensation)/▲ Button
⑯ (Macro)MF (Manual Focus)/ ◀ Button
⑰ (Self-timer)/▼ Button
⑱ DISP. (Display) Button
⑲ MENU Button

Preparations

Diagram of a digital camera with labeled parts including cable and adjustment knob

Wrist Strap Neck Strap

Diagram of a camera with numbered parts indicating mechanical or electrical components

Diagram of a camera with numbered parts indicating adjustment or assembly steps

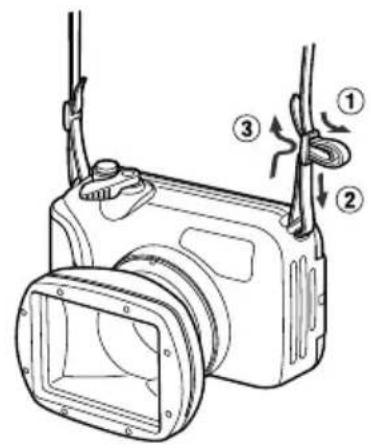

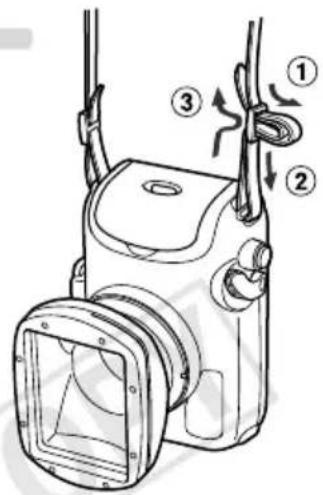

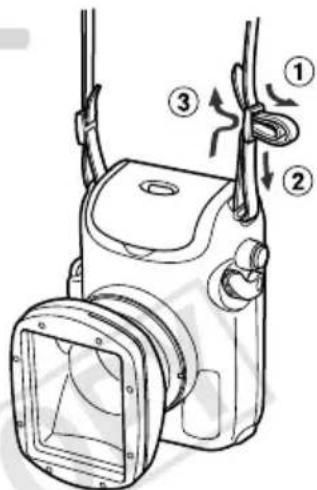

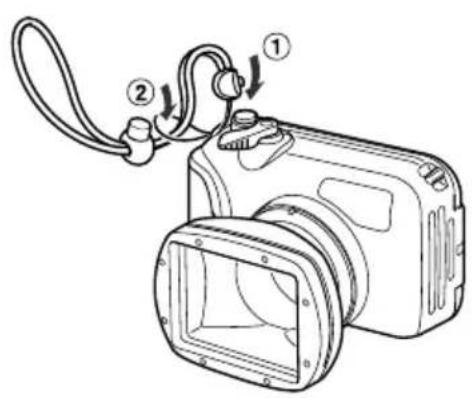

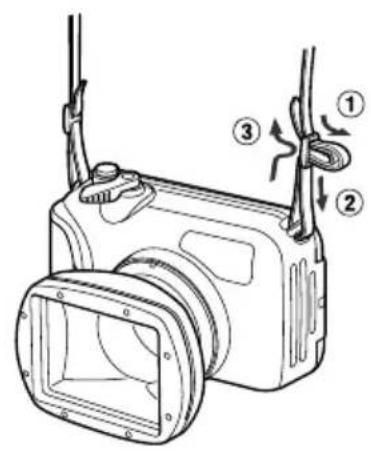

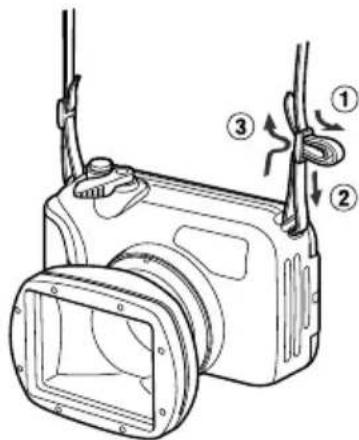

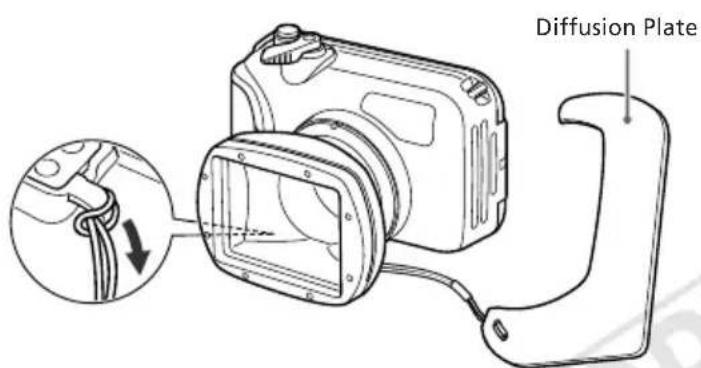

Attach the strap and adjust the length.

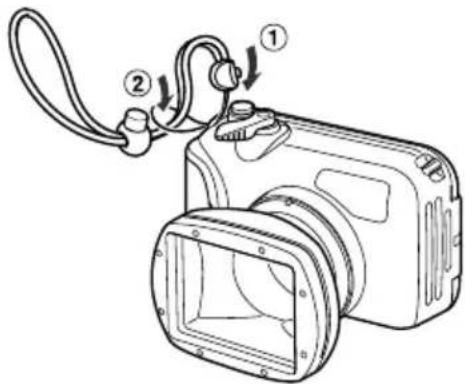

Remove the neck strap and attach the wrist strap before using the case underwater. Using the neck strap may cause it to become wrapped around the neck and result in strangulation or other injuries. Do not attach any straps except for the ones included with the Waterproof Case.

Diffusion Plate

Technical line drawing of a camera housing with an inset showing a close-up of the component (no text or symbols)

Attach the diffusion plate.

Do not scratch the surface of the diffusion plate, as this may prevent light from the flash from being properly diffused.

The effectiveness of the diffusion plate may be • impaired if the subject is too close to the camera.

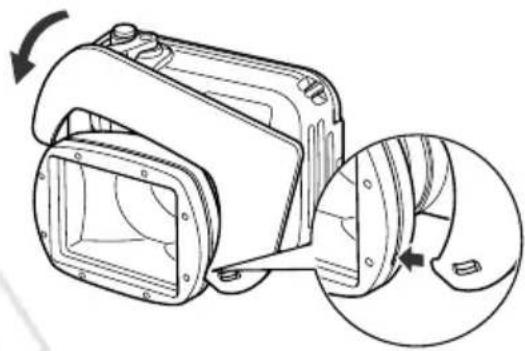

Removing the Diffusion Plate

Lift and remove the diffusion plate.

Technical line drawing of a mechanical housing or enclosure with mounting holes and a central square component (no text or symbols)

Diagram of a camera with labeled parts and directional arrows indicating rotation or adjustment.

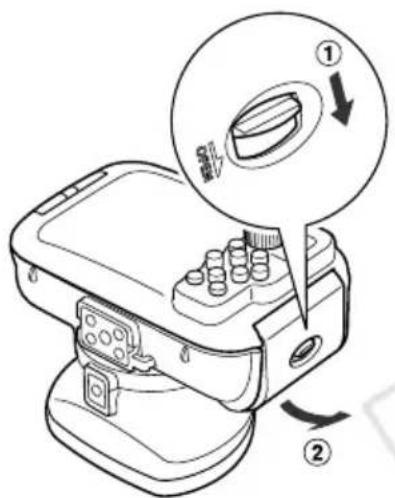

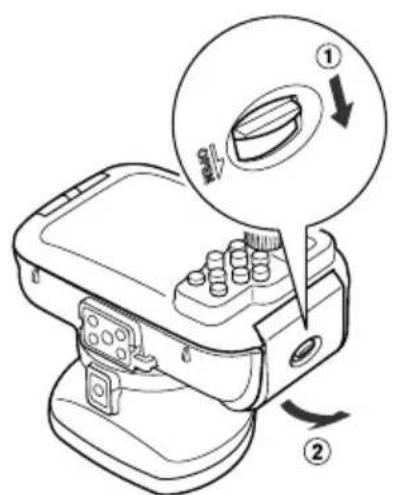

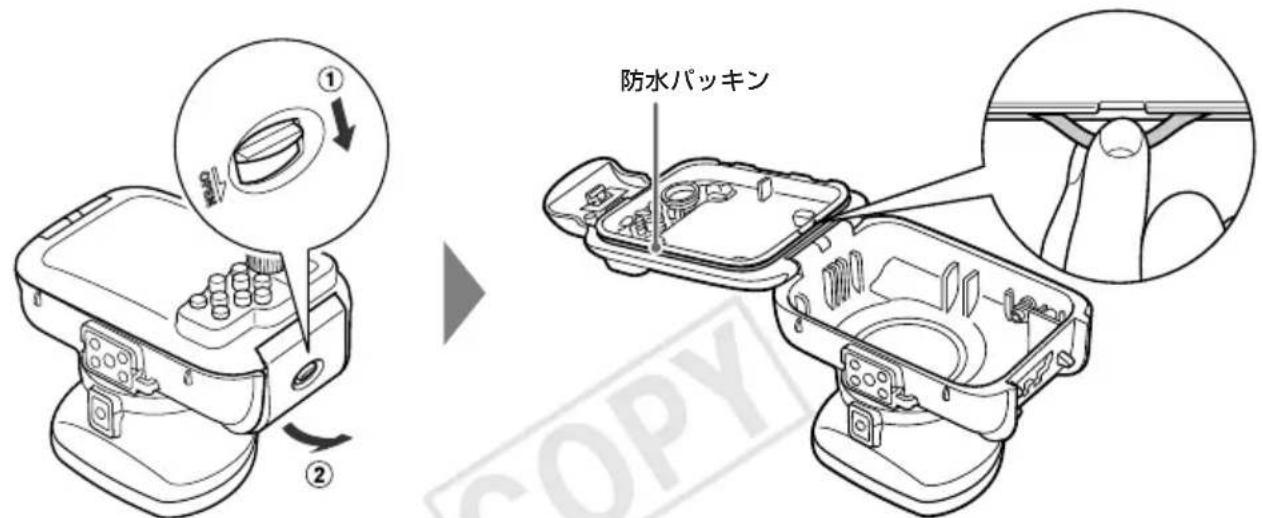

Release the catch to open the case.

When using commercially available • anticondensation products, the anticondensation solution should only be applied to the inside surface of the lens window using a soft, dry cloth. If anticondensation solution comes in contact with any surface other than the inside of the lens widnow, wipe it off immediately with a soft, dry cloth, as it could lead to deterioration of the Waterproof Case.

Waterproof Seal

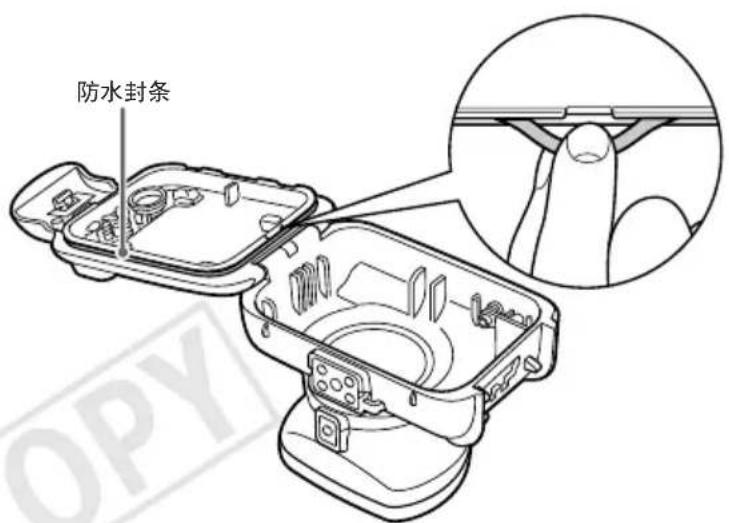

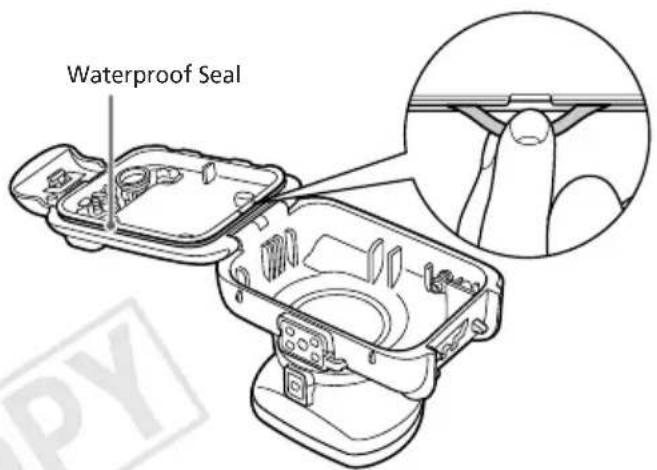

Apply silicon grease to the waterproof seal.

Remove the waterproof seal as shown. Do not dig your fingernails into it or pull • on it forcibly.
- Using a cotton swab, wipe off any debris in the mounting groove.
√ Apply a small amount (droplet) of grease to your fingertip, and evenly coat the entire surface of the waterproof seal.
√ Place the waterproof seal back in the seal mounting groove. Take care not to twist it.

Preparing the Camera

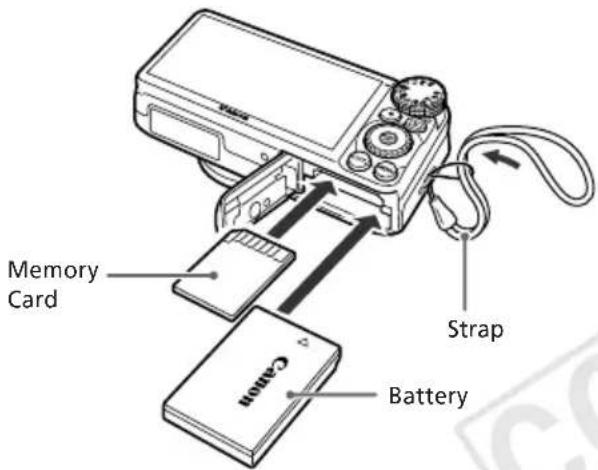

Memory Card Strap Canon Battery

Remove the strap, and make sure the battery and memory card are in the camera.

Please refer to the • Camera User Guide for information on the correct battery, and how to insert the battery and memory card.

Use a battery that is adequately charged.

Check the estimated capacity of your memory • card and ensure there is enough space to record images.

Inserting the Camera Into the Case

Exploded view diagram of a device's internal components, showing internal compartments and a central device (no text or symbols)

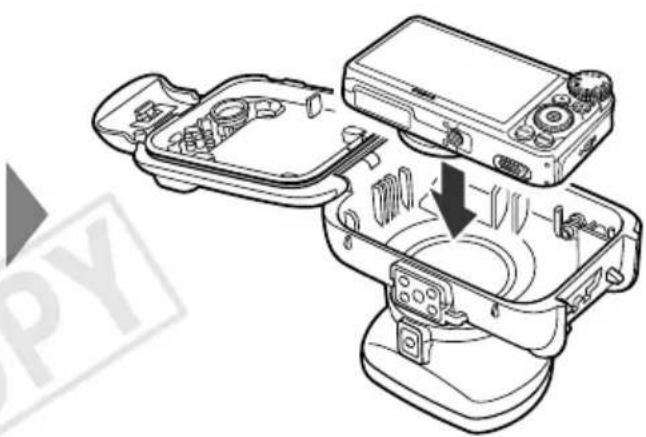

Insert the camera into the Waterproof Case.

Choose a place well away from salty sea air. • Keep the lens window clean by wiping it gently • with a dry cloth.

Line drawing of a mechanical device with adjustment knobs and a scroll wheel (no text or symbols)

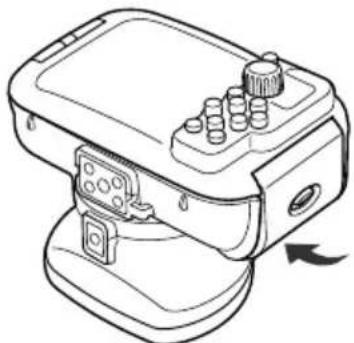

Close the case.

Make sure that the waterproof seal is free of • debris.

Make sure that the catch is securely locked.

Using the Camera

Please refer to the Camera User Guide for instructions on how to use the camera.

Underwater Mode

Setting the camera to mode will tone down the blues, letting you obtain more natural colors when shooting underwater.

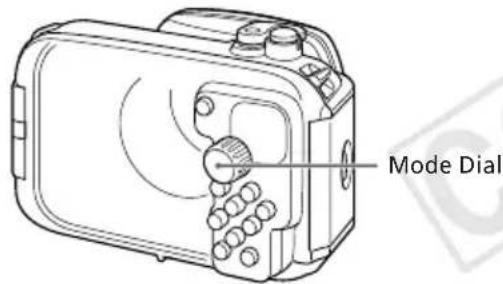

Mode Dial

Set the mode dial to SCN.

After pressing the FUNC SET button, press the ▲▼ buttons to choose 🔒, then press the FUNC SET button again.

Press the ▲▼ buttons to choose 📄, then press the ⓁNC. SET button.

When shooting underwater in 📄, P.Tv, Av or M modes, you should set the white balance to 📄 (Underwater) using the FUNC. menu.

Using the Control Dial

When the camera is inserted into the case, control dial operations can be used by the following method:

Press and hold the DISP. button, then move the zoom lever toward [▲] or □□□.

However, if you press the DISP. button only for more than 2 seconds, the screen increases to maximum brightness. To restore the normal brightness, press the DISP. button for more than 2 seconds again.

Using the GPS Function (PowerShot SX230 HS Only)

When using the Waterproof Case, it may be difficult for the camera to receive the the GPS satellite signal. Additionally, when underwater or when the case is wet, the camera may not receive the signal.

Removing the Camera Care and Maintenance

① ②

Thoroughly dry the case, wiping off all the water.

Remove any dirt, sand, hair or other debris • from the case and wash it with clean, running water to remove any salt deposits.

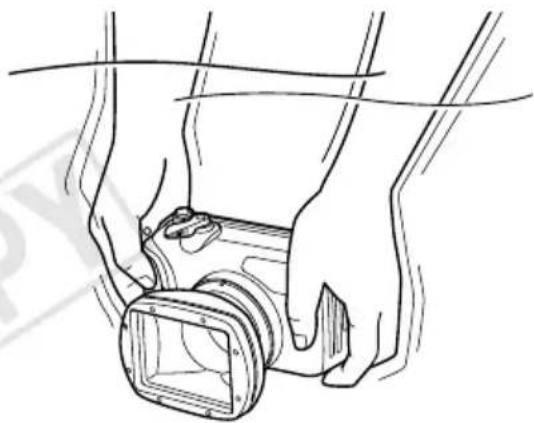

Open the case and remove the camera.

Make sure to do the following after using the Waterproof Case.

Line drawing of hands holding a camera lens and a digital camera (no text or symbols)

Close the case.

Do not wash the interior of the Waterproof • Case with water. Wipe it with a soft, dry cloth.

Thoroughly wash the case with clean water, then wipe it completely dry with a soft, dry cloth.

After using the case in the ocean, soak it in clean • water for several hours to remove any salt deposits.

Specifications

Waterproof Capability:

Meets IEC/JIS protection rating “IPX8” equivalentFor use within a depth of 40m (130 ft.)

Waterproofing: Seal (crimp-type O-ring)

Body Materials: Polycarbonate

Camera Operating Temperatures:0 to 40 °C (32 to 104 °F)

Dimensions: 139.4 x 89.7 x 115.9 mm(5.49 x 3.53 x 4.56 in.)(excluding protrusions)

Weight: Approx. 500 g (17.6 oz.) (Waterproof Case only*)

Number of Separately Sold Waterproof Case Weights (WW-DC1) Recommended Mounting:

When in sea water: 2 weights

When in fresh water: 1 weight

*Including diffusion plate
All data noted here are based on Canon's testing standards. Product specifications and appearance are subject to change without prior notice.

Deutsch

Prohibition sign showing a person with a camera and a diagonal line, indicating no smoking or anti-smoking.

Vorsicht

Prohibition sign showing a camera and sun symbol (no text)

Labeled diagram of a device showing internal components and parts with numbered annotations

Labeled diagram of a digital camera with numbered parts for identification

Diagram of a digital camera with labeled parts including cable and adjustment knob

Diagram of a camera with numbered parts indicating mechanical or electrical components

Diagram of a camera with numbered parts indicating adjustment or assembly steps

Technical line drawing of a mechanical device with a circular inset showing internal components (no text or symbols)

Technical line drawing of a mechanical housing or enclosure with mounting holes and a central square component (no text or symbols)

Diagram of a camera with labeled parts and directional arrows indicating rotation or adjustment.

Line drawing of an open electronic device with internal components and a downward arrow indicating a process (no text or symbols present)

Line drawing of a mechanical device with adjustment knob and scroll (no text or symbols)

Technical diagram of a mechanical device with labeled parts and directional arrows indicating rotation or adjustment.

Line drawing of hands operating a camera module (no text or symbols)

Prohibition sign showing a person with a camera and a diagonal line, indicating no smoking or anti-smoking.

Precaución

a 40 metros (130 pies).

Prohibition sign with sun and camera icon, indicating no exposure or absence of exposure

Utilice solamente la grasa de silicona suministrada.

Technical diagram of a digital camera with numbered parts for identification and assembly reference.

Labeled diagram of a camera with numbered parts for identification

Diagram of a digital camera with labeled parts including cable and adjustment knob

Correa de muñeca Correa pa

Diagram of a camera with numbered parts indicating mechanical or electrical components

cuello

Diagram of a camera with labeled parts including adjustment arrows and numbered callouts

Technical line drawing of a mechanical device with an inset showing a close-up view of internal components (no text or symbols)

Technical line drawing of a mechanical device housing with mounting holes and a central square component (no text or symbols)

Diagram of a camera with labeled parts and directional arrows indicating rotation or adjustment.

Exploded view diagram of a device's internal components, showing internal wiring and housing (no text or symbols)

Line drawing of a mechanical device with no visible text or symbols

Cierre el estuche.

Line drawing of hands holding a camera lens and a digital camera (no text or symbols)

Cierre el estuche.

Prohibition sign showing a person with a camera and a diagonal line, indicating no smoking or anti-smoking.

Attention

Prohibition sign with silhouette of photographer under sun and diagonal line, indicating no photography or lighting restrictions

Technical diagram of a digital camera with numbered parts for identification and assembly reference.

Labeled diagram of a camera with numbered parts for identification

⑨ Touche vidéo
⑩ Touche ON/OFF
⑪ Molette modes
⑫ Touche ▶ (Lecture)
⑬ Touche FUNC.SET FUNC./SET (Fonction/Réglages)
⑭ Touche ↓ (Flash)/▶
⑮ Touche ☒ (Correction d'exposition)/▲
⑯ Touche 🚪 (Macro)/MF (Mise au point manuelle)/◀
⑰ Touche 📍 (Retardateur)/▼
⑱ Touche DISP. (Affichage)
⑲ Touche MENU

Préparatifs

Diagram of a digital camera with labeled parts and cable connection arrows

Dragonne Courroie

Diagram of a camera with numbered parts indicating mechanical or electrical components

Diagram of a digital camera with numbered parts indicating adjustment or repair steps

Technical line drawing of a camera housing with an inset showing the internal components (no text or symbols)

Technical line drawing of a mechanical housing or enclosure with mounting holes and a central square component (no text or symbols)

Diagram of a camera with labeled parts and directional arrows indicating rotation or adjustment.

Exploded view diagram of a device's internal components, showing internal compartments and a device casing (no text or symbols)

Line drawing of a mechanical device with no visible text or symbols

Fermez le boîtier.

Line drawing of hands operating a camera lens assembly (no text or symbols)

Fermez le boîtier.

Prohibition sign showing a person with a laptop and a diagonal line crossing it, indicating no smoking or health restrictions.

Attenzione

Prohibition sign showing a person using a camera under a sun (no text or symbols)

Technical diagram of a digital camera with numbered parts for identification and assembly reference.

Labeled diagram of a camera with numbered parts for identification

Diagram of a digital camera with labeled parts showing cable routing and adjustment arrows

Diagram of a camera with numbered parts indicating mechanical or electrical components

Diagram of a digital camera with numbered parts indicating adjustment or repair steps

Technical line drawing of a camera module with an inset showing internal components (no text or symbols)

Technical line drawing of a mechanical housing or enclosure with mounting holes and a central square component (no text or symbols)

Diagram of a camera with labeled parts and directional arrows indicating rotation or adjustment.

Exploded view diagram of a device's internal components, showing internal compartments and a device casing (no text or symbols)

Line drawing of a mechanical device with no visible text or symbols

Line drawing of hands operating a camera lens assembly (no text or symbols)

Prohibition sign showing a person with a chest cover and diagonal line, indicating no medical or health restrictions.

Предупреждение

Prohibition sign with sun and camera icon, indicating no exposure or absence of exposure

Labeled diagram of a digital camera with numbered parts for identification

Diagram of a digital camera with labeled parts showing cable routing and adjustment arrows

Diagram of a camera with numbered parts indicating mechanical or electrical components

Diagram of a digital camera with numbered parts indicating adjustment or repair steps

Technical line drawing of a mechanical housing or enclosure with mounting holes and a central square component (no text or symbols)

Diagram of a camera with labeled parts and directional arrows indicating rotation or adjustment.

Line drawing of an open electronic device with internal components and a black arrow indicating a process (no text or symbols)

Line drawing of a mechanical device with no visible text or symbols

Закройте футляр.

Line drawing of hands operating a camera lens (no text or symbols)

Закройте футляр.

Prohibition sign showing a person with a medical device and a diagonal line, indicating no smoking or anti-smoking.

注意

如果防水套漏水，请立即关闭电源。

Warning sign with prohibition symbol and camera icon, indicating no photography or lighting

请勿投掷或摔落防水套。

Technical diagram of a camera with numbered parts and exploded views, likely for assembly or maintenance instructions.

Labeled diagram of a digital camera with numbered parts for identification

⑨ 短片按钮
⑩ 电源按钮
⑪ 模式转盘
⑫ ▶(播放)按钮
⑬ FUNC./SET(功能/设置)按钮
⑭ ↘(闪光灯) ▶ 按钮
⑮ (曝光补偿 ▶ 按钮
⑯ (微距 MF(手动对焦) 按钮
⑰ (自拍 ▼ 按钮
⑱ DISP.(显示)按钮
⑲ MENU(菜单)按钮

准备

Diagram of a digital camera with labeled parts including cable and adjustment knob

腕带 背带

Diagram of a camera with numbered parts indicating mechanical or electrical components

Diagram of a camera with labeled parts including adjustment arrows and numbered callouts

安装背带 / 腕带并调节其长度。

Technical line drawing of a mechanical device with a close-up inset showing internal components (no text or symbols)

安装闪光扩散板。

Technical line drawing of a mechanical housing or enclosure with mounting holes and a central square component (no text or symbols)

Diagram of a device with labeled parts and directional arrows, showing a knob adjustment mechanism.

防水封条

解开扣环以打开防水套。

Exploded view diagram of a device's internal components, showing casing, ports, and wiring (no text or labels)

Line drawing of a mechanical device with adjustment knob and scroll (no text or symbols)

关闭防水套。

请确保防水封条上没有附着灰尘或污物等。

请检查扣环是否锁紧。

使用相机

Diagram of a device with labeled parts and directional arrows indicating rotation or adjustment.

请将沾在防水套上的水滴全部擦干。

Line drawing of hands holding a digital camera module (no text or symbols)

关闭防水套。

© CANON INC. 2010 IMPRIMÉ AU JAPON
