USER MANUAL PS991 Duronic

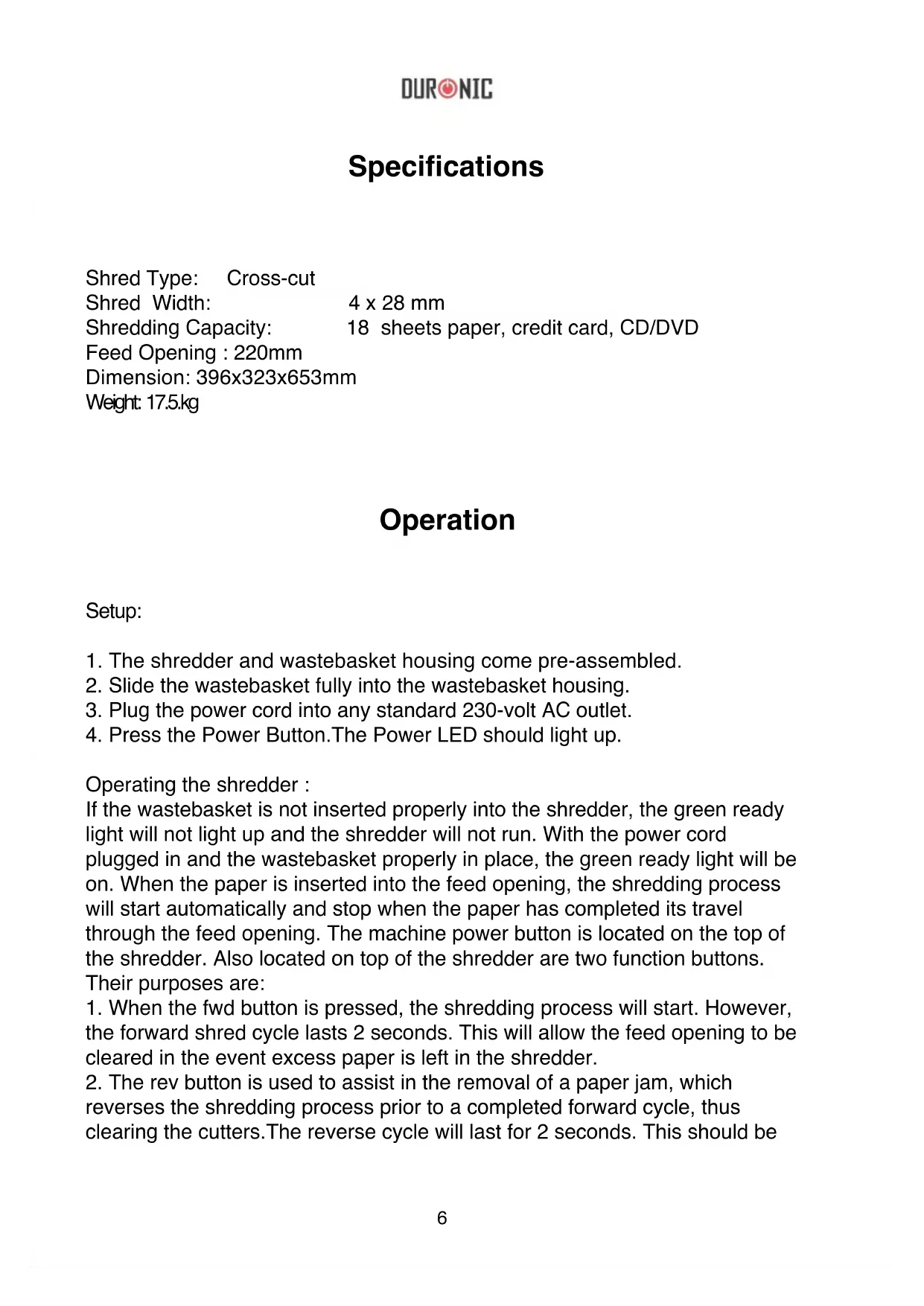

1. The shredder and wastebasket housing come pre-assembled.

2. Slide the wastebasket fully into the wastebasket housing.

3. Plug the power cord into any standard 230-volt AC outlet.

4. Press the Power Button.The Power LED should light up.

Operating the shredder : If the wastebasket is not inserted properly into the shredder, the green ready light will not light up and the shredder will not run. With the power cord plugged in and the wastebasket properly in place, the green ready light will be on. When the paper is inserted into the feed opening, the shredding process will start automatically and stop when the paper has completed its travel through the feed opening. The machine power button is located on the top of the shredder. Also located on top of the shredder are two function buttons. Their purposes are:

1. When the fwd button is pressed, the shredding process will start. However,

the forward shred cycle lasts 2 seconds. This will allow the feed opening to be cleared in the event excess paper is left in the shredder.

2. The rev button is used to assist in the removal of a paper jam, which

reverses the shredding process prior to a completed forward cycle, thus clearing the cutters.The reverse cycle will last for 2 seconds. This should be Shred Type: Cross-cut Shred Width: 4 x 28 mm Shredding Capacity: 18 sheets paper, credit card, CD/DVD Feed Opening : 220mm Dimension: 396x323x653mm Weight: 17.5.kg7 Cautions

1. Keep all loose articles of clothing, ties, jewelry, hair, or other small items

away from the feed opening to prevent injury.

2. Keep the shredder turned off or unplugged when not in use for prolonged

3. Remove all paper clips and staples from paper before shredding. The

machine will cut staples; however, it is not recommended.

4. Do not place hands or ngers into the shredder throat as serious injury

5. When manually changing feed direction, pause long enough for the motoor

6. Continuous shredding paper should not exceed 20 minutes. If continuous

use is required at the maximum sheet capacity(18 sheets), it is recommend that shredding time should be 20 minutes on and 40 minutes off to allow for proper cooling of the motor.

7. Always turn off or unplug the shredder prior to moving, cleaning or emptying

the wastebasket. enough time to remove any excess paper from the cutters and limit any paper from the wastevbasket being fed back into the shredder cutters.

3. The Power Button is used to terminate the AC power to the shredder. It is

recommended to turn the shredder off when the shredder is not being used for a prolonged period of time.

4. The ready LED will light up if machine is power on.

When manually changing the direction of the cutters, pause long enough for the motor to stop to avoid any damage to the motor. Shredder capacity: The machine will shred up to 18 sheets of paper and will accept paper widths up to 220 mm. When shredding small material like envelopes or credit card receipts, insert them in the middle of the feed opening. Note: The mechanism should be oiled regular after a certain operating time to maintain the cutting performance. This can be easily accomplished if you pour special shredder oil on a sheet of paper and feed it through the inlet guide to the cutting mechanism8 Paper Jams & Motor Overload Situations The machine is equipped with an automatic motor reversal device and a motor overload protection circuit. The normal short duty cycle for continuous shredding at maximum capacity is 20 minutes on and 40 minutes off, The shredder will either automatically reverse the paper out of the shredder throat or power may terminate automatically in case of the following abnormal situations:

1. Operating the shredder at the maximum 18-sheet capacity continuously for

a prolonged period of time, eg. more than 20 minutes without stopping.

2. Exceeding the shredding capacity, eg. Inserting more than 18 sheets of

paper in one pass, or if the paper is not fed squarely into the feed opening. Both abnormal operations may result in the activation of the automatic reversal of the paper or the thermal motor overload protection, which terminates the power to the shredder. A minor paper jam may cause the paper to feed in the opposite, direction and be ejected from the feed opening. A major paper jam could cause the thermal motor overload protection to terminate AC power to the motor and turn on the Overload light. Never allow the shredder to remain in a jammed condition with the AC power turned on. If this occurs you should: In case of a minor paper jam: The automatic paper reverse feature should eject the minor paper jam from the feed opening. Remove the unshredded portion of paper from the top and clear any excess paper shreds from the feed opening .The Overload Light should go out and normal shredding can resume. In case of a major paper jam:

1. Turn off or unplug the power cord from the AC outlet and wait at least 40

minutes for the thermal overload protection to reset.

2. Plug in the AC power cord and depress the Power Button. If paper was left

inside the feed opening prior to the overload, grasp the excess paper from the top and pull it out as you depress the Rev Button. Be careful not to place your ngers near the feed opening or serious harm could result.

3. You are now ready to resume normal shredding.9

Warranty 1 Year Guarantee from Shine-Mart Ltd, Trademark owners of Duronic Products. NOTE: THESE STATEMENTS DO NOT AFFECT YOUR STATUTORY RIGHTS AS A CONSUMER This product has been manufactured under the strictest or quality control procedures, and using the highest quality of materials, to ensure excellent performance and reliability. It will give very good and long lasting service, provided it is properly used and maintained. The product is guaranteed for 1 years from the date of original purchase. If any defect arises due to a faulty materials or poor workmanship, the faulty product must be returned to the original place of purchase. Refund or replacement is at the discretion of that company. Duronic Products are offered with a 1 year guarantee under the following conditions:

. T he product must be returned to the retailer with original proof of purchase.

2. The product must be installed and used in accordance with the instructions contained in

is operating manual.

. I t must be used only for domestic purposes.

. I t does not cover wear and tear, malicious damage, misuse, neglect, inexpert repairs o

. S hine-Mart Ltd has no responsibilities for accidental or consequential loss or damage.

. S hine-Mart Ltd are not liable to carry out any type of servicing work, under the guarantee

. V alid in the UK only This product is tted with CE:1363 plug and fuse Imported by Shine-Mart Ltd, RM3 8SB Information on waste Disposal for Consumers of Electrical & Electronic Equipment. This mark on a product and/or accompanying documents indicates that when it is to be disposed of, it must be treated as Waste Electrical & Electronic Equipment, (WEEE). Any WEEE marked products must not be mixed with general household waste, but kept separate for the treatment, recovery and recycling of the materials used. For proper treatment, recovery and recycling; please take all WEEE marked waste to your Local Authority Civic waste site, where it will be accepted free of charge. If customers dispose of Waste Electrical & Electronic Equipment correctly, they will be helping to save valuable resources and preventing any potential negative effects upon human health and the environment, of any hazardous materials that the waste may contain.1011 Manuel d’utilisation en français12 Utilisation Spécifications Installation :
