PS712 - Shredder Duronic - Free user manual and instructions

Product Type	Document Shredder
Brand	Duronic
Model	PS712
Shredding Type	Cross Cut
Shred Size	40 mm x 4 mm
Cutting Capacity	5 sheets (80 g/m², A4)
Duty Cycle	2 minutes operation / 45 minutes rest
Feed Opening	220 mm (22 cm)
Dimensions (L x D x H)	320 x 310 x 190 mm
Weight	4.0 kg
Bin Capacity	12 liters
Power	200 W
Voltage / Frequency	220-240 V, 50-60 Hz, 2.4 A
Functions	Auto, Forward (FWD), Stop (OFF), Reverse (REV)
Special Features	Integrated carry handle
Cleaning	Damp cloth with warm water; do not use flammable products
Safety	Overheating and jam protection, auto shut-off
Shreddable Materials	Paper, credit cards
Warranty	1 year (Shine-Mart Ltd)
Usage	Indoor household use only

Frequently Asked Questions - PS712 Duronic

What is the maximum sheet capacity that the PS712 shredder can shred at once?

The Duronic PS712 can shred up to 5 sheets of A4 paper (80 g/m²) in one pass. Do not exceed this capacity to avoid jams.

How to resolve a paper jam on the PS712?

Unplug the device and wait 40 minutes. Select the REV (reverse) function and gently pull on the remaining paper. Then use FWD to clear the blades, then switch back to AUTO mode.

What types of documents can I shred with this shredder?

This shredder is designed for paper and credit cards. Do not insert staples, paper clips, hard plastics, CDs, or other unspecified materials.

What is the recommended duty cycle?

The duty cycle is 2 minutes of continuous operation followed by 45 minutes of rest to avoid overheating.

How to clean the PS712 shredder?

Always unplug the device. Use a damp cloth with warm water to clean the housing and the bin. Never use flammable or abrasive products.

What to do if the motor stops during use?

This is likely due to thermal overload. Unplug the device and wait at least 45 minutes for the protection device to reset, then remove excess paper before restarting.

Can I shred staples or paper clips?

No, the manual advises against inserting paper clips, staples, or other metal objects as they can damage the blades and void the warranty.

What is the size of the collection bin?

The bin has a capacity of 12 liters. It is recommended to empty it regularly to avoid blockages.

How to use the reverse function (REV)?

Set the switch to REV to reverse the blade direction. This allows you to free stuck paper by gently pulling on it.

What to do if the shredder does not start?

First check that the device is plugged in and the switch is set to AUTO. If it still does not respond, wait for the thermal protection device to reset (45 min). If the problem persists, contact Duronic customer service.

USER MANUAL PS712 Duronic

Creative Consumer Electronics

Black Max-5 Shoets printer with open lid and control buttons (no visible text or symbols on body)

PS712 - Shredder

PLEASE READ ALL THE INSTRUCTIONS BEFORE USE

duronic.com

duronic

@duronicmedia

Duronic

@duronicmedia

Contents

English Manual 4

Safety Instructions 7

Warning Icons 9

Cleaning and Maintenance 9

Setup 10

Operation 10

Special Features 11

Capacity 11

Paper Jams & Overloads 11

Warranty 13

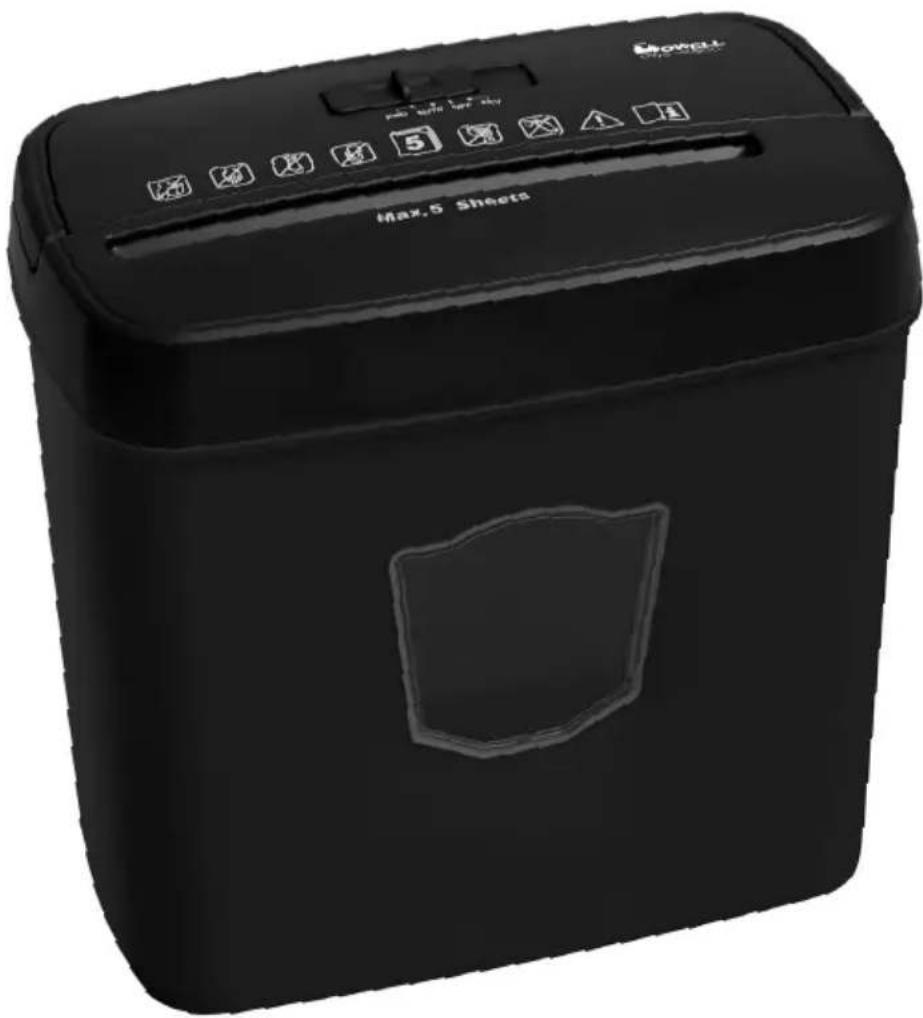

Specifications

Max.5 Sheets 600x 100x 120x 140x 160x 180x 200x 220x 240x 260x 280x 300x 320x 340x 360x 380x 400x 420x 440x 460x 480x 500x

Shred Type: Cross-Cut
Shred Size: 40mm x 4mm
Shredding Capacity: 5 Sheets of paper (80gsm A4)
Duty Cycles: 2 min on / 45 min off
Feed Opening: 220mm / 22cm
Dimensions: 320 x 310 x 190 mm
Bin Size: 12 Litre
Weight: 4.0kg
Power: 200W
Input: 220 - 240V, 50-60Hz, 2.4A

DURONIC

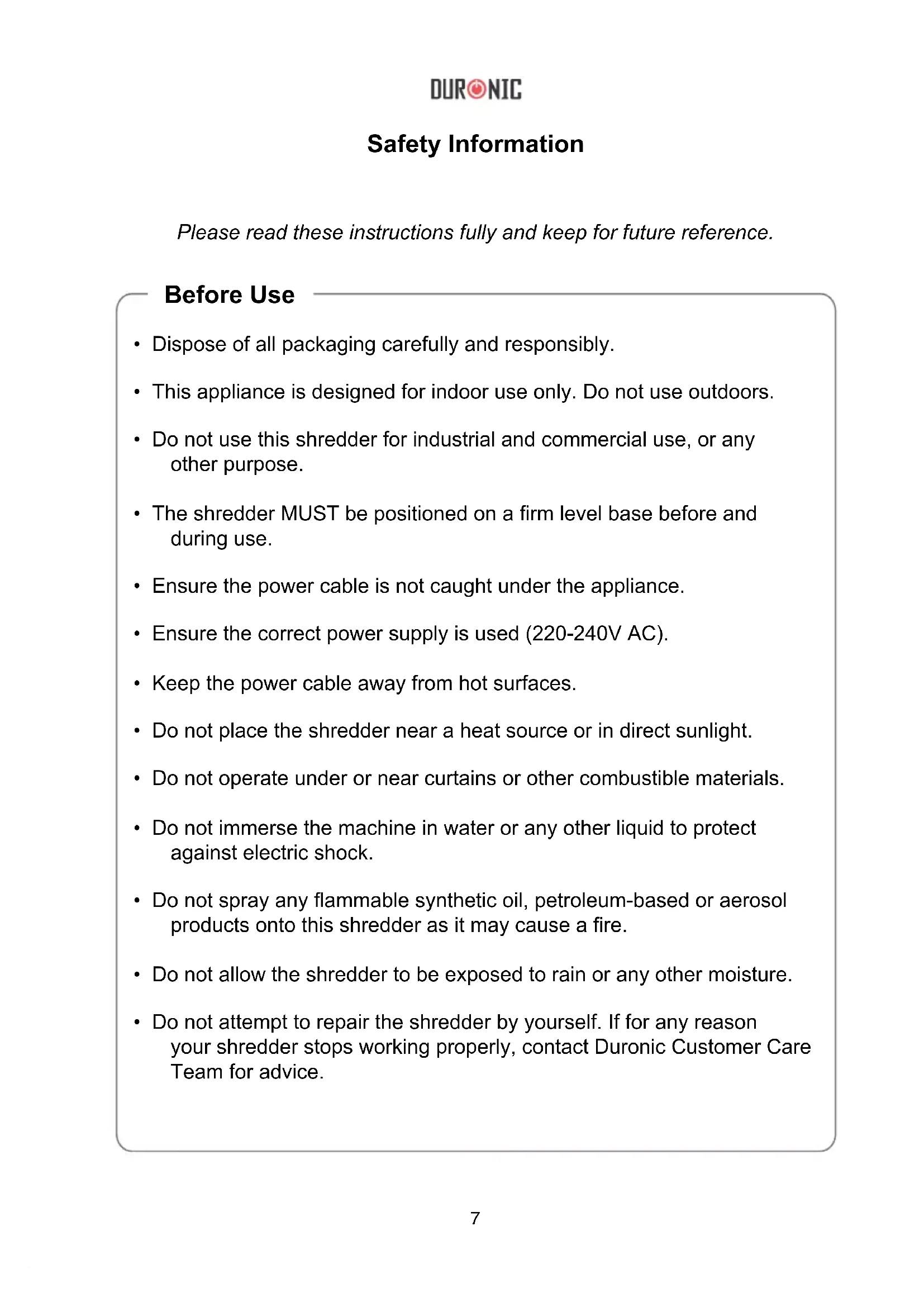

Safety Information

Please read these instructions fully and keep for future reference.

Before Use

• Dispose of all packaging carefully and responsibly.
• This appliance is designed for indoor use only. Do not use outdoors.
• Do not use this shredder for industrial and commercial use, or any other purpose.
• The shredder MUST be positioned on a firm level base before and during use.
• Ensure the power cable is not caught under the appliance.
• Ensure the correct power supply is used (220-240V AC).
• Keep the power cable away from hot surfaces.
• Do not place the shredder near a heat source or in direct sunlight.
• Do not operate under or near curtains or other combustible materials.
• Do not immerse the machine in water or any other liquid to protect against electric shock.
• Do not spray any flammable synthetic oil, petroleum-based or aerosol products onto this shredder as it may cause a fire.
• Do not allow the shredder to be exposed to rain or any other moisture.
• Do not attempt to repair the shredder by yourself. If for any reason your shredder stops working properly, contact Duronic Customer Care Team for advice.

During Use

- WARNING! Keep loose articles of clothing; ties, jewellery, hair or other objects away from the feed opening in order to prevent injury.

- Never insert fingers into the feed opening. Serious injury may result!

- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

• DO NOT leave children unattended with the shredder.

- ALWAYS keep the shredder off and unplugged when not in use.

- DO NOT attempt to feed more sheets of paper into the feeder than specified.

- ALWAYS limit continuous shredding to the specified time as suggested in the instruction manual. See section titled 'Capacity'.

- DO NOT attempt to shred materials other than paper and credit cards in the provided feed slots.

- To avoid overheating the shredder, limit continuous shredding to the specified time as suggested in this instruction manual.

- Do not operate the shredder if the cable or plug are damaged or if the shredder has malfunctioned in any way.

- ALWAYS unplug the shredder when moving, cleaning or emptying the waste basket.

- DO NOT attempt to operate the shredder if the shredder is experiencing any kind of problem.

- If your machine stops working, do not attempt to repair it yourself! Contact Duronic (Shine-Mart) for assistance.

DURONIC

Warning Icons

Please take note of these warnings displayed on the machine:

WARNING

READ INSTRUCTIONS BEFORE USE

NO FINGERS OR HANDS

NO HAIR NO

DOSE CLOTHING

NO CHILDREN NO AEROSOL PRODUCTS

NO PAPERCLIPS

MAX 5 SHEETS

Cleaning and Maintenance

IMPORTANT: Always unplug the appliance from the power socket during cleaning and maintenance.

• Never use any sharp instruments or abrasive substances, soap, household cleaner, detergent or wax polish for cleaning.
• Never clean the appliance with flammable fuids. It could cause a damage and fire hazard.
• Use lukewarm water on a cloth to clean the cabinet and waste basket of the appliance and wipe it dry.
• Ensure the unit is dry before connecting to the mains.

DURONIC

Setup

1. Carefully place the PS712 shredder on a dry, flat, level surface.

2. Place the shredder head into the top of the waste bin.

3. Be careful not to place your fingers near the cutter blades.

4. Plug the power cord into any standard 220-240-Volt AC mains outlet / plug socket which shall should be located near the equipment and should be easily accessible.

5. Place the switch into the AUTO position.

You are now ready to start shredding.

Operation

The power switch is located on the top of the shredder. The switch has four settings: Forward/FWD, AUTO, OFF, Reverse/REV.

When AUTO is selected, the shredding process is started automatically by inserting paper into the feed opening. The shredder will also stop automatically when the paper has completed its travel through the feed opening.

REV mode is used to assist in the removal of a paper jam. This reverses the shredding process before the cycle finished, thus clearing the cutters.

FWD mode is also used to assist in the removal of a paper jam. By selecting this mode, the machine's blades will keep rotating continuously even if no paper is inserted. This will help clear the blades and remove any remaining pieces of paper from the blades.

Select the OFF mode when emptying the waste bin or when the shredder is not in use for a long period of time.

DURONIC

Special Features

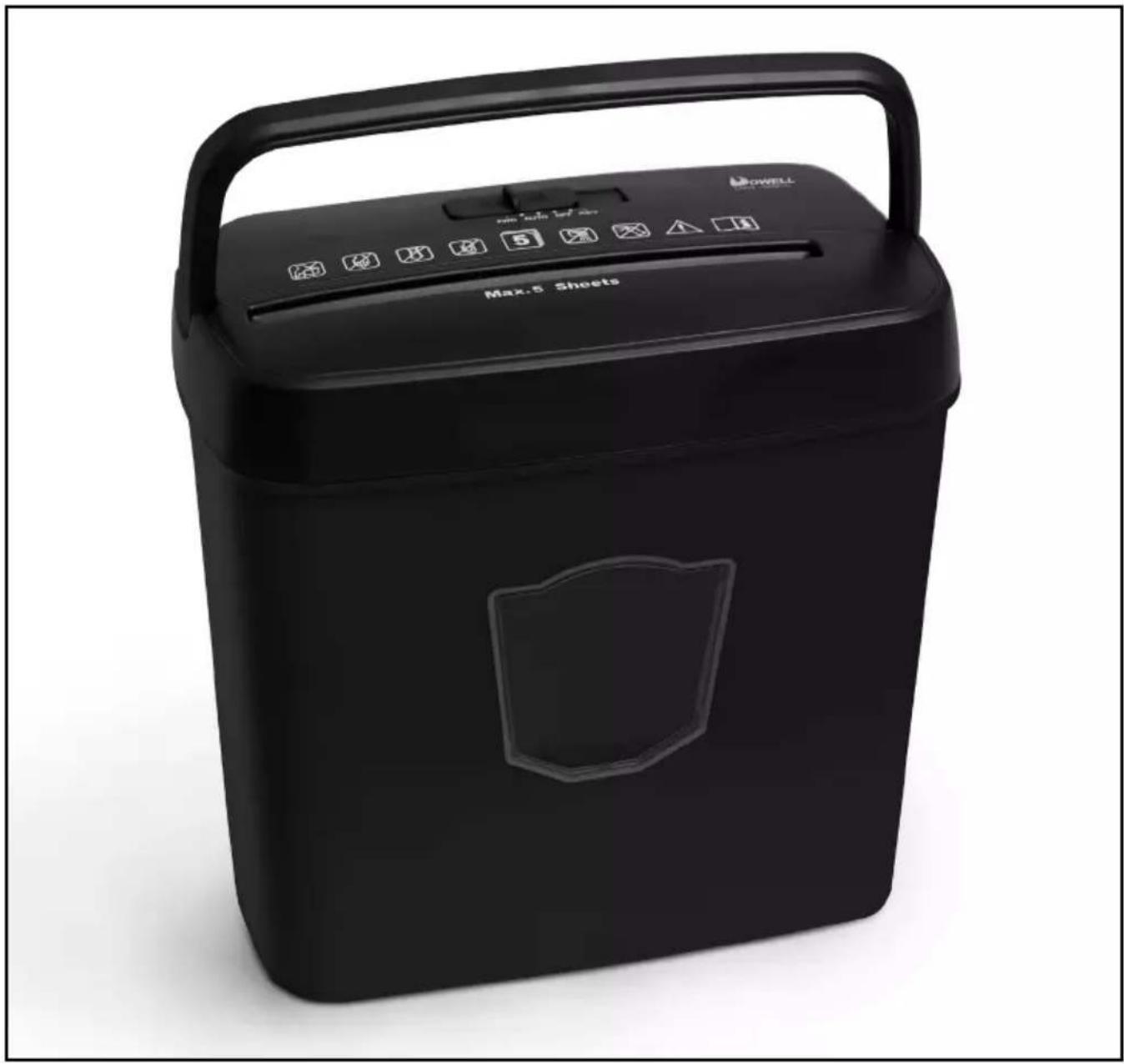

This model has a carry handle to enable easy relocation.

Capacity

The PS712 will shred up to 5 sheets of A4 (80GSM) paper.

When shredding small material like envelopes or reciepts, insert them through the middle of the feed opening.

Paper Jams & Overloads

How to Resolve a Paper Jam:

1. Turn off or unplug the cable from the mains plug and wait for at least 40 minutes for the thermal overload to reset.
2. Press the reverse button and gently pull the remaining sheets of paper out of the feed opening.
3. Remove the unshredded papers from the top and clear any excess paper shreds from the feed opening.

CAUTION: Be careful not to place your fingers near the feed opening as serious harm could occur.

Overload Protection:

The PS712 is equipped with a motor overload protection device. This means that if/when the motor becomes overheated, the power will automatically be cut off.

Paper Jams & Overloads (continued)

Duty Cycle:

The duty on/off cycle for continuous shredding at maximum capacity is 2 minutes on and 45 minutes off.

The power may cut off in the case of the following situations:

Operating the shredder at maximum capacity continuously for more than 2 minutes without stopping.

If this occurs you should:

1. Unplug the power cable from the mains and wait at least 45 minutes for the overload protection to reset.
2. Tear or cut off any excess paper from the top of the shredder.
3. Plug the power cable back into the mains socket and place the switch into REV. Pull the remaining paper out of the cutters.
4. Once the jam is clear, return the switch to the AUTO position.

Exceeding the shredding capacity (e,g, inserting more than 5 sheets at a time, or if the paper is not fed squarely into the feed opening.)

If this occurs you should:

1. Change the switch to the REV position.
2. Pull the jammed papers back.
3. Put the switch to the FWD position, allowing it to clear the remaining trapped pieces in the blade cutters.
4. Once the jam is clear, return the switch to the AUTO position.

DURONIC

Warranty

1 Year Guarantee from Shine-Mart Ltd, Trademark owners of Duronic Products. NOTE: THESE STATEMENTS DO NOT AFFECT YOUR STATUTORY RIGHTS AS A CONSUMER

This product has been manufactured under the strictest or quality control procedures, and using the highest quality of materials, to ensure excellent performance and reliability. It will give very good and long lasting service, provided it is properly used and maintained. The product is guaranteed for 1 years from the date of original purchase. If any defect arises due to a faulty materials or poor workmanship, the faulty product must be returned to the original place of purchase. Refund or replacement is at the discretion of that company.

Duronic Products are offered with a 1 year guarantee under the following conditions:

1. The product must be returned to the retailer with original proof of purchase.
2. The product must be installed and used in accordance with the instructions contained in this operating manual.
3. It must be used only for domestic purposes.
4. It does not cover wear and tear, malicious damage, misuse, neglect, inexpert repairs or consumable parts.
5. Shine-Mart Ltd has no responsibilities for accidental or consequential loss or damage.
6. Shine-Mart Ltd are not liable to carry out any type of servicing work, under the guarantee
7. Valid in the UK only

This product is fitted with CE:1363 plug and fuse Imported by Shine-Mart Ltd, RM3 8SB

Information on waste Disposal for Consumers of

Electrical & Electronic Equipment.

This mark on a product and/or accompanying documents indicates that when it is to be disposed of, it must be treated as Waste Electrical & Electronic Equipment, (WEEE).

Any WEEE marked products must not be mixed with general household waste, but kept separate for the treatment, recovery and recycling of the materials used.

For proper treatment, recovery and recycling; please take all WEEE marked waste to your Local Authority Civic waste site, where it will be accepted free of charge.

If customers dispose of Waste Electrical & Electronic Equipment correctly, they will be helping to save valuable resources and preventing any potential negative effects upon human health and the environment, of any hazardous materials that the waste may contain.
