USER MANUAL PS657 Duronic

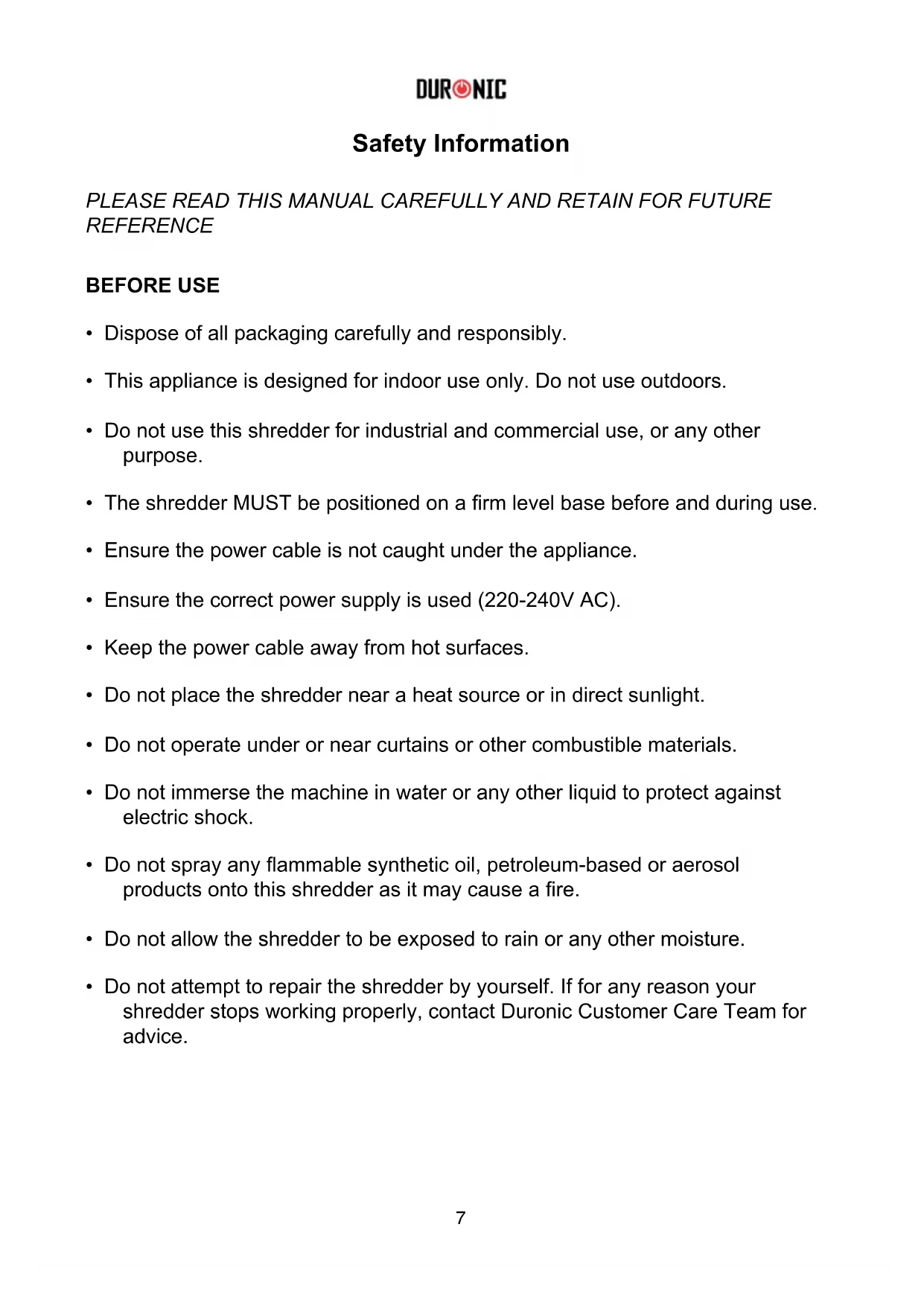

• Dispose of all packaging carefully and responsibly.

• This appliance is designed for indoor use only. Do not use outdoors.

• Do not use this shredder for industrial and commercial use, or any other purpose.

• The shredder MUST be positioned on a rm level base before and during use.

• Ensure the power cable is not caught under the appliance.

• Ensure the correct power supply is used (220-240V AC).

• Keep the power cable away from hot surfaces.

• Do not place the shredder near a heat source or in direct sunlight.

• Do not operate under or near curtains or other combustible materials.

• Do not immerse the machine in water or any other liquid to protect against electric shock.

• Do not spray any ammable synthetic oil, petroleum-based or aerosol products onto this shredder as it may cause a re.

• Do not allow the shredder to be exposed to rain or any other moisture.

• Do not attempt to repair the shredder by yourself. If for any reason your shredder stops working properly, contact Duronic Customer Care Team for advice. Safety Information8 DURING USE

• WARNING! Keep loose articles of clothing; ties, jewellery, hair or other objects away from the feed opening in order to prevent injury.

• Never insert ngers into the feed opening. Serious injury may result!

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

• DO NOT leave children unattended with the shredder.

• ALWAYS keep the shredder off and unplugged when not in use.

• DO NOT attempt to feed more sheets of paper into the feeder than specifed.

• ALWAYS limit continuous shredding to the specifed time as suggested in the instruction manual. See section titled ‘Capacity’.

• DO NOT attempt to shred materials other than paper and credit cards in the provided feed slots.

• Remove staples and paperclips from paper before shredding

• To avoid overheating the shredder, limit continuous shredding to the specifed time as suggested in this instruction manual.

• Do not operate the shredder if the cable or plug are damaged or if the shredder has malfunctioned in any way.

• ALWAYS unplug the shredder when moving, cleaning or emptying the waste basket.

• DO NOT attempt to operate the shredder if the shredder is experiencing any kind of problem.

• If your machine stops working, do not attempt to repair it yourself!

• Contact the Duronic Customer Care Team for assistance. Safety Information (continued)9

• Never use any sharp instruments or abrasive substances, soap, household cleaner, detergent or wax polish for cleaning.

• Never clean the appliance with ammable uids. It could cause a damage and re hazard.

• Use lukewarm water on a cloth to clean the cabinet and waste basket of the appliance and wipe it dry.

• Ensure the unit is dry before connecting to the mains. Cleaning and Maintenance Warning Icons Please take note of these warnings displayed on the machine:

CLOTHING IMPORTANT: Always unplug the appliance from the power socket during cleaning and maintenance.

1. Carefully place the PS657 shredder on a dry, at, level surface.

2. Ensure that the motor unit is tted in place on top of the waste bin.

3. Be careful not to place your ngers near the cutter blades.

4. Plug the power cable into any standard 220-240-Volt AC mains outlet / plug

socket which should be located near the shredder and should be easily accessible.

5. Place the switch into the AUTO position.

The power switch is located on the top of the shredder. The switch has four settings: FWD (forward), AUTO, OFF, REV (reverse). When AUTO is selected, the shredding process is started automatically by inserting paper into the feed opening. The shredder will also stop automatically when the paper has completed its travel through the feed opening. REV mode is used to assist in the removal of a paper jam. This reverses the shredding process before the cycle nished, thus clearing the cutting blades. Select the OFF mode when emptying the waste bin or when the shredder is not in use for a long period of time. FWD mode is also used to assist in the removal of a paper jam. By selecting this mode, the machine’s blades will keep rotating continuously even if no paper is inserted. This will help clear the blades and remove any remaining pieces of paper from the blades. You are now ready to start shredding. Setup Operation11 Special Features Capacity Paper Jams & Overloads This model has a handle which allows for easy emptying of the bin and has a larger bin capacity meaning you have to empty it less often. The PS657 will shred up to 5 sheets of A4 (80GSM) paper. When shredding small material like envelopes or receipts, insert them through the middle of the feed opening. How to Resolve a Paper Jam:

1. Turn off or unplug the cable from the mains plug and wait for at least 45

minutes for the thermal overload to reset.

2. Press the reverse button and gently pull the remaining sheets of paper out of

3. Remove the unshredded papers from the top and clear any excess paper

shreds from the feed opening. Overload Protection: The PS657 is equipped with a motor overload protection device. This means that if / when the motor becomes overheated, the power will automatically be cut off. CAUTION: Be careful not to place your ngers near the feed opening as serious harm could occur.12 Duty Cycle: The duty on/off cycle for continuous shredding at maximum capacity is 2 minutes on and 45 minutes off. The power may cut off in the case of the following situations: (a) Operating the shredder at maximum capacity continuously for more than 2 minutes without stopping. If this occurs you should:

1. Unplug the power cable from the mains and wait at least 45 minutes for the

overload protection to reset.

2. Tear or cut off any excess paper from the top of the shredder.

3. Plug the power cable back into the mains socket and place the switch into

REV. Pull the remaining paper out of the cutters.

4. Once the jam is clear, return the switch to the AUTO position.

(b) Exceeding the shredding capacity (e,g, inserting more than 5 x A4 sheets, or if the paper is not fed squarely into the feed opening.) If this occurs you should:

1. Change the switch to the REV position.

2. Pull the jammed papers back.

3. Put the switch to the AUTO position, allowing it to clear the remaining trapped

pieces in the blade cutters.

4. Once the jam is clear, you can continue to use the shredder.

Paper Jams & Overloads (continued)13 Warranty 1 Year Guarantee from Shine-Mart Ltd, Trademark owners of Duronic Products. NOTE: THESE STATEMENTS DO NOT AFFECT YOUR STATUTORY RIGHTS AS A CONSUMER This product has been manufactured under the strictest or quality control procedures, and using the highest quality of materials, to ensure excellent performance and reliability. It will give very good and long lasting service, provided it is properly used and maintained. The product is guaranteed for 1 years from the date of original purchase. If any defect arises due to a faulty materials or poor workmanship, the faulty product must be returned to the original place of purchase. Refund or replacement is at the discretion of that company. Duronic Products are offered with a 1 year guarantee under the following conditions:

1. The product must be returned to the retailer with original proof of purchase.

2. The product must be installed and used in accordance with the instructions

contained in this operating manual.

3. It must be used only for domestic purposes.

4. It does not cover wear and tear, malicious damage, misuse, neglect,

inexpert repairs or consumable parts.

5. Shine-Mart Ltd has no responsibilities for accidental or consequential loss or damage.

6. Shine-Mart Ltd are not liable to carry out any type of servicing work,

7. Valid in the UK only

This product is tted with CE:1363 plug and fuse Imported by Shine-Mart Ltd, RM3 8SB Information on waste Disposal for Consumers of Electrical & Electronic Equipment. This mark on a product and/or accompanying documents indicates that when it is to be disposed of, it must be treated as Waste Electrical & Electronic Equipment, (WEEE). Any WEEE marked products must not be mixed with general household waste, but kept separate for the treatment, recovery and recycling of the materials used. For proper treatment, recovery and recycling; please take all WEEE marked waste to your Local Authority Civic waste site, where it will be accepted free of charge. If customers dispose of Waste Electrical & Electronic Equipment correctly, they will be helping to save valuable resources and preventing any potential negative effects upon human health and the environment, of any hazardous materials that the waste may contain. Follow Us14 Manuel d’utilisation en français15 Caractéristiques et Spécications Modèle PS657 croiséeCoupe 12 mm x 4 mm 5 feuilles A4 (80GSM) d'utilisationCycles 2 min on / 45 min off 220 mm / 22 cm Dimensions 356 x 320 x 195 mm 15 Litres Poids 3.9 kg Puissance 170W / Fréquence 220-240V ~ 50/60Hz
