PS132 - Shredder Duronic - Free user manual and instructions

Product Type	Cross-cut Document Shredder
Brand	Duronic
Model	PS132
Cut Size	28 mm x 4 mm (cross-cut)
Cut Capacity	3 sheets A4 (folded) or 6 sheets A6 (75 g/m²)
Feed Opening	120 mm (12 cm)
Bin Capacity	3.5 liters
Duty Cycle	4 minutes ON / 60 minutes OFF
Power	120 W
Input Voltage	220-240 V ~ 50/60 Hz
Dimensions	220 x 200 x 180 mm
Weight	2 kg
Switch Functions	AUTO, OFF, REV (reverse)
Overload Protection	Automatic shutdown in case of motor overheating
Shreddable Materials	Paper, credit cards
Maintenance and Cleaning	Unplug before cleaning; use a damp cloth with lukewarm water, then wipe with a dry cloth. Do not use flammable or abrasive products.
Safety	Do not insert fingers, keep loose clothing, hair, jewelry away; do not use by children or persons with reduced capabilities without supervision; do not place near heat sources or humidity.
Warranty	1 year (Shine-Mart Ltd)

Frequently Asked Questions - PS132 Duronic

How many sheets can the PS132 shred at once?

The shredder can shred up to 3 A4 sheets (75 g/m²) folded in half or 6 A6 sheets. Do not exceed this capacity to avoid jams.

What to do in case of paper jam?

Set the switch to REV (reverse) to reverse the blades, then gently pull out the remaining paper. If the jam persists, unplug the device for 60 minutes to reset the thermal protection.

What is the recommended continuous operation time?

The duty cycle is 4 minutes continuous, followed by a 60-minute stop to prevent overheating.

Can the PS132 shred credit cards?

Yes, you can shred credit cards in the designated slot. Remove any packaging or stickers beforehand.

How to clean the shredder?

Always unplug the device. Use a damp cloth with lukewarm water to clean the exterior and bin, then wipe with a dry cloth. Never use flammable or abrasive products.

What does the indicator light or sudden stop mean?

The stop may be due to thermal overload (continuous use >4 min) or excessive capacity. Let the device cool down for 60 minutes before using again.

Can I shred staples or paper clips?

It is recommended to remove staples and paper clips before shredding to avoid damage to the blades and reduce the risk of jams.

What is the cut size of the PS132?

The cut is cross-cut with particles of 28 mm x 4 mm, providing P-3/P-4 security level.

Is the shredder suitable for children?

No, this product is not designed for use by children or persons with reduced capabilities without supervision. Keep it out of reach of children.

What is the warranty of the PS132?

The shredder is warranted for 1 year by Shine-Mart Ltd (Duronic) from the date of purchase, subject to proper use and proof of purchase.

USER MANUAL PS132 Duronic

Creative Consumer Products

DURONIC MAX 2-5 A4 AUTO OFF KEY

PS132

Shredder

PLEASE READ ALL THE INSTRUCTIONS BEFORE USE

duronic.com

duronic

@duronicmedia

Duronic

@duronicmedia

Contents

English Manual 5

Features and Specifications

DURONIE MAX 2-3-A4 ① ② ③

1. Feed opening 2. Paper bin 3. Control switch

Model PS132
Shred Type Cross-Cut
Shred Size 28mm x 4mm
Shredding Capacity 3 Sheets of A4 paper (folded) or 6 x A6 paper
Duty Cycles 4 min on / 60 min off
Feed Opening 120mm / 12cm
Dimensions 220 x 200 x 180 mm
Bin Size 3.5 Litre
Weight 2kg
Power 120W
Input Voltage / Frequency	220-240V ~ 50/60Hz

DURONIC

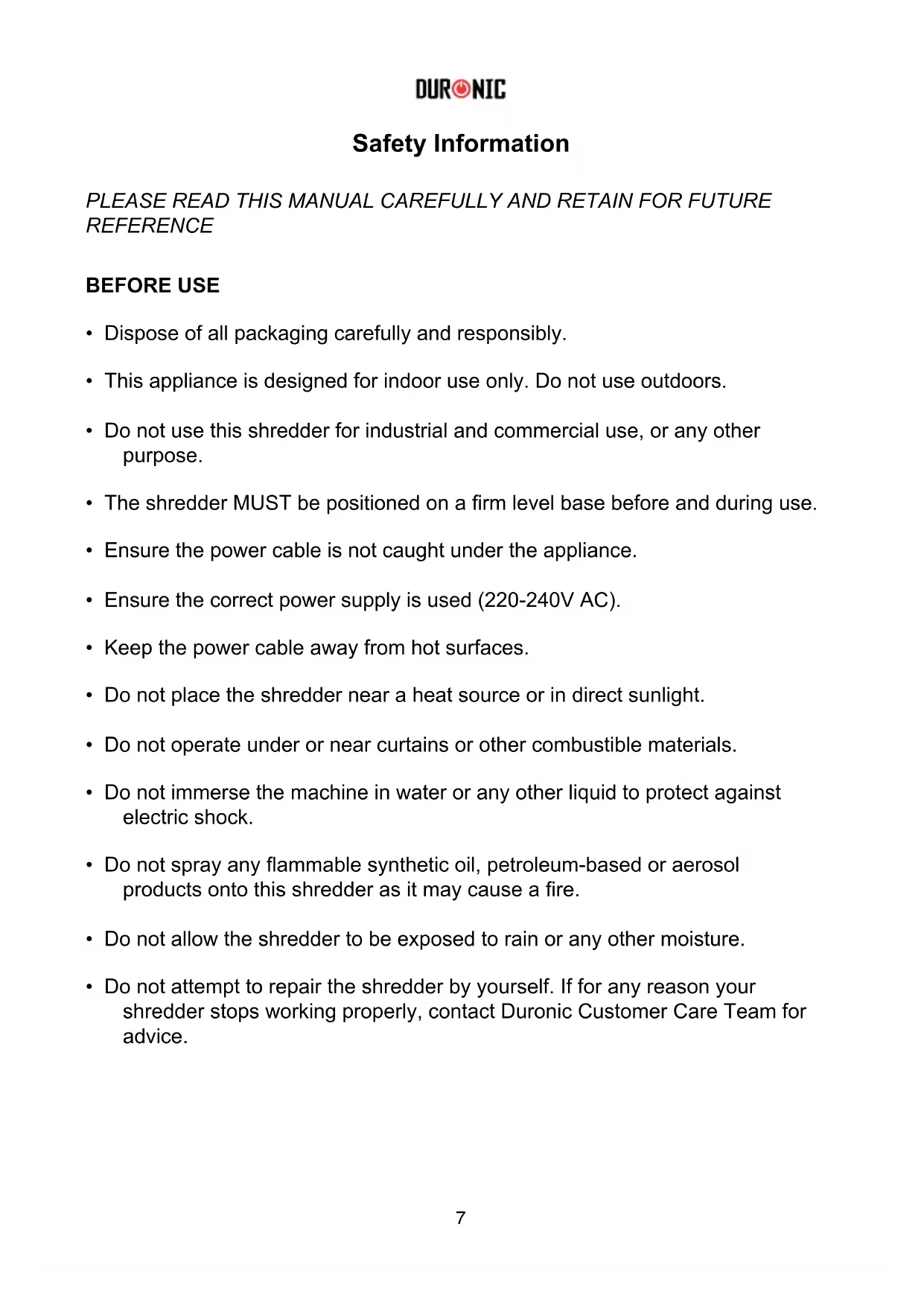

Safety Information

PLEASE READ THIS MANUAL CAREFULLY AND RETAIN FOR FUTURE REFERENCE

BEFORE USE

• Dispose of all packaging carefully and responsibly.
• This appliance is designed for indoor use only. Do not use outdoors.
• Do not use this shredder for industrial and commercial use, or any other purpose.
• The shredder MUST be positioned on a firm level base before and during use.
• Ensure the power cable is not caught under the appliance.
• Ensure the correct power supply is used (220-240V AC).
• Keep the power cable away from hot surfaces.
• Do not place the shredder near a heat source or in direct sunlight.
• Do not operate under or near curtains or other combustible materials.
• Do not immerse the machine in water or any other liquid to protect against electric shock.
• Do not spray any flammable synthetic oil, petroleum-based or aerosol products onto this shredder as it may cause a fire.
• Do not allow the shredder to be exposed to rain or any other moisture.
• Do not attempt to repair the shredder by yourself. If for any reason your shredder stops working properly, contact Duronic Customer Care Team for advice.

DURONIC

Safety Information (continued)

DURING USE

- WARNING! Keep loose articles of clothing; ties, jewellery, hair or other objects away from the feed opening in order to prevent injury.

- Never insert fingers into the feed opening. Serious injury may result!

- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

• DO NOT leave children unattended with the shredder.

• ALWAYS keep the shredder off and unplugged when not in use.

• DO NOT attempt to feed more sheets of paper into the feeder than specified.

- ALWAYS limit continuous shredding to the specified time as suggested in the instruction manual. See section titled ‘Capacity’.

- DO NOT attempt to shred materials other than paper and credit cards in the provided feed slots.

- Remove staples and paperclips from paper before shredding

- To avoid overheating the shredder, limit continuous shredding to the specified time as suggested in this instruction manual.

- Do not operate the shredder if the cable or plug are damaged or if the shredder has malfunctioned in any way.

- ALWAYS unplug the shredder when moving, cleaning or emptying the waste basket.

- DO NOT attempt to operate the shredder if the shredder is experiencing any kind of problem.

- If your machine stops working, do not attempt to repair it yourself!

- Contact the Duronic Customer Care Team for assistance.

DURONIC

Warning Icons

Please take note of these warnings displayed on the machine:

WARNING

CHILDREN

NO FINGERS OR HANDS

NO HAIR NO LOOSE CLOTHING

CLOTHING

NO AEROSOL PRODUCTS

MAX 2-3 A4

MAX 2-3 A4 PAPER FOLDED IN HALF

Cleaning and Maintenance

IMPORTANT: Always unplug the appliance from the power socket during cleaning and maintenance.

• Never use any sharp instruments or abrasive substances, soap, household cleaner, detergent or wax polish for cleaning.
• Never clean the appliance with flammable fluids. It could cause a damage and fire hazard.
• Use lukewarm water on a cloth to clean the cabinet and waste basket of the appliance and wipe it dry.
• Ensure the unit is dry before connecting to the mains.

DURONIC

Setup

1. Carefully place the PS132 shredder on a dry, flat, level surface.

2. Ensure that the waste bin is properly in place inside the machine.

3. Be careful not to place your fingers near the cutter blades.

4. Plug the power cable into any standard 220-240-Volt AC mains outlet / plug socket which should be located near the shredder and should be easily accessible.

5. Place the switch into the AUTO position.

You are now ready to start shredding.

Operation

The power switch is located on the top of the shredder. The switch has three settings: AUTO, OFF, Reverse/REV.

When AUTO is selected, the shredding process is started automatically by inserting paper into the feed opening. The shredder will also stop automatically when the paper has completed its travel through the feed opening.

REV mode is used to assist in the removal of a paper jam. This reverses the shredding process before the cycle finished, thus clearing the cutting blades.

Select the OFF mode when emptying the waste bin or when the shredder is not in use for a long period of time.

DURONIC

Special Features

This model is compact and ideal for desktop or tabletop use.

Capacity

The PS132 will shred up to 3 sheets of A4 (75GSM) folded paper, or 6 sheets of A6.

When shredding small material like envelopes or receipts, insert them through the middle of the feed opening.

Paper Jams & Overloads

How to Resolve a Paper Jam:

1. Turn off or unplug the cable from the mains plug and wait for at least 60 minutes for the thermal overload to reset.
2. Press the reverse button and gently pull the remaining sheets of paper out of the feed opening.
3. Remove the unshredded papers from the top and clear any excess paper shreds from the feed opening.

CAUTION: Be careful not to place your fingers near the feed opening as serious harm could occur.

Overload Protection:

The PS132 is equipped with a motor overload protection device. This means that if / when the motor becomes overheated, the power will automatically be cut off.

DURONIC

Paper Jams & Overloads (continued)

Duty Cycle:

The duty on/off cycle for continuous shredding at maximum capacity is 4 minutes on and 60 minutes off.

The power may cut off in the case of the following situations:

(a) Operating the shredder at maximum capacity continuously for more than 4 minutes without stopping.

If this occurs you should:

1. Unplug the power cable from the mains and wait at least 60 minutes for the overload protection to reset.

2. Tear or cut off any excess paper from the top of the shredder.

3. Plug the power cable back into the mains socket and place the switch into REV. Pull the remaining paper out of the cutters.

4. Once the jam is clear, return the switch to the AUTO position.

(b) Exceeding the shredding capacity (e,g, inserting more than 3 x A4 sheets or 6 x A6 at a time, or if the paper is not fed squarely into the feed opening.)

If this occurs you should:

1. Change the switch to the REV position.
2. Pull the jammed papers back.
3. Put the switch to the AUTO position, allowing it to clear the remaining trapped pieces in the blade cutters.
4. Once the jam is clear, you can continue to use the shredder.

DURONIC

Warranty

1 Year Guarantee from Shine-Mart Ltd, Trademark owners of Duronic Products. NOTE: THESE STATEMENTS DO NOT AFFECT YOUR STATUTORY RIGHTS AS A CONSUMER

This product has been manufactured under the strictest or quality control procedures, and using the highest quality of materials, to ensure excellent performance and reliability. It will give very good and long lasting service, provided it is properly used and maintained. The product is guaranteed for 1 years from the date of original purchase. If any defect arises due to a faulty materials or poor workmanship, the faulty product must be returned to the original place of purchase. Refund or replacement is at the discretion of that company. Duronic Products are offered with a 1 year guarantee under the following conditions:

1. The product must be returned to the retailer with original proof of purchase.
2. The product must be installed and used in accordance with the instructions contained in this operating manual.
3. It must be used only for domestic purposes.
4. It does not cover wear and tear, malicious damage, misuse, neglect, inexpert repairs or consumable parts.
5. Shine-Mart Ltd has no responsibilities for accidental or consequential loss or damage.
6. Shine-Mart Ltd are not liable to carry out any type of servicing work, under the guarantee
7. Valid in the UK only

This product is fitted with CE:1363 plug and fuse Imported by Shine-Mart Ltd, RM3 8SB

Information on waste Disposal for Consumers of Electrical & Electronic Equipment.

This mark on a product and/or accompanying documents indicates that when it is to be disposed of, it must be treated as Waste Electrical & Electronic Equipment, (WEEE).

Any WEEE marked products must not be mixed with general household waste, but kept separate for the treatment, recovery and recycling of the materials used.

For proper treatment, recovery and recycling; please take all WEEE marked waste to your Local Authority Civic waste site, where it will be accepted free of charge.

If customers dispose of Waste Electrical & Electronic Equipment correctly, they will be helping to save valuable resources and preventing any potential negative effects upon human health and the environment, of any hazardous materials that the waste may contain.
