Duronic PS285 - Shredder

PS285 - Shredder Duronic - Free user manual and instructions

Find the device manual for free PS285 Duronic in PDF.

📄 78 pages English EN Download 💬 AI Question 10 questions ⚙️ Specs
Notice Duronic PS285 - page 7
Pick your language and provide your email: we'll send you a specifically translated version.
Product type Document shredder
Brand Duronic
Model PS285
Cut type Micro-cut
Cut size 12 mm x 4 mm
Cutting capacity 3 A4 sheets (folded) or 5 A5 sheets
Duty cycle 2 minutes on, 45 minutes off
Feed opening 160 mm (16 cm)
Dimensions (W x D x H) 250 x 190 x 180 mm
Bin capacity 5 liters
Weight 2.6 kg
Power 180 W
Input voltage / Frequency 220-240 V ~ 50/60 Hz
Switch functions Auto, FWD (forward), REV (reverse), OFF
Overload protection Automatic shutdown in case of overheating
Accepted materials Paper and credit cards
Maintenance and cleaning Cloth and lukewarm water, no flammable products
Safety Do not insert fingers, hair, loose clothing; keep out of reach of children
Warranty 1 year
Intended use Indoors, on a stable and flat surface

Frequently Asked Questions - PS285 Duronic

How to start the PS285 shredder?
Set the switch to Auto. Insert the paper into the slot, the shredder starts automatically and stops once the paper is shredded.
What is the maximum cutting capacity?
The PS285 can shred up to 3 A4 sheets (folded in half) or 5 A5 sheets at a time.
How to clear a paper jam?
Set the switch to REV (reverse) to reverse the blades and gently remove the paper. If necessary, unplug and wait 60 minutes for the thermal protection to reset.
Can I shred staples or paperclips?
No, always remove staples and paperclips before shredding to avoid damaging the blades.
How long can I use the shredder continuously?
The duty cycle is 2 minutes continuous use, followed by 45 minutes off to prevent overheating.
How to clean the shredder?
Unplug the device, use a damp cloth (lukewarm water) to clean the exterior and the bin. Never use flammable or abrasive products.
What to do if the shredder does not start?
Check that the switch is on Auto, the device is plugged in, and the bin is not full. If the motor has overheated, let it cool down for 60 minutes.
Can I shred credit cards?
Yes, the PS285 can shred credit cards. Insert them in the middle of the slot to avoid jams.
What are the important safety instructions?
Never insert fingers, hair, or loose clothing into the slot. Keep the device out of reach of children and unplug it when cleaning or moving.
Where to find the complete manual?
The complete manual is available free of charge in PDF format on the website notice-facile.com for the Duronic PS285 model.

User questions about PS285 Duronic

0 question about this device. Answer the ones you know or ask your own.

Ask a new question about this device

The email remains private: it is only used to notify you if someone responds to your question.

No questions yet. Be the first to ask one.

Download the instructions for your Shredder in PDF format for free! Find your manual PS285 - Duronic and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. PS285 by Duronic.

USER MANUAL PS285 Duronic

Creative Consumer Products

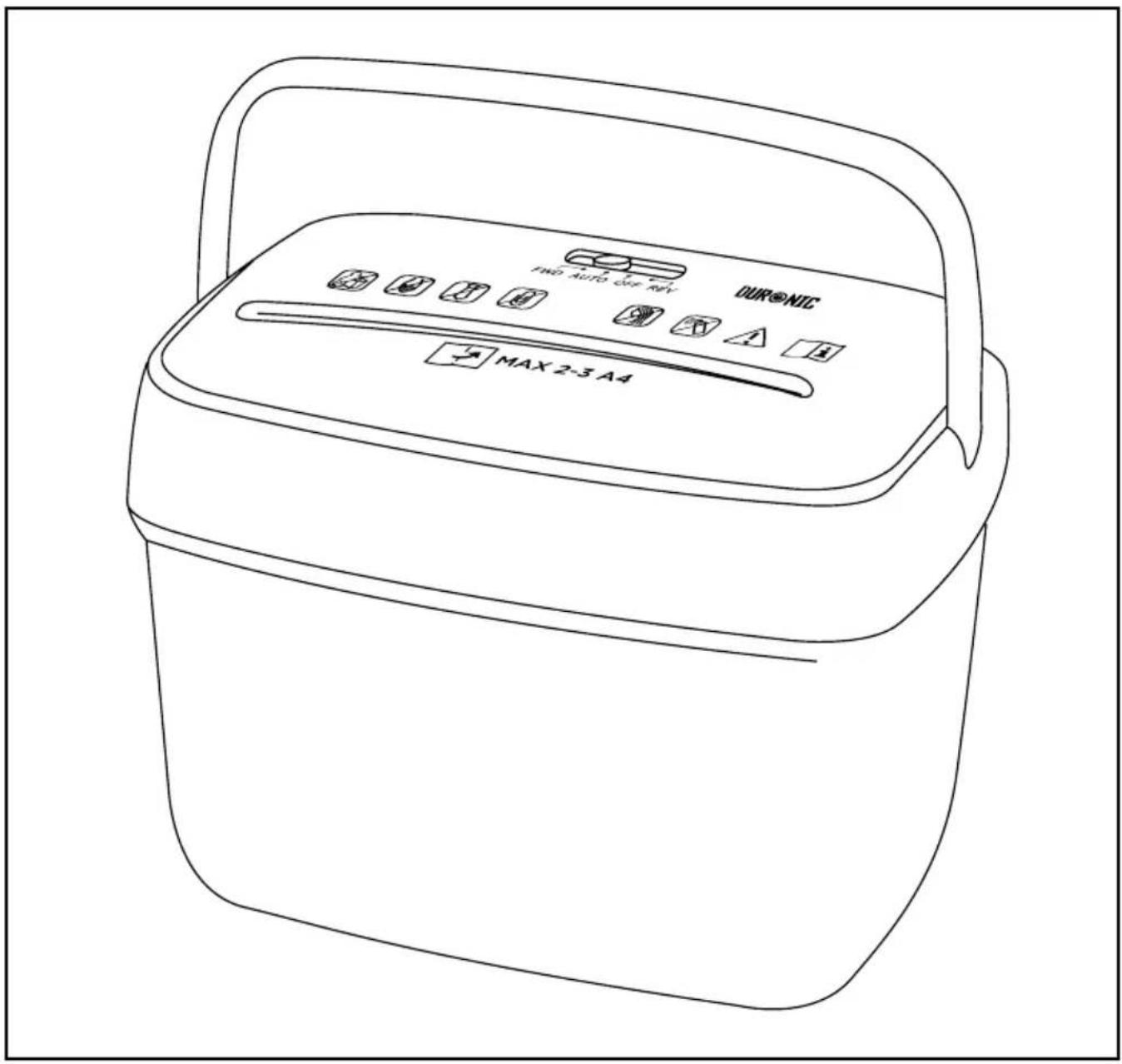

Duronic PS285 - Creative Consumer Products - 1

text_image PING AUTO OFF KEY DUR@NIC MAX 2-3 A4

PS285

Shredder

PLEASE READ ALL THE INSTRUCTIONS BEFORE USE

Duronic PS285 - Shredder - 1

duronic.com

Duronic PS285 - Shredder - 2

duronic

Duronic PS285 - Shredder - 3

@duronicmedia

Duronic PS285 - Shredder - 4

Duronic

Duronic PS285 - Shredder - 5

@duronicmedia

Contents

English Manual 5

Features and Specifications
Duronic PS285 - Contents - 1

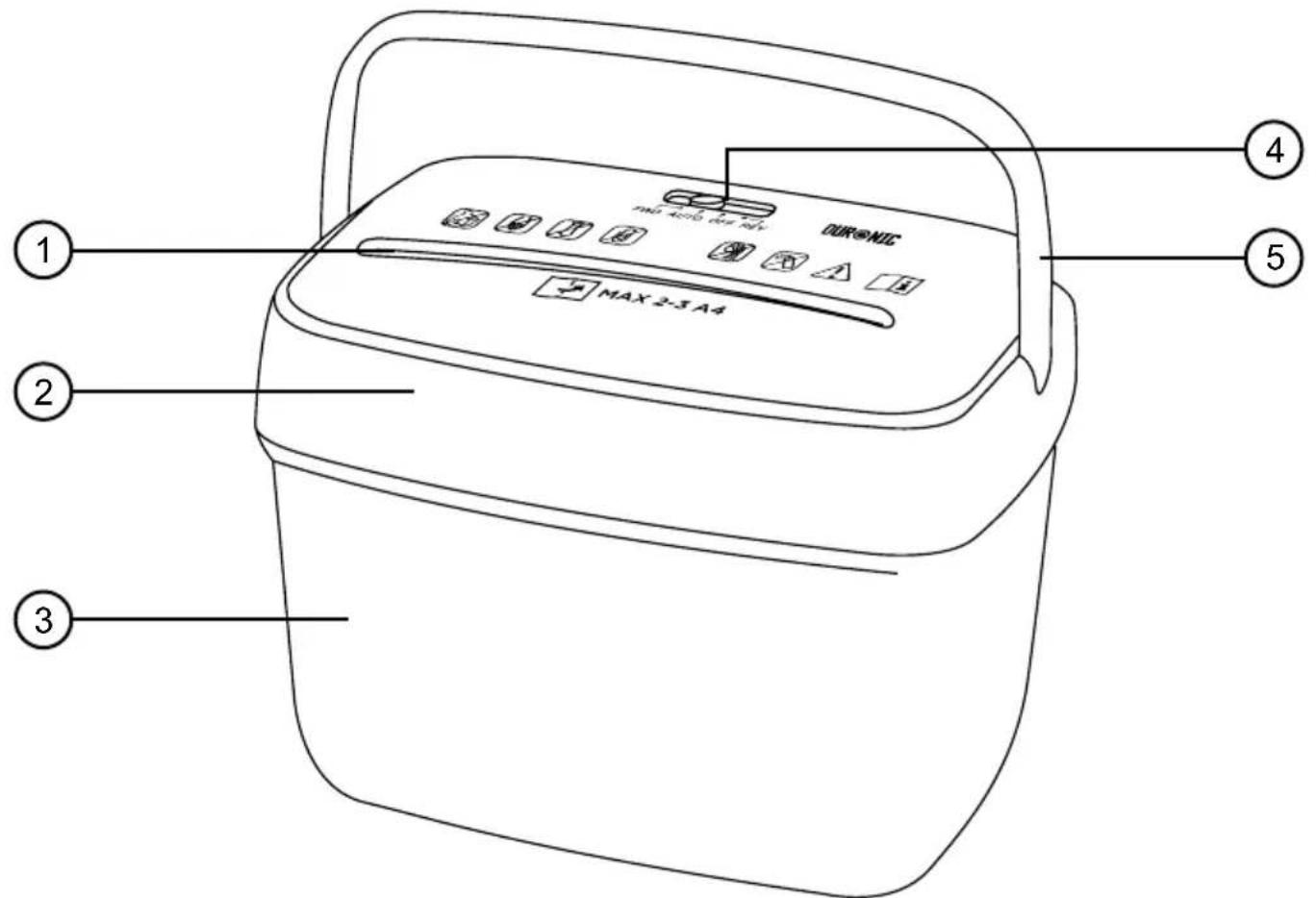

text_image DURONIC MAX 2-3 A4 ① ② ③ ④ ⑤
  1. Feed opening

  2. Paper bin

  3. Handle

  4. Motor unit

  5. Control switch

Model PS285
Shred Type Micro-Cut
Shred Size 12mm x 4mm
Shredding Capacity 3 Sheets of A4 paper (folded) or 5 x A5 paper
Duty Cycles 2 min on / 45 min off
Feed Opening 160mm / 16cm
Dimensions 250 x 190 x 180 mm
Bin Size 5 Litre
Weight 2.6kg
Power 180W
Input Voltage / Frequency220-240V ~ 50/60Hz

DURONIC

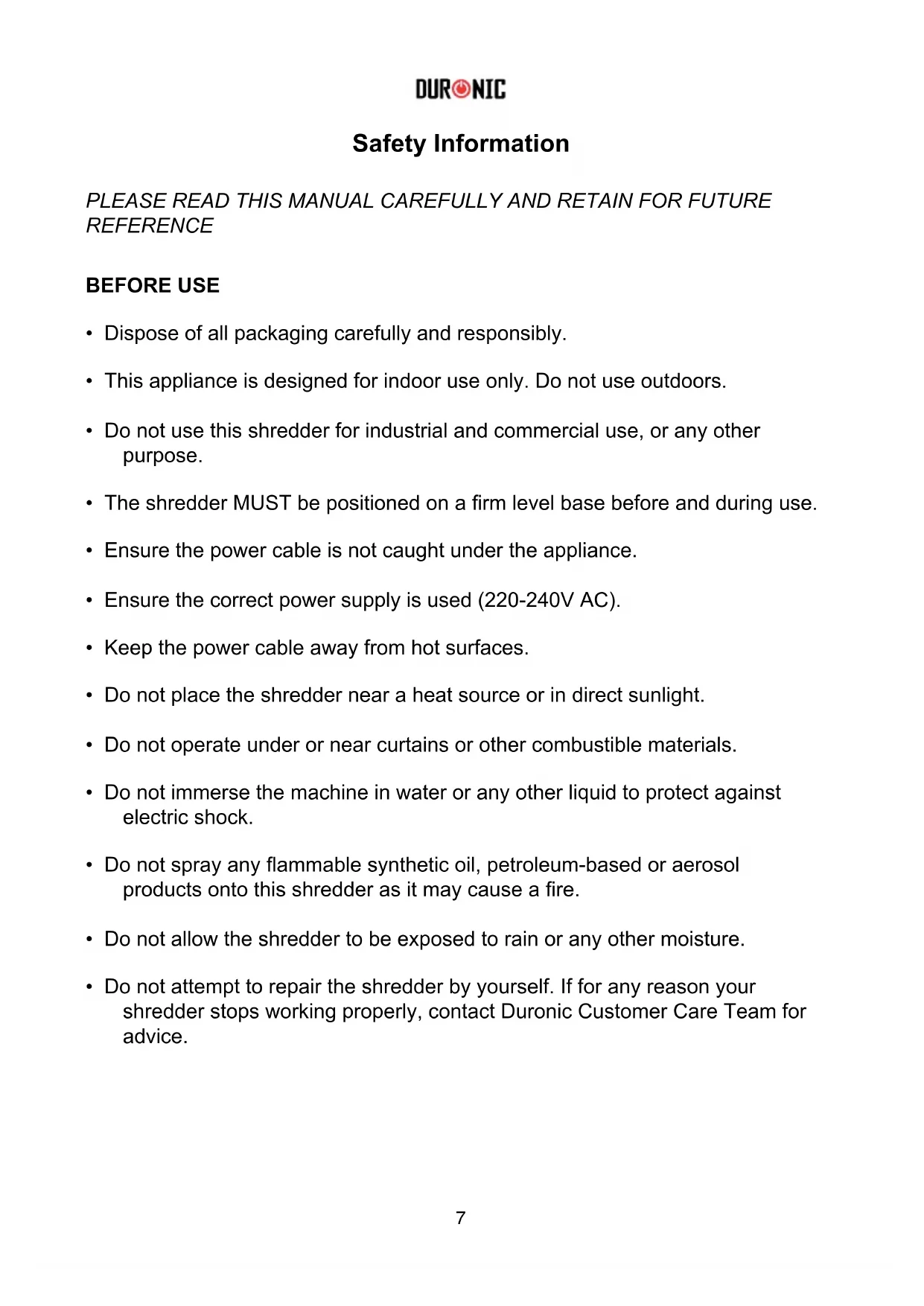

Safety Information

PLEASE READ THIS MANUAL CAREFULLY AND RETAIN FOR FUTURE REFERENCE

BEFORE USE

  • Dispose of all packaging carefully and responsibly.
  • This appliance is designed for indoor use only. Do not use outdoors.
  • Do not use this shredder for industrial and commercial use, or any other purpose.
  • The shredder MUST be positioned on a firm level base before and during use.
  • Ensure the power cable is not caught under the appliance.
  • Ensure the correct power supply is used (220-240V AC).
  • Keep the power cable away from hot surfaces.
  • Do not place the shredder near a heat source or in direct sunlight.
  • Do not operate under or near curtains or other combustible materials.
  • Do not immerse the machine in water or any other liquid to protect against electric shock.
  • Do not spray any flammable synthetic oil, petroleum-based or aerosol products onto this shredder as it may cause a fire.
  • Do not allow the shredder to be exposed to rain or any other moisture.
  • Do not attempt to repair the shredder by yourself. If for any reason your shredder stops working properly, contact Duronic Customer Care Team for advice.

DURONIC

Safety Information (continued)

DURING USE

- WARNING! Keep loose articles of clothing; ties, jewellery, hair or other objects away from the feed opening in order to prevent injury.

- Never insert fingers into the feed opening. Serious injury may result!

- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

• DO NOT leave children unattended with the shredder.

• ALWAYS keep the shredder off and unplugged when not in use.

• DO NOT attempt to feed more sheets of paper into the feeder than specified.

- ALWAYS limit continuous shredding to the specified time as suggested in the instruction manual. See section titled ‘Capacity’.

- DO NOT attempt to shred materials other than paper and credit cards in the provided feed slots.

- Remove staples and paperclips from paper before shredding

- To avoid overheating the shredder, limit continuous shredding to the specified time as suggested in this instruction manual.

- Do not operate the shredder if the cable or plug are damaged or if the shredder has malfunctioned in any way.

- ALWAYS unplug the shredder when moving, cleaning or emptying the waste basket.

- DO NOT attempt to operate the shredder if the shredder is experiencing any kind of problem.

- If your machine stops working, do not attempt to repair it yourself!

- Contact the Duronic Customer Care Team for assistance.

DURONIC

Warning Icons

Please take note of these warnings displayed on the machine:

Duronic PS285 - Warning Icons - 1
WARNING

Duronic PS285 - Warning Icons - 2
CHILDREN

Duronic PS285 - Warning Icons - 3
NO FINGERS OR HANDS

Duronic PS285 - Warning Icons - 4

NO HAIR NO LOOSE CLOTHING
Duronic PS285 - Warning Icons - 5
DOSE CLOTHING

Duronic PS285 - Warning Icons - 6
READ INSTRUCTIONS BEFORE USE

Duronic PS285 - Warning Icons - 7
NO PAPERCLIPS

Duronic PS285 - Warning Icons - 8
NO AEROSOL PRODUCTS

Duronic PS285 - Warning Icons - 9
MAX 2-3 A4 PAPER FOLDED IN HALF

MAX 2-3 A4

Cleaning and Maintenance

Duronic PS285 - Cleaning and Maintenance - 1

IMPORTANT: Always unplug the appliance from the power socket during cleaning and maintenance.

  • Never use any sharp instruments or abrasive substances, soap, household cleaner, detergent or wax polish for cleaning.
  • Never clean the appliance with flammable fluids. It could cause a damage and fire hazard.
  • Use lukewarm water on a cloth to clean the cabinet and waste basket of the appliance and wipe it dry.
  • Ensure the unit is dry before connecting to the mains.

DURONIC

Setup

  1. Carefully place the PS285 shredder on a dry, flat, level surface.

  2. Ensure that the motor unit is fitted in place on top of the waste bin.

  3. Be careful not to place your fingers near the cutter blades.

  4. Plug the power cable into any standard 220-240-Volt AC mains outlet / plug socket which should be located near the shredder and should be easily accessible.

  5. Place the switch into the AUTO position.

You are now ready to start shredding.

Operation

The power switch is located on the top of the shredder. The switch has four settings: FWD (forward), AUTO, OFF, REV (reverse).

When AUTO is selected, the shredding process is started automatically by inserting paper into the feed opening. The shredder will also stop automatically when the paper has completed its travel through the feed opening.

REV mode is used to assist in the removal of a paper jam. This reverses the shredding process before the cycle finished, thus clearing the cutting blades.

Select the OFF mode when emptying the waste bin or when the shredder is not in use for a long period of time.

FWD mode is also used to assist in the removal of a paper jam. By selecting this mode, the machine's blades will keep rotating continuously even if no paper is inserted. This will help clear the blades and remove any remaining pieces of paper from the blades.

DURONIC

Special Features

This model is compact and ideal for desktop or tabletop use, and has a handle which allows for easy emptying of the bin.

Capacity

The PS285 will shred up to 3 sheets of A4 (80GSM) folded paper, or 5 sheets of A5.

When shredding small material like envelopes or receipts, insert them through the middle of the feed opening.

Paper Jams & Overloads

How to Resolve a Paper Jam:

  1. Turn off or unplug the cable from the mains plug and wait for at least 60 minutes for the thermal overload to reset.
  2. Press the reverse button and gently pull the remaining sheets of paper out of the feed opening.
  3. Remove the unshredded papers from the top and clear any excess paper shreds from the feed opening.

Duronic PS285 - How to Resolve a Paper Jam: - 1

CAUTION: Be careful not to place your fingers near the feed opening as serious harm could occur.

Overload Protection:

The PS285 is equipped with a motor overload protection device. This means that if / when the motor becomes overheated, the power will automatically be cut off.

DURONIC

Paper Jams & Overloads (continued)

Duty Cycle:

The duty on/off cycle for continuous shredding at maximum capacity is 2 minutes on and 45 minutes off.

The power may cut off in the case of the following situations:

(a) Operating the shredder at maximum capacity continuously for more than 2 minutes without stopping.

If this occurs you should:

  1. Unplug the power cable from the mains and wait at least 60 minutes for the overload protection to reset.

  2. Tear or cut off any excess paper from the top of the shredder.

  3. Plug the power cable back into the mains socket and place the switch into REV. Pull the remaining paper out of the cutters.

  4. Once the jam is clear, return the switch to the AUTO position.

(b) Exceeding the shredding capacity (e,g, inserting more than 3 x A4 sheets or 5 x A5 at a time, or if the paper is not fed squarely into the feed opening.)

If this occurs you should:

  1. Change the switch to the REV position.
  2. Pull the jammed papers back.
  3. Put the switch to the AUTO position, allowing it to clear the remaining trapped pieces in the blade cutters.
  4. Once the jam is clear, you can continue to use the shredder.

DURONIC

Warranty

1 Year Guarantee from Shine-Mart Ltd, Trademark owners of Duronic Products. NOTE: THESE STATEMENTS DO NOT AFFECT YOUR STATUTORY RIGHTS AS A CONSUMER

This product has been manufactured under the strictest or quality control procedures, and using the highest quality of materials, to ensure excellent performance and reliability. It will give very good and long lasting service, provided it is properly used and maintained. The product is guaranteed for 1 years from the date of original purchase. If any defect arises due to a faulty materials or poor workmanship, the faulty product must be returned to the original place of purchase. Refund or replacement is at the discretion of that company.

Duronic Products are offered with a 1 year guarantee under the following conditions:

  1. The product must be returned to the retailer with original proof of purchase.
  2. The product must be installed and used in accordance with the instructions contained in this operating manual.
  3. It must be used only for domestic purposes.
  4. It does not cover wear and tear, malicious damage, misuse, neglect, inexpert repairs or consumable parts.
  5. Shine-Mart Ltd has no responsibilities for accidental or consequential loss or damage.
  6. Shine-Mart Ltd are not liable to carry out any type of servicing work, under the guarantee
  7. Valid in the UK only

Duronic PS285 - Warranty - 1

This product is fitted with CE:1363 plug and fuse Imported by Shine-Mart Ltd, RM3 8SB

Duronic PS285 - Warranty - 2

Information on waste Disposal for Consumers of Electrical & Electronic Equipment.

This mark on a product and/or accompanying documents indicates that when it is to be disposed of, it must be treated as Waste Electrical & Electronic Equipment, (WEEE).

Any WEEE marked products must not be mixed with general household waste, but kept separate for the treatment, recovery and recycling of the materials used.

For proper treatment, recovery and recycling; please take all WEEE marked waste to your Local Authority Civic waste site, where it will be accepted free of charge.

If customers dispose of Waste Electrical & Electronic Equipment correctly, they will be helping to save valuable resources and preventing any potential negative effects upon human health and the environment, of any hazardous materials that the waste may contain.

Follow Us

Duronic PS285 - Follow Us - 1

Duronic PS285 - Follow Us - 2

Duronic PS285 - Follow Us - 3

Duronic PS285 - Follow Us - 4

Duronic PS285 - Follow Us - 5

Features and Specifications
Duronic PS285 - Follow Us - 6

text_image DURONIC MAX 2-3 A4 ① ② ③ ④ ⑤
  1. Feed opening

  2. Paper bin

  3. Handle

  4. Motor unit

  5. Control switch

Model PS285
Shred Type Micro-Cut
Shred Size 12mm x 4mm
Shredding Capacity 3 Sheets of A4 paper (folded) or 5 x A5 paper
Duty Cycles 2 min on / 45 min off
Feed Opening 160mm / 16cm
Dimensions 250 x 190 x 180 mm
Bin Size 5 Litre
Weight 2.6kg
Power 180W
Input Voltage / Frequency220-240V ~ 50/60Hz

DURONIC

Safety Information

PLEASE READ THIS MANUAL CAREFULLY AND RETAIN FOR FUTURE REFERENCE

BEFORE USE

  • Dispose of all packaging carefully and responsibly.
  • This appliance is designed for indoor use only. Do not use outdoors.
  • Do not use this shredder for industrial and commercial use, or any other purpose.
  • The shredder MUST be positioned on a firm level base before and during use.
  • Ensure the power cable is not caught under the appliance.
  • Ensure the correct power supply is used (220-240V AC).
  • Keep the power cable away from hot surfaces.
  • Do not place the shredder near a heat source or in direct sunlight.
  • Do not operate under or near curtains or other combustible materials.
  • Do not immerse the machine in water or any other liquid to protect against electric shock.
  • Do not spray any flammable synthetic oil, petroleum-based or aerosol products onto this shredder as it may cause a fire.
  • Do not allow the shredder to be exposed to rain or any other moisture.
  • Do not attempt to repair the shredder by yourself. If for any reason your shredder stops working properly, contact Duronic Customer Care Team for advice.

DURONIC

Safety Information (continued)

DURING USE

- WARNING! Keep loose articles of clothing; ties, jewellery, hair or other objects away from the feed opening in order to prevent injury.

- Never insert fingers into the feed opening. Serious injury may result!

- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

- DO NOT leave children unattended with the shredder.

- ALWAYS keep the shredder off and unplugged when not in use.

- DO NOT attempt to feed more sheets of paper into the feeder than specified.

- ALWAYS limit continuous shredding to the specified time as suggested in the instruction manual. See section titled ‘Capacity’.

- DO NOT attempt to shred materials other than paper and credit cards in the provided feed slots.

- Remove staples and paperclips from paper before shredding

- To avoid overheating the shredder, limit continuous shredding to the specified time as suggested in this instruction manual.

- Do not operate the shredder if the cable or plug are damaged or if the shredder has malfunctioned in any way.

- ALWAYS unplug the shredder when moving, cleaning or emptying the waste basket.

- DO NOT attempt to operate the shredder if the shredder is experiencing any kind of problem.

- If your machine stops working, do not attempt to repair it yourself!

- Contact the Duronic Customer Care Team for assistance.

DURONIC

Warning Icons

Please take note of these warnings displayed on the machine:

Duronic PS285 - Warning Icons - 1
WARNING NO

Duronic PS285 - Warning Icons - 2
CHILDREN

Duronic PS285 - Warning Icons - 3
NO FINGERS OR HANDS

Duronic PS285 - Warning Icons - 4

NO HAIR NO LOOSE CLOTHING
Duronic PS285 - Warning Icons - 5
DOSE CLOTHING

Duronic PS285 - Warning Icons - 6
READ INSTRUCTIONS BEFORE USE

Duronic PS285 - Warning Icons - 7
NO PAPERCLIPS

Duronic PS285 - Warning Icons - 8
NO AEROSOL PRODUCTS

Duronic PS285 - Warning Icons - 9
MAX 2-3 A4 PAPER FOLDED IN HALF

MAX 2-3 A4

Cleaning and Maintenance

Duronic PS285 - Cleaning and Maintenance - 1

IMPORTANT: Always unplug the appliance from the power socket during cleaning and maintenance.

  • Never use any sharp instruments or abrasive substances, soap, household cleaner, detergent or wax polish for cleaning.
  • Never clean the appliance with flammable fluids. It could cause a damage and fire hazard.
  • Use lukewarm water on a cloth to clean the cabinet and waste basket of the appliance and wipe it dry.
  • Ensure the unit is dry before connecting to the mains.

DURONIC

Setup

  1. Carefully place the PS285 shredder on a dry, flat, level surface.

  2. Ensure that the motor unit is fitted in place on top of the waste bin.

  3. Be careful not to place your fingers near the cutter blades.

  4. Plug the power cable into any standard 220-240-Volt AC mains outlet / plug socket which should be located near the shredder and should be easily accessible.

  5. Place the switch into the AUTO position.

You are now ready to start shredding.

Operation

The power switch is located on the top of the shredder. The switch has four settings: FWD (forward), AUTO, OFF, REV (reverse).

When AUTO is selected, the shredding process is started automatically by inserting paper into the feed opening. The shredder will also stop automatically when the paper has completed its travel through the feed opening.

REV mode is used to assist in the removal of a paper jam. This reverses the shredding process before the cycle finished, thus clearing the cutting blades.

Select the OFF mode when emptying the waste bin or when the shredder is not in use for a long period of time.

FWD mode is also used to assist in the removal of a paper jam. By selecting this mode, the machine's blades will keep rotating continuously even if no paper is inserted. This will help clear the blades and remove any remaining pieces of paper from the blades.

DURONIC

Special Features

This model is compact and ideal for desktop or tabletop use, and has a handle which allows for easy emptying of the bin.

Capacity

The PS285 will shred up to 3 sheets of A4 (80GSM) folded paper, or 5 sheets of A5.

When shredding small material like envelopes or receipts, insert them through the middle of the feed opening.

Paper Jams & Overloads

How to Resolve a Paper Jam:

  1. Turn off or unplug the cable from the mains plug and wait for at least 60 minutes for the thermal overload to reset.
  2. Press the reverse button and gently pull the remaining sheets of paper out of the feed opening.
  3. Remove the unshredded papers from the top and clear any excess paper shreds from the feed opening.

Duronic PS285 - How to Resolve a Paper Jam: - 1

CAUTION: Be careful not to place your fingers near the feed opening as serious harm could occur.

Overload Protection:

The PS285 is equipped with a motor overload protection device. This means that if / when the motor becomes overheated, the power will automatically be cut off.

DURONIC

Paper Jams & Overloads (continued)

Duty Cycle:

The duty on/off cycle for continuous shredding at maximum capacity is 2 minutes on and 45 minutes off.

The power may cut off in the case of the following situations:

(a) Operating the shredder at maximum capacity continuously for more than 2 minutes without stopping.

If this occurs you should:

  1. Unplug the power cable from the mains and wait at least 60 minutes for the overload protection to reset.

  2. Tear or cut off any excess paper from the top of the shredder.

  3. Plug the power cable back into the mains socket and place the switch into REV. Pull the remaining paper out of the cutters.

  4. Once the jam is clear, return the switch to the AUTO position.

(b) Exceeding the shredding capacity (e,g, inserting more than 3 x A4 sheets or 5 x A5 at a time, or if the paper is not fed squarely into the feed opening.)

If this occurs you should:

  1. Change the switch to the REV position.

  2. Pull the jammed papers back.

  3. Put the switch to the AUTO position, allowing it to clear the remaining trapped pieces in the blade cutters.

  4. Once the jam is clear, you can continue to use the shredder.

DURONIC

GARANTI BELGESI

Features and Specifications
Duronic PS285 - GARANTI BELGESI - 1

text_image DURONIC MAX 2-3 A4 ① ② ③ ④ ⑤
  1. Feed opening

  2. Paper bin

  3. Handle

  4. Motor unit

  5. Control switch

Model PS285
Shred Type Micro-Cut
Shred Size 12mm x 4mm
Shredding Capacity 3 Sheets of A4 paper (folded) or 5 x A5 paper
Duty Cycles 2 min on / 45 min off
Feed Opening 160mm / 16cm
Dimensions 250 x 190 x 180 mm
Bin Size 5 Litre
Weight 2.6kg
Power 180W
Input Voltage / Frequency220-240V ~ 50/60Hz

DURONIC

Safety Information

PLEASE READ THIS MANUAL CAREFULLY AND RETAIN FOR FUTURE REFERENCE

BEFORE USE

  • Dispose of all packaging carefully and responsibly.
  • This appliance is designed for indoor use only. Do not use outdoors.
  • Do not use this shredder for industrial and commercial use, or any other purpose.
  • The shredder MUST be positioned on a firm level base before and during use.
  • Ensure the power cable is not caught under the appliance.
  • Ensure the correct power supply is used (220-240V AC).
  • Keep the power cable away from hot surfaces.
  • Do not place the shredder near a heat source or in direct sunlight.
  • Do not operate under or near curtains or other combustible materials.
  • Do not immerse the machine in water or any other liquid to protect against electric shock.
  • Do not spray any flammable synthetic oil, petroleum-based or aerosol products onto this shredder as it may cause a fire.
  • Do not allow the shredder to be exposed to rain or any other moisture.
  • Do not attempt to repair the shredder by yourself. If for any reason your shredder stops working properly, contact Duronic Customer Care Team for advice.

DURONIC

Safety Information (continued)

DURING USE

- WARNING! Keep loose articles of clothing; ties, jewellery, hair or other objects away from the feed opening in order to prevent injury.

- Never insert fingers into the feed opening. Serious injury may result!

- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

- DO NOT leave children unattended with the shredder.

- ALWAYS keep the shredder off and unplugged when not in use.

- DO NOT attempt to feed more sheets of paper into the feeder than specified.

- ALWAYS limit continuous shredding to the specified time as suggested in the instruction manual. See section titled ‘Capacity’.

- DO NOT attempt to shred materials other than paper and credit cards in the provided feed slots.

- Remove staples and paperclips from paper before shredding

- To avoid overheating the shredder, limit continuous shredding to the specified time as suggested in this instruction manual.

- Do not operate the shredder if the cable or plug are damaged or if the shredder has malfunctioned in any way.

- ALWAYS unplug the shredder when moving, cleaning or emptying the waste basket.

- DO NOT attempt to operate the shredder if the shredder is experiencing any kind of problem.

- If your machine stops working, do not attempt to repair it yourself!

- Contact the Duronic Customer Care Team for assistance.

DURONIC

Warning Icons

Please take note of these warnings displayed on the machine:

Duronic PS285 - Warning Icons - 1
WARNING NO

Duronic PS285 - Warning Icons - 2
CHILDREN

Duronic PS285 - Warning Icons - 3
NO FINGERS OR HANDS

Duronic PS285 - Warning Icons - 4

NO HAIR NO LOOSE CLOTHING
Duronic PS285 - Warning Icons - 5
DOSE CLOTHING

Duronic PS285 - Warning Icons - 6
READ INSTRUCTIONS BEFORE USE

Duronic PS285 - Warning Icons - 7
NO PAPERCLIPS

Duronic PS285 - Warning Icons - 8
NO AEROSOL PRODUCTS

Duronic PS285 - Warning Icons - 9
MAX 2-3 A4 PAPER FOLDED IN HALF

MAX 2-3 A4

Cleaning and Maintenance

Duronic PS285 - Cleaning and Maintenance - 1

IMPORTANT: Always unplug the appliance from the power socket during cleaning and maintenance.

  • Never use any sharp instruments or abrasive substances, soap, household cleaner, detergent or wax polish for cleaning.
  • Never clean the appliance with flammable fluids. It could cause a damage and fire hazard.
  • Use lukewarm water on a cloth to clean the cabinet and waste basket of the appliance and wipe it dry.
  • Ensure the unit is dry before connecting to the mains.

DURONIC

Setup

  1. Carefully place the PS285 shredder on a dry, flat, level surface.

  2. Ensure that the motor unit is fitted in place on top of the waste bin.

  3. Be careful not to place your fingers near the cutter blades.

  4. Plug the power cable into any standard 220-240-Volt AC mains outlet / plug socket which should be located near the shredder and should be easily accessible.

  5. Place the switch into the AUTO position.

You are now ready to start shredding.

Operation

The power switch is located on the top of the shredder. The switch has four settings: FWD (forward), AUTO, OFF, REV (reverse).

When AUTO is selected, the shredding process is started automatically by inserting paper into the feed opening. The shredder will also stop automatically when the paper has completed its travel through the feed opening.

REV mode is used to assist in the removal of a paper jam. This reverses the shredding process before the cycle finished, thus clearing the cutting blades.

Select the OFF mode when emptying the waste bin or when the shredder is not in use for a long period of time.

FWD mode is also used to assist in the removal of a paper jam. By selecting this mode, the machine's blades will keep rotating continuously even if no paper is inserted. This will help clear the blades and remove any remaining pieces of paper from the blades.

DURONIC

Special Features

This model is compact and ideal for desktop or tabletop use, and has a handle which allows for easy emptying of the bin.

Capacity

The PS285 will shred up to 3 sheets of A4 (80GSM) folded paper, or 5 sheets of A5.

When shredding small material like envelopes or receipts, insert them through the middle of the feed opening.

Paper Jams & Overloads

How to Resolve a Paper Jam:

  1. Turn off or unplug the cable from the mains plug and wait for at least 60 minutes for the thermal overload to reset.
  2. Press the reverse button and gently pull the remaining sheets of paper out of the feed opening.
  3. Remove the unshredded papers from the top and clear any excess paper shreds from the feed opening.

Duronic PS285 - How to Resolve a Paper Jam: - 1

CAUTION: Be careful not to place your fingers near the feed opening as serious harm could occur.

Overload Protection:

The PS285 is equipped with a motor overload protection device. This means that if / when the motor becomes overheated, the power will automatically be cut off.

DURONIC

Paper Jams & Overloads (continued)

Duty Cycle:

The duty on/off cycle for continuous shredding at maximum capacity is 2 minutes on and 45 minutes off.

The power may cut off in the case of the following situations:

(a) Operating the shredder at maximum capacity continuously for more than 2 minutes without stopping.

If this occurs you should:

  1. Unplug the power cable from the mains and wait at least 60 minutes for the overload protection to reset.

  2. Tear or cut off any excess paper from the top of the shredder.

  3. Plug the power cable back into the mains socket and place the switch into REV. Pull the remaining paper out of the cutters.

  4. Once the jam is clear, return the switch to the AUTO position.

(b) Exceeding the shredding capacity (e,g, inserting more than 3 x A4 sheets or 5 x A5 at a time, or if the paper is not fed squarely into the feed opening.)

If this occurs you should:

  1. Change the switch to the REV position.

  2. Pull the jammed papers back.

  3. Put the switch to the AUTO position, allowing it to clear the remaining trapped pieces in the blade cutters.

  4. Once the jam is clear, you can continue to use the shredder.

DURONIC

Garantie

Manual assistant
Powered by Anthropic
Waiting for your message
Product information

Brand : Duronic

Model : PS285

Category : Shredder
