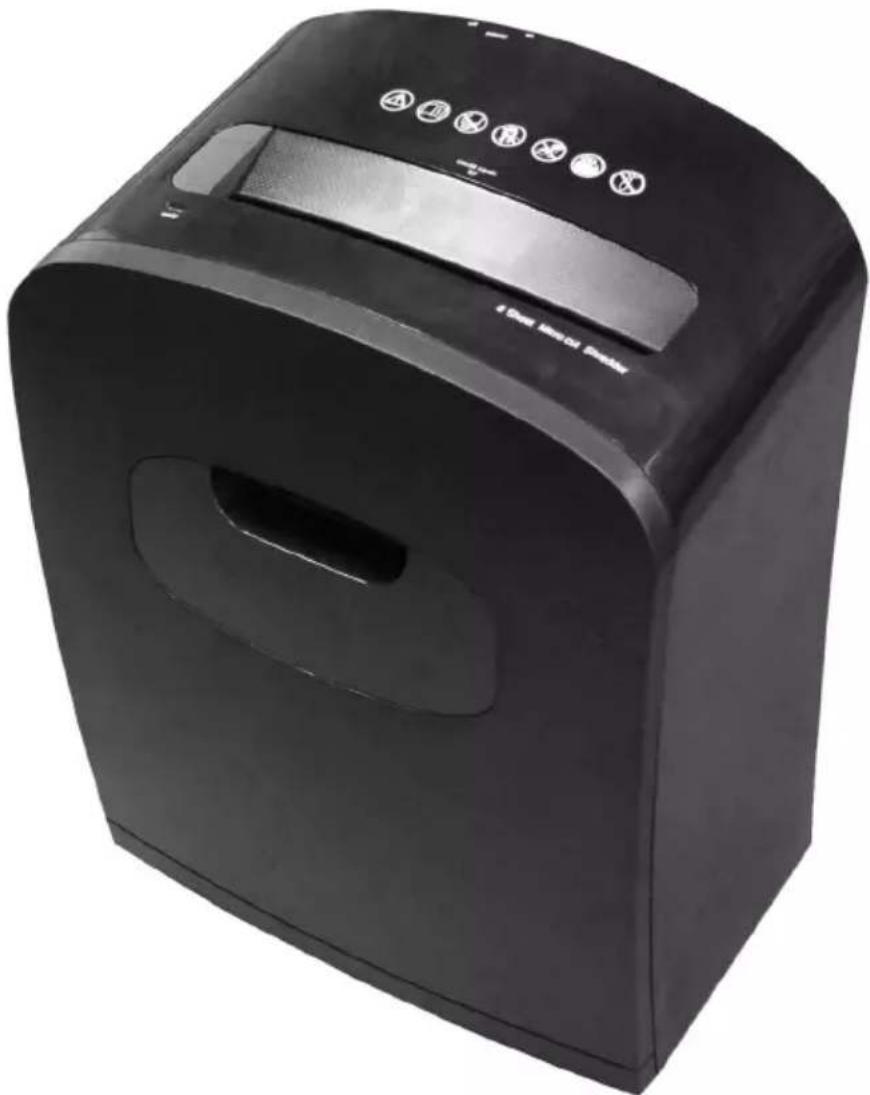

USER MANUAL PS410 Duronic

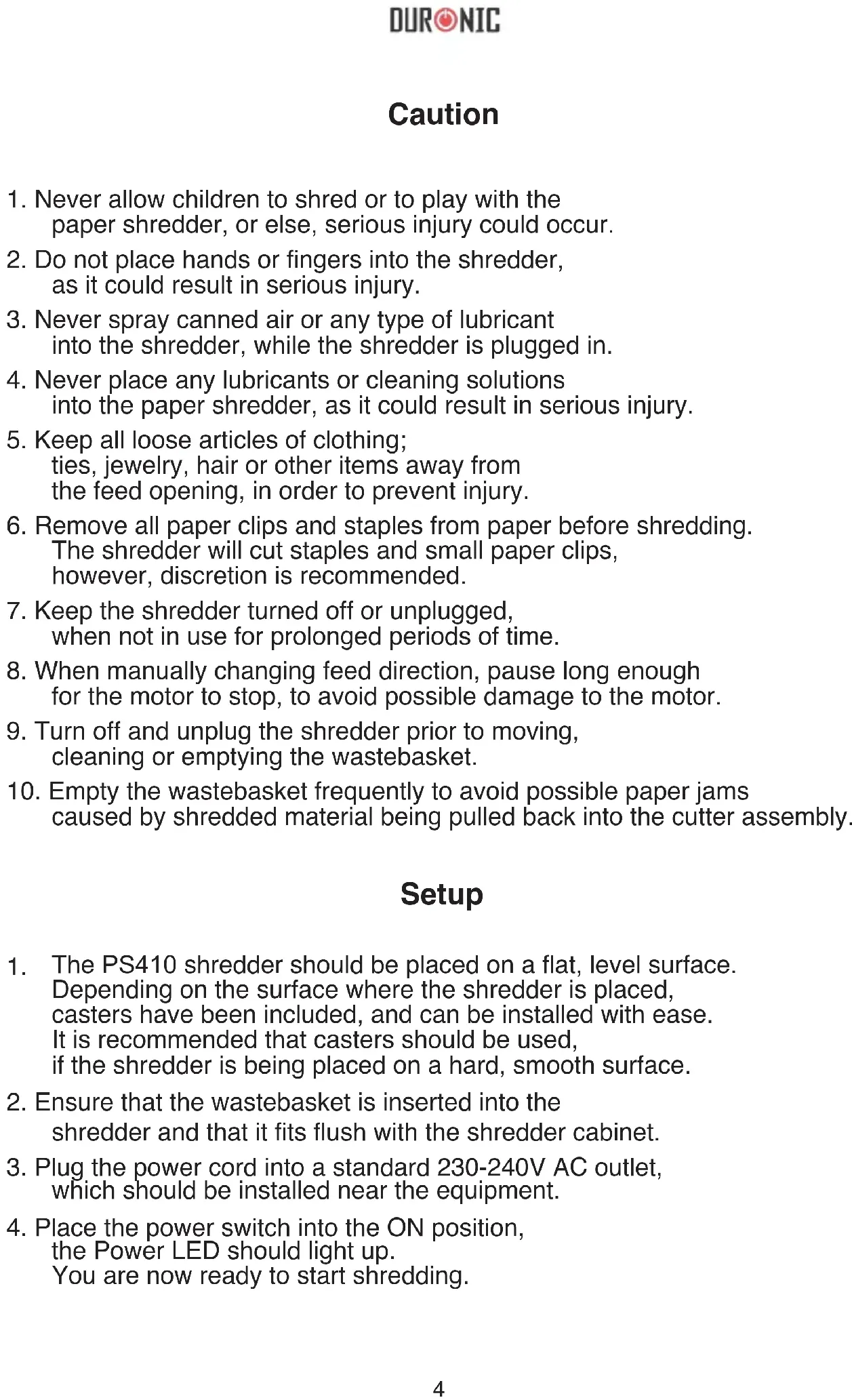

1. Never allow children to shred or to play with the

paper shredder, or else, serious injury could occur.

2. Do not place hands or ngers into the shredder,

as it could result in serious injury.

3. Never spray canned air or any type of lubricant

into the shredder, while the shredder is plugged in.

4. Never place any lubricants or cleaning solutions

into the paper shredder, as it could result in serious injury.

5. Keep all loose articles of clothing;

ties, jewelry, hair or other items away from the feed opening, in order to prevent injury.

6. Remove all paper clips and staples from paper before shredding.

The shredder will cut staples and small paper clips, however, discretion is recommended.

7. Keep the shredder turned off or unplugged,

when not in use for prolonged periods of time.

8. When manually changing feed direction, pause long enough

for the motor to stop, to avoid possible damage to the motor.

9. Turn off and unplug the shredder prior to moving,

cleaning or emptying the wastebasket.

10. Empty the wastebasket frequently to avoid possible paper jams

caused by shredded material being pulled back into the cutter assembly.

The PS410 shredder should be placed on a flat, level surface. Depending on the surface where the shredder is placed, casters have been included, and can be installed with ease. It is recommended that casters should be used, if the shredder is being placed on a hard, smooth surface.

2. Ensure that the wastebasket is inserted into the

shredder and that it ts ush with the shredder cabinet.

3. Plug the power cord into a standard 230-240V AC outlet,

which should be installed near the equipment.

4. Place the power switch into the ON position,

the Power LED should light up. You are now ready to start shredding.5 Operation Shredding Capacity With the item plugged in, place the power switch in the ON position,. Ensure the shredder wastebasket is in place, the LED will light up. This means that the shredder in now ready for operation. When the paper is inserted into the feed opening, the shredding process will start automatically, and stop when the paper has completed its travel through the feed opening. The PS410 mode selection switch is located on the top of the shredder. Also located on top of the shredder is the ready LED. Their purposes are:

1. When the power switch is in the ON position,

the shredding process will start when the paper is inserted into the feed opening, and will continue until it has completely passed through the feed opening.

2. The reverse button is used to assist in the removal of a paper jam,

which reverses the shredding process prior to a completed forward cycle, therefore, clearing the cutters. When switching from forward to reverse, always stop momentarily to prevent prevent possible damage to the motor.

3. It is recommended to turn the shredder off,

when it is not being used for a prolonged period of time.

4. When the ready LED is lit up, it lets the user know that the wastebasket

is inserted correctly, and that the shredder is turned on and ready for use. If the ready LED does not light up, make sure that the plug is plugged in, and the basket is inserted correctly. The PS410 will shred up to 8 sheets of paper and will accept paper widths up to 220mm. When shredding small material like envelopes or credit card receipts, Insert them into the middle of the feed opening.6 Paper Jams and Motor Overload Protection Circuit The PS410 is equipped with an automatic motor overload protection circuit. The PS410 will automatically terminate power, caused by the following abnormal situations:

1. Operating the shredder at the maximum 8 sheets

capacity continuously for a prolonged period of time.

2. Exceeding the shredding capacity,

eg. Inserting more than 8 sheets of paper in one pass, or if the paper is not fed squarely int o the feed opening. Both abnormal operations may result in the activation of the automatic thermal motor overload protection circuit, which terminates the power to the shredder. A paper jam could cause the thermal motor overload protection to terminate AC power to the motor. Never allow the shredder to remain in a jammed condition with the AC power turned on, if this occurs: In case of a minor paper jam:

1. Press the switch in reverse button and pull the remaining sheets of paper

out of the feed opening. Remove the unshredded portion of paper from the top and clear any excess paper shreds from the feed opening. In case of a major paper jam:

1. Turn off or unplug the power cord from the AC outlet and wait at least 30

minutes for the thermal overload protection to reset.

2. Plug in the AC power cord and place the Power switch back into the ON

position. If paper was left inside the feed opening prior to the overload, press the reverse button and grasp the excess paper from the top and pull it out. Be careful not to place your ngers near the feed opening or, it could result in serious harm. Clear any excess paper shreds from the feed opening.

3. You are now ready to resume normal shredding.

Shred Type: Microcut Shred Width: 4 x 10mm Shredding Capacity: 8 Sheets Feed opening: 220mm Weight: 6.4kgs Input: 230-240VAC, 50Hz7 Warranty 1 Year Guarantee from Shine-Mart Ltd, Trademark owners of Duronic Products. NOTE: THESE STATEMENTS DO NOT AFFECT YOUR STATUTORY RIGHTS AS A CONSUMER This product has been manufactured under the strictest or quality control procedures, and using the highest quality of materials, to ensure excellent performance and reliability. It will give very good and long lasting service, provided it is properly used and maintained. The product is guaranteed for 1 years from the date of original purchase. If any defect arises due to a faulty materials or poor workmanship, the faulty product must be returned to the original place of purchase. Refund or replacement is at the discretion of that company. Duronic Products are offered with a 1 year guarantee under the following conditions:

1. The product must be returned to the retailer with original proof of purchase.

2. The product must be installed and used in accordance with the instructions

contained in this operating manual.

3. It must be used only for domestic purposes.

4. It does not cover wear and tear, malicious damage, misuse, neglect,

inexpert repairs or consumable parts.

5. Shine-Mart Ltd has no responsibilities for accidental or consequential loss or damage.

6. Shine-Mart Ltd are not liable to carry out any type of servicing work,

7. Valid in the UK only

This product is tted with CE:1363 plug and fuse Imported by Shine-Mart Ltd, RM3 8SB Information on waste Disposal for Consumers of Electrical & Electronic Equipment. This mark on a product and/or accompanying documents indicates that when it is to be disposed of, it must be treated as Waste Electrical & Electronic Equipment, (WEEE). Any WEEE marked products must not be mixed with general household waste, but kept separate for the treatment, recovery and recycling of the materials used. For proper treatment, recovery and recycling; please take all WEEE marked waste to your Local Authority Civic waste site, where it will be accepted free of charge. If customers dispose of Waste Electrical & Electronic Equipment correctly, they will be helping to save valuable resources and preventing any potential negative effects upon human health and the environment, of any hazardous materials that the waste may contain.8 Manuel d’utilisation en français9 Avertissements de sécurité Installation
