HB8010 - Hand blender Duronic - Free user manual and instructions

USER MANUAL HB8010 Duronic

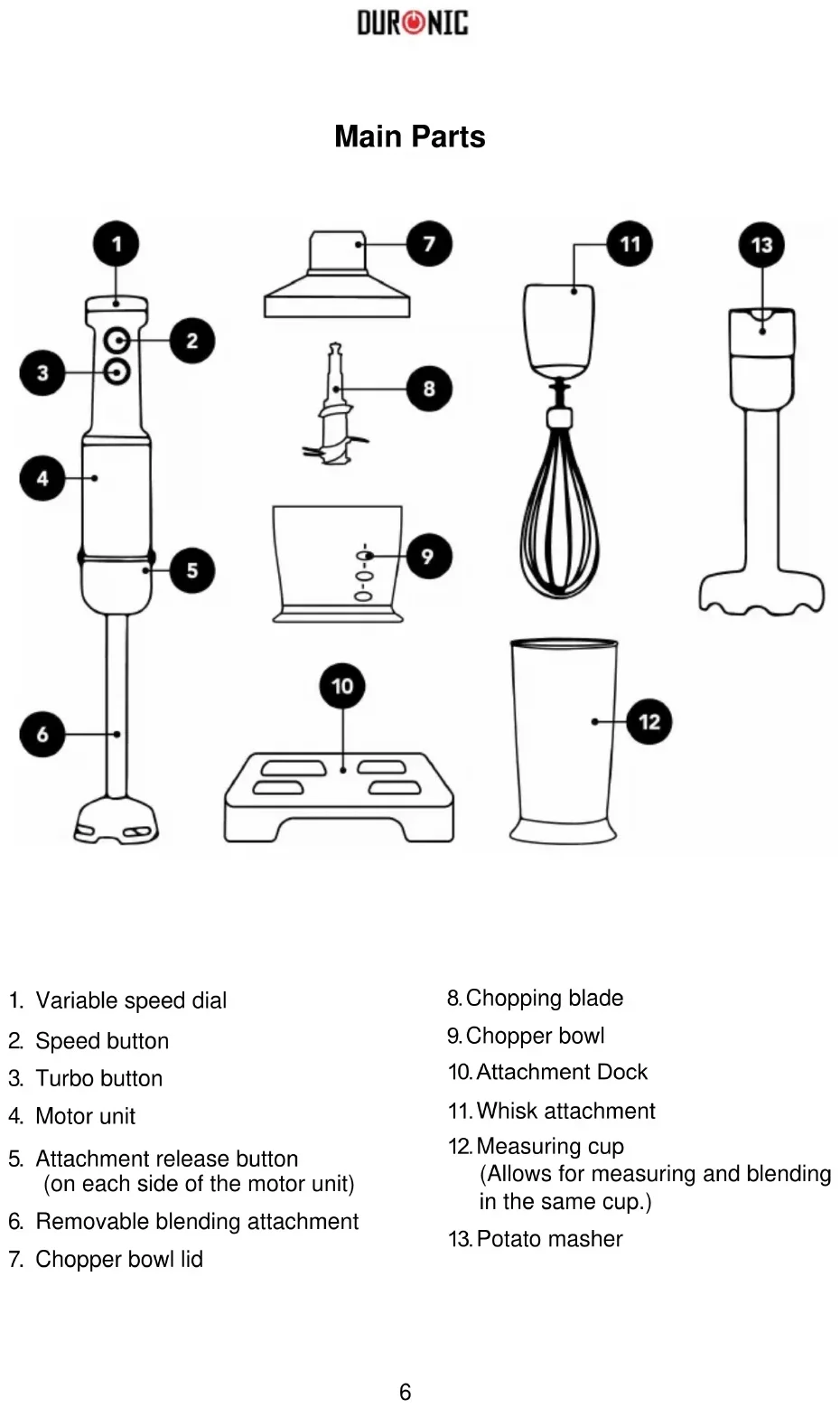

5. Attachment release button

(on each side of the motor unit)

6. Removable blending attachment

(Allows for measuring and blending in the same cup.)

Safety Tips ● This appliance is intended for domestic use only. ● If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. ● This appliance shall not be used by children. Keep the appliance and its cord out of reach of children. ● Regarding the operating times and speed setting, refer to the section “Operation” on pages 4-8 of the manual. Care shall be taken when handling the sharp cutting blades, emptying the bowl and during cleaning. ● Always disconnect the appliance from the supply if it is left unattended and before assembling, disassembling or cleaning. ● Regarding the instructions for cleaning surfaces in contact with food, refer to the section “Cleaning and Maintenance” on page 8 of the manual. ● Switch off the appliance and disconnect from supply before changing accessories or approaching parts that move in use. ● Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved. ● Be careful if hot liquid is poured into the food processor or blender as it can be ejected out of the appliance due to a sudden steaming.

WARNING: Risks of injuries if you don’t use this appliance correctly.

THE BLADE IS VERY SHARP, TAKE GREAT CARE WHEN HANDLING. THIS HAND BLENDER AND ALWAYS UNPLUG FROM THE

MAINS SUPPLY BEFORE CLEANING.8

Important Safety Instructions Read these instructions carefully before using the appliance and keep them for future reference.

Unplug the appliance from the mains socket when not in use, before assembling or disassembling parts, and before cleaning.

Never use this appliance to mix or stir anything other than foods.

Avoid contacting moving parts.

The use of attachments not recommended by the manufacturer may cause fire, electric shock or injury.

Always ensure that the attachments are securely fitted onto the motor body before operation.

Never let the cord touch hot surfaces or hang down where a child can grab it.

Do not use outdoors.

Do not use the appliance for anything other than its intended purpose.

Do not blend hot liquids (hot oil). Before First Use Before using the appliance for the first time, wash the blending attachment, whisk attachment, chopper attachment, potato masher and the measuring cup in warm soapy water. Rinse and dry thoroughly. Wipe the motor unit with a slightly damp cloth. Do not immerse it in water. *BEWARE SHARP BLADES.* Operation The hand blender is suitable for preparing sauces, soups, mayonnaise or mixing ingredients.

WARNING: Do not operate this appliance for more than 15 seconds without

interruption. Allow it to cool down to room temperature before continuing.9 Using the Blending Attachment The blending attachment is suitable for mixing drinks and milkshakes as well as preparing dips, sauces, soups, mayonnaise and baby food.

1. Make sure the motor unit is u plugged.

2. Attach the motor unit to the blending attachment and push to lock into place.

3. Place ingredients into a tall container or the supplied measuring cup.

» Make sure that the tall container or the measuring cup is placed on a stable, flat surface. » Cut solid ingredients into small pieces for easier blending.

4. Plug the motor unit into the mains socket.

5. Immerse the blending attachment into the tall container or the measuring cup.

» Ensure that the depth of the ingredients will not exceed the top of the blending attachment.10

6. Select the desired speed by turning the variable speed dial.

7. Turn on the motor unit by keeping the speed button pressed.

» It is recommended to start blending by using the low speed (1) to avoid splashing. » You can also press the Turbo button to run the appliance for intermittent bursts.

8. Blend the ingredients by moving the appliance slowly up and down and in circles.

» To use the blending attachment in a saucepan, be sure to remove the pan from the stove.

9. After you have completed blending, release the speed button and unplug the motor

unit from the mains socket.

10. Press the attachment release buttons and remove the blending attachment from

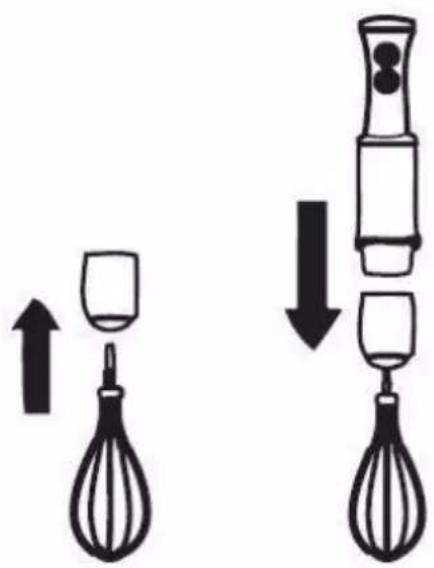

the motor unit for cleaning.11 Using the Whisk Attachment The whisk attachment is suitable for whipping cream, beating egg whites, mixing sponges and ready-mix desserts.

1. Make sure the motor unit is unplugged.

2. Insert the metal end of the whisk into its

3. Attach the motor unit to the whisk housing

and push to lock into place.

4. Place ingredients into a deep mixing bowl

or container to prevent spattering.

5. Plug the motor unit into the mains socket.

6. Insert the whisk into the mixing bowl until

the whisk touches the bottom.

7. Turn the variable speed dial to set the

8. Turn on the motor unit by keeping the speed button pressed.

» you can also press the Turbo button to run the appliance for intermittent bursts.

9. Keep the motor unit in the upright position and slowly circulate the whisk

around the mixing bowl.

10. After you have completed whisking, release the speed button and unplug

the motor unit from the mains socket.

11. Press the attachment release buttons and remove the whisk housing from

the motor unit. The whisk can be removed from its housing for cleaning by pulling on the base of the whisk.12 Using the Chopper Attachment The chopper attachment is suitable for chopping meat, cheese, onions, herbs, garlic, carrots, etc.

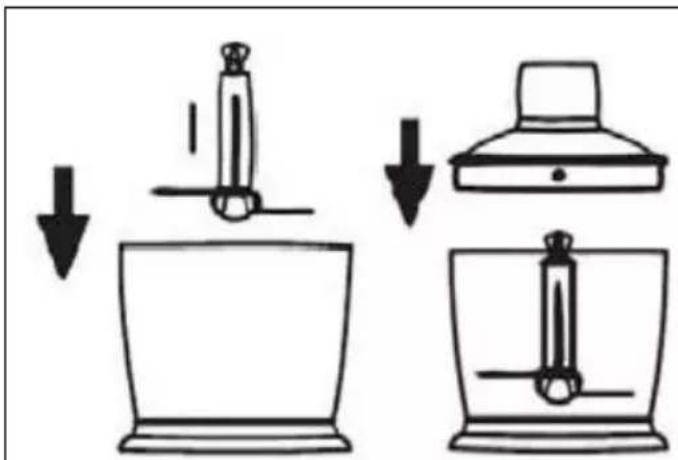

1. Make sure the motor unit is unplugged.

2. Carefully insert the chopper blade

over the pin at the centre of the chopper bowl.

3. Put food into chopper bowl. Place lid

on chopper bowl, fitting securely over pin at the centre. Turn the lid clock- wise until it locks into place.

4. Attach the motor unit into the attachment point on top of the chopper lid and push

5. Plug the motor unit into the mains socket.

6. Turn the variable speed dial to set the desired speed.

7. Hold the chopper bowl and turn on the motor unit by keeping the speed button

pressed. » Running the chopper continuously will yield smoother food consistency while pulsing will yield chunkier results. » You can also press the Turbo button to run the appliance for intermittent bursts.

8. When the desired food consistency has been reached, release the speed button

Align the tabs on the lid and notches on the bowl.

If chopping meat, cut it into cubes before putting into chopper bowl.and unplug the motor unit from the mains socket.

9. Press the attachment release buttons

and remove the chopper lid from the motor unit.

10. Carefully lift out the chopper blade.

Remove the food contents from the chopper bowl. Chopper processing guide Food Quantity Preparation Approximate Time Meat 250g Cut into 2 cm cubes 15 seconds Herbs 50 g Remove stalks 10 seconds Almonds/Nuts 150g Place in whole nuts 15 seconds Cheese 100 g Cut into 1 cm cubes 10 seconds Onions 150g Cut into quarters 10 seconds Using the Potato Smasher The potato smasher is only suitable for mashing potatoes. It is not suitable for raw potatoes or any other vegetables or foods.

1. Prepare your potatoes as normal, drain and place in a saucepan or flat bottom bowl.

• Add small amount of milk or butter as required.

2. Attach the motor unit to the potato smasher and push to lock into place.

3. Plug the motor unit into the mains socket.

4. Turn the variable speed dial to set the desired speed.

5. Turn on the motor unit by keeping the speed button pressed.

» You can also press the Turbo button to run the appliance for intermittent bursts.

6. Plunge the head of the potato masher into the potatoes.

Lift and repeat at a different place in the pan/bowl.

7. Continue until all the potatoes are mashed to your liking.

Then release the speed button and unplug the motor unit from the mains socket.

8. Press the attachment release buttons and remove the potato

smasher from the motor unit. Cleaning A Maintenance Remove the attachment from the motor unit. The paddle on the potato smasher can be removed for cleaning. To remove the paddle, grip the paddle and twist it clockwise. Clean the motor unit with a slightly damp cloth. Never immerse it in water. Clean the blending attachment, whisk attachment, chopper attachment, potato smasher with paddle and the measuring cup in warm soapy water. Rinse and dry thoroughly. Caution: The blades are very sharp. Handle with extreme care. Surfaces in contact with food should be cleaned regularly to avoid cross contamination from different types of food, the use of warm clean water with a mild detergent is advis- able when dealing with surfaces that come into contact with food. Correct food hygiene practises should always be followed at all times to avoid possibility of food poisoning/cross contamination. Dry the entire appliance with a dry cloth before replacing. Do not use chemical cleaners or abrasives product for cleaning.

WARNING: Always unplug the appliance before cleaning.15

Warranty 1 Year Guarantee from Shine-Mart Ltd, Trademark owners of Duronic Products. NOTE: THESE STATEMENTS DO NOT AFFECT YOUR STATUTORY RIGHTS AS A CONSUMER This product has been manufactured under the strictest or quality control procedures, and using the highest quality of materials, to ensure excellent performance and reliability. It will give very good and long lasting service, provided it is properly used and maintained. The product is guaranteed for 1 years from the date of original purchase. If any defect arises due to a faulty materials or poor workmanship, the faulty product must be returned to the original place of purchase. Refund or replacement is at the discretion of that company. Duronic Products are offered with a 1 year guarantee under the following conditions:

1. The product must be returned to the retailer with original proof of purchase.

2. The product must be installed and used in accordance with the instructions

contained in this operating manual.

3. It must be used only for domestic purposes.

4. It does not cover wear and tear, malicious damage, misuse, neglect,

inexpert repairs or consumable parts.

5. Shine-Mart Ltd has no responsibilities for accidental or consequential loss or damage.

6. Shine-Mart Ltd are not liable to carry out any type of servicing work,

7. Valid in the UK only

This product is fitted with CE:1363 plug and fuse Imported by Shine-Mart Ltd, RM3 8SB Information on waste Disposal for Consumers of Electrical & Electronic Equipment. This mark on a product and/or accompanying documents indicates that when it is to be disposed of, it must be treated as Waste Electrical & Electronic Equipment, (WEEE). Any WEEE marked products must not be mixed with general household waste, but kept separate for the treatment, recovery and recycling of the materials used. For proper treatment, recovery and recycling; please take all WEEE marked waste to your Local Authority Civic waste site, where it will be accepted free of charge. If customers dispose of Waste Electrical & Electronic Equipment correctly, they will be helping to save valuable resources and preventing any potential negative effects upon human health and the environment, of any hazardous materials that the waste may contain.16Manuel d’utilisation en Français18 Description des éléments
