USER MANUAL JE304 Duronic

Creative Consumer Products

Exterior view of a DURONIC coffee maker with black and red glaze (no text or symbols on the device itself)

JE304

Citrus Juicer

PLEASE READ ALL THE INSTRUCTIONS BEFORE USE

duronic.com

duronic

@duronicmedia

Duronic

@duronicmedia

Contents

English Manual 3

Features and Specifications

Capacity Cable Length Dimensions Power Voltage
400ml	70cm27.6in	29x20x26.5cm11.4x7.9x10.4in	300W	220-240V50-60Hz

Components

Labeled diagram of a coffee maker with numbered parts for identification

1. Cone cover
2. Large juicer cone
3. Small juicer cone
4. Filter

5. Juice container

6. Spout

7. Handle
8. Base unit
9. Power cable & plug

DURONIC

Safety Information

PLEASE READ THIS MANUAL CAREFULLY AND RETAIN FOR FUTURE REFERENCE

- This appliance is for indoor/household use only. Do not use outdoors.

- This appliance is not designed for commercial or industrial use; it is for household use only.

- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge unless they have been given supervision or instruction concerning the use of the appliance by a person responsible for their safety.

- Children should be closely supervised at all times to ensure that they do not play with the appliance.

- Do not operate this appliance if the power cable or plug is damaged. If either is damaged, return it to Duronic for service or repair by a professional technician.

- Never try to replace the parts and repair the unit by yourself. Do not modify the appliance in any way that is not described in the instructions for use. The machine contains live parts. Repairs may only be carried out by Duronic, using original spare parts and accessories.

- If an extension lead/cable is needed to reach the appliance to a mains power socket that is too far away out of reach of the machine's accompanying cable, please ensure that:

- the marked electrical rating of the extension lead is at least as great as the electrical rating of the appliance.

- the extension lead is of the grounded type.

- no other appliance is plugged into the same extension lead.

- the extension cable is safely positioned to avoid it being pulled on by children or animals or being tripped over.

• Always operate the juicer on a dry, smooth, even and stable surface. Do not place the juicer on or next to a hot surface.

DURONIC

Safety Information (Continued)

• Position the juicer and its power cable to the rear of the work surface, well out of reach of children.
• Disconnect the mains plug from the power socket if you are going to be absent for long periods.
• Never disconnect the plug by pulling on the power cable.
• Unplug from the mains plug outlet when not in use and before cleaning.
• This appliance is not intended to be operated using an external timer or separate remote-control system.
• Do not let the power cable hang over the edge of the table or counter, or touch hot surfaces.
• Do not use the juicer for anything other than extracting juice from citrus fruits.
• Do not operate the food processor with wet hands.
• Do not use any attachments which are not listed in this manual. The use of any additional attachments are not recommended by the manufacturer and may cause a risk of injury.
• Allow moving parts to come to a stop before changing or cleaning accessories.
• Never use harsh, abrasive or caustic cleaners to clean this appliance.
• Do not store the appliance in a horizontal position.

DURONIC

Introduction

Nothing beats a glass of freshly squeezed orange juice. With our premium JE605 electric citrus juicer, getting your daily dose of vitamin C has never been easier or quicker!

The powerful 600W motor juices your fruit quickly and efficiently, quickly filling up your glass or jug. This model features a clever adjustable filter that you can change how much pulp goes into your juice. In addition to this, the ergonomic handle is comfortable to hold and the quick-stop spout gives you control of the flow of juice allowing you to change glasses/jugs/containers mid-way.

Before First Use

1. Before first use, remove all packaging and set aside.
2. Clean the Cone Cover (1), Juicing Cones(2+3), Filter(4) and Juice Container(5) for the first time as per the instructions in the ‘Cleaning and Maintenance’ section.
3. Wipe clean the Base Unit(8) and dry.
4. Place the base unit on a flat, dry surface and located close to an electrical mains socket.

DURONIC

How to Use

1. Attach the Cone Cover to the inside of the Handle(8)

2. Place the Juice Container onto the Base Unit.

3. Next add the filter onto the juice container. The filter can be adjusted so that you can choose how much pulp to include in your juice.

4. Select which juicing cone you need and place it on top of the filter.

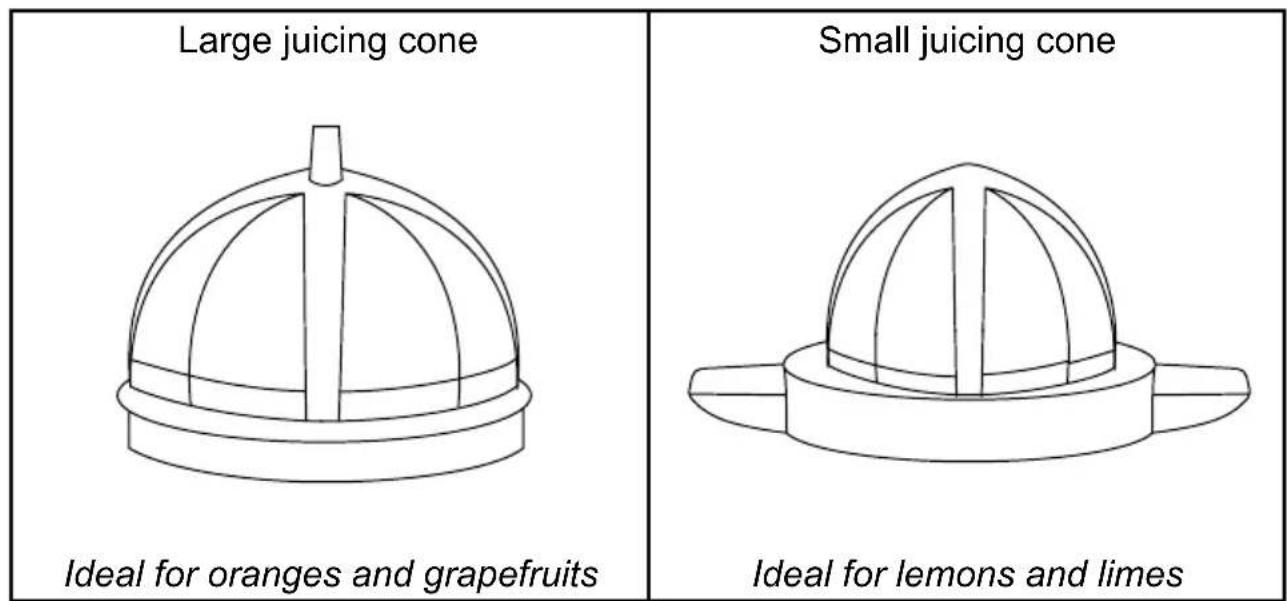

Large juicing cone Ideal for oranges and grapefruits Small juicing cone Ideal for lemons and limes

1. Place a cup or glass directly underneath the pouring Spout(6); when you start juicing, this will catch the juice as it is being extracted from the fruit.

NOTE: Use a suitable size cup or glass that is a height that will ensure the juice pours directly into it without spilling.

Tip: If you need to pause the juice flow, simply lift the spout with your finger and it will click upwards and close. When you are ready to continue juicing, click the spout back down and the juice will flow out again.

1. Prepare your fruit by cutting your citrus fruits in half. Place one half onto the juicing cone.

Tip: To get more juice from your fruit, press fruit at room temperature. Roll fruit on a table, using the palm of your hand and apply gentle pressure before cutting it in half.

DURONIC

How to Use (Continued)

1. Pull down the handle onto the fruit. The cone cover should align and cover the fruit.

2. Switch the juicer on at the mains socket. Then to start juicing, press the handle down and apply pressure. The pressure will activate the motor and juicing will commence.

3. To stop juicing, stop applying pressure and lift the handle up.

4. Continue to juice your fruit until you reach the amount of juice you want.

5. When you have finished, remove the cone cover, cone, filter and juice container.

Cleaning and Maintenance

1. Switch the appliance off at the wall socket and unplug before cleaning.

2. Disassemble the juicer. Remove any remnants of pulp from the filter and dispose of.

3. Wash the cone cover, filter, juice container and cones with warm soapy water. These parts can also be cleaned in a dishwasher.

! Do not get the base of the juicer wet at any time as this may damage the unit or create an electrical safety hazard.

1. Dry all parts thoroughly before the next use or before storing away.

2. Do not use abrasive cleaning materials like scourers or scrubbing brushes on the juicer or its parts.
   • To clean the base unit, use a well-wrung damp cloth to wipe over the surface. Ensure you dry it thoroughly immediately afterwards.

3. Ensure the appliance is clean and dry before storage.

Labeled diagram of a coffee maker with numbered parts for identification

Labeled diagram of a coffee maker with numbered parts for identification

Labeled diagram of a coffee maker with numbered parts for identification

Labeled diagram of a coffee maker with numbered parts for identification

Line drawing of a dome-shaped object with radial lines and a central protrusion (no text or symbols)

Line drawing of a dome-shaped object with radial lines, resembling a stylized helmet or architectural component (no text or symbols)

Labeled diagram of a coffee maker with numbered parts for identification

Labeled diagram of a coffee maker with numbered parts for identification

Labeled diagram of a coffee maker with numbered parts for identification

1. Kegeldeksel
2. Grote perskegel
3. Kleine perskegel
4. Filter

5. Sapcontainer

6. Tuit

7. Handvat
8. Basiseenheid
9. Netsnoer en stekker

DURONIC

Labeled diagram of a coffee maker with numbered parts for identification

Information for consumers on the disposal of Waste Electrical & Electronic Equipment (WEEE).

This mark on a product and/or accompanying documents indicates that when it is to be disposed of, it must be treated as Waste Electrical & Electronic Equipment, (WEEE).

Any WEEE marked products must not be mixed with general household waste, but kept separate for the treatment, recovery and recycling of the materials used. For proper treatment, recovery and recycling; please take all WEEE marked waste to your Local Authority Civic waste site, where it will be accepted free of charge.

If customers dispose of Waste Electrical & Electronic Equipment correctly, they will be helping to save valuable resources and preventing any potential negative effects upon human health and the environment, of any hazardous materials that the waste may contain.

Information for consumers on the disposal of Waste Electrical & Electronic Equipment (WEEE).
