JE416 - Hand blender Duronic - Free user manual and instructions

Product type	Electric citrus juicer
Brand	Duronic
Model	JE416
Container capacity	1.6 L
Power	40 W
Voltage / Frequency	220-240 V ~ 50/60 Hz
Cable length	84 cm
Dimensions (L x W x H)	22 x 25 x 15.5 cm
Weight	Approximately 1.5 kg
Container material	Glass (or plastic, unspecified)
Compatible citrus types	Oranges, grapefruits, lemons, limes
Adjustable filter	Yes: allows you to control the amount of pulp
Extraction cones	2: large (oranges/grapefruits) and small (lemons/limes)
Pressure lid	Yes, activates the motor by pressing
Automatic shut-off function	Yes, stops as soon as pressure is released
Use	Domestic use only
Cleaning of removable parts	Dishwasher or soapy water (lid, cones, filters, container)
Cleaning the base	Damp cloth (do not immerse)
Spare parts available	Yes via Duronic (cones, filters, lid, container)
Repairability	Repair by Duronic only
Safety	Do not use if cable damaged, do not immerse base, stable surface
Warranty	Not specified, contact Duronic

Frequently Asked Questions - JE416 Duronic

What type of device is this?

It is an electric citrus juicer from the brand Duronic, model JE416, designed to extract juice from citrus fruits.

What types of fruit can I juice with the JE416?

The appliance is ideal for oranges, grapefruits, lemons and limes. It comes with two cones: a large one for large fruits and a small one for small citrus fruits.

How to control the amount of pulp in the juice?

The JE416 is equipped with an adjustable filter: you can adjust the sieve filter (5) and the upper filter (4) to allow more or less pulp according to your preferences.

What is the capacity of the juice container?

The container has a capacity of 1.6 litres, allowing you to prepare several glasses of juice at once.

How to clean the juicer?

The removable parts (lid, cones, filters and container) can be washed in the dishwasher or with warm soapy water. The base should be wiped with a damp cloth; never immerse it in water.

What to do if the power cord is damaged?

Do not use the appliance. Do not repair it yourself: contact Duronic for replacement by a professional technician to avoid any electrical risk.

Does the appliance stop automatically?

Yes, the motor activates only when you apply pressure on the lid. As soon as you release the pressure, the extraction stops immediately.

Can I use accessories not provided?

No, use only the accessories listed in the manual. Using non-recommended accessories may pose a risk of injury or damage the appliance.

Where can I find spare parts?

Spare parts (cones, filters, lid, container) are available from Duronic. Contact customer service to order.

Is the appliance suitable for professional use?

No, the JE416 is designed for domestic use only. Do not use it in a commercial or industrial setting.

USER MANUAL JE416 Duronic

Creative Consumer Products

Black and white photo of a Duronic coffee maker with a glass lid and wooden stand, no visible text or symbols on the device itself.

JE416

Citrus Juicer

PLEASE READ ALL THE INSTRUCTIONS BEFORE USE

duronic.com

duronic

@duronicmedia

Duronic

@duronicmedia

Contents

English Manual 3

Features and Specifications

Model Number	Capacity Cable Length Dimensions	Power Voltage
JE416 1.6L		84cm33.1in	84cm33.1in	40W	220-240V50-60Hz

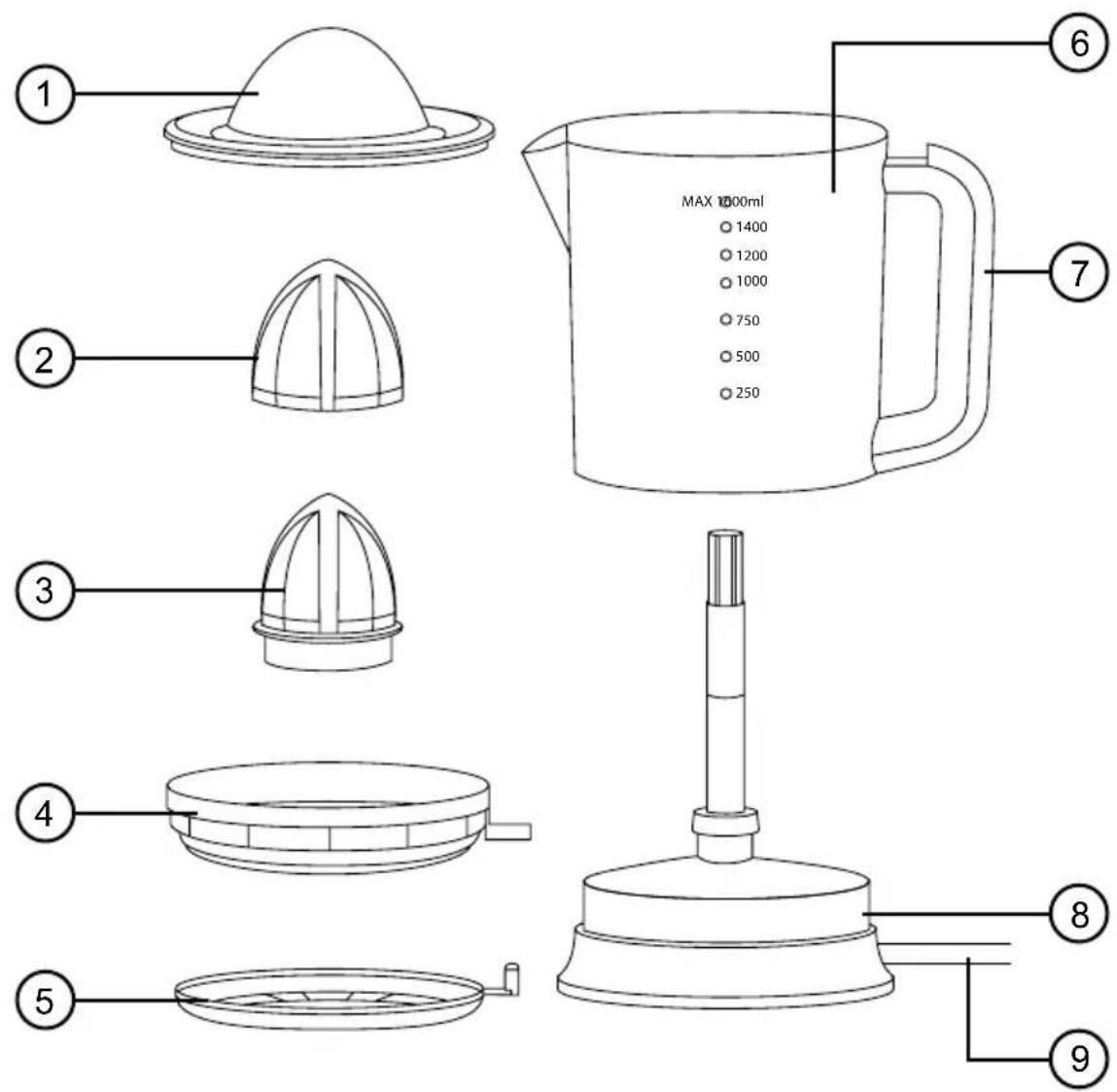

Components

1. Lid
2. Large juicer cone
3. Small juicer cone
4. Filter top

5. Filter bottom

6. Jug

7. Handle
8. Base unit
9. Power cable & plug

DURONIC

Safety Information

PLEASE READ THIS MANUAL CAREFULLY AND RETAIN FOR FUTURE REFERENCE

• This appliance is for indoor/household use only. Do not use outdoors.

- This appliance is not designed for commercial or industrial use; it is for household use only.

- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge unless they have been given supervision or instruction concerning the use of the appliance by a person responsible for their safety.

- Children should be closely supervised at all times to ensure that they do not play with the appliance.

- Do not operate this appliance if the power cable or plug is damaged. If either is damaged, return it to Duronic for service or repair by a professional technician.

- Never try to replace the parts and repair the unit by yourself. Do not modify the appliance in any way that is not described in the instructions for use. The machine contains live parts. Repairs may only be carried out by Duronic, using original spare parts and accessories.

- If an extension lead/cable is needed to reach the appliance to a mains power socket that is too far away out of reach of the machine's accompanying cable, please ensure that:

- the marked electrical rating of the extension lead is at least as great as the electrical rating of the appliance.

- the extension lead is of the grounded type.

- no other appliance is plugged into the same extension lead.

- the extension cable is safely positioned to avoid it being pulled on by children or animals or being tripped over.

• Always operate the juicer on a dry, smooth, even and stable surface. Do not place the juicer on or next to a hot surface

DURONIC

Safety Information (Continued)

• Position the juicer and its power cable to the rear of the work surface, well out of reach of children.
• Disconnect the mains plug from the power socket if you are going to be absent for long periods.
• Never disconnect the plug by pulling on the power cable.
• Unplug from the mains plug outlet when not in use and before cleaning.
• This appliance is not intended to be operated using an external timer or separate remote-control system.
• Do not let the power cable hang over the edge of the table or counter, or touch hot surfaces.
• Do not use the juicer for anything other than extracting juice from citrus fruits.
• Do not operate the food processor with wet hands.
• Do not use any attachments which are not listed in this manual. The use of any additional attachments are not recommended by the manufacturer and may cause a risk of injury.
• Allow moving parts to come to a stop before changing or cleaning accessories.
• Never use harsh, abrasive or caustic cleaners to clean this appliance.
• Do not store the appliance in a horizontal position.

DURONIC

Introduction

Nothing beats a glass of freshly squeezed orange juice. With the JE416 electric citrus juicer, getting your daily dose of vitamin C has never been easier or quicker!

The powerful 40W motor juices your fruit quickly and efficiently, quickly filling up the 1.6L juice jug. This model features a clever adjustable filter that you can change how much pulp goes into your juice.

Before First Use

1. Before first use, remove all packaging and set aside.
2. Clean the Jug(6), Juicing Cones(2+3) and Lid(1) for the first time as per the instructions in the ‘Cleaning and Maintenance’ section.
3. Wipe clean the Base Unit(8) and dry.
4. Place the base unit on a flat, dry surface and located close to an electrical mains socket.

DURONIC

How to Use

1. Assemble the juicer. Place the jug onto the base unit and turn it to lock it into place.
2. Place the Filter Bottom(5) first onto the top of the jug, then the Filter Top (4).

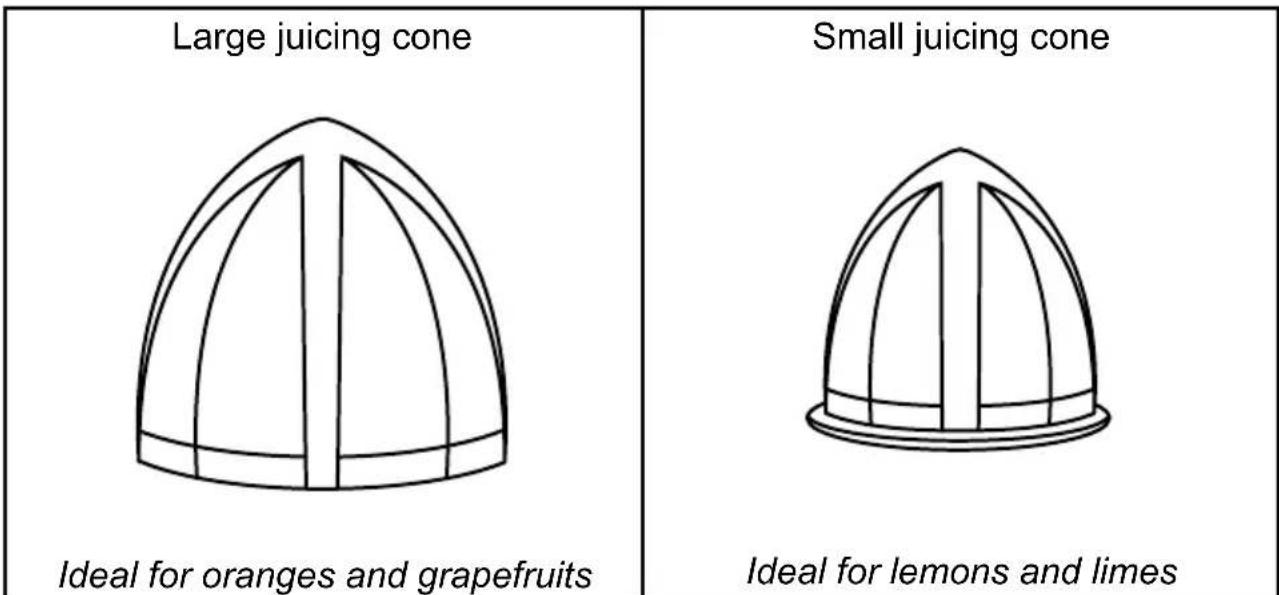

3. Select which juicing cone you need and place it on top of the filter assembly.
4. Prepare your fruit by cutting your citrus fruits in half. Place one half onto the juicing cone.

1. Place the lid on top of the fruit and juicing cone.
2. Switch the juicer on at the mains socket. Then to start juicing, place your hand onto the lid and press the lid down to apply pressure. The pressure activates the motor and juicing will commence.
3. To stop juicing, stop applying pressure and lift the lid off.
4. Continue to juice your fruit until you reach the amount of juice you want.
5. Remove the lid, cone and filter assembly. Pour the juice straight into a glass or decant into a container.

DURONIC

Cleaning and Maintenance

1. Switch the appliance off at the wall socket and unplug before cleaning.
2. Disassemble the juicer. Remove any remnants of pulp from the filter and dispose of.
3. Wash the jug, filter, lid and cones with warm soapy water. These parts can also be cleaned in a dishwasher.

! CAUTION: Do not get the base of the juicer wet at any time as this may damage the unit or create an electrical safety hazard.

1. Dry all parts thoroughly before the next use or before storing away.

2. Do not use abrasive cleaning materials like scourers or scrubbing brushes on the juicer or its parts.
   • To clean the base unit, use a well-wrung damp cloth to wipe over the surface. Ensure you dry it thoroughly immediately afterwards.

3. Ensure the appliance is clean and dry before storage.

Simple line drawing of a dome-shaped structure with vertical divisions (no text or symbols)

Simple line drawing of a dome-shaped object with vertical ribs and a flat base (no text or symbols)

Simple line drawing of a dome-shaped structure with vertical divisions (no text or symbols)

Simple line drawing of a dome-shaped object with vertical ribs and a flat base (no text or symbols)

Simple line drawing of a dome-shaped structure with vertical divisions (no text or symbols)

Simple line drawing of a dome-shaped object with vertical ribs (no text or symbols)

Simple line drawing of a dome-shaped structure with vertical divisions (no text or symbols)

Simple line drawing of a dome-shaped object with vertical ribs and a flat base (no text or symbols)

Simple line drawing of a dome-shaped structure with vertical divisions (no text or symbols)

Simple line drawing of a dome-shaped object with vertical divisions (no text or symbols)

Information for consumers on the disposal of Waste Electrical & Electronic Equipment (WEEE).

This mark on a product and/or accompanying documents indicates that when it is to be disposed of, it must be treated as Waste Electrical & Electronic Equipment, (WEEE).

Any WEEE marked products must not be mixed with general household waste, but kept separate for the treatment, recovery and recycling of the materials used. For proper treatment, recovery and recycling; please take all WEEE marked waste to your Local Authority Civic waste site, where it will be accepted free of charge.

If customers dispose of Waste Electrical & Electronic Equipment correctly, they will be helping to save valuable resources and preventing any potential negative effects upon human health and the environment, of any hazardous materials that the waste may contain.

Information for consumers on the disposal of Waste Electrical & Electronic Equipment (WEEE).
