USER MANUAL HM4 Duronic

• Please read these instructions carefully and keep it for future reference

• This appliance has been made for domestic use only and not for commercial use.

• Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and if they understand the hazards involved.

• Keep the appliance and its cord out of reach of children unless close supervision is provided by a responsible adult.

• Always disconnect the mixer from the mains supply if it is not being used, left unattended or being disassembled.

• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or a qualied person in order to avoid a hazard.

• Always store the mixer away in a safe, cool and dry place after use.

• Insert only original parts, made by Duronic (dough hooks, beaters).

• Do not use outdoors.

• Never immerse the unit in water or any other liquids.

• Do not use it with wet hands.

• If the appliance should become wet or damp, remove the plug from the mains socket immediately and allow it to dry.

• Use this appliance only for its intended purpose.

• Never touch the rotating accessories while they are still in motion; always wait for them to stop.

• To avoid splashes, always put the dough hooks or beater right into the mixture before operating.

• Never use this appliance to mix or stir anything other than ingredients.

• Do not use this appliance to mix boiling water.

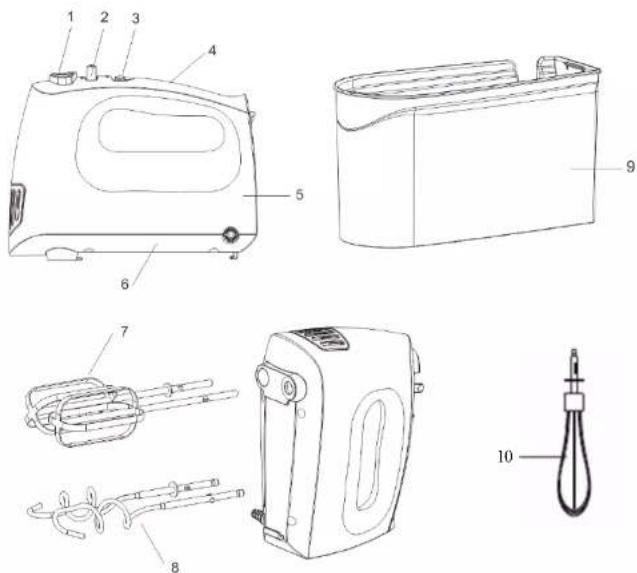

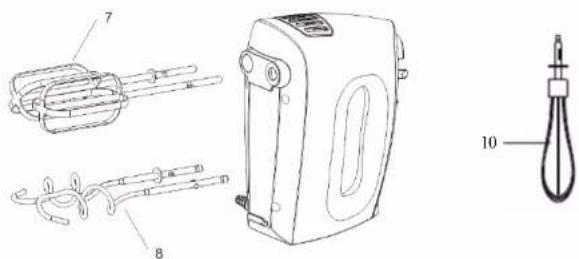

Preparing the dough hooks or beaters Always check the mixer is switched off at the mains before attaching any accessories. Inserting the accessories - Insert the two beaters (7) into corresponding holes, turn slightly clockwise until they lock into place. - Insert the two dough hooks (8) into corresponding holes, turn slightly until they lock into place. - Never use beaters and dough hooks together. - After use, Store the dough hooks and beaters in the storage box(9) To remove dough hooks or beaters To detach dough hooks / beaters, press the ejection button (1). The ejection button will not work if the speed is not at the “0” position. Short-time operation The appliance is designed to process average domestic quantities of food; it can be operated without interruption for a maximum of 10 minutes, then it should be allowed to cool down to room temperature before continuing operation. How to operate your whisk Use the whisk only for whipping cream, beating egg whites and mixing sponges and ready-mix desserts. Insert the whisk (part 10) to the motor part until it locks. Place the whisk into a beaker / container and then adjust the speed control to mix the food. Operating Procedure

1. Ensure the speed control position is at “0”.

3. Lock your chosen accessory into place and it is ready to use.

Speed control “0” Stop “1” Dough hook: butter, potatoes “2” Beater/Whisk: sauces, egg, milk, dairy etc “3” Dough hooks: light pastry dough “4” Beaters/Whisk: whipped desserts, cream “5” Beaters/Whisk: egg whites, whipped cream “Turbo” For a short high-speed burst; push the turbo button and release (Pulse action). Operation Instructions Accessories Ingredients Quantities Time Beater Egg White 3-10 Up To 10 Minutes Dough Hook Flour, Water 1200g Flour 720ml Water 30 Seconds - Low 5 Minutes - High Whisk Egg White 3-10 Eggs Up To 10 Minutes10 11 Warranty 1 Year Guarantee from Shine-Mart Ltd, Trademark owners of Duronic Products. NOTE: THESE STATEMENTS DO NOT AFFECT YOUR STATUTORY RIGHTS AS A CONSUMER This product has been manufactured under the strictest or quality control procedures, and using the highest quality of materials, to ensure excellent performance and reliability. It will give very good and long lasting service, provided it is properly used and maintained. The product is guaranteed for 1 years from the date of original purchase. If any defect arises due to a faulty materials or poor workmanship, the faulty product must be returned to the original place of purchase. Refund or replacement is at the discretion of that company. Duronic Products are offered with a 1 year guarantee under the following conditions:

1. The product must be returned to the retailer with original proof of purchase.

2. The product must be installed and used in accordance with the instructions contained in

this operating manual.

3. It must be used only for domestic purposes.

4. It does not cover wear and tear, malicious damage, misuse, neglect, inexpert repairs or

5. Shine-Mart Ltd has no responsibilities for accidental or consequential loss or damage.

6. Shine-Mart Ltd are not liable to carry out any type of servicing work, under the guarantee

7. Valid in the UK only

This product is tted with CE:1363 plug and fuse Imported by Shine-Mart Ltd, RM3 8SB Information on waste Disposal for Consumers of Electrical & Electronic Equipment. This mark on a product and/or accompanying documents indicates that when it is to be disposed of, it must be treated as Waste Electrical & Electronic Equipment, (WEEE). Any WEEE marked products must not be mixed with general household waste, but kept separate for the treatment, recovery and recycling of the materials used. For proper treatment, recovery and recycling; please take all WEEE marked waste to your Local Authority Civic waste site, where it will be accepted free of charge. If customers dispose of Waste Electrical & Electronic Equipment correctly, they will be helping to save valuable resources and preventing any potential negative effects upon human health and the environment, of any hazardous materials that the waste may contain.

4. Gently move the unit around in a 360°C while beating. For best results, use
