| Product type | Cordless high-pressure cleaner |
| Brand | Fuxtec |
| Model | FX-E1HDR20 |
| Power supply | 20V lithium-ion battery |
| Rated voltage | 20 V |
| Max output pressure | 22 bar |
| Max flow rate | 2.5 L/min |
| Battery type | Li-Ion |
| Charger included | Yes |
| Battery capacity indicator | Yes (on battery) |
| Charge state indicator | Yes (on charger) |
| Pressure adjustment | Yes (dial) |
| Safety switch | Yes |
| Adjustable nozzle | 4 modes: continuous jet, angles 15°, 25°, 40° |
| Detergent tank | Yes (integrated) |
| Brush included | Yes |
| Water filter | Yes |
| Intended use | Private outdoor cleaning |
| Safety | Safety switch, splash protection |
| Maintenance | Clean the water filter regularly |
| Recycling | Appliance and battery recyclable (do not throw in household waste) |
| Certification | CE, declaration of conformity included |
Frequently Asked Questions - FX-E1HDR20 Fuxtec
User questions about FX-E1HDR20 Fuxtec
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Pressure washer in PDF format for free! Find your manual FX-E1HDR20 - Fuxtec and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. FX-E1HDR20 by Fuxtec.
USER MANUAL FX-E1HDR20 Fuxtec
9
Recycling raw materials instead of waste disposal.
Technische Daten
Hochdruckreiniger
Nennspannung 20 V
MD Directive: 2006 / 42 / EC
2014/30/EU
Angewandte Normen / applicable standards
EN 60335-1: 2012+A11+A13+A1+A14+A2+A15
EN 60335-2-54: 2008+A1+A11
EN 62233: 2008
AfPS GS 2019: 01 PAK
EK1 527-12 Rev.2
Hereby we declare that the above mentioned machine meet the essential safety and health requirements of the above stated EC directives. Any manipulation or change of the machine not being explicitly authorized by us in advance renders this document null and void.
Introduction and safety....21
Intended use....21
General safety instructions for power tools.... 21
Workplace Safety 21
Electrical Safety 22
Safety of Persons....22
Use and treatment of the power tool 23
Use and handling of the cordless tool....23
Safety Instructions for Pressure Washer 24
General Safety Instructions....24
Before Use 24
During Operation....25
After use 25
Safety instructions for the charger....25
Safety Instructions for Li-Ion Batteries 26
Presentation 27
Operation / Correct handling 28
Tips for the working process 34
Use of battery 34
Disposal 34
Technical Data 35
Declaration of Conformity....36

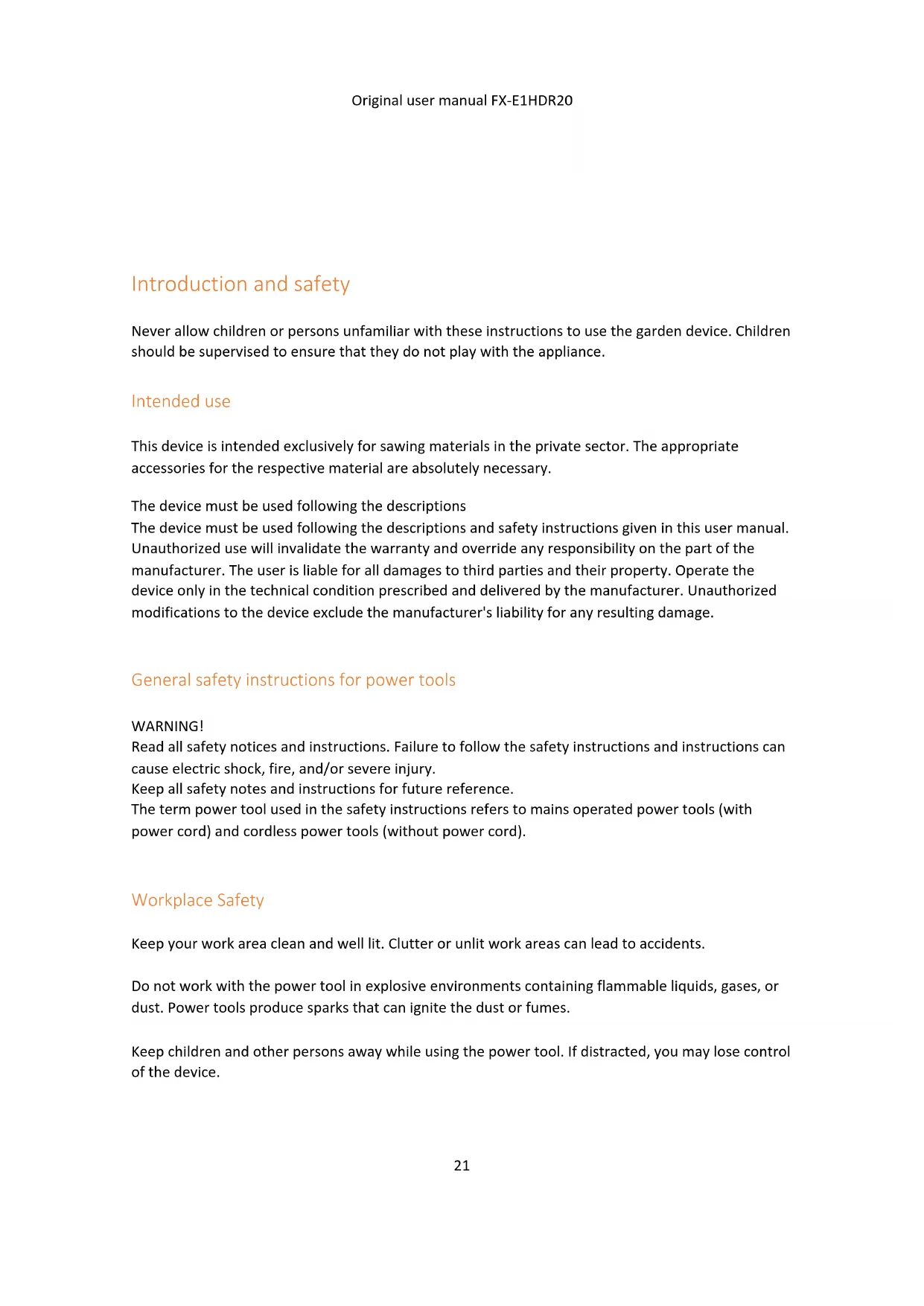

Introduction and safety
Never allow children or persons unfamiliar with these instructions to use the garden device. Children should be supervised to ensure that they do not play with the appliance.
Intended use
This device is intended exclusively for sawing materials in the private sector. The appropriate accessories for the respective material are absolutely necessary.
The device must be used following the descriptions
The device must be used following the descriptions and safety instructions given in this user manual. Unauthorized use will invalidate the warranty and override any responsibility on the part of the manufacturer. The user is liable for all damages to third parties and their property. Operate the device only in the technical condition prescribed and delivered by the manufacturer. Unauthorized modifications to the device exclude the manufacturer's liability for any resulting damage.
General safety instructions for power tools
WARNING!
Read all safety notices and instructions. Failure to follow the safety instructions and instructions can cause electric shock, fire, and/or severe injury.
Keep all safety notes and instructions for future reference.
The term power tool used in the safety instructions refers to mains operated power tools (with power cord) and cordless power tools (without power cord).
Workplace Safety
Keep your work area clean and well lit. Clutter or unlit work areas can lead to accidents.
Do not work with the power tool in explosive environments containing flammable liquids, gases, or dust. Power tools produce sparks that can ignite the dust or fumes.
Keep children and other persons away while using the power tool. If distracted, you may lose control of the device.
Electrical Safety
The plug of the power tool must fit into the socket. The cap must not be changed in any way. Do not use adapter plugs together with grounded power tools. Unchanged plugs and suitable sockets reduce the risk of electric shock.
Avoid physical contact with grounded surfaces such as pipes, heaters, stoves, and refrigerators. There is an increased risk of electric shock if your body is grounded.
If you use a power tool outdoors, only use extension cables that are suitable for outdoor use. The use of an extension cable suitable for outdoor use reduces the risk of electric shock.
If you use a power tool outdoors, only use extension cables that are suitable for outdoor use. The use of an extension cable suitable for outdoor use reduces the risk of electric shock.
Safety of Persons
Be alert, pay attention to what you are doing, and use common sense when working with a power tool. Do not use a power tool if you are tired or under the influence of drugs, alcohol, or medication. A moment of inattention while utilizing the power tool can cause serious injury.
Wear personal protective equipment and always protective goggles. Wearing personal protective equipment, such as a dust mask, non-slip safety shoes, safety helmet, or hearing protection, depending on the type and use of the power tool reduces the risk of injury.
Avoid unintentional commissioning. Make sure that the power tool is switched off before connecting it to the power supply and/or battery, picking it up or carrying it. If you have your finger on the switch when carrying the power tool or if you connect the device to the power supply while it is switched on, this can lead to accidents.
Remove adjustment tools or wrenches before turning on the power tool. A tool or key that is in a rotating part of the device can cause injury.
Avoid abnormal posture. Make sure you have a secure
Stand and keep your balance at all times. This allows you to better control the power tool in unexpected situations.
Wear suitable clothing. Do not wear loose clothing or jewellery. Keep hair, clothing, and gloves away from moving parts. Loose clothing, jewellery, or long hair can be caught by moving parts.
Use and treatment of the power tool
Do not overload the device. Use the appropriate power tool for your work. With the right power tool, you will work better and safer in the specified power range.
Do not use a power tool whose switch is defective. A power tool that can no longer be switched on or off is dangerous and must be repaired.
Unplug the power cord and/or remove the battery before making any adjustments to the device, changing accessories, or putting the device away. This precaution prevents unintentional starting of the power tool.
Keep unused power tools out of the reach of children. Do not allow persons to use the device which is not familiar with it or have not read
these instructions. Power tools are dangerous if they are used by inexperienced persons.
Maintain power tools with care. Check that moving parts function correctly and do not jam, that parts are not broken or damaged in such a way that the function of the power tool is impaired. Have damaged parts repaired before using the device? Many accidents are caused by poorly maintained power tools.
Keep cutting tools sharp and clean. Carefully maintained cutting tools with sharp cutting edges jam less and are easier
to guide.
Use power tools, accessories, insertion tools, etc. according to these instructions. Take into account the working conditions and the job to be performed. The use of power tools for applications other than those intended can lead to dangerous situations.
Use and handling of the cordless tool
Charge the batteries only with chargers recommended by the manufacturer. A charger that is suitable for a particular type of battery poses a fire hazard when used with other batteries.
Only use the batteries provided in the power tools. Using other batteries may result in personal injury and fire hazards.
Keep the unused battery away from paper clips, coins, keys, nails, screws, or other small metal objects that could cause the contacts to bridge. A short circuit between the battery contacts can cause burns or fire.
The liquid may leak from the battery if misused. Avoid any contact with it. In case of accidental contact, rinse with water. If the liquid gets into your eyes, seek additional medical attention. Leaking battery fluid may cause skin irritation or burns.
Safety Instructions for Pressure Washer
General Safety Instructions
For your safety and the safety of others, read this user manual and its safety instructions before using the device. Please keep the user manual and its safety instructions in a safe place for later use and regard them as
keep them handy for any purpose.
Pass on the operating instructions with the device if there is a change of ownership.
Persons operating the device must not be under the influence of intoxicating substances (e.g., alcohol, drugs, or medicines).
Operate the device only in the technical condition prescribed and delivered by the manufacturer. Unauthorized modifications to the device exclude the manufacturer's liability for any resulting damage.
Only use the device in daylight or under good artificial lighting.
Only use the device in dry weather conditions. Keep it away from rain or moisture. The penetration of water into the device increases the risk of electric shock.
Switch off the device and remove the battery in the following conditions:
if the device is left unattended;
before checking, cleaning or other work on the device;
if the device starts to vibrate excessively.
Before Use
Familiarize yourself with the device and its functions and controls before starting work.
Check the device for signs of wear or damage before starting up and after a collision.
Do not use a device whose switch is defective and can no longer be switched on or off.
Check that all nuts, bolts, and screws are tight to ensure that the device is operated safely.
Never use a device with damaged or missing parts. Have them repaired or replaced if necessary by a qualified specialist or workshop.
Always wear appropriate personal protective equipment when working with or on the device (safety goggles, ear protection, non-slip work gloves, etc.) The wearing of personal protective equipment reduces the risk of injury.
During Operation
Do not switch on the device if persons (especially children) or animals are in the immediate vicinity. Make sure that children do not play with the device.
Make sure that you have a firm stand and work calmly and carefully. Use the appropriate saw blades according to the working material (wood, metal, brick, plaster, etc.). An incorrect selection can lead to slipping and injury. Wear hearing protection when using the device. Exposure to noise can lead to hearing loss. Hold the power tool by the insulated grip surfaces.
When carrying out your work, you may come into contact with concealed cables, and this may result in electric shock if you do not hold the saw properly.
After use
Switch off the device and remove the battery from the saw. Then place the unit in a safe place. Do not store the device within reach of children. Make sure that the ventilation slots in the device are clean.
Please do not clean the dirt with water. The electrical device may be damaged.
Safety instructions for the charger
Keep the charger away from rain or moisture. The penetration of water into a charger increases the risk of electric shock.
Keep the charger clean. There is a risk of electric shock from soiling.
Check the charger, cable, and plug before each use. Do not use the charger if you notice any damage. Do not open the charger yourself and have it repaired only by qualified personnel and only with original spare parts.
Damaged chargers, cables, and connectors increase the risk of electric shock.
Do not place objects on the charger or place them on soft surfaces. There is a risk of fire.
Always check that the mains voltage corresponds to the voltage indicated on the charger's nameplate.
Never open the charger under any circumstances. Take it to a specialist workshop in the event of a fault.
Safety Instructions for Li-Ion Batteries
Do not open the battery. There is a danger of a short circuit.
Protect the battery from heat, including continuous exposure to sunlight, fire, water, and moisture. There is a danger of explosion.
Vapours may escape if the battery is damaged or misused. Supply fresh air and consult a doctor if you have any complaints. The vapours may irritate the respiratory tract.
The liquid may leak from the battery if misused. Avoid any contact with it. In case of accidental contact, rinse with water. If the liquid gets into your eyes, seek additional medical attention. Leaking battery fluid may cause skin irritation or burns.
Only use original rechargeable batteries with the voltage specified on the rating plate of your power tool. When using other batteries, e.g., imitation reconditioned batteries or batteries from different manufacturers, there is a risk of injury and material damage due to exploding batteries.
The battery voltage must match the battery charging voltage of the charger. Otherwise, there is a risk of fire and explosion.
Charge the batteries only with chargers recommended by the manufacturer. A charger that is suitable for a particular type of battery poses a fire hazard when used with other batteries.
The battery can be damaged by pointed objects such as nails or screwdrivers or by an external force. An internal short circuit may occur, and the battery may burn, smoke, explode or overheat.
Presentation
20V cordless pressure washer
- Nozzle 9. Battery capacity indicator
- Lance 10. Battery
- Pressure LED indicator 11. Charging status indicator

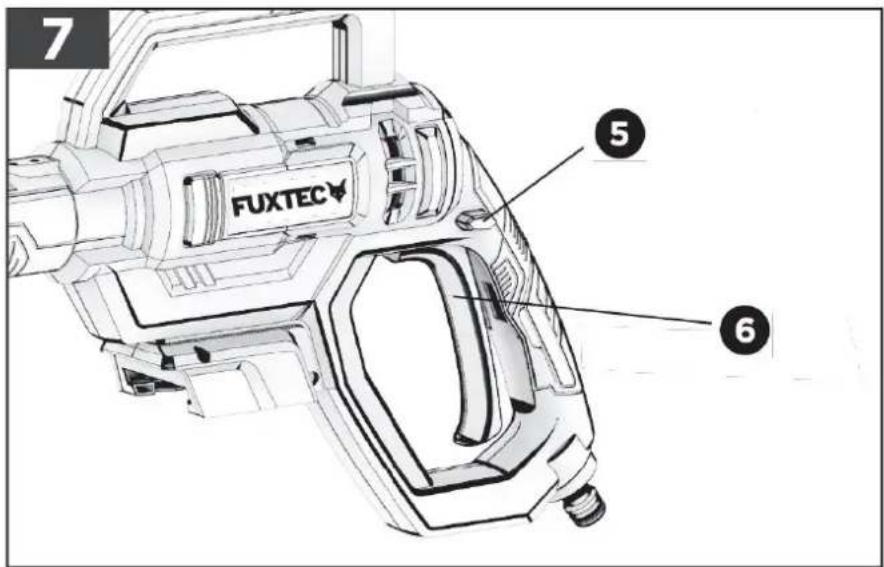

- Pressure adjustment knob 12. Charger
- Safety switch 13. Water hose
- ON/OFF Switch 14. Wasserfilter

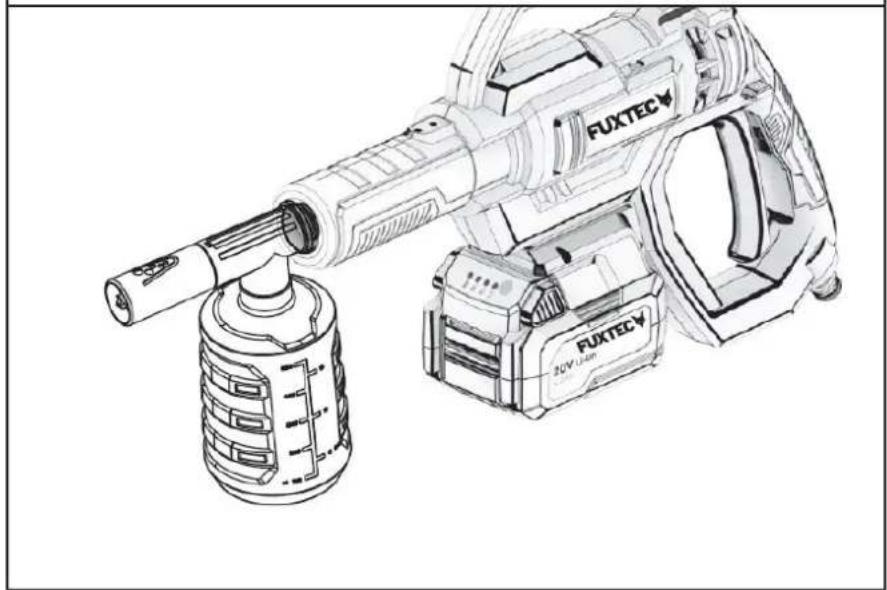

- Hose Connector 15. Detergent container
- Battery capacity button 16. Brush

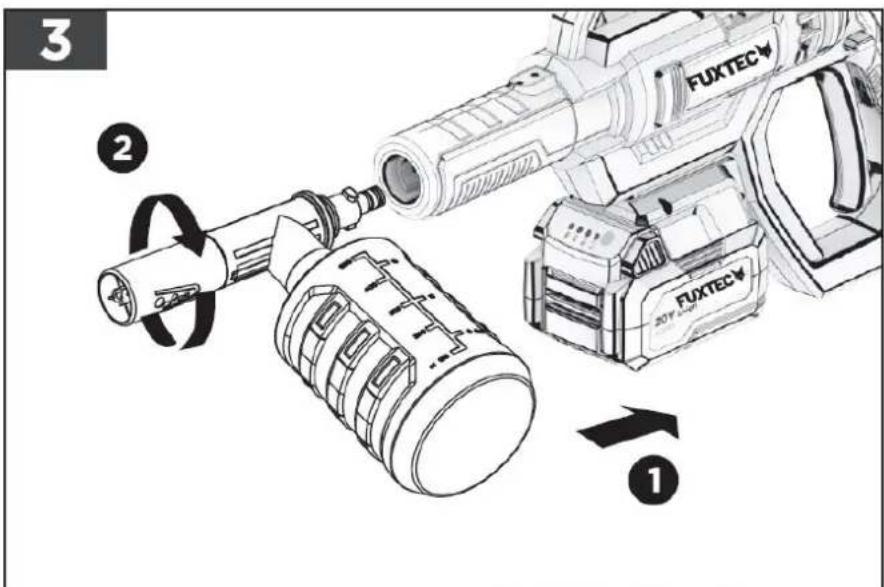

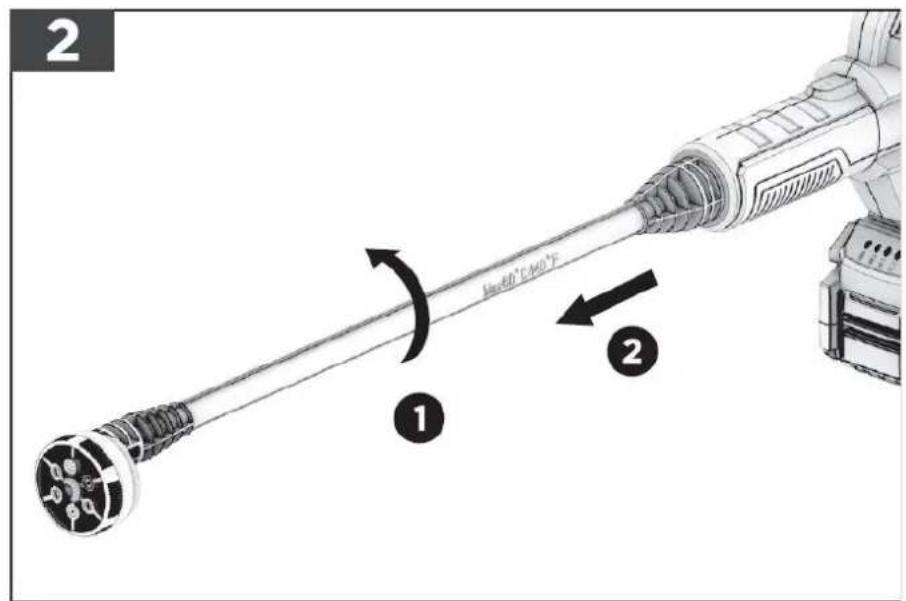

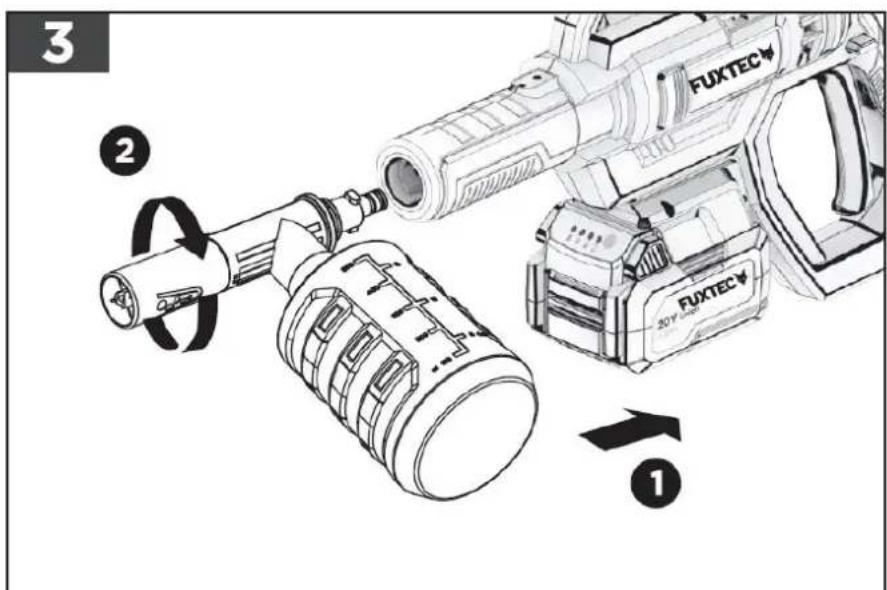

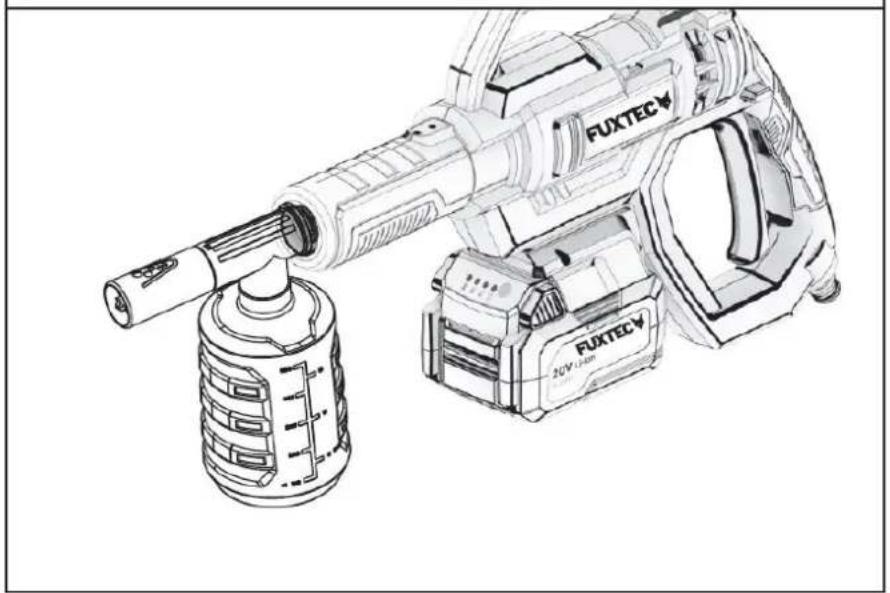

Operation / Correct handling
9
10
Nozzle Selection Guide
 |  | It sprays a straight water column. |
 |  | It sprays a 15° fan-shaped water jet. |
 |  | It sprays a 25° fan-shaped water jet. |
 |  | It sprays a 40° fan-shaped water jet. |
 |  | The water column is ejected with a fixed bevel angle of 45°. For example, the water column could be ejected upwards while the power cleaner is pointing downwards. It can be used for cleaning the underside of vehicles or furniture. |
 |  | Showering mode.It is best for watering. |
Tips for the working process

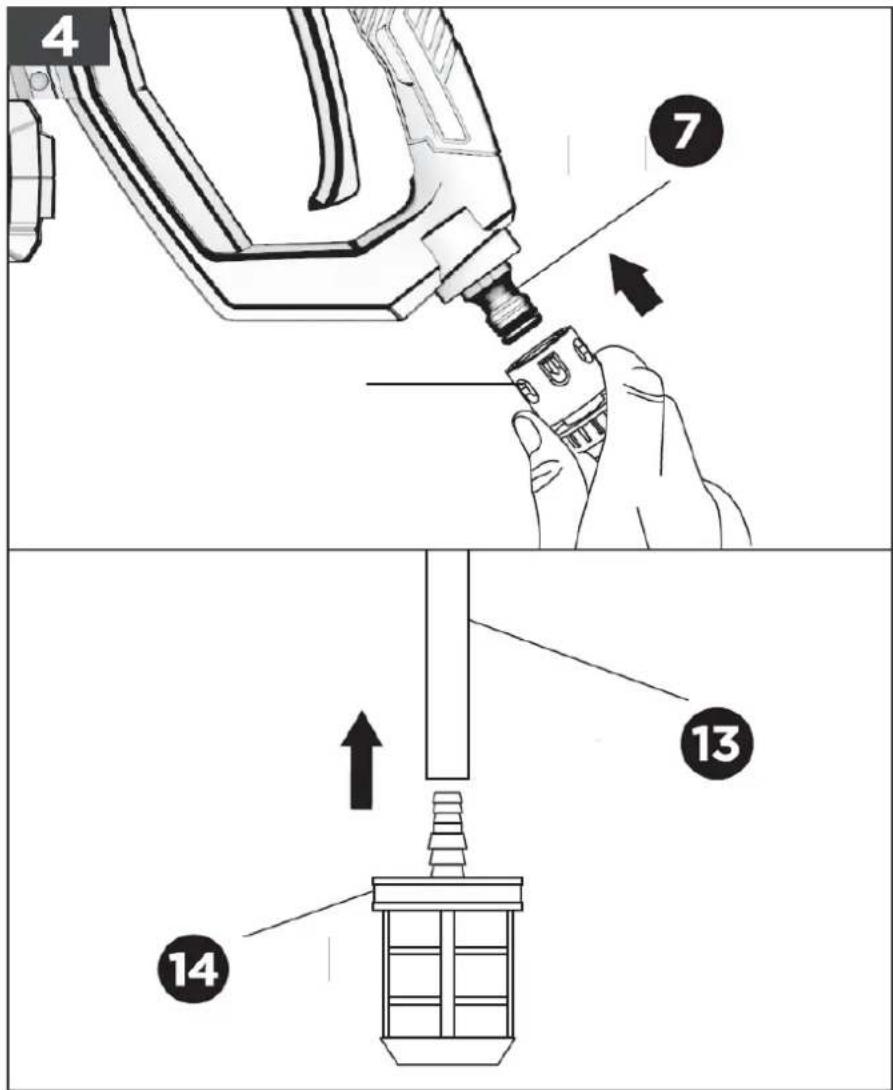

You can connect the end of the hose to the water supply in your house or place it in a water container (e.g. a rain barrel). When using a water container, please note that only the end of the hose is in the water without a connector.
Use of battery
Only use original FUXTEC lithium-ion batteries with the voltage indicated on the type plate of your power tool.
Using other batteries may cause injury and fire. Hint: Using batteries that are not suitable for the machine may cause malfunction or damage to the power tool.

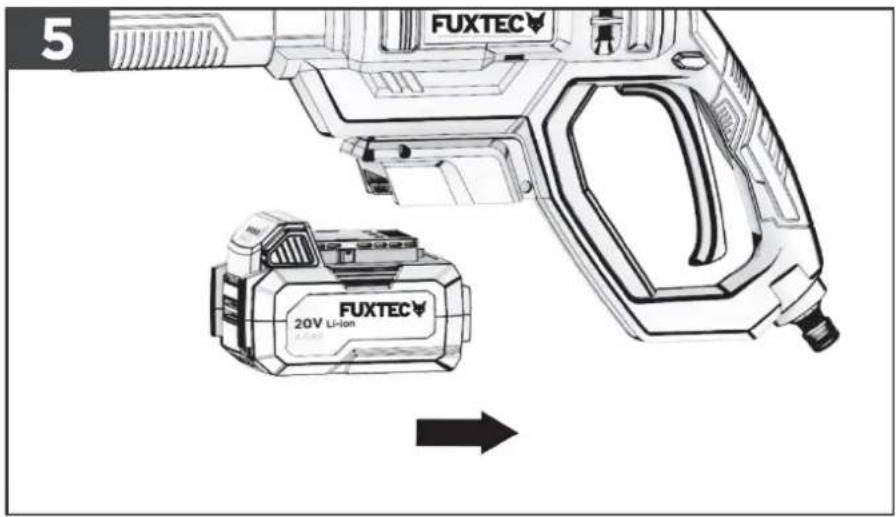

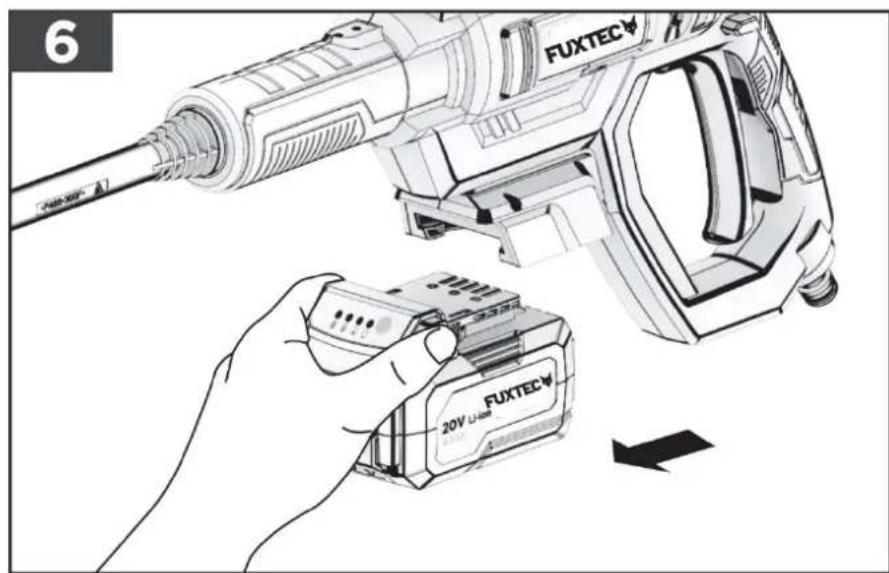

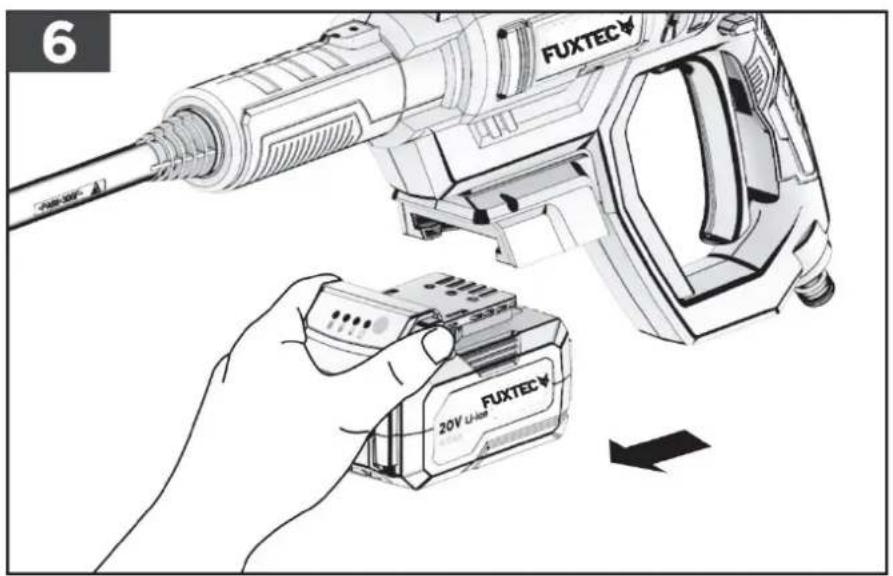

The charged battery must be inserted into the socket of the power tool until it clicks into place and is securely locked.
Note: The lithium-ion battery is protected against deep discharge by the "Electronic Cell Protection (ECP)." If the battery is empty, the machine is switched off by a safety device. The saw blade then no longer moves. In this case, do not press the on/off switch repeatedly. This may damage the battery.
Disposal
WARNING!
Make used power tools unusable before disposal:
- mains-operated power tools by removing the connecting plug,
• cordless power tools by removing the battery.
For EU countries only
Do not throw power tools in household waste! According to the European Directive 2012/19/EC on waste electrical and electronic equipment and its implementation in national law, used electrical equipment must be collected separately and sent for environmentally sound recycling. Recovery of raw materials instead of waste disposal. The device, accessories, and packaging should be recycled
in an environmentally friendly manner. Plastic parts are marked for recycling according to type.
WARNING!
Do not throw batteries in the household waste, fire, or water. Do not open worn-out batteries. Batteries should be collected, recycled, or disposed of in an environmentally friendly manner.
For EU countries only: According to Directive 2006/66/EC, defective or exhausted batteries must be recycled.
i NOTE
Please contact your local authority/city for information on disposal options,
Recycling raw materials instead of waste disposal.
Technical Data
Cordless Pressure Washer
Nominal voltage 20 V
Max outlet pressure 22bar
Max flow rate 2.5l/min
Declaration of Conformity
Producer FUXTEC GmbH
Name Cordless pressure washer
Model FX-E1HDR20
EC directive
MD Directive: 2006 / 42 / EC
2014/30/EU
Applicable standards
EN 60335-1: 2012+A11+A13+A1+A14+A2+A15
EN 60335-2-54: 2008+A1+A11
EN 62233: 2008
AfPS GS 2019: 01 PAK
EK1 527-12 Rev.2
Hereby we declare that the above mentioned machine meet the essential safety and health requirements of the above stated EC directives. Any manipulation or change of the machine not being explicitly authorized by us in advance renders this document null and void.
Illustration 1: nettoyeur haute pression sans fil 20V
ÉLÉMENTS D'EMBALLAGE À SÉPARER ET À DÉPOSER DANS LE BAC DE TRI
Données techniques
Directive CE / EC Directive
Directive MD : 2006 / 42 / CE
2014/30/EU
Normes appliquées / applicable standards
EN 60335-1: 2012+A11+A13+A1+A14+A2+A15
EN 60335-2-54: 2008+A1+A11
EN 62233: 2008
AfPS GS 2019: 01 PAK
EK1 527-12 Rev.2
Hereby we declare that the above mentioned machine meet the essential safety and health requirements of the above stated EC directives. Any manipulation or change of the machine not being explicitly authorized by us in advance renders this document null and void.
Conservation de la documentation technique : FUXTEC GmbH • Kappstraße 69 • 71083 Herrenberg • Allemagne, L. Zirkler, Direction
Email: info@fuxtec.it
Norme applicate / applicable standards
EN 60335-1: 2012+A11+A13+A1+A14+A2+A15
EN 60335-2-54: 2008+A1+A11
EN 62233: 2008
AfPS GS 2019: 01 PAK
EK1 527-12 Rev.2
Hereby we declare that the above mentioned machine meet the essential safety and health requirements of the above stated EC directives. Any manipulation or change of the machine not being explicitly authorized by us in advance renders this document null and void.
- TECHNISCHE DATEN
- HOCHDRUCKREINIGER
- ANGEWANDTE NORMEN / APPLICABLE STANDARDS
- INTRODUCTION AND SAFETY
- INTENDED USE
- GENERAL SAFETY INSTRUCTIONS FOR POWER TOOLS
- WARNING
- WORKPLACE SAFETY
- ELECTRICAL SAFETY
- SAFETY OF PERSONS
- USE AND TREATMENT OF THE POWER TOOL
- USE AND HANDLING OF THE CORDLESS TOOL
- SAFETY INSTRUCTIONS FOR PRESSURE WASHER
- GENERAL SAFETY INSTRUCTIONS
- BEFORE USE
- DURING OPERATION
- AFTER USE
- SAFETY INSTRUCTIONS FOR THE CHARGER
- SAFETY INSTRUCTIONS FOR LI-ION BATTERIES
- 20V CORDLESS PRESSURE WASHER
- OPERATION / CORRECT HANDLING
- TIPS FOR THE WORKING PROCESS
- USE OF BATTERY
- DISPOSAL
- FOR EU COUNTRIES ONLY
- I NOTE
- TECHNICAL DATA
- CORDLESS PRESSURE WASHER
- DECLARATION OF CONFORMITY
- NORME APPLICATE / APPLICABLE STANDARDS
Brand : Fuxtec
Model : FX-E1HDR20
Category : Pressure washer
