USER MANUAL AD 7969 ADLER

White spherical object with a textured top and circular base, labeled 'ADLER EUROPE' at the bottom (no other text or symbols visible)

AD 7969

Diagram of a circular mechanical or electrical component with four holes and a labeled section G (no text or symbols beyond label)

D I

Diagram of a device with a plug and connector, showing no text or symbols

Line drawing of a mechanical component with no visible text or symbols

Line drawing of a washing machine with a gray X mark above it (no text or symbols)

FIG 7

Illustration of a microwave oven with an upward arrow indicating airflow or heat transfer (no text or symbols)

FIG 1

Diagram of a device with a plug inserted into a socket, showing an upward arrow (no text or symbols present)

FIG 2

MAX

FIG 3

Line drawing of a cooking step showing liquid being poured into a pan (no text or symbols)

FIG 4

Diagram of a smart appliance with a lid and internal components, showing a downward arrow indicating compression or disassembly (no text or symbols present)

FIG 5

Simple line drawing of a gas stove with a lid and upward arrow (no text or symbols)

FIG 6

ENGLISH

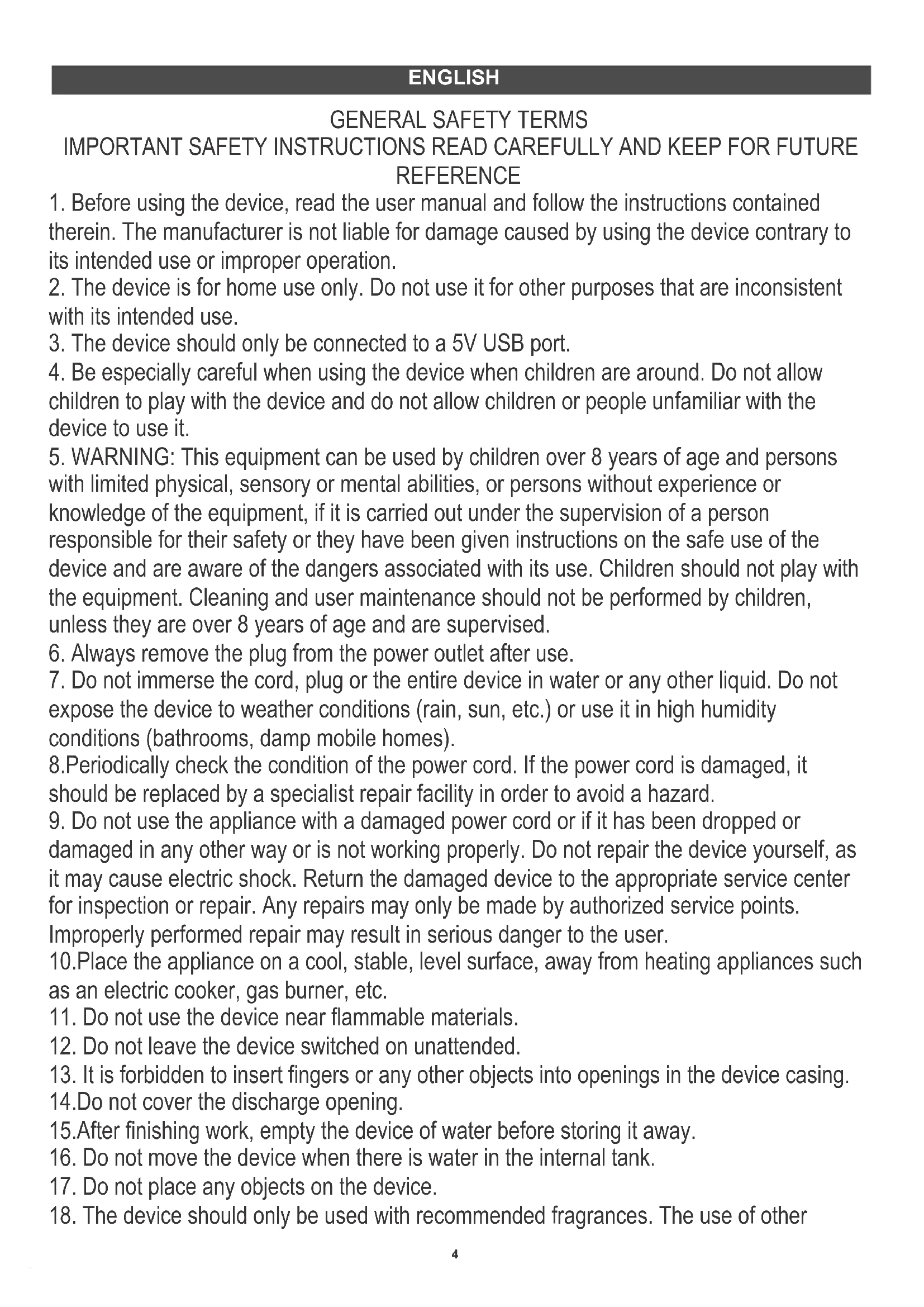

GENERAL SAFETY TERMS

IMPORTANT SAFETY INSTRUCTIONS READ CAREFULLY AND KEEP FOR FUTURE REFERENCE

1. Before using the device, read the user manual and follow the instructions contained therein. The manufacturer is not liable for damage caused by using the device contrary to its intended use or improper operation.
2. The device is for home use only. Do not use it for other purposes that are inconsistent with its intended use.
3. The device should only be connected to a 5V USB port.
4. Be especially careful when using the device when children are around. Do not allow children to play with the device and do not allow children or people unfamiliar with the device to use it.
5. WARNING: This equipment can be used by children over 8 years of age and persons with limited physical, sensory or mental abilities, or persons without experience or knowledge of the equipment, if it is carried out under the supervision of a person responsible for their safety or they have been given instructions on the safe use of the device and are aware of the dangers associated with its use. Children should not play with the equipment. Cleaning and user maintenance should not be performed by children, unless they are over 8 years of age and are supervised.
6. Always remove the plug from the power outlet after use.
7. Do not immerse the cord, plug or the entire device in water or any other liquid. Do not expose the device to weather conditions (rain, sun, etc.) or use it in high humidity conditions (bathrooms, damp mobile homes).
8. Periodically check the condition of the power cord. If the power cord is damaged, it should be replaced by a specialist repair facility in order to avoid a hazard.
9. Do not use the appliance with a damaged power cord or if it has been dropped or damaged in any other way or is not working properly. Do not repair the device yourself, as it may cause electric shock. Return the damaged device to the appropriate service center for inspection or repair. Any repairs may only be made by authorized service points. Improperly performed repair may result in serious danger to the user.
10. Place the appliance on a cool, stable, level surface, away from heating appliances such as an electric cooker, gas burner, etc.
11. Do not use the device near flammable materials.
12. Do not leave the device switched on unattended.
13. It is forbidden to insert fingers or any other objects into openings in the device casing.
14. Do not cover the discharge opening.
15. After finishing work, empty the device of water before storing it away.
16. Do not move the device when there is water in the internal tank.
17. Do not place any objects on the device.
18. The device should only be used with recommended fragrances. The use of other

substances may result in a toxic or fire hazard.

19. The device may only be used with efficient ventilation.

BEFORE FIRST USE

1. Keep in mind that high humidity levels can encourage the growth of biological organisms in the environment.
2. Do not allow the area around the device to become damp or wet. If moisture occurs, lower (reduce) the mist output. Do not allow absorbent materials such as carpets, curtains, tablecloths to get wet.
3. Place this device on a level surface. Do not place this product on a carpet, rug or other uneven place.
4. Do not place the device near electrical devices such as TV or sound equipment, etc. Do not let it spray directly on furniture, clothes or walls, etc.

Through the ultrasonic wave, the diffuser breaks the water and essential oil into fine particles, the resulting cold mist diffuses the fresh aroma.

WHICH OIL TO CHOOSE?

This aroma diffuser requires the use of water. There is no restriction on what kind of oil to add to the water, both essential oil/aroma oil/complex oils/fragrance water are suitable for use.

PRODUCT DESCRIPTION: AD7969 Ultrasonic Aroma Diffuser

A. Fog outlet B. Cover C. Water tank D. Air outlet
E. Power button F. Base G. Air inlet H. Micro-USB port

I. Chip that sprays ultrasonic waves

USEAGE

Place the device in the place of intended use and do not move it during use.

1. Place the device on a flat surface and remove the cover (B). (FIG.1)
2. Connect the Micro-USB cable to the Micro-USB socket (H) on the base (F). (FIG.2)

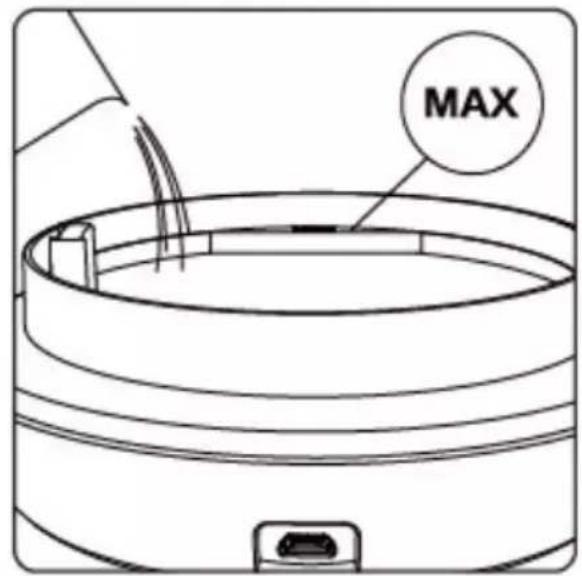

3. Using a measuring cup or a glass, fill the tank with tap water to the maximum water line. (FIG.3)
   Do not overfill the water tank, otherwise the mist production may be low.
   Do not use hot water. Never refill water during operation. Pour the essential oil vertically into the water tank. (FIG.4)
   The recommended dose for 70ml water tank is 2 drops.

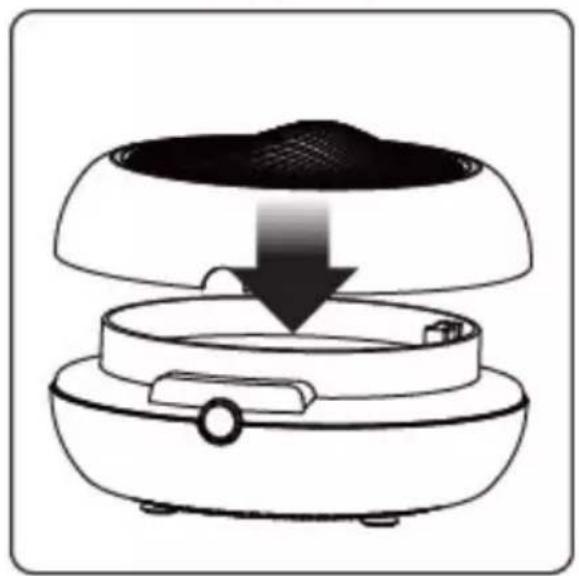

4. Put the cover (B) on the base. (FIG.5)

Note: The cover must be closed to use the product.

1. Connect the micro USB cable:

- to the USB power adapter you already have at home, then plug the power adapter into a power outlet or

- to the USB input of the computer / power bank.

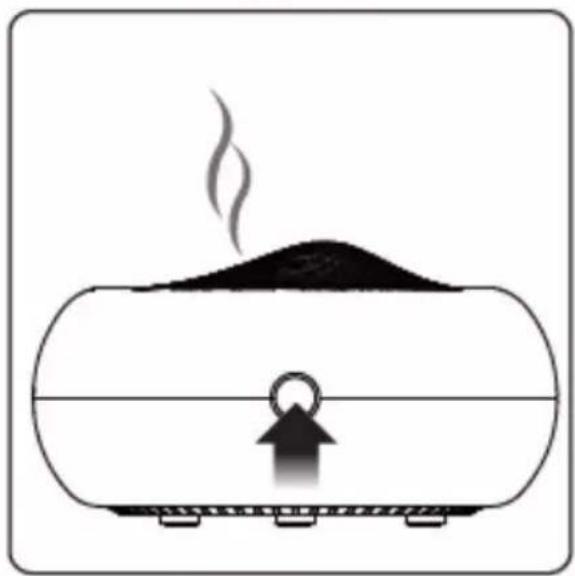

1. One button operation (E):

- First press: continuous mist with alternating 7 RGB LED colors.

- Second press: continuous mist with frozen last glowing color.

• Third press: Power off the device. (FIG.6)
• If there is no water in the water tank (C), the diffuser will be turned off automatically.
• The product cannot be used if there is no water in the tank (C).

NOTE: The mist concentration may vary slightly, which is normal. Different types of water, humidity, temperature and air velocity affect spray intensity.

1. Before replacing with another oil, please clean the device according to the maintenance instructions.
2. Never leave water in the tank (C) when the device is not in use.
3. After working for a long time, turn off the device for 60 minutes to avoid damaging the ultrasonic wave chip, and then restart it.

ACCIDENTAL LEAK

If you accidentally tip your device over while in use, follow these steps:

1. Turn off the power. Unplug the appliance and open the lid (B) to pour out all the remaining water from the water tank (C).
2. Gently shake the device to drain the internal water.
3. Air dry the device in a safe place for 24 hours.

DESCALING

If there is limescale build up in the aroma diffuser caused by water, you can add white vinegar to the water to dissolve the limescale, then rinse with water. Then use a soft cloth to wipe off the water. Never use strong cleaning agents.

TROUBLESHOOTING

If this product is not working normally, please follow these steps for self-troubleshooting before sending the return to the seller:

PROBLEM 1: The product automatically turns off one second after being turned on.

POSSIBLE CAUSE: Inadequate amount of water.

SOLUTION: Please add water to the water tank.

POSSIBLE CAUSE: The power adapter is not connected to the device.

SOLUTION: Make sure the power adapter is connected to the product. To check if the connection was successful, please remove the cable from the micro-USB socket and reconnect it

PROBLEM 2: No spray or abnormal spray

POSSIBLE CAUSE: Inadequate amount of water.

SOLUTION: Please add water to the water tank if there is not enough. If the water level inside the water tank is higher than the maximum water level mark, the mist will be sprayed irregularly, abnormally. Drain the water so that it is below the "MAX" level.

POSSIBLE CAUSE: Ultrasonic spray chip (I) is dirty.

SOLUTION: Please clean the water tank (C) and chip (I). Oils sometimes accumulate on the ultrasonic spray chip board.

POSSIBLE CAUSE: Lower air inlet holes (H) are dusty.

SOLUTION: If the air inlet holes (G) are dusty, the volume of air drawn in will be reduced significantly and the air momentum will not be enough to spray the mist. Clean the air intake.

PROBLEM 3: Leakage

POSSIBLE CAUSE: Lid (B) is not closed properly.

SOLUTION: Close the lid securely.

POSSIBLE CAUSE: Room temperature is too low or humidity is too high.

SOLUTION: If the temperature or humidity of the working environment is too low or too high, mist and water drops will accumulate on the

surface of the device. Turn off the device.

CLEANING AND MAINTENANCE

Please clean the device according to the steps below after each use:

1. When cleaning, disconnect the device from the power source.
2. Open the top cover (B), pour out all the remaining water from the water tank by gently shaking the device. Pour out any remaining water from the "DRAIN SIDE" of the water tank - (FIG. 7)
3. Dilute a little neutral kitchen detergent in warm water, then clean the appliance with a cloth.
4. If you notice dirt on the inside of the air outlet (D), remove the top cover (B) and clean it.
5. Please do not use medical diluent phenylethanol for maintenance, otherwise the product may be damaged.
6. If it is not used for a long time, pour out the remaining water from the water tank (C), and store it in a dry and cool place after cleaning.

Technical data:

Power supply: micro USB 5V --1A (5W)

Water tank volume: 70ml

Mist capacity: 7-15ml/hour

Ultrasonic frequency: 3.0MHz

To protect your environment: please separate carton boxes and plastic bags and dispose them in corresponding waste bins. Used appliance should be delivered to the dedicated collecting points due to hazarsous components, which may effect the environment. Do not dispose this appliance in the common waste bin.

DEUTSCH

VERSEHENTLICHES LECK

Rūko talpa: 7-15ml/val

Ultragarso dažnis: 3,0 Mhz

PROBLEMA 3: Scurgeri

OPĆI USLOVI SIGURNOSTI

VAŽNE SIGURNOSNE UPUTŠTVA PAŽLJIVO PROČITAJTE I SAČUVATE ZA BUDUĆU REFERENCU

1. Prije korištenja uređaja, pročitajte korisnički priručnik i slijedite upute sadržane u njemu. Proizvođač nije odgovoran za štefu uzrokovanu upotrebom uređaja suprotno njegovoj namjeni ili nepravilnim radom.
2. Uređaj je samo za kućnu upotrebu. Nemojte ga koristiti u druge svrhe koje nisu u skladu s njegovom namjenom.
3. Úrěđaj treba da bude povezan samo na 5V USB port.
4. Budite posebno oprezni kada koristite uređaj kada su djeca u blizini. Nemojte dozvoliti djeci da se igraju s uređajem i ne dozvolite djeci ili osobama koje nisu upoznate s uređajem da ga koriste.
5. UPOZORENJE: Ovu opremu mogu koristiti djeca starija od 8 godina i osobe sa ograničenim fizičkim, senzornim ili mentalnim sposobnostima, ili osobe bez iskustva ili znanja o opremi, ako se obavlja pod nadzorom osobe odgovorne za njihovu sigurnost ili su dobili upute o sigurnoj upotrebi uređaja i svjesni su opasnosti povezanih s njegovom upotrebom. Deca ne bi trebalo da se igraju sa opremom. Cišćenje i korisničko održavanje ne smiju obavljati djeca, osim ako su starija od 8 godina i pod nadzorom.
6. Nakon upotrebe uvijek izvucite utikač iž utičnice.
7. Ne uranjajte kabel, útikač ili cijeli uređaj u vodu ili bilo koju drugu tekućinu. Ne izlažite uređaj vremenskim uslovima (kiša, sunce, itd.) niti ga koristite u uslovima visoke vlažnosti (kupatila, vlažne mobilne kućice).
8. Povremeno proveravajte stanje kabla za napajanje. Ako je kabel za napajanje oštećen, treba ga zamijeniti u stručnom servisu kako bi se izbjegla opasnost.
9. Nemojte koristiti uređaj sa oštećenim kablom za napajanje ili ako je pao ili oštećen na bilo koji drugi način ili ne radi ispravno. Nemojte sami popravljati uređaj jer može izazvati strujni udar. Vratite oštećeni uređaj u odgovarajući servisni centar na pregled ili popravku. Bilo kakve popravke smiju vršiti samo ovlašteni servisi. Nepravilno obavljena popravka može dovesti do ozbiljne opasnosti za korisnika.
10. Postavite uređaj na hladnu, stabilnu, ravnu površinu, dalje od uređaja za grijanje kao što su električni štednjak, plinski gorionik itd.
11. Ne koristite uređaj u blizini zapaljivih materijala.
12. Ne ostavljajte uređaj uključen bez nadzora.
13. Zabranješo je ubacivanje prstiju ili drugih predmeta u otvore na kućištu uređaja.
14. Ne prekrivajte otvor za pražnjenje.
15. Po žavršetků rada ispražnite úređaj od vode prije nego što ga odložite.
16. Ne pomerajte uređaj kada ima vode u unutrašnjem rezervoaru.
17. Ne stavljajte nikakvé predmete na uređaj.
18. Uređaj treba koristiti samo sa preporučenim mirisima. Upotreba drugih supstanci može dovesti do toksičnosti ili opasnosti od požara.
19. Uređaj se smije koristiti samo uz efikasnu ventilaciju.

PRIJE PRVE UPOTREBE

1. Imajte na umu da visoki nivoi vlažnosti mogu potaknuti rast bioloških organizama u okolini.
2. Ne dozvolite da područje oko uređaja postane vlažno ili mokro. Ako dođe do vlage, smanjite (smanjite) izlaz magle. Nemojte dozvoliti da se upijajući materijali kao što su tepisi, zavjese, stolnjaci pokvase.
3. Postavite ovaj uređaj na ravnu površinu. Ne stavljaite ovaj proizvod na tepih, prostirku ili druga neravna mjesta.
4. Ne postavljajte uredaj blizu električnih uredaja kao što su TV ili zvučna oprema itd. Ne dozvolite da prska direktno na namještaj, odjeću ili zidove itd.

PRINCIP RADA

PROBLEEM 2: Geen spray of abnormale spray

"TYHJENNYSPUOLELLA" - (KUVA 7)

Mist capacity: 7-15 ml / hour

Ultrasonic frequency: 3,0 MHz
